2004 FANUC Arc Mate 100iB Articulated Robot, 6kg Payload, 1373mm Reach, RJ3iB Control

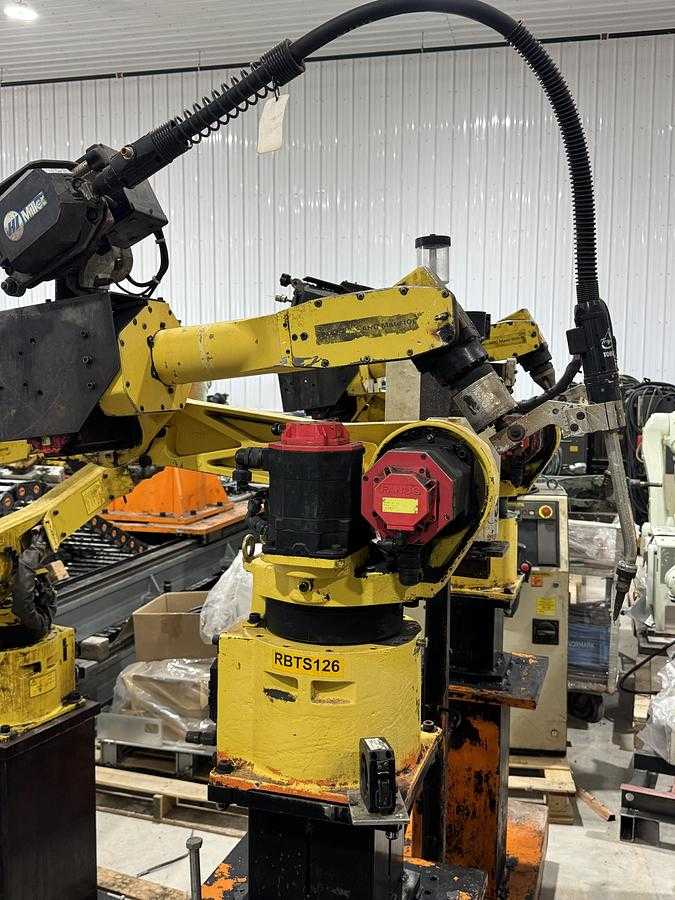

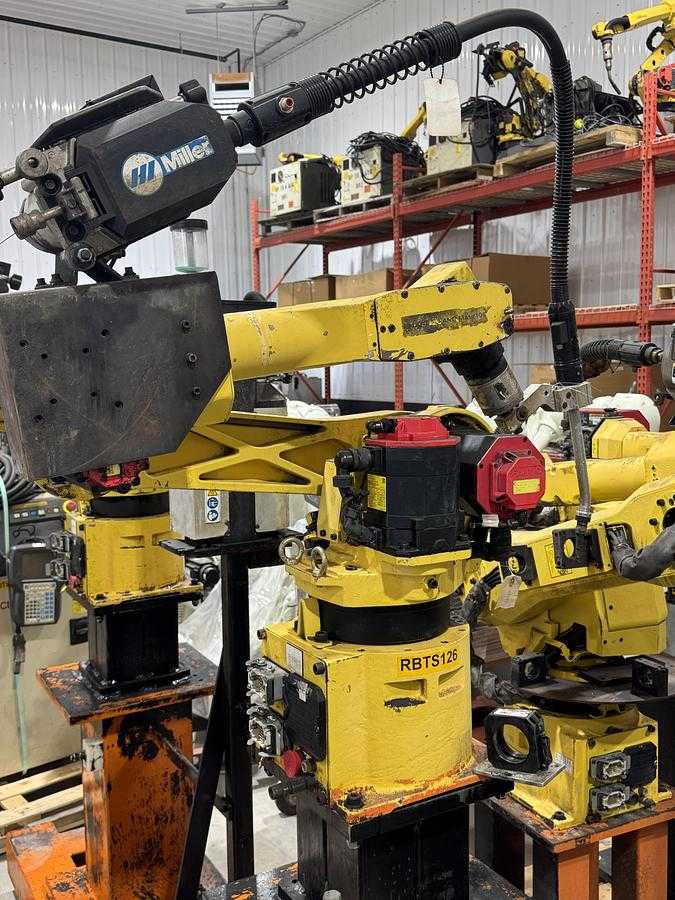

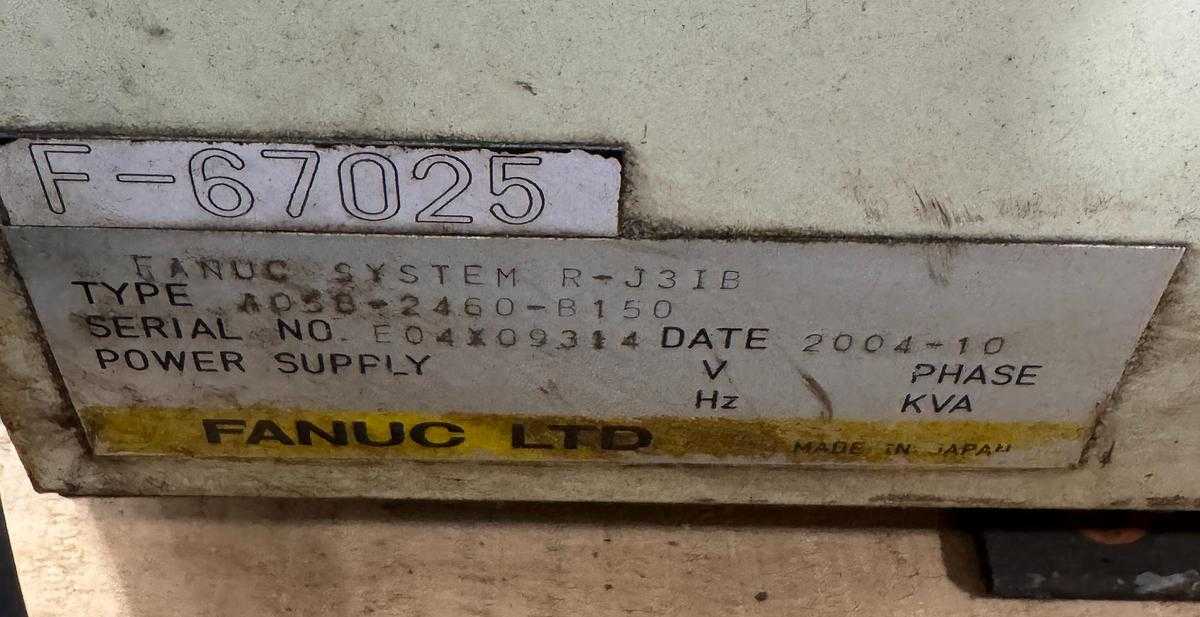

The 2004 FANUC Arc Mate 100iB is a six-axis, electric servo-driven articulated robot designed for high-speed welding and cutting applications. It features a 6 kg payload capacity, a 1373 mm reach, and a repeatability of 0.08 mm. The robot has a mass of 135 kg and supports floor, inverted, wall, and angle mounting. It is equipped with a FANUC RJ3iB controller, a teach pendant, and connection cables. The unit includes a Miller wire feeder and a welding torch. The robot’s design features narrow wrists for accessibility in confined spaces and internal routing for gas/air lines and wire feed motor cables to improve reliability. Motion speeds for the axes are J1 150°/s, J2 160°/s, J3 170°/s, J4 400°/s, J5 400°/s, and J6 520°/s. The motion range for the axes is J1 ±170°, J2 +160°/-90°, J3 +145°/-170°, J4 ±190°, J5 ±140°, and J6 ±360°. Primary applications include arc, MIG, TIG, orbital, plasma, and submerged arc welding, as well as plasma cutting and pick and place tasks. The system utilizes TurboMove advanced servo control for smooth point-to-point motion.
