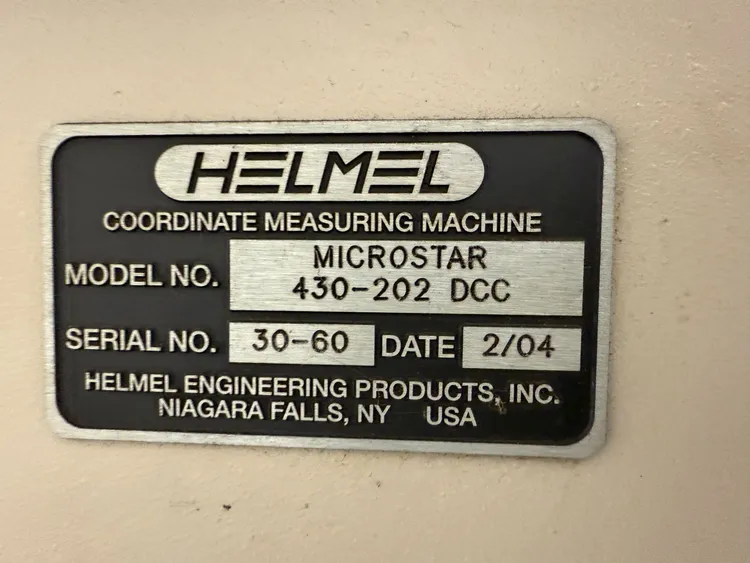

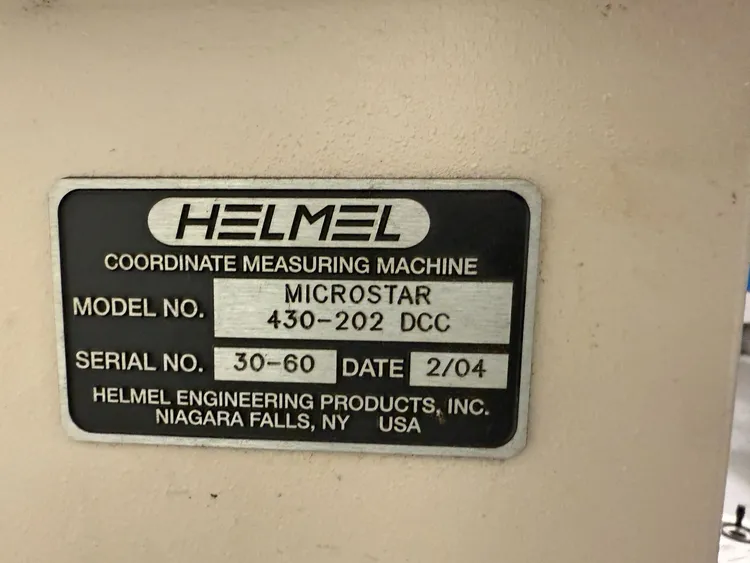

2004 HELMEL MICROSTAR 430-202 DCC COORDINATE MEASURING MACHINE

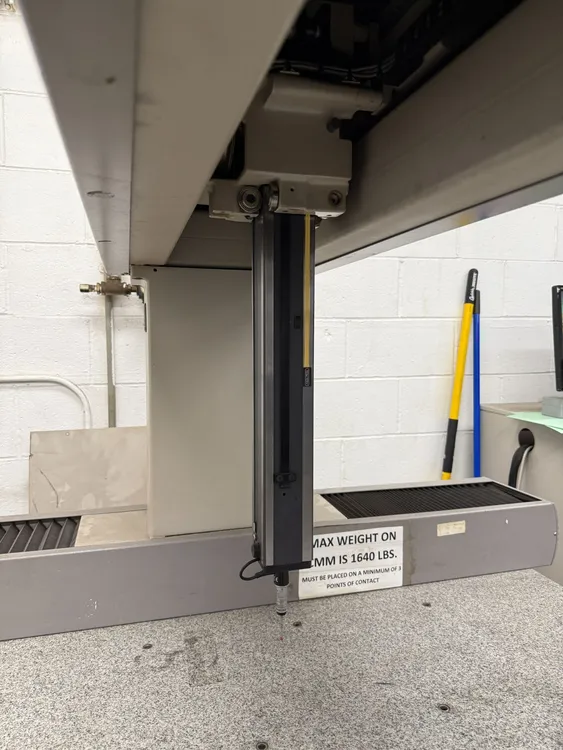

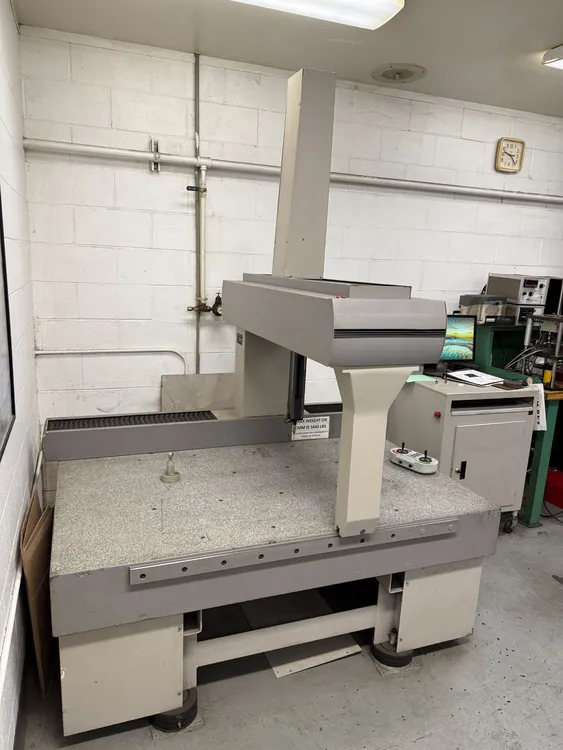

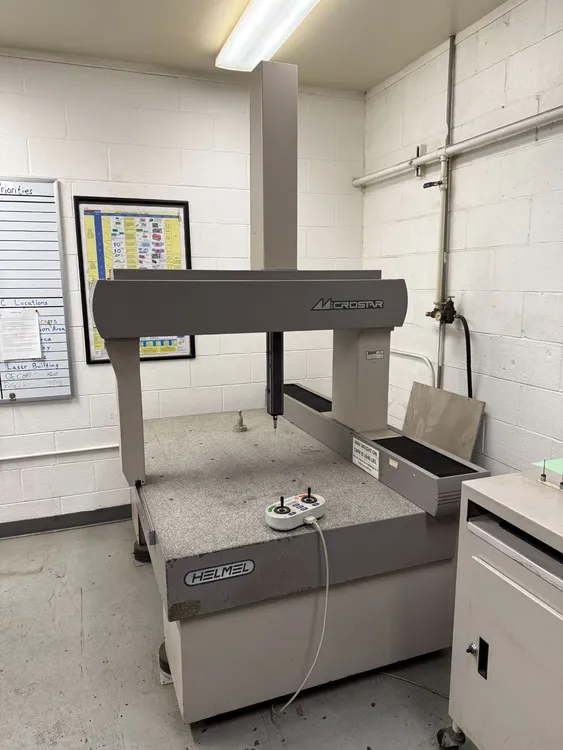

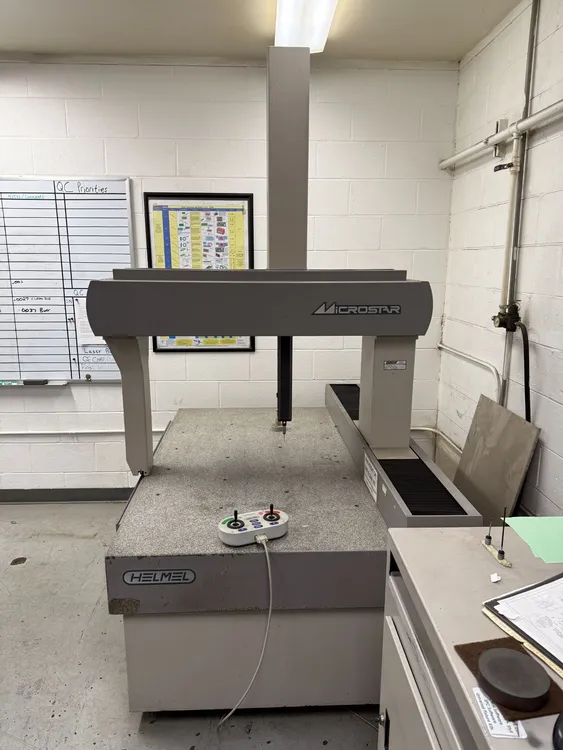

THE 2004 HELMEL MICROSTAR 430-202 DCC COORDINATE MEASURING MACHINE (CMM) IS BUILT ON A GRANITE WORKTABLE WITH A DUAL BEAM BRIDGE DESIGN, FEATURING PRECISION BEARINGS AND HARDENED AND GROUND WAYS. THE SYSTEM INCLUDES A DIE-CAST, RUGGED 3-AXIS JOYSTICK CONTROLLER, CUSTOM KEY LABELS, AND A USB COMPUTER INTERFACE CONNECTION. PERFORMANCE FOR THIS DIRECT COMPUTER CONTROLLED (DCC) MACHINE, WHEN MEASURING DYNAMICALLY WITH TOUCH TRIGGER PROBES, IS BASED ON ANSI B89.4.1A-1998 STANDARDS. THE CMM OFFERS A MAXIMUM SPEED OF 600MM/SEC (24"/SEC) AND AN ACCELERATION OF 1500MM/SEC² (60"/SEC²). FOR THE 430-202 MODEL SIZE, THE LINEAR ACCURACY IS 5.0 ΜM + L / 125 ΜM (L IN MM) OR 0.00020" + 0.000008" PER L (L IN INCHES). STANDARD CONFIGURATION TYPICALLY INCLUDES 3/8"-16 CLAMPING INSERTS (M10 OPTIONAL) AND AN ELECTRONIC TOUCH PROBE INTERFACE.
