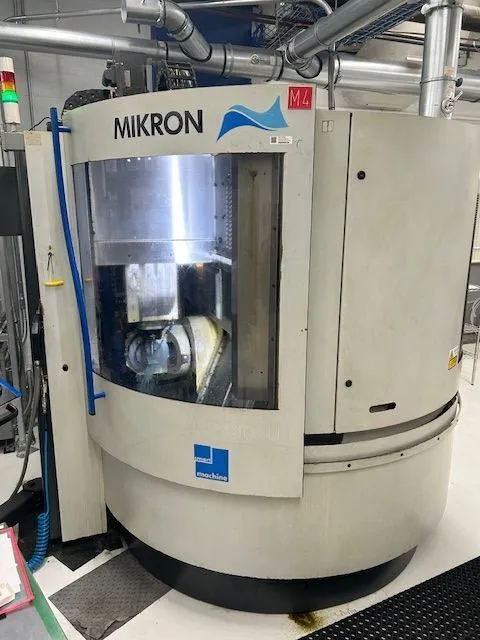

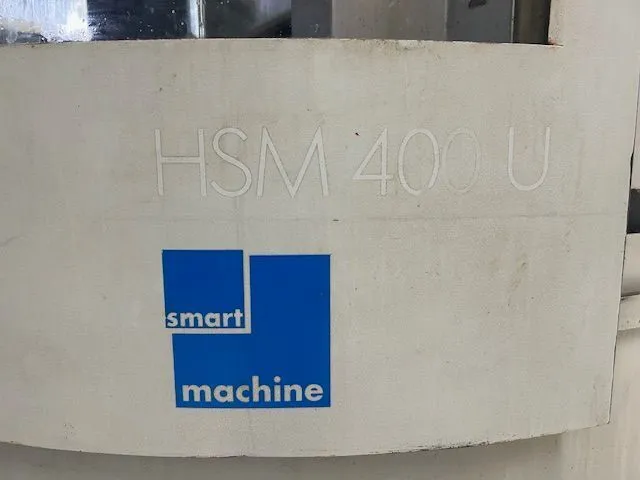

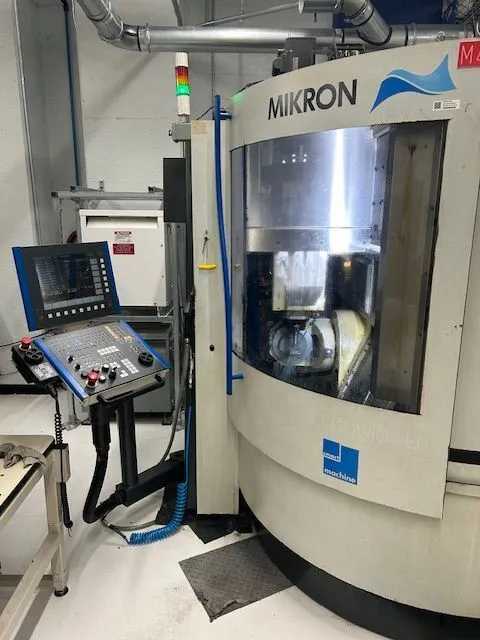

2004 Mikron HSM-400U Vertical Machining Center With Heidenhain Control & 5 Axes

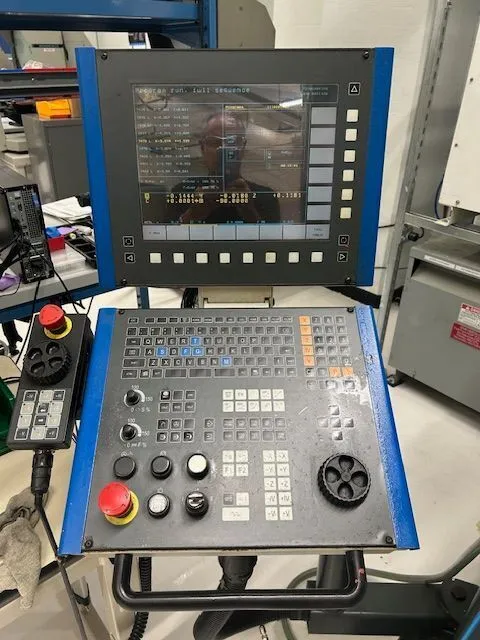

The Mikron HSM-400U is a 2004 model 5-axis vertical machining center designed for precision manufacturing operations. This used unit features machine travel dimensions of 15.723 inches along the X-axis, 9.434 inches along the Y-axis, and 13.758 inches along the Z-axis, enabling intricate multi-axis milling capability across five full axes. Powered by a 15 HP main motor, the machine is capable of achieving high-speed spindle performance up to 42,000 RPM. For automated tool management during complex machining cycles, it comes equipped with a 40-position automatic tool changer. Operation and motion control are managed via a Heidenhain iTNC 530 control system, delivering accurate execution for high-precision manufacturing applications. System options and configuration details include standard high-pressure coolant capability, while the machine is not equipped with a chip conveyor system. Operational metric tracking shows a total machine run time of 41,674 hours alongside 17,661 recorded spindle hours.
