Name | 2004 Toyoda Vertical Mill FA630 |
---|---|
Aucto ID | 377 |
Manufacturer | Toyoda |
Model | FA360 |
Attachments | FA630: FA630: FA630: FA630: FA630: FA630: FA630: |

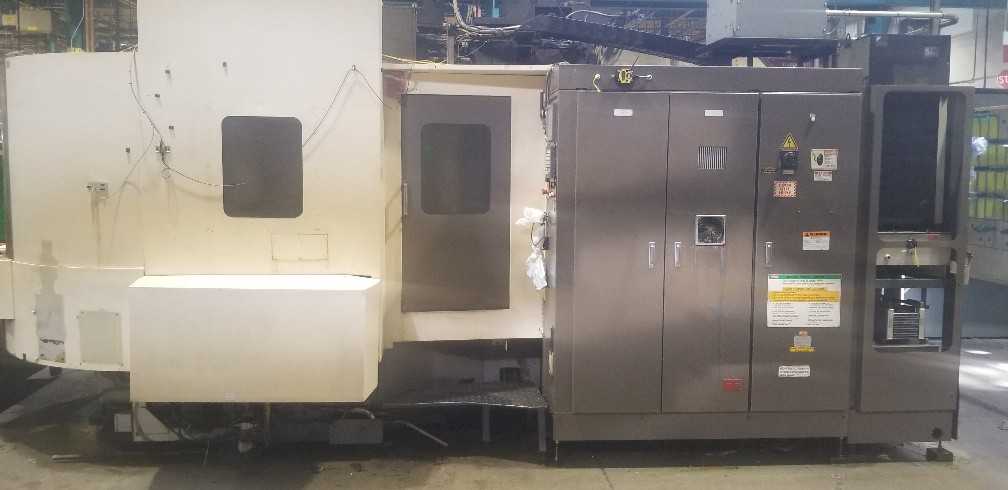

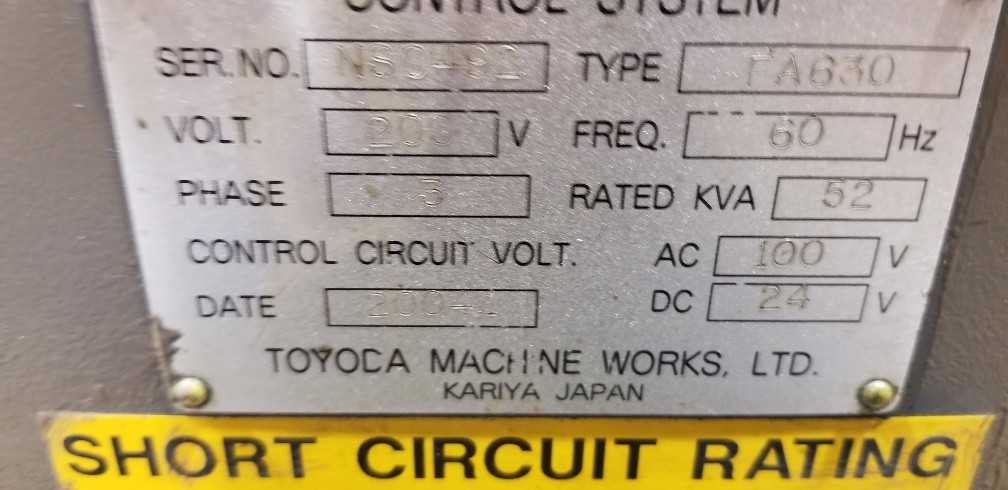

Additional Info | 2004 Toyoda Vertical Mill FA630 - SN: NS0492
This FA630 is a heavy-duty horizontal machining center with a robust column and bed, box guideways, and powerful spindle with machining accuracy.
Specifications
Pallet Size 24" x 24"
Table Index Rotary table (1 degree)
X-Axis Travel 39.5"
Y-Axis Travel 33.5"
Z-Axis Travel 29.5"
Spindle Nose To Table Center 7" – 36"
Spindle Nose To Pallet Top 1.97 – 35.4”
Maximum Work Load on the Pallet 2,860 lb (1,300 kg)
Rapid Traverse (X, Y, Z axes) 1,181 ipm (30 m/min)
Tool Storage Capacity 40
Standard Floor Space 144" x 226" (3,660 mm x 5,750 mm)
Machine Height 143" (3,630 mm)
Standard Net Weight 35,200 lb (16,000 kg) |
