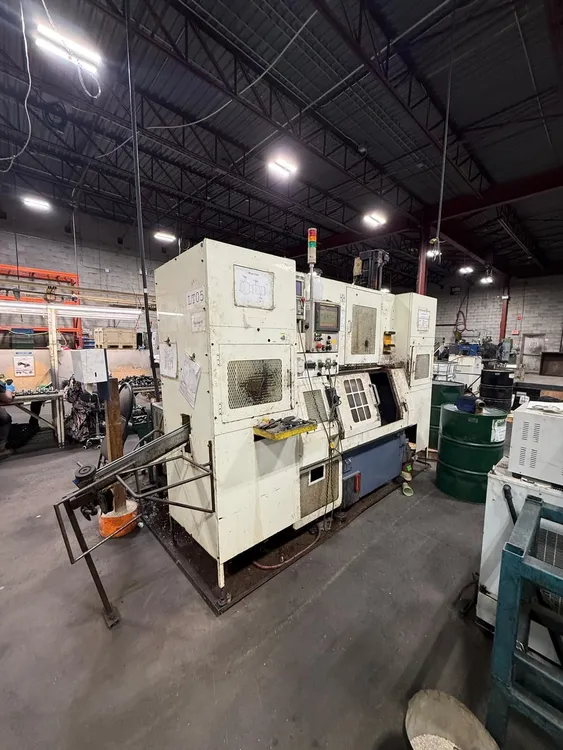

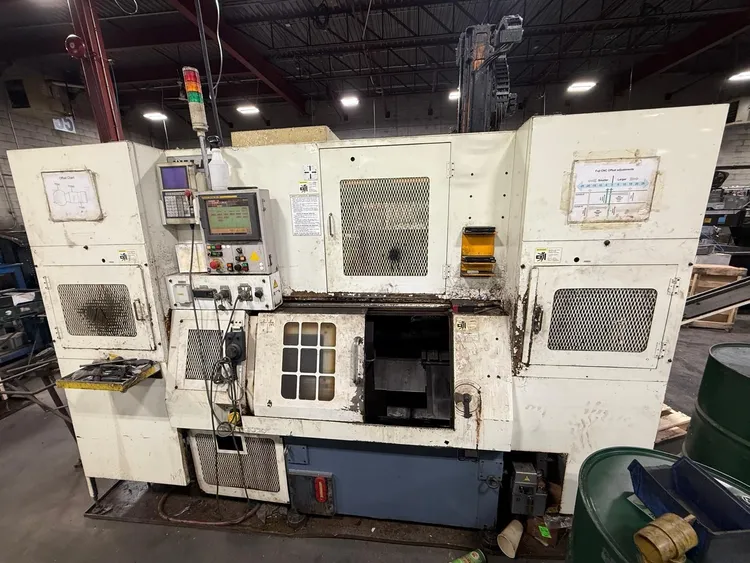

2005 FUJI FS-4 CNC LATHE

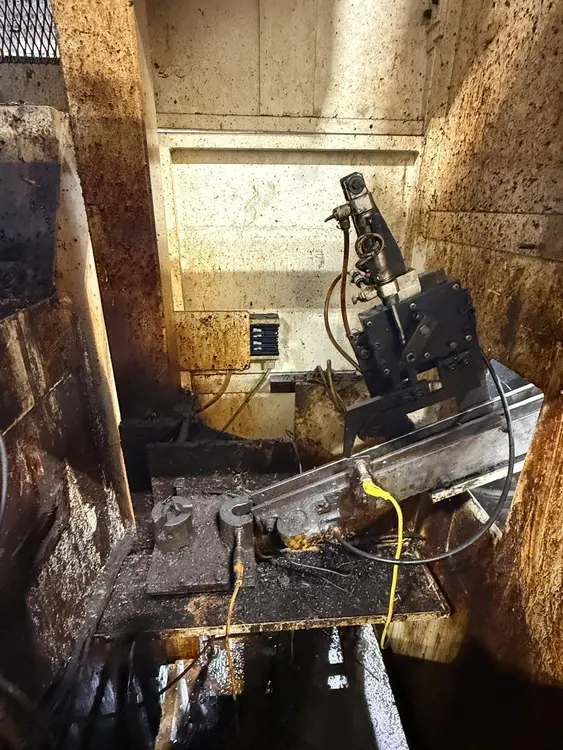

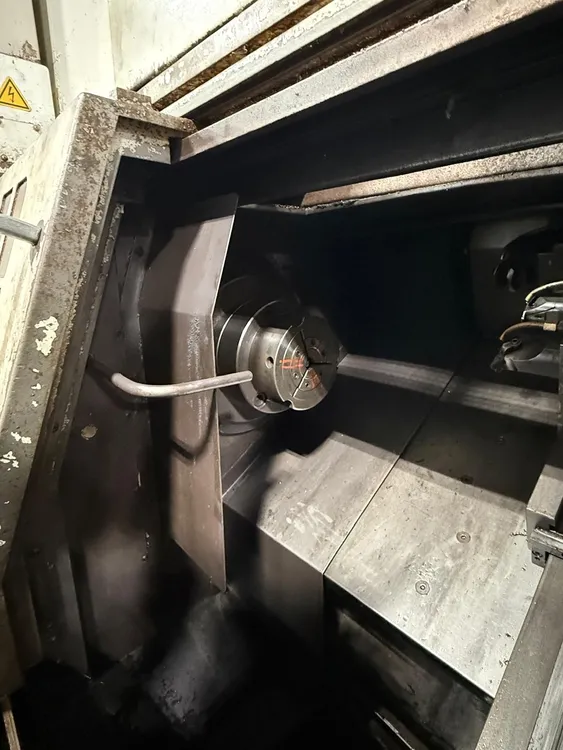

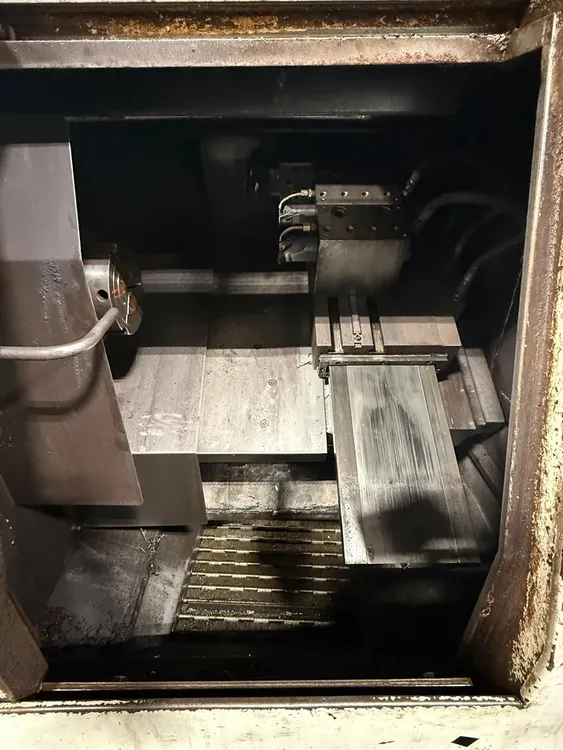

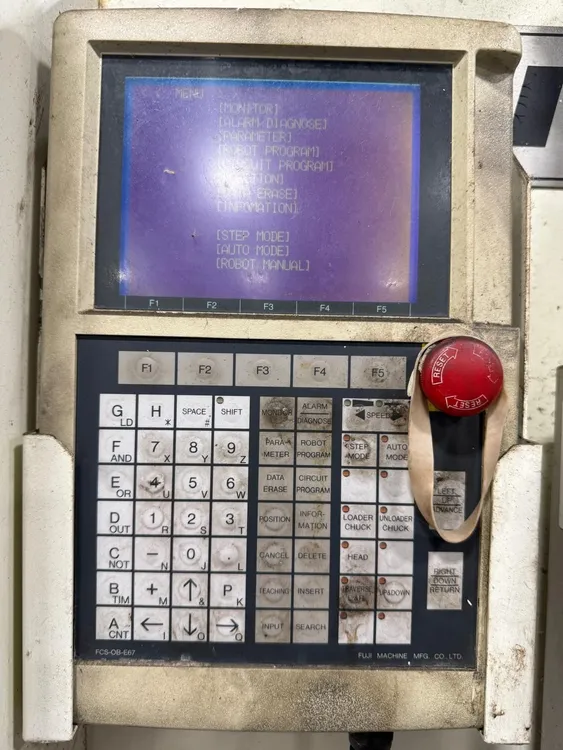

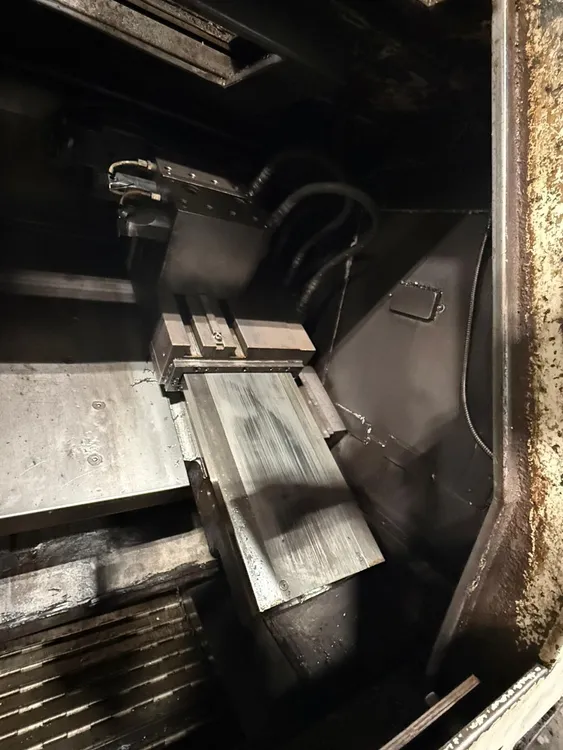

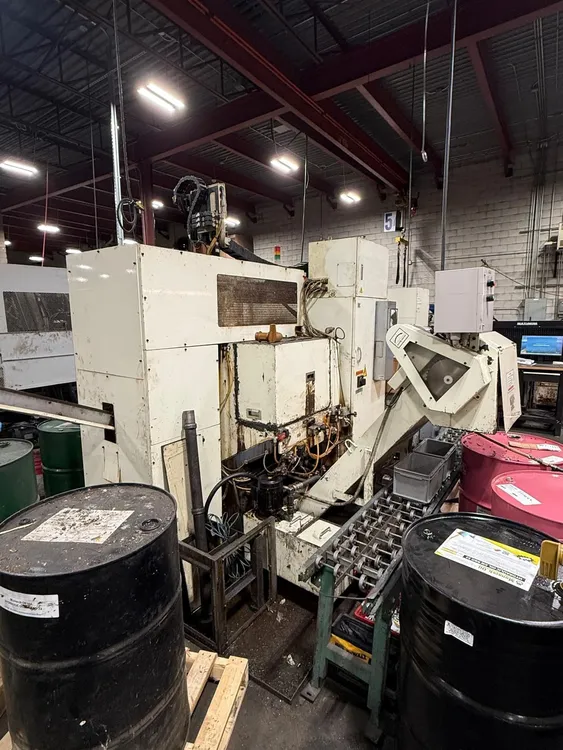

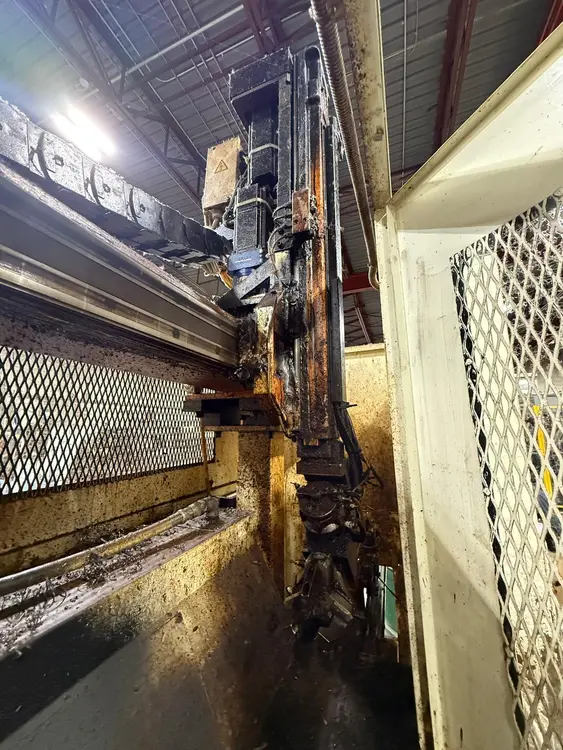

THE FUJI FS4/FS4-3100 CNC LATHE IS A COMPACT, HIGH-PRODUCTIVITY NC SINGLE-PURPOSE MACHINE DESIGNED FOR MASS PRODUCTION OF RING-SHAPED WORKPIECES. THIS GANG-STYLE CNC LATHE FEATURES A HIGH-POWER SPINDLE MOTOR, GANG-TOOL TOOLING TO REDUCE NON-CUTTING TIME AND INCREASE RIGIDITY, AND A HIGH-SPEED L35-08H ROBOT LOADER WHICH ALLOWS FOR NON-STOP LOADING AND UNLOADING IN APPROXIMATELY 2.5 SECONDS. KEY SPECIFICATIONS INCLUDE A RECOMMENDED WORK SIZE OF Ø100 X 60 MM (Ø4 X 2.3 INCH), A MAXIMUM SPINDLE SPEED OF 4000 RPM, AND A SPINDLE MOTOR OUTPUT OF 7.5/11 KW (10/15 HP). IT HAS AN 8-INCH CHUCK SIZE, A2-6 SPINDLE NOSE, AND A SPINDLE BORE OF Ø56 MM (2.2 INCH). THE MACHINE UTILIZES A FANUC 21I-TB CNC CONTROL. SLIDE STROKES ARE 300 MM (11.81 INCHES) FOR THE X-AXIS AND 270 MM (10.63 INCHES) FOR THE Z-AXIS. THE TOTAL MACHINE SIZE IS APPROXIMATELY 1100 MM X 1675 MM (3'7" X 5'6") AND THE MACHINE WEIGHT IS AROUND 2500 KG (5500 LBS).
