2005 ROTO FINISH SPIRATRON ERC-0405 VIBRATORY FINISHER 5 C/FT 230V 3PH 3000LB

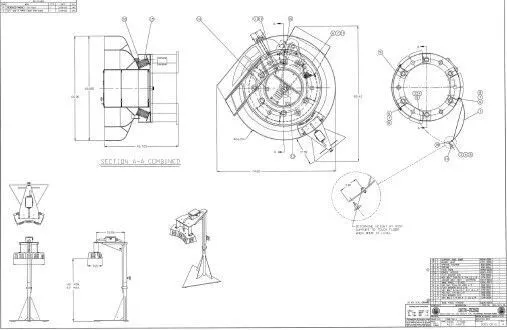

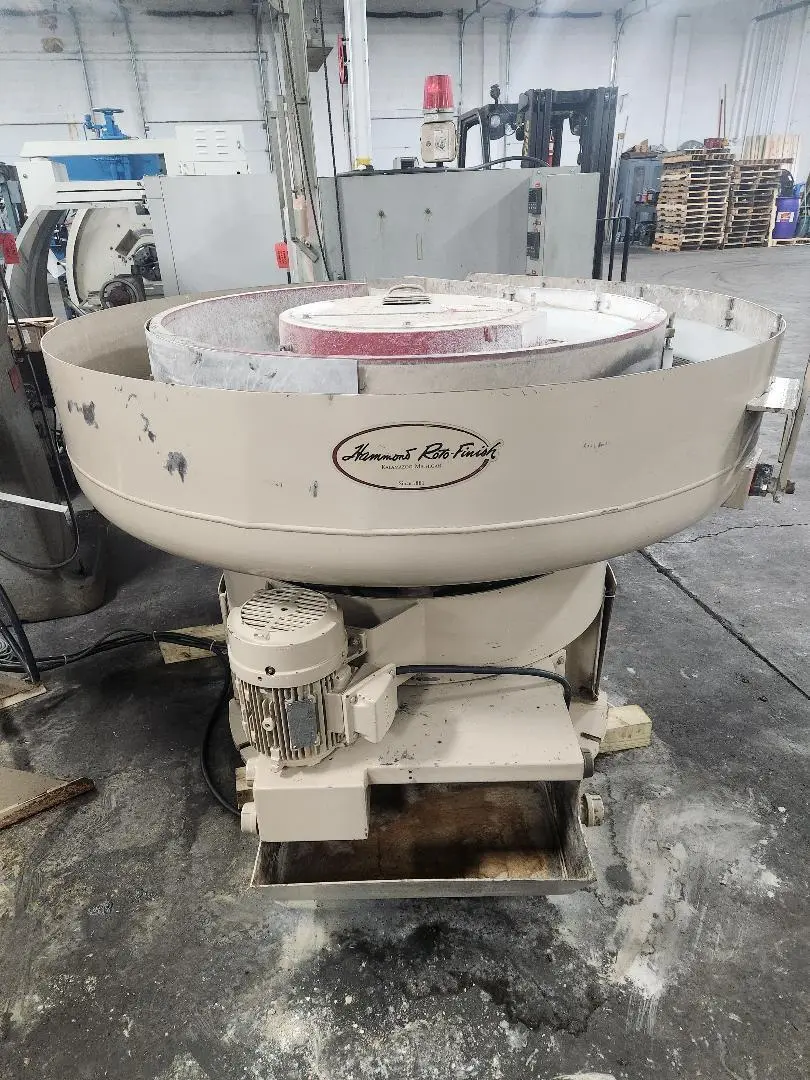

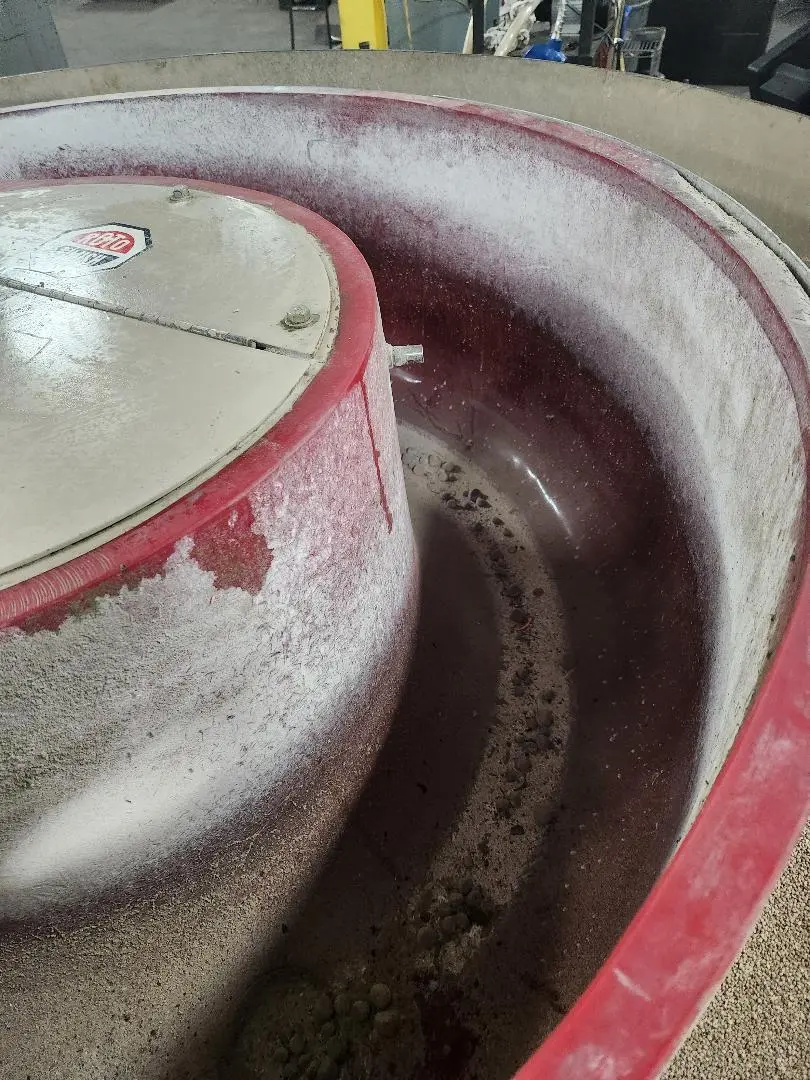

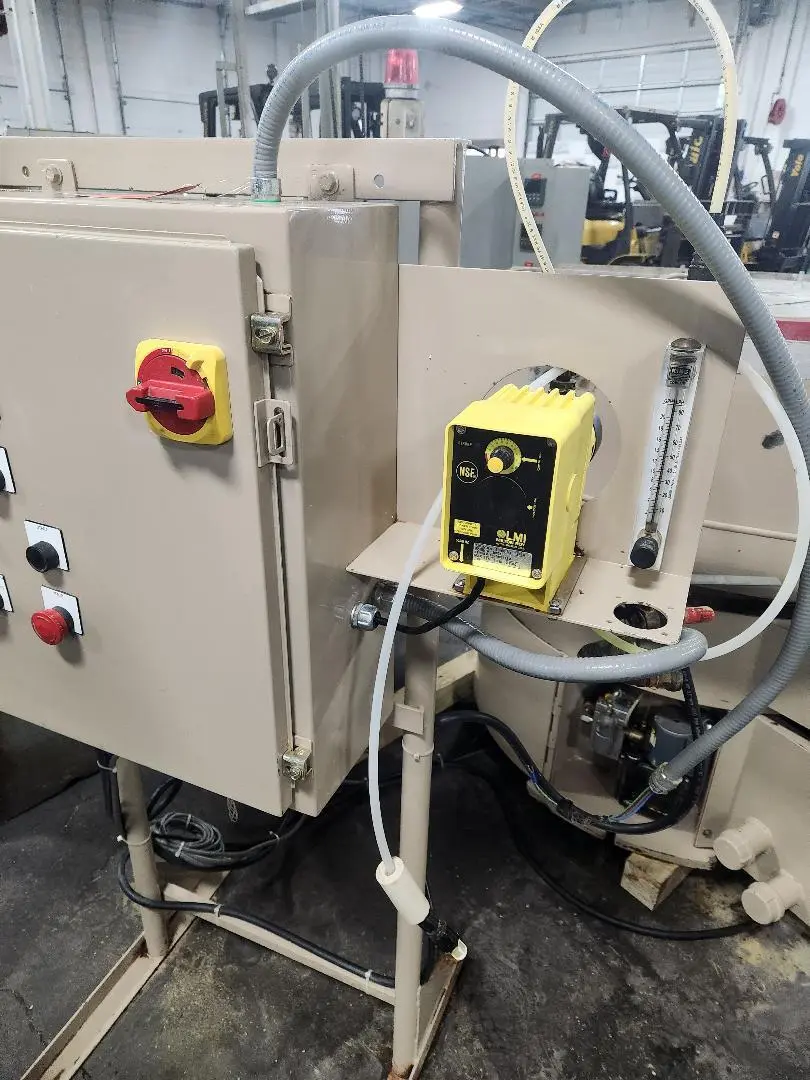

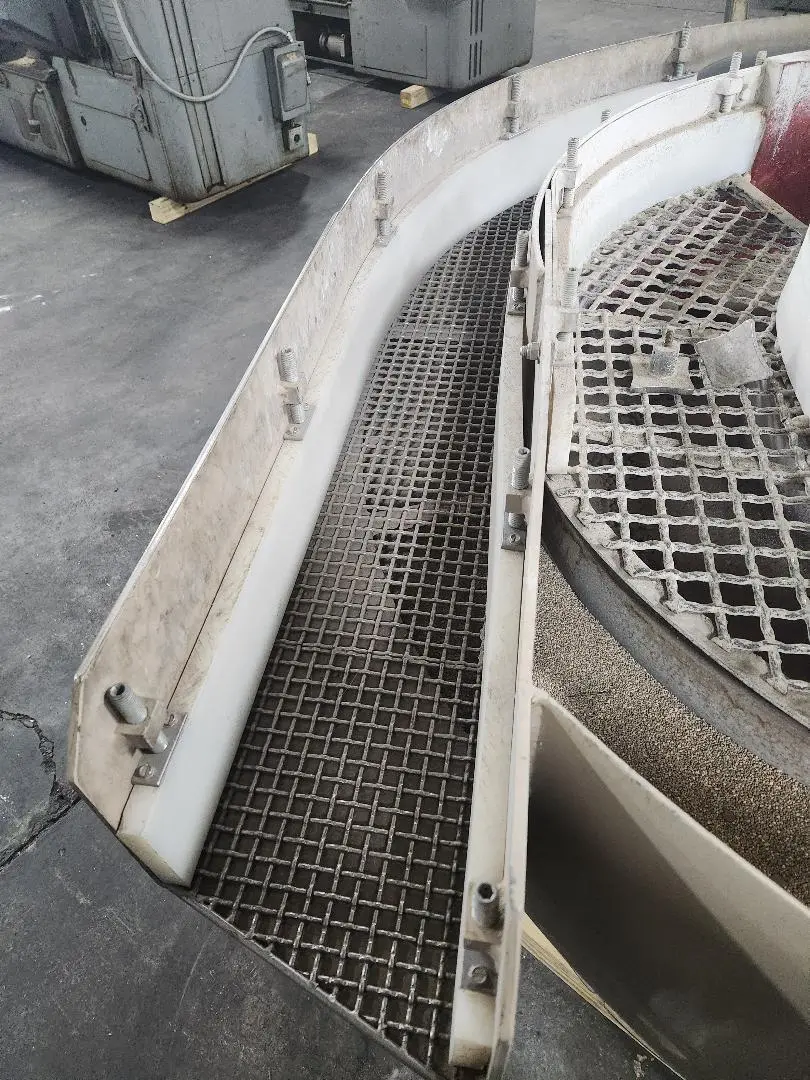

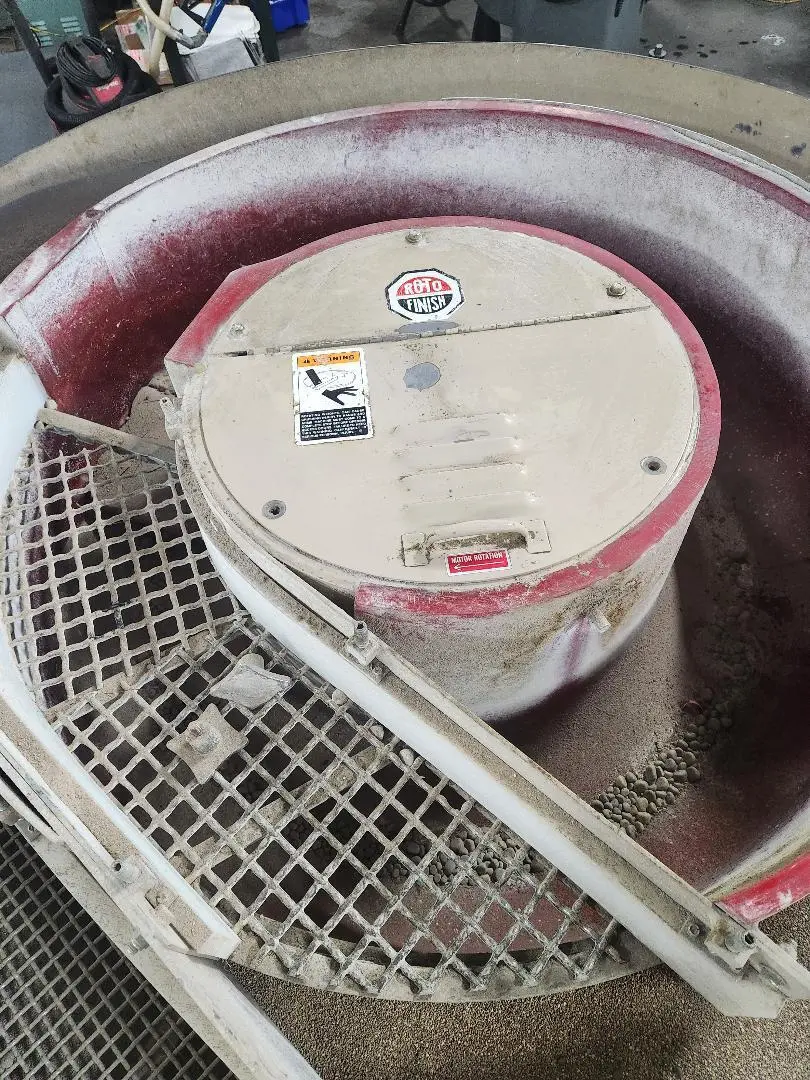

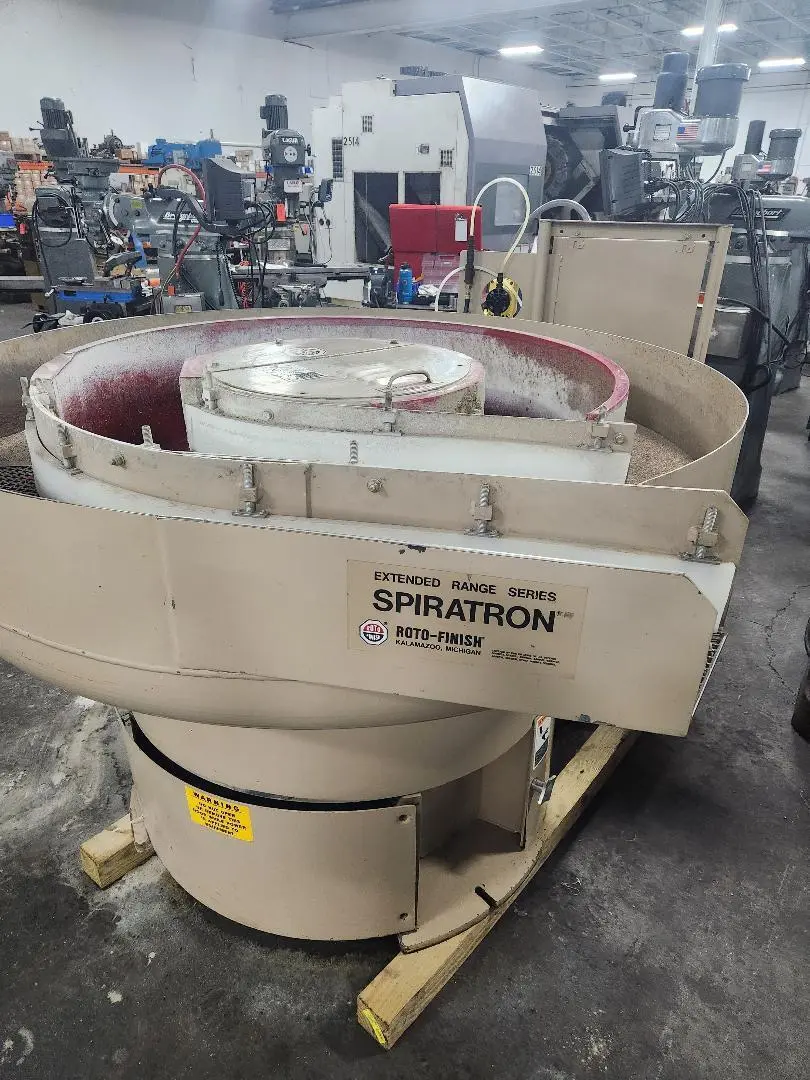

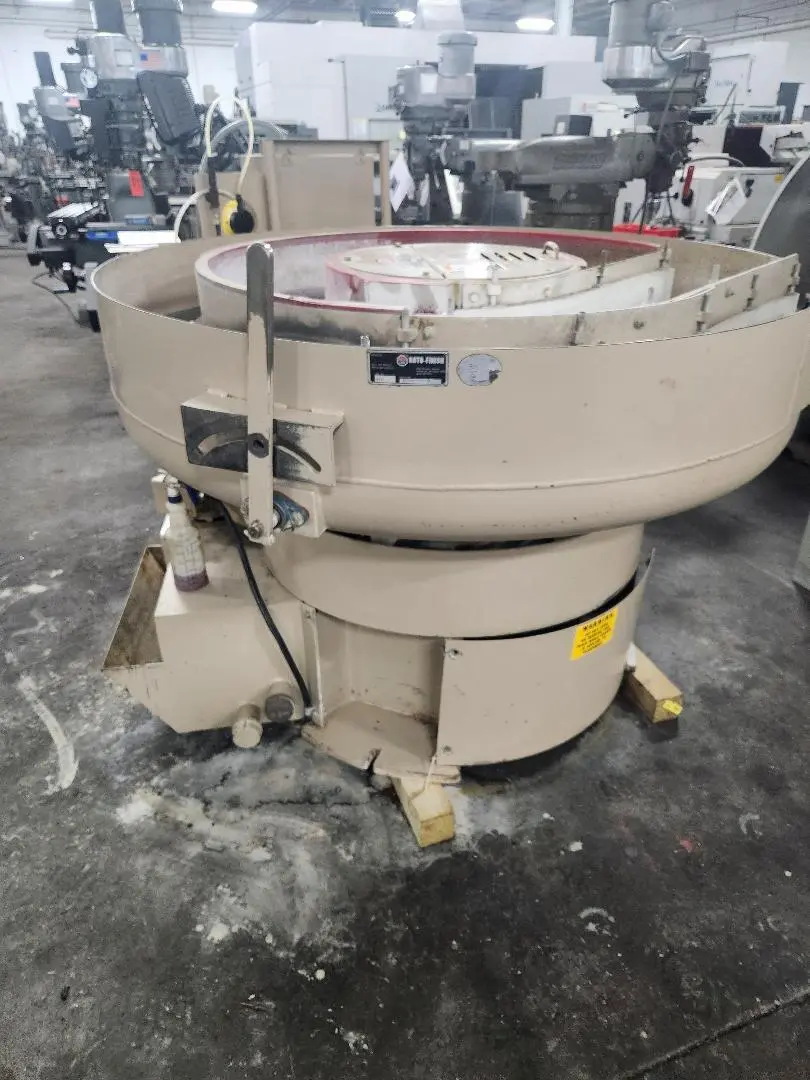

THE ROTO FINISH SPIRATRON ERC-0405 VIBRATORY FINISHER, MANUFACTURED IN 2005, IS A 5 C/FT CAPACITY MACHINE WIRED FOR 230 V 3 PHASE OPERATION, WEIGHING 3000 LBS. ITS HEAVY-DUTY WELDED STEEL CONSTRUCTION FEATURES A CAST POLYURETHANE LINER. KEY DIMENSIONS INCLUDE AN OVERALL DIAMETER OF 48.7 INCHES, AN OVERALL HEIGHT OF 46.5 INCHES, AND A PROCESS CHANNEL WIDTH OF 10.2 INCHES. THE CENTER COLUMN DIAMETER IS 26.0 INCHES, AND THE BASE DIAMETER IS 47 INCHES. IT FEATURES AN INTEGRATED SCREEN DECK WITH AN 8-INCH WIDTH AND 39-INCH HEIGHT, AND IS EQUIPPED WITH THREE 4-INCH DRAINS. TECHNICAL FEATURES INCLUDE AN ADJUSTABLE, DROP-ON ECCENTRIC WEIGHT SYSTEM FOR VIBRATION AMPLITUDE CONTROL AND A CARTRIDGE DRIVE WITH A CONTINUOUSLY MONITORED OIL RECIRCULATION AND A COMPOUND METERING SYSTEM. THE UNIT IS DESIGNED FOR PROCESSING METAL, CERAMIC, AND PLASTIC MEDIA.
