2005 TOSHIBA 800 TON HIGH PRESSURE DIE CAST LINE

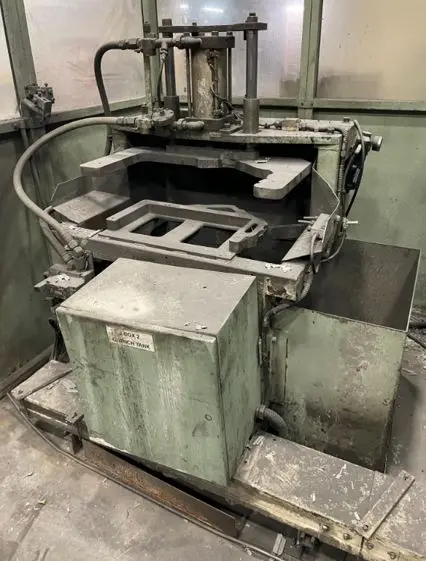

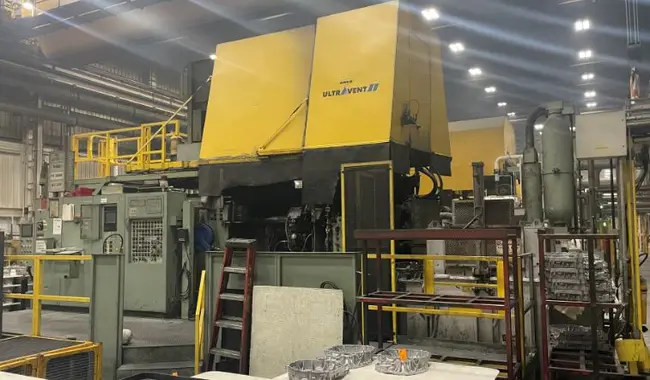

The Toshiba 802 Die Cast Machine is a high-pressure die casting machine used for producing metal parts by forcing molten metal into a mold cavity under high pressure. This particular model is a cold chamber die casting machine, which is typically used for casting metals with high melting points, such as aluminum and magnesium. Toshiba 802 Die Cast Machine2: Rated Tonnage: 800 metric tons Platen Dimensions: 55.12 x 55.12 inches (1400 x 1400 mm) Space Between Tie Bars: 36.6 x 36.6 inches (930 x 930 mm) Tie Bar Diameter: 7.09 inches (180 mm) Die Stroke: 29.9 inches (760 mm) Die Thickness (min. - max.): 15.75 - 37.4 inches (400 - 950 mm) Injection Force: 67.24 - 26.46 tons (61 - 24 tons) Motor Size: 60.3 HP (45 kW) Machine Weight: 43 tons (39 tons) The machine is equipped with various automated features, such as an automatic ladle, die sprayer, and parts extractor, making it suitable for high-volume production This line includes: 1. 2017 KMA ULTRA VENT II 8000 Smoke Containment Hood 2. 2005 Schaefer Group HTM14-0365 800 Ton 2 VB DCM Furnace 3. 2005 Toshiba DC800J-MS Trim Press 4. NOTA Overflow Cutter by Shibaura Machine Company America
