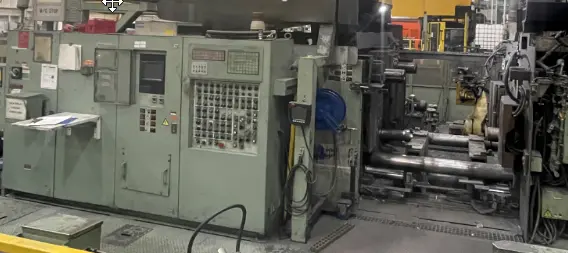

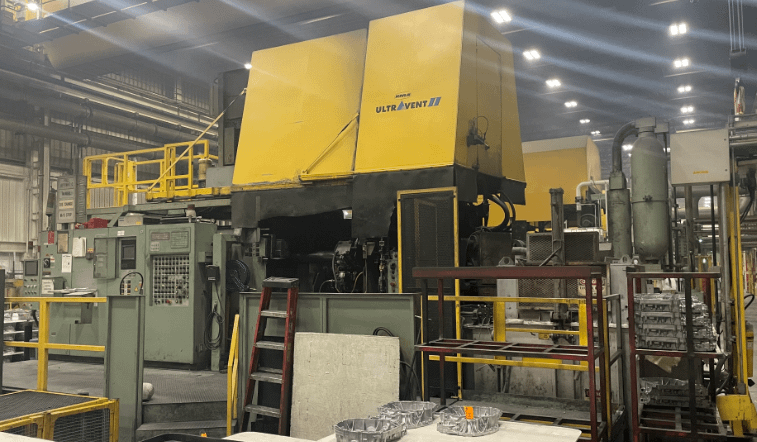

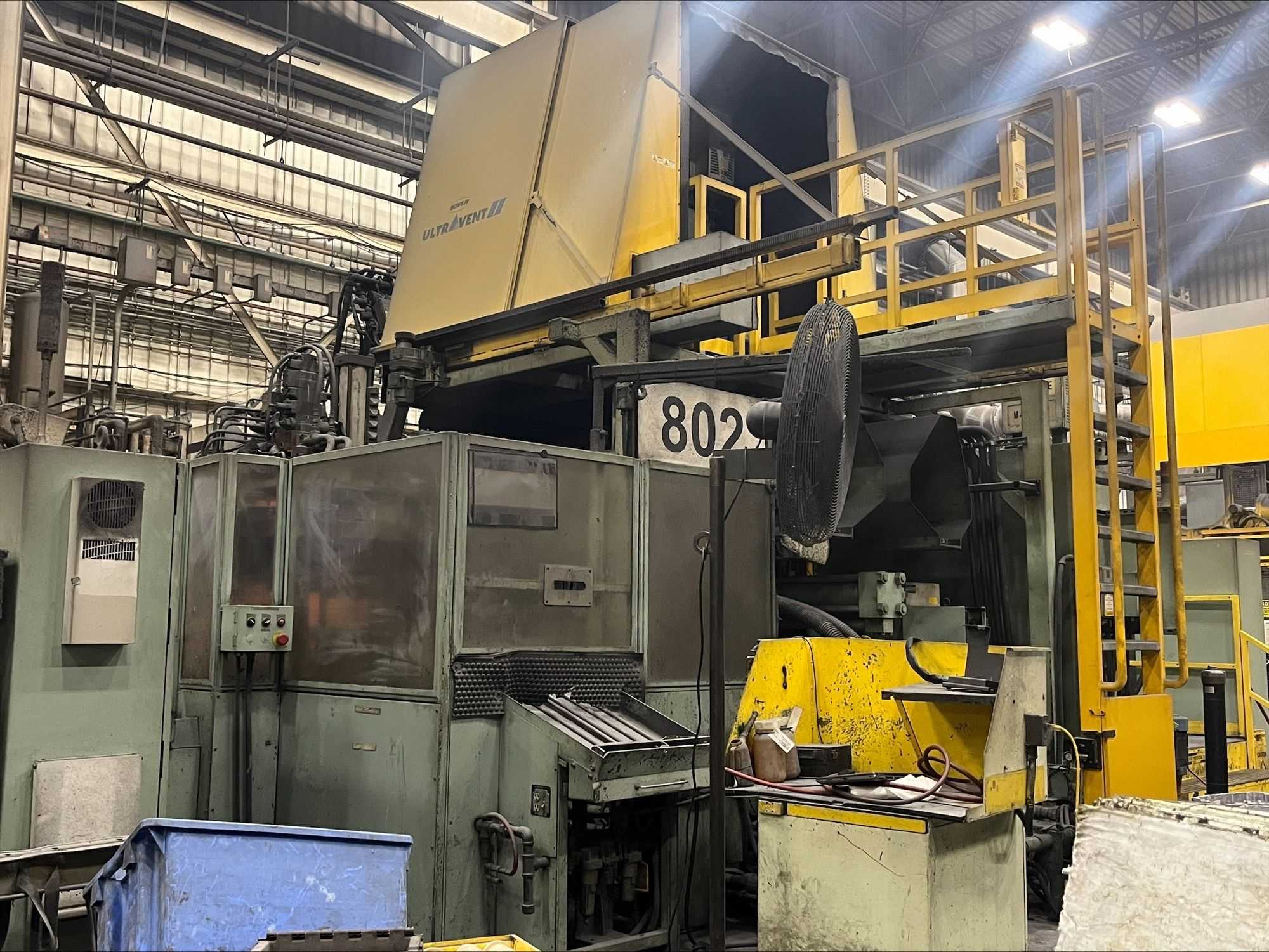

2005 TOSHIBA DC800J-MS HIGH PRESSSURE 800 TON DIE CASTING MACHINE

INCLUDES: 802 DIE CAST MACHINE TOSHIBA 802 INJECTION TOSHIBA 802 VACUUM SYSTEM TOSHIBA 802 ELECTRICAL CONTROL PANEL TOSHIBA - TOSCAT INTERFACE 802 LADLE TOSHIBA - DAL 800SVSH 802 SPRAY SYSTEM TOSHIBA - A74752G01 802 DIE CLAMPS TOSHIBA 802 TIE BARS TOSHIBA 802 EJECTOR TOSHIBA 802 DIE REST TOSHIBA 802 AUTO JOINTS TOSHIBA LUBRICATION PUMP FOR COOLING H40014G01 PLUNGER LUBRICATOR DPL2ONN Rated Tonnage: 800 metric tons Platen Dimensions: 55.12 x 55.12 inches (1400 x 1400 mm) Space Between Tie Bars: 36.6 x 36.6 inches (930 x 930 mm) Tie Bar Diameter: 7.09 inches (180 mm) Die Stroke: 29.9 inches (760 mm) Die Thickness (min. - max.): 15.75 - 37.4 inches (400 - 950 mm) Injection Force: 67.24 - 26.46 tons (61 - 24 tons) Motor Size: 60.3 HP (45 kW) Machine Weight: 43 tons (39 tons) The machine is equipped with various automated features, such as an automatic ladle, die sprayer, and parts extractor, making it suitable for high-volume production The Smoke Containment Hood can be sold with unit or separately. DOES NOT INCLUDE: TAKEOUT ROBOT
