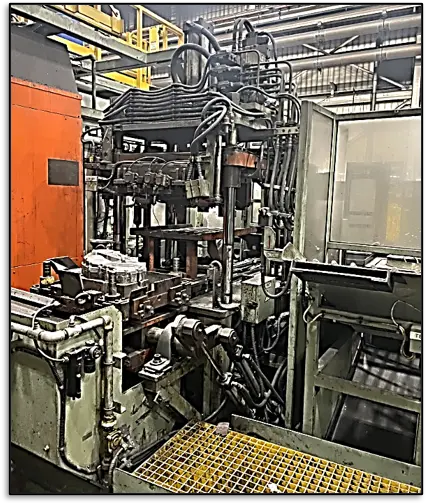

2005 TOSHIBA DC800J-MS TRIM PRESS

INCLUDES: 802 QUENCH TOSHIBA 802 TRIM PRESS TOSHIBA Die Locking Force: 8,000 kN (approximately 800 metric tons) Injection Speed: 0.05 to 6.5 meters per second Tie-Bar Spacing: 930 mm x 930 mm Mold Thickness Range: 400 mm to 950 mm Mold Travel (Opening Stroke): 760 mm Press is a high-capacity, fully automated trim press used in die casting operations. This machine is designed to trim excess material from cast parts, ensuring they meet precise specifications and quality standards. Key features of the Toshiba DC800J-MS Trim Press include: • Rated Tonnage: 800 metric tons • Platen Dimensions: 55.12 x 55.12 inches (1400 x 1400 mm) • Space Between Tie Bars: 36.6 x 36.6 inches (930 x 930 mm) • Tie Bar Diameter: 7.09 inches (180 mm) • Die Stroke: 29.9 inches (760 mm) • Die Thickness (min. - max.): 15.75 - 37.4 inches (400 - 950 mm) • Injection Force: 67.24 - 26.46 tons (61 - 24 tons) • Motor Size: 60.3 HP (45 kW) • Machine Weight: 43 tons (39 tons) The machine is equipped with various automated features, such as an automatic ladle, die sprayer, and parts extractor, making it suitable for high-volume production.
