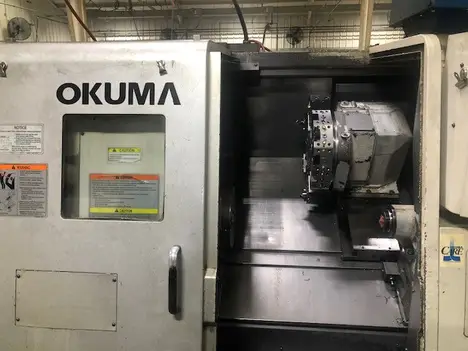

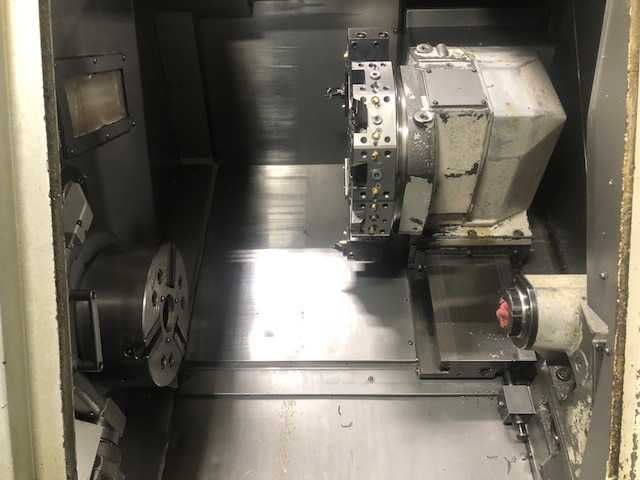

2006 Okuma Captain L370 CNC Turning Center
Tender
Verified Seller
Tender Lot Ended
Ends in:(06/17/2020, 9:30 PM UTC)
Location:
Logistics:
Rigging:
Loading:
Shipping:
Preview
Automatics & Machinery
Selling since 2017View Store
Description
Terms
| Name | 2006 Okuma Captain L370 CNC Turning Center |
|---|---|
| Aucto ID | 2 |
| Manufacturer | Okuma |
| Model | Captain L370 |
| Additional Info | General Specifications As Per Brochure
Equipped With:
OSP CNC Control
Tailstock
Main Spindle:
Max. Bar Capacity: 2"
Chuck Size: 10"
Distance Between Centers: 19.68"
Max. Swing Over Bed: 20.7"
Max. Swing Over Carriage: 16.54"
Max. Turning Diameter: 15.56"
Max. Turning Length: 20.47"
Headstock Spindle:
Nose: A2-6
Bore: 2.44"
Speed: 4500 RPM
Motor: 20 HP
Sub-Spindle:
Max. Turning Diameter: 10.24"
Max. Turning Length: 9.84"
Nose: JIS140
Speed: 6000 RPM
Motor: 10 HP
Travel:
X-Axis: 10.23"
Z-Axis: 20.47"
Rapid Traverse Rate:
X-Axis: 787 IPM
Z-Axis: 984 IPM
Turret Tool Capacity: 12
Rotary Tool: 7.5 HP
Rotary Tool Speed: 5000 RPM
Quill Diameter: 3.54"
Quill Stroke: 4.72"
Quill Taper: MT#5
Machine Dimensions: 107" x 70" x 86"
Machine Weight: 9900 Lbs. |
