2006 SUNNEN SV-210 CNC VERTICAL HONE 3/4"-8" ID 2000 LBS MAX WT 30" STROKE

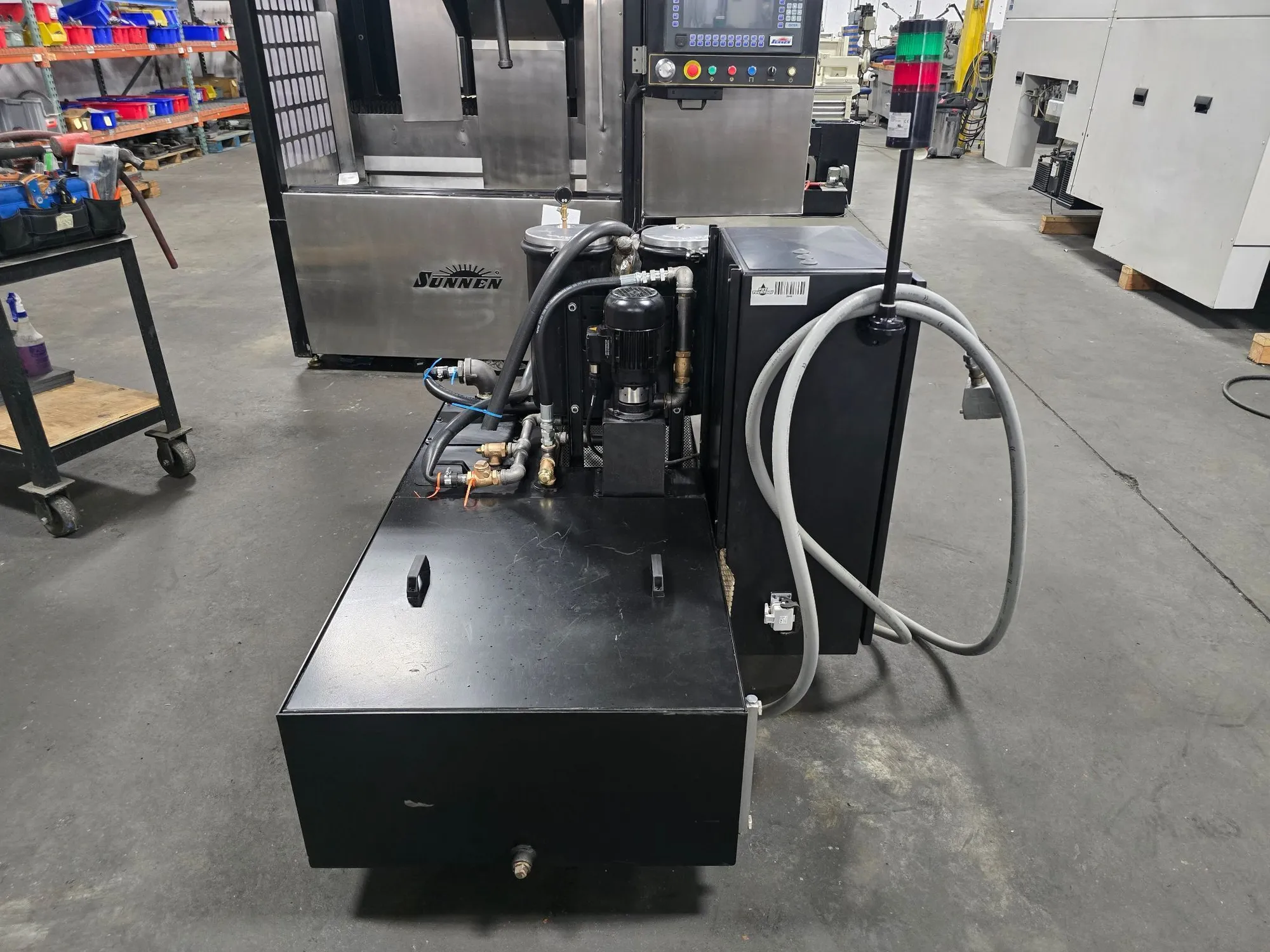

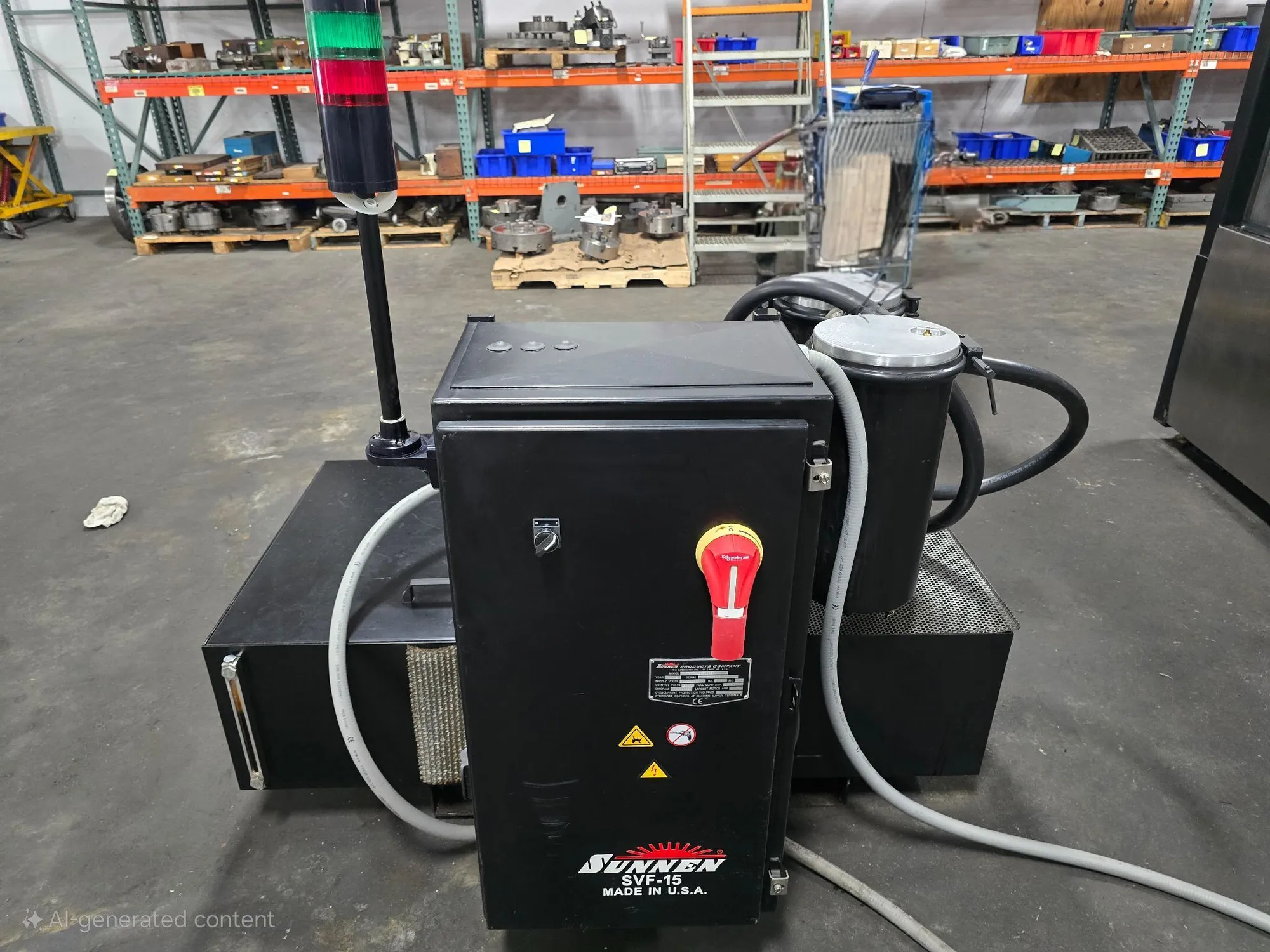

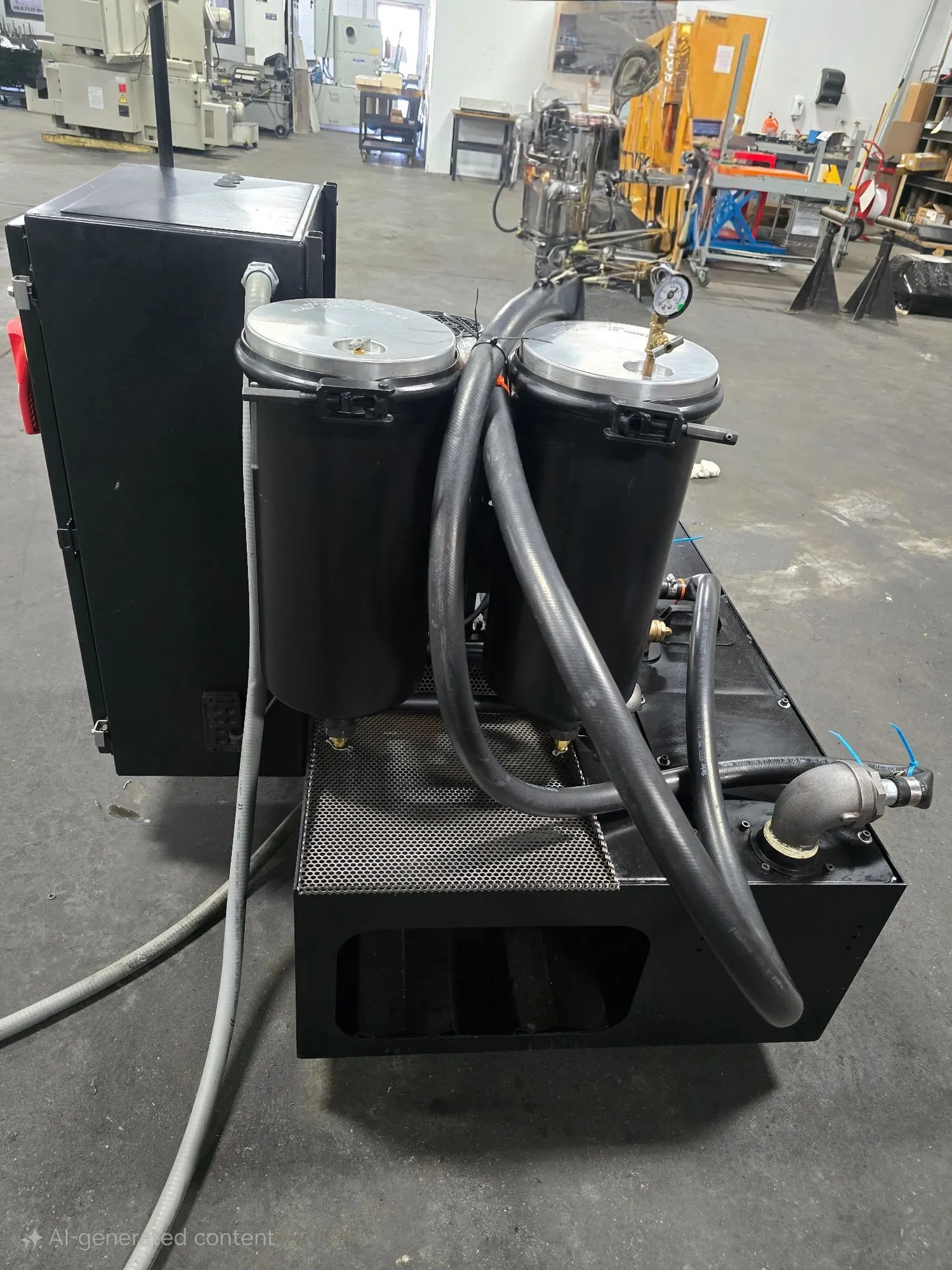

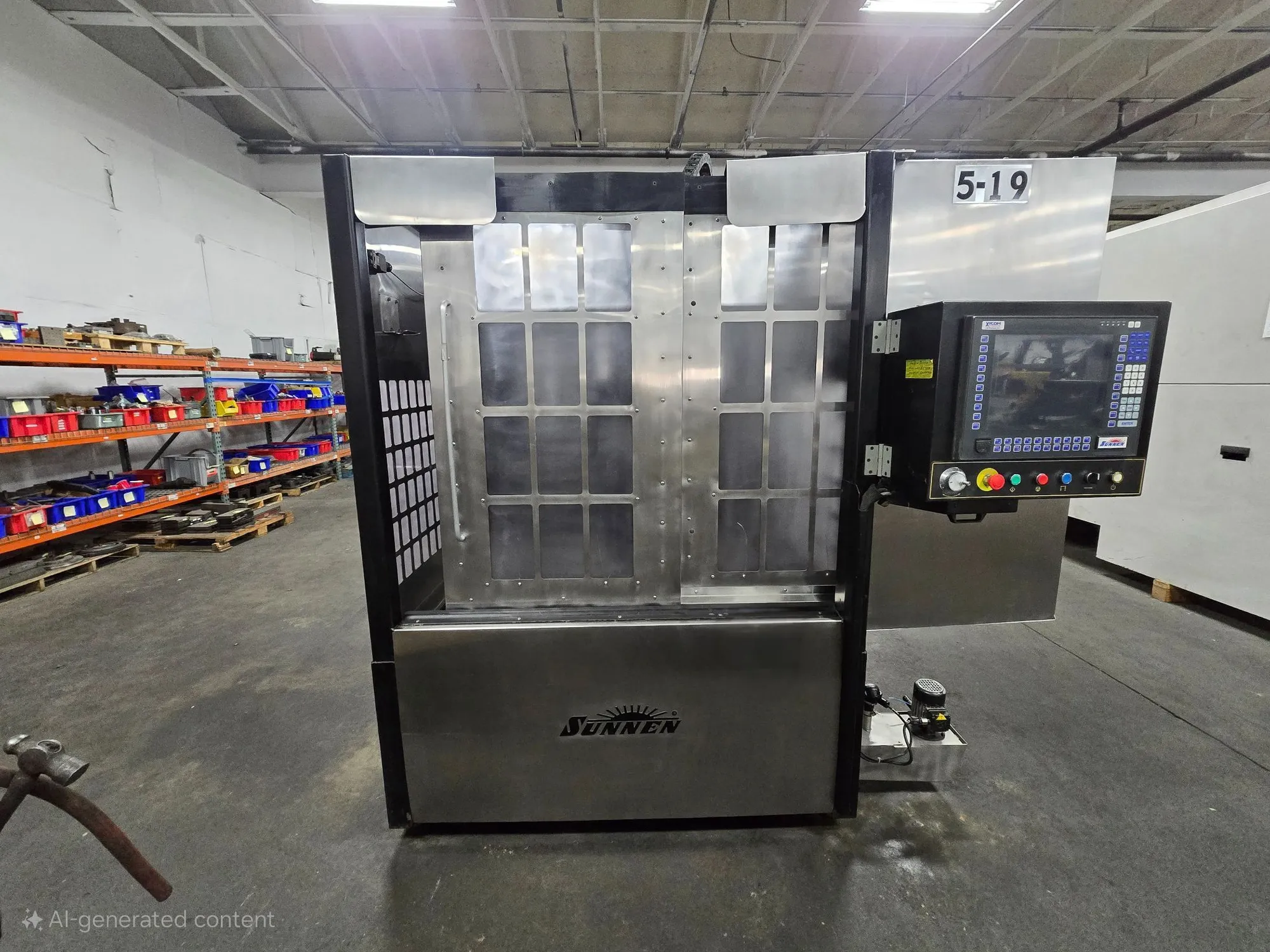

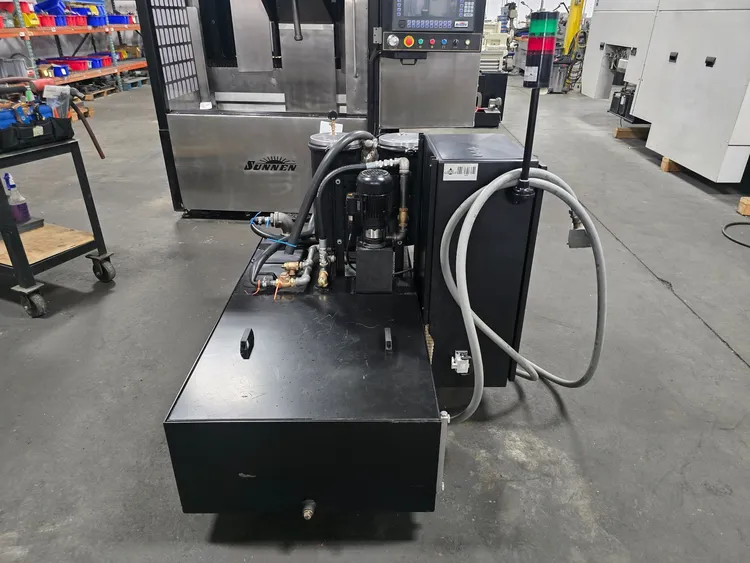

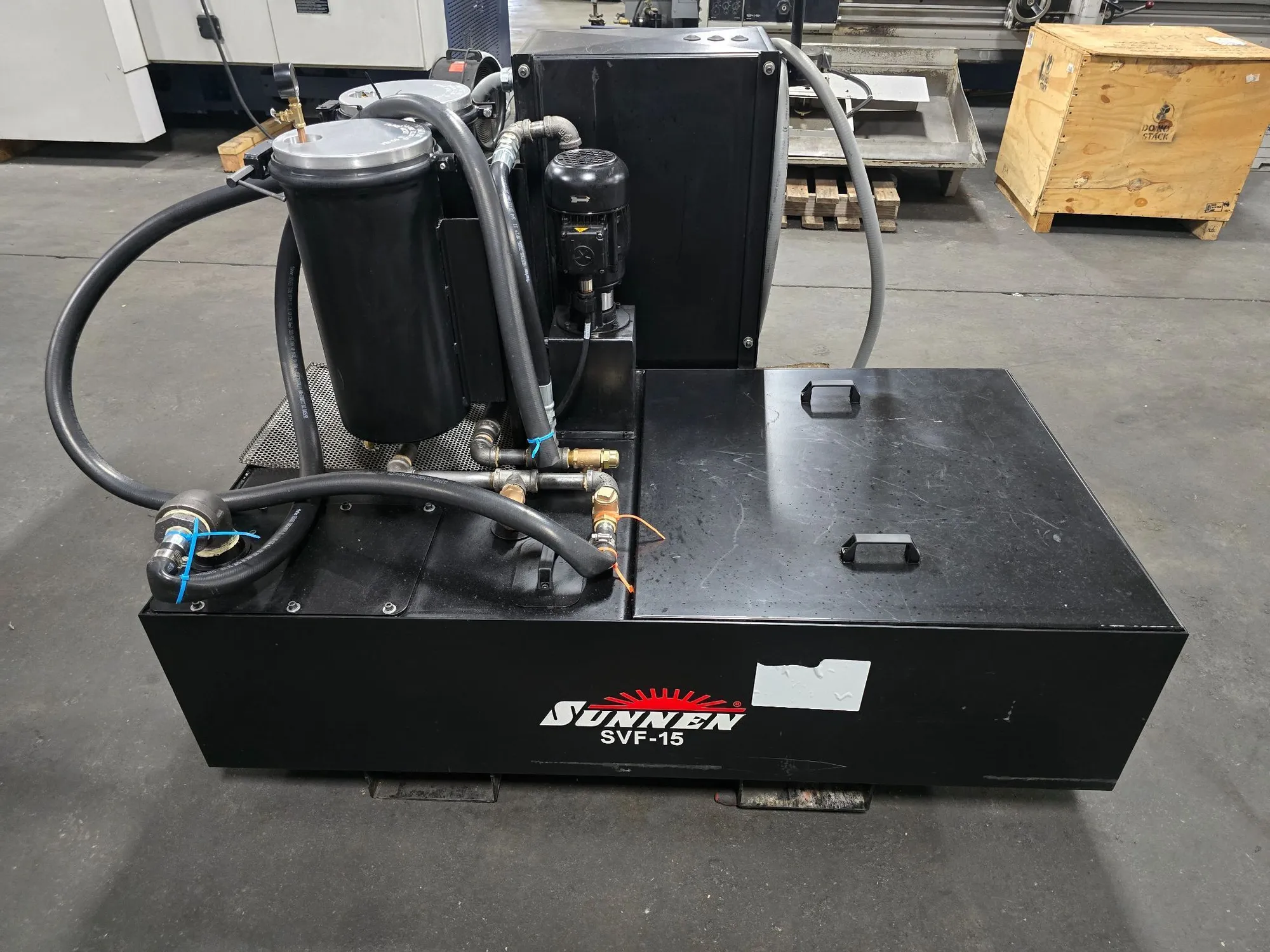

THIS 2006 SUNNEN SV-210 IS A CNC VERTICAL HONE WITH AN INTERNAL DIAMETER RANGE OF 3/4″ TO 8″. IT IS CAPABLE OF HANDLING WORKPIECES WITH A MAXIMUM WEIGHT OF 2,000 LBS AND A MAXIMUM LENGTH OF 24″ WITHIN A 36″ X 40″ WORK AREA ENVELOPE. THE CARRIAGE HAS A LENGTH OF 30″ AND AN X-AXIS TRAVEL OF 29″. A 10 HP STROKE MOTOR CONTROLS THE STROKE LENGTH, WHICH IS UP TO 30″, AND THE RECIPROCATION SPEED (STROKE Y-AXIS) RANGES FROM 20 TO 160 SPM, WITH A MAXIMUM THRUST OF 3,000 LBS. THE SPINDLE MOTOR IS 7.5 HP, DELIVERING SPINDLE SPEEDS FROM 90 TO 600 RPM, AND THE MAXIMUM ROTARY FEED IS UP TO 224.8 LBF PER INCH OF TORQUE. THE MACHINE INCLUDES A 2019 SUNNEN SVF-15-FO55E COOLANT FILTRATION SYSTEM WITH A 1/3 HP SUMP PUMP MOTOR AND A SUMP PUMP RATE OF 30 GPM. APPROXIMATE DIMENSIONS ARE 88″L X 86″W X 90″H, AND THE APPROXIMATE WEIGHT IS 4,500 LBS.
