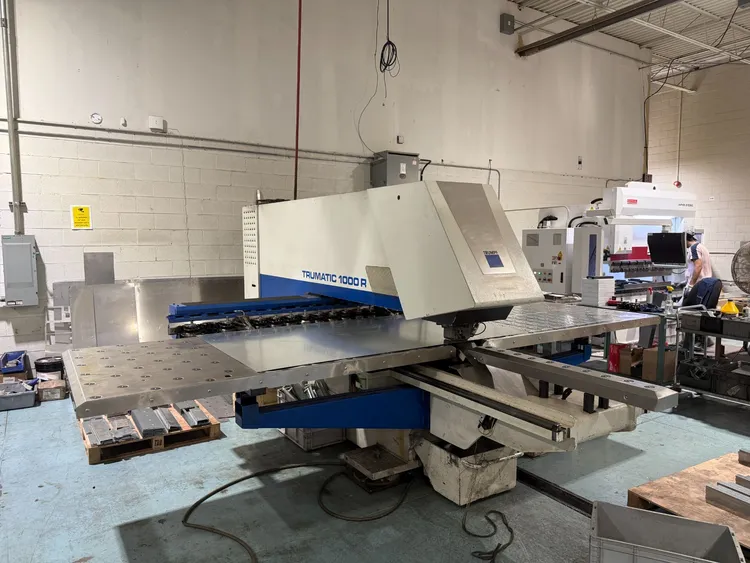

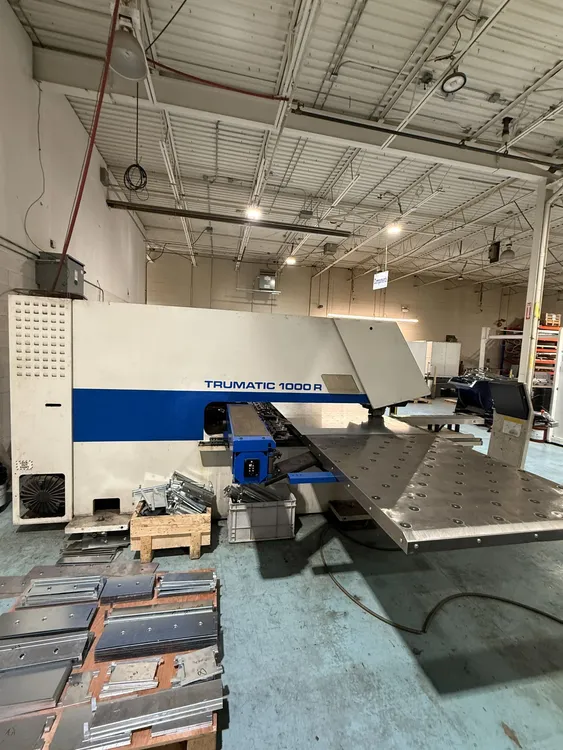

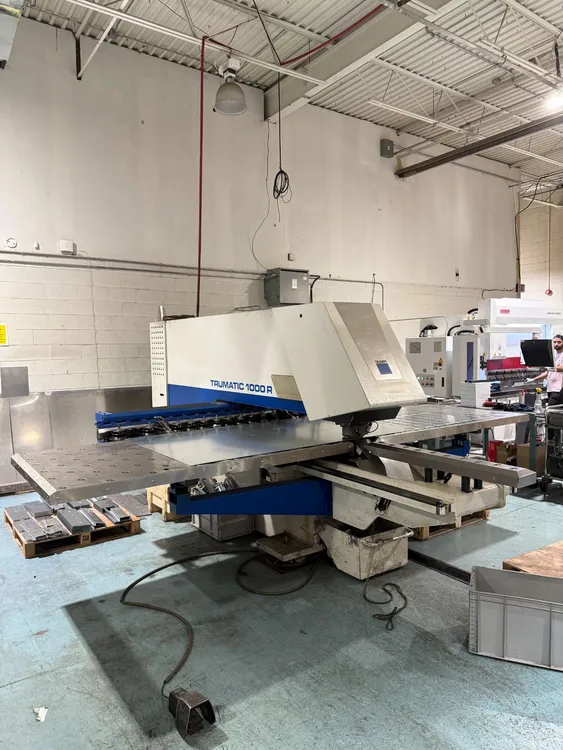

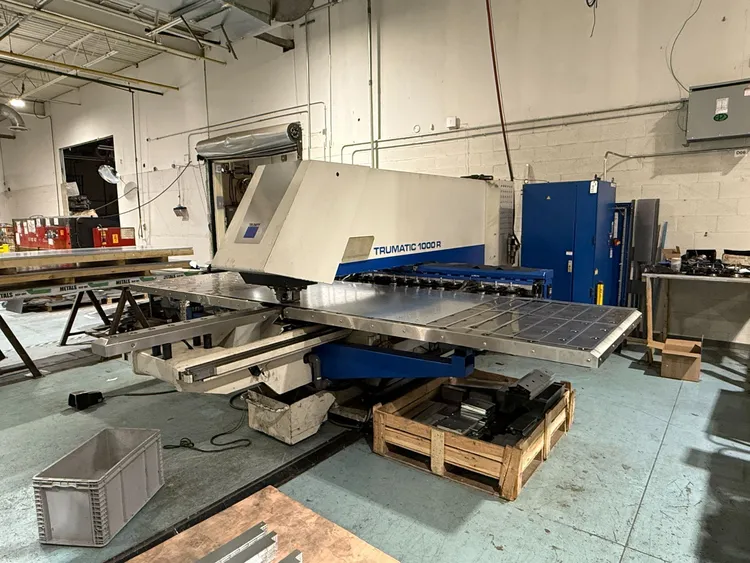

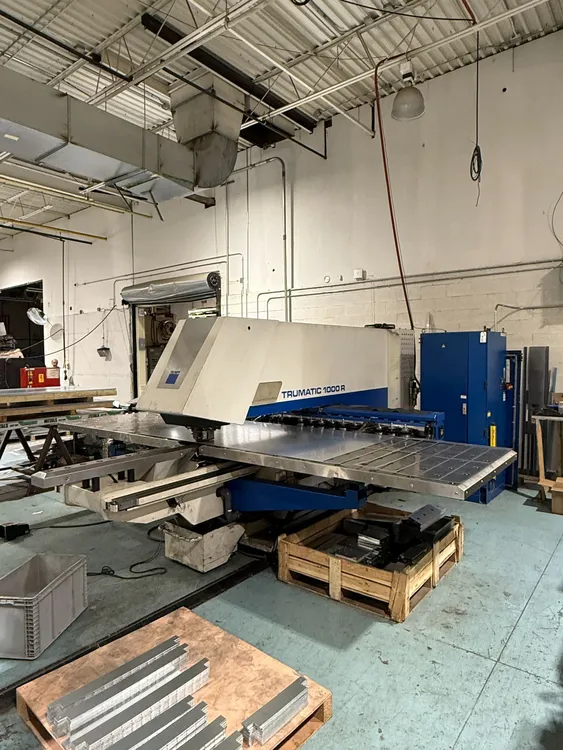

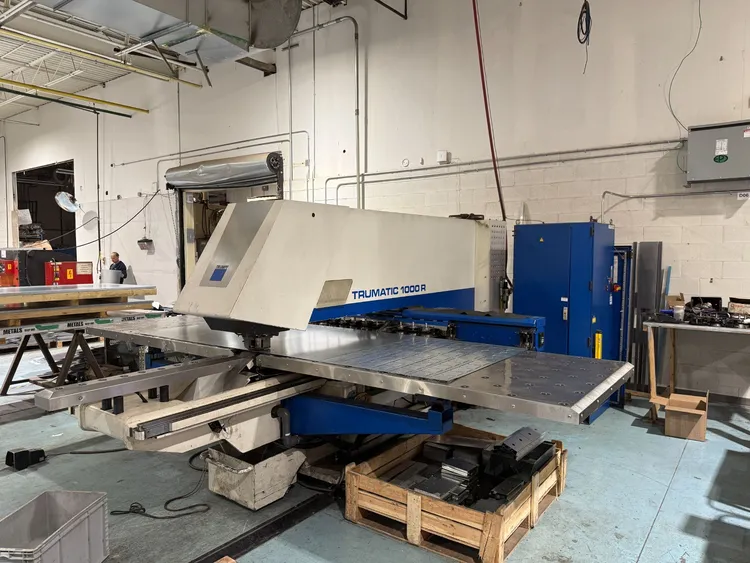

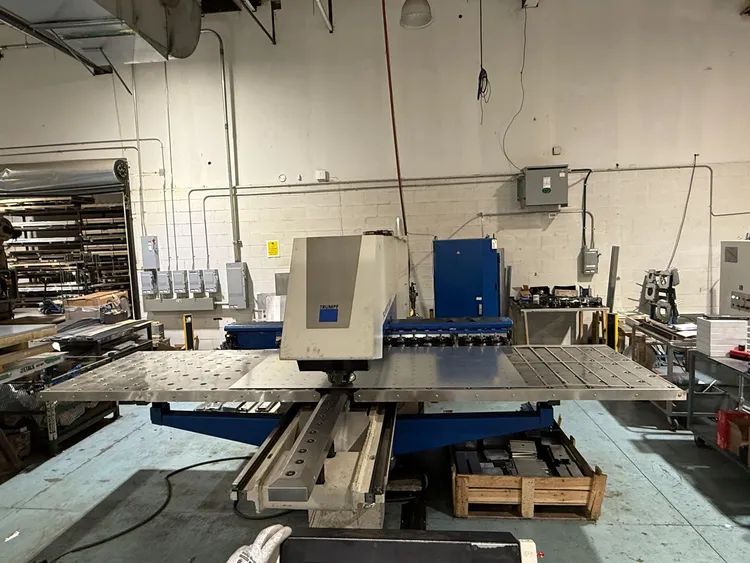

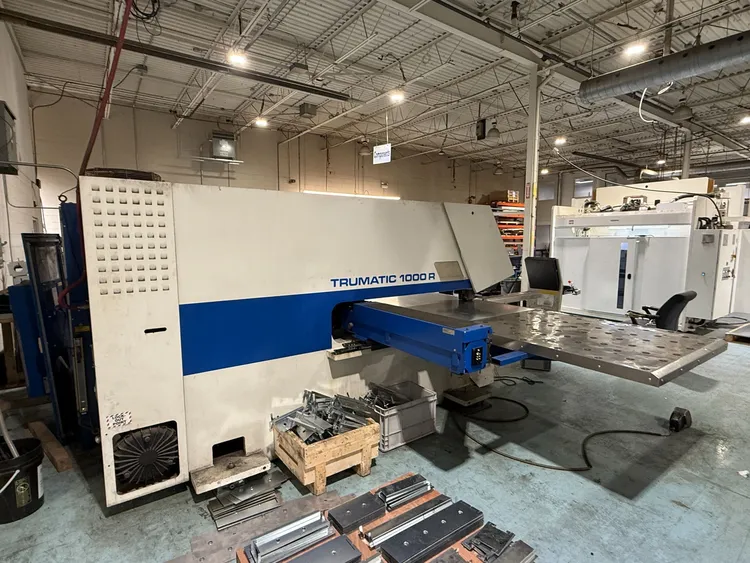

2006 TRUMPF TRUMATIC 1000R TURRET PUNCH

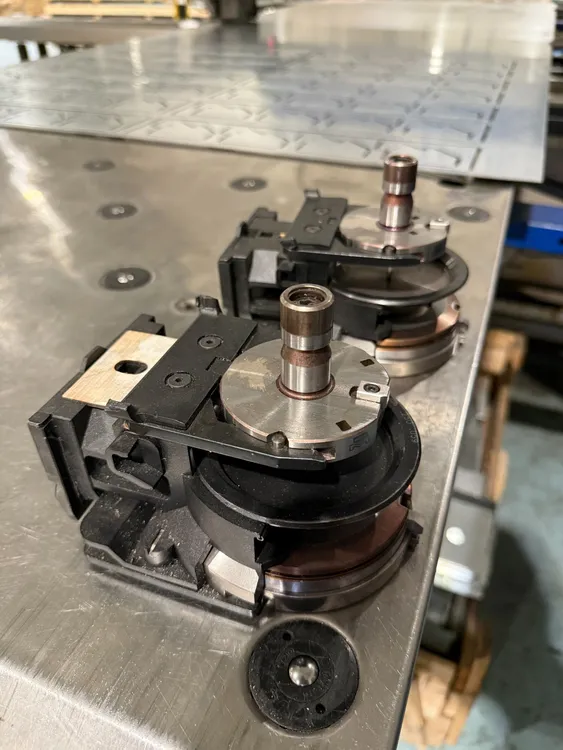

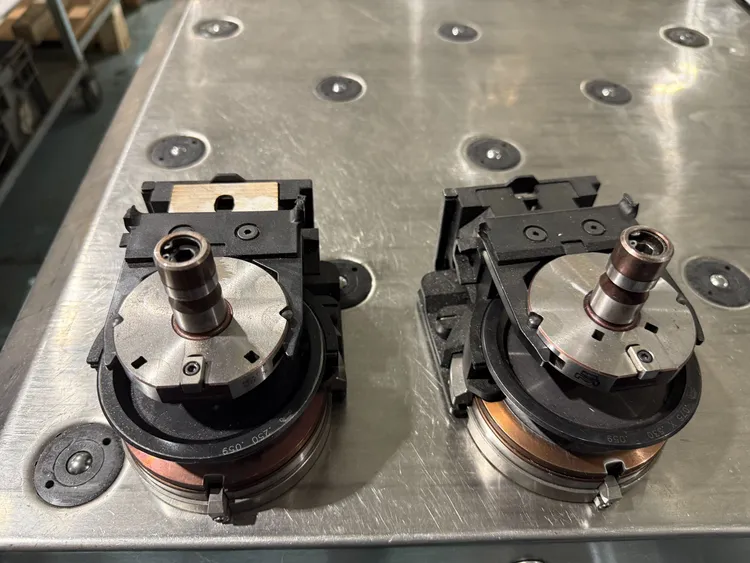

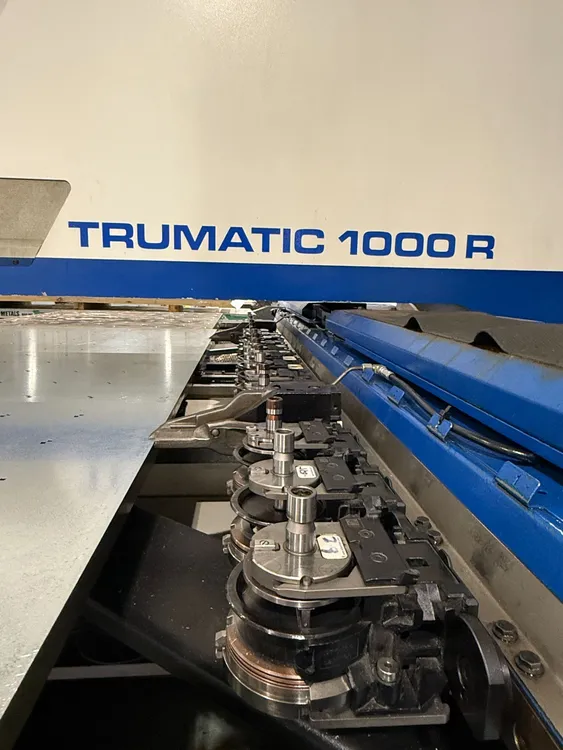

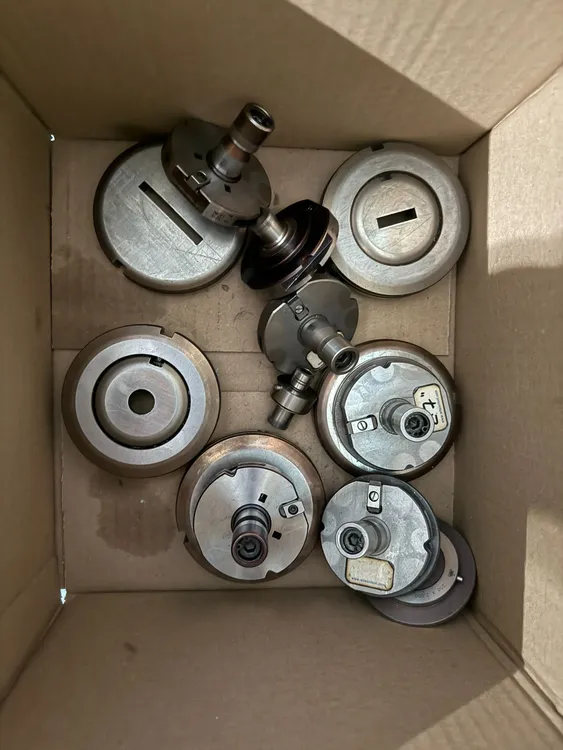

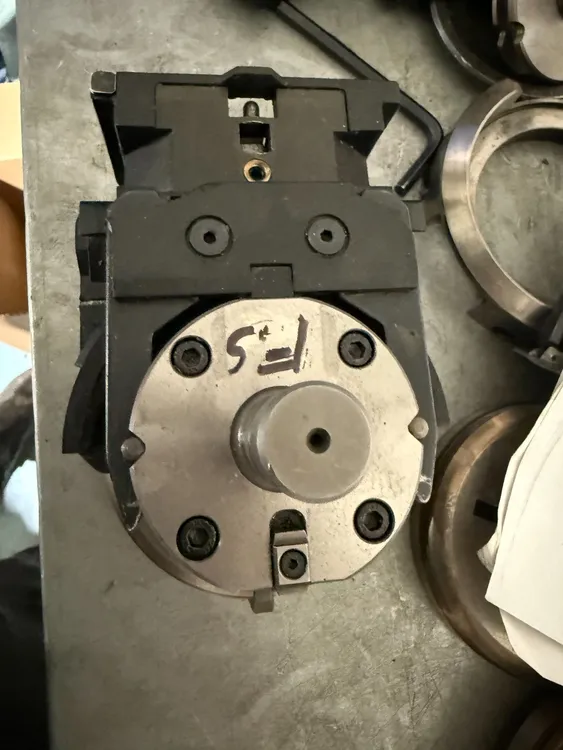

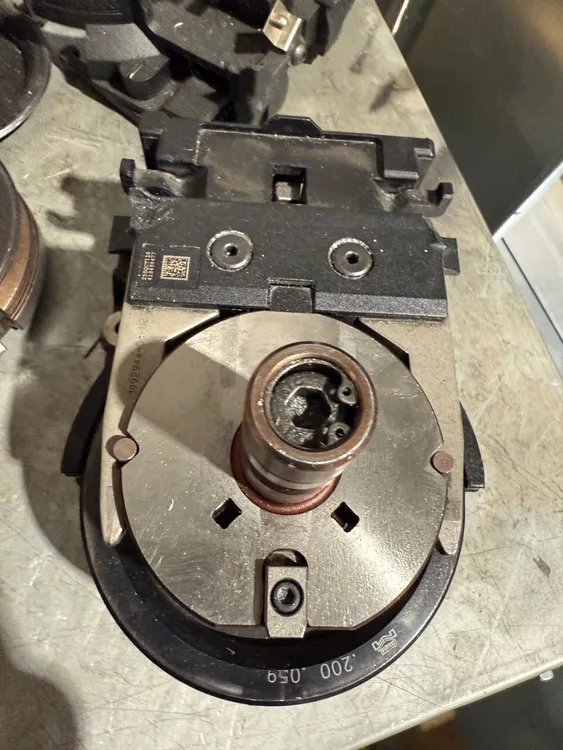

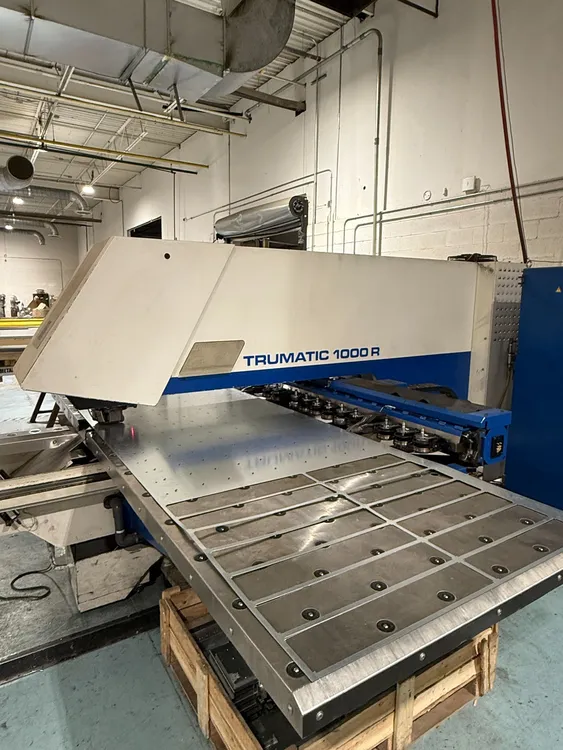

THE 2006 TRUMPF TRUMATIC 1000R TURRET PUNCH IS AN 18 TON CNC PUNCH AND CONTOURING MACHINE, OFTEN EQUIPPED WITH A BOSCH PNC-P CNC CONTROL. IT FEATURES A WORKING RANGE OF 2070 MM IN THE X-AXIS AND 1294 MM IN THE Y-AXIS, WHICH EXTENDS TO 2500 MM X 1294 MM WITH REPOSITIONING. THIS MACHINE CAN HANDLE A MAXIMUM SHEET THICKNESS OF 6 MM AND WORKPIECES UP TO 150 KG. IT SUPPORTS A MAXIMUM PUNCH DIAMETER OF 76 MM. KEY PERFORMANCE SPECIFICATIONS INCLUDE A SIMULTANEOUS AXIS SPEED (X & Y) OF 96977 MM/MIN (OR 3818 IPM), A MAXIMUM STROKE RATE FOR PUNCHING OF 600 RPM, AND A C-AXIS ROTATION SPEED OF 180 RPM, ALLOWING 360 DEGREES OF ROTATION FOR ALL TOOLS. IT TYPICALLY UTILIZES A 15-TOOL LINEAR MAGAZINE WITH TWO WORK CLAMPS, PROGRAMMABLE TOOL ROTATION, AND A MULTI-TOOL OPTION, ALL BUILT ON A BALL TABLE DESIGN.
