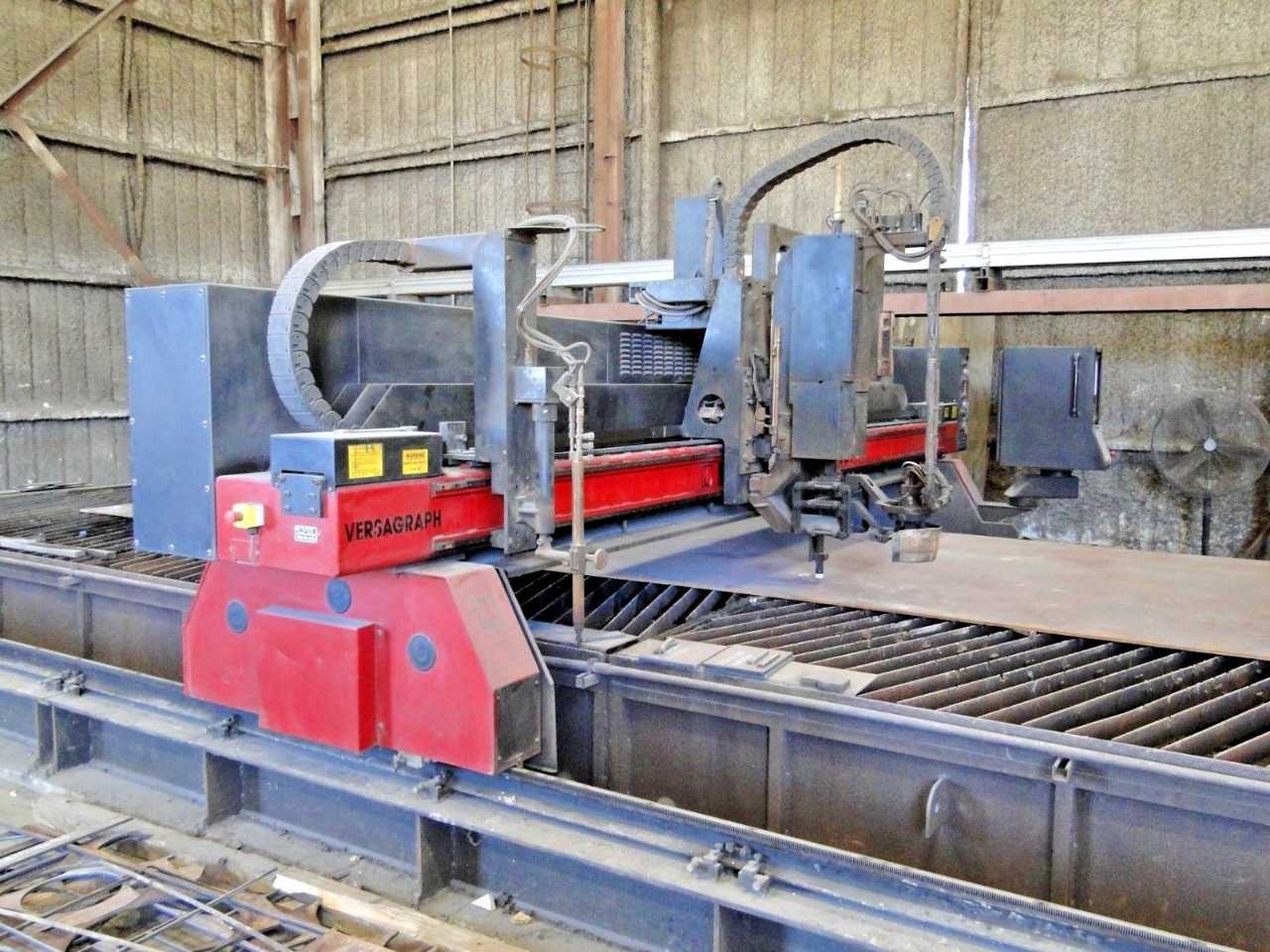

2007 Koike Aronson 5-Axis Plasma/Oxy-Fuel Gantry Plate Cutting Machine

Model 3100 Versagraph Millenium Series BEVELING HEAD NOT INCLUDED. - So really only a 3 axis. AC Servo Drives rated at 4 to 800 inches per minute Effective Cutting Width: 124" Effective Cutting Length: 522" Distance Between Floor Mount Pads: 195" Rail Gauge: 213" Number of tools: 10 Rapid Traverse Speed: 1400 IPM Contour Speed: 600 IPM Kaliburn Spirit 400 amp power supply Mild Steel rated at 1-3/4” maximum pierce Mild Steel rated at 3” maximum edge start Stainless Steel rated at 1-1/2” maximum pierce Stainless Steel rated at 2” maximum edge start (1) Oxy-Fuel Cutting Station w/ manifold system for up to (8) stations Mild steel up to 8” thick Hypertherm ArcWriter Plasma Arc Marking System Capable of etching letters as small as 3/8” Voyager III Shape Cutting Control Package Touch screen w/ panel control 15” high resolution color LCD screen 60 GByte Hard Drive (3) USB Ports Full software package included. Latest version of ProNest with all refined settings Capable of beveling in 2-axis Overhead Nyla-Track w/ all required hoses and wiring Approximately 48 feet of rail. Support beams not included Not Included: Beveling head Support beams for rails Water table
