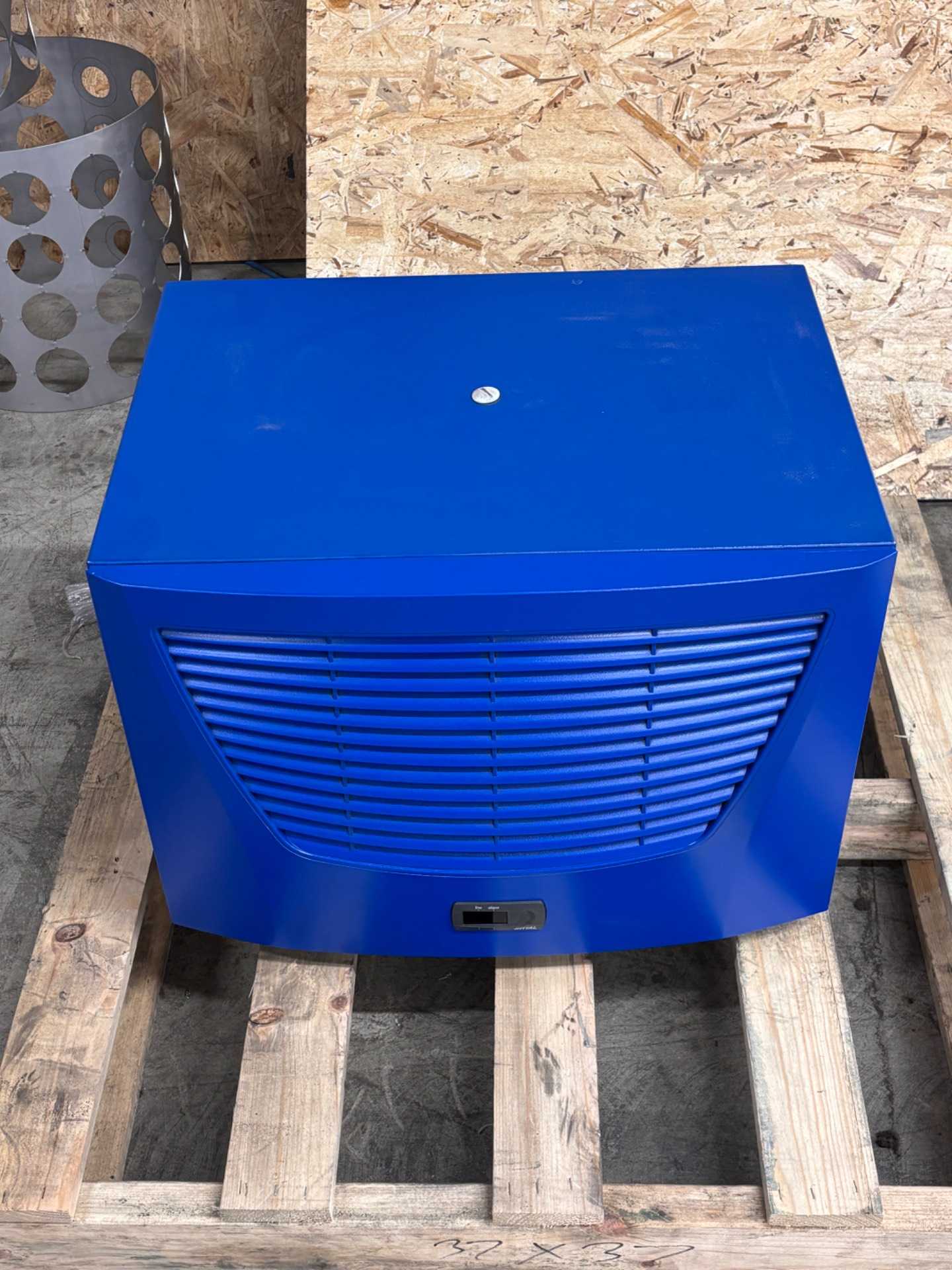

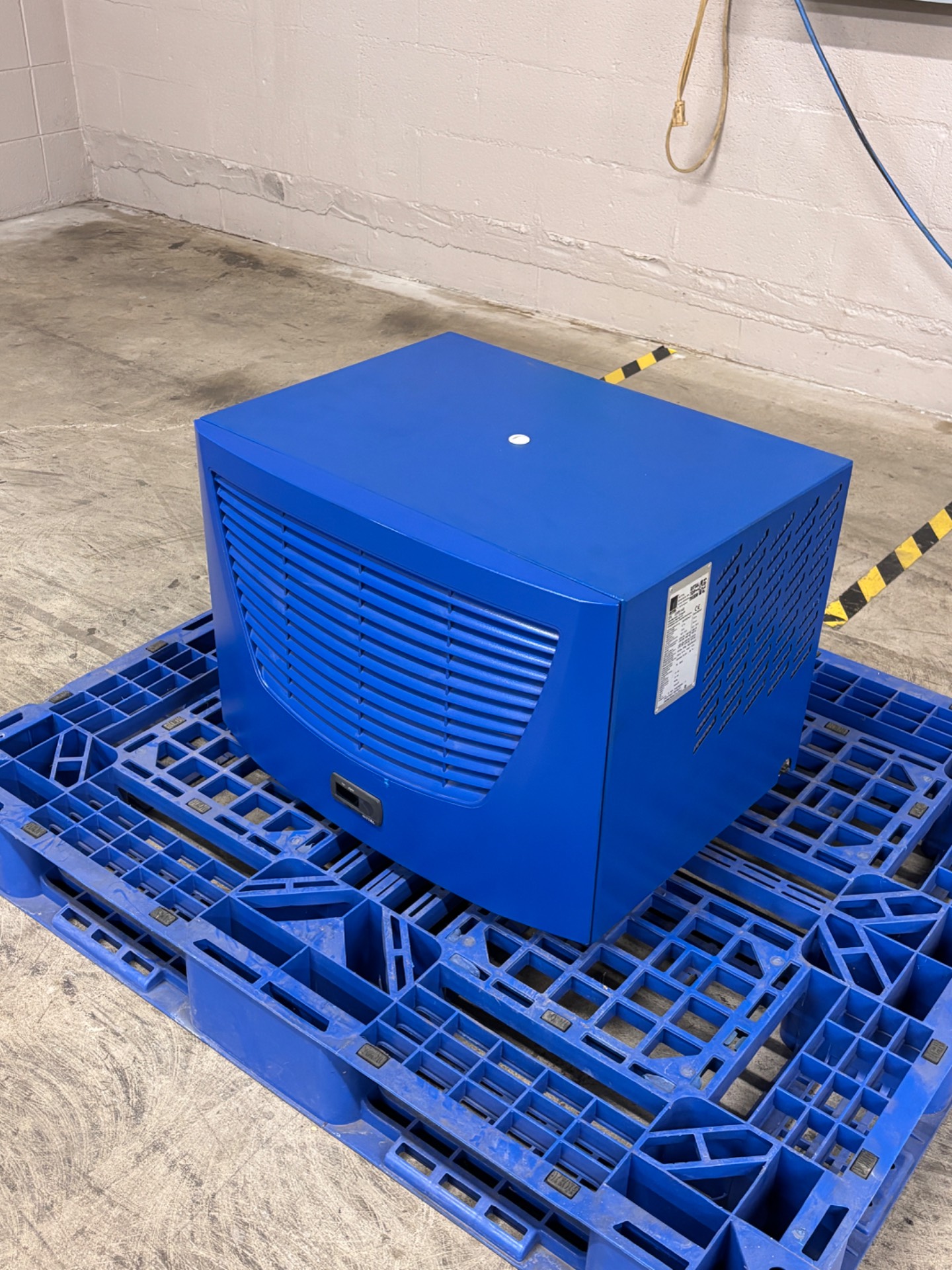

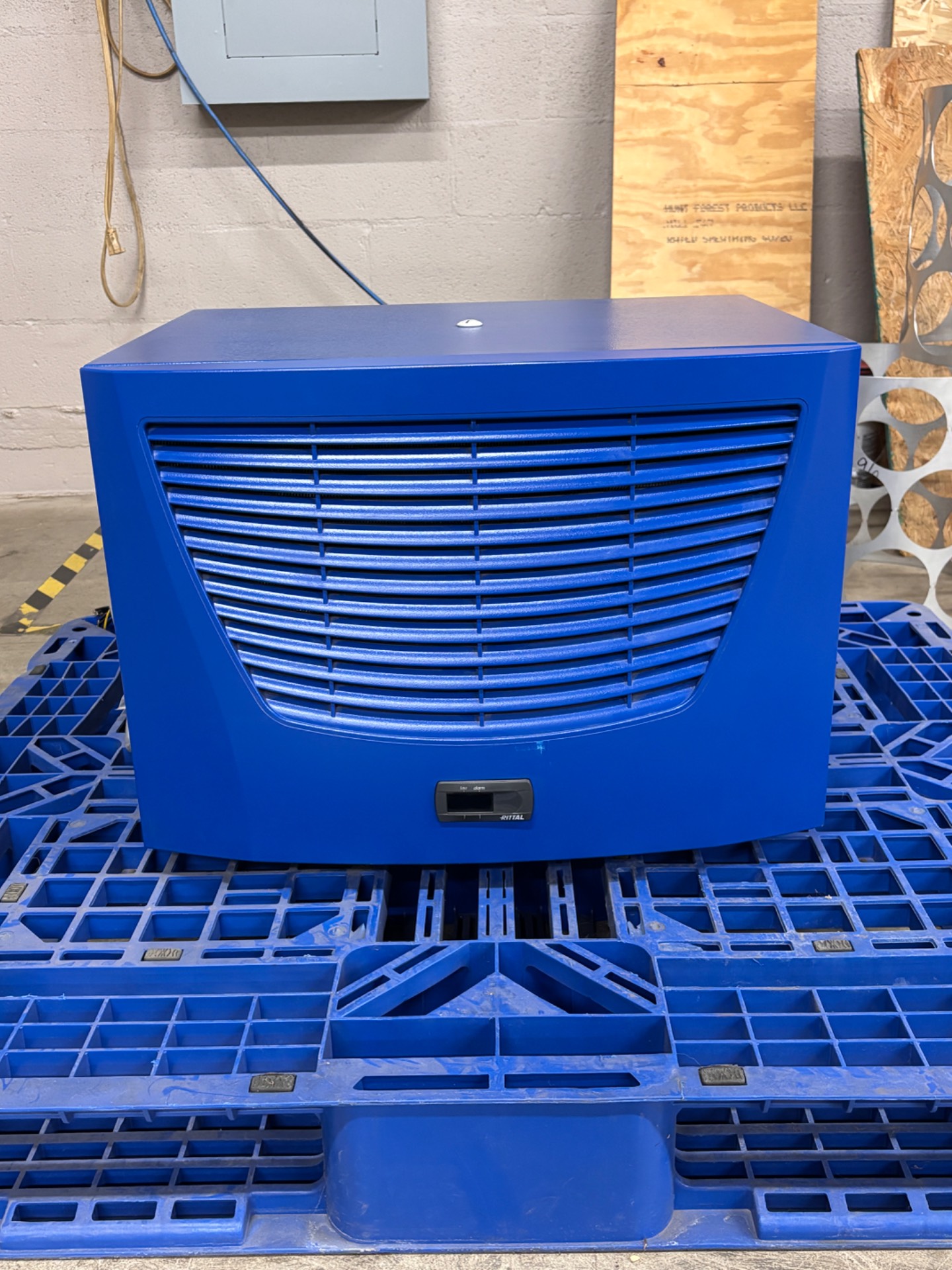

2007 Rittal SK3385149 Enclosure Cooling Unit - 400V/460V, 1190W/1390W, 48kg, IP54/IP34

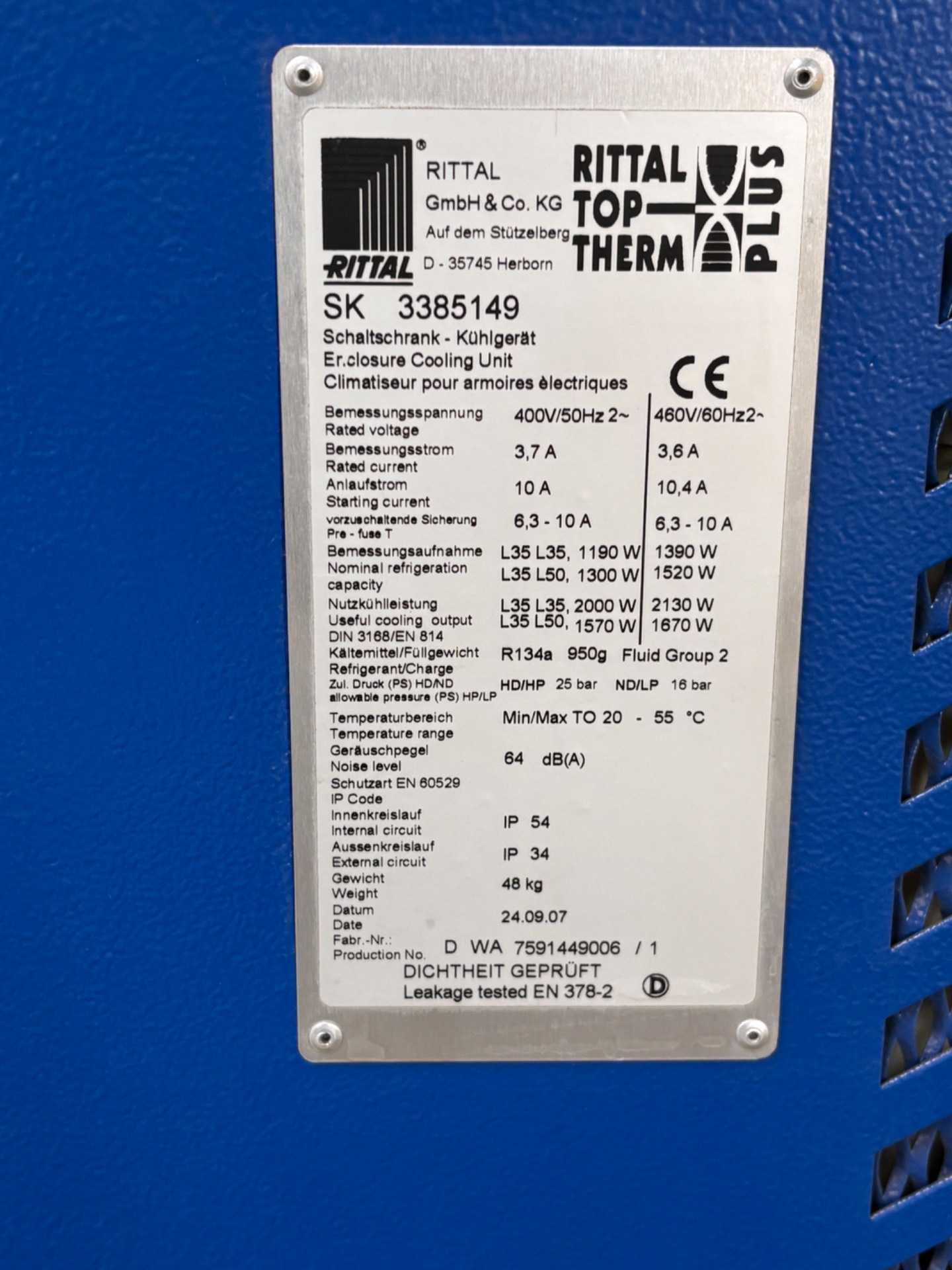

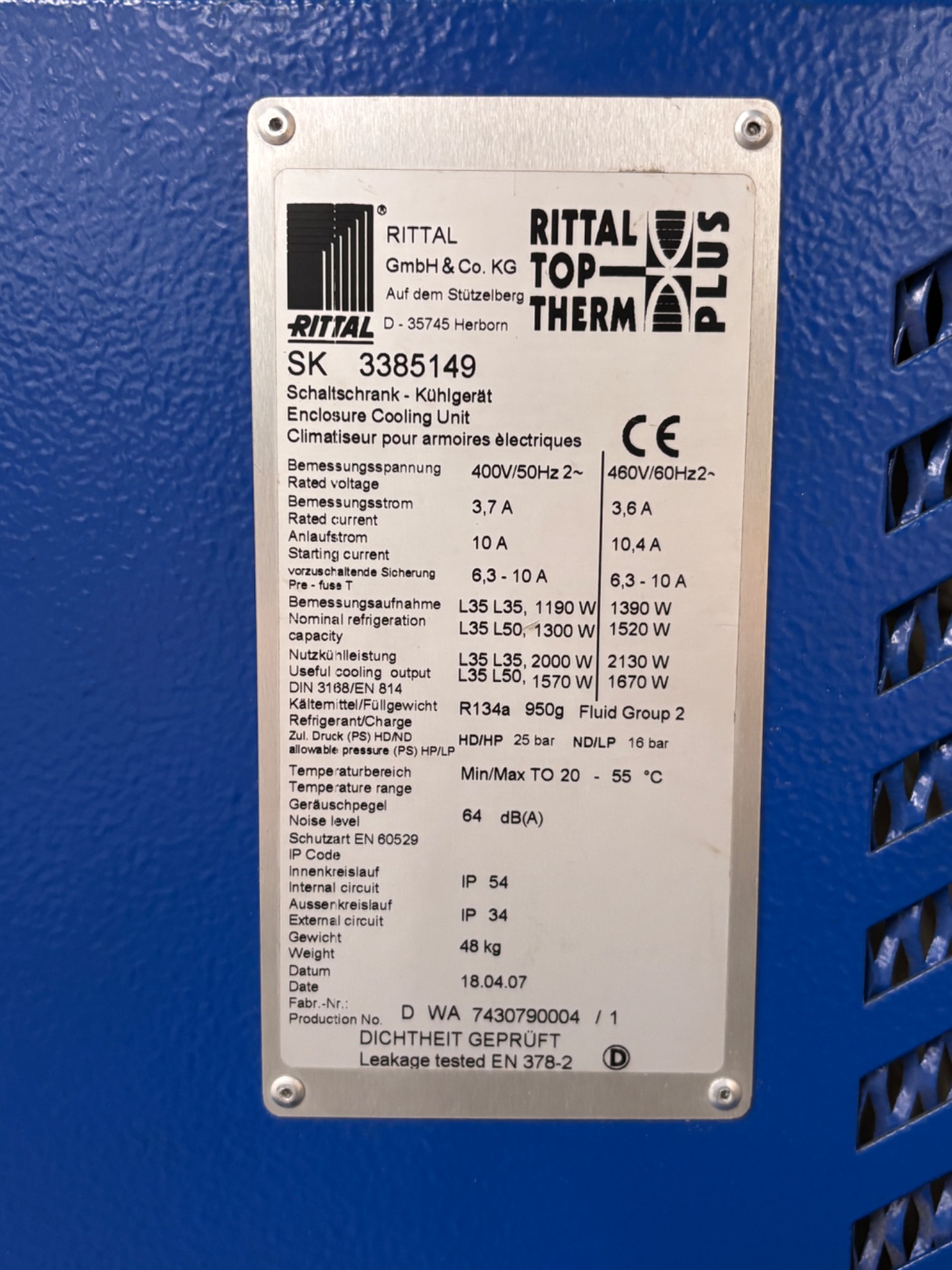

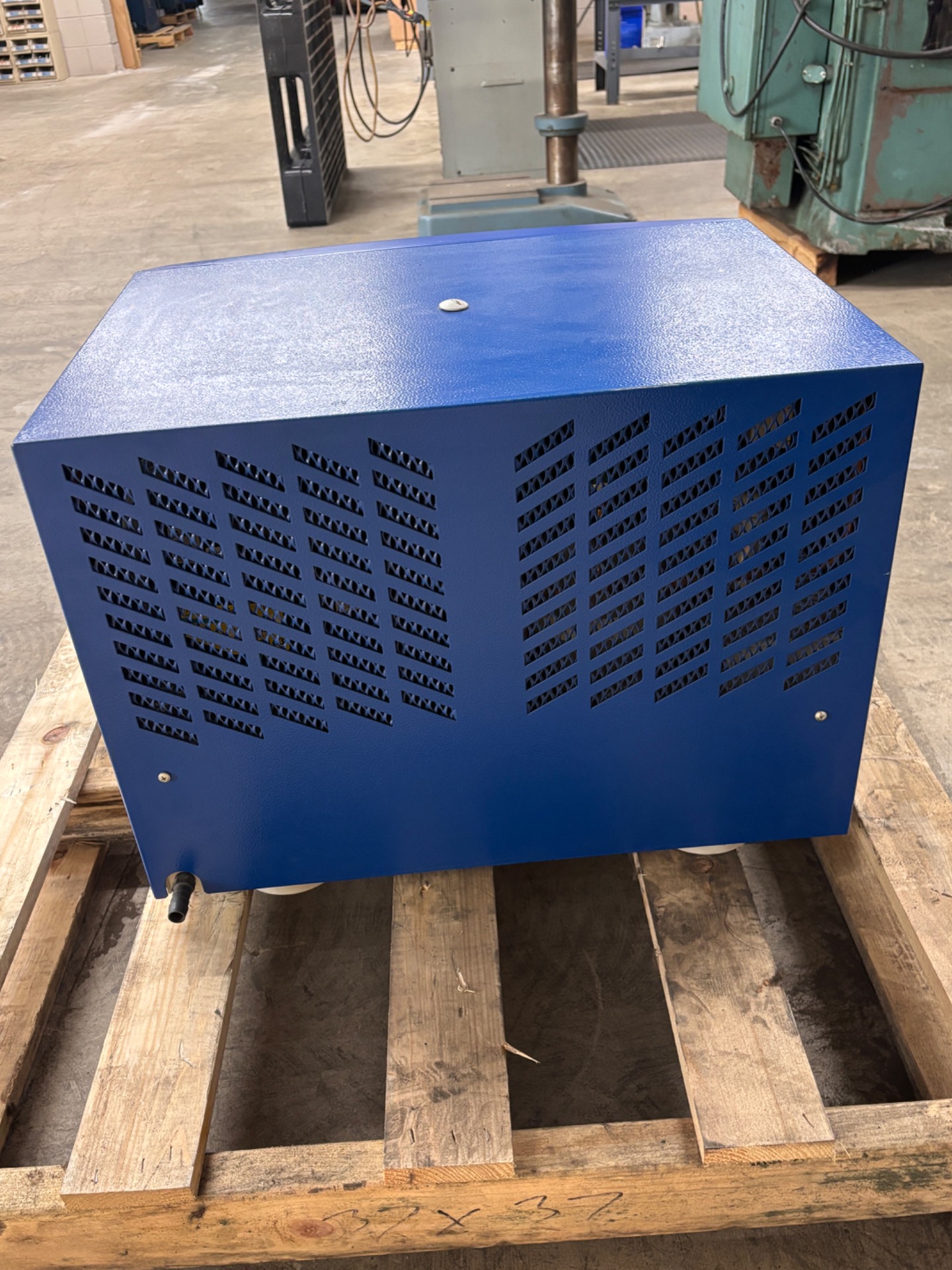

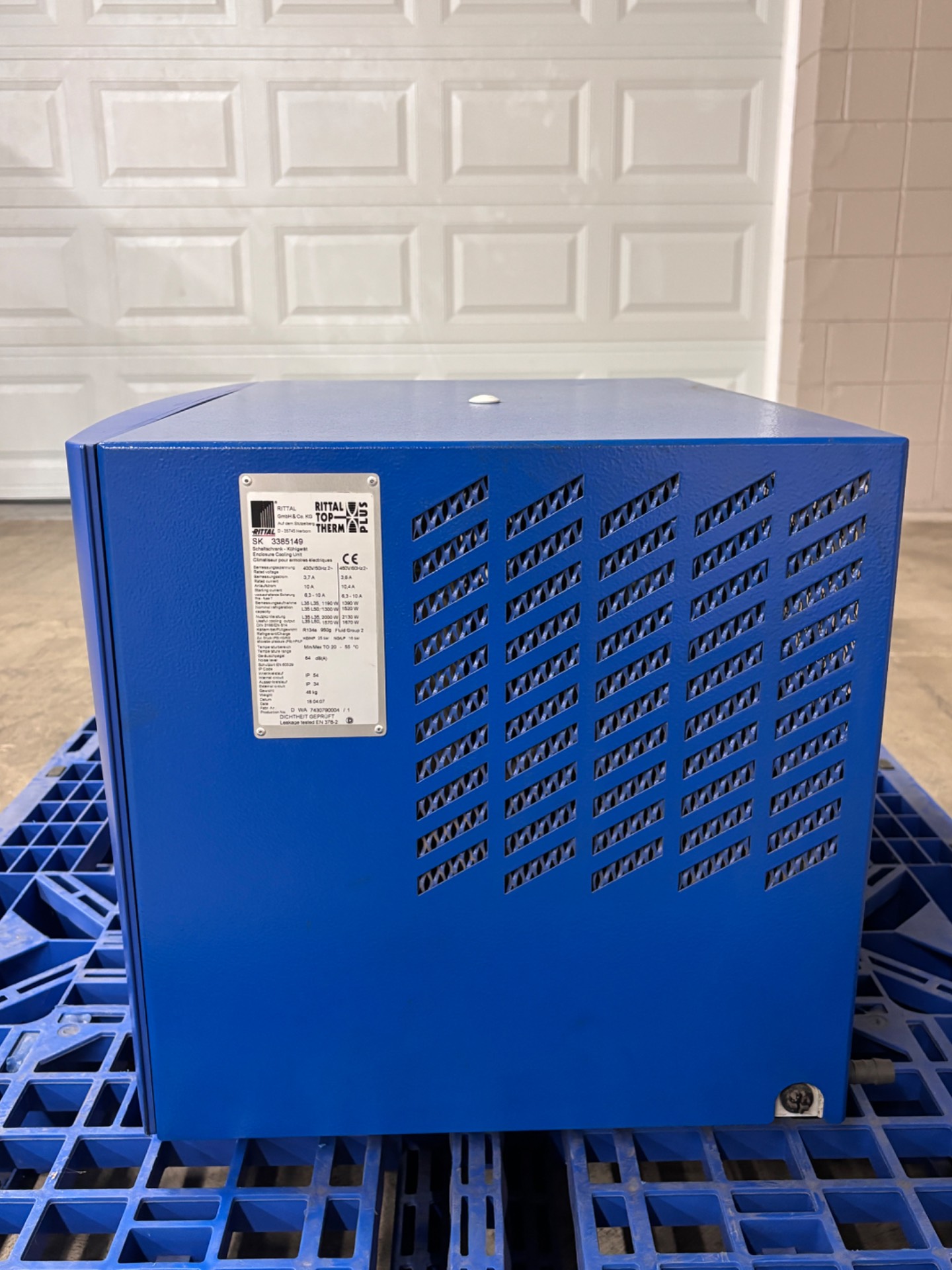

The 2007 Rittal Top-Therm Plus SK3385149 is an enclosure cooling unit manufactured by Rittal GmbH & Co. KG. This CE-certified equipment operates at a rated voltage of 400V at 50Hz (2~) or 460V at 60Hz (2~). It has a rated current of 3.7 A at 50Hz and 3.6 A at 60Hz, with a starting current of 10 A at 50Hz and 10.4 A at 60Hz, requiring a pre-fuse T of 6.3 - 10 A. For refrigeration performance, its nominal capacity is 1190 W (50Hz) / 1390 W (60Hz) at L35 L35, and 1300 W (50Hz) / 1520 W (60Hz) at L35 L50. The useful cooling output according to DIN 3168 / EN 814 is 2000 W (50Hz) / 2130 W (60Hz) at L35 L35, and 1570 W (50Hz) / 1670 W (60Hz) at L35 L50. The unit utilizes 950g of R134a refrigerant (fluid group 2) with an allowable pressure of 25 bar on the high pressure side and 16 bar on the low pressure side. It operates within a temperature range of +20 to +55 °C and produces a noise level of 64 dB(A). The protection degree features an IP 54 rating for the internal circuit and an IP 34 rating for the external circuit. The unit weighs 48 kg and carries an EN 378-2 leakage tested quality mark.
