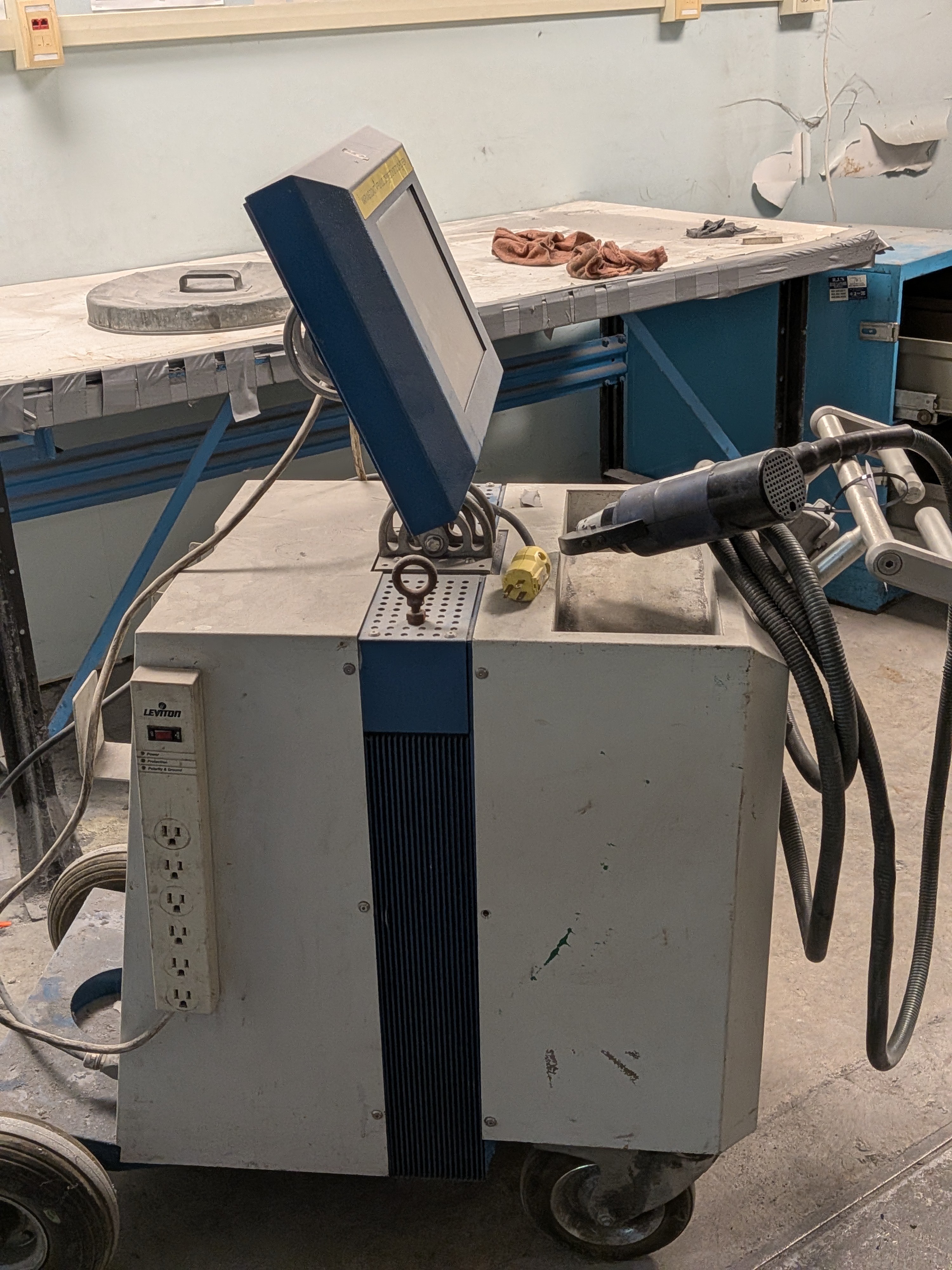

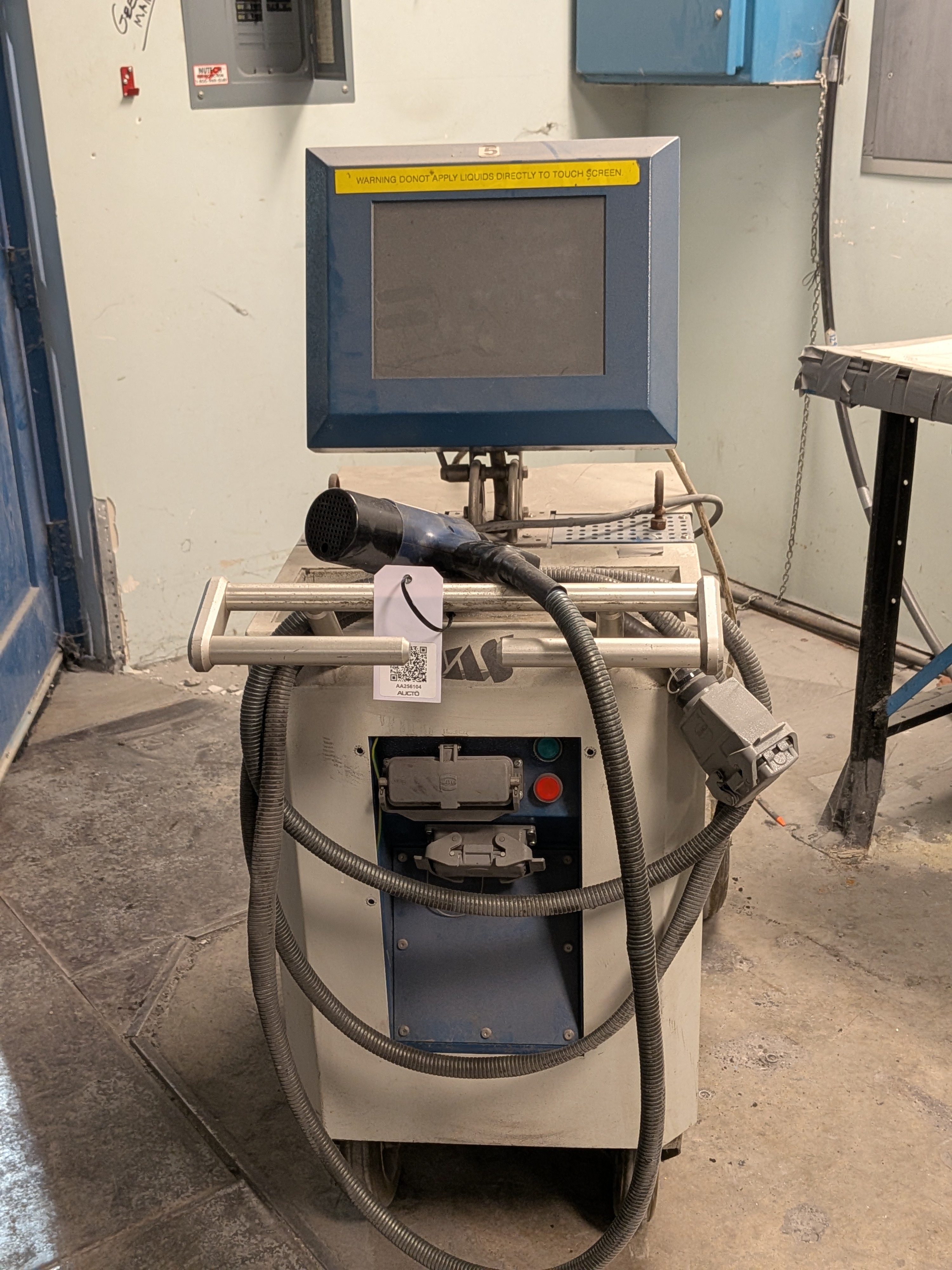

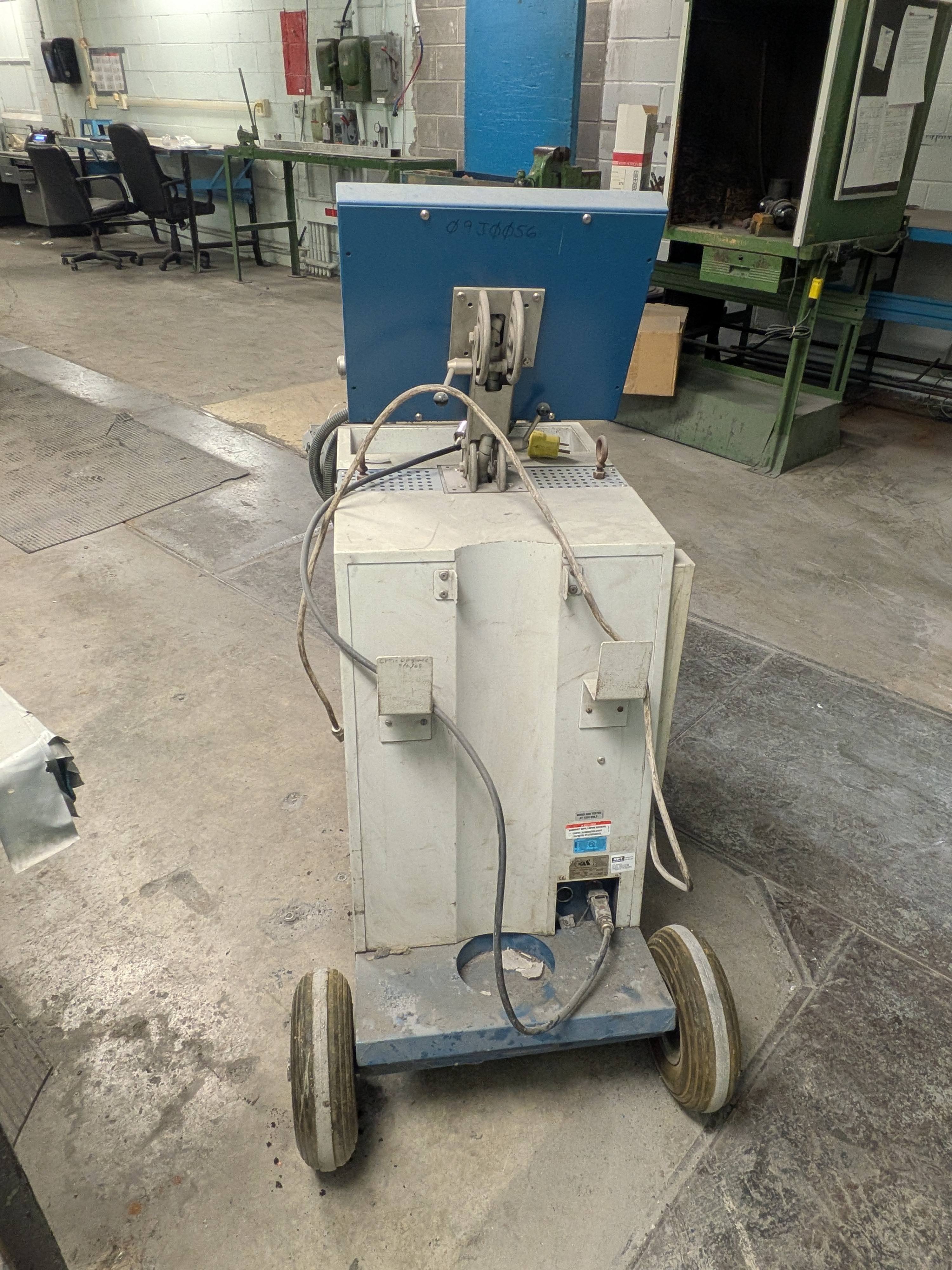

2007 WAS TEST-MASTER PRO MOBILE OES, 185-672NM, MULTI-CCD, DSP, UV-PRO, TOUCHSCREEN, 110/230V

THE 2007 WORLDWIDE ANALYTICAL SYSTEMS (WAS) TEST-MASTER PRO IS A ROBUST, MOBILE OPTICAL EMISSION SPECTROMETER (OES) DESIGNED FOR HIGH-THROUGHPUT, CONTINUOUS METAL ANALYSIS AND GRADE IDENTIFICATION. UTILIZING A MULTI-CCD OPTIC SYSTEM WITH PASCHEN-RUNGE MOUNTING AND A 400 MM FOCAL LENGTH, IT COVERS A WAVELENGTH RANGE OF 185 TO 672 NM. THE INSTRUMENT FEATURES A SOFTWARE-CONTROLLED DIGITAL HIGH-FREQUENCY POWER SOURCE THAT GENERATES A SPARK IN AN ARGON ATMOSPHERE OR A DC ARC IN AIR, WITH ADJUSTABLE FREQUENCIES FROM 80 TO 500 HZ AND VOLTAGES BETWEEN 250 AND 500 V. DATA PROCESSING IS HANDLED BY DSP TECHNOLOGY, WHERE 14 DEDICATED PROCESSORS EVALUATE THE FULL WAVELENGTH RANGE IN MICROSECONDS, ENABLING PASS/FAIL SORTING IN 3 SECONDS AND PRECISE CARBON ANALYSIS IN 4 SECONDS. FOR ENHANCED DURABILITY IN INDUSTRIAL ENVIRONMENTS, THE UNIT IS HERMETICALLY SEALED AND UTILIZES A SECONDARY COOLING CIRCUIT WITH AN INTEGRATED HEAT EXCHANGER TO DISPEL HEAT WITHOUT DRAWING IN EXTERNAL DUST OR MOISTURE. THE SPECTROMETER IS OPERATED VIA A TOUCHSCREEN INTERFACE RUNNING ON A WINDOWS-BASED INTERNAL COMPUTER AND COMES PRE-INSTALLED WITH A COMPREHENSIVE METALS DATABASE CONTAINING MILLIONS OF RECORDS. ADDITIONAL CONFIGURATIONS INCLUDE A LIGHTWEIGHT SAMPLE PROBE, AN OPTIONAL UV-PRO PROBE FOR DETECTING LOW LEVELS OF CARBON, PHOSPHORUS, AND SULFUR, AND AUTOMATION COMPATIBILITY FOR INTEGRATION INTO PRODUCTION LINES. THE PHYSICAL UNIT MEASURES APPROXIMATELY 1000 MM IN HEIGHT, 650 MM IN WIDTH, AND 1115 MM IN DEPTH, WEIGHING 70 KG, AND OPERATES ON 110/230 VAC POWER.
