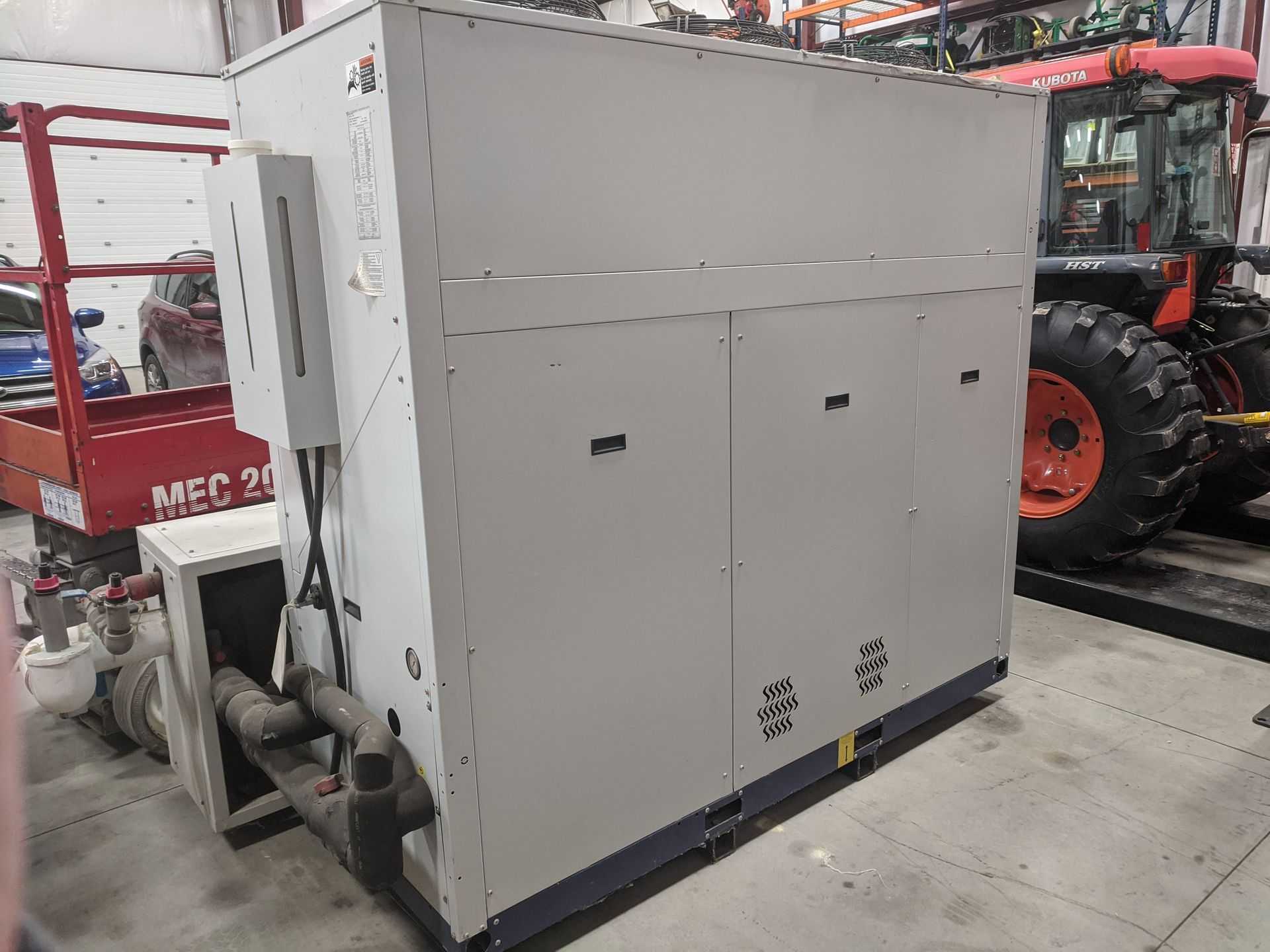

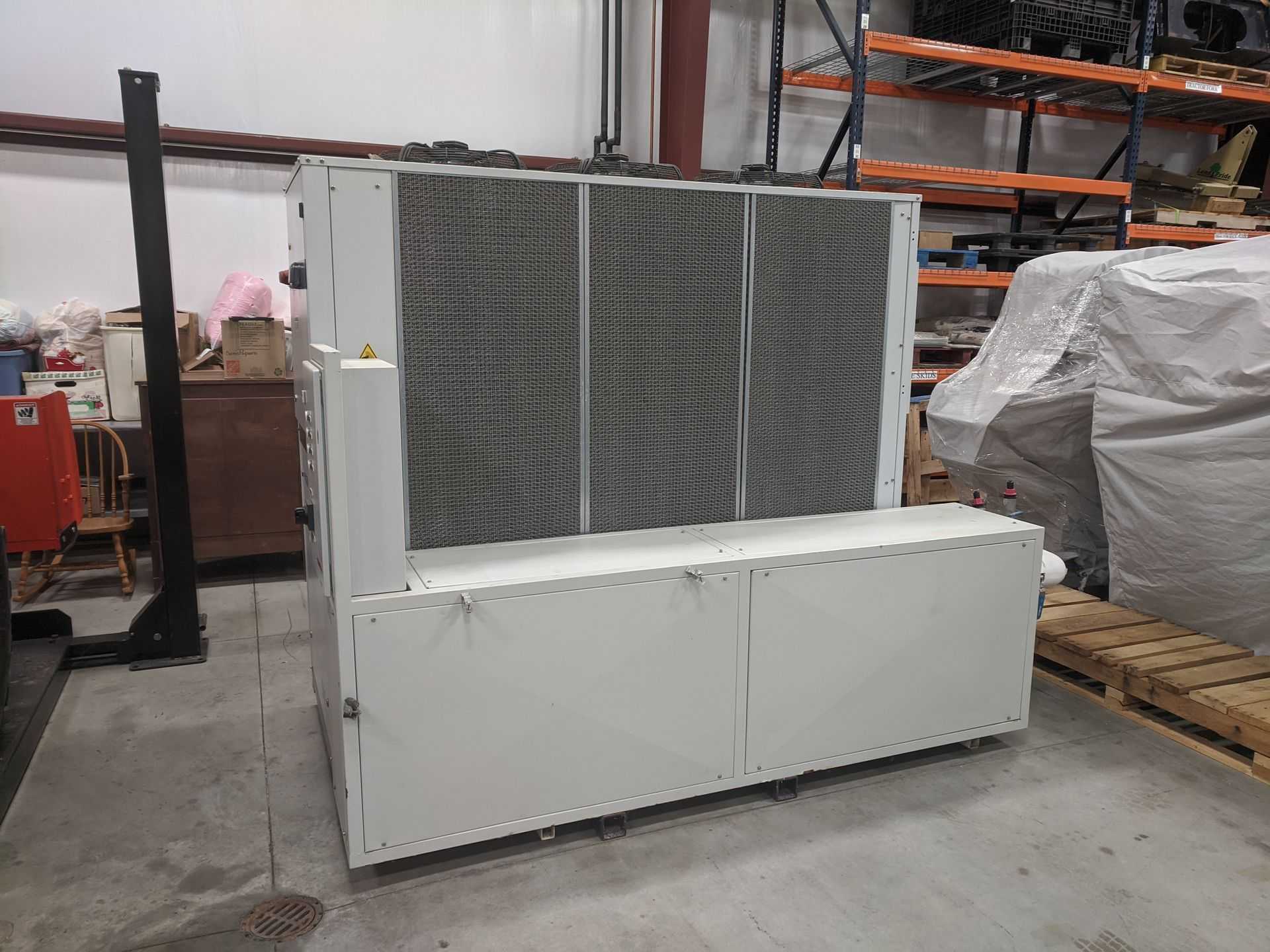

2008 MTA TAE EVO 301 PROCESS CHILLER, 21 TON, 460V, 3PH, R407C, 15,625 CFM

THE MTA SPA TAE EVO 301 IS A 2008 AIR-COOLED INDUSTRIAL PROCESS CHILLER DESIGNED FOR HEAVY-DUTY APPLICATIONS. THIS UL-LISTED UNIT OPERATES ON A 460/265V, 3-PHASE, 60HZ POWER SUPPLY WITH AN INSTALLED POWER OF 37 KW (49 HP) AND A MAXIMUM ABSORPTION OF 63.0 A. IT FEATURES A SHORT CIRCUIT CURRENT RATING OF 10 KA AND AN IP54-RATED ENCLOSURE SUITABLE FOR INDUSTRIAL ENVIRONMENTS. THE REFRIGERATION SYSTEM UTILIZES R407C REFRIGERANT WITH A CHARGE OF 15.2 KG (36.1 LB), ACHIEVING A NOMINAL COOLING CAPACITY OF APPROXIMATELY 21 TONS. THE COOLING CIRCUIT IS DESIGNED FOR A MAXIMUM WORKING PRESSURE OF 28.0 BAR (406 PSI) AND A MAXIMUM TEMPERATURE OF 25.0 °C. THE UNIT INCORPORATES A UNIQUE EVAPORATOR-IN-TANK CONFIGURATION WITH A HIGH-EFFICIENCY FINNED COIL INSTALLED INSIDE A 350-LITER (APPROX. 93-GALLON) THERMAL BUFFER TANK. THIS DESIGN ENSURES STEADY PROCESS FLUID TEMPERATURES AND HANDLES HIGH FLOW RATES WITH LOW PRESSURE DROPS. THE FLUID CIRCUIT SUPPORTS A MAXIMUM WORKING PRESSURE OF 6.0 BAR (87.0 PSI) AND A MAXIMUM TEMPERATURE OF 35.0 °C. FOR HEAT REJECTION, THE CHILLER EMPLOYS THREE AXIAL FANS PROVIDING A TOTAL AIR FLOW OF APPROXIMATELY 15,625 CFM. PHYSICAL SPECIFICATIONS INCLUDE A WEIGHT OF 765 KG (1,628 LB) AND A COMPACT FOOTPRINT WITH 2-INCH NPT CONNECTIONS. OPERATING WITHIN AN AMBIENT TEMPERATURE RANGE OF -5 °C TO +44 °C, THE UNIT MAINTAINS A SOUND PRESSURE LEVEL OF 73 DB(A) AND IS MANAGED BY A PARAMETRIC MICROPROCESSOR CONTROL FOR PRECISE OPERATION.
