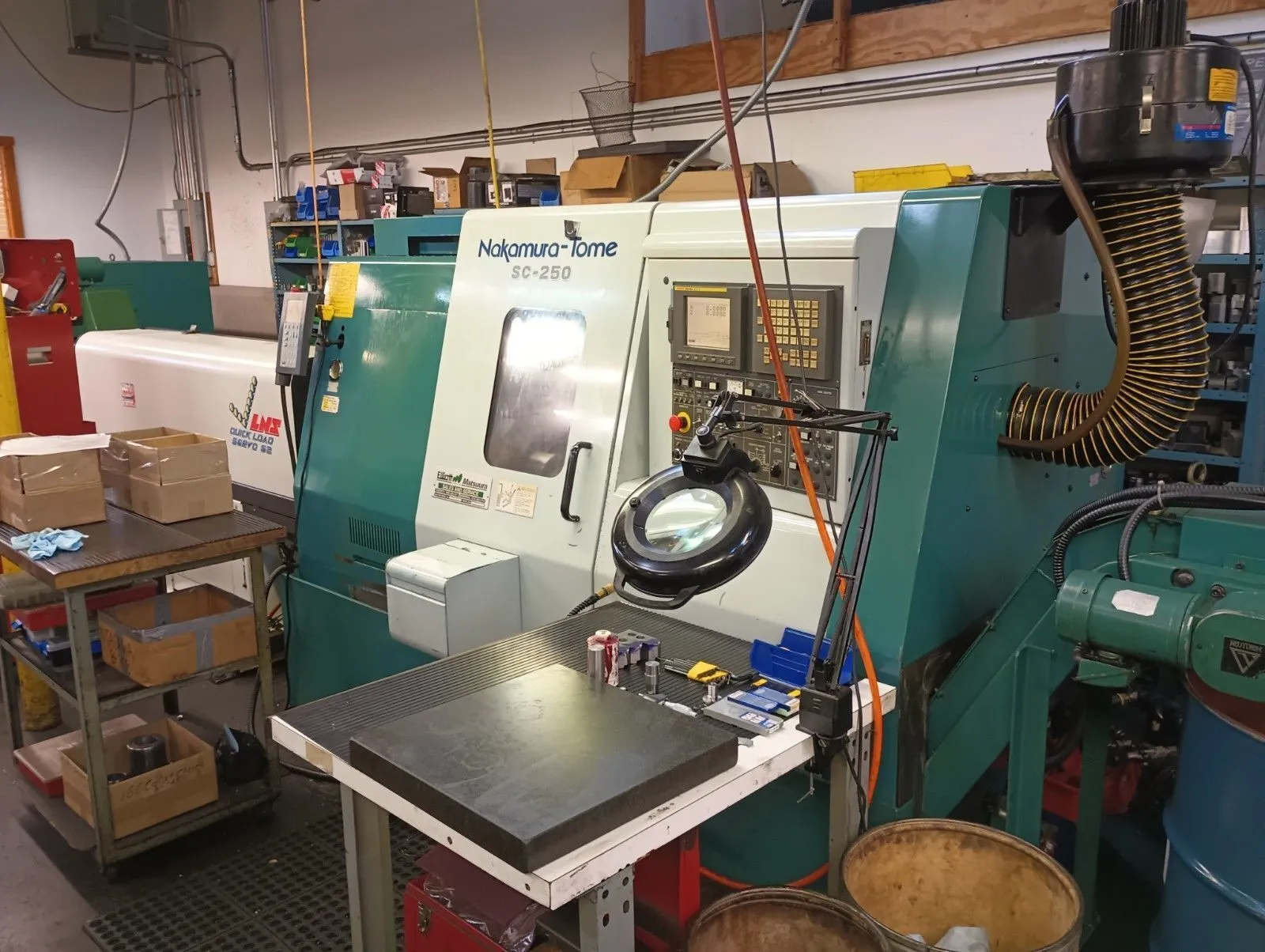

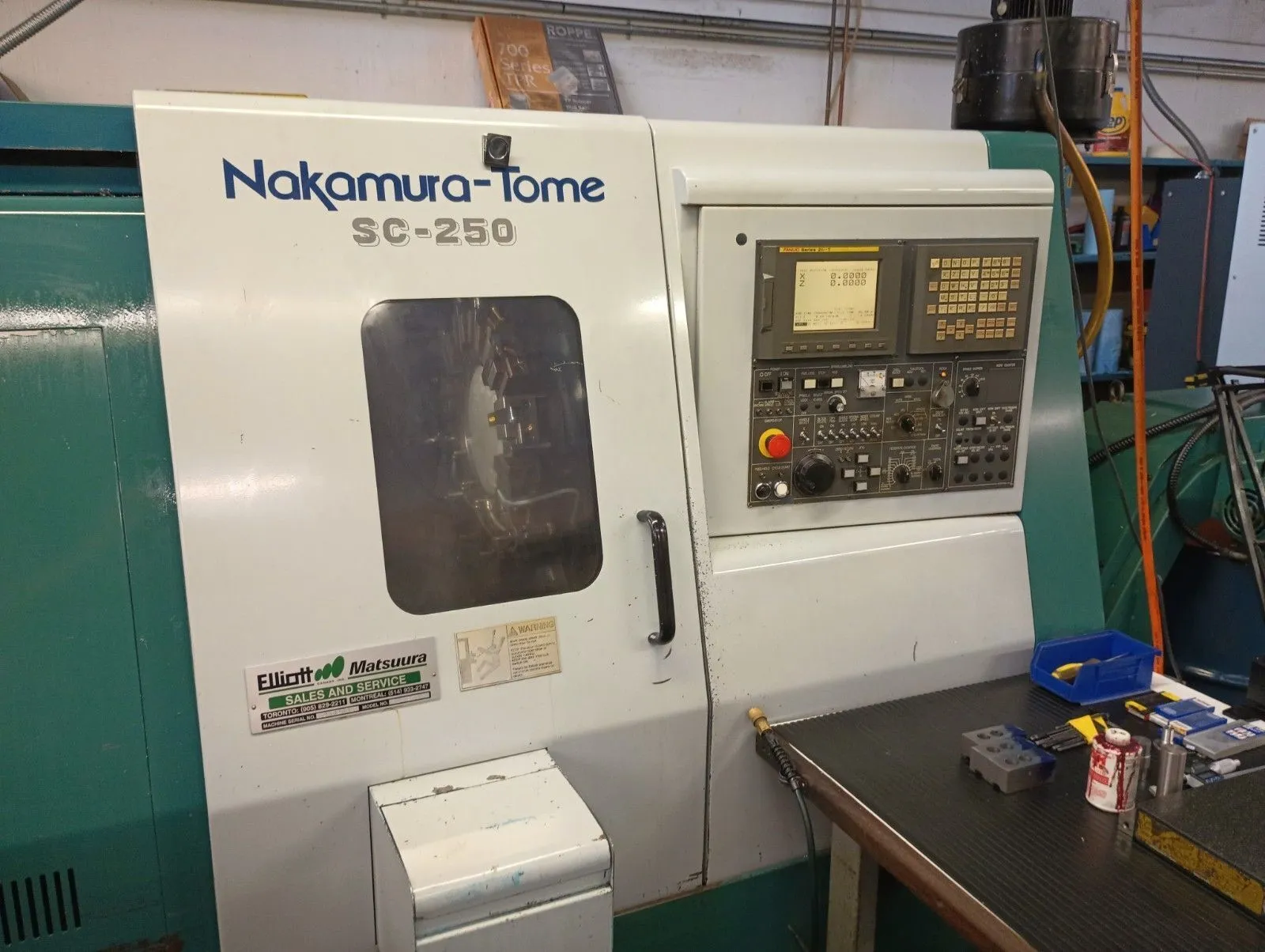

2008 Nakamura-Tome SC-250 CNC Turning Center With 20 HP Spindle Power

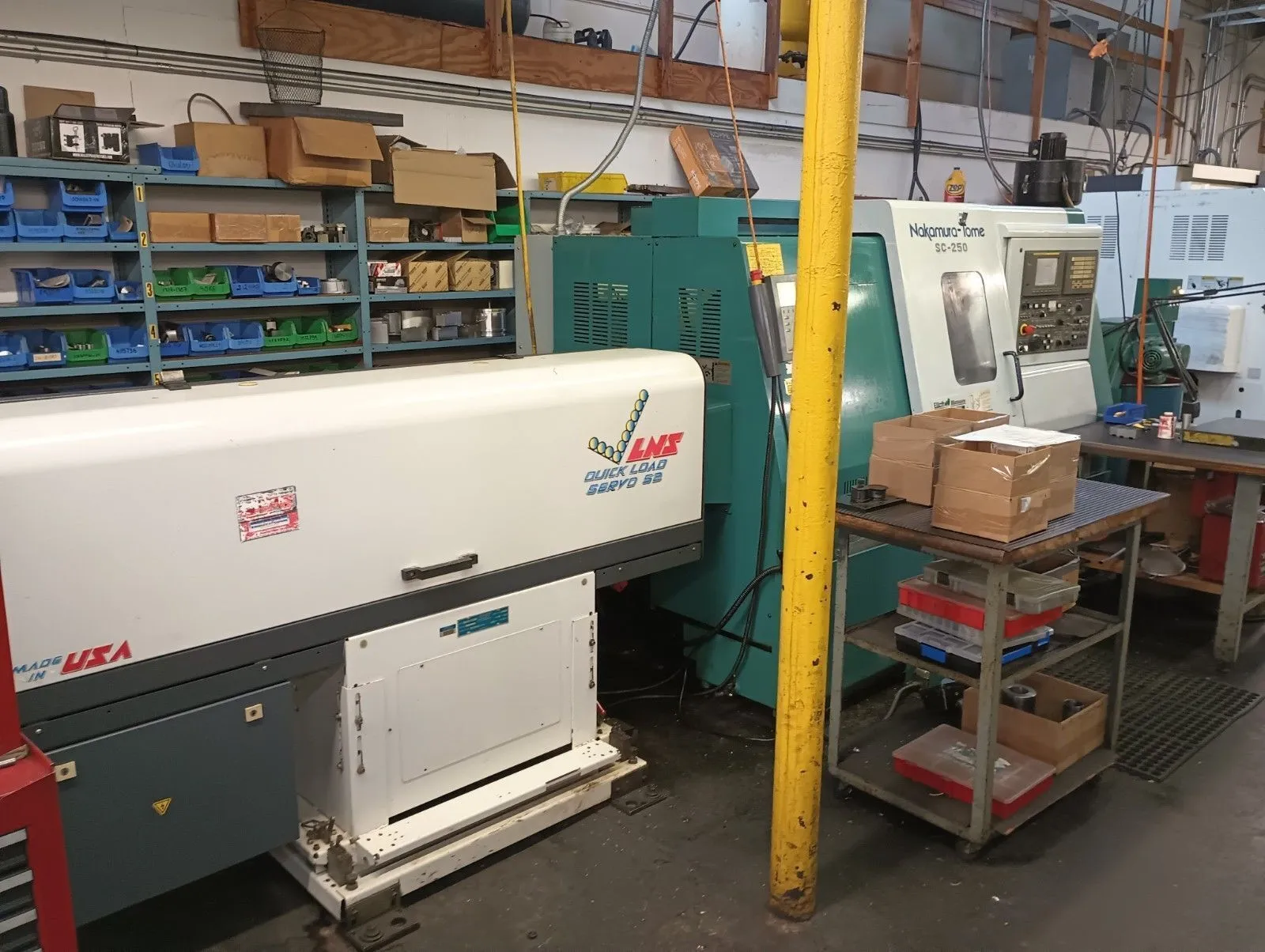

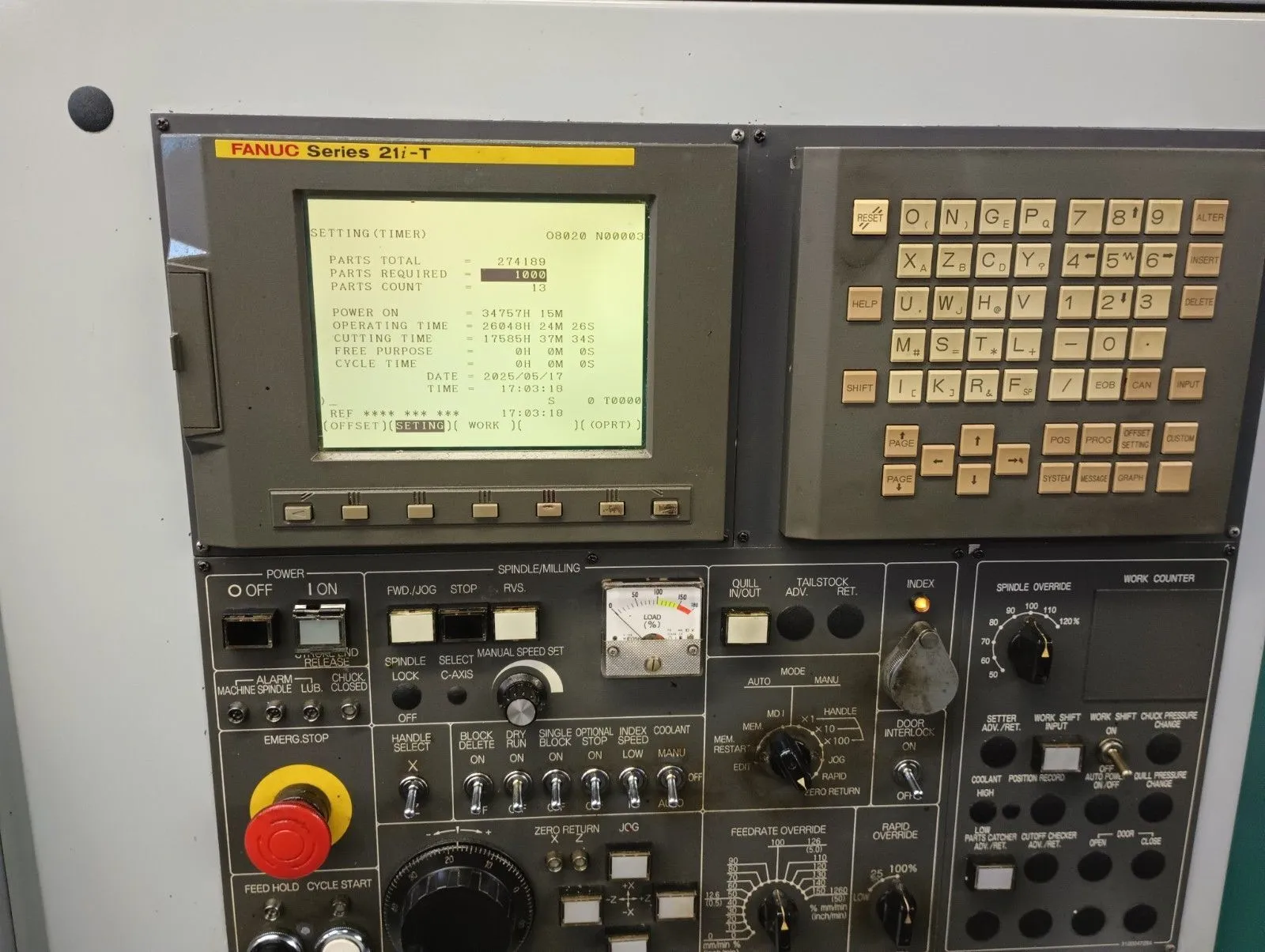

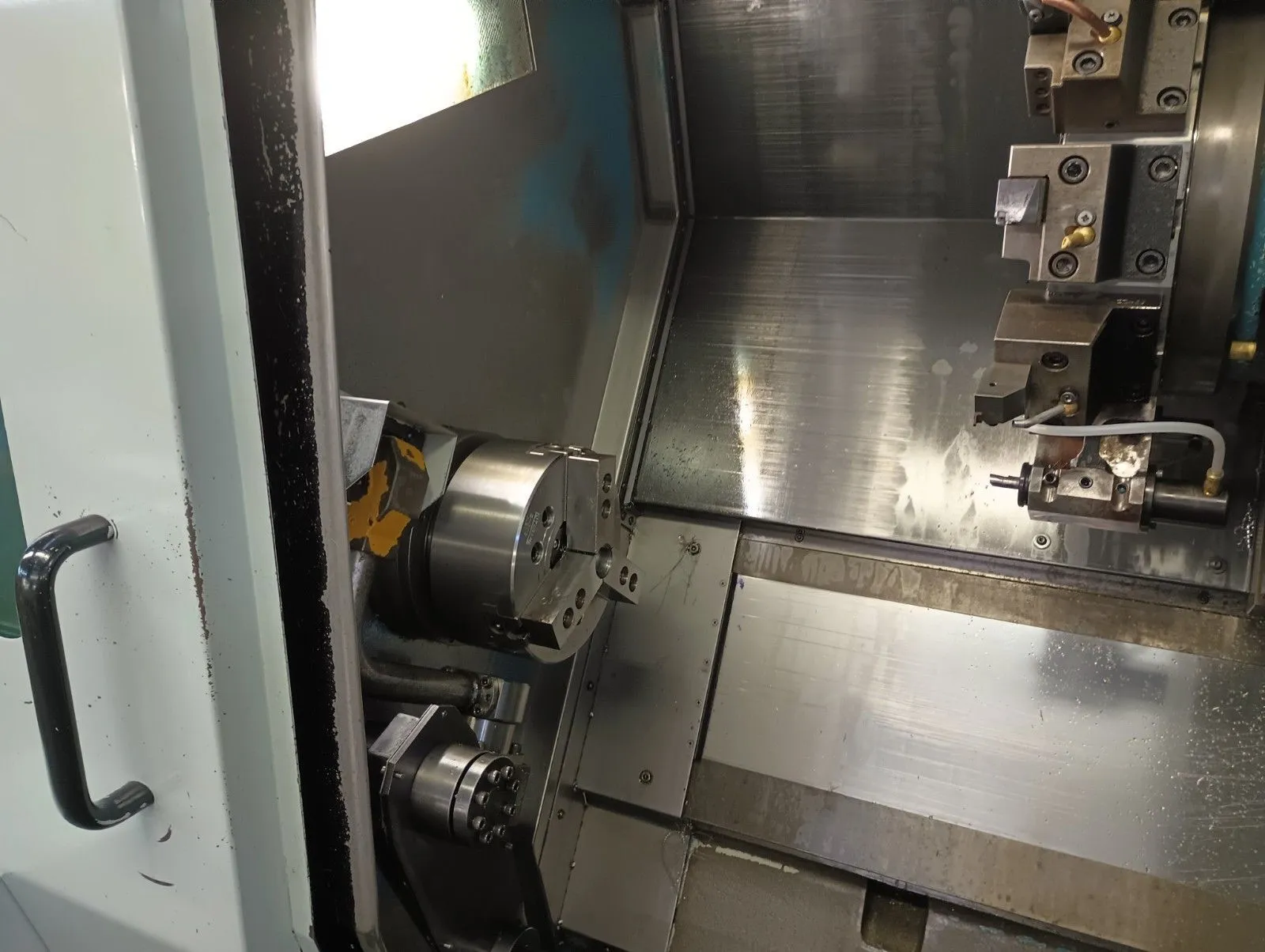

The Nakamura-Tome SC-250 is a high-performance CNC lathe engineered for precision turning applications. Powered by a 20.1 HP main spindle motor, this machine delivers spindle speeds up to 5,000 RPM, accommodating demanding machining requirements across various material types. It provides a maximum turning diameter of 11.81 inches and a maximum machining length of 27.13 inches, supported by a built-in tailstock for added stability during long workpiece operations. The unit features an 8-inch chuck capacity along with a 2.01-inch bar capacity to facilitate versatile bar-feeding setups and stock sizes. Control is managed via an integrated Fanuc 21iT CNC control system, offering reliable performance, user-friendly operation, and precise motion command execution. For enhanced workholding flexibility, the lathe accommodates either an 8-inch chuck or a 16C collet workholding configuration. Operational efficiency and chip management are supported by an integrated chip conveyor, high-PSI coolant pump system, and an automatic parts catcher to facilitate uninterrupted continuous production and efficient component retrieval.
