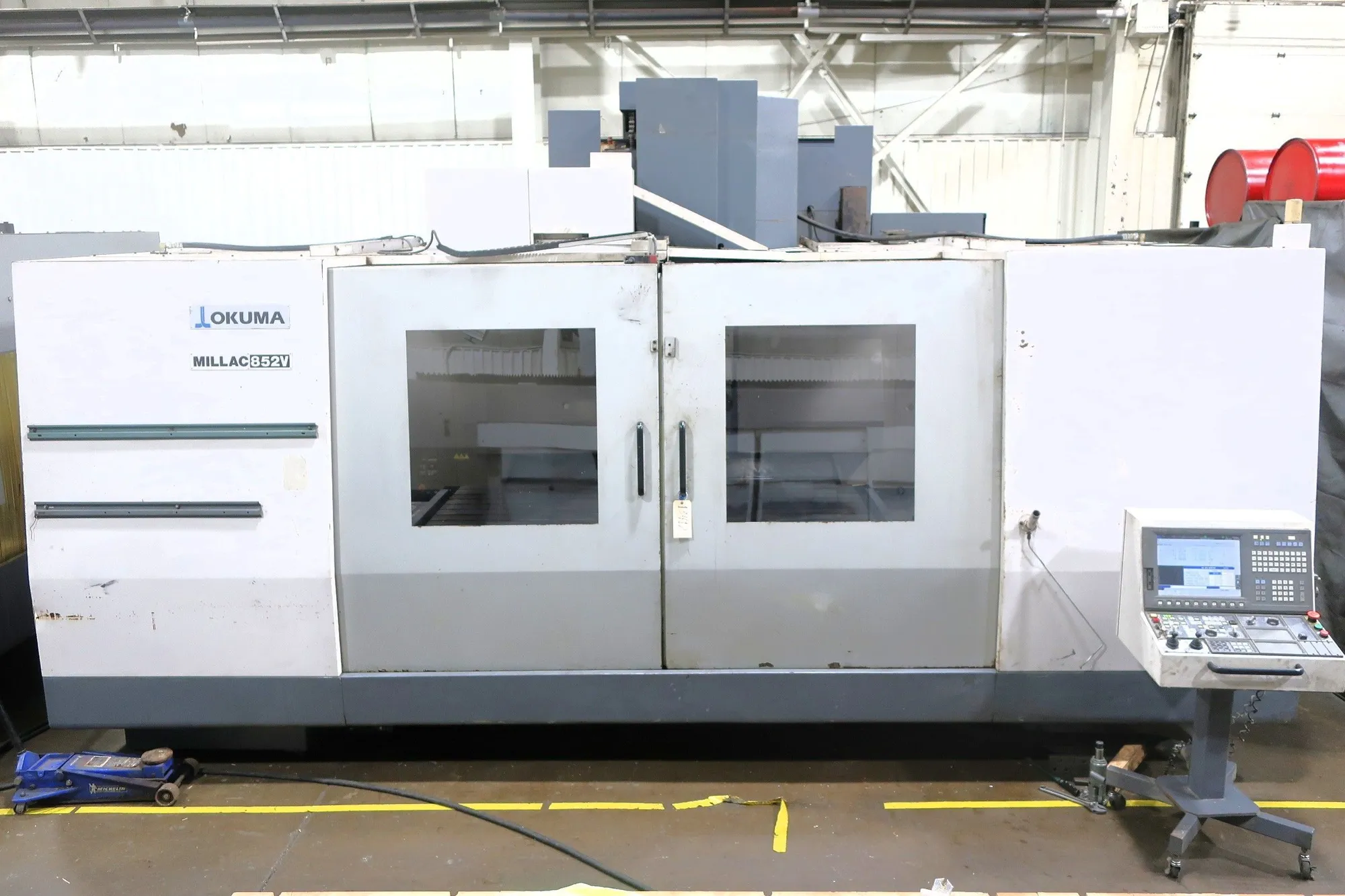

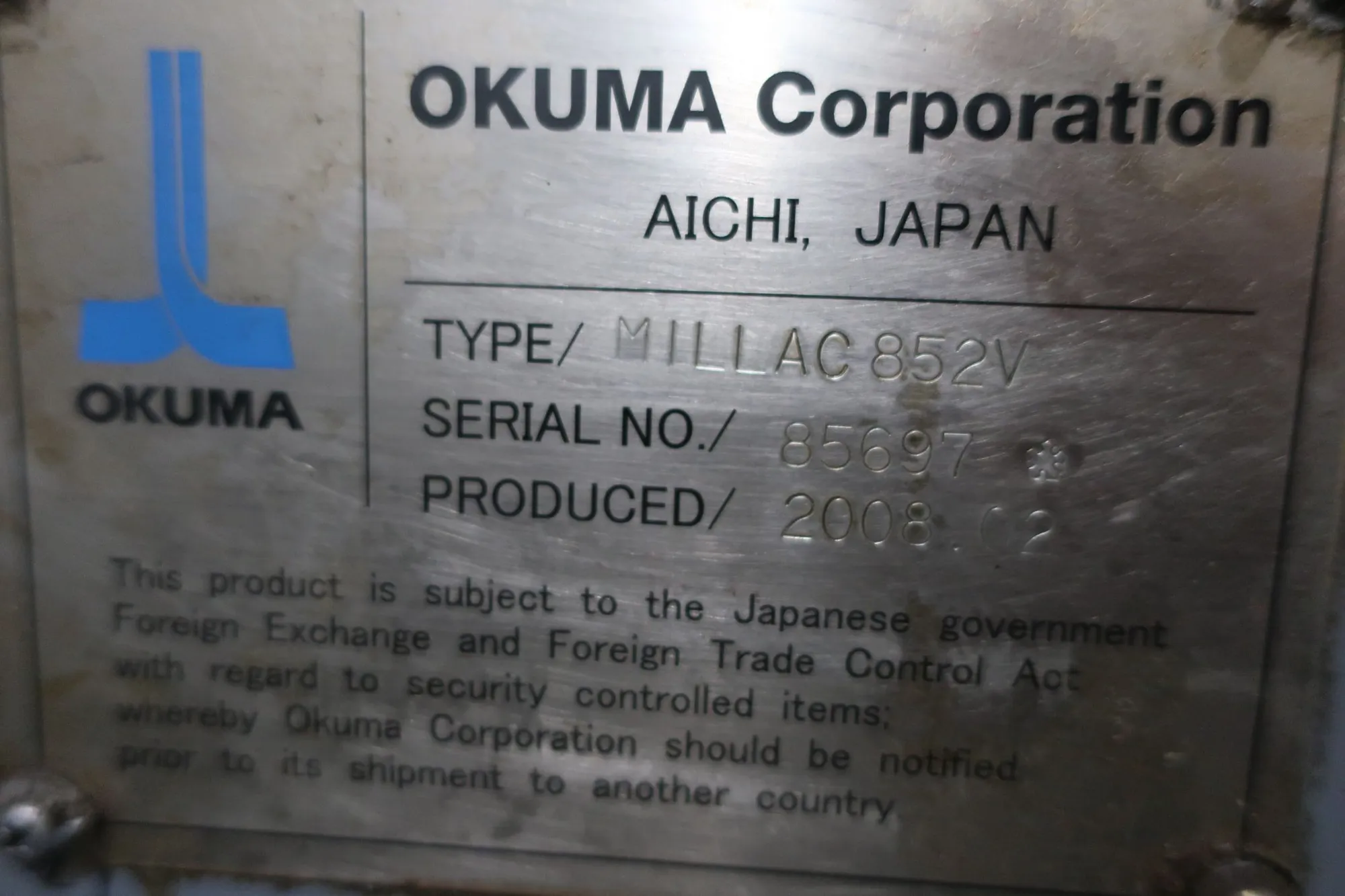

2008 OKUMA MILLAC 852V VMC, 80.7"X33.4"X29.5", 50 TAPER, 30 HP, 6K RPM, 36 ATC, OSP P200M CNC

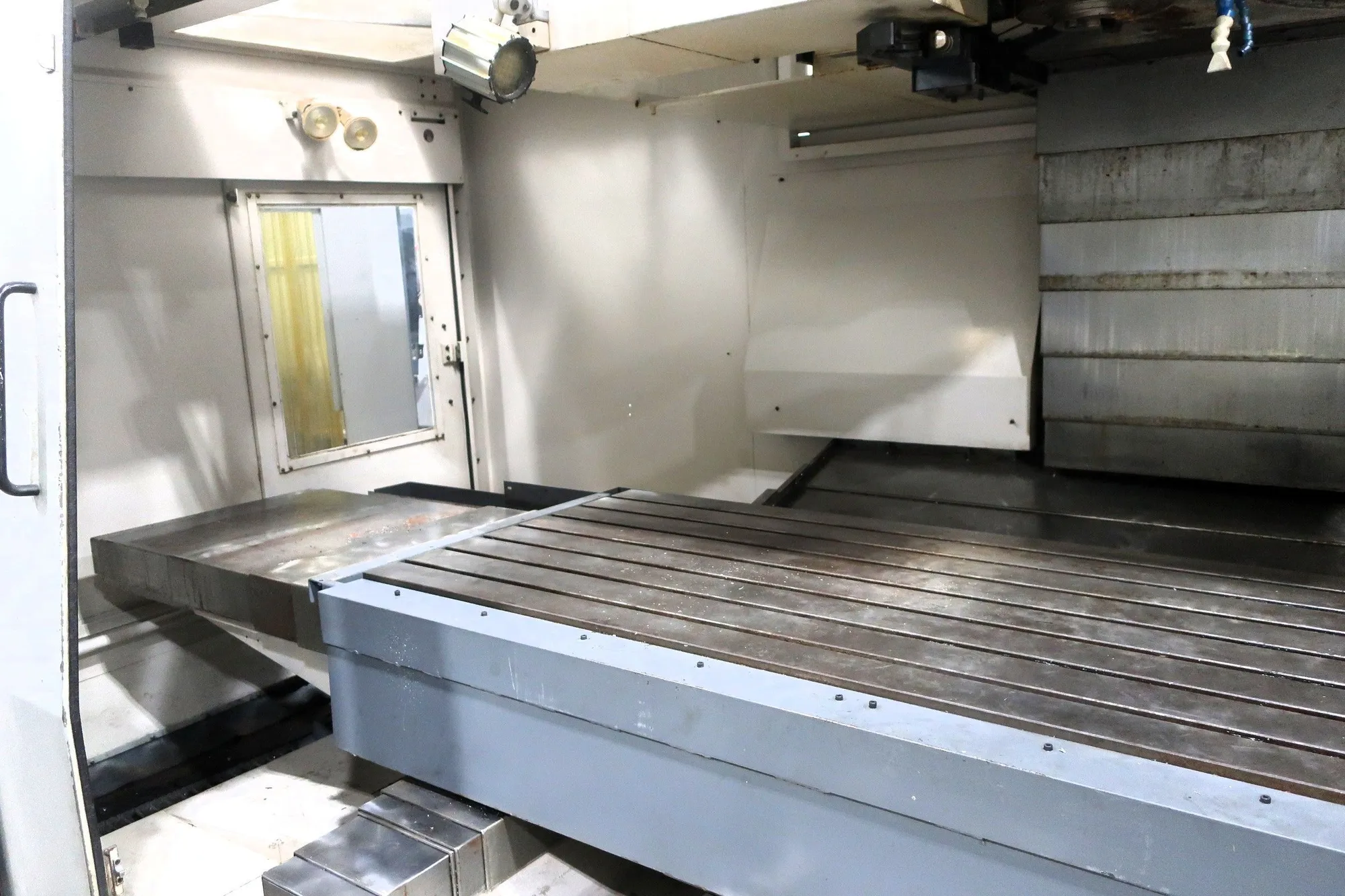

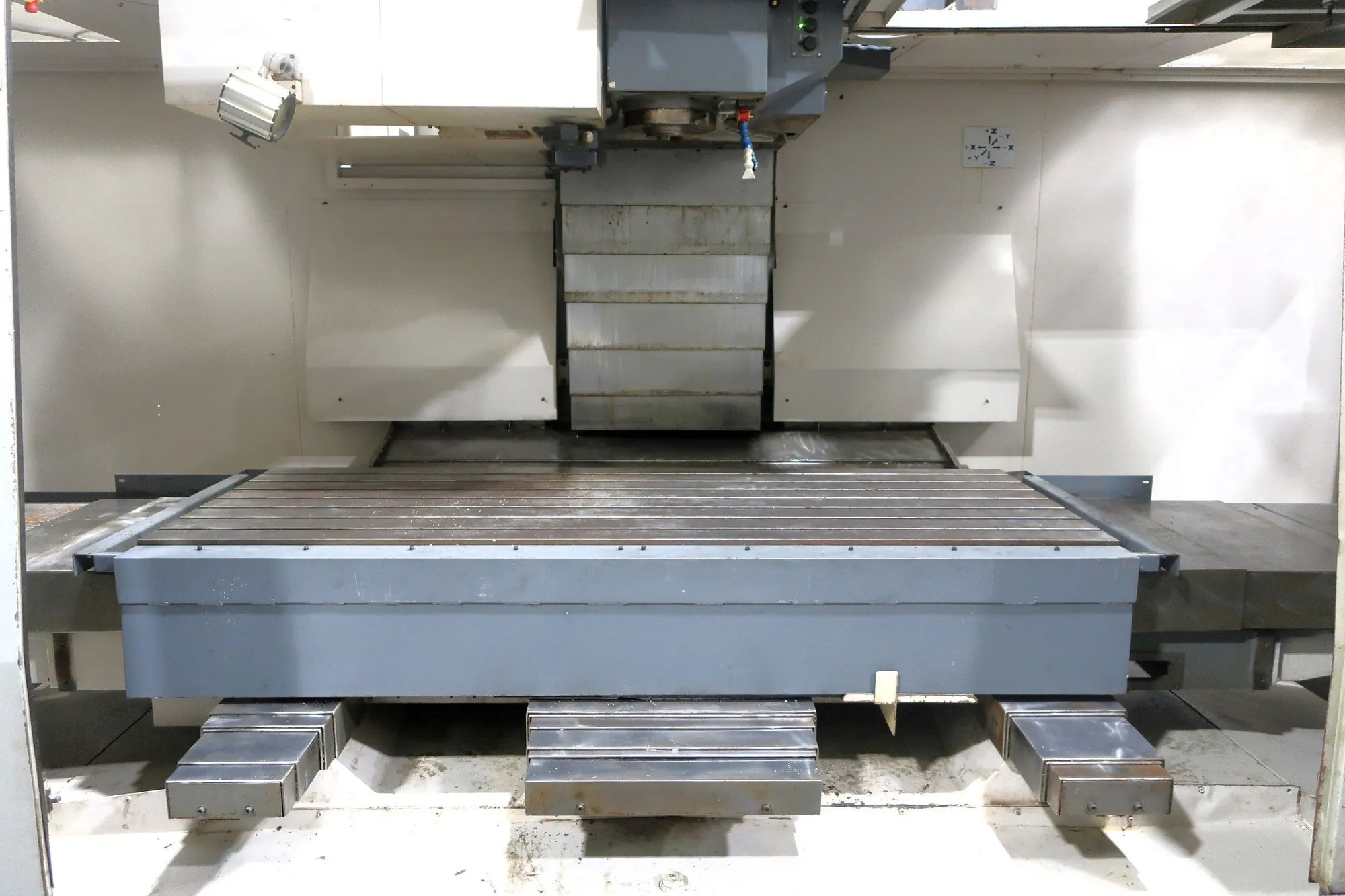

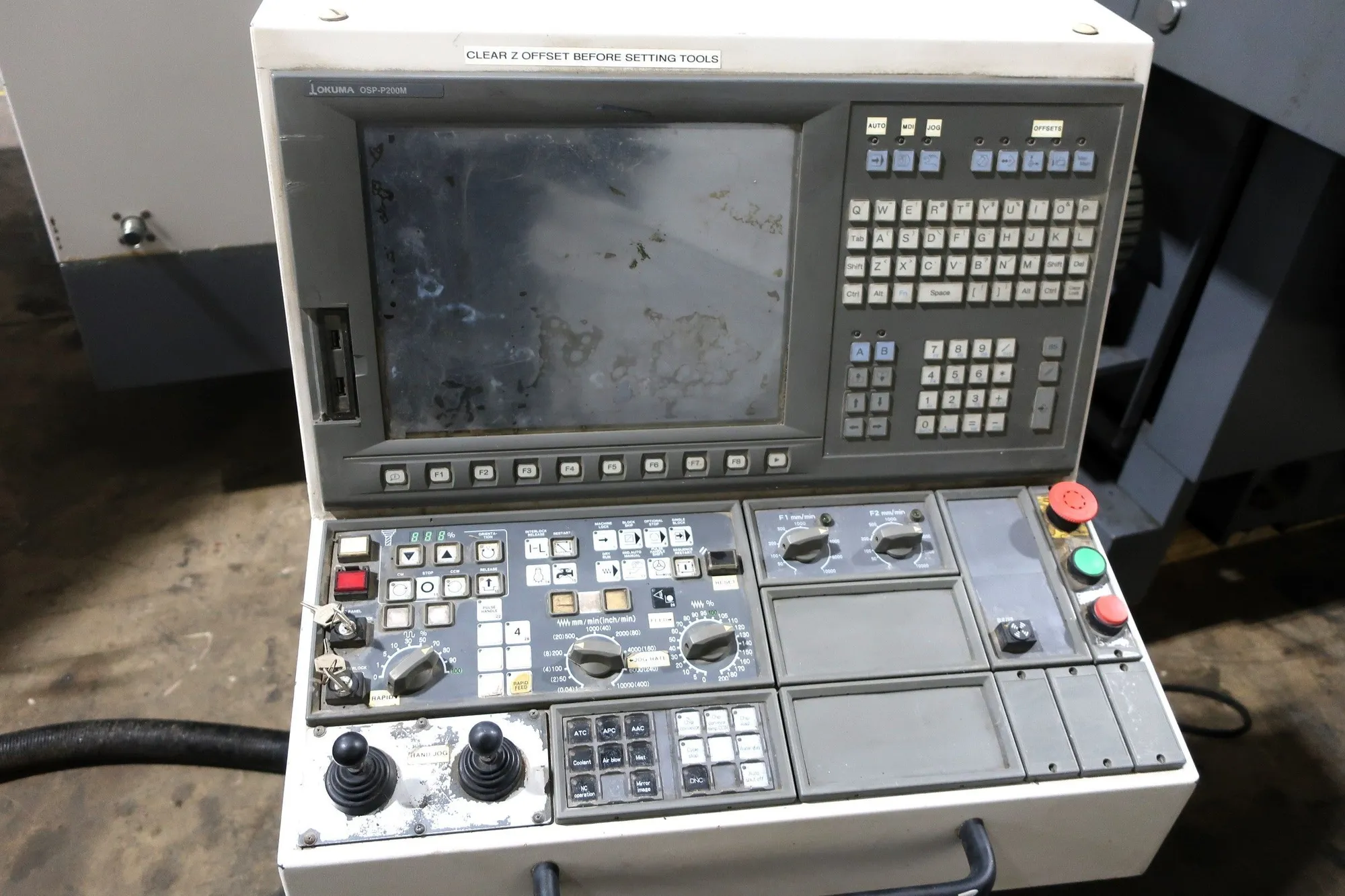

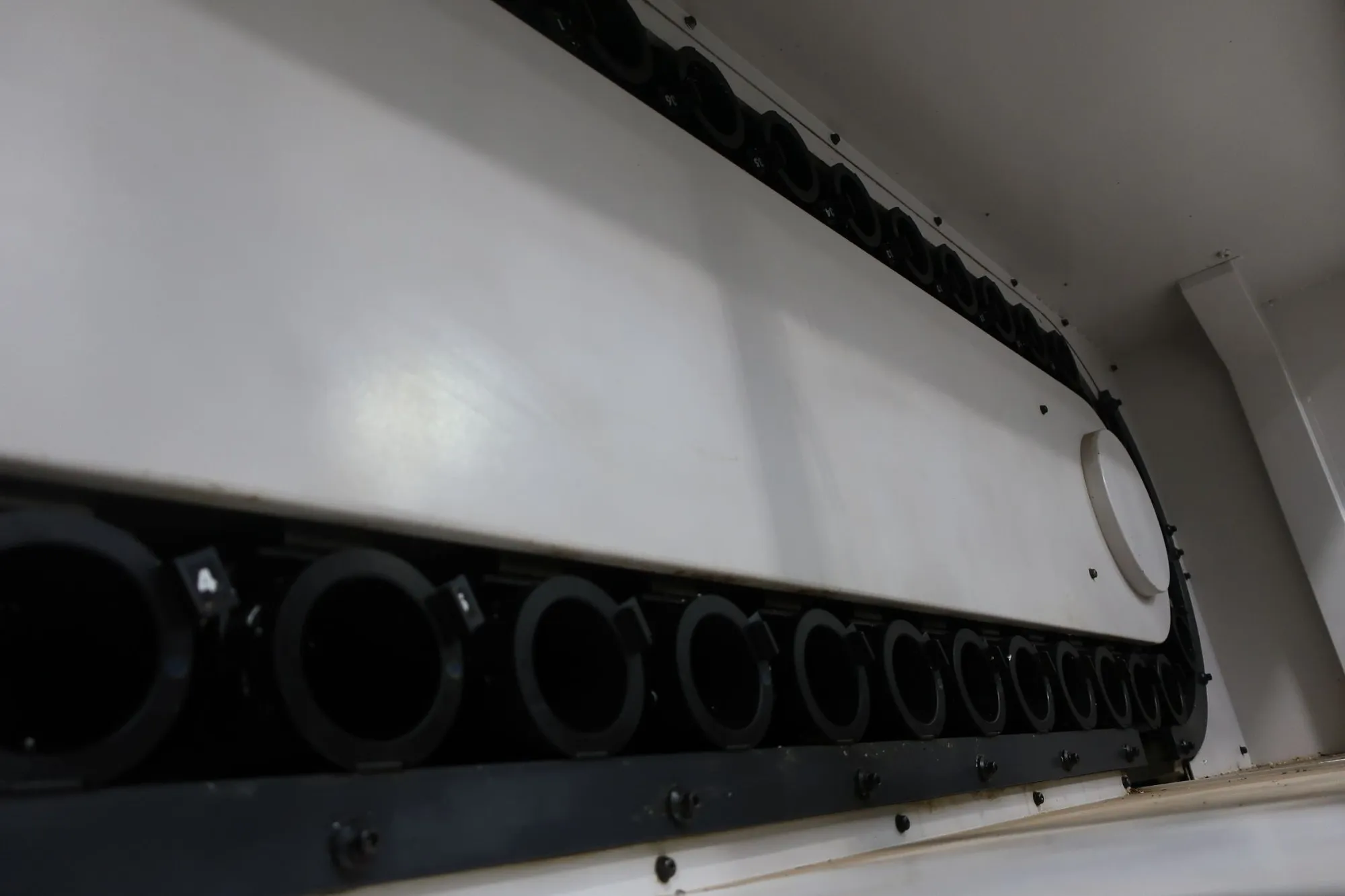

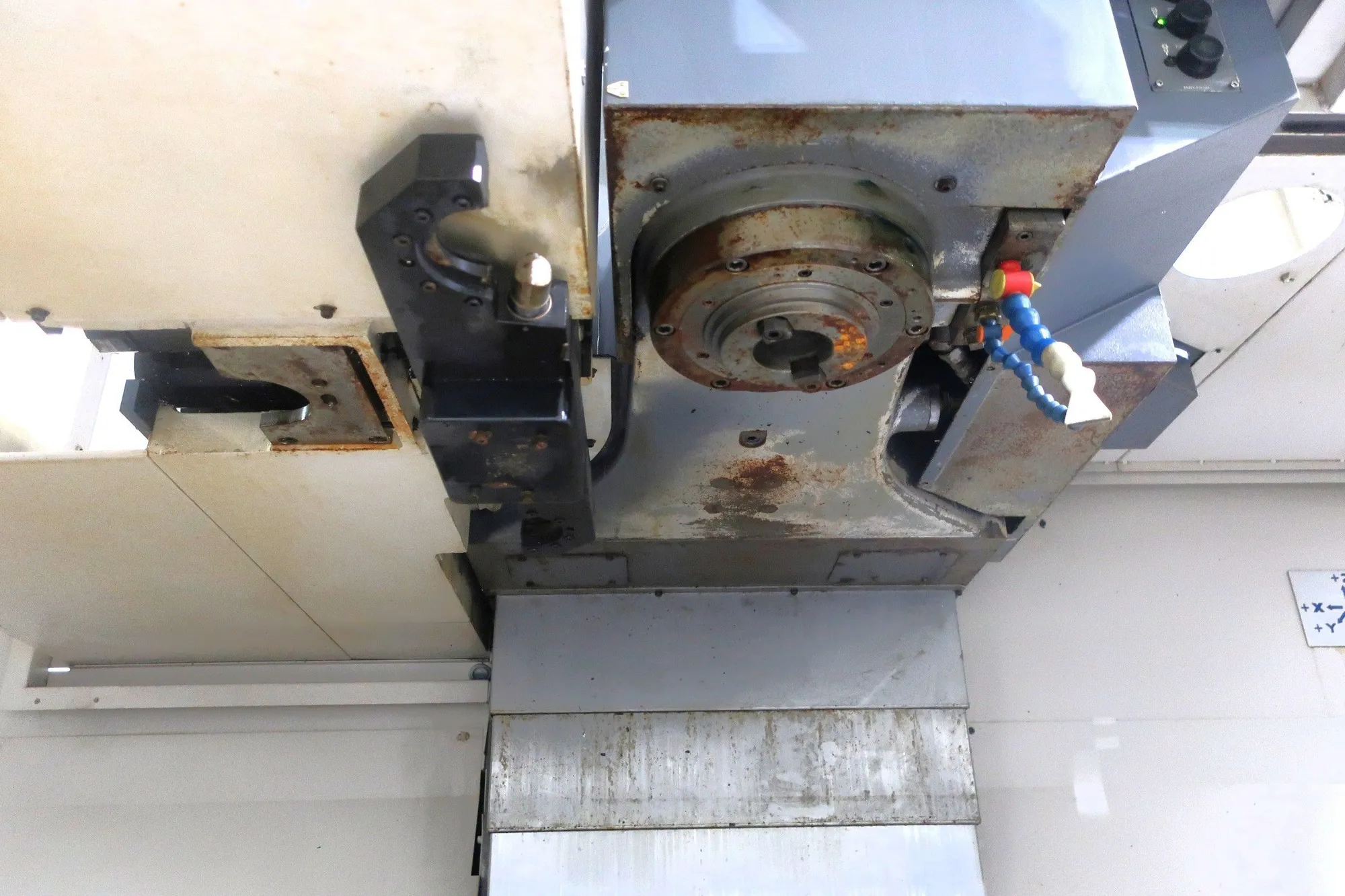

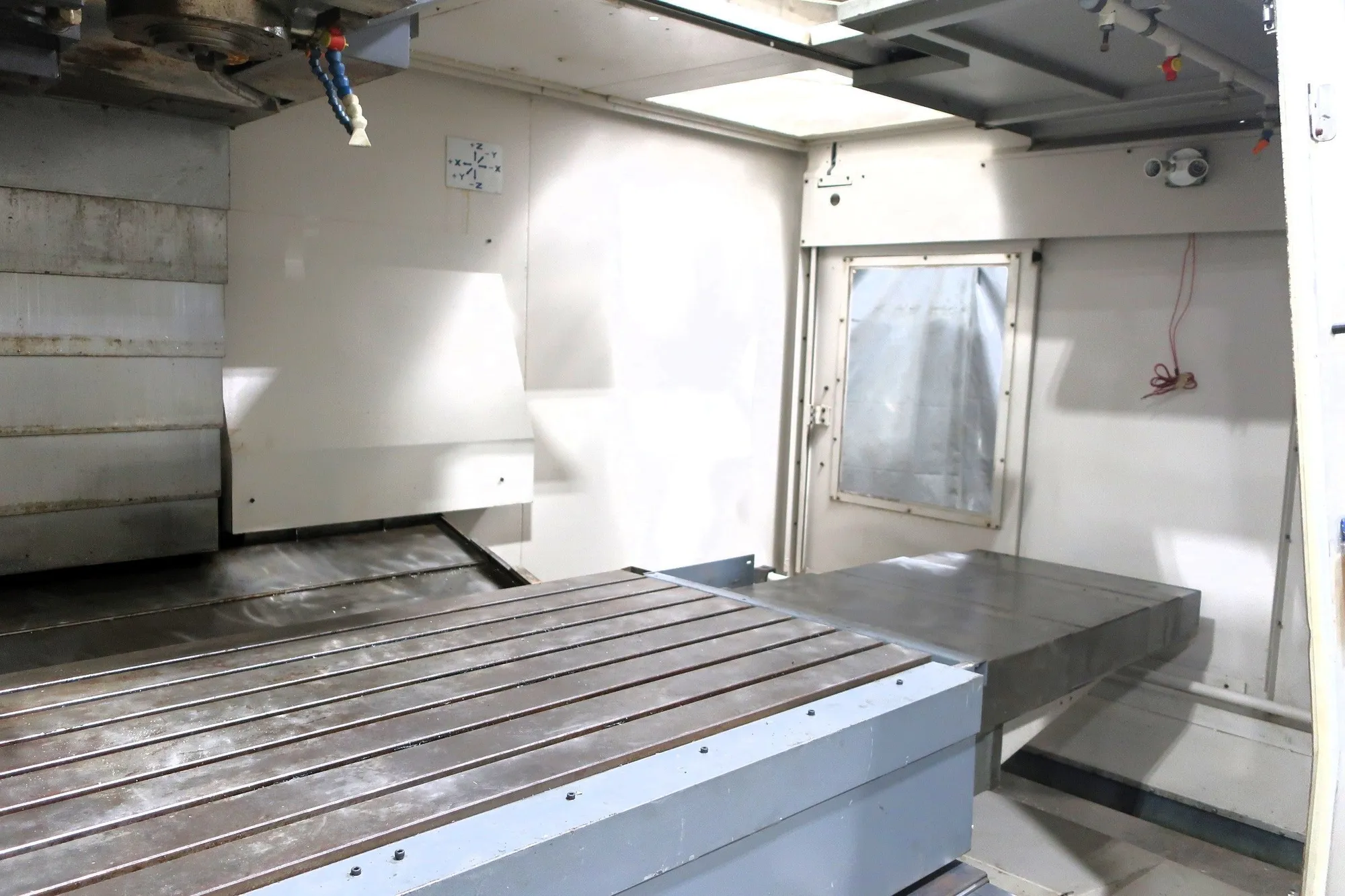

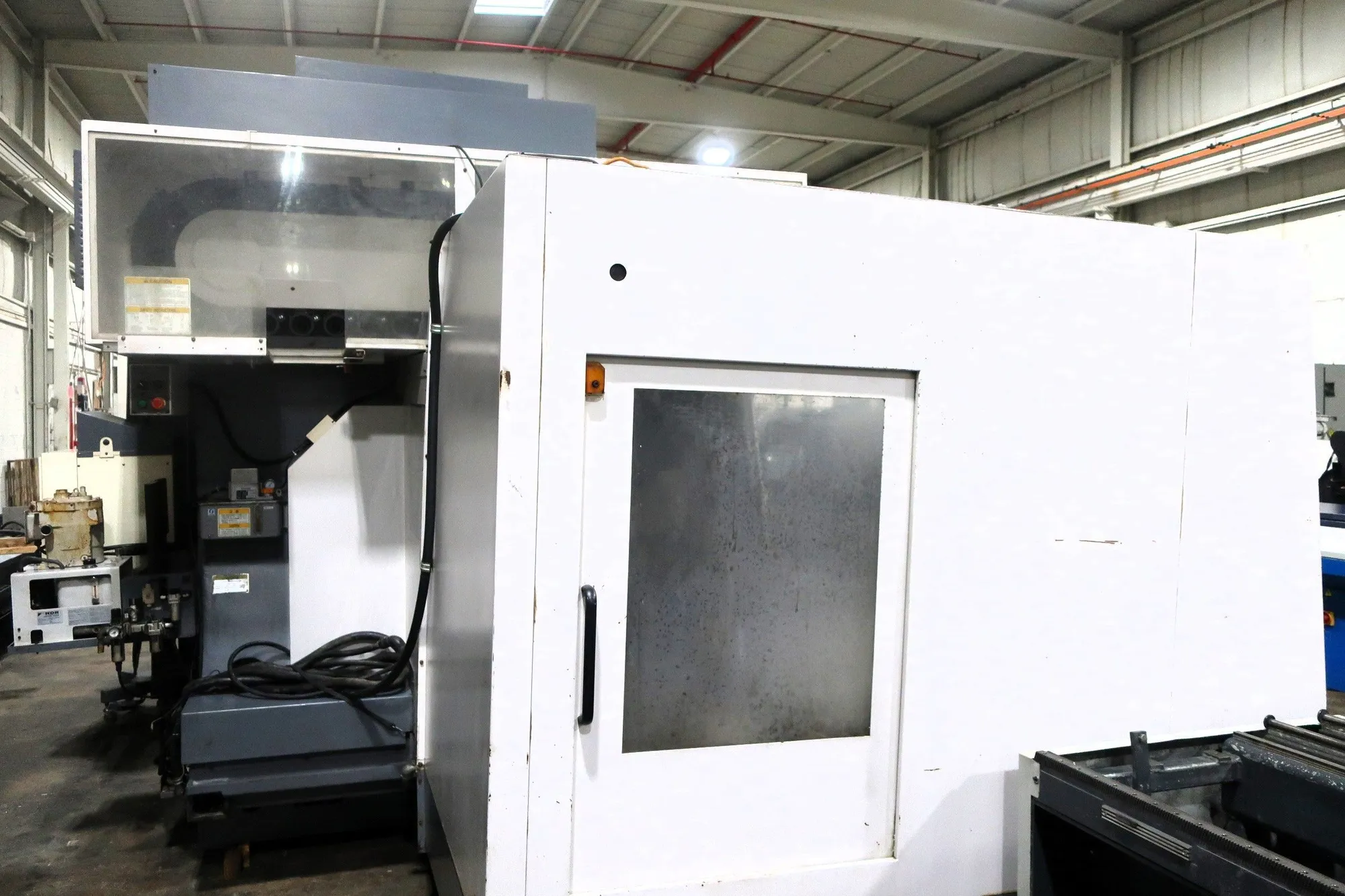

THE 2008 OKUMA MILLAC 852V IS A 2008 LARGE-SCALE 3-AXIS VERTICAL MACHINING CENTER EQUIPPED WITH AN OKUMA OSP P200M CNC CONTROL. THIS 50-TAPER MACHINE FEATURES AN 86.6" X 35.24" TABLE AND PROVIDES AXIS TRAVELS OF 80.71" IN X, 33.46" IN Y, AND 29.53" IN Z. THE SPINDLE IS POWERED BY A 30 HP MOTOR, DELIVERING SPEEDS UP TO 6,000 RPM. TOOL MANAGEMENT IS HANDLED BY A 36-STATION AUTOMATIC TOOL CHANGER WITH A 2.5-SECOND TOOL-TO-TOOL CHANGE TIME, ACCOMMODATING TOOLS UP TO 44.0 LBS AND 4.72" IN DIAMETER. PERFORMANCE SPECIFICATIONS INCLUDE RAPID TRAVERSE RATES OF 630 IPM ACROSS ALL THREE AXES. PHYSICAL CLEARANCES INCLUDE A SPINDLE NOSE TO TABLE DISTANCE RANGING FROM 7.87" TO 37.4" AND A SPINDLE CENTER TO COLUMN DISTANCE OF 35.43". THE MACHINE OCCUPIES A FOOTPRINT OF 205.4" X 166.8" X 124.44" AND HAS A TOTAL WEIGHT OF 33,069 LBS.
