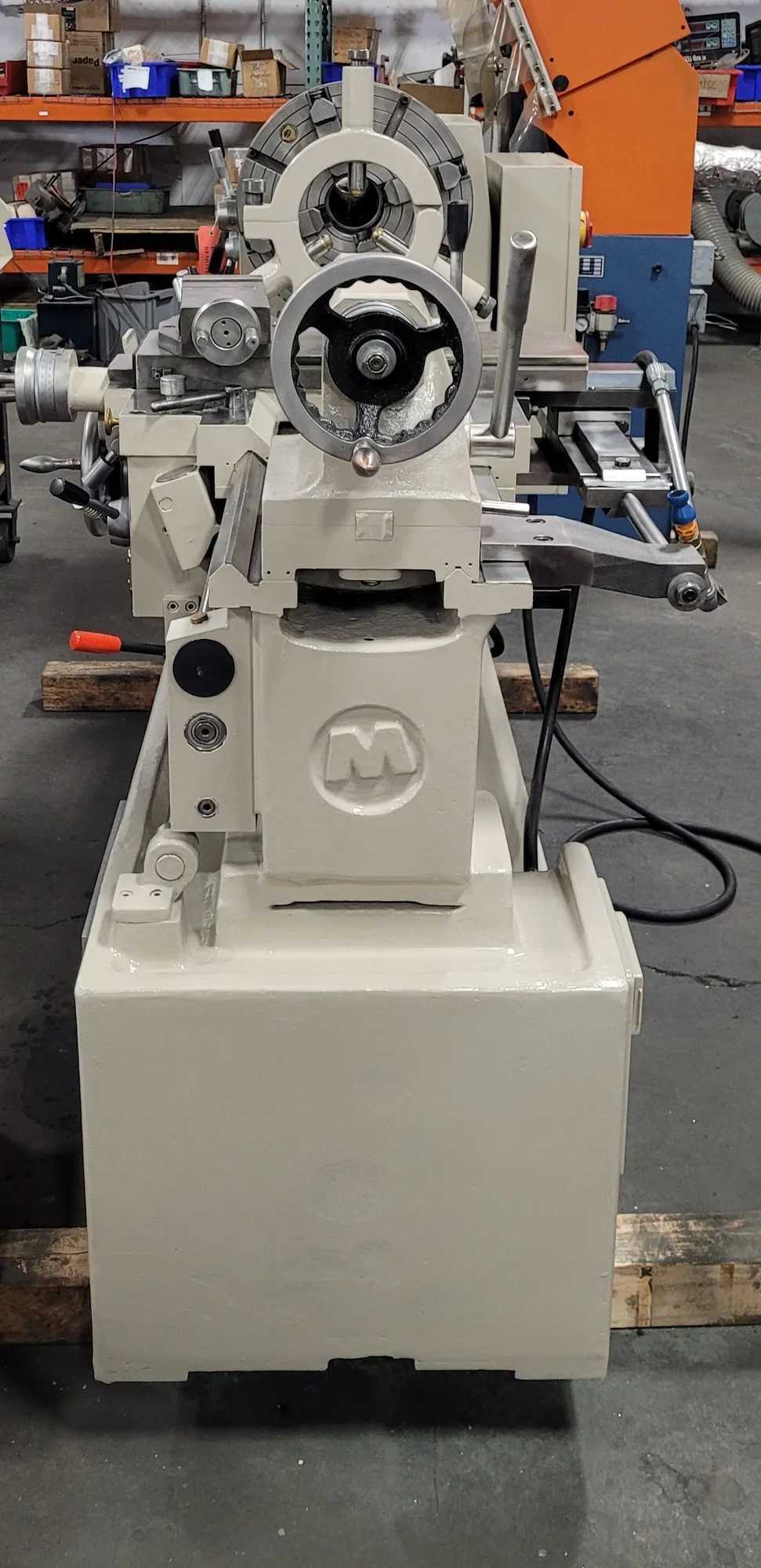

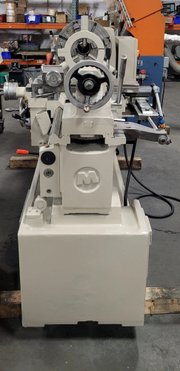

2008 Sharp 1640L Manual Lathe 16X40 7.5HP 2000RPM D1-8 3-Jaw Chuck

Asking Price:
$10,950.00

Financing From: $181/mo

Get pre-approved in minutes — no credit impact

Apply

Delivery Options

Rigging · Included

Loading · Included

Shipping · Buyer or

Removal Deadline · 30 days

Product Description

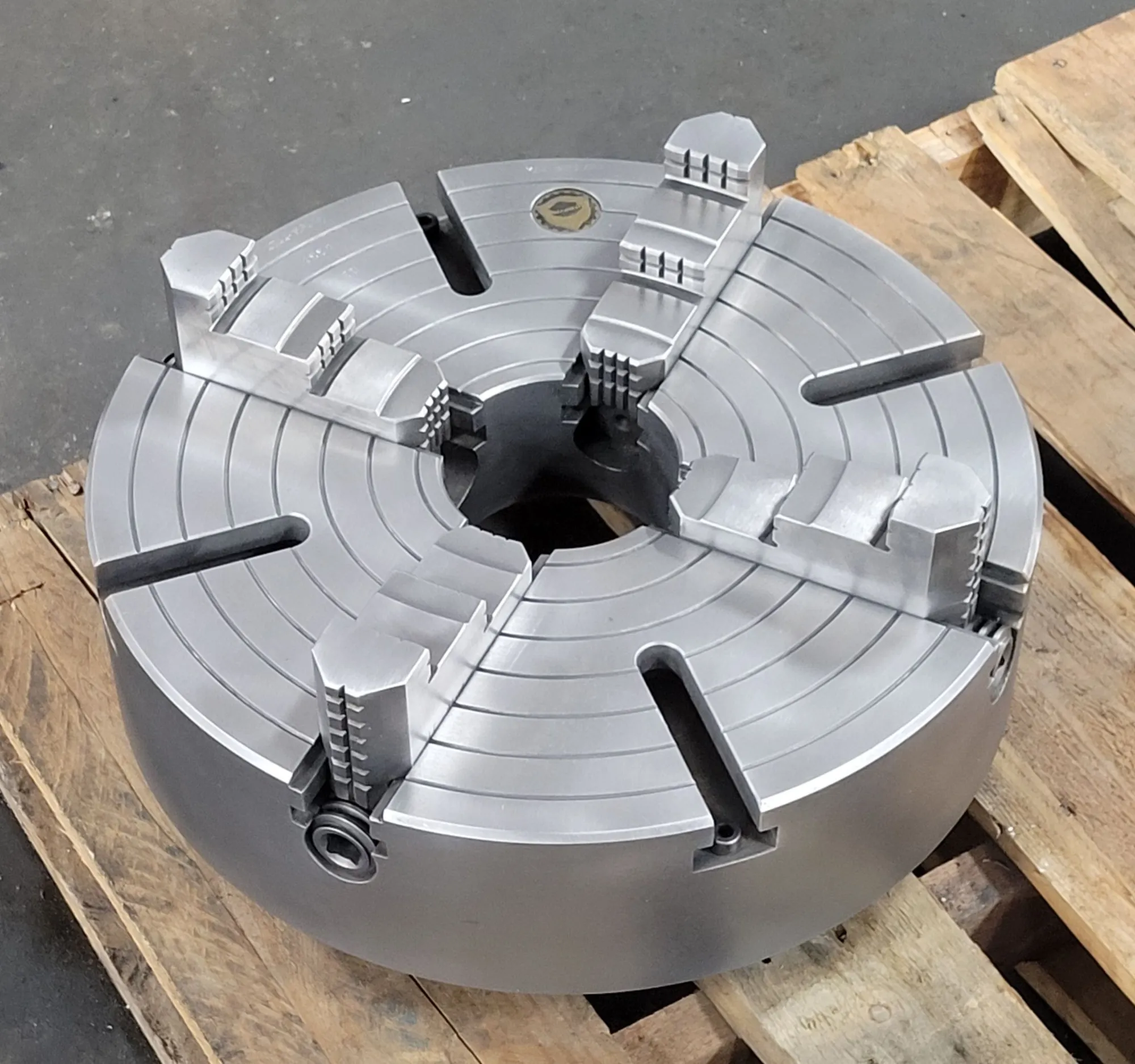

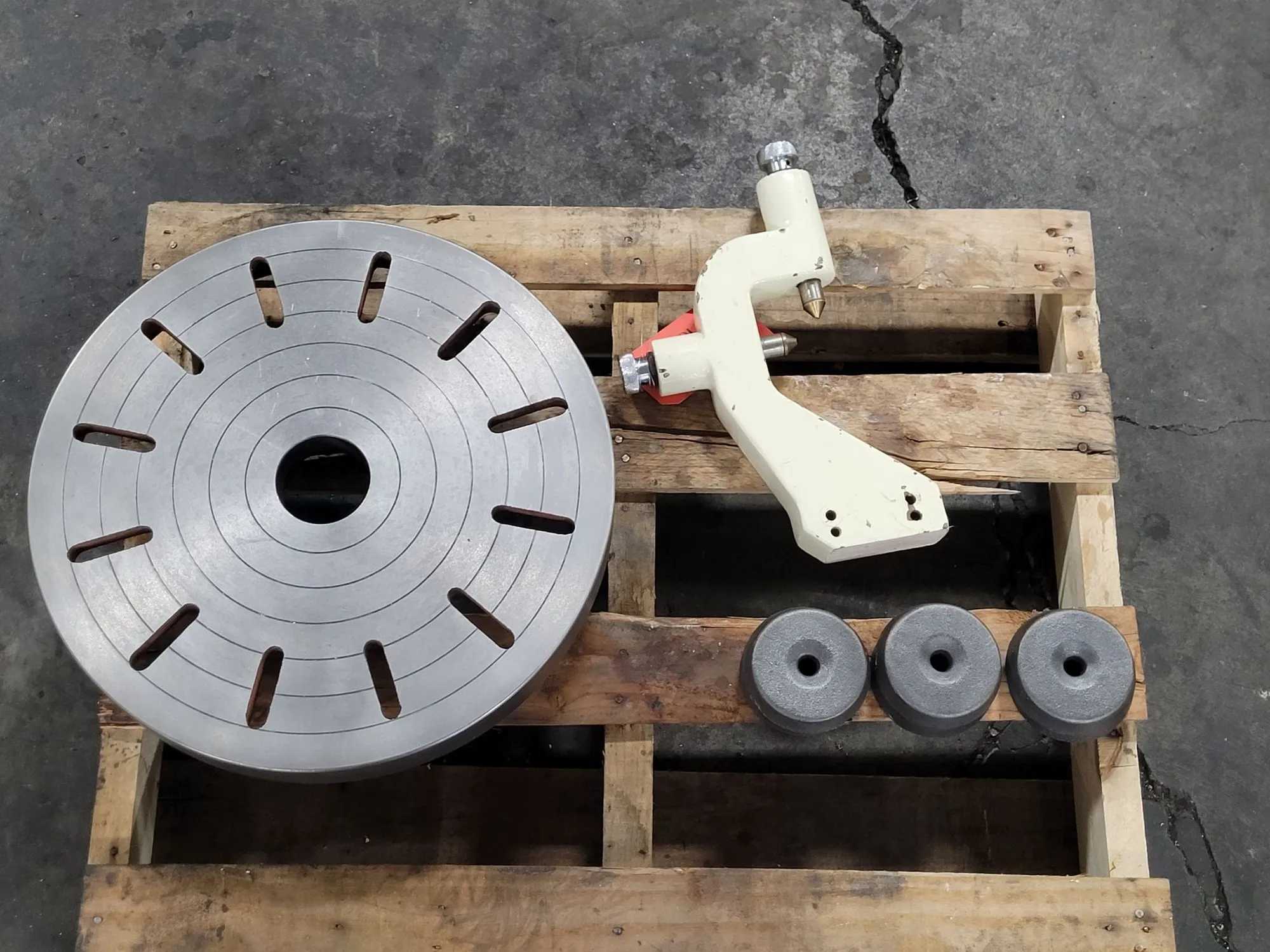

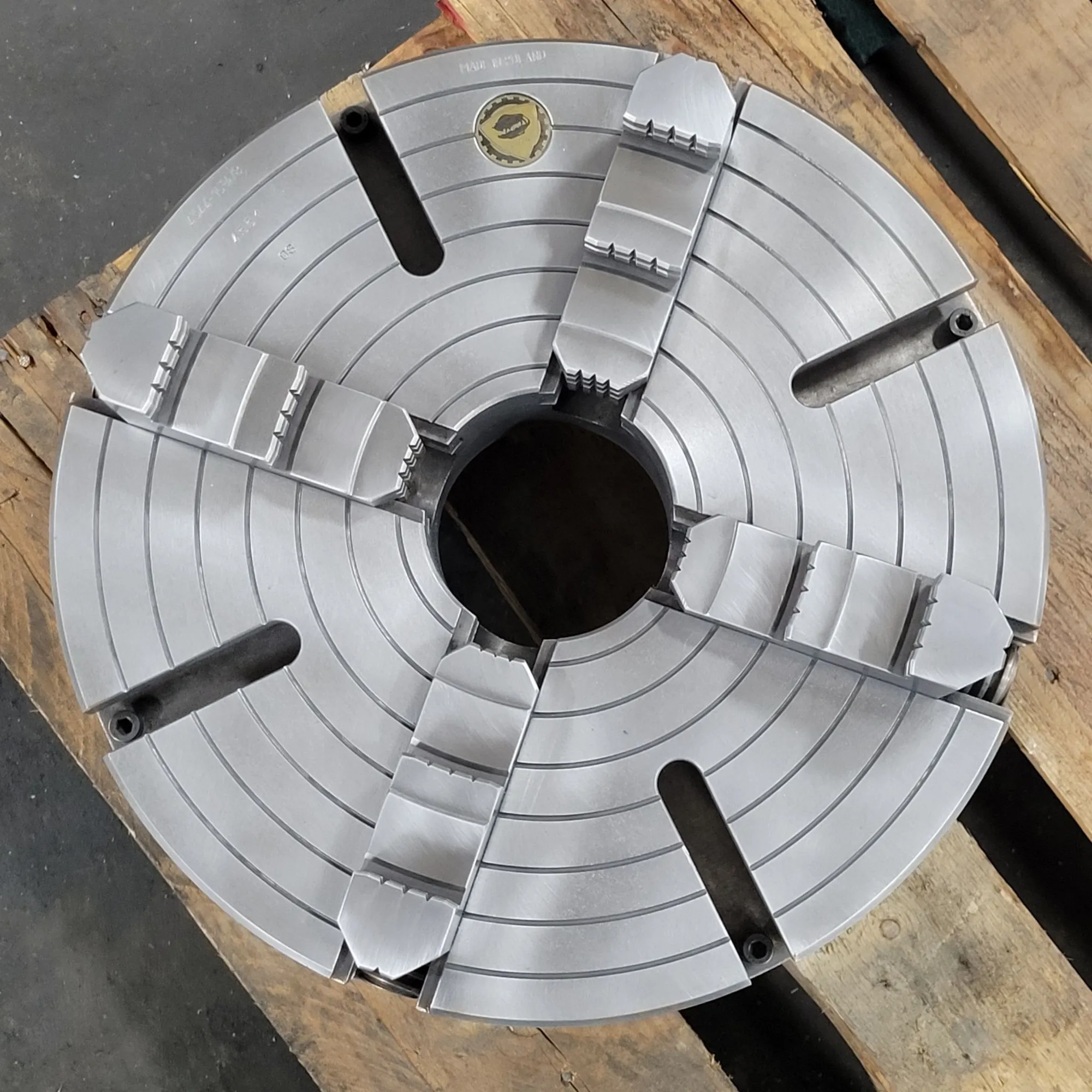

Swing - 16" Centers - 40" Spindle Bore - 3.18" Power - 7.5 hp RPM - 2,000 RPM Swing Over Cross Slide - 8.75" 2008 Sharp 1640L Engine Lathe USED Brand: Sharp Model: 1640L Type: Lathe Year: 2008 Serial Number: 7905223 15-3/4” – 4 Jaw Chuck, Bison Steady Rest Face Plate, 16" Overall Diameter, 2.5" Center Hole Follow Rest Taper Attachment Capacity Swing Over Bed: 16" Swing Over Cross Slide: 8.75" Swing Over Gap: 25.5" Gap Width (In Front Of Face Plate): 11.81 in. Distance Between Centers: 40" Headstock Spindle Bore: 3.18" Spindle Nose: D1-8 Camlock Spindle Speeds: 12 speeds, ranging from 40 to 2,000 RPM Spindle Motor: 7.5 HP Threading & Feeds Inch Threads: 4 – 56 TPI (36 selections) Metric Threads: 0.5 – 7 mm Longitudinal Feeds: 0.002 – 0.032 in/rev Cross Feeds: 0.0001 – 0.0094 in/rev Leadscrew Pitch, Diameter 1.37 in., 35 mm Diametral Pitch Threads, Number: 0.157-2.20 in., 36 / 4-56 mm, 36 Carriage Cross Slide Travel: 9.84in/250mm Compound Travel: 4.92in/125mm Compound Width: 4.5in/114.3mm Tailstock Quill Diameter: 2.28" Quill Travel: 5.9" Quill Taper: MT #4 Dimensions & Weight Bed Length: 84.44" Bed Width: 11.8" Approximate Weight: 3,500lbs Footprint: 7.05' L x 2.66' W x 3.9' H Specifications Subject to Verification 2008 Sharp 1640L Engine Lathe USED Brand: Sharp Model: 1640L Type: Lathe Year: 2008 Serial Number: 7905223 15-3/4” – 4 Jaw Chuck, Bison Steady Rest Face Plate, 16" Overall Diameter, 2.5" Center Hole Follow Rest Taper Attachment Capacity Swing Over Bed: 16" Swing Over Cross Slide: 8.75" Swing Over Gap: 25.5" Gap Width (In Front Of Face Plate): 11.81 in. Distance Between Centers: 40" Headstock Spindle Bore: 3.18" Spindle Nose: D1-8 Camlock Spindle Speeds: 12 speeds, ranging from 40 to 2,000 RPM Spindle Motor: 7.5 HP Threading & Feeds Inch Threads: 4 – 56 TPI (36 selections) Metric Threads: 0.5 – 7 mm Longitudinal Feeds: 0.002 – 0.032 in/rev Cross Feeds: 0.0001 – 0.0094 in/rev Leadscrew Pitch, Diameter 1.37 in., 35 mm Diametral Pitch Threads, Number: 0.157-2.20 in., 36 / 4-56 mm, 36 Carriage Cross Slide Travel: 9.84in/250mm Compound Travel: 4.92in/125mm Compound Width: 4.5in/114.3mm Tailstock Quill Diameter: 2.28" Quill Travel: 5.9" Quill Taper: MT #4 Dimensions & Weight Bed Length: 84.44" Bed Width: 11.8" Approximate Weight: 3,500lbs Footprint: 7.05' L x 2.66' W x 3.9' H Specifications Subject to Verification 2008 Sharp 1640L Engine Lathe USED Brand: Sharp Model: 1640L Type: Lathe Year: 2008 Serial Number: 7905223 15-3/4” – 4 Jaw Chuck, Bison Steady Rest Face Plate, 16" Overall Diameter, 2.5" Center Hole Follow Rest Taper Attachment Capacity Swing Over Bed: 16" Swing Over Cross Slide: 8.75" Swing Over Gap: 25.5" Gap Width (In Front Of Face Plate): 11.81 in. Distance Between Centers: 40" Headstock Spindle Bore: 3.18" Spindle Nose: D1-8 Camlock Spindle Speeds: 12 speeds, ranging from 40 to 2,000 RPM Spindle Motor: 7.5 HP Threading & Feeds Inch Threads: 4 – 56 TPI (36 selections) Metric Threads: 0.5 – 7 mm Longitudinal Feeds: 0.002 – 0.032 in/rev Cross Feeds: 0.0001 – 0.0094 in/rev Leadscrew Pitch, Diameter 1.37 in., 35 mm Diametral Pitch Threads, Number: 0.157-2.20 in., 36 / 4-56 mm, 36 Carriage Cross Slide Travel: 9.84in/250mm Compound Travel: 4.92in/125mm Compound Width: 4.5in/114.3mm Tailstock Quill Diameter: 2.28" Quill Travel: 5.9" Quill Taper: MT #4 Dimensions & Weight Bed Length: 84.44" Bed Width: 11.8" Approximate Weight: 3,500lbs Footprint: 7.05' L x 2.66' W x 3.9' H Specifications Subject to Verification

Core Specifications

Manufacturer: SHARP

Model: 1640L

Year: 2008

Packaging Type: 1 Piece

Condition: Good - Item functions as originally intended, shows minimal signs of wear.
