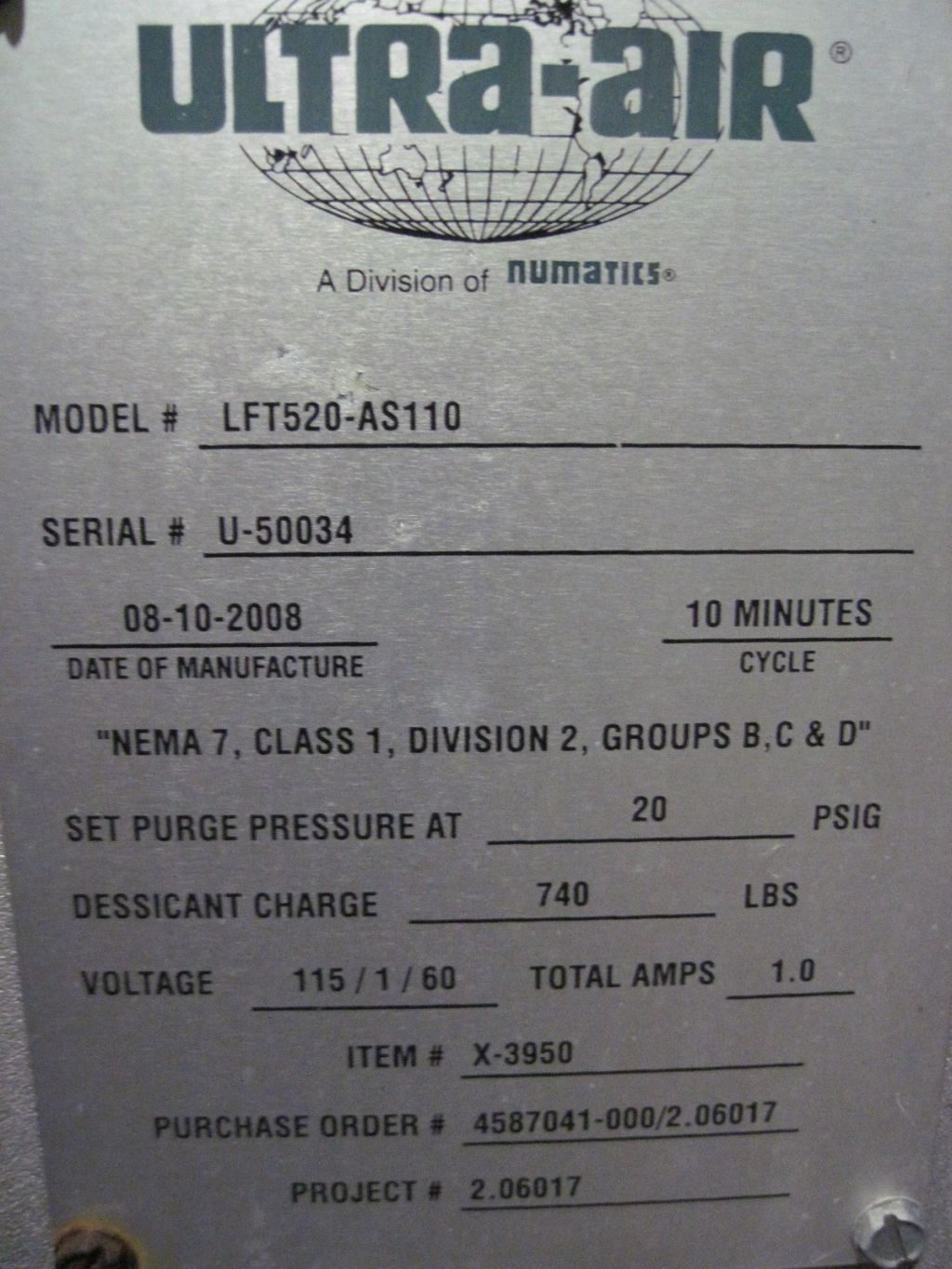

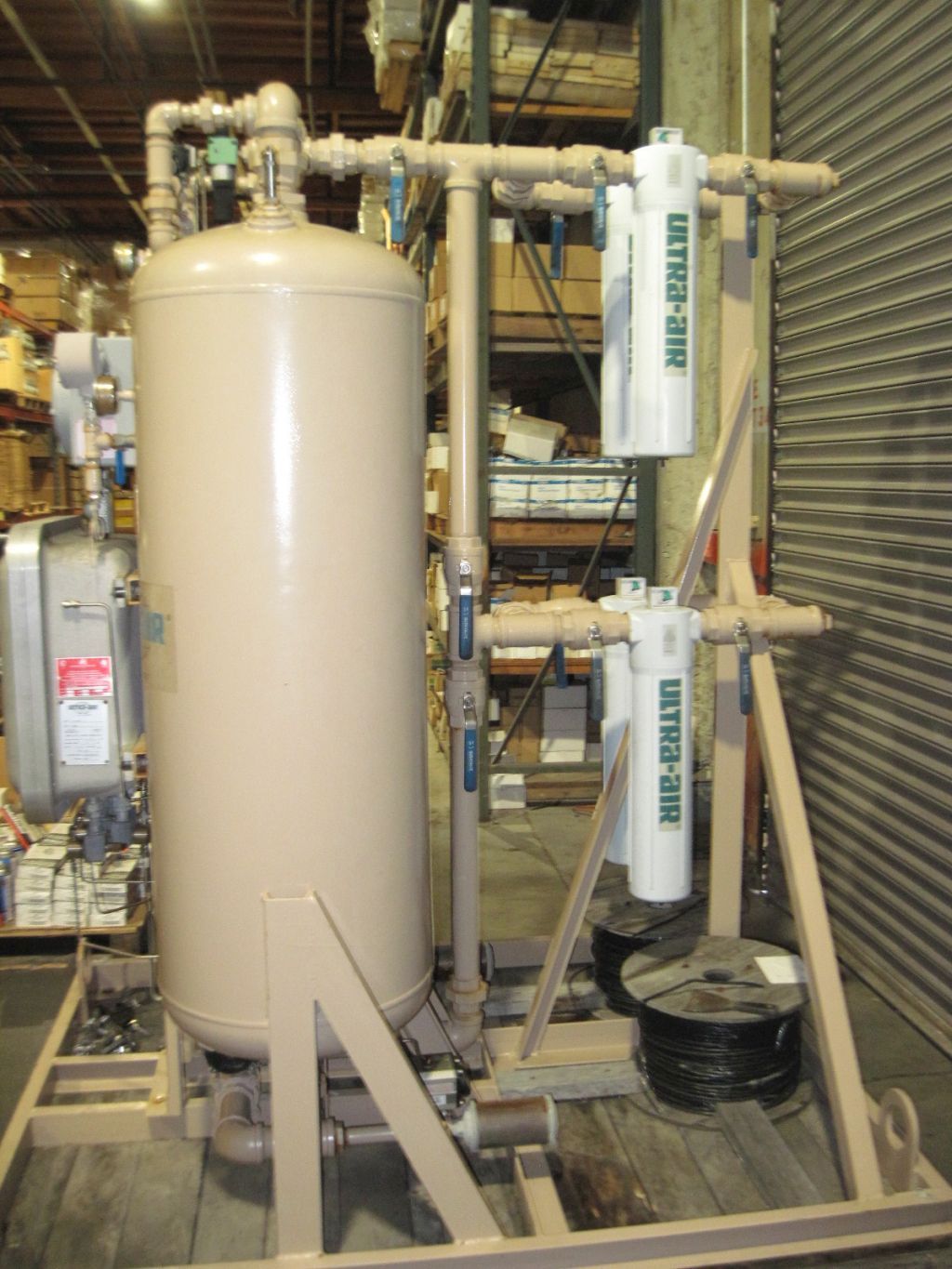

2008 ULTRA-AIR LFT520-AS110 AIR DRYER

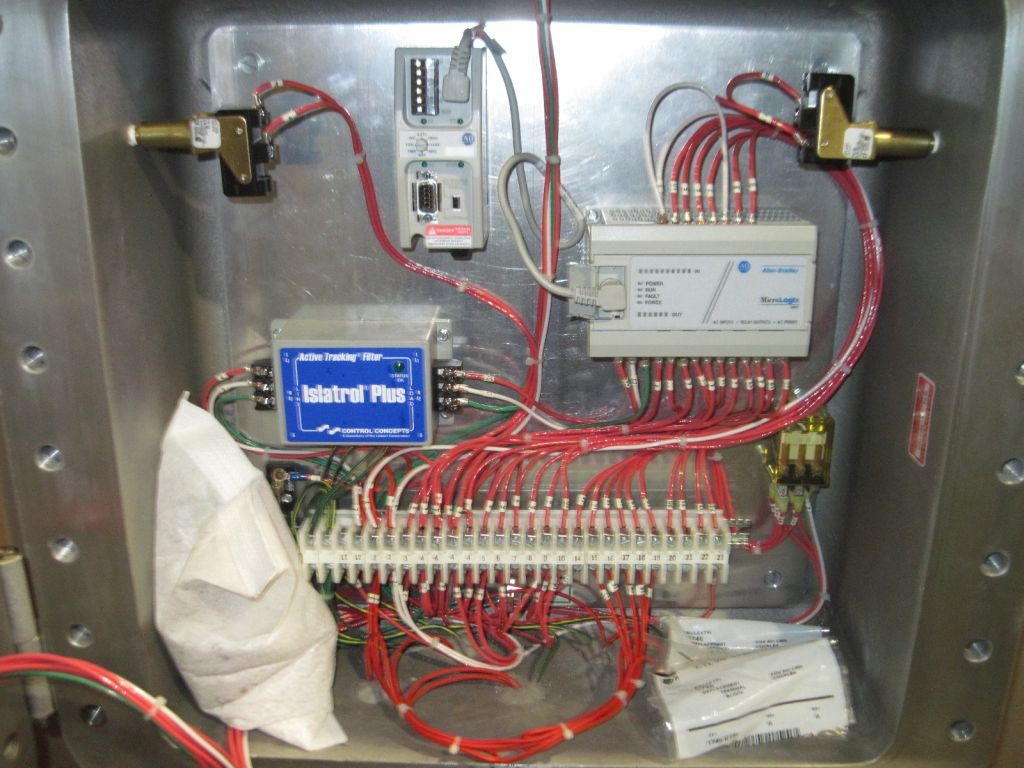

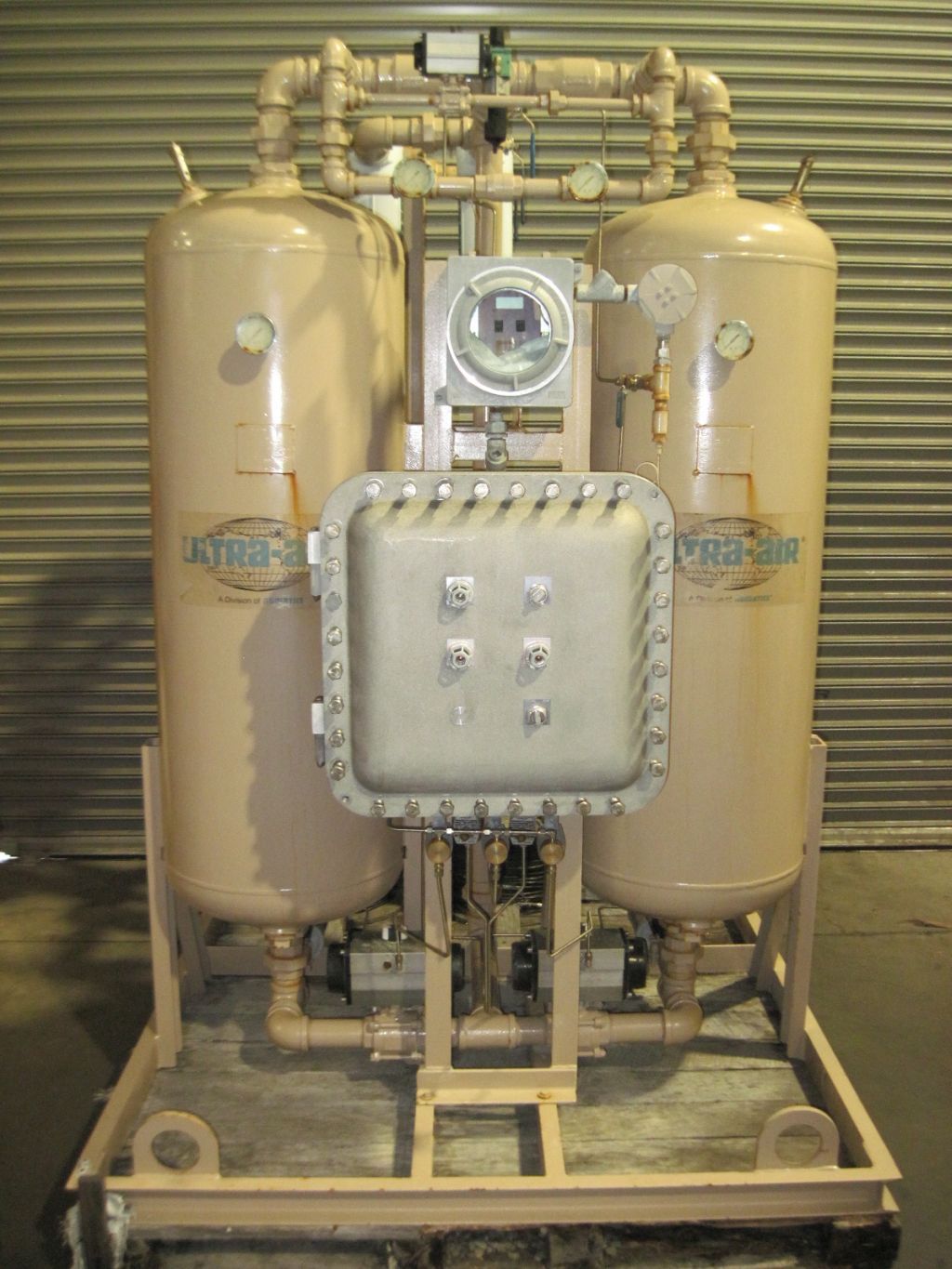

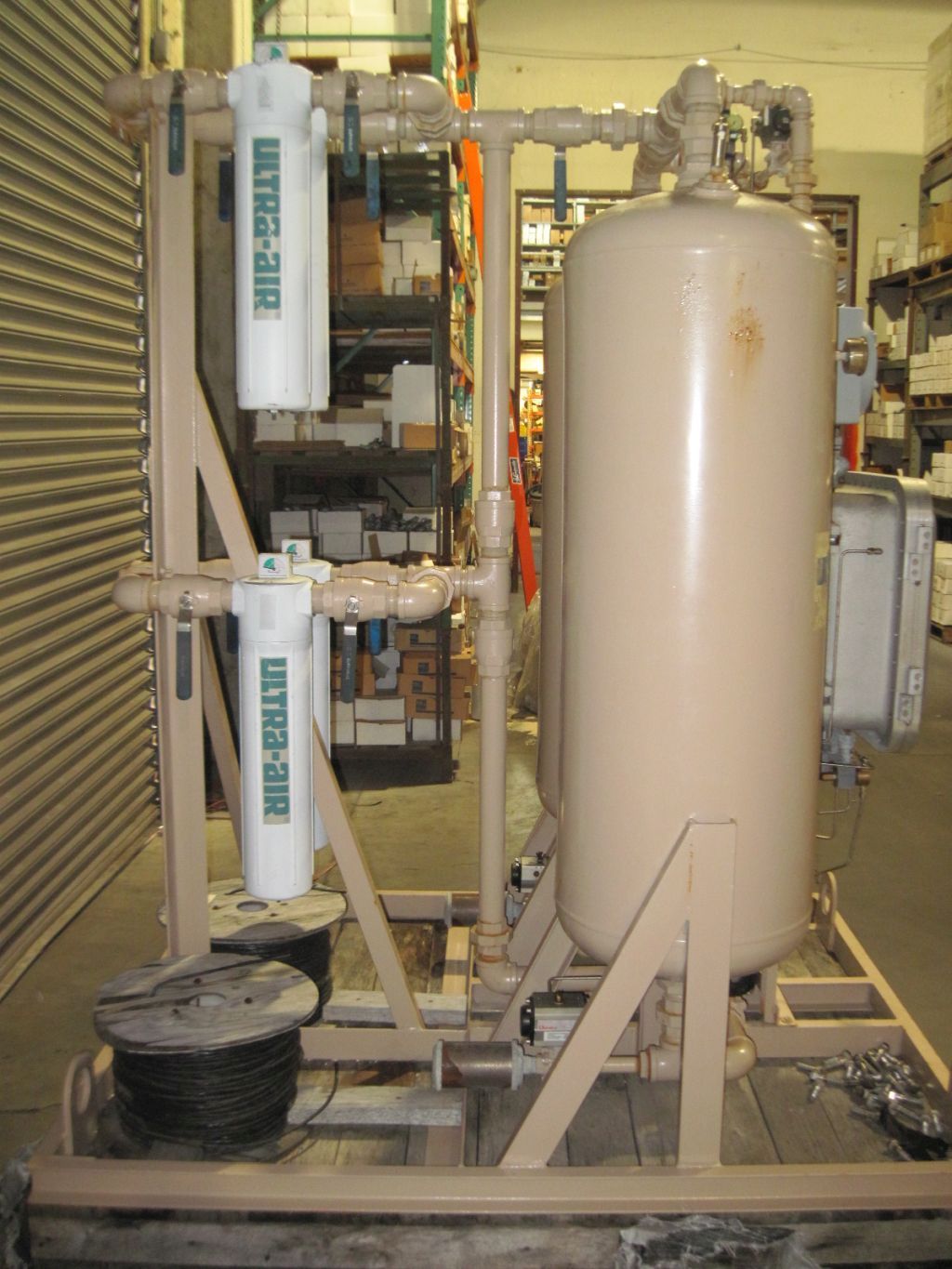

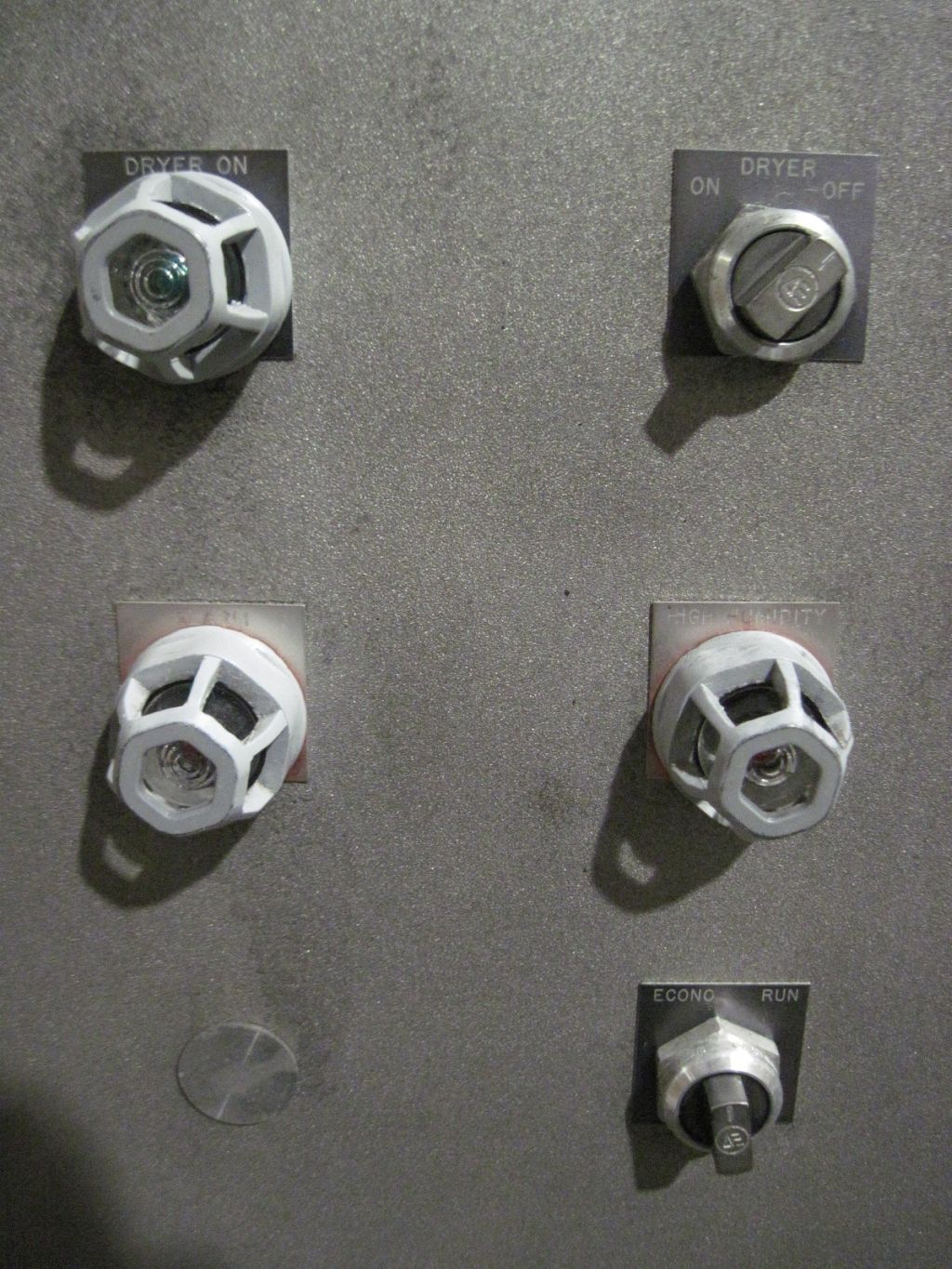

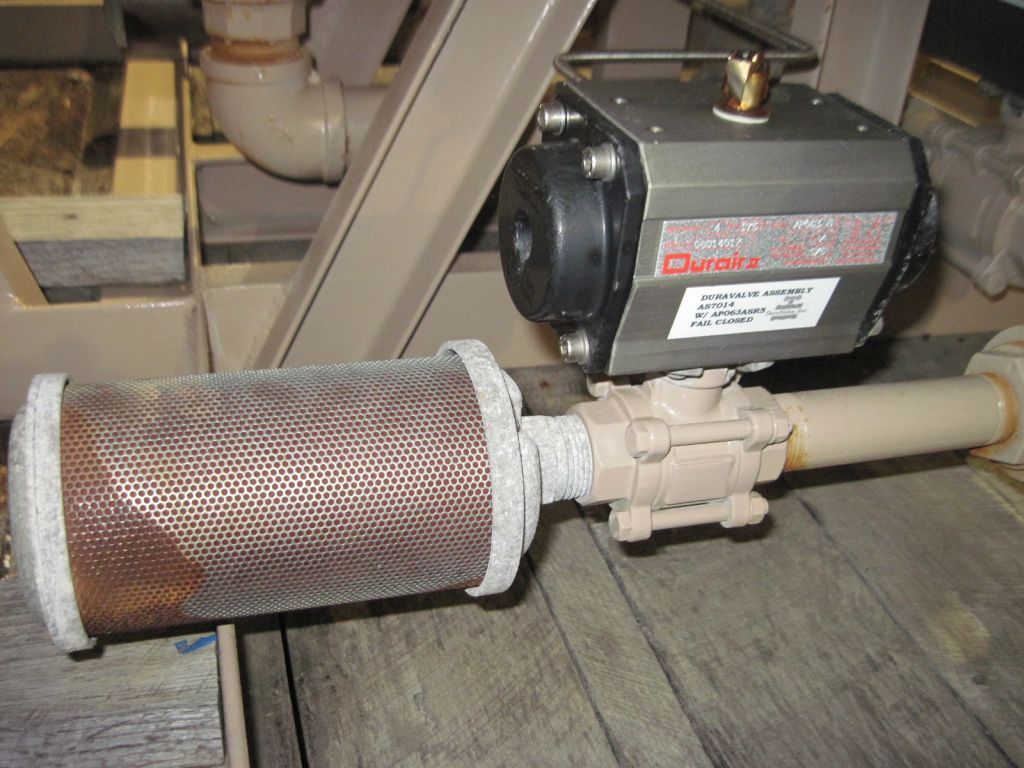

• NEMA 7, CLASS 1, DIVISION 2, GROUPS B, C & D • PURGE PRESSURE: 20 PSIG • DESICCANT CHARGE: 740 LBS • VOLTAGE: 115/1/60 • TOTAL AMPS: 1.0 • OUTLET CAPACITY: 520 CFM • CONNECTION SIZE: 2 IN NPT • DUAL TOWER COMPRESSED AIR DRYING SYSTEM • ASME CODED PRESSURE VESSELS (100 CFM AND ABOVE) • NON-LUBRICATED 2-WAY INLET VALVES • BALL CONE STYLE CHECK VALVES ON OUTLET AIR • PURGE VALVES NORMALLY CLOSED FOR FAIL-SAFE OPERATION • PURGE MUFFLERS TO REDUCE NOISE BELOW OSHA LIMITS • HEAVY-DUTY STRUCTURAL STEEL FRAME, PRE-PIPED AND PRE-WIRED • ACTIVATED ALUMINA DESICCANT • CENTRAL PRESSURE GAUGE AND RELIEF VALVE ON EACH TOWER • CRN REGISTERED PRESSURE VESSELS • REPRESSURIZATION OF TOWER BEFORE DRYING CYCLE • CONTROL AIR FILTER • LOW PRESSURE DROP: MAX 3 PSID • DRYER SEQUENCE LIGHTS
