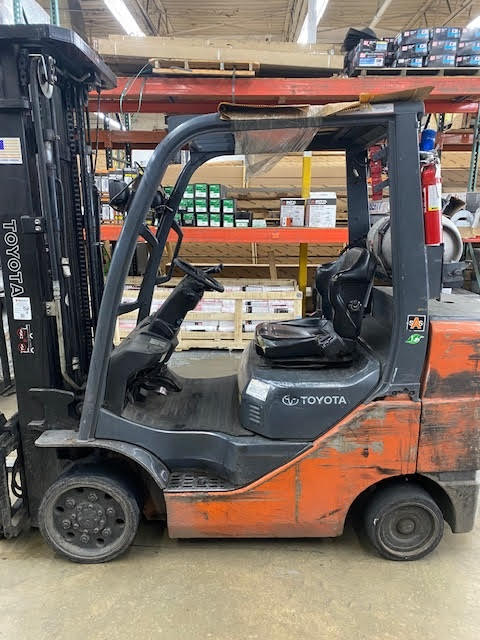

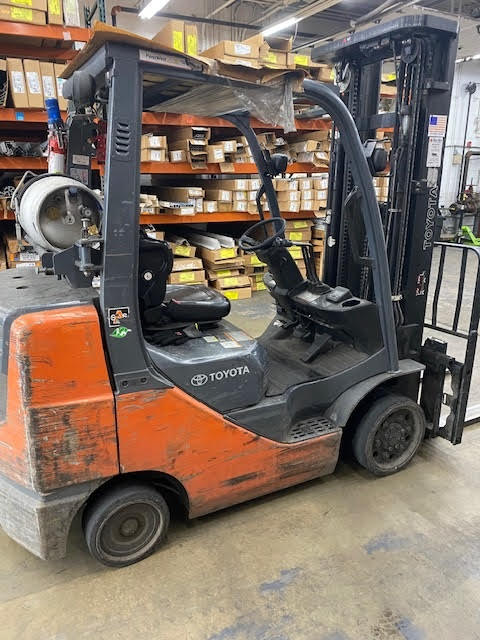

2009 TOYOTA 8FGCU30 FORKLIFT, 5020 LB CAP, 4Y-ECS ENGINE, 3-STAGE MAST, 198IN LIFT

"THE TOYOTA 8FGCU30 IS AN INTERNAL COMBUSTION, CUSHION TIRE SIT-DOWN FORKLIFT DESIGNED FOR INDOOR WAREHOUSE AND DISTRIBUTION APPLICATIONS. IT FEATURES A NOMINAL LOAD CAPACITY OF 6,000 LBS AT A 24-INCH LOAD CENTER. POWERED BY A TOYOTA 4Y-ECS FOUR-CYLINDER ENGINE, THE UNIT PRODUCES APPROXIMATELY 48 TO 51 HORSEPOWER AND 118 LB-FT OF TORQUE AT 2,100 RPM. THE POWERTRAIN INCLUDES AN AUTOMATIC TRANSMISSION AND A 12V ELECTRICAL SYSTEM. ITS HYDRAULIC SYSTEM OPERATES WITH A RELIEF VALVE PRESSURE OF 2,275 PSI AND A FLUID CAPACITY OF APPROXIMATELY 20 GALLONS. STANDARD DIMENSIONS INCLUDE AN OVERALL WIDTH OF 43.7 INCHES, A LENGTH TO FORK FACE OF 97.4 INCHES, AND A WHEELBASE OF 58.5 INCHES. THE MACHINE TYPICALLY UTILIZES A 3-STAGE MAST WITH A MAXIMUM LIFT HEIGHT OFTEN REACHING 187 TO 198 INCHES, DEPENDING ON THE SPECIFIC CONFIGURATION. PERFORMANCE SPECIFICATIONS INCLUDE A MAXIMUM TRAVEL SPEED OF 10.6 TO 11 MPH AND A LIFT SPEED OF APPROXIMATELY 98 TO 102 FPM WHEN LOADED. THE FORKLIFT IS EQUIPPED WITH CUSHION TIRES, SIZED 21 X 8 X 15 AT THE FRONT AND 16 X 6 X 10.5 AT THE REAR, PROVIDING A TURNING RADIUS OF APPROXIMATELY 80 INCHES. SAFETY AND OPERATIONAL FEATURES INCLUDE THE SYSTEM OF ACTIVE STABILITY (SAS), OPERATOR PRESENCE SENSING SYSTEM (OPSS), AND A 6-DEGREE FORWARD/10-DEGREE BACKWARD MAST TILT RANGE. BRAKING IS HANDLED BY A HYDRAULIC SERVICE BRAKE AND A FOOT-ACTIVATED PARKING BRAKE."
