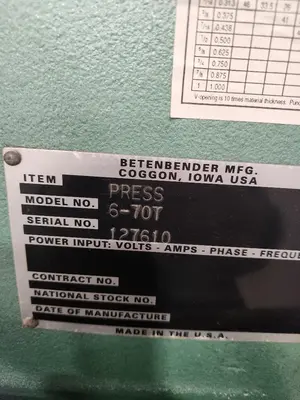

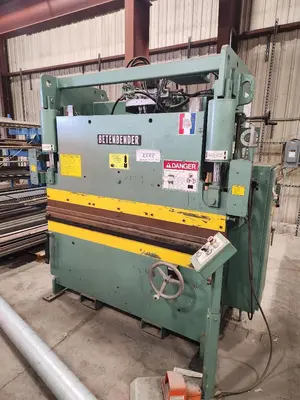

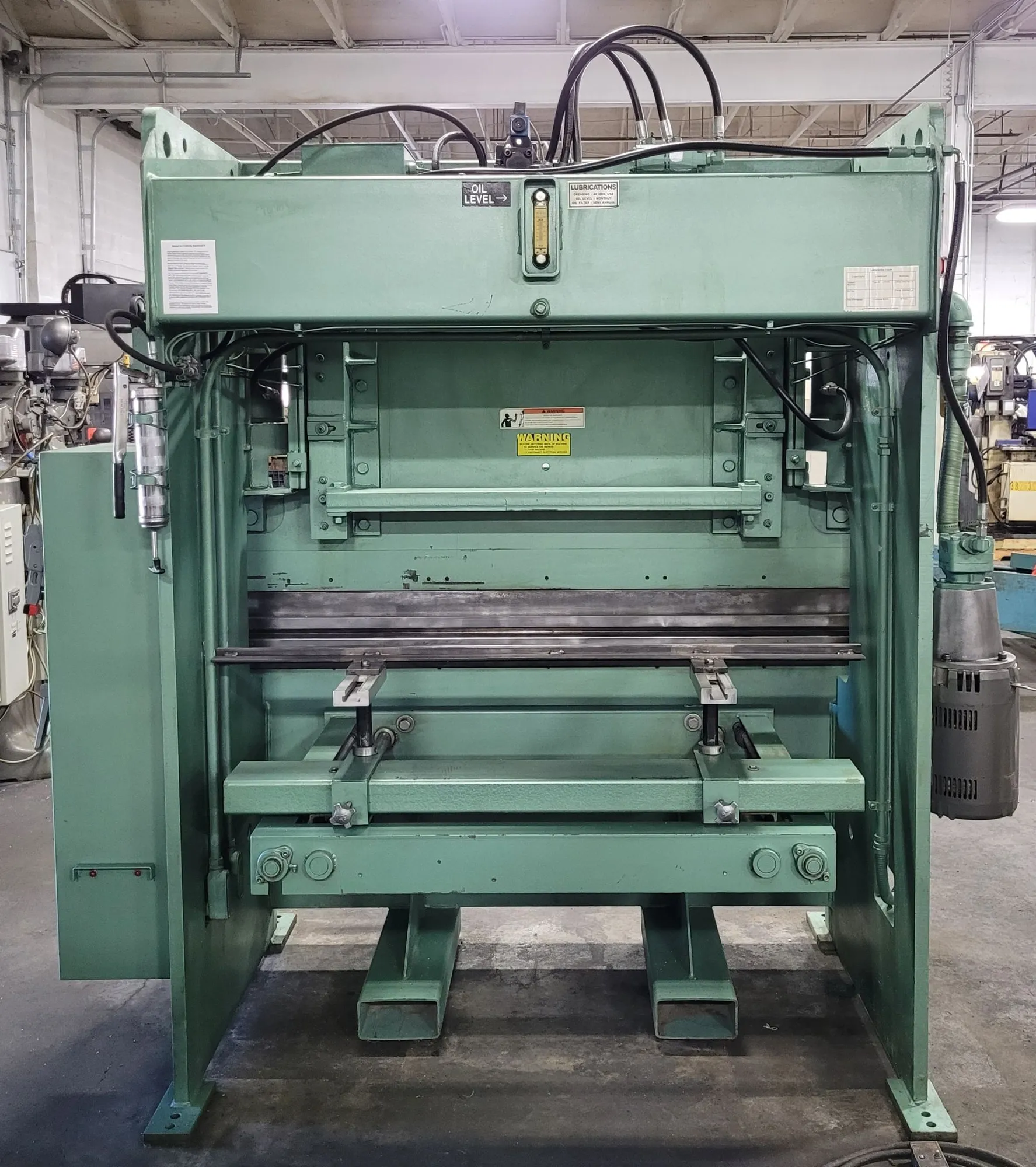

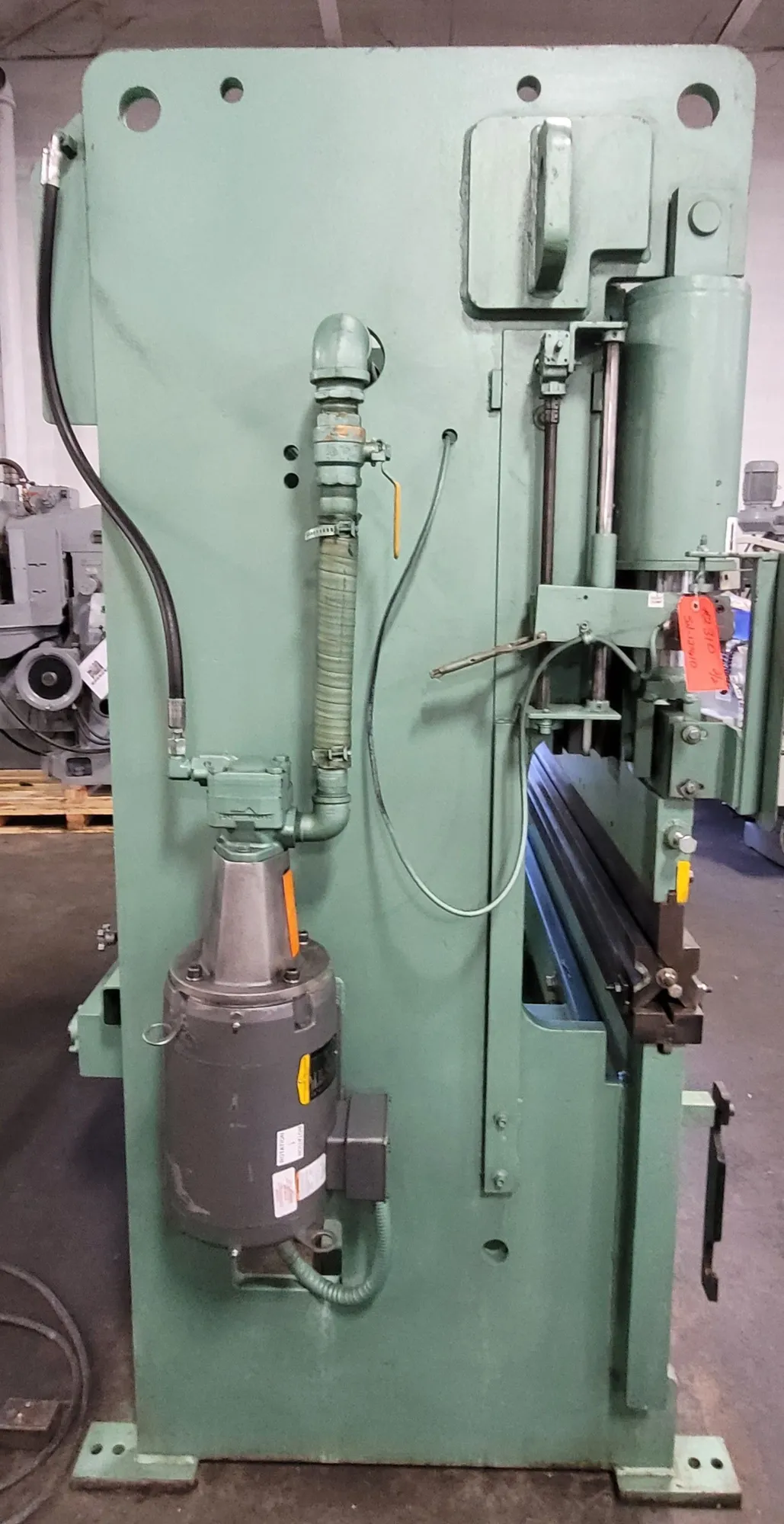

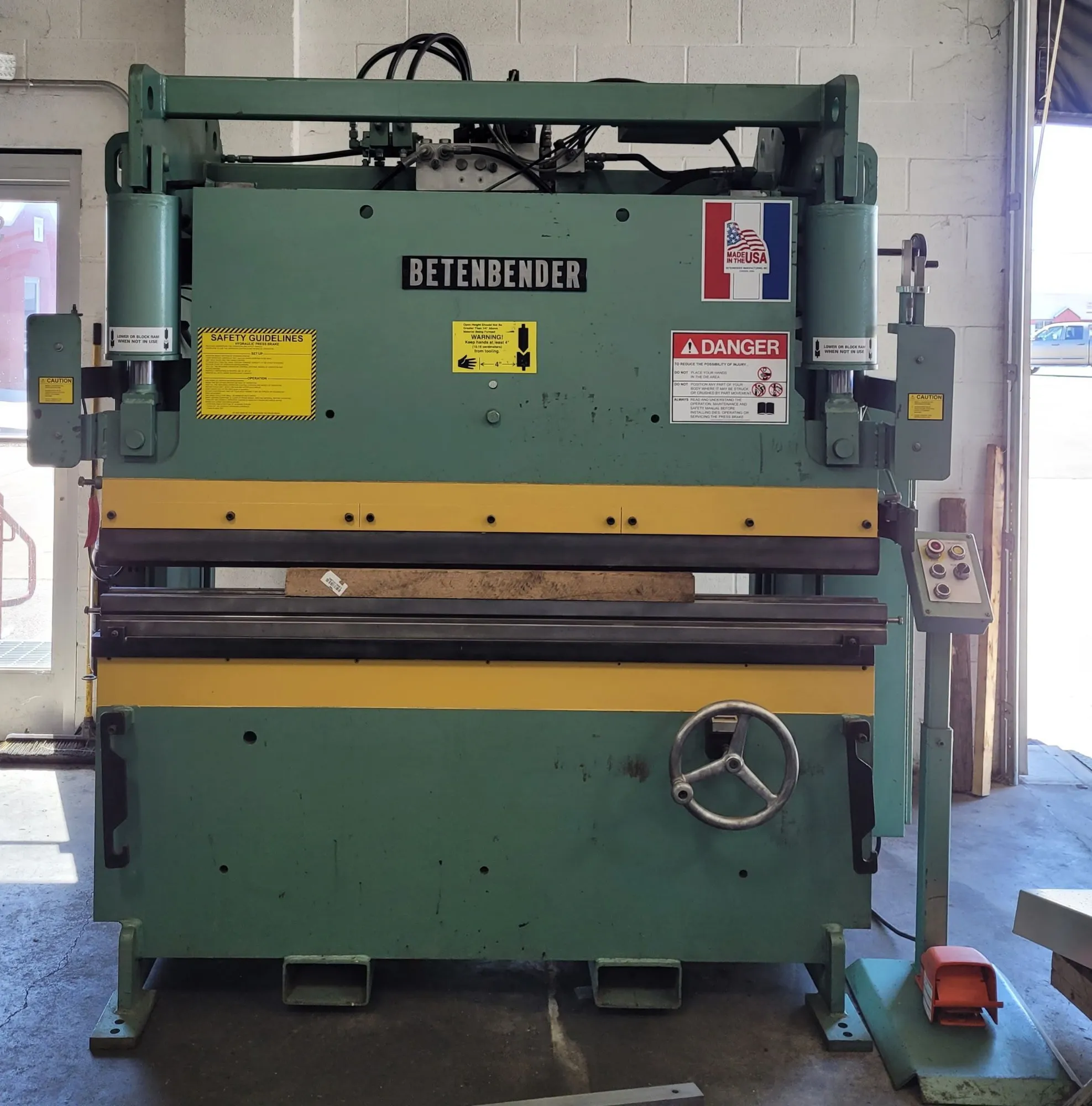

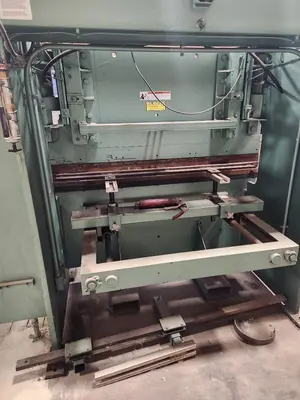

2010 BETENBENDER 6-70T HYDRAULIC PRESS BRAKE, 70 TONS CAPACITY, 6 FT WORKING LENGTH

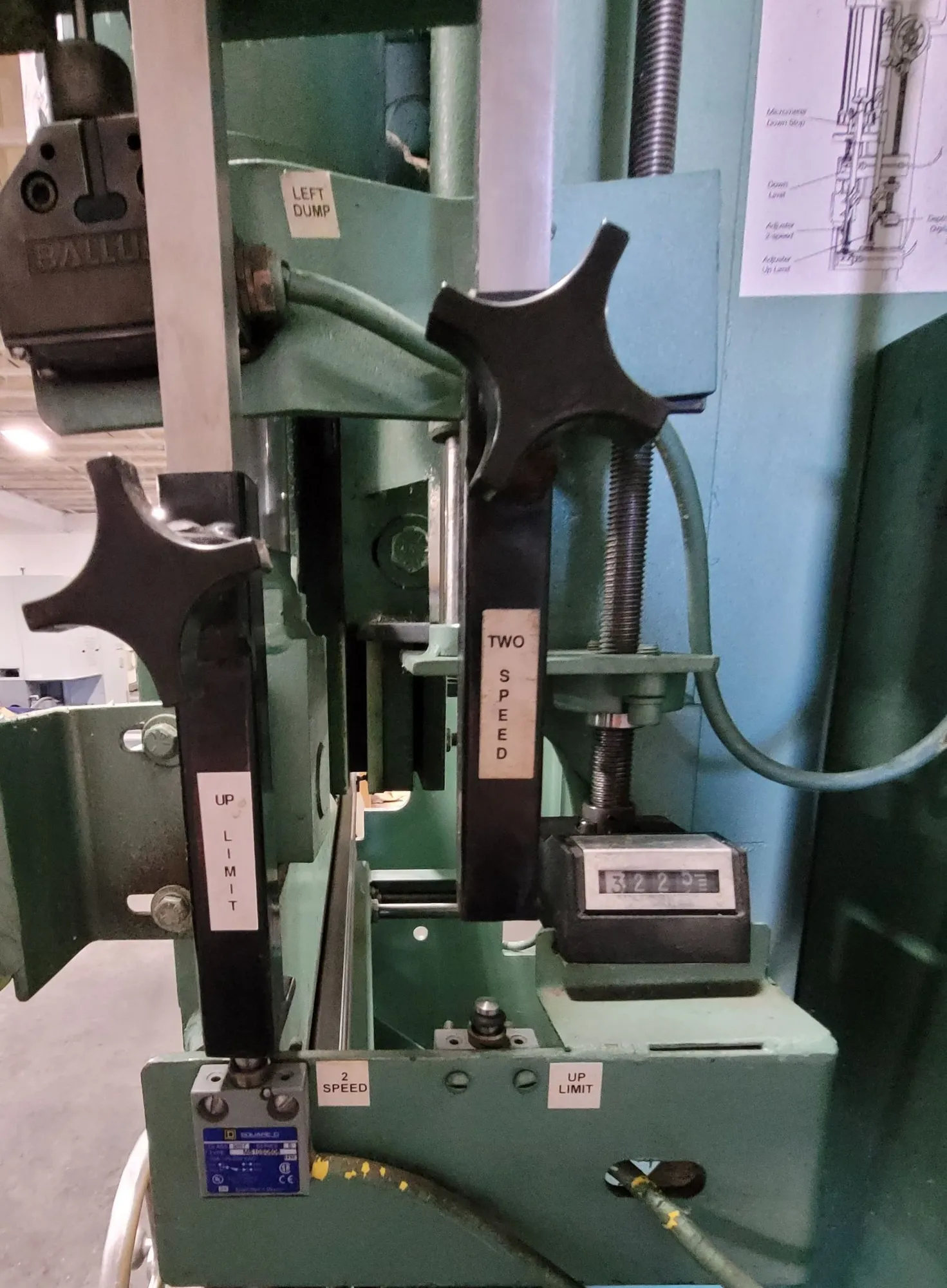

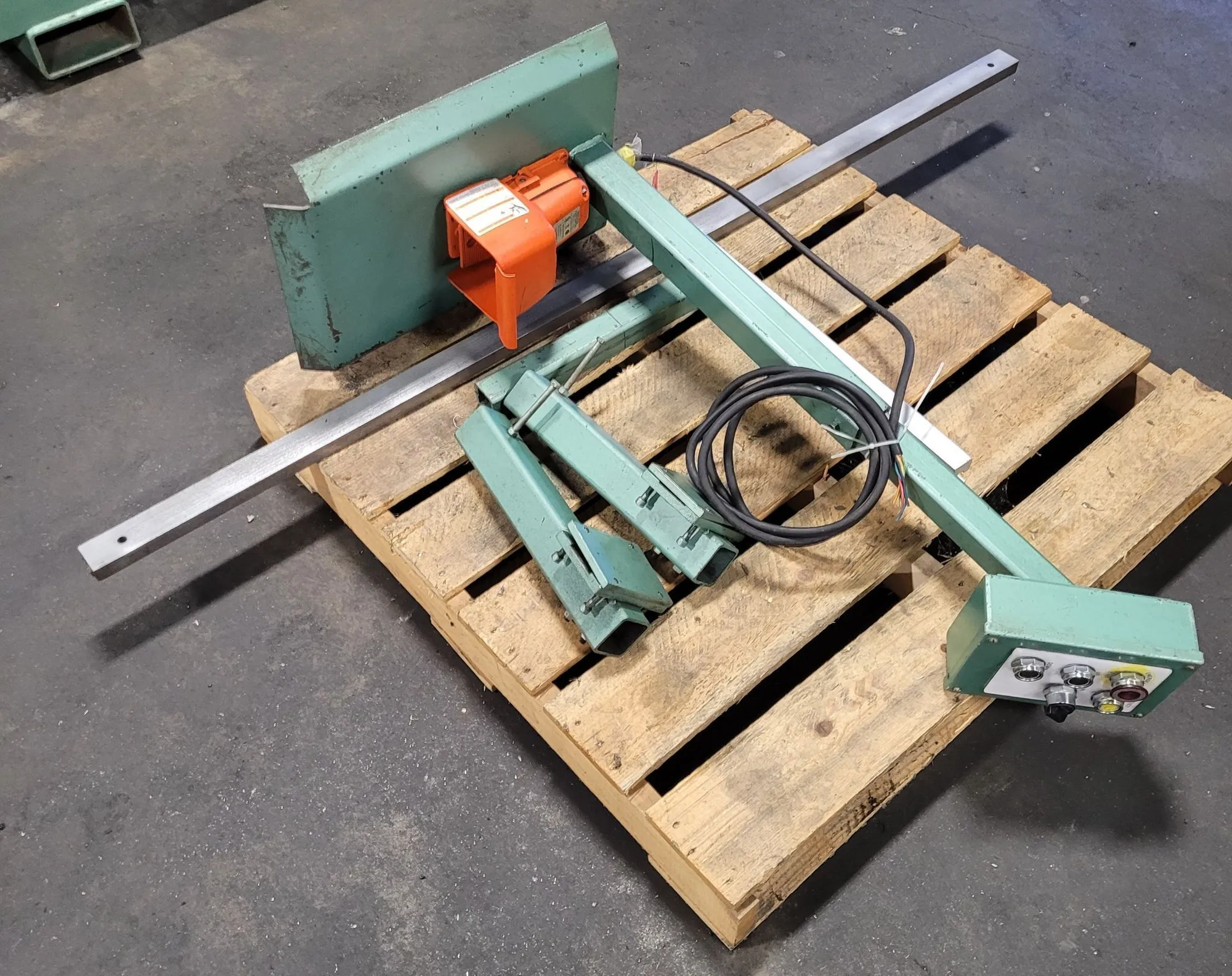

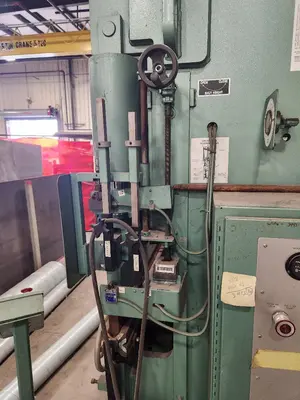

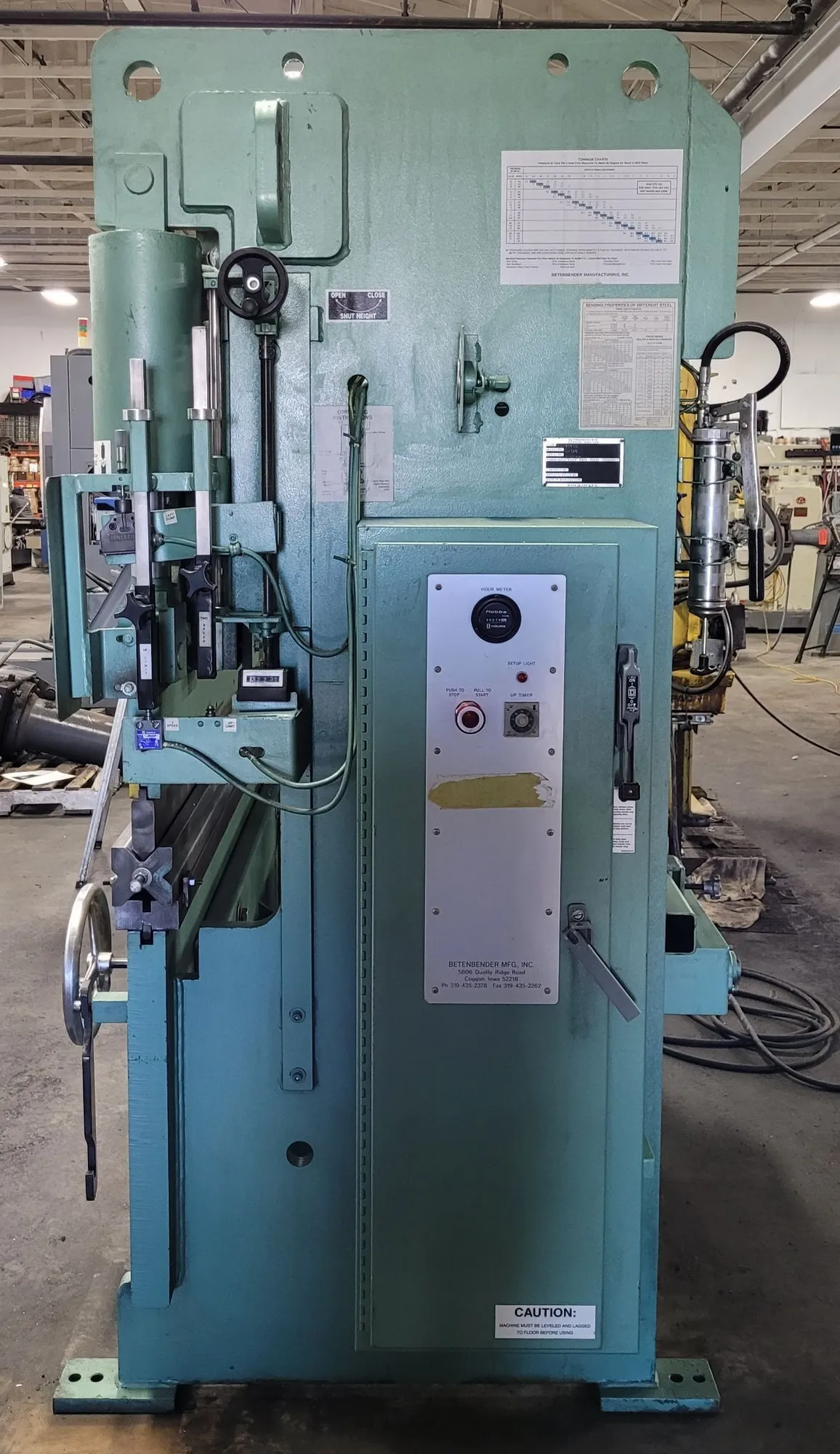

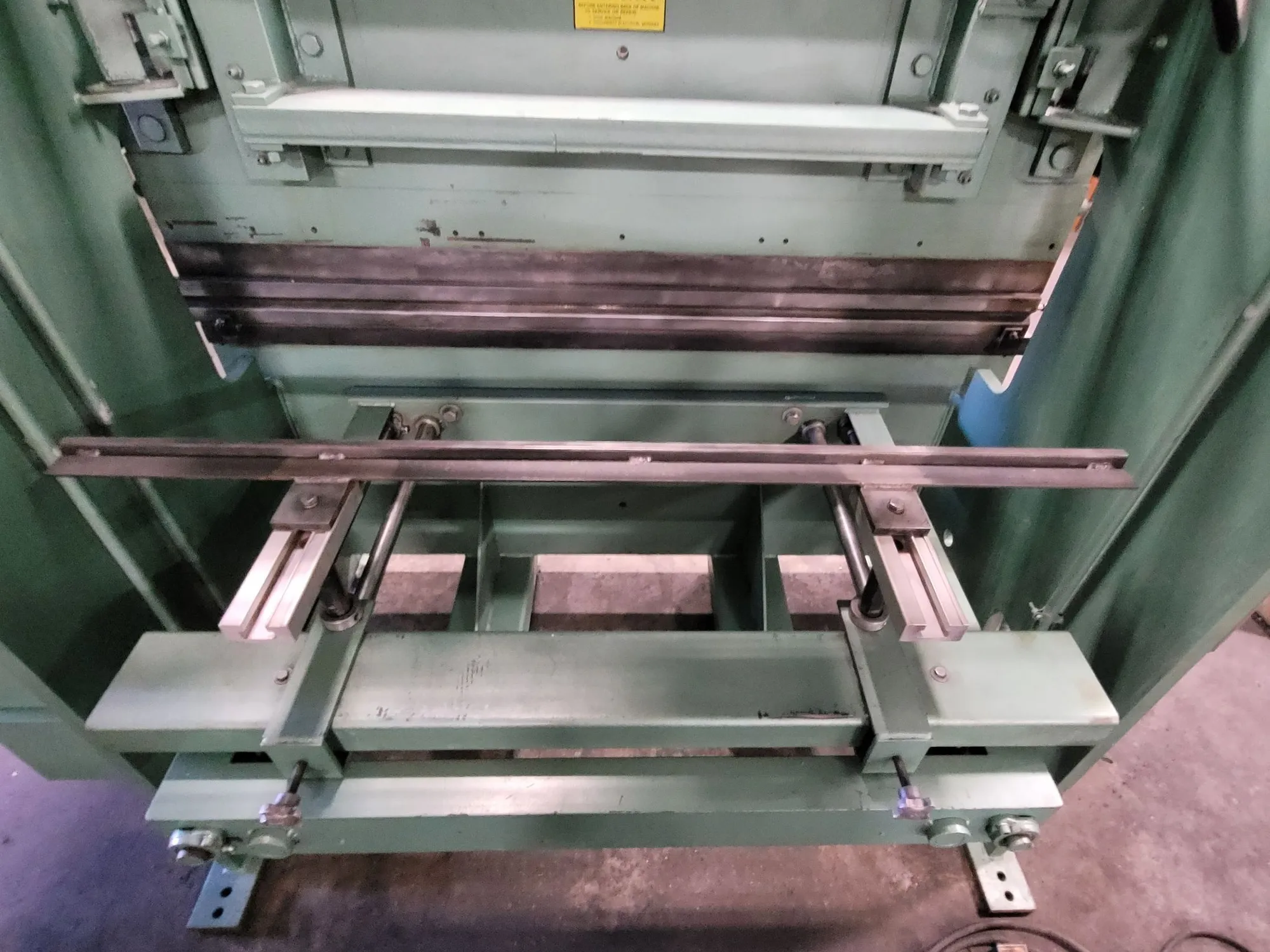

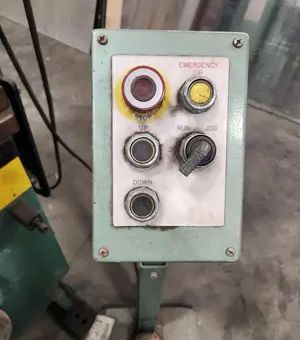

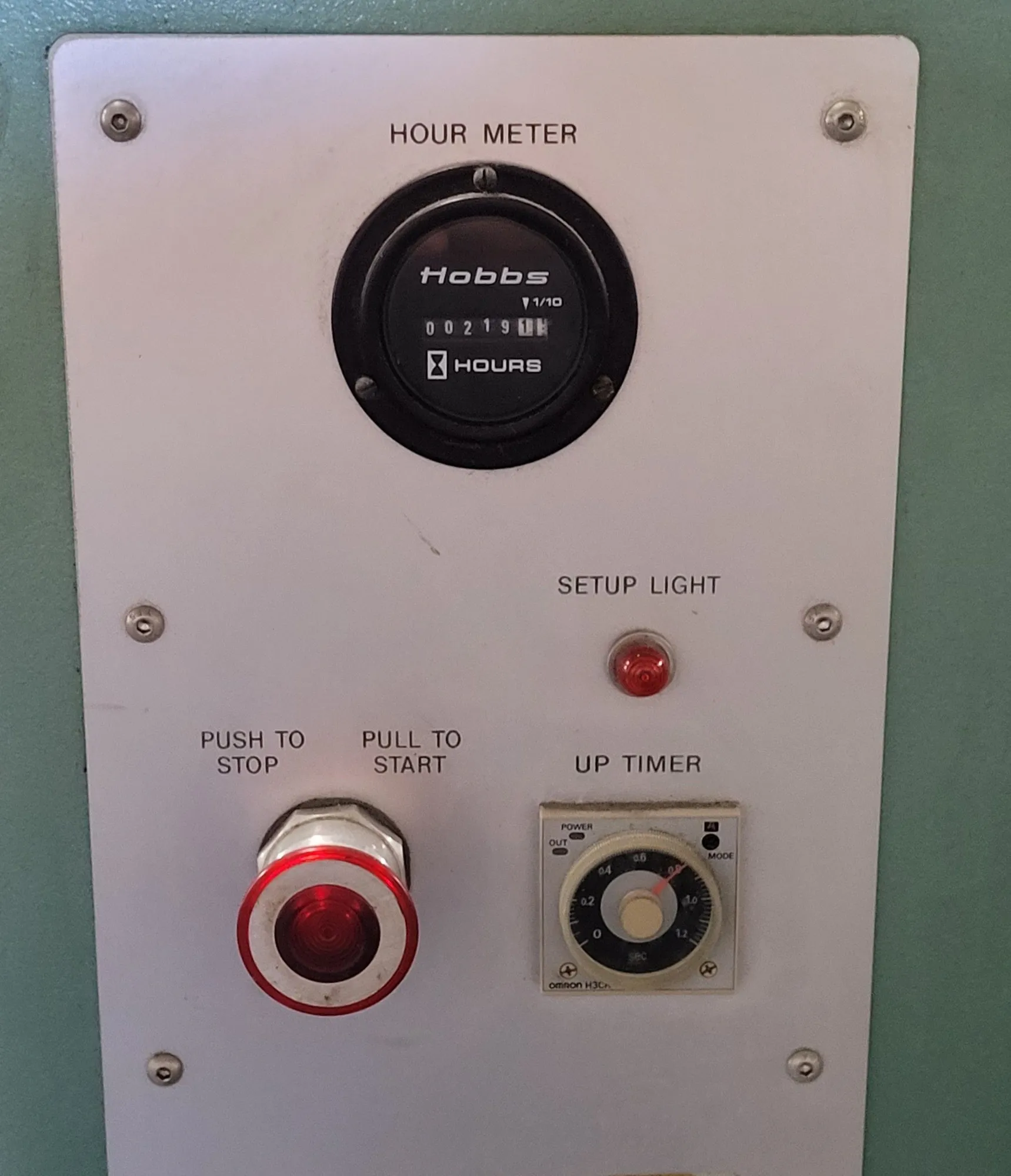

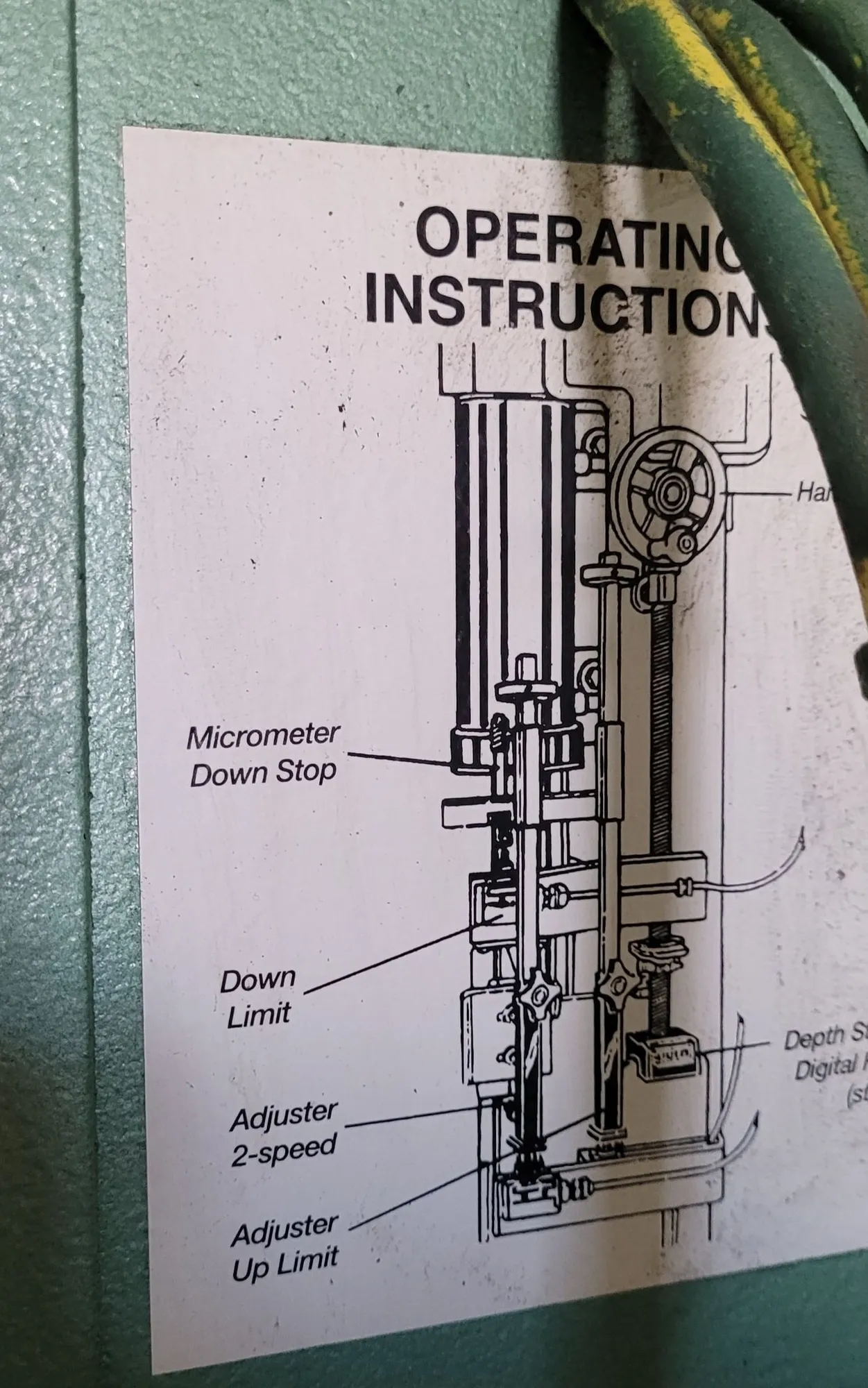

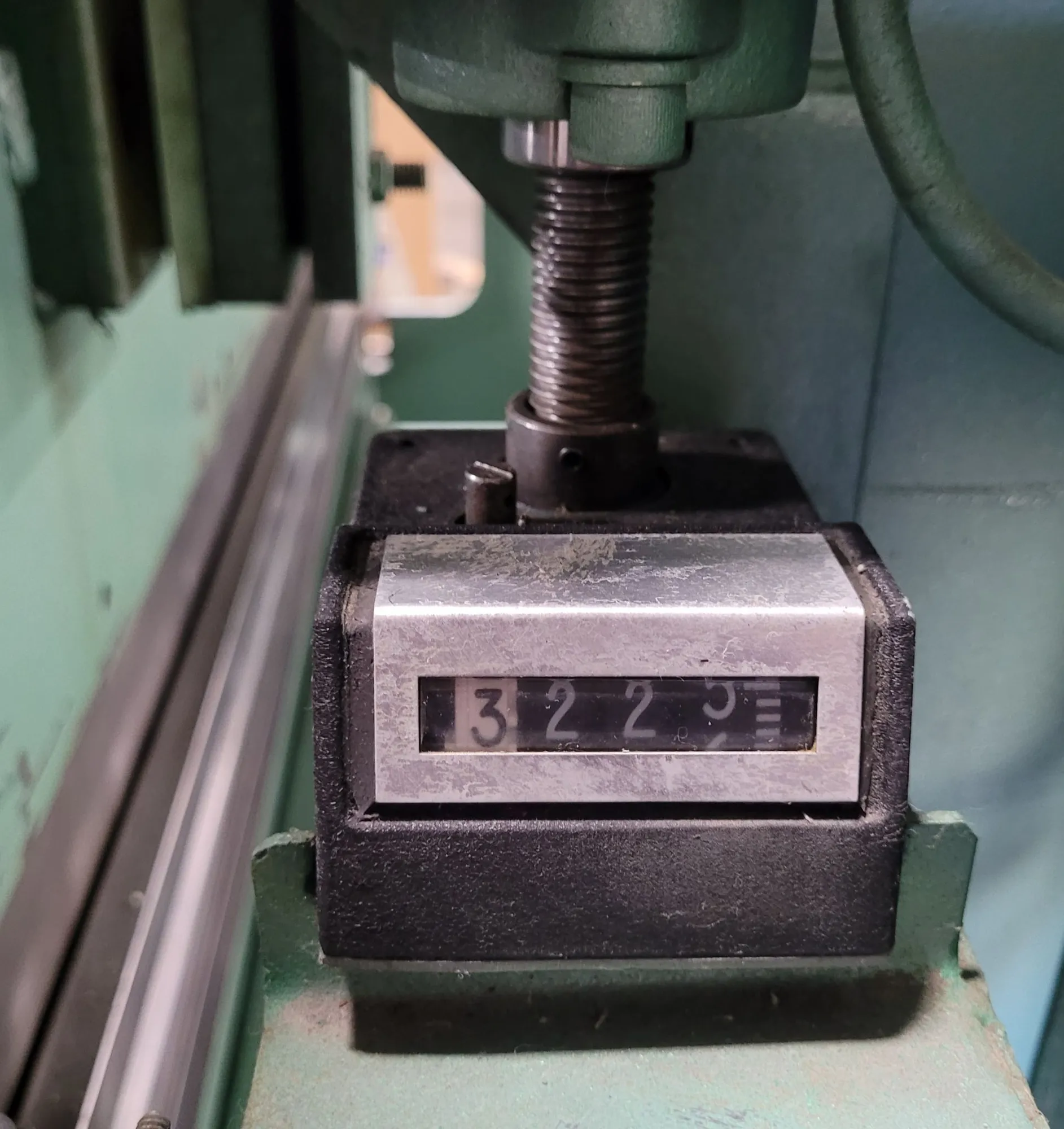

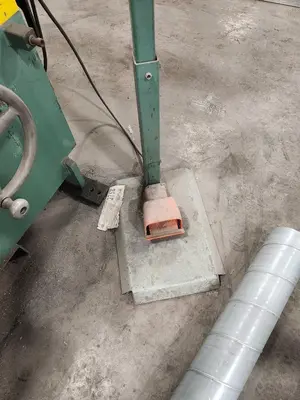

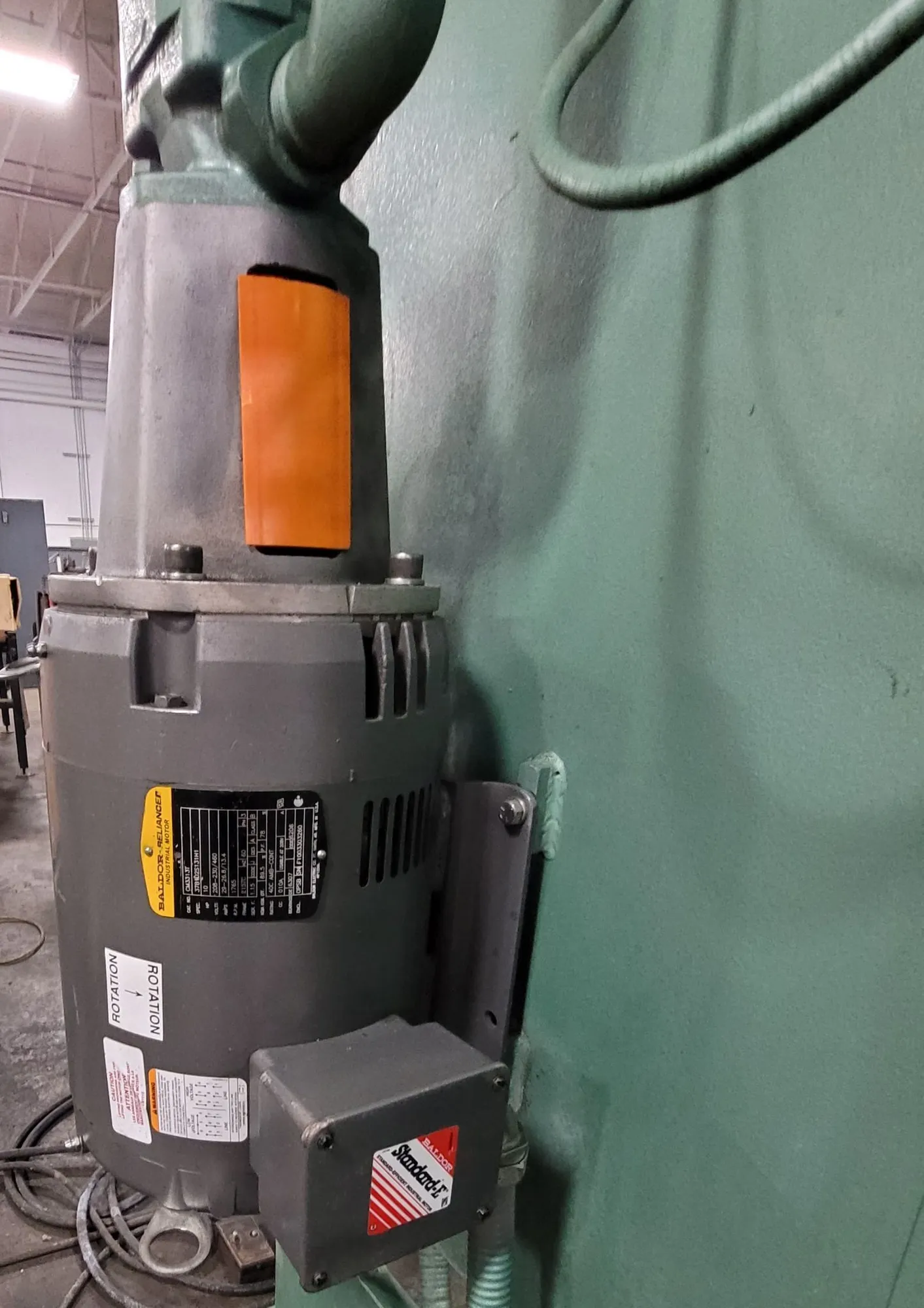

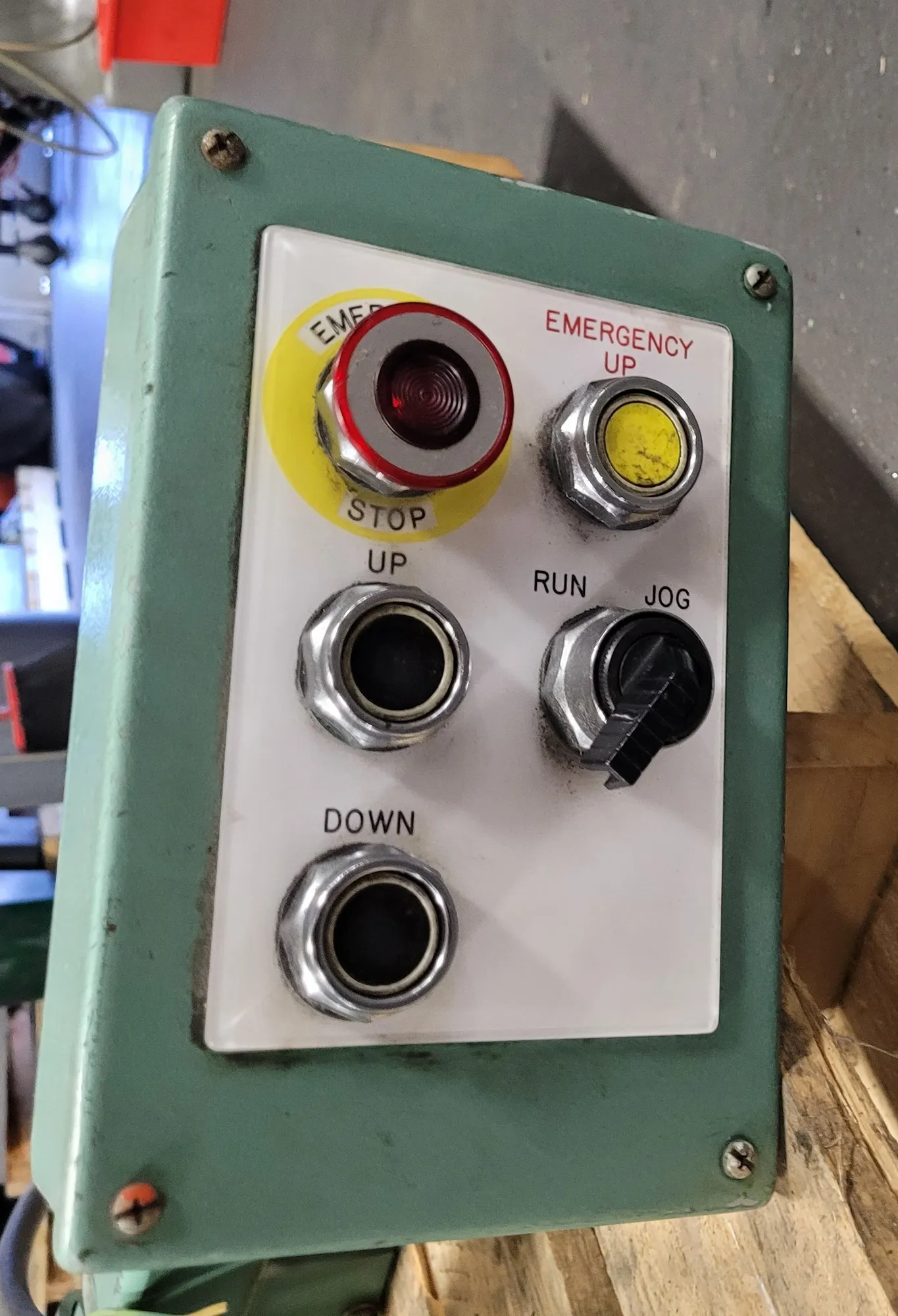

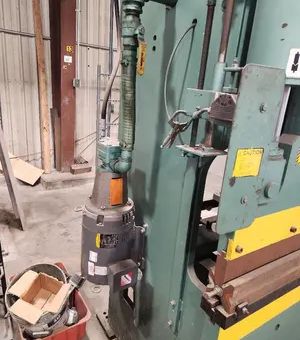

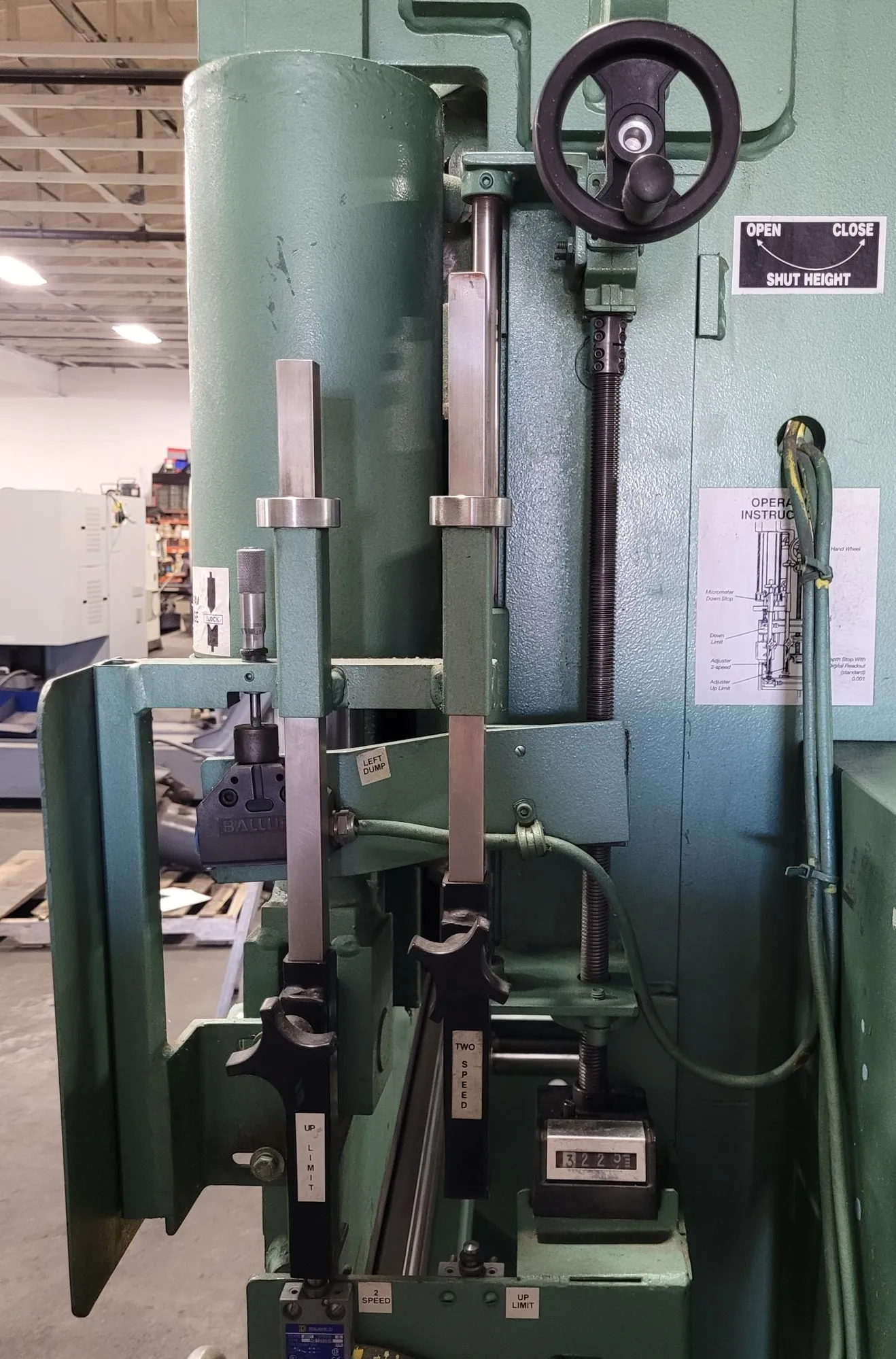

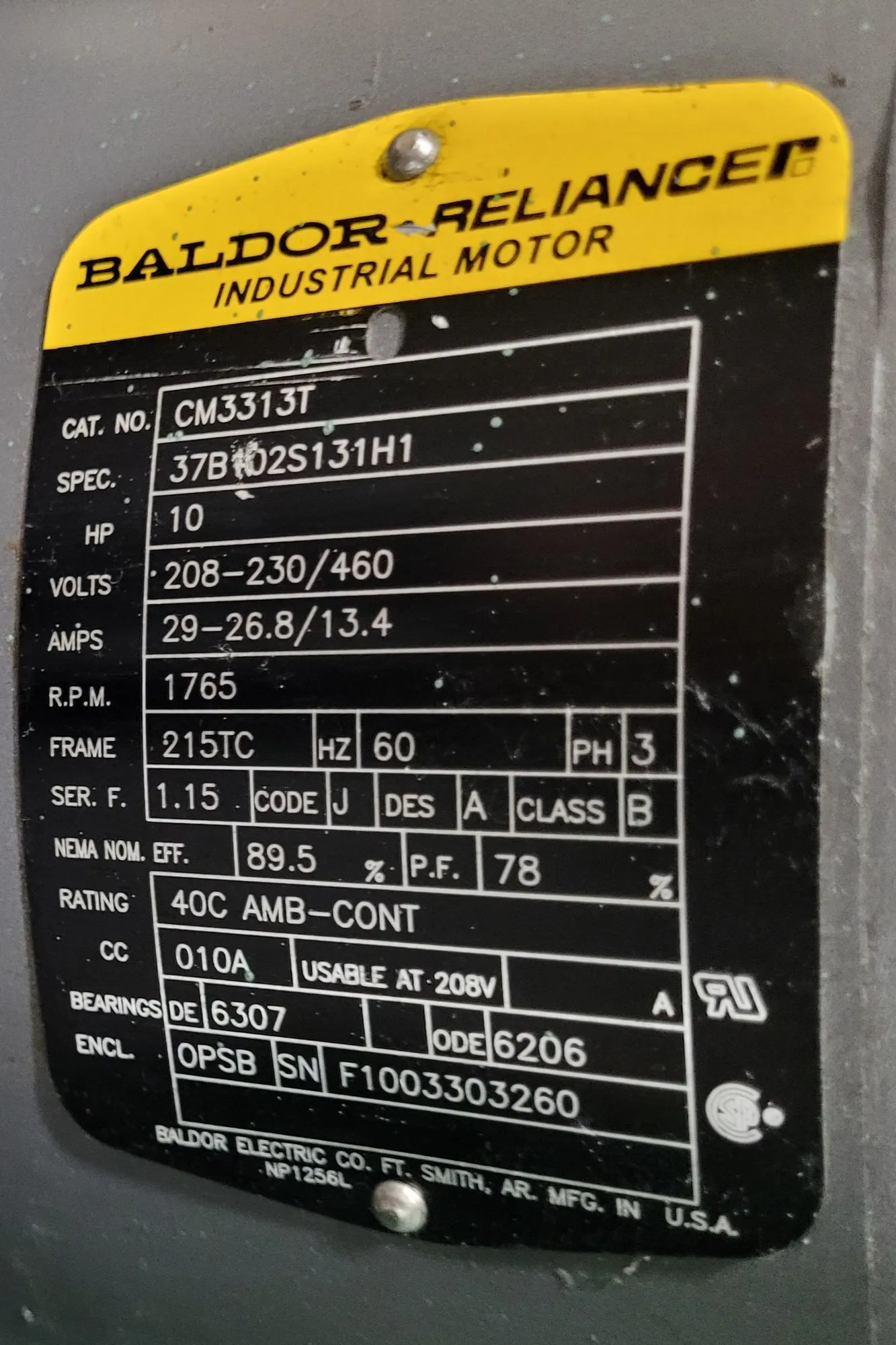

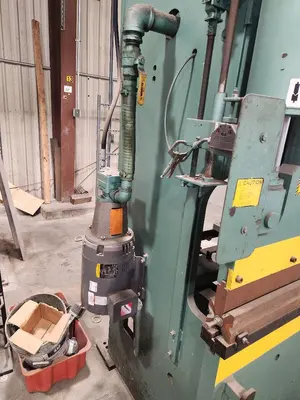

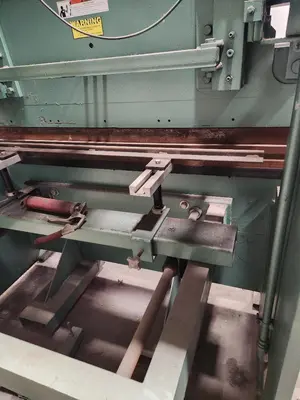

THIS IS A BETENBENDER 6-70T HYDRAULIC PRESS BRAKE WITH A CAPACITY OF 70 TONS AND A WORKING LENGTH OF 6 FEET (72 INCHES). THE MACHINE FEATURES AN 8-INCH THROAT DEPTH, 8 INCHES OF ADJUSTABLE RAM TRAVEL, A 14-INCH OPEN HEIGHT, AND A 6-INCH CLOSED HEIGHT. RAM SPEEDS INCLUDE A PRESS SPEED OF 0-44 IPM, A RAPID APPROACH SPEED OF 44 IPM, AND A RETURN SPEED OF 63 IPM. IT IS POWERED BY A 10 HP MOTOR (220/440V, 3-PHASE) AND WEIGHS APPROXIMATELY 8,000 LBS. OVERALL DIMENSIONS ARE APPROXIMATELY 87" L X 45" W X 96-104" H. STANDARD FEATURES INCLUDE A MULTI-SWITCH CONTROL PANEL AND A 3-POSITION FOOT PEDAL, A MANUAL ADJUSTABLE BACKGAUGE (X, Y, Z), A DIGITAL READOUT DEPTH STOP, AND MANUAL HANDWHEEL RAM ADJUSTMENT FOR .001" DEPTH. RAM TILT ADJUSTMENT USES A MICROMETER FOR PARALLELISM/ANGLE CONTROL. CONSTRUCTION IS ALL STEEL, UTILIZING AMERICAN-MADE MOTOR AND VALVES.
