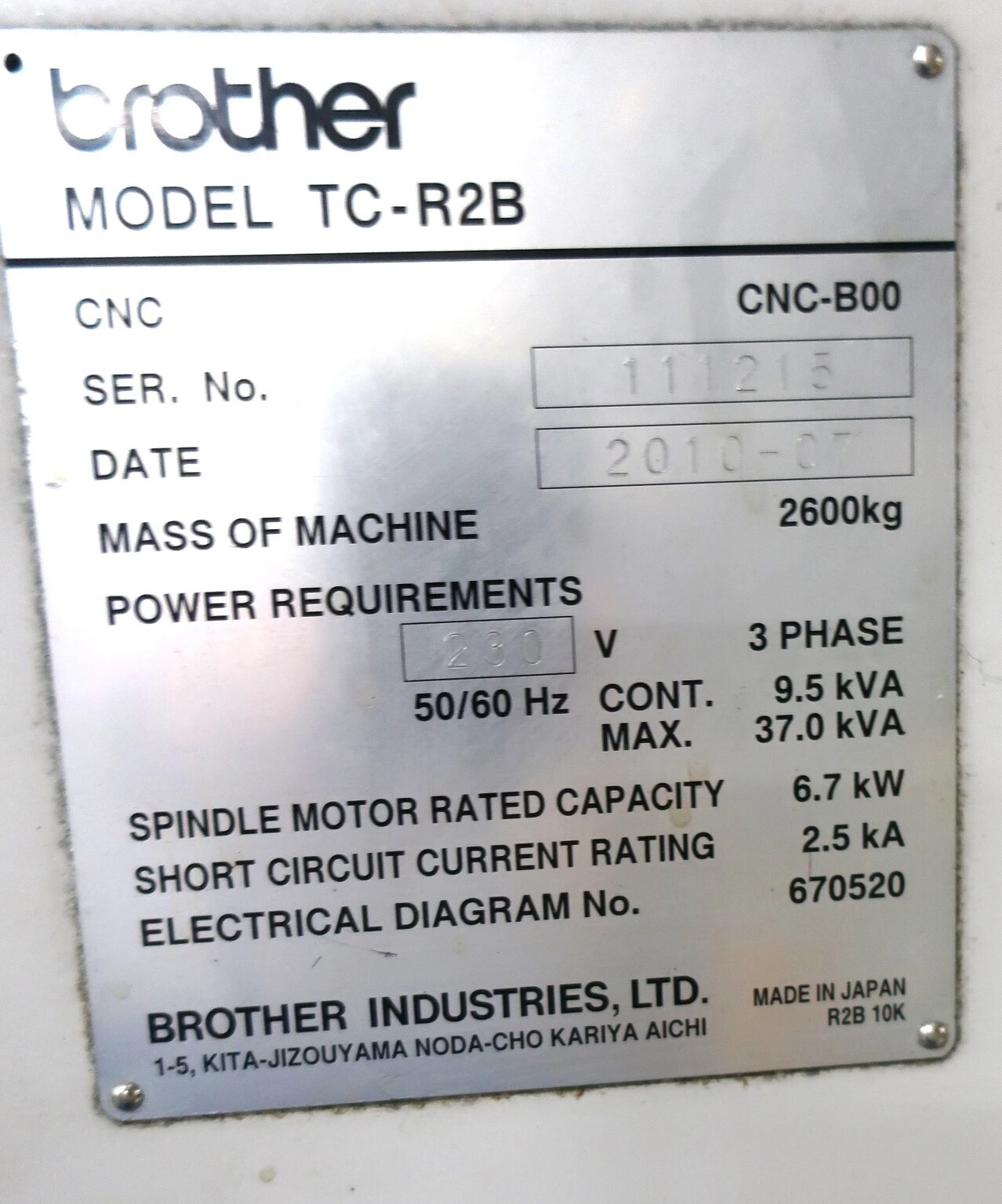

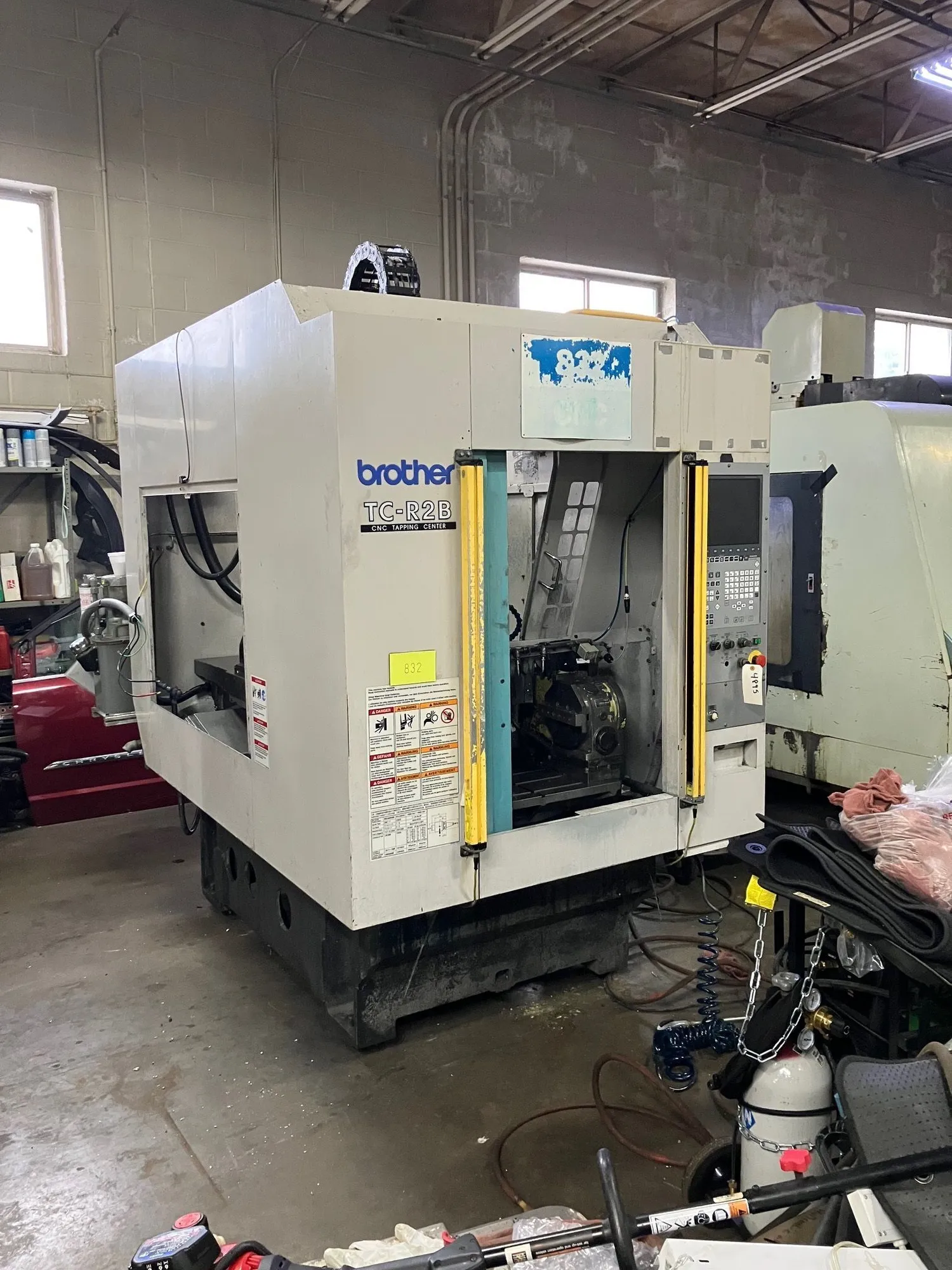

2010 BROTHER TC-R2B CNC DRILL & TAP VMC, 10K RPM, 14 ATC, 16.5X12.8X12IN, 15HP, BT30, PALLET CHANGER

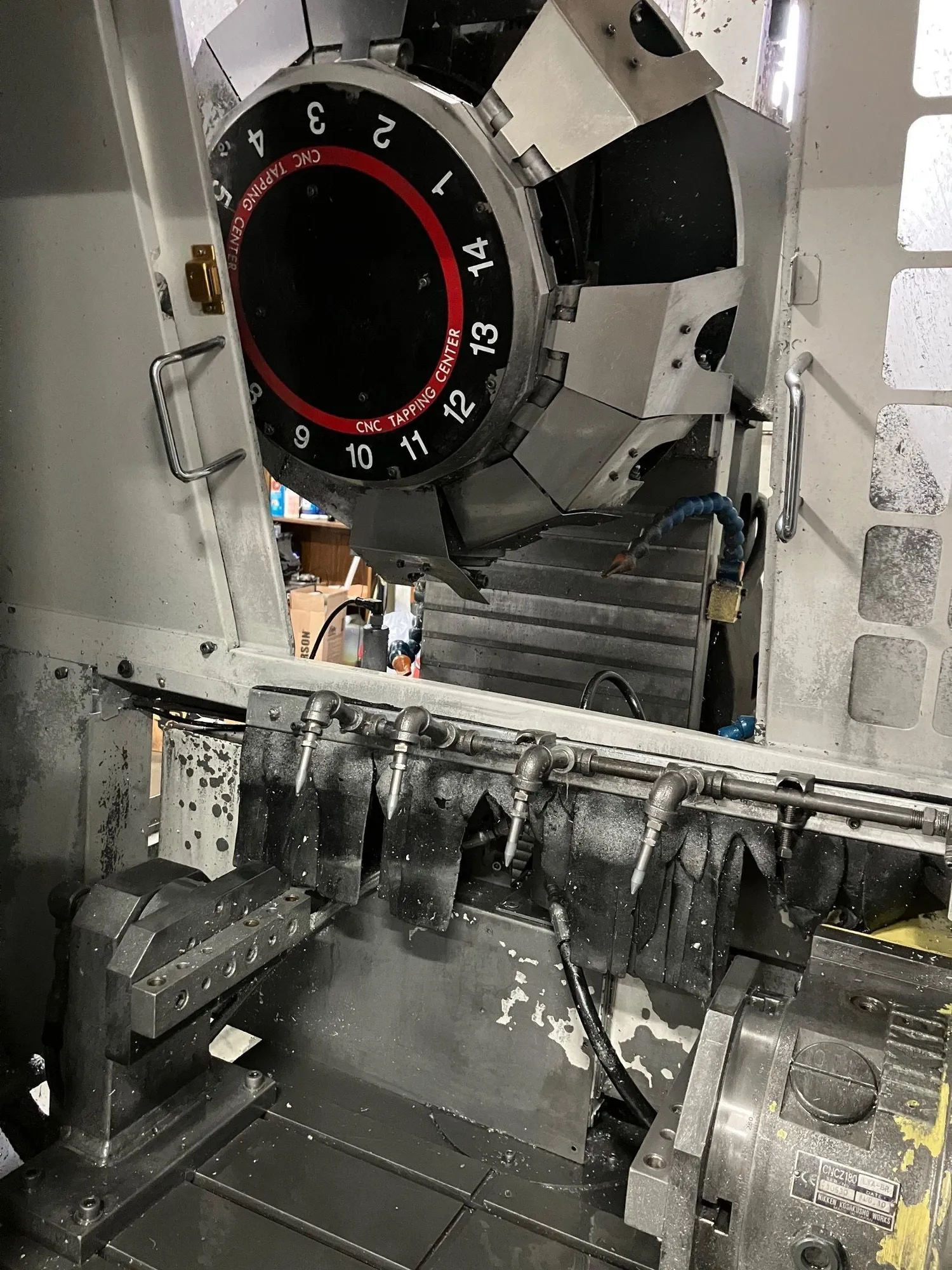

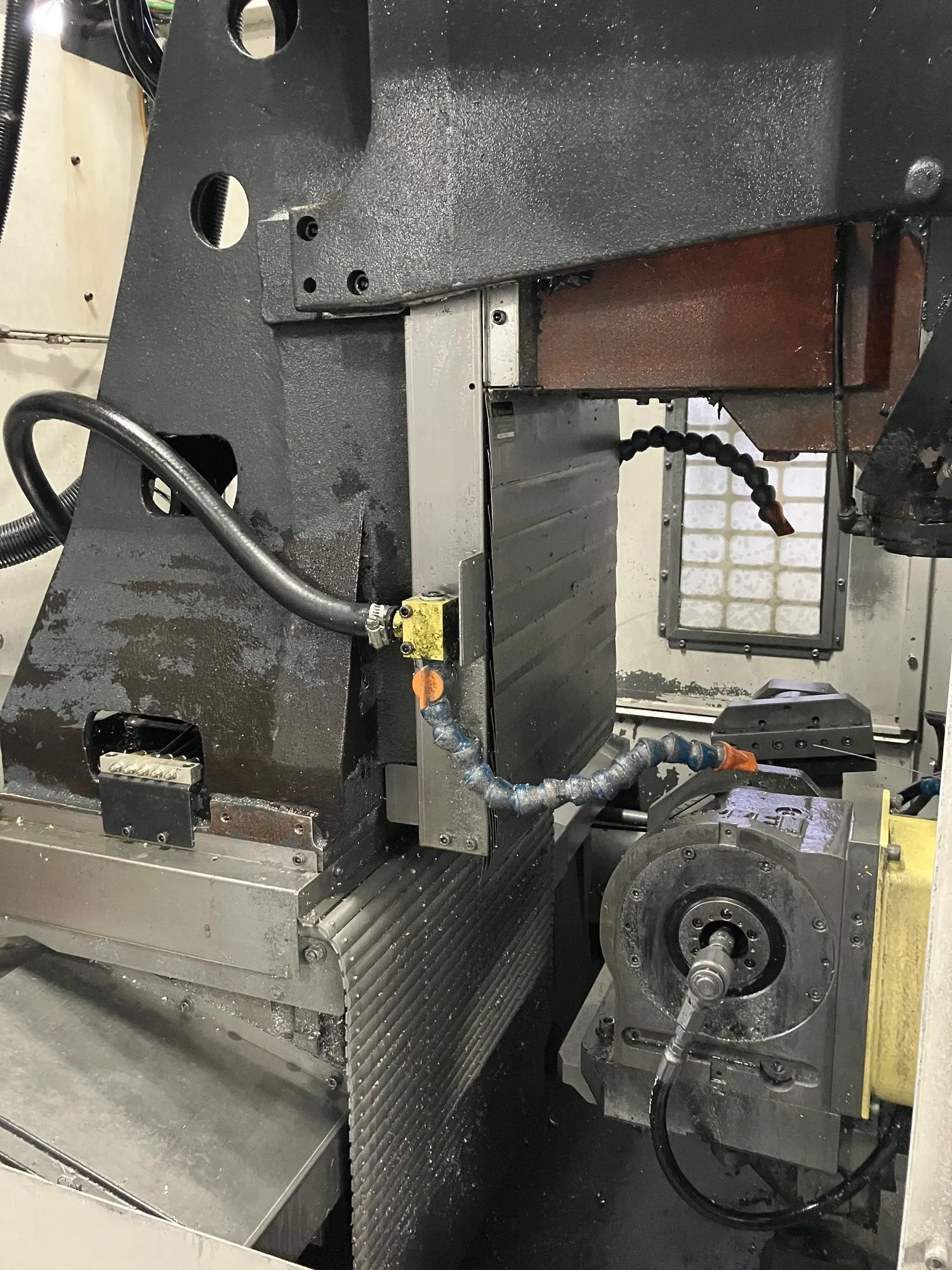

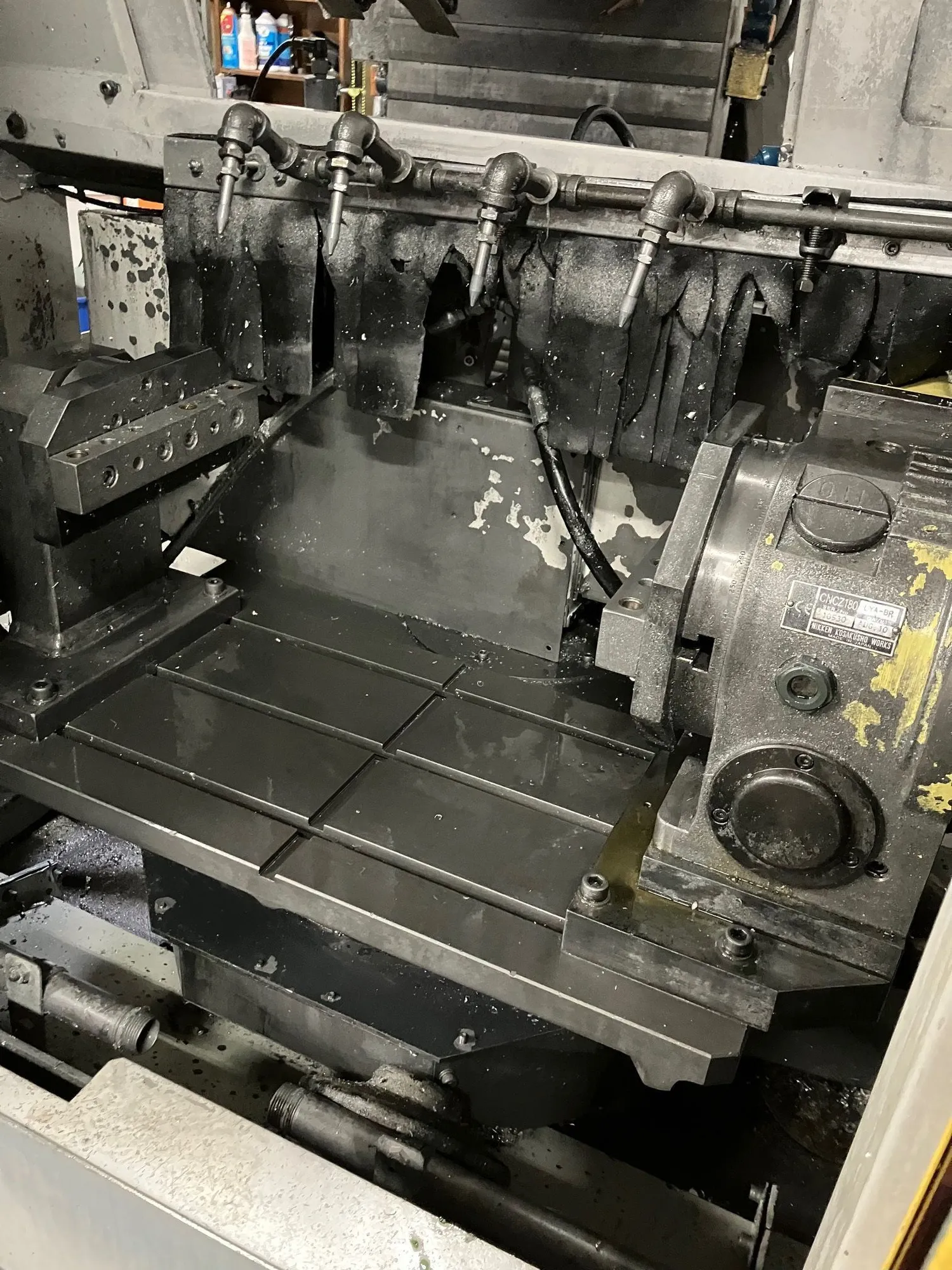

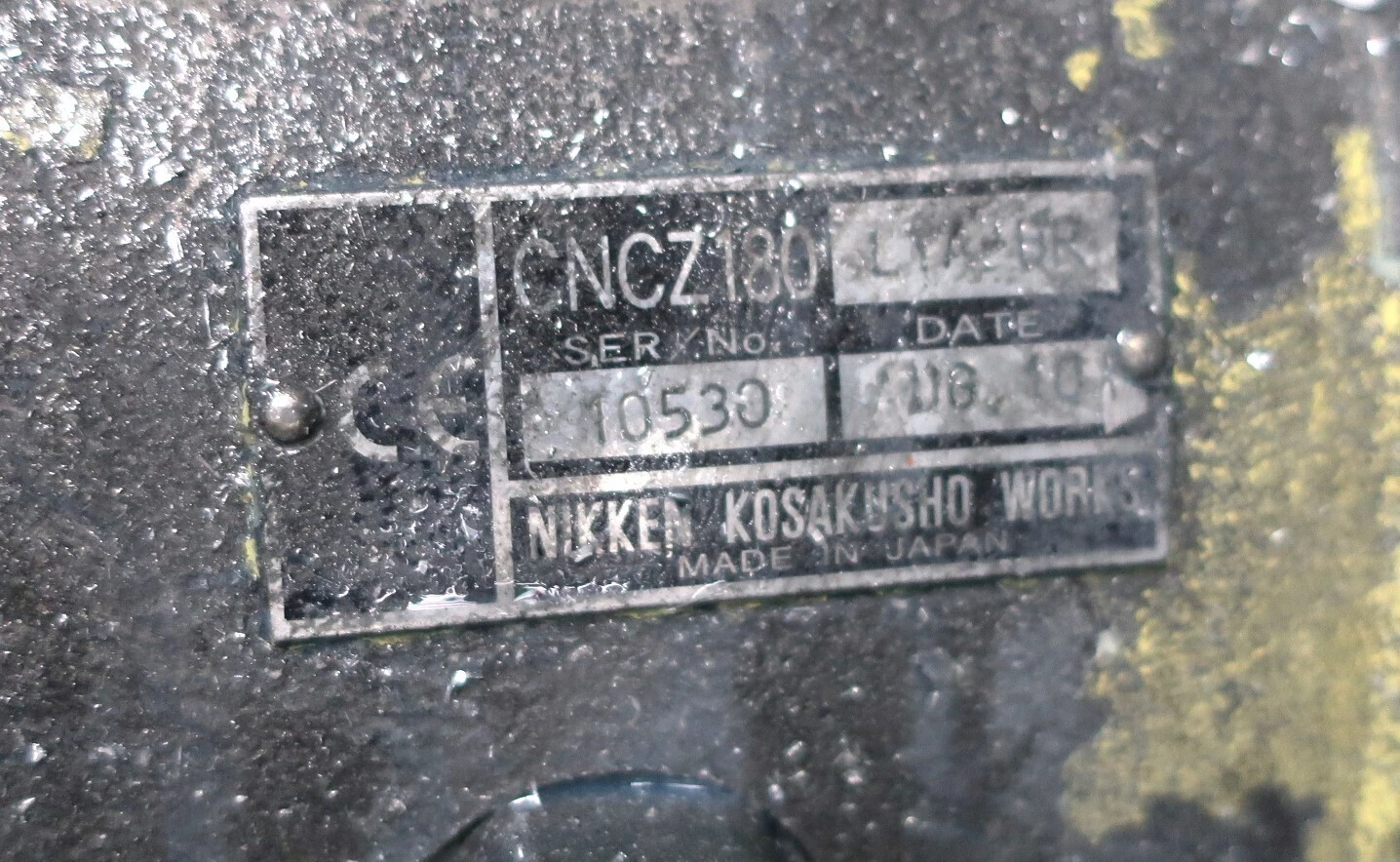

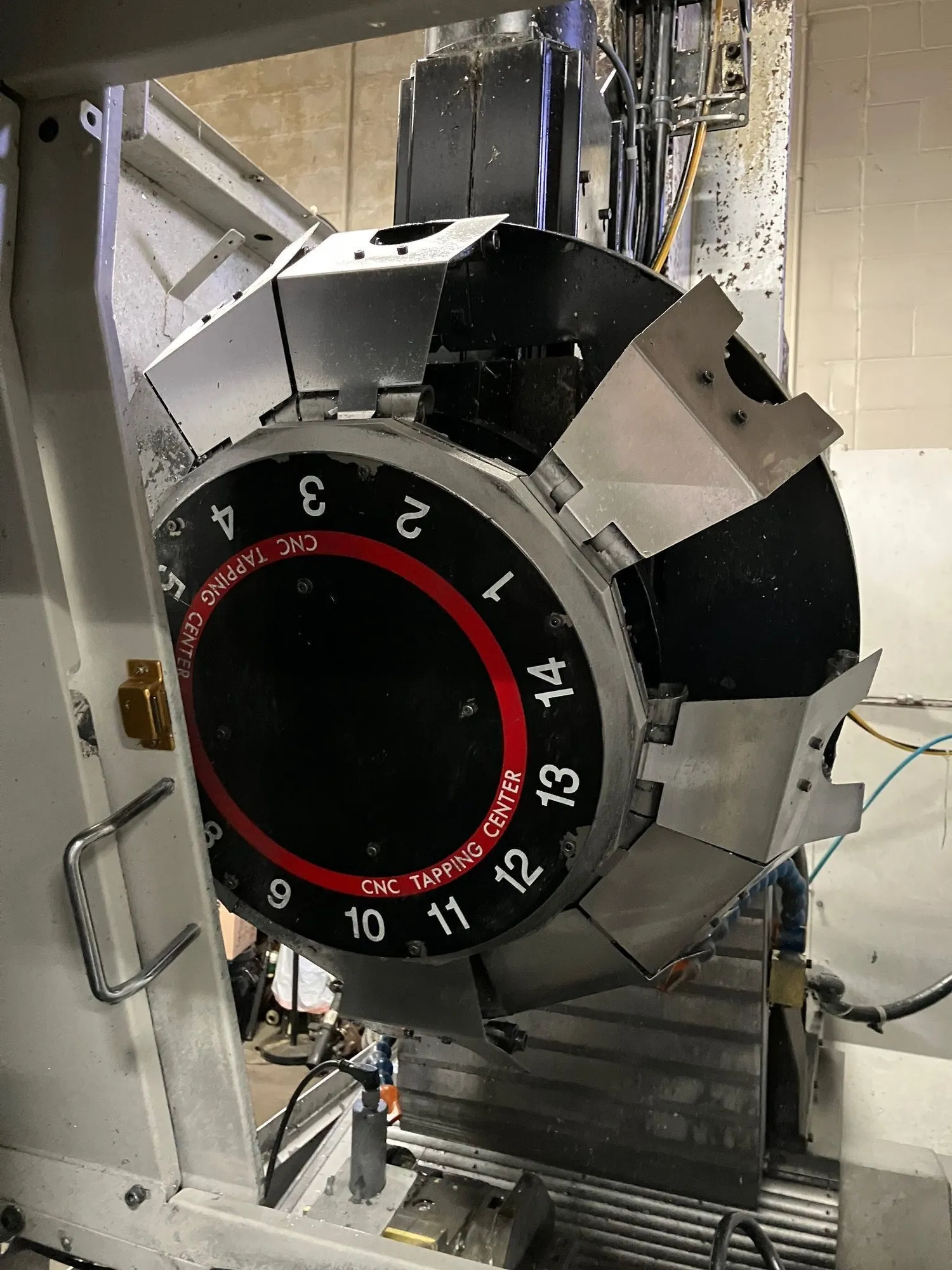

THE 2010 BROTHER TC-R2B IS A CNC DRILL AND TAP VERTICAL MACHINING CENTER FEATURING A 180-DEGREE PALLET CHANGER AND TWO 4TH AXIS ROTARY TABLES. EACH SIDE OF THE TABLE MEASURES 23.6 X 16.5 INCHES (WORK AREA 23.6 X 11.8 INCHES) WITH A CAPACITY OF 256 LBS AND A POSITION TIME OF 2.9 SECONDS FOR 180-DEGREE ROTATION. THE MACHINE PROVIDES AXIS TRAVELS OF 16.5 INCHES IN X, 12.8 INCHES IN Y, AND 12 INCHES IN Z. RAPID FEED RATES REACH 1,969 IPM (50 M/MIN) ACROSS ALL AXES, WITH CUTTING RATES UP TO 394 IPM FOR X AND Y, AND 787 IPM FOR Z. THE SPINDLE IS POWERED BY A 15 HP (10.1 KW) MOTOR, DELIVERING SPEEDS UP TO 10,000 RPM WITH A BT30 TAPER. TAPPING OPERATIONS SUPPORT SPINDLE SPEEDS UP TO 6,000 RPM. THE AUTOMATIC TOOL CHANGER FEATURES A 14-TOOL STORAGE CAPACITY, COMPATIBLE WITH MAS.BT30 TOOL SHANKS AND MAS.P30T-2 PULL STUDS. IT OFFERS A TOOL-TO-TOOL CHANGE TIME OF 0.9 SECONDS AND A CHIP-TO-CHIP TIME OF 1.7 SECONDS. MAXIMUM TOOL WEIGHT IS 3.0 KG WITH A MAXIMUM LENGTH OF 200 MM. PHYSICAL DIMENSIONS INCLUDE A HEIGHT OF 2,588 MM AND AN INSTALLATION AREA OF APPROXIMATELY 1,617 X 2,658 MM WITH THE CONTROL BOX OPEN. THE TOTAL MACHINE WEIGHT, INCLUDING THE BOX AND SPLASH GUARD, IS 2,600 KG.
