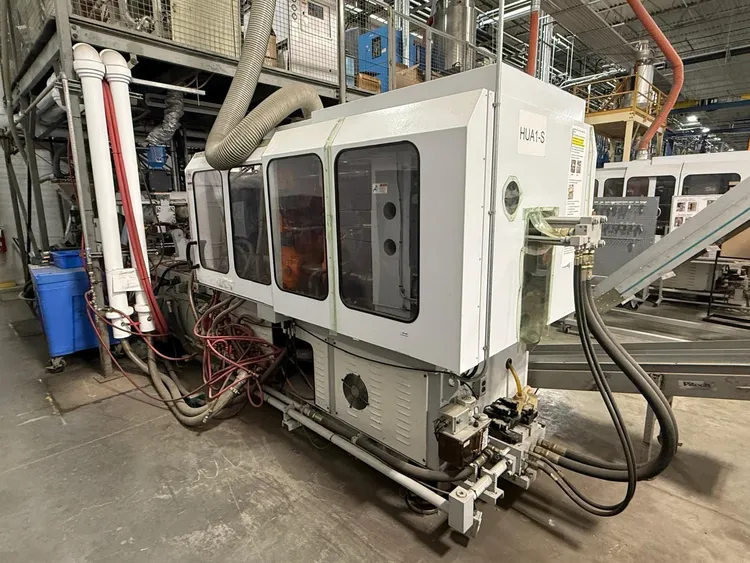

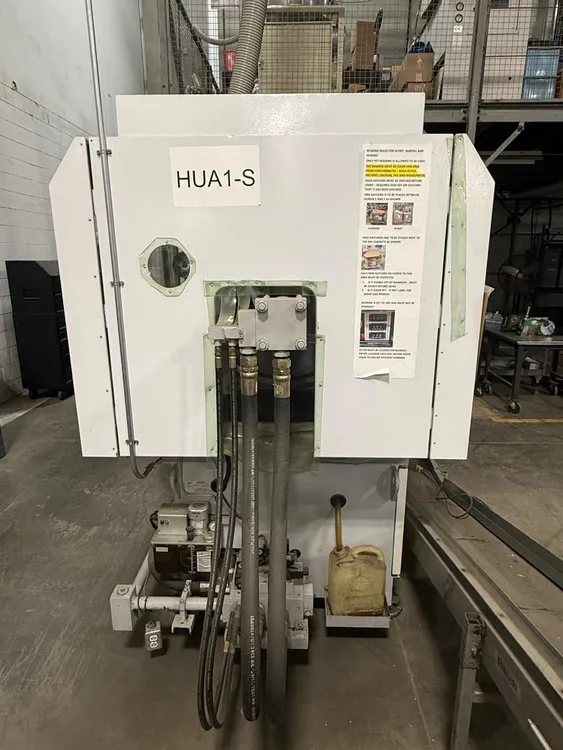

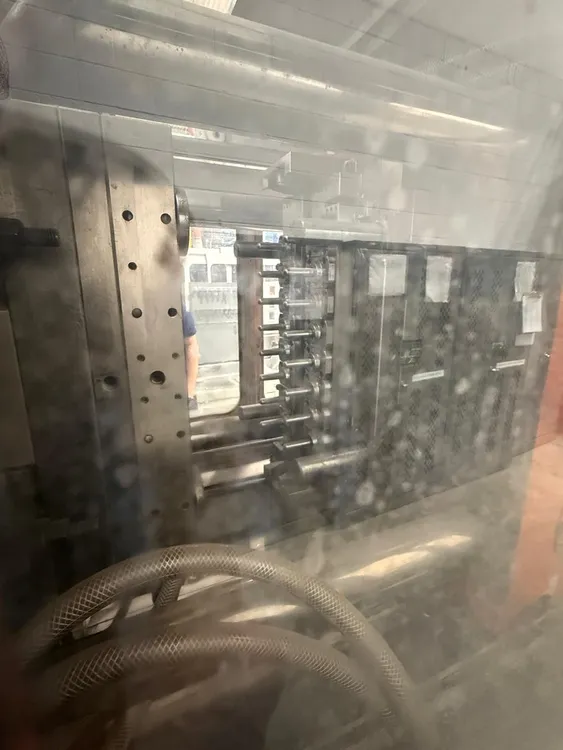

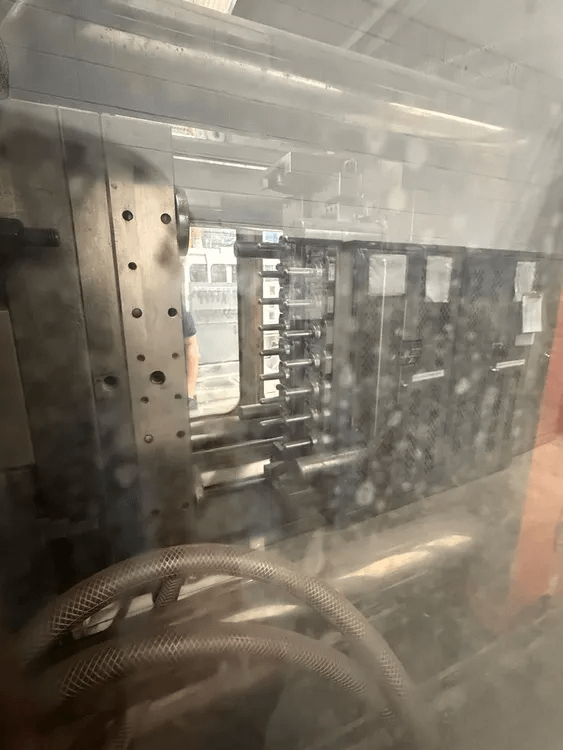

2010 HUAHONG HR220L PLASTIC INJECTION MOLDING MACHINE, 220T CLAMP, 45MM SCREW

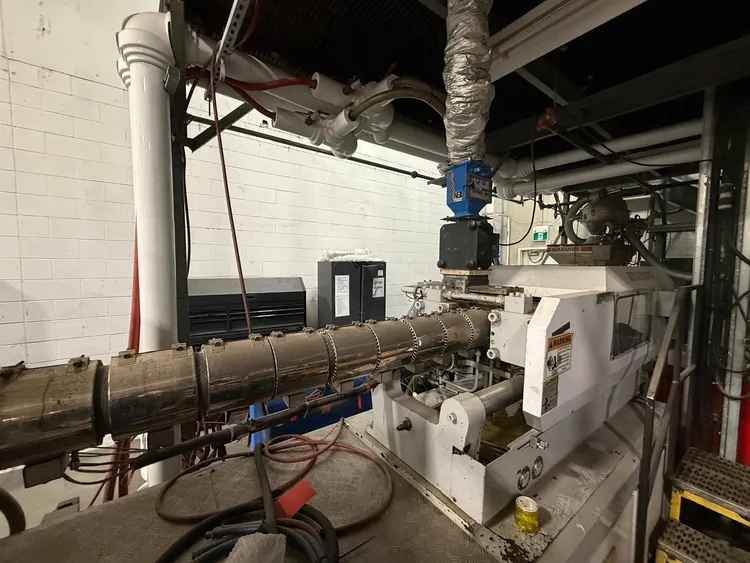

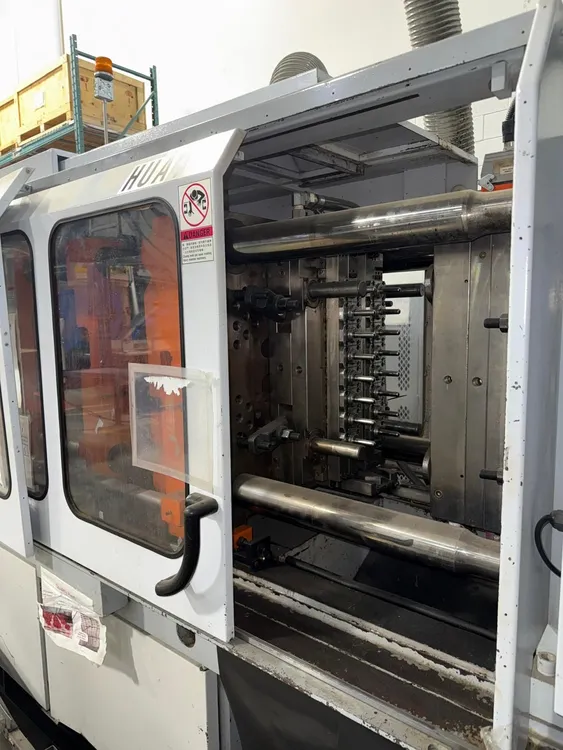

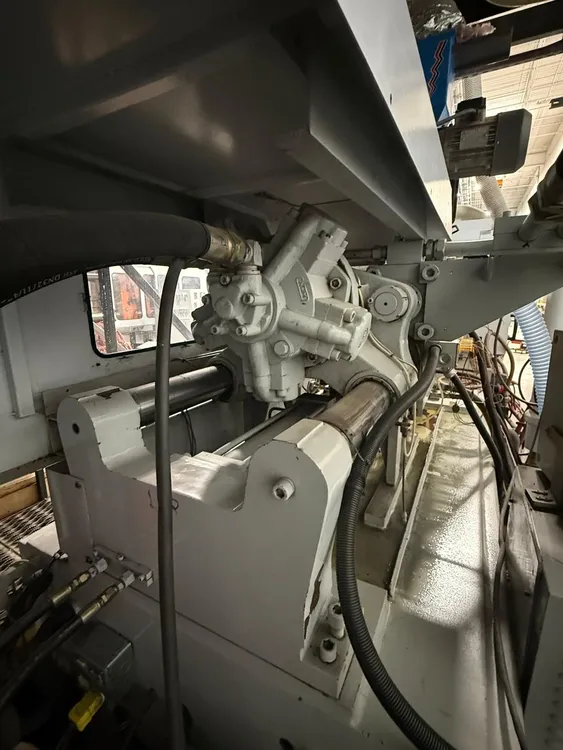

THE 2010 HUAHONG HR220L IS A PLASTIC INJECTION MOLDING MACHINE FEATURING A HYDRAULIC TOGGLE CLAMP UNIT WITH A CLAMP FORCE OF 220 TONS. THE CLAMP UNIT OFFERS A TIE-BAR SPACING OF 22.0 IN × 22.0 IN, A MAXIMUM DAYLIGHT (OPEN HEIGHT) OF 40.0 IN, AND A MINIMUM MOLD THICKNESS OF 12.0 IN. EJECTOR SPECIFICATIONS INCLUDE A 6.0 IN STROKE AND 13 TON FORCE. THE MATTRESS PLATEN SIZE IS 32.0 IN × 32.0 IN. THE INJECTION UNIT OPERATES ON 220V, 60HZ, 3PH POWER, AND HAS AN HOURLY PRODUCTION RATE OF APPROXIMATELY 180 CYCLES PER HOUR. IT UTILIZES A 45 MM SCREW DIAMETER WITH A 20:1 L/D RATIO. KEY INJECTION SPECIFICATIONS INCLUDE A SHOT VOLUME OF 400 CM³, A SHOT WEIGHT (PS, APPROXIMATE) OF 400 G (14.1 OZ), AND A MAXIMUM INJECTION PRESSURE OF 27,000 PSI (186 MPA). THE MACHINE HAS A PLASTICIZING RATE OF 40 G/SEC, A SCREW SPEED OF 0–180 RPM, AND AN INJECTION STROKE OF 260 MM (10.2 IN). THE MACHINE WEIGHS 18,200 LBS WITH DIMENSIONS OF 210'' X 60'' X 80''.
