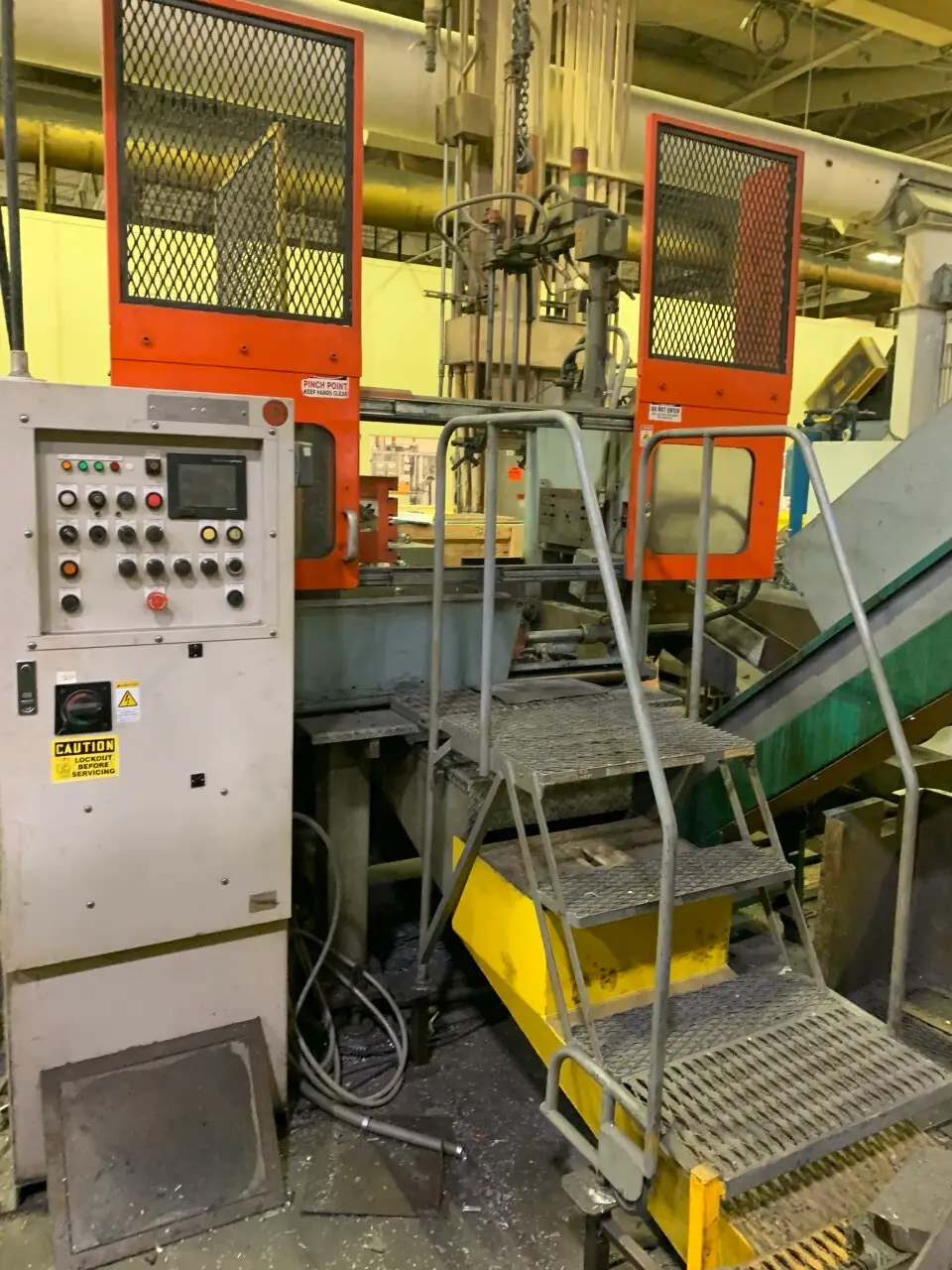

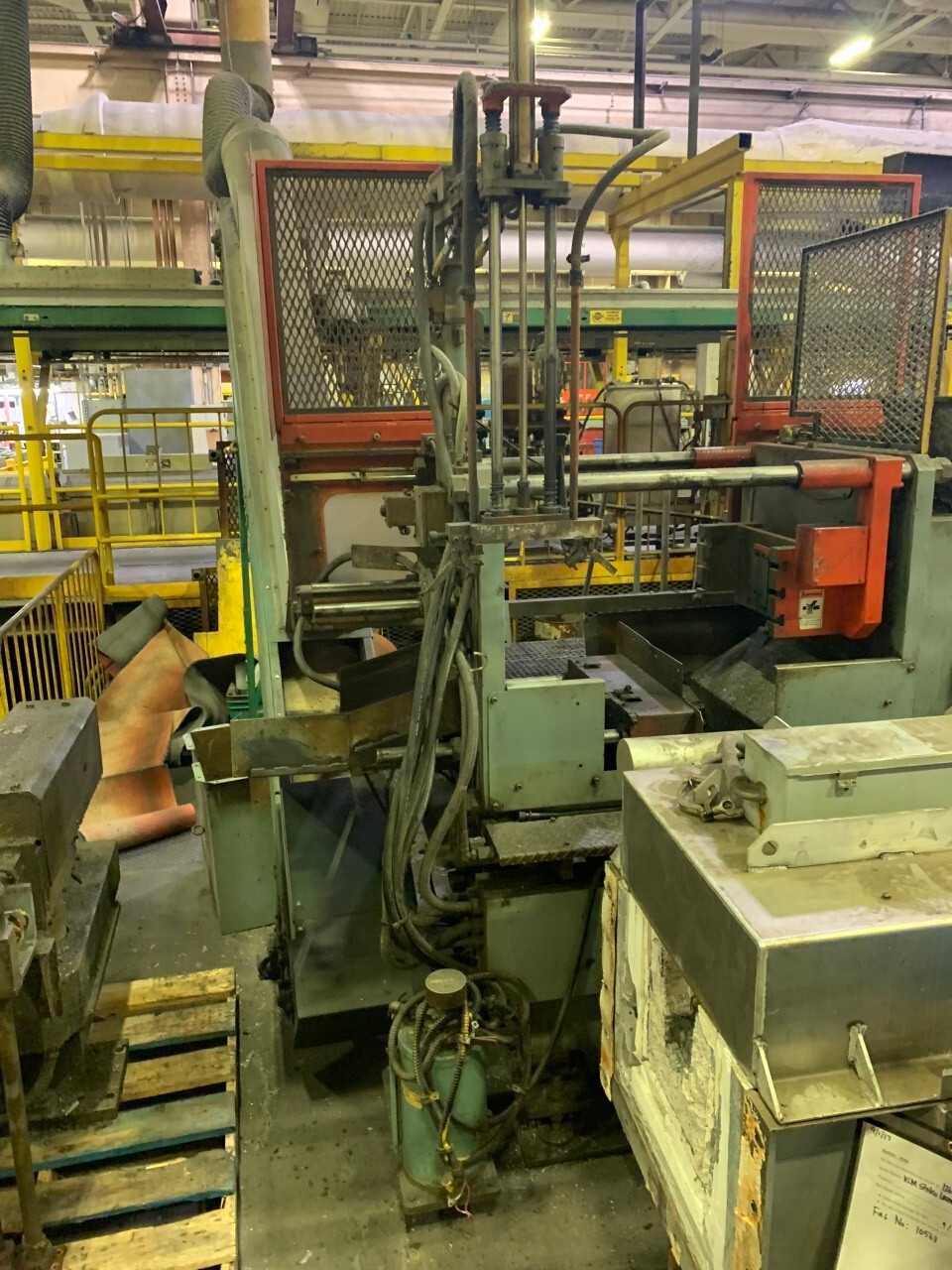

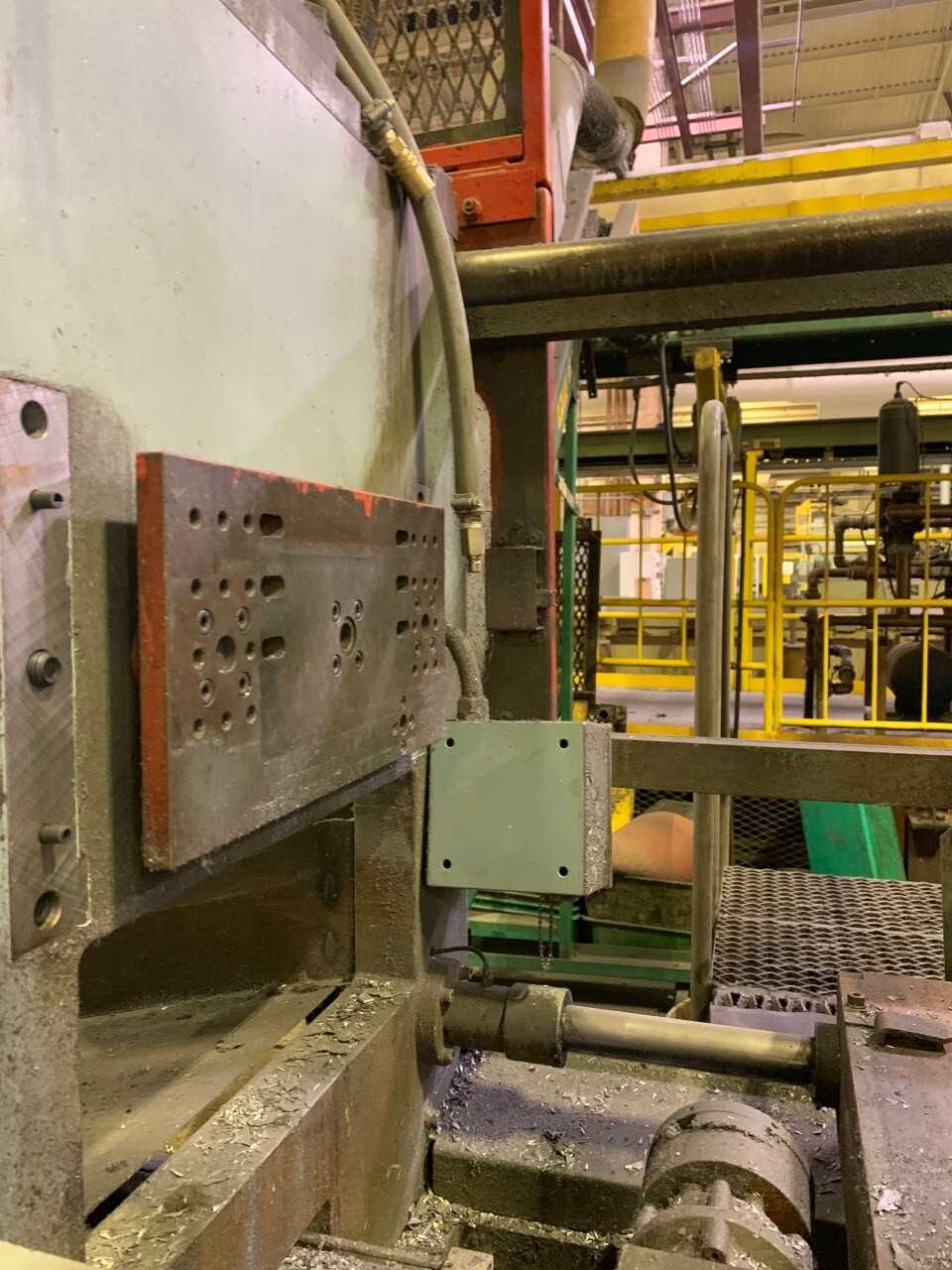

2010 Suga Machine TPH-5BWK-7300L Trim Press

Contact regarding loading and removal. Buyer can remove but will need to be approved by Hitachi Vertical Trim Press (500mm x 300mm Cap) Serial # - 649 Tonnage: The press has a maximum tonnage of 5 tons. Bed size: The maximum bed size of the press is approximately 730mm x 730mm (28.74" x 28.74"). Stroke: The press has a maximum stroke length of approximately 150mm (5.9"). Speed: The press has a maximum speed of approximately 200 strokes per minute. Power requirements: The press requires a three-phase electrical supply with a voltage of 220 volts. Control system: The press is equipped with a programmable controller (PLC) and a touchscreen operator interface that allows the operator to adjust the stroke, speed, and other parameters of the press. Safety features: The press is equipped with a variety of safety features, including an interlock switch, light curtain, and emergency stop button, to ensure safe operation.
