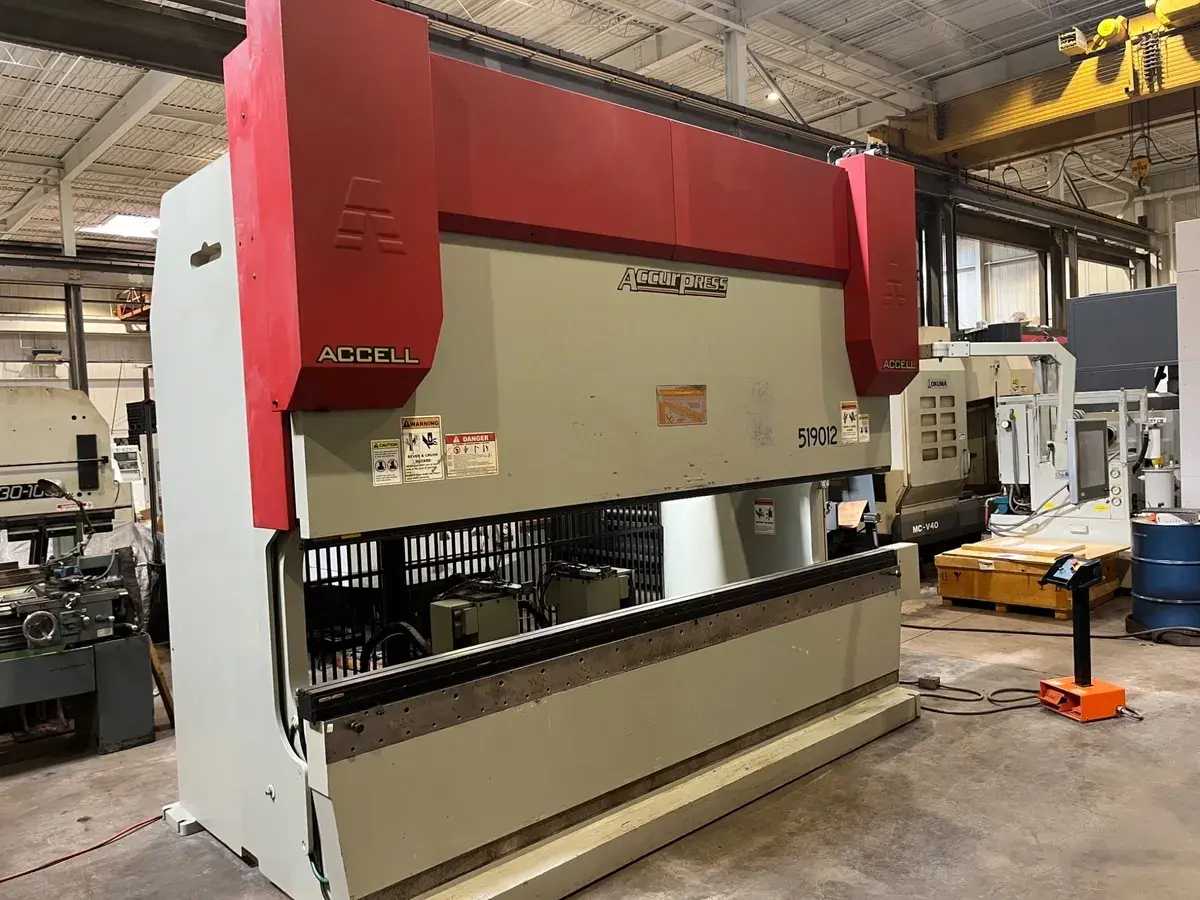

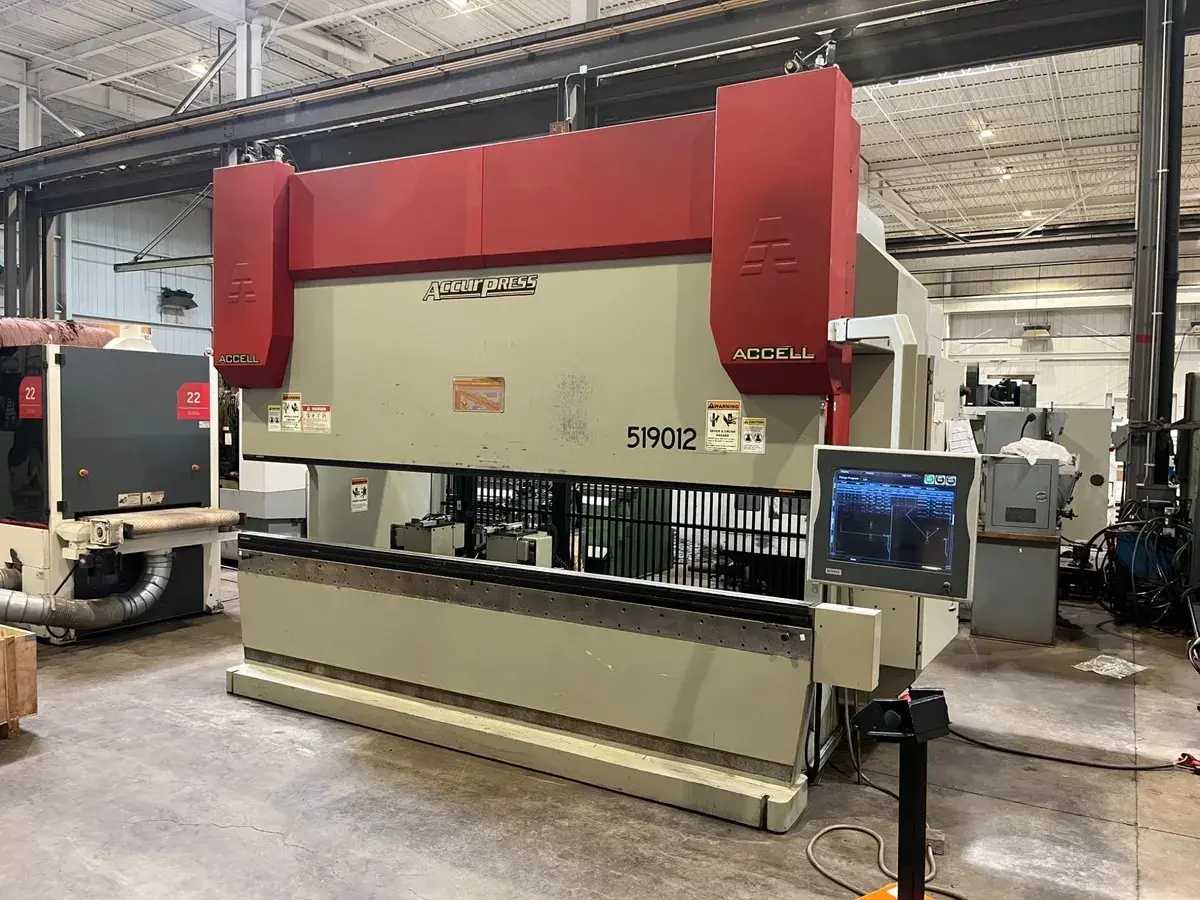

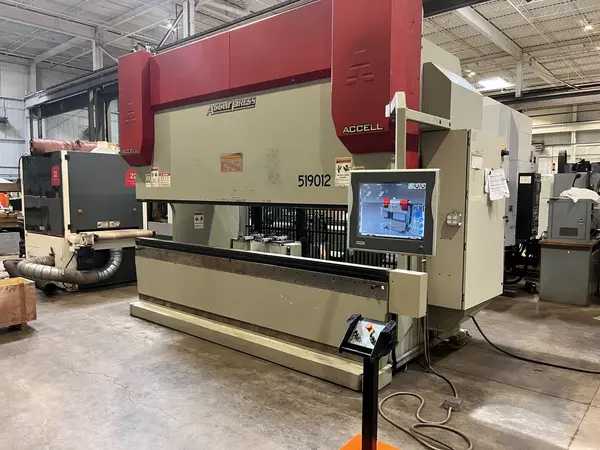

2011 Accurpress 519012 Press Brakes, 190 Ton Bending Cap, 144 in Bed Length, 4 Axis Backgauge

The Accurpress model 519012 (Accell 190-12) is a CNC hydraulic press brake engineered for precision sheet metal forming. It provides a maximum bending capacity of 190 tons over an overall bed length of 12 feet (144 inches). The machine integrates an Accurpress ETS 3000 CNC control system, facilitating multi-axis operation including Y1 and Y2 ram synchronization, and a 4-axis backgauge commonly configured with X and R axes. Technical specifications include a distance between side frames of 124 inches, a stroke length of 8 inches, an open height of 14 inches, and a throat depth of 10 inches. Power is supplied by a 20-horsepower main motor.
