2011 ESPEC ENL112-CCA DAMP HEAT TESTING CHAMBER

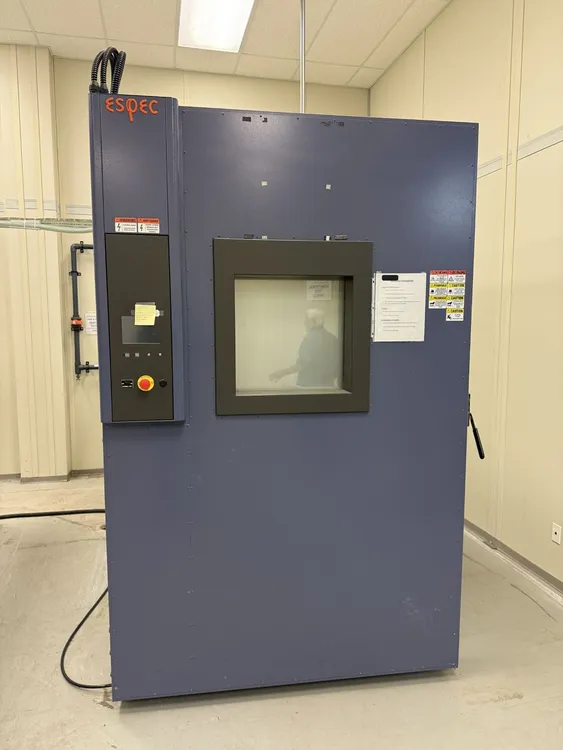

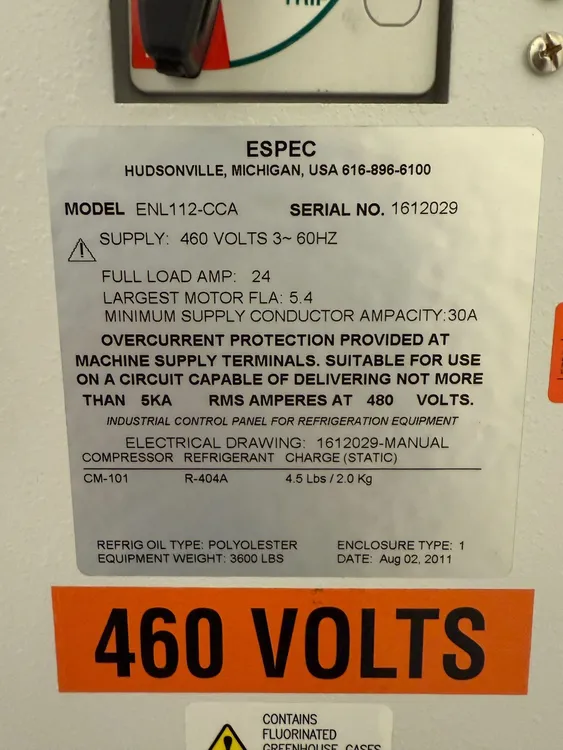

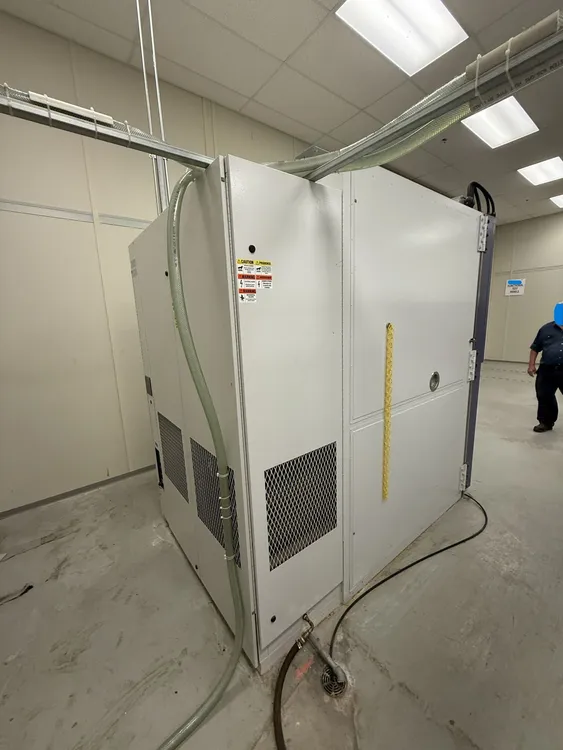

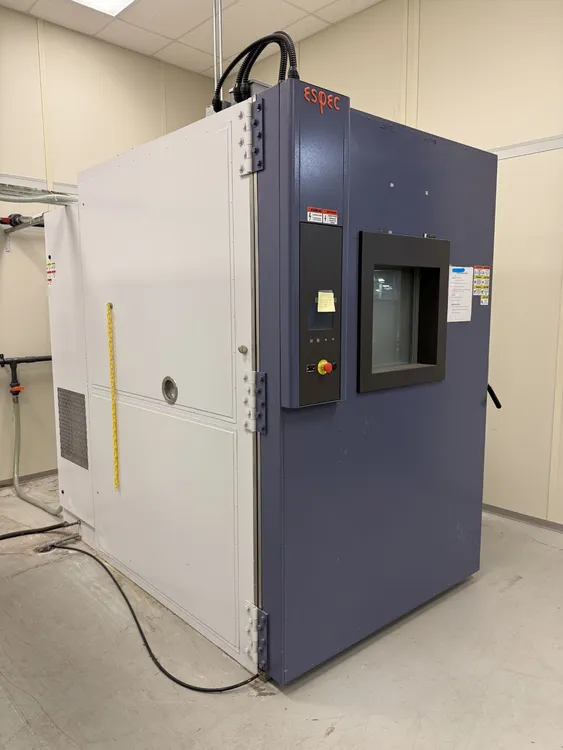

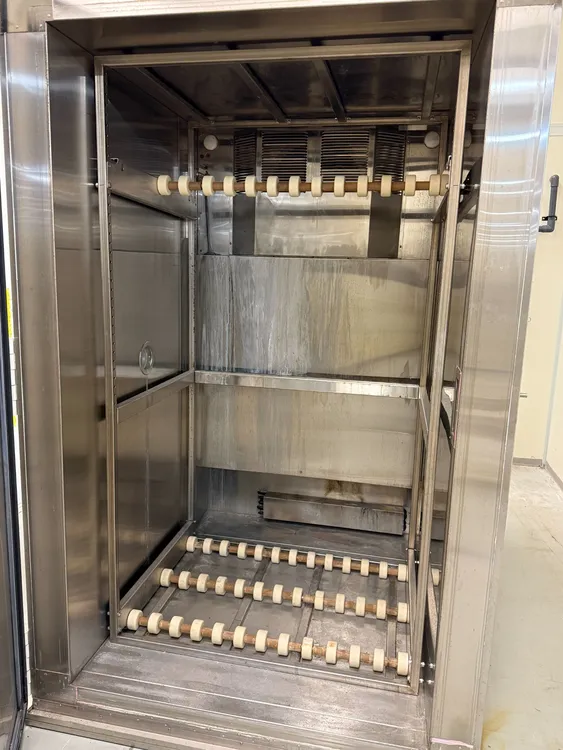

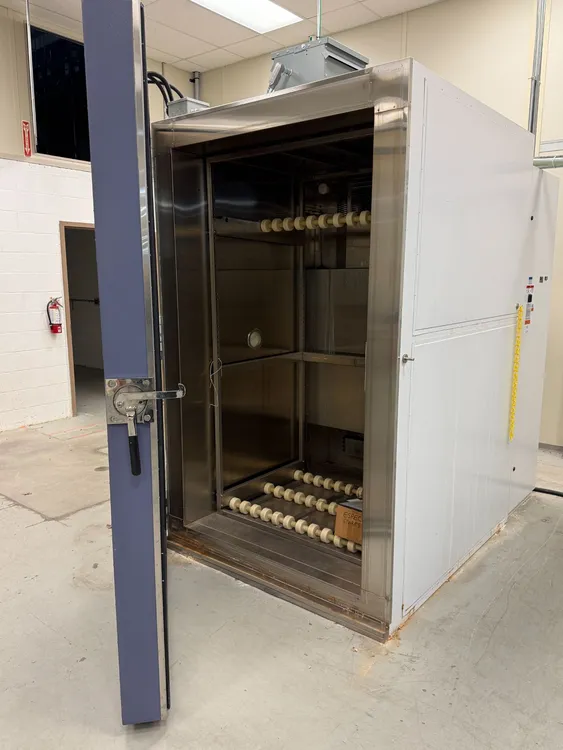

THE ESPEC ENL112-CCA DAMP HEAT TESTING CHAMBER IS A COMPACT WALK-IN ENVIRONMENTAL CHAMBER WITH AN INTERIOR VOLUME OF 112 CUBIC FEET (3171 LITERS). THE INTERIOR DIMENSIONS MEASURE 48" W X 48" D X 84" H (1219 X 1219 X 2134 MM), AND THE EXTERIOR DIMENSIONS ARE APPROXIMATELY 63" W X 99" D X 97.1" H (1600 X 2730 X 2466 MM). THE CHAMBER FEATURES A TEMPERATURE RANGE OF 20 TO 150°C (68 TO 356°F) WITH A TEMPERATURE FLUCTUATION OF ±0.5°C AT THE CONTROL SENSOR AND A TEMPERATURE GRADIENT (UNIFORMITY, EMPTY) OF ±2°C. ITS HUMIDITY RANGE IS 30% TO 90% RH, WITH A HUMIDITY FLUCTUATION OF ±5% AND A HUMIDITY GRADIENT OF ±5%. THE UNIT OPERATES ON 400/460V 3 PHASE, 50/60HZ POWER WITH 30 SERVICE AMPS AND INCLUDES A 1/2 HP REFRIGERATION SYSTEM. IT IS DESIGNED TO PERFORM TESTS SUCH AS THE 85°C / 85% DAMP HEAT TEST.
