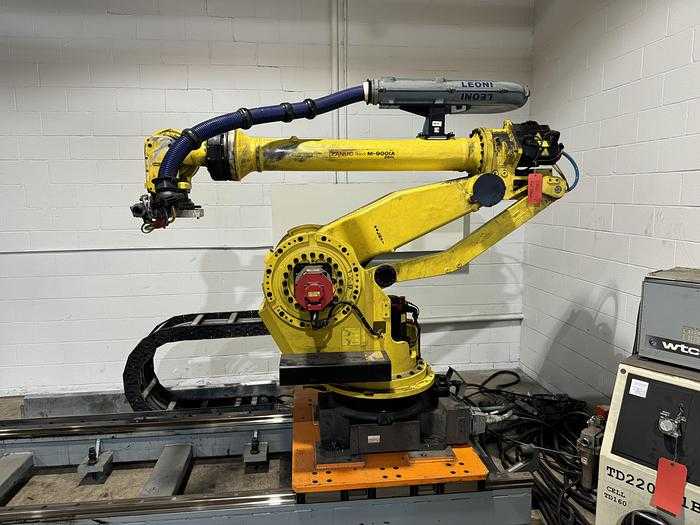

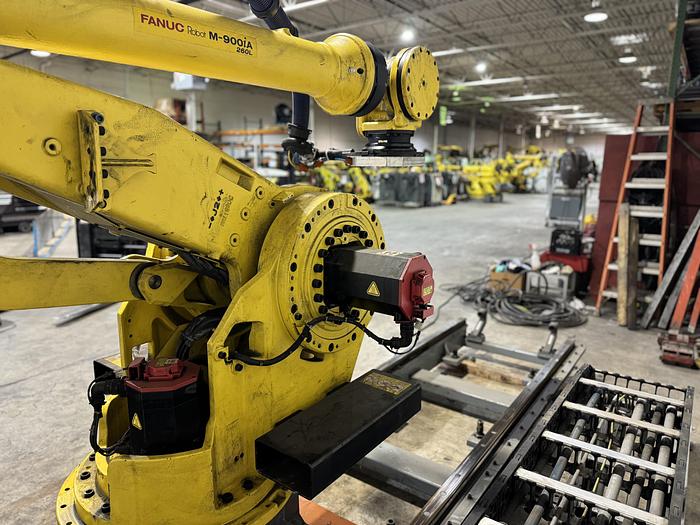

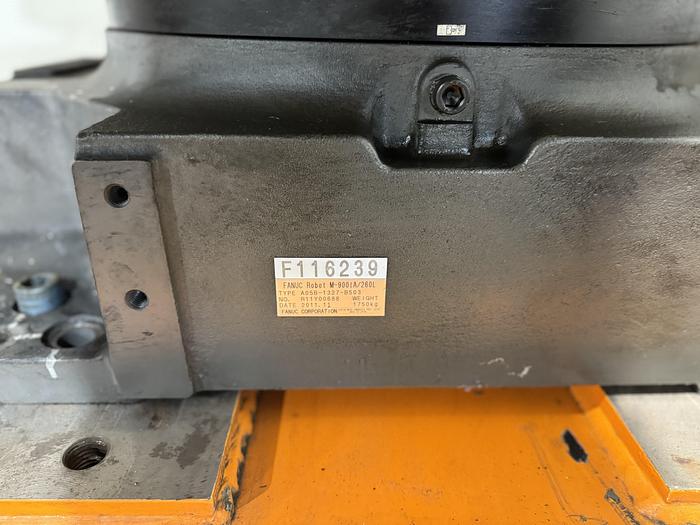

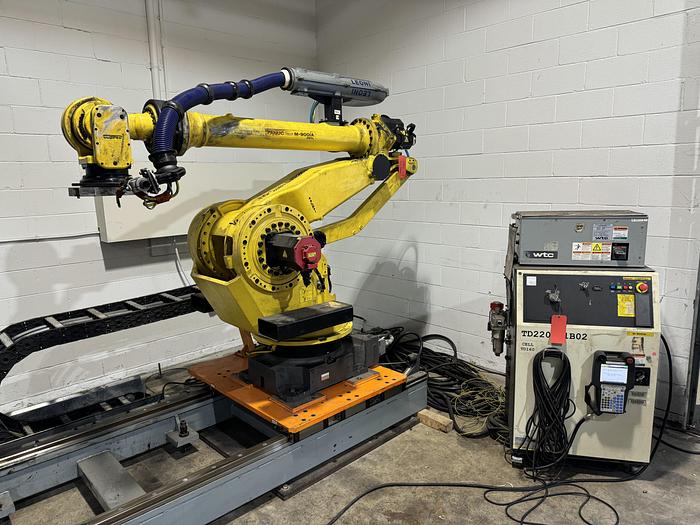

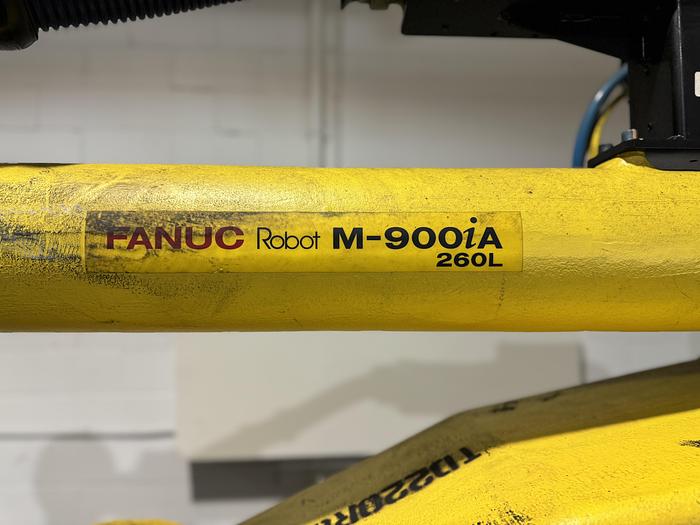

2011 FANUC M-900IA/260L ARTICULATED ROBOT, 260KG PAYLOAD, 3100MM REACH, R-30IA CONTROLLER

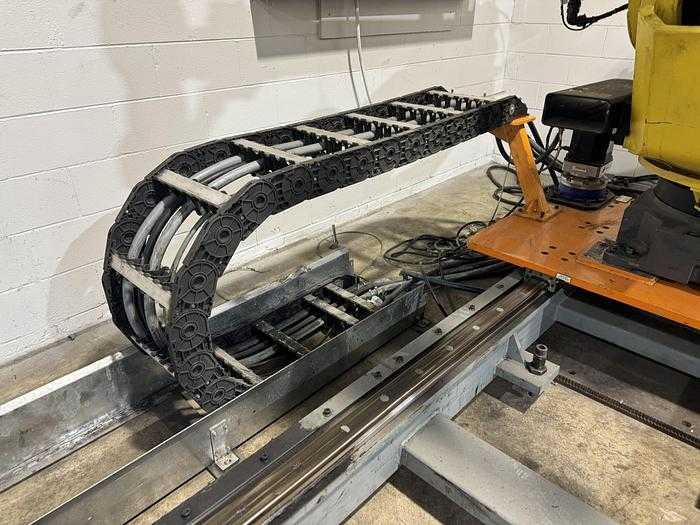

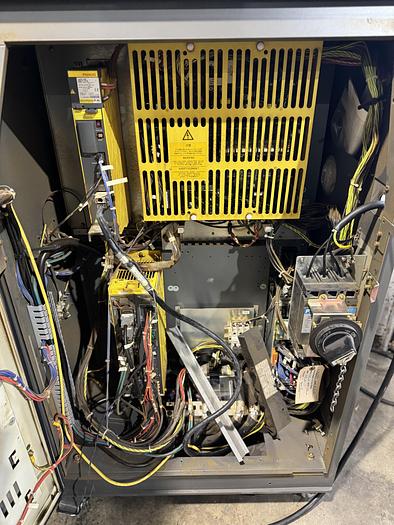

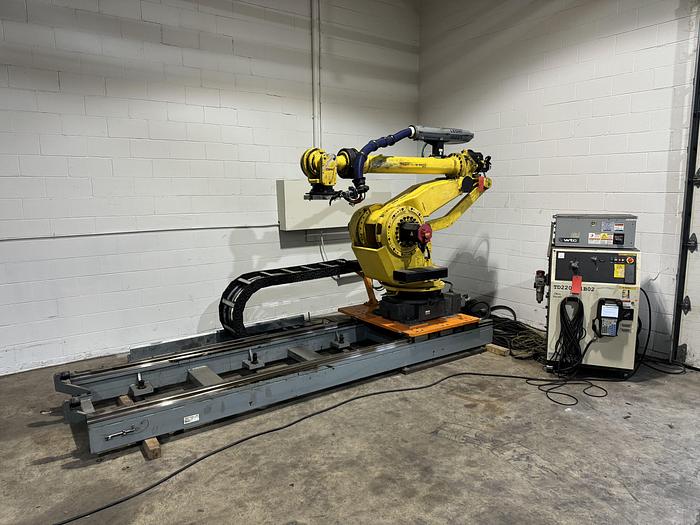

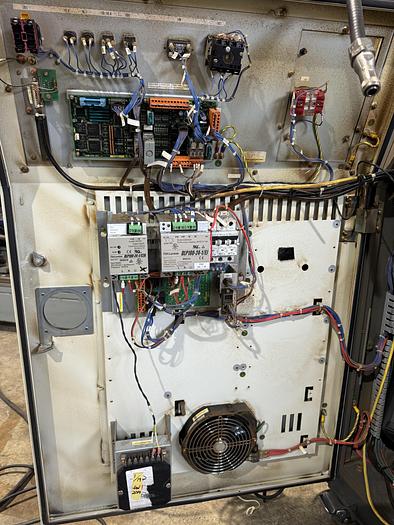

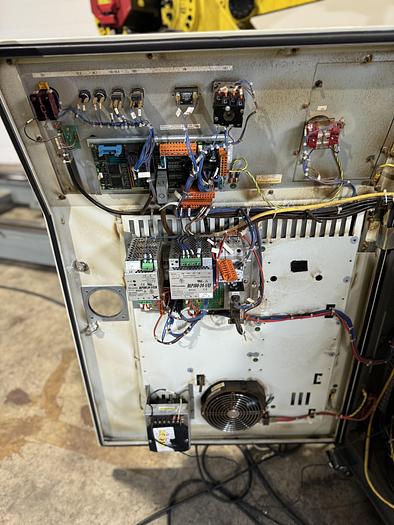

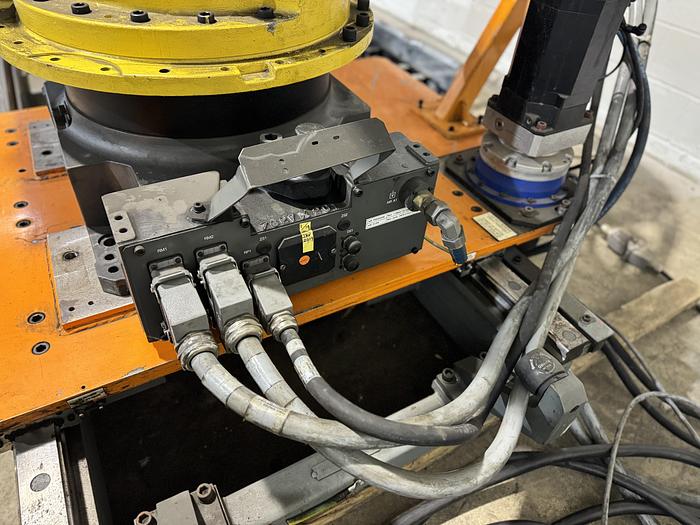

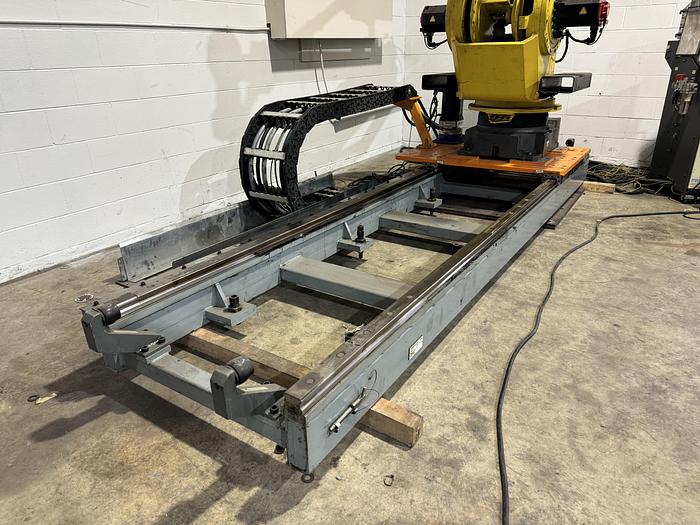

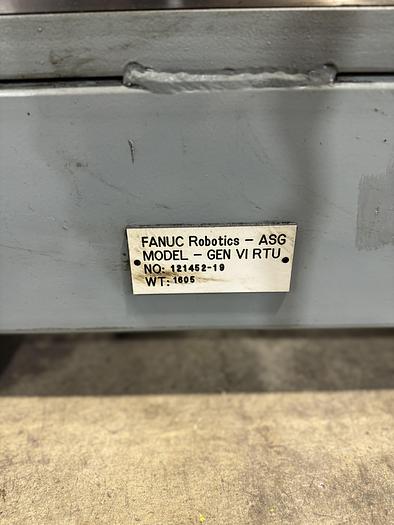

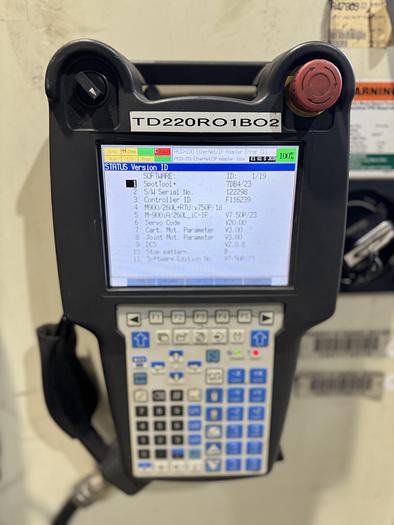

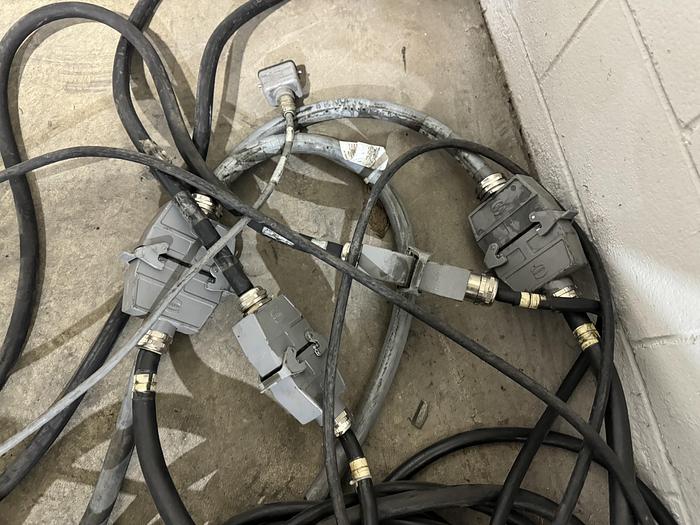

THE 2011 FANUC M-900IA/260L IS A LONG-REACH, SIX-AXIS ARTICULATED ROBOT DESIGNED FOR HIGH-PAYLOAD APPLICATIONS SUCH AS WATERJET CUTTING, MATERIAL HANDLING, AND FIBERGLASS CUTTING. IT FEATURES A 260 KG PAYLOAD CAPACITY, A HORIZONTAL REACH OF 3100 MM, AND A REPEATABILITY OF ±0.3 MM. THE ROBOT HAS A MASS OF 1800 KG AND SUPPORTS FLOOR, INVERTED, AND ANGLE MOUNTING CONFIGURATIONS. AXIS MOTION SPEEDS ARE 100 °/S FOR J1, 105 °/S FOR J2, 95 °/S FOR J3, 120 °/S FOR J4 AND J5, AND 200 °/S FOR J6. THE MOTION RANGE FOR THE AXES IS J1 ±180°, J2 ±75°, J3 +90° TO -121°, J4 ±360°, J5 ±125°, AND J6 ±360°. THIS SYSTEM IS INTEGRATED WITH A FANUC GEN 6 10-FOOT ROBOT TRANSFER UNIT (RTU) AND IS CONTROLLED BY A FANUC R-30IA CONTROLLER EQUIPPED WITH A 7TH AXIS DRIVE FOR THE RTU. THE PACKAGE INCLUDES AN I-PENDANT, ROBOT CONNECTION CABLES, AND DEDICATED CABLES FOR THE TRANSFER UNIT.
