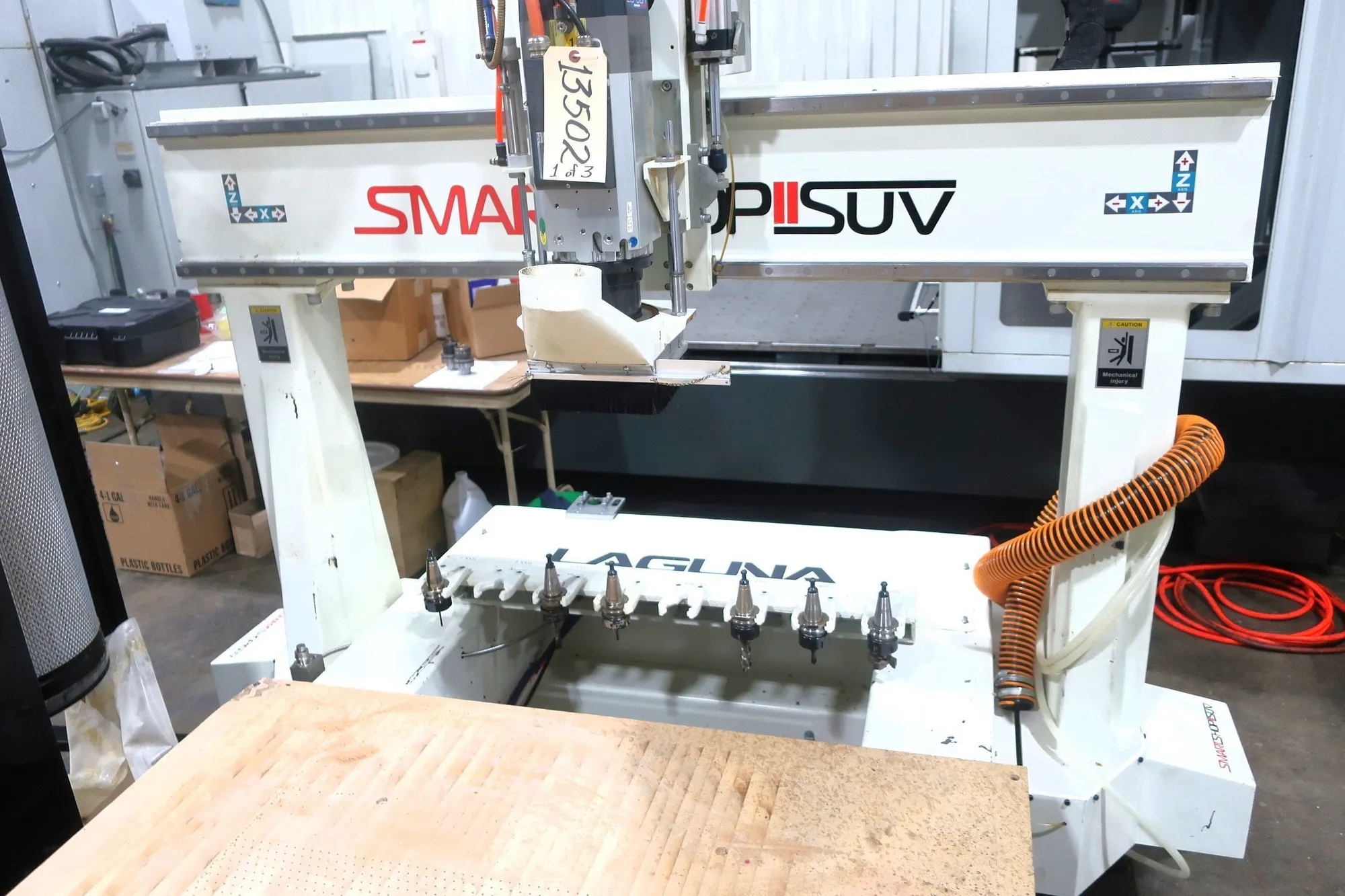

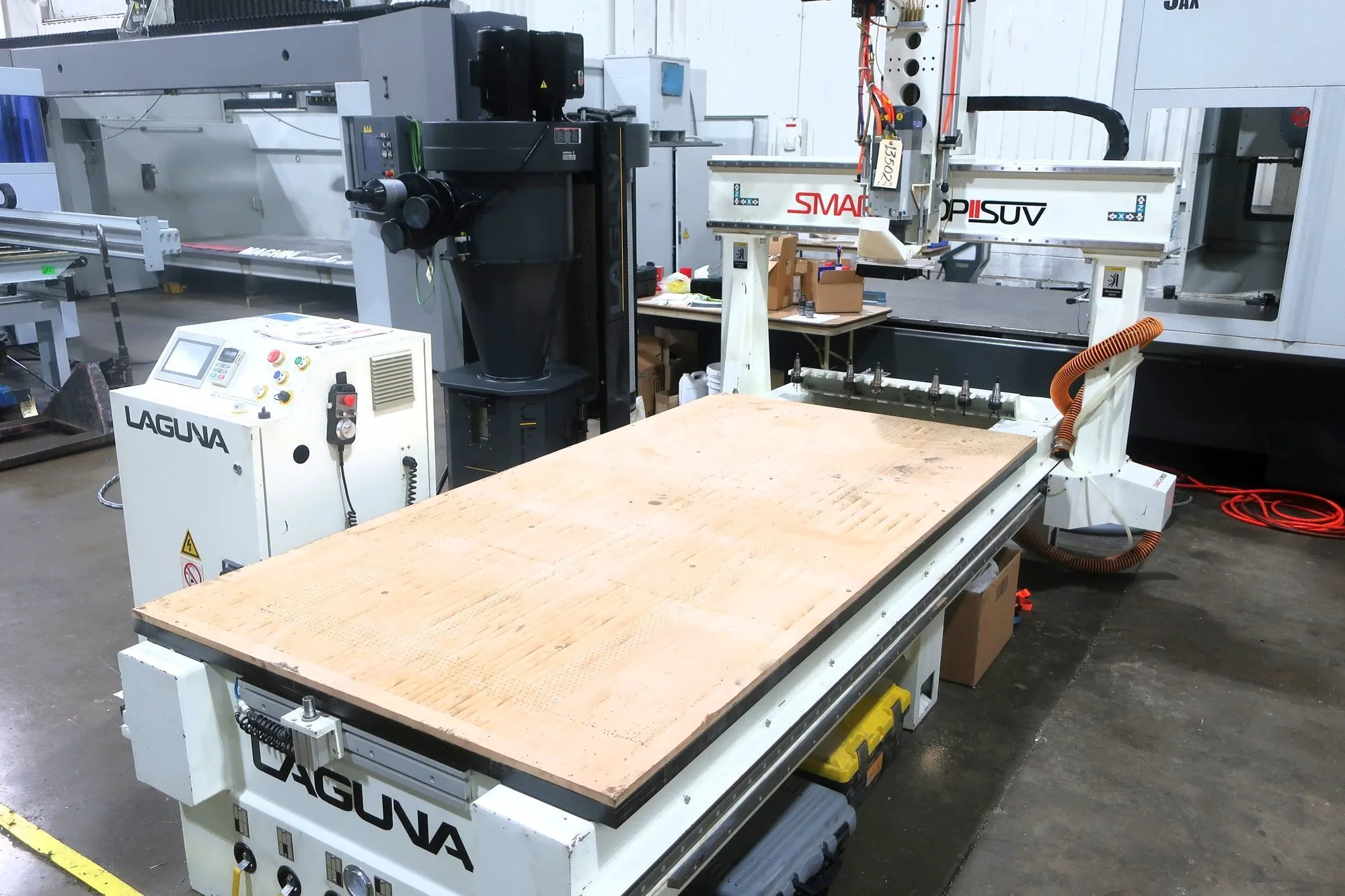

2011 LAGUNA SMARTSHOP II SUV CNC ROUTER, 4' X 8', 24,000 RPM, 12 HP

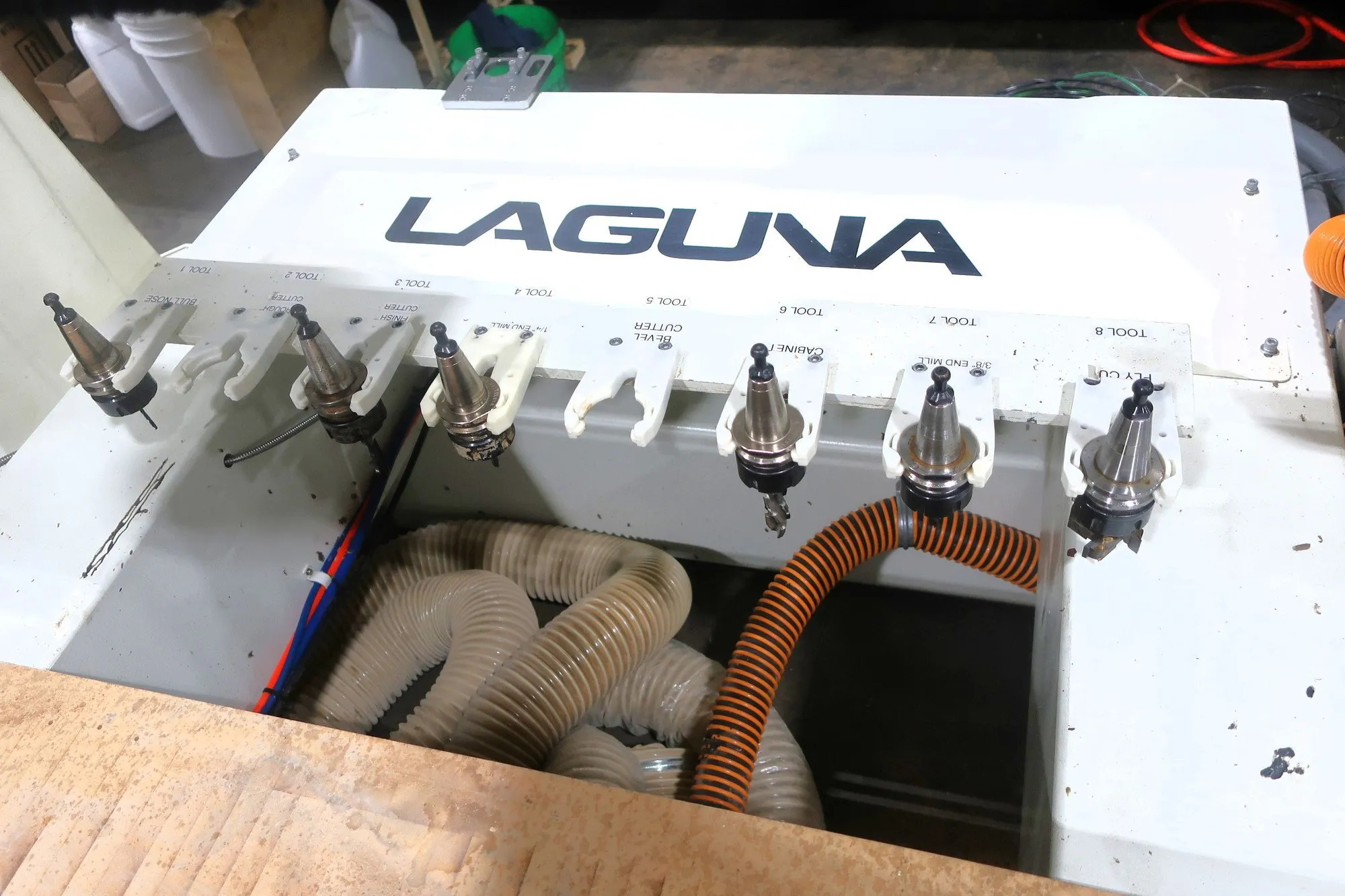

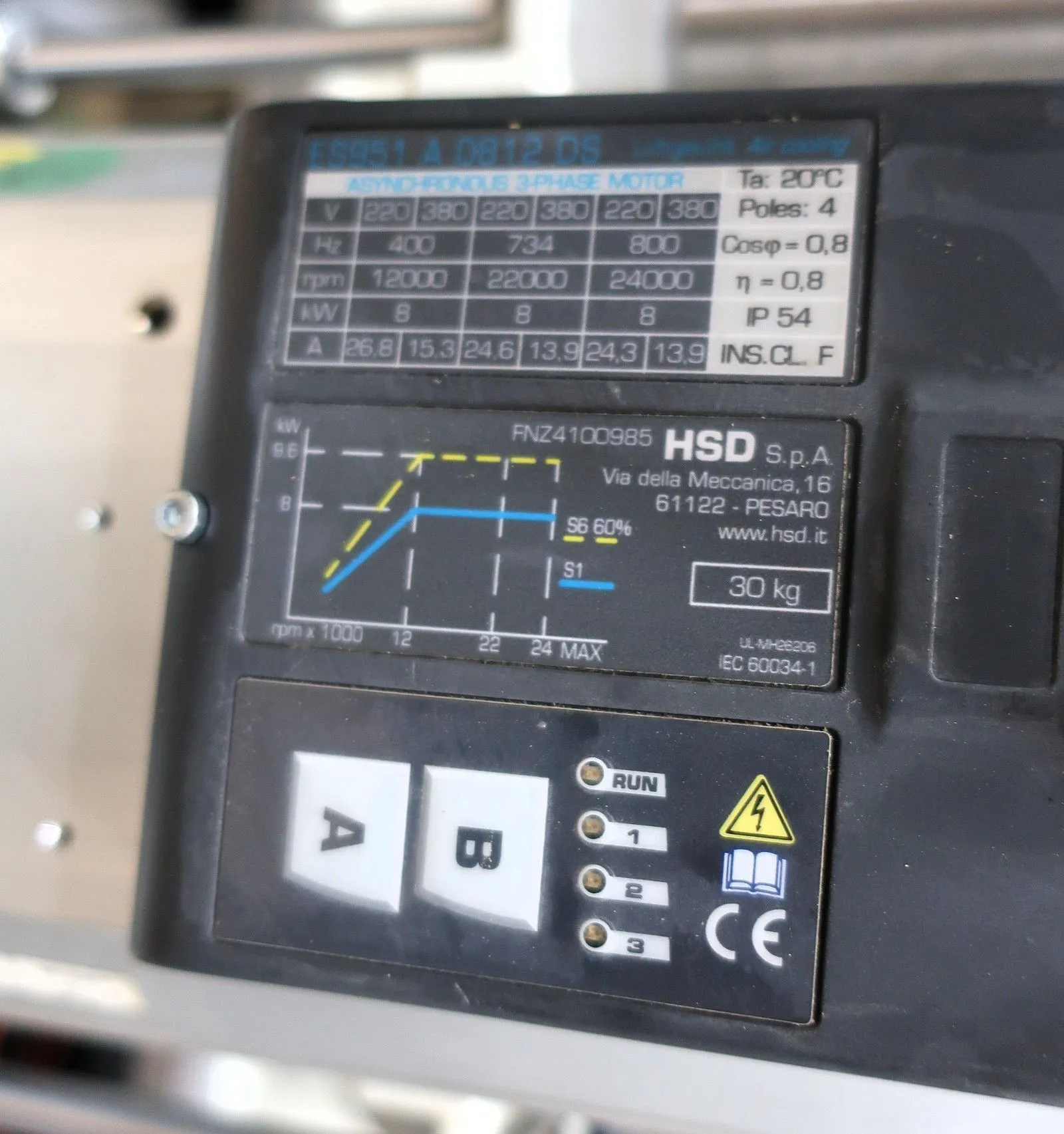

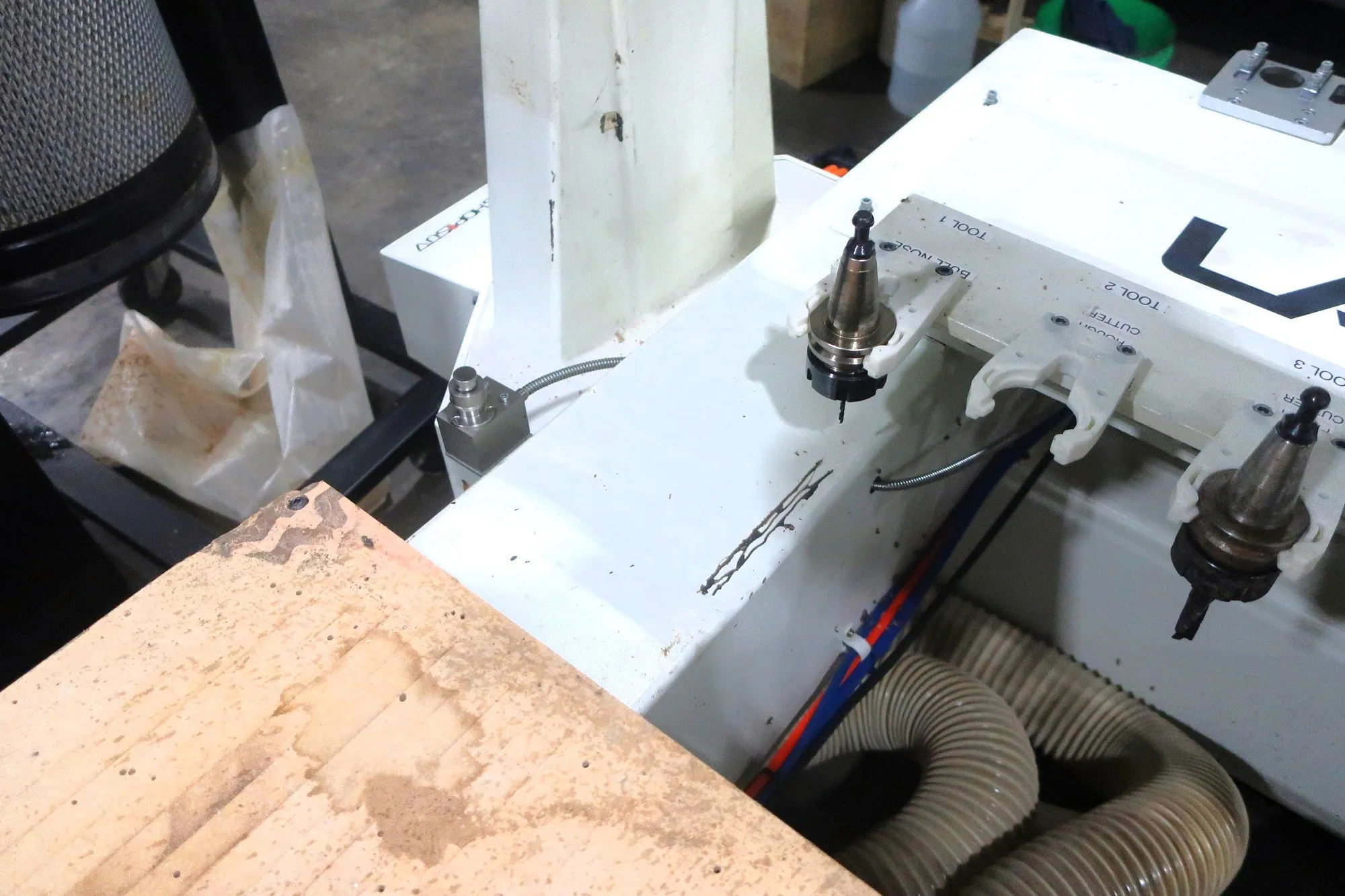

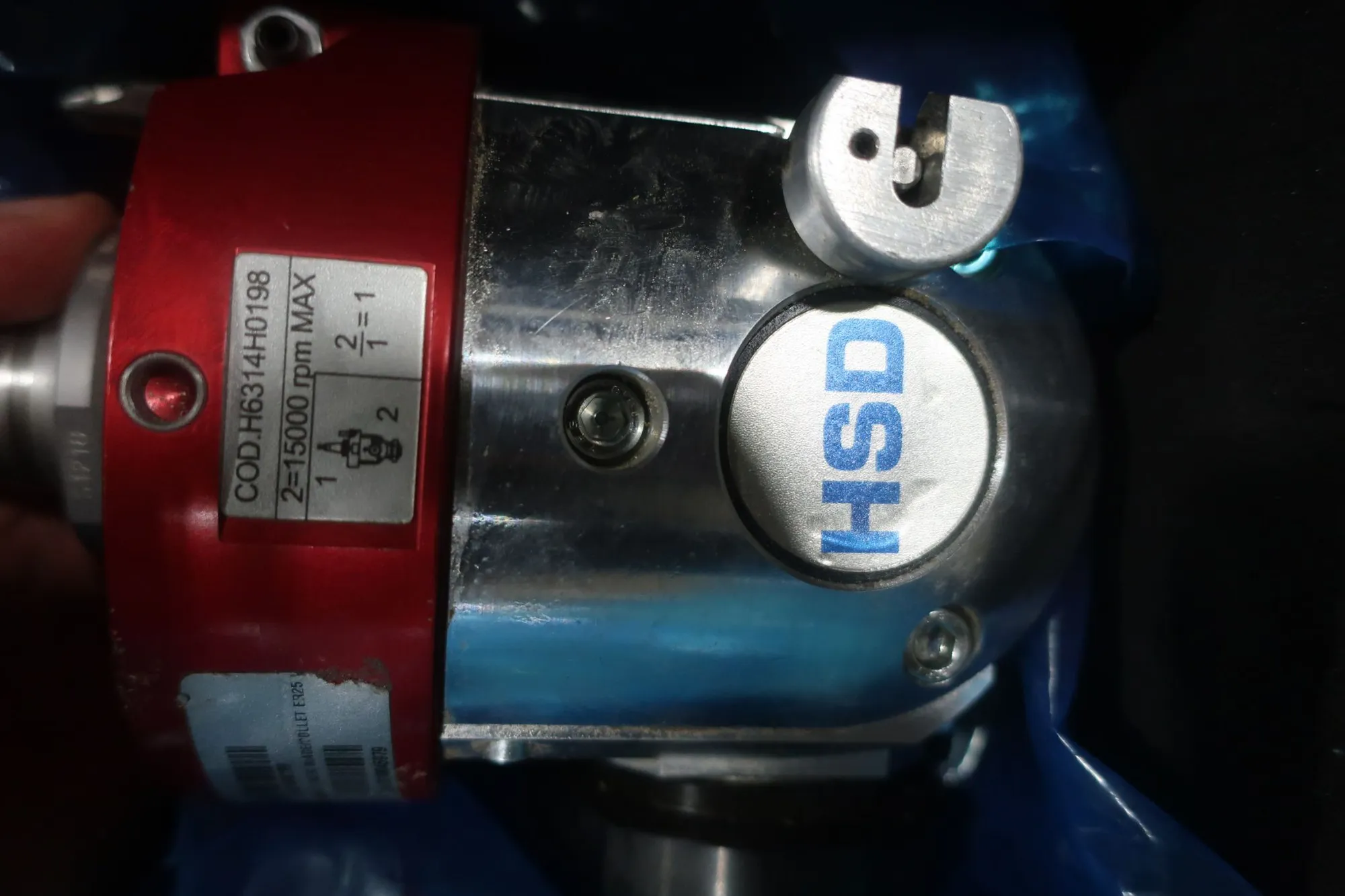

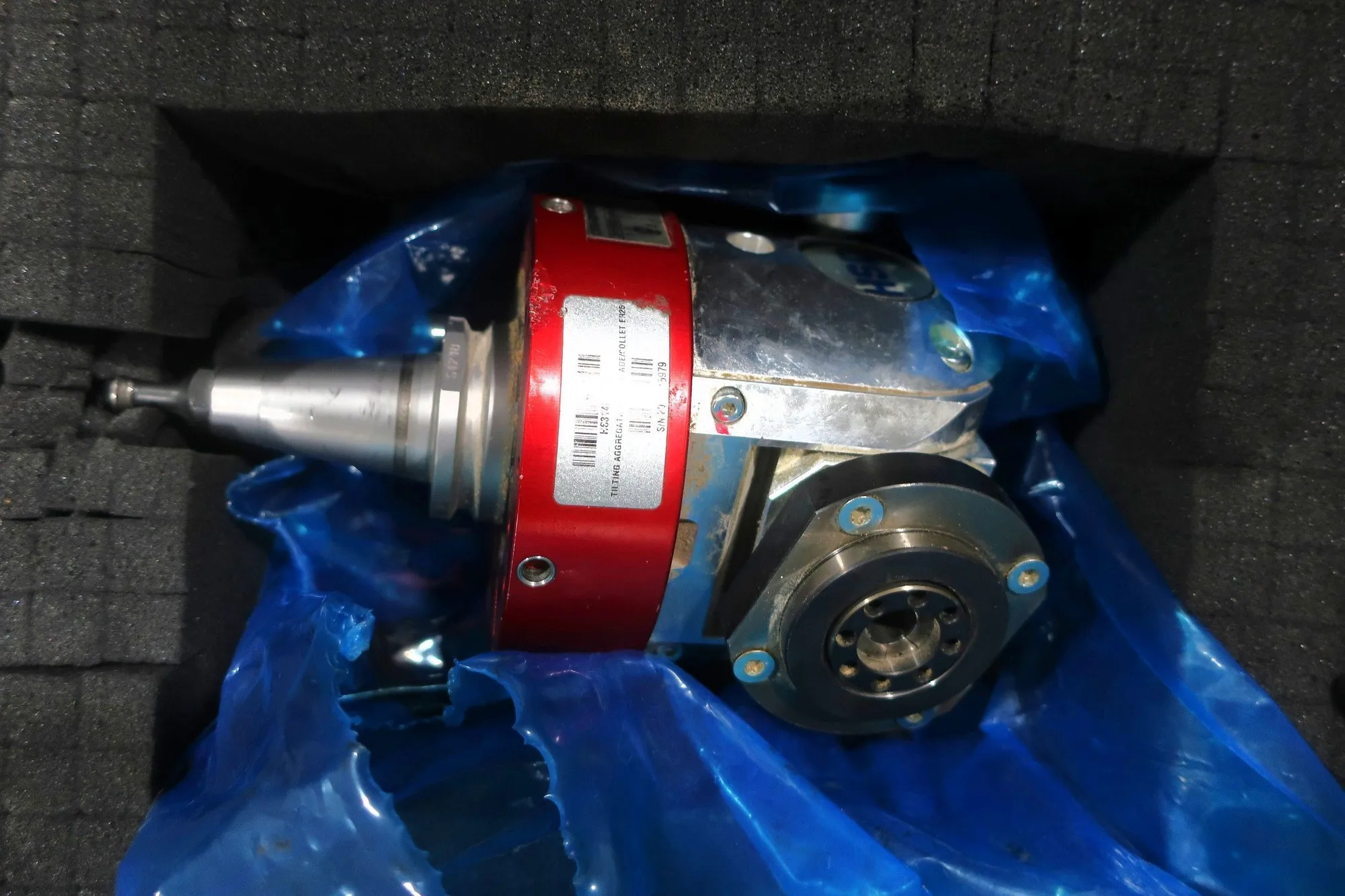

THE LAGUNA SMARTSHOP II SUV IS A CNC ROUTER DESIGNED FOR MACHINING APPLICATIONS, FEATURING A 4 FT BY 8 FT VACUUM TABLE AND A HEAVY-DUTY WELDED STEEL FRAME. THE MACHINE IS EQUIPPED WITH A 12 HP HSD ELECTROSPINDLE WITH A SPEED RANGE OF 6,000 TO 24,000 RPM AND AN ISO-30 TAPER. IT INCLUDES AN EXTENDED Z-AXIS TRAVEL OF 24 INCHES AND AN 8-POSITION AUTOMATIC TOOL CHANGER. MOTION IS DRIVEN BY HELICAL RACK-AND-PINION SYSTEMS ON THE X AND Y AXES AND A PRECISION-GROUND BALL SCREW ON THE Z-AXIS, WITH LINEAR GUIDE RAILS ON ALL AXES. THE UNIT ACHIEVES RAPID TRAVEL SPEEDS UP TO 900 IPM AND CUTTING SPEEDS UP TO 600 IPM.
