2011 MAZAK NEXUS 510C-II 4-AXIS VMC, CAT 40/12000 RPM, X41.3 Y20 Z20

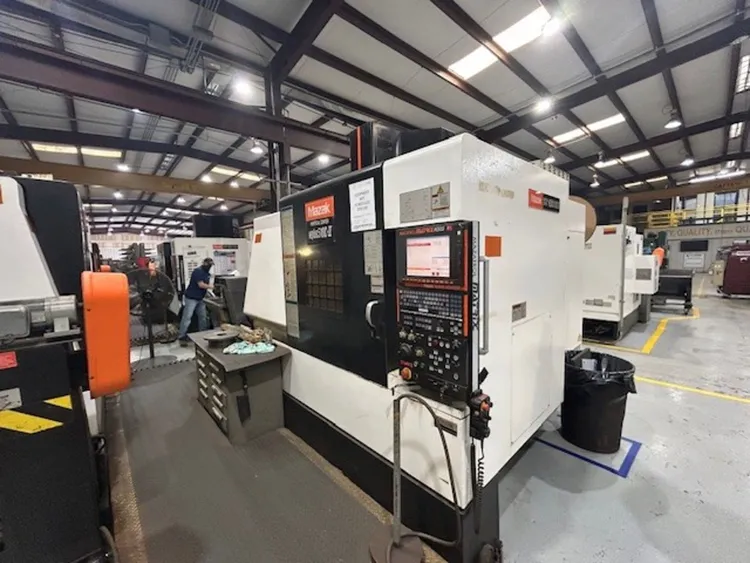

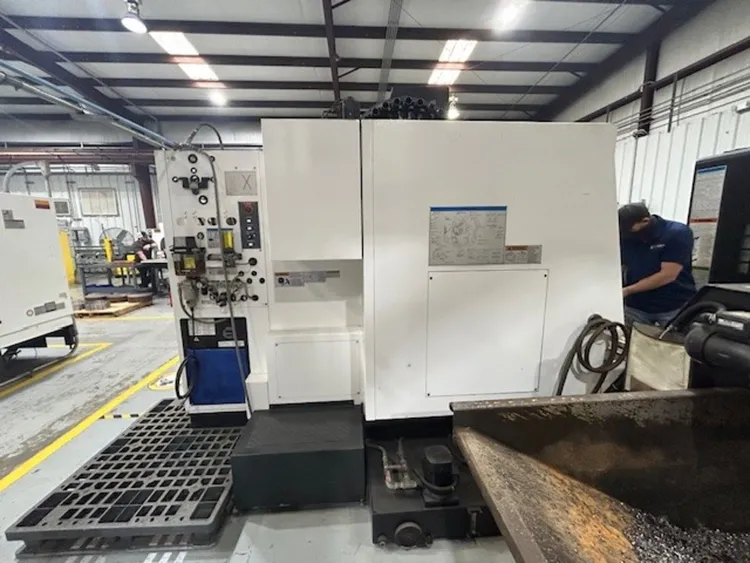

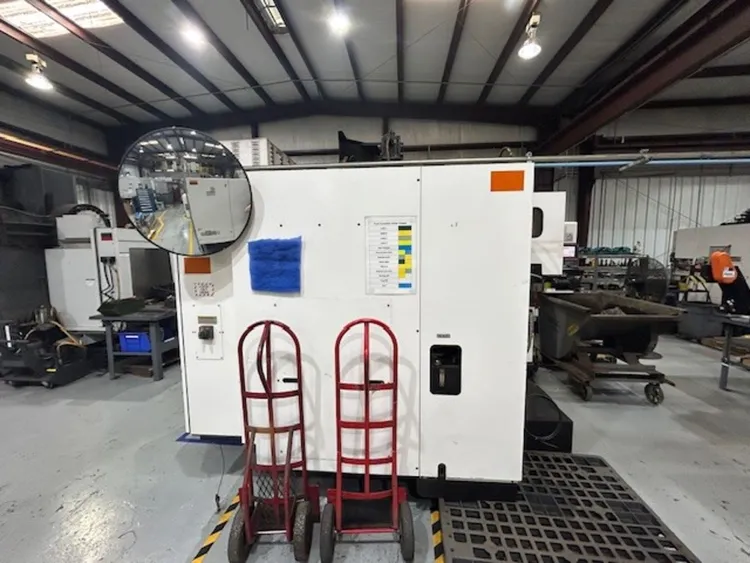

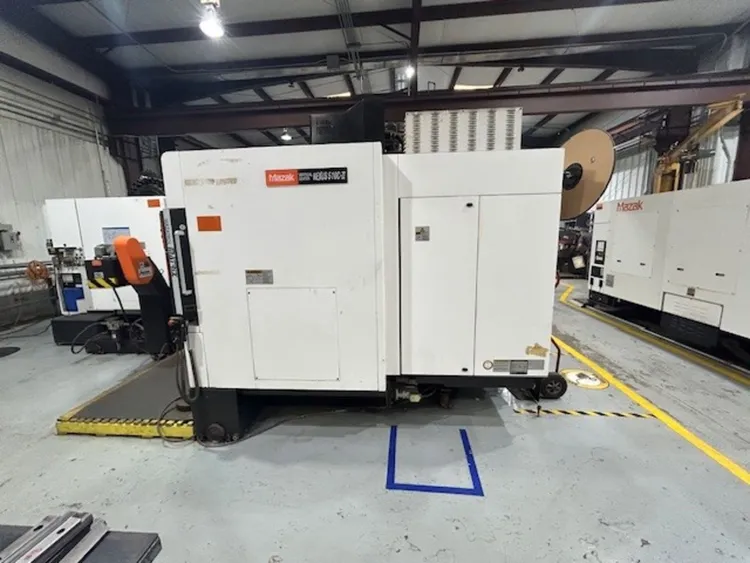

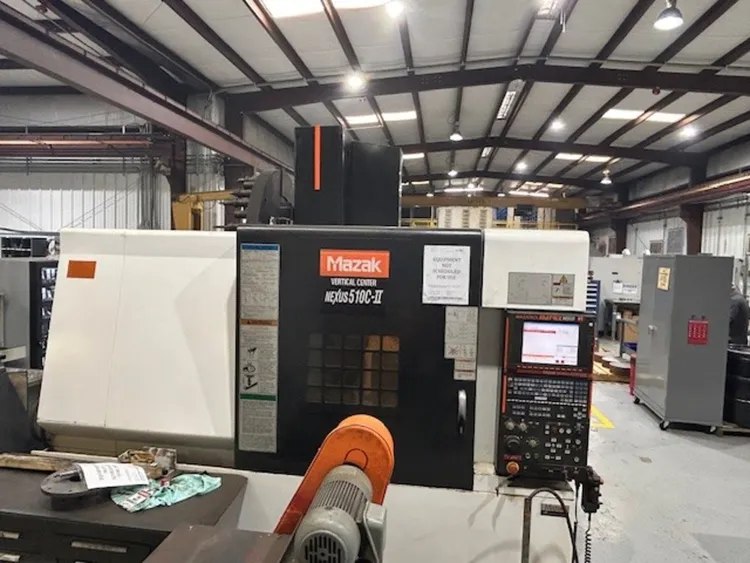

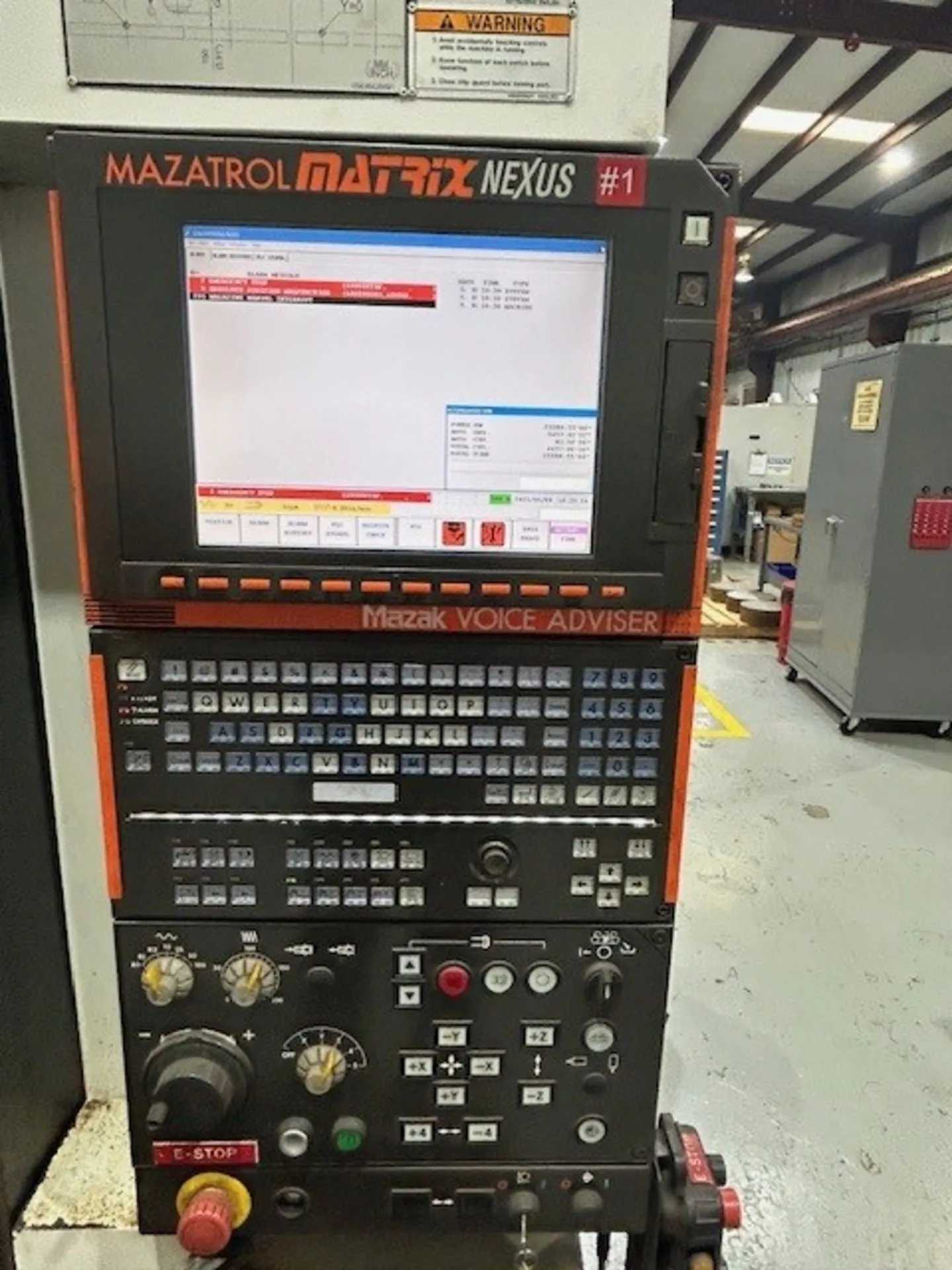

THIS 2011 MAZAK NEXUS 510C-II IS A 4-AXIS CNC VERTICAL MACHINING CENTER EQUIPPED WITH A MAZATROL MATRIX NEXUS CONTROL. THE MACHINE OFFERS TRAVELS OF X-41.3", Y-20", AND Z-20". IT FEATURES A CAT 40 TAPER SPINDLE WITH A MAXIMUM SPEED OF 12,000 RPM, POWERED BY A 25 HP SPINDLE DRIVE. THE WORK ENVELOPE INCLUDES A 51.1" X 21.6" TABLE CAPABLE OF HANDLING PARTS UP TO 2640 LBS. TOOL MANAGEMENT IS FACILITATED BY A SIDE-MOUNT TWIN-ARM TOOL CHANGER WITH A CAPACITY OF 30 TOOLS, ACHIEVING A RAPID TOOL CHANGE TIME OF 1.3 SECONDS. MAXIMUM TOOL SPECIFICATIONS ARE 13.8" IN LENGTH AND 17 LBS IN WEIGHT. THE RAPID TRAVERSE RATE ACROSS ALL AXES IS 1417 IPM. INCLUDED ACCESSORIES ARE A USB PORT, A RENISHAW WIRELESS TOOL AND PARTS PROBING SYSTEM, AND A JORGENSEN CHIP CONVEYOR SYSTEM. THE MACHINE'S OVERALL DIMENSIONS ARE 120" X 112" X 114" HIGH, WITH A TOTAL WEIGHT OF 15200 LBS.
