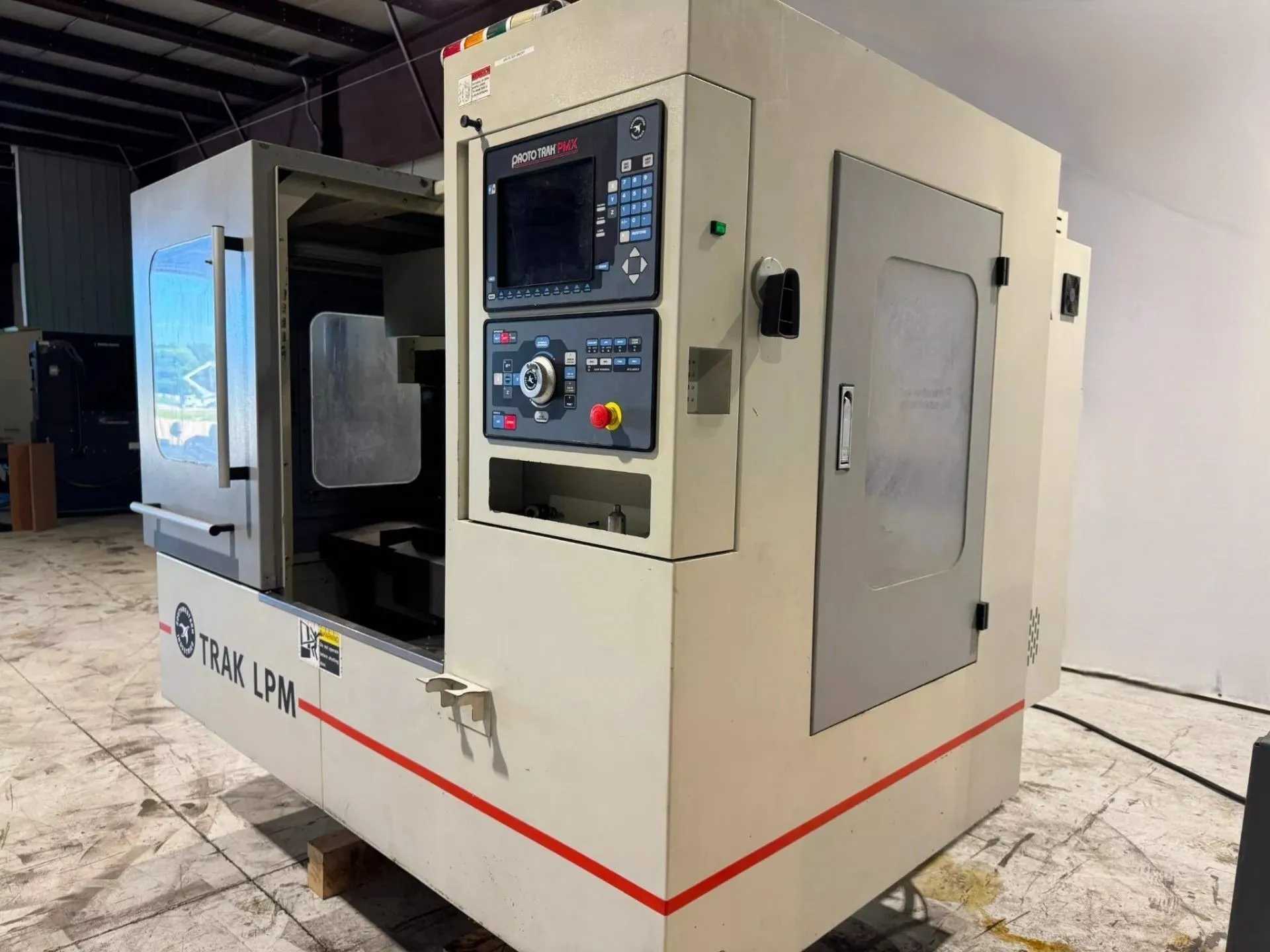

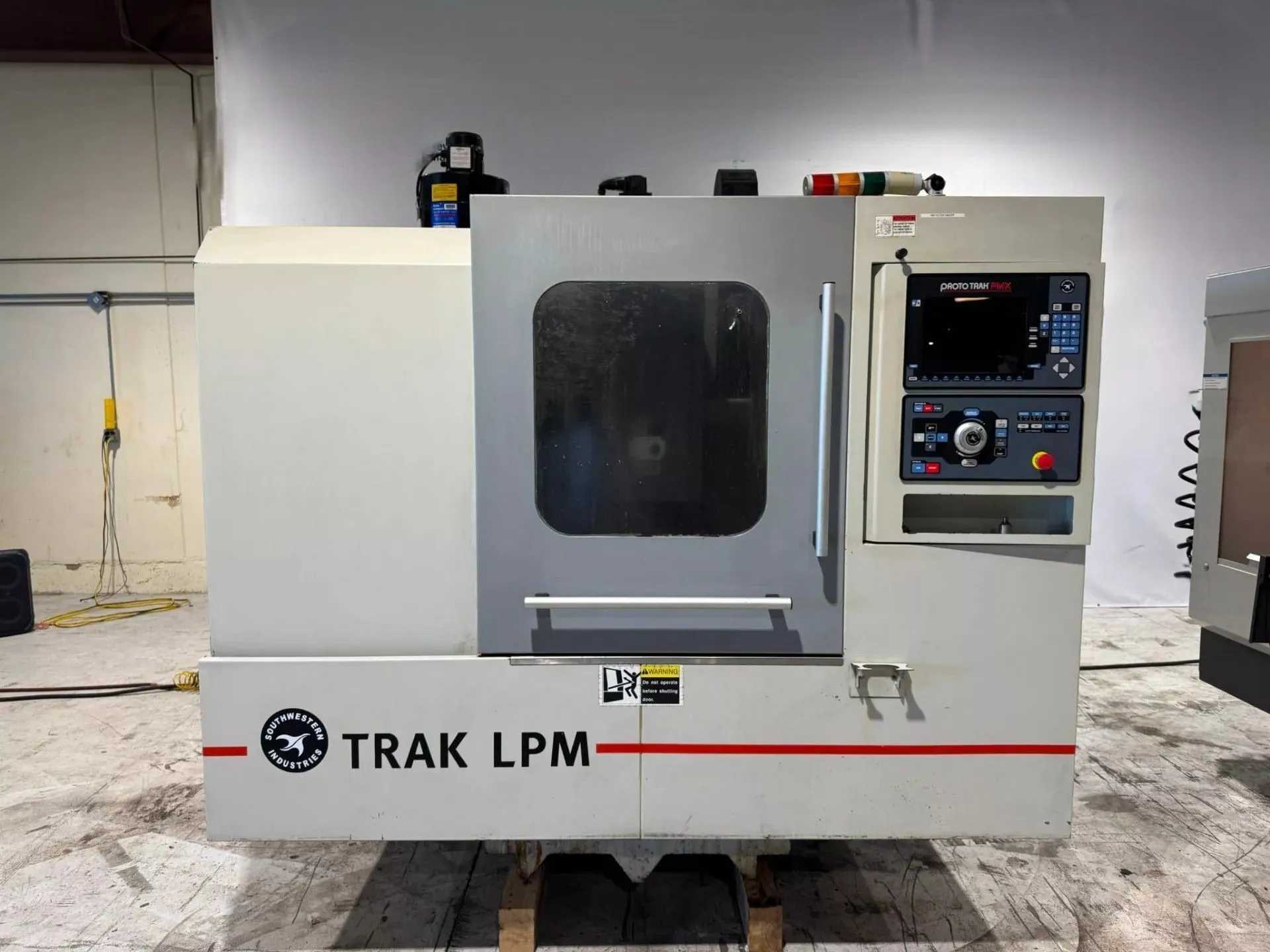

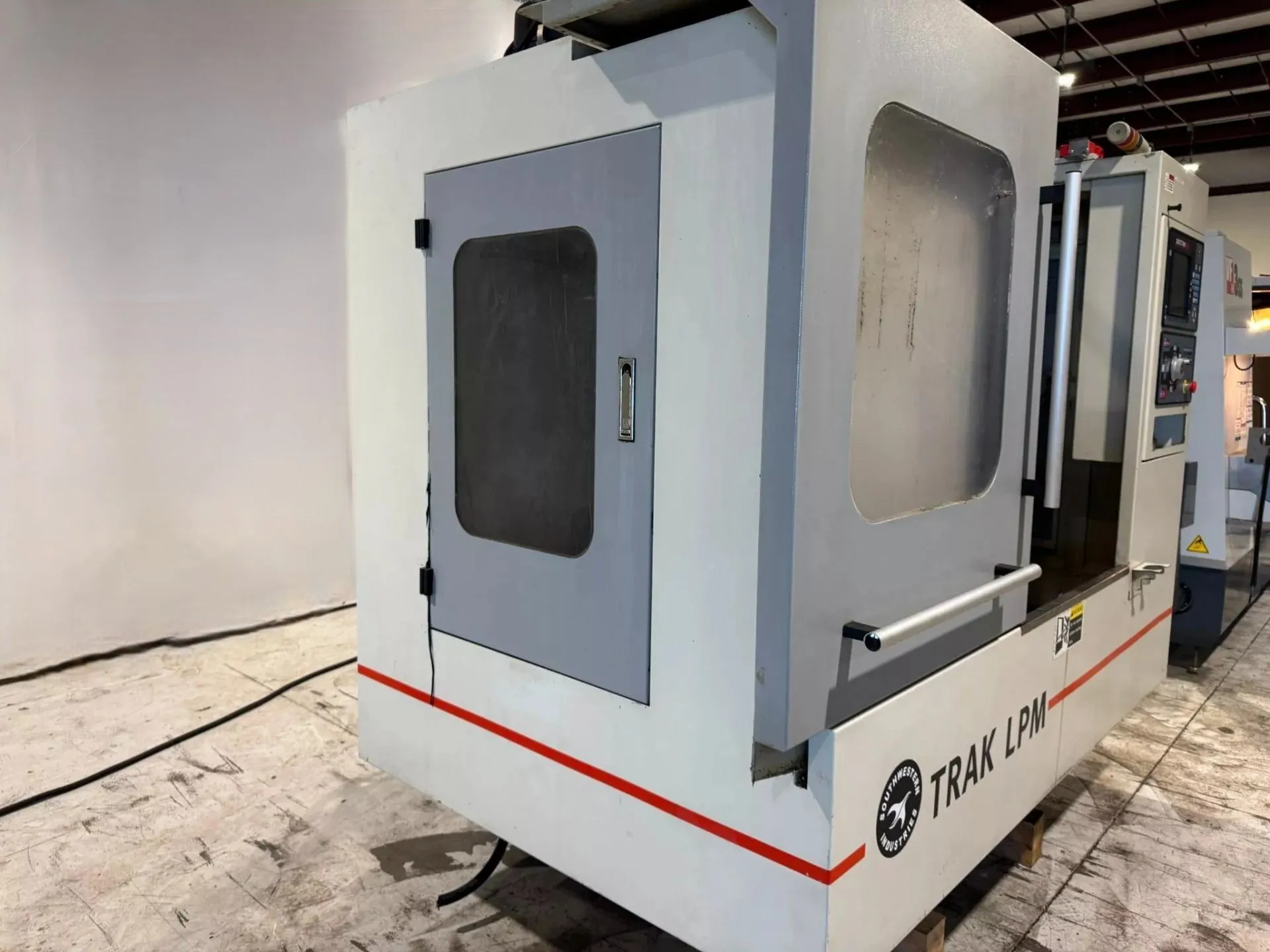

2011 SOUTHWESTERN INDUSTRIES TRAK LPM VMC, PROTOTRAK PMX, 8K RPM, 16 ATC, 35.4X19.6 TABLE

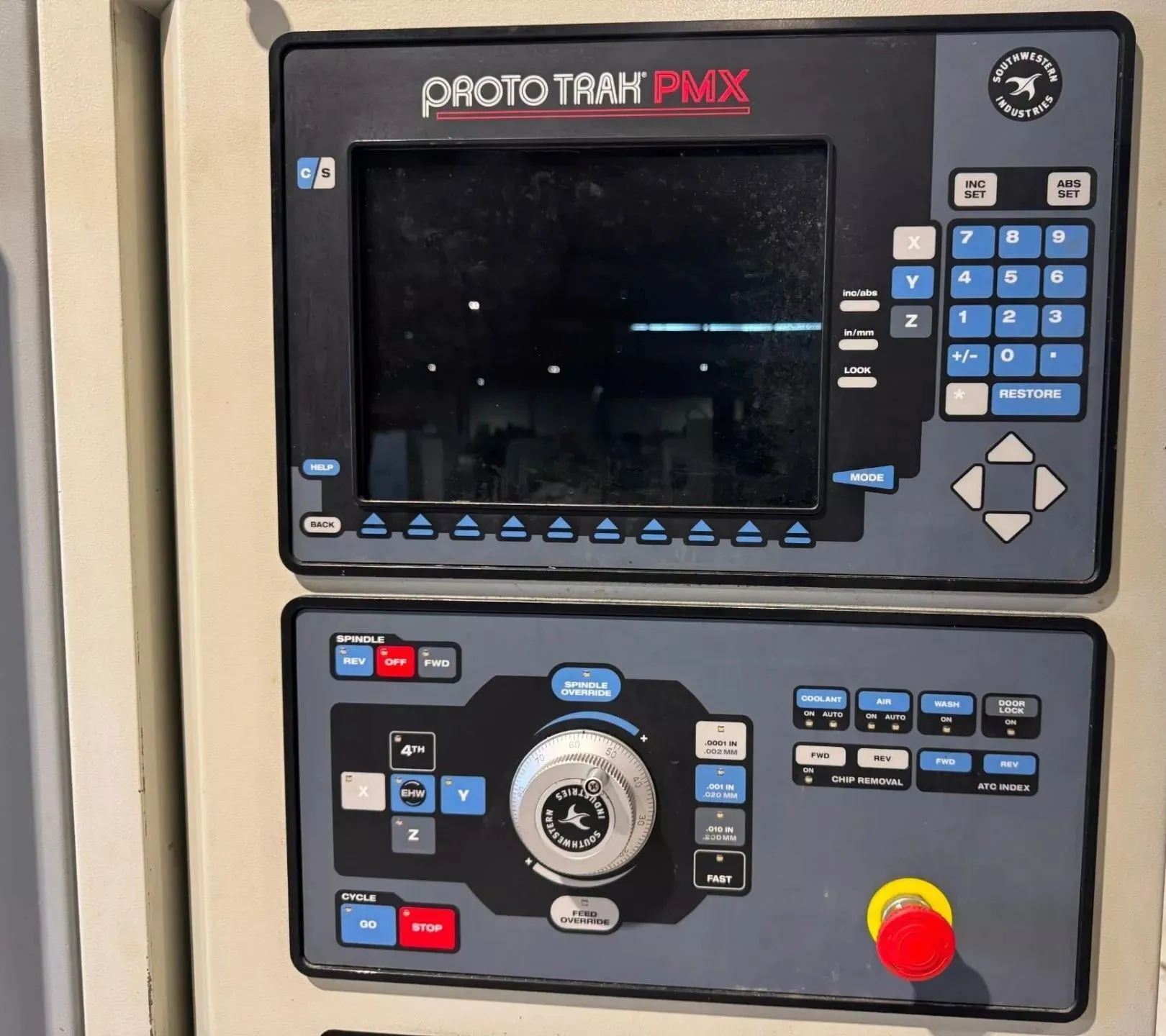

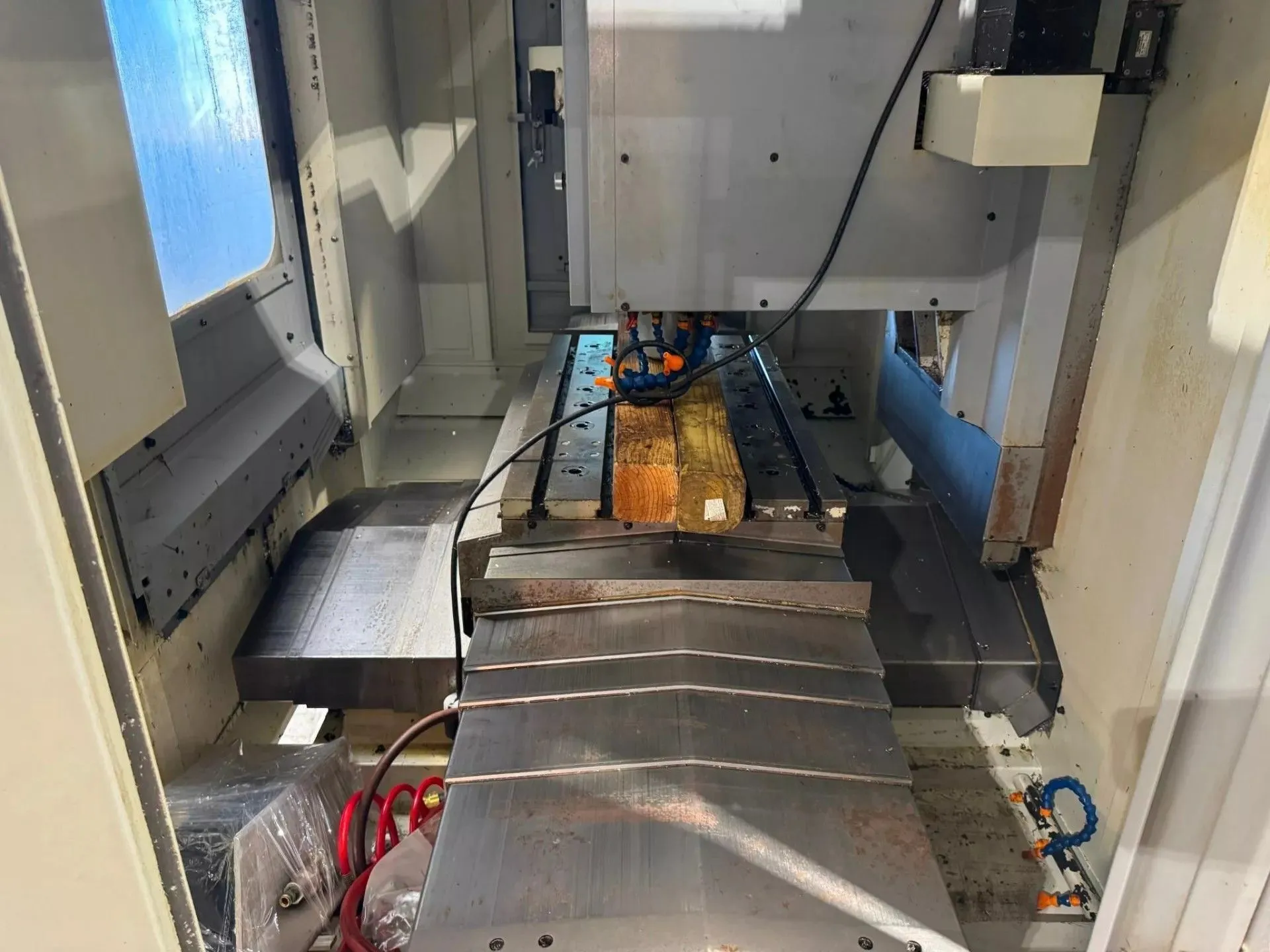

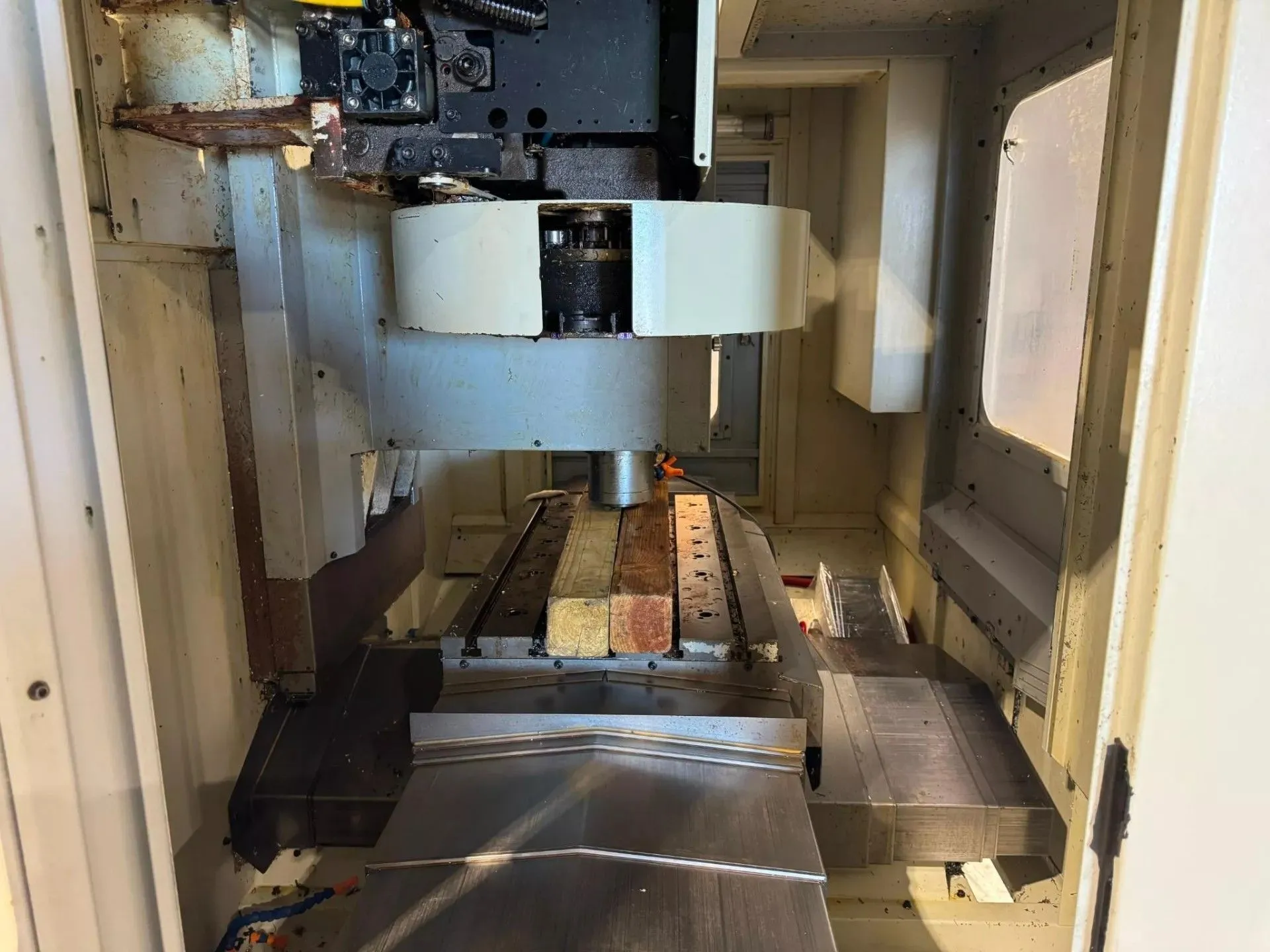

THE SOUTHWESTERN INDUSTRIES TRAK LPM IS A 3-AXIS VERTICAL CNC MACHINING CENTER INTEGRATED WITH THE PROTOTRAK PMX CNC CONTROL, DESIGNED FOR HIGH-EFFICIENCY PRODUCTION AND QUICK CHANGEOVERS. THE MACHINE FEATURES TRAVELS OF 31 INCHES IN THE X-AXIS, 18.5 INCHES IN THE Y-AXIS, AND 21 INCHES IN THE Z-AXIS. ITS WORK TABLE MEASURES APPROXIMATELY 35.4 INCHES BY 19.6 INCHES AND SUPPORTS A MAXIMUM WEIGHT CAPACITY OF 1,000 LBS. THE TABLE IS EQUIPPED WITH A TEE-SLOTTED SURFACE AND THE JERGENS BALL LOCK SYSTEM FOR PRECISE WORKHOLDING. THE SPINDLE OPERATES AT SPEEDS UP TO 8,000 RPM WITH A CT 40 TAPER AND IS DRIVEN BY A MOTOR PROVIDING 15 HP PEAK AND 10 HP CONTINUOUS POWER. FOR TOOL MANAGEMENT, THE MACHINE INCLUDES A 16-STATION CAROUSEL-STYLE AUTOMATIC TOOL CHANGER WITH A MAXIMUM TOOL WEIGHT CAPACITY OF 15 LBS. RAPID TRAVERSE RATES REACH 800 IPM FOR THE X AND Y AXES AND 700 IPM FOR THE Z AXIS. THE SYSTEM IS WIRED FOR A 4TH AXIS AND INCLUDES FEATURES SUCH AS RIGID TAPPING, A CHIP AUGER, AN AIR BLAST SYSTEM, AND A COOLANT PUMP. THE UNIT TYPICALLY REQUIRES 208-240V, 3-PHASE POWER AND HAS APPROXIMATE PHYSICAL DIMENSIONS OF 113 INCHES IN LENGTH, 88 INCHES IN WIDTH, AND 98 INCHES IN HEIGHT, WITH A MACHINE WEIGHT OF ROUGHLY 7,650 LBS. CONTROL CAPABILITIES INCLUDE DXF INPUT AND CONVERSATIONAL PROGRAMMING MODES.
