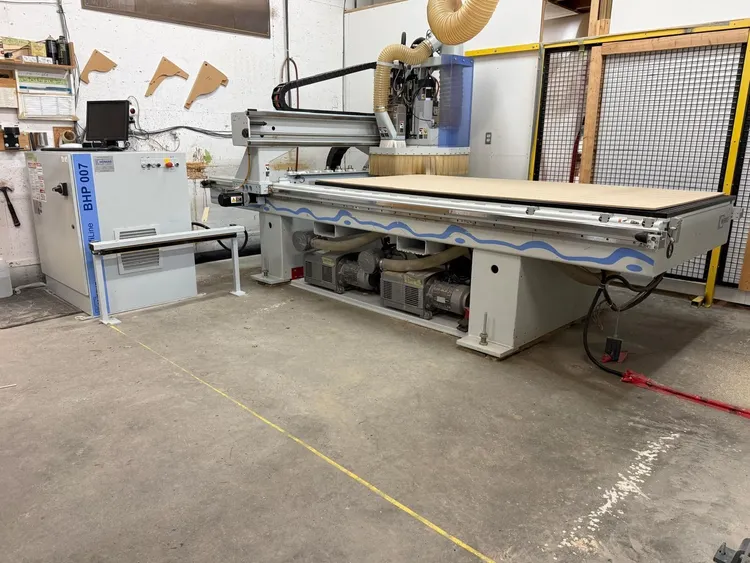

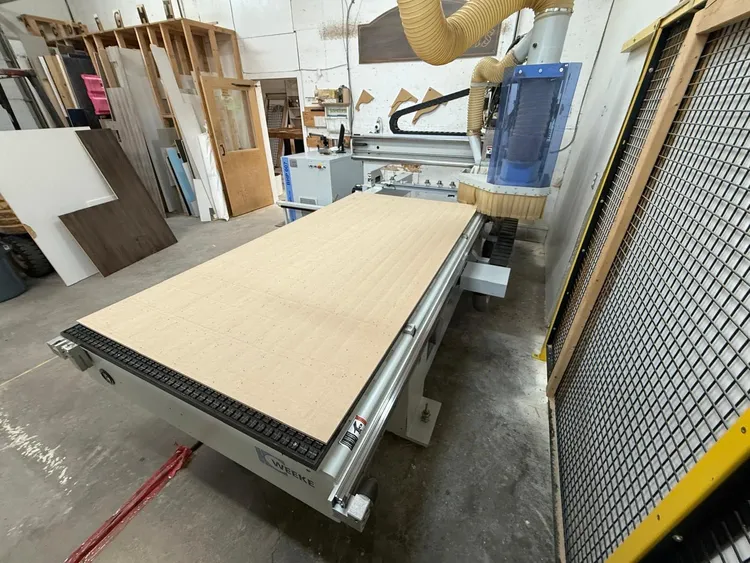

2011 WEEKE PROFI BHP 007 CNC WOOD ROUTER

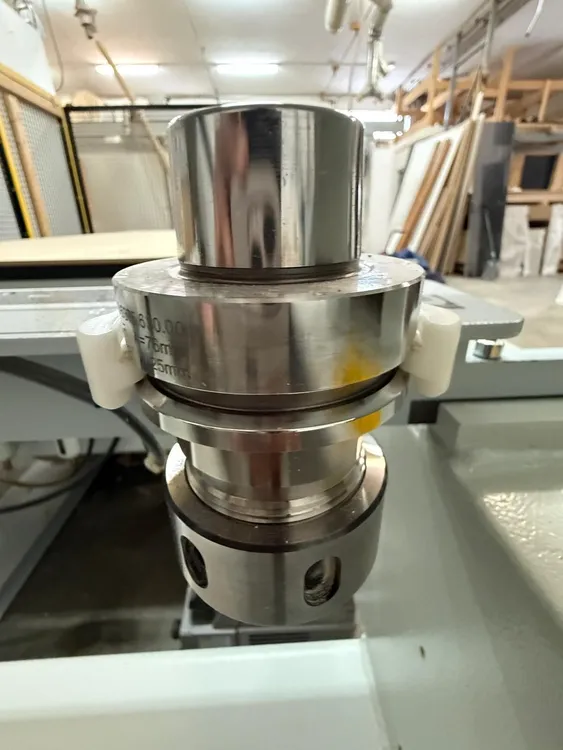

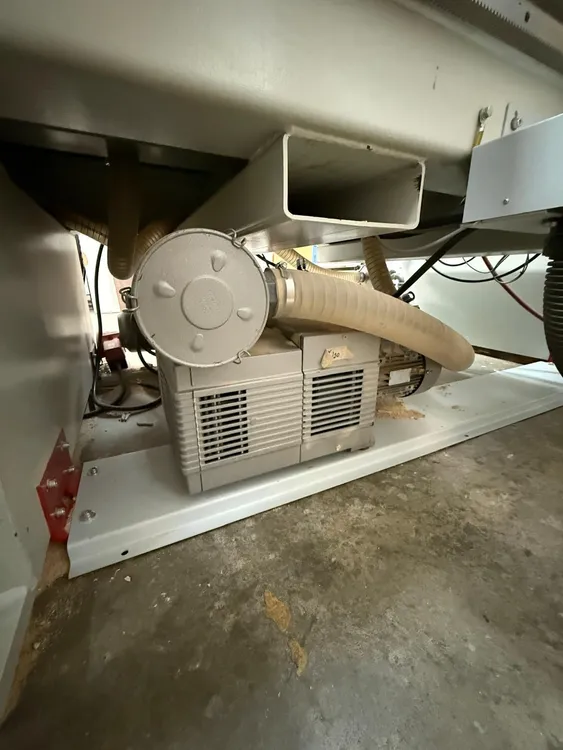

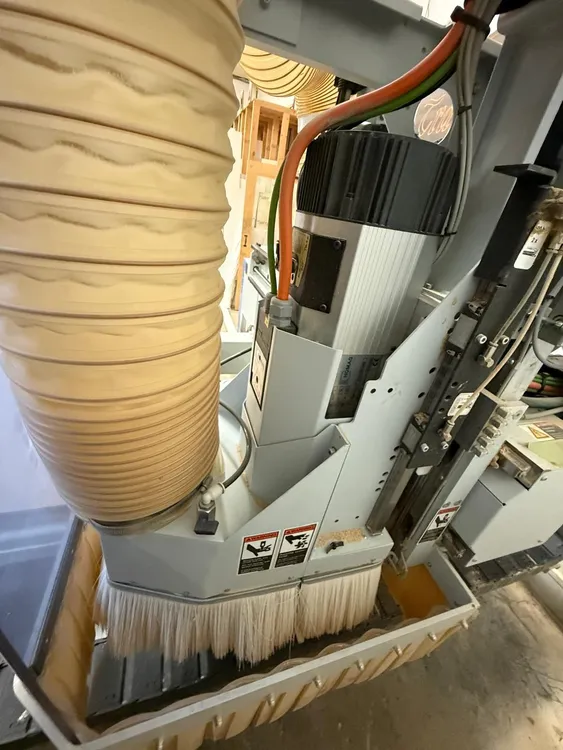

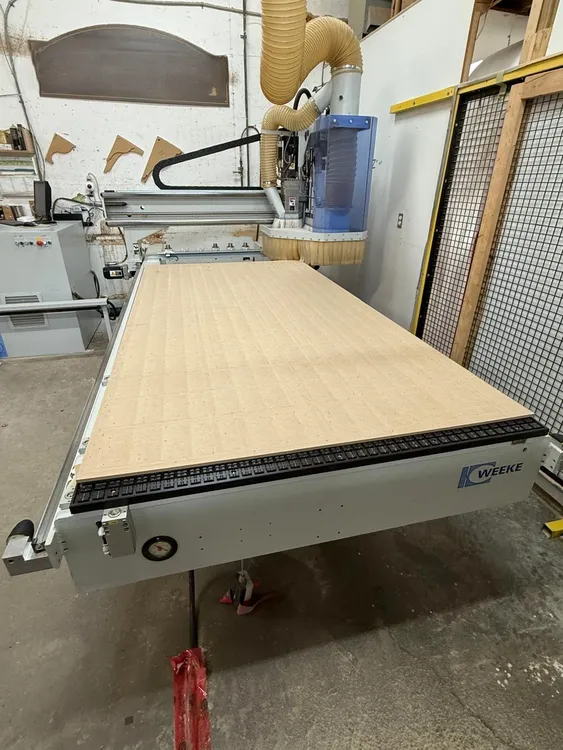

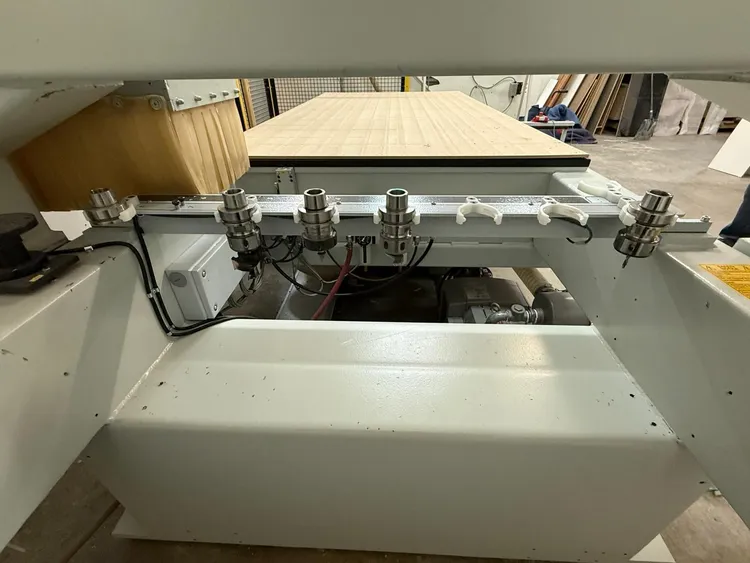

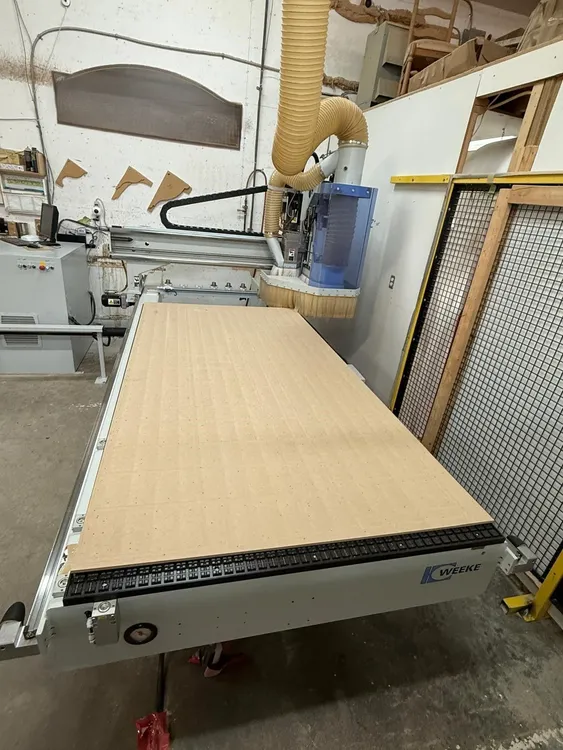

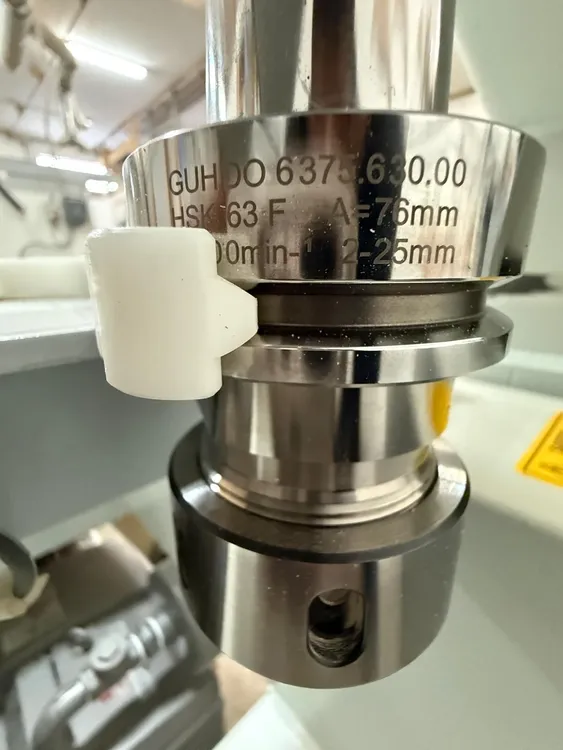

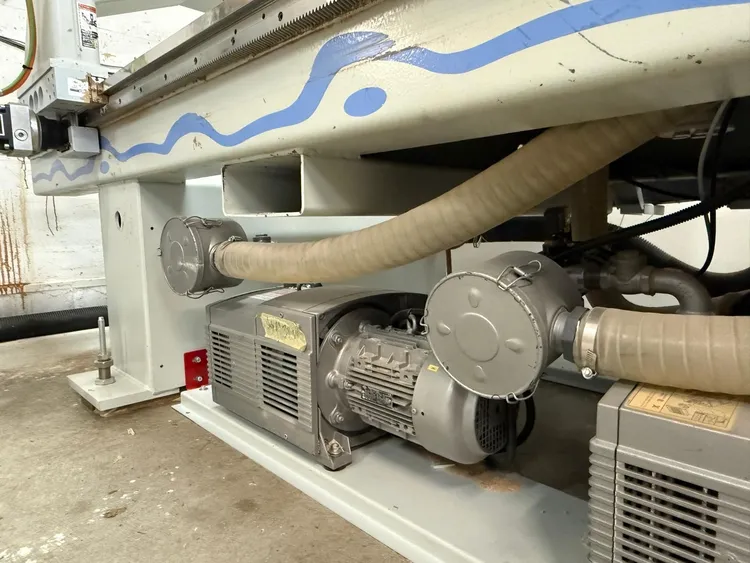

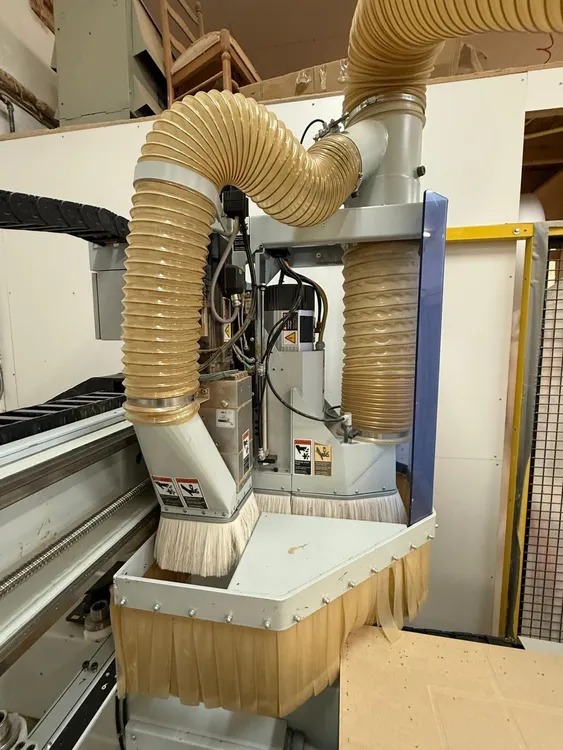

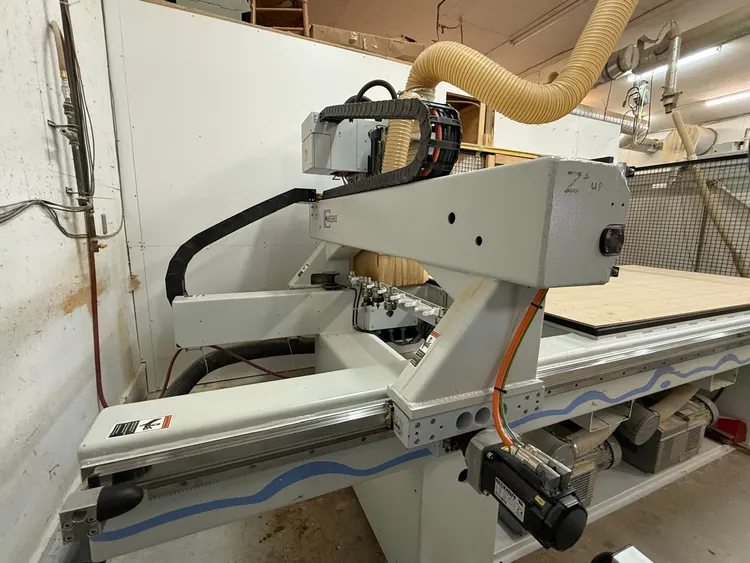

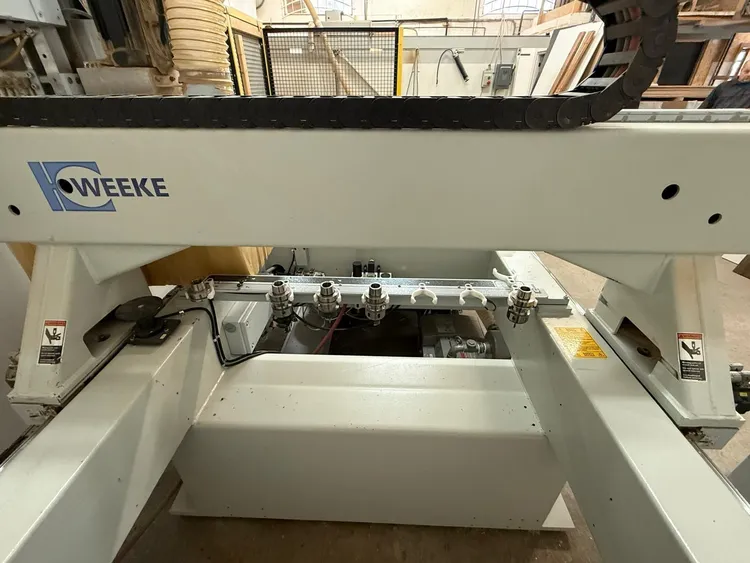

THE 2011 WEEKE PROFI BHP 007 IS A GANTRY-STYLE CNC ROUTER DESIGNED FOR MACHINING CENTERS. IT TYPICALLY FEATURES A PHENOLIC ROUTER TABLE, WITH SIZES COMMONLY FOUND IN 49" X 99" OR 5' X 10' DIMENSIONS (UP TO 122" X 61"). IT INCLUDES A HIGH-FREQUENCY ROUTER SPINDLE, SUCH AS AN HSD 12 KW (16 HP) HSK TOOLHOLDER, WITH A PROGRAMMABLE SPEED RANGE FROM 1,250 TO 24,000 RPM. POSITIONING SPEEDS ARE OFTEN LISTED AS 72 M/MIN (X-AXIS), 62 M/MIN (Y-AXIS), AND 25 M/MIN (Z-AXIS), WITH A MAXIMUM WORKPIECE THICKNESS OF 100 MM. THE MACHINE IS GENERALLY EQUIPPED WITH AN AUTOMATIC TOOL-CHANGING SYSTEM, OFTEN FEATURING AN EIGHT-POSITION LATERAL TOOL CHANGER, AND A DRILL UNIT, SUCH AS A SEVEN-POSITION VERTICAL DRILL BANK. THE SYSTEM USES MULTIPLE VACUUM ZONES, EACH WITH ITS OWN VACUUM PUMP, AND IS TYPICALLY CONFIGURED FOR 480V/3PH/60HZ ELECTRICAL SERVICE WITH A TOTAL CONNECTED LOAD OF APPROXIMATELY 27.5 KW.
