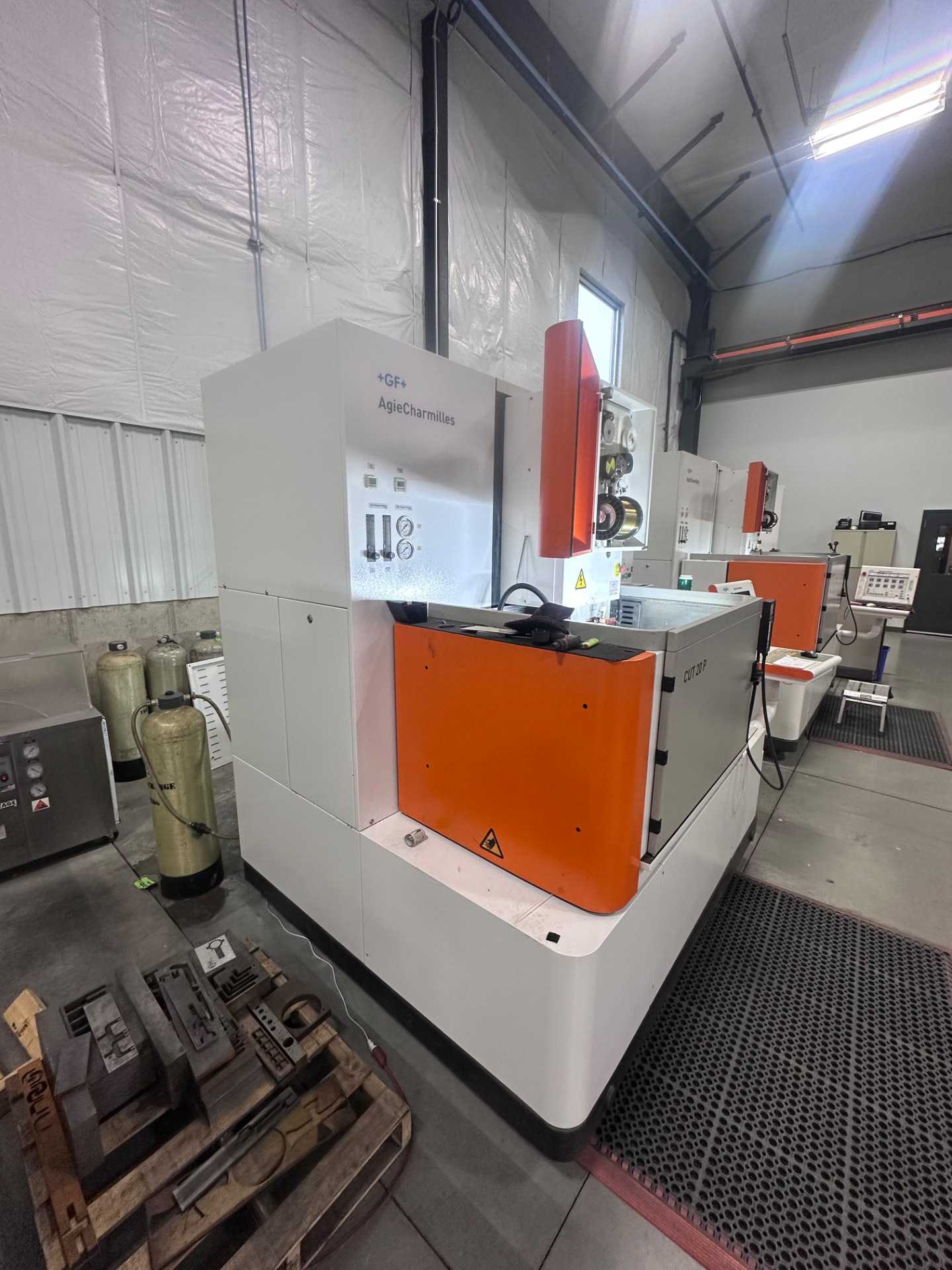

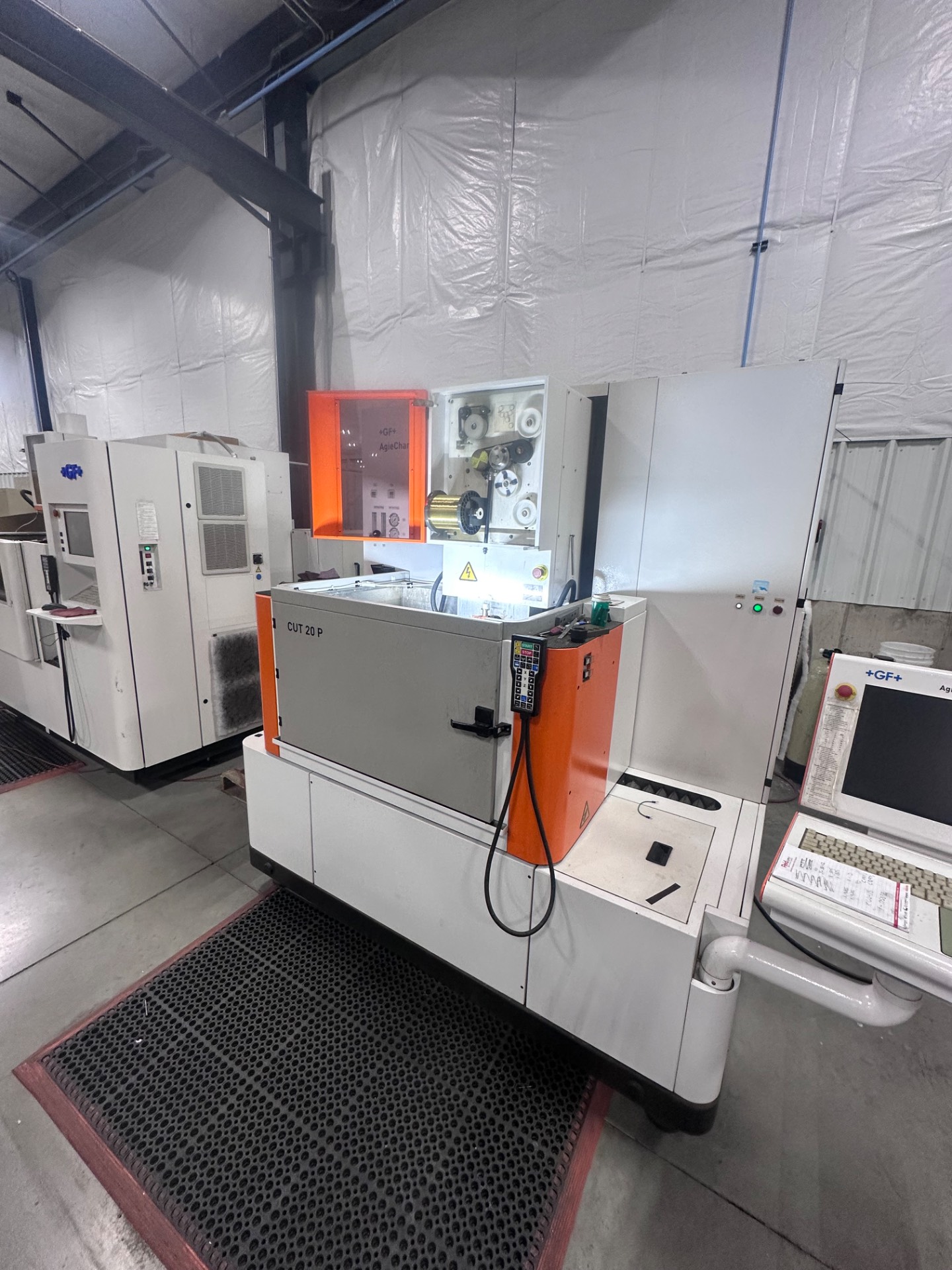

2012 Agiecharmilles Cut 20 P Wire EDM, 13.8X9.8X9.8IN, 1000kg Cap, Awt, Ipg-V, Windows CNC

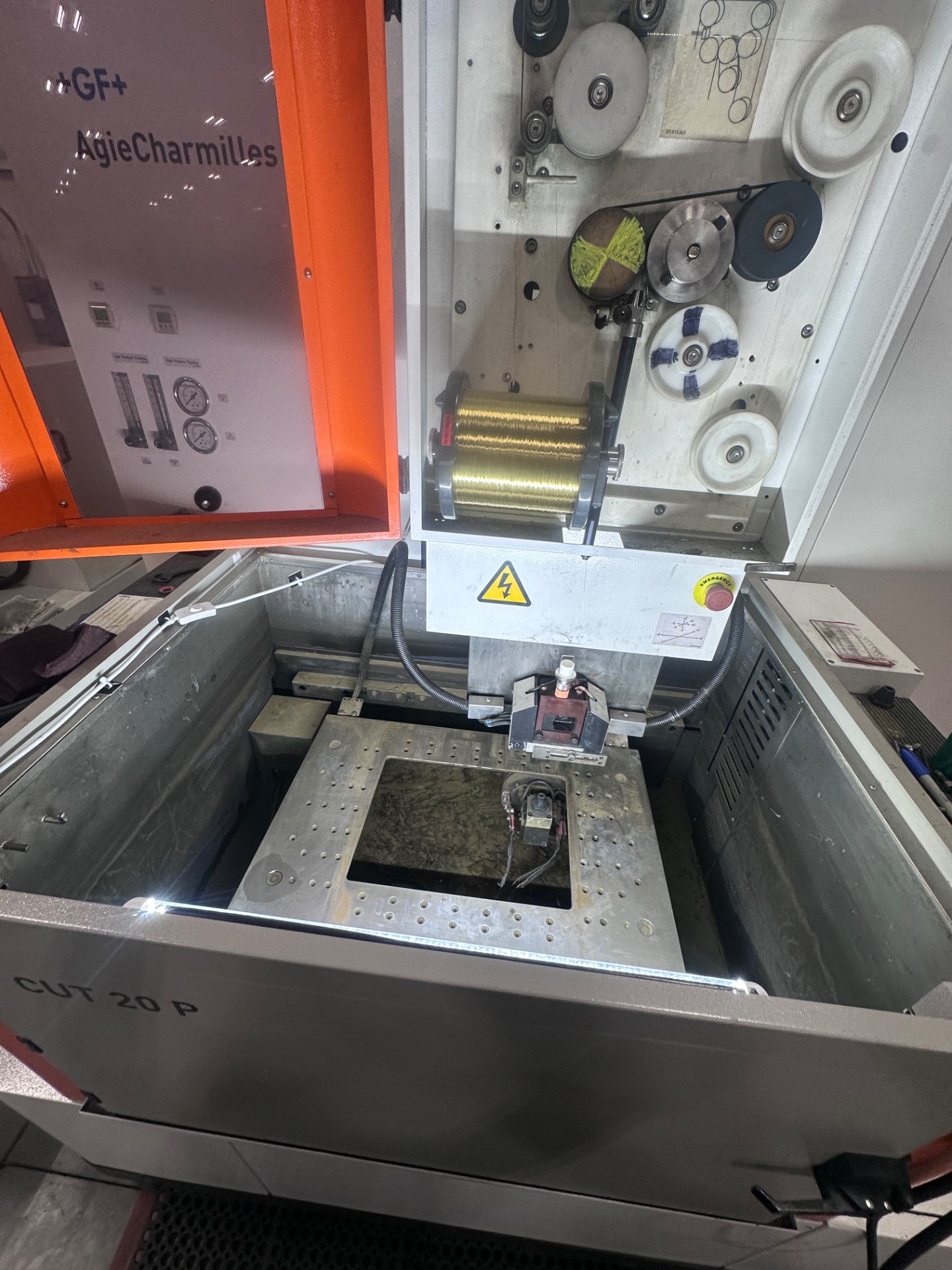

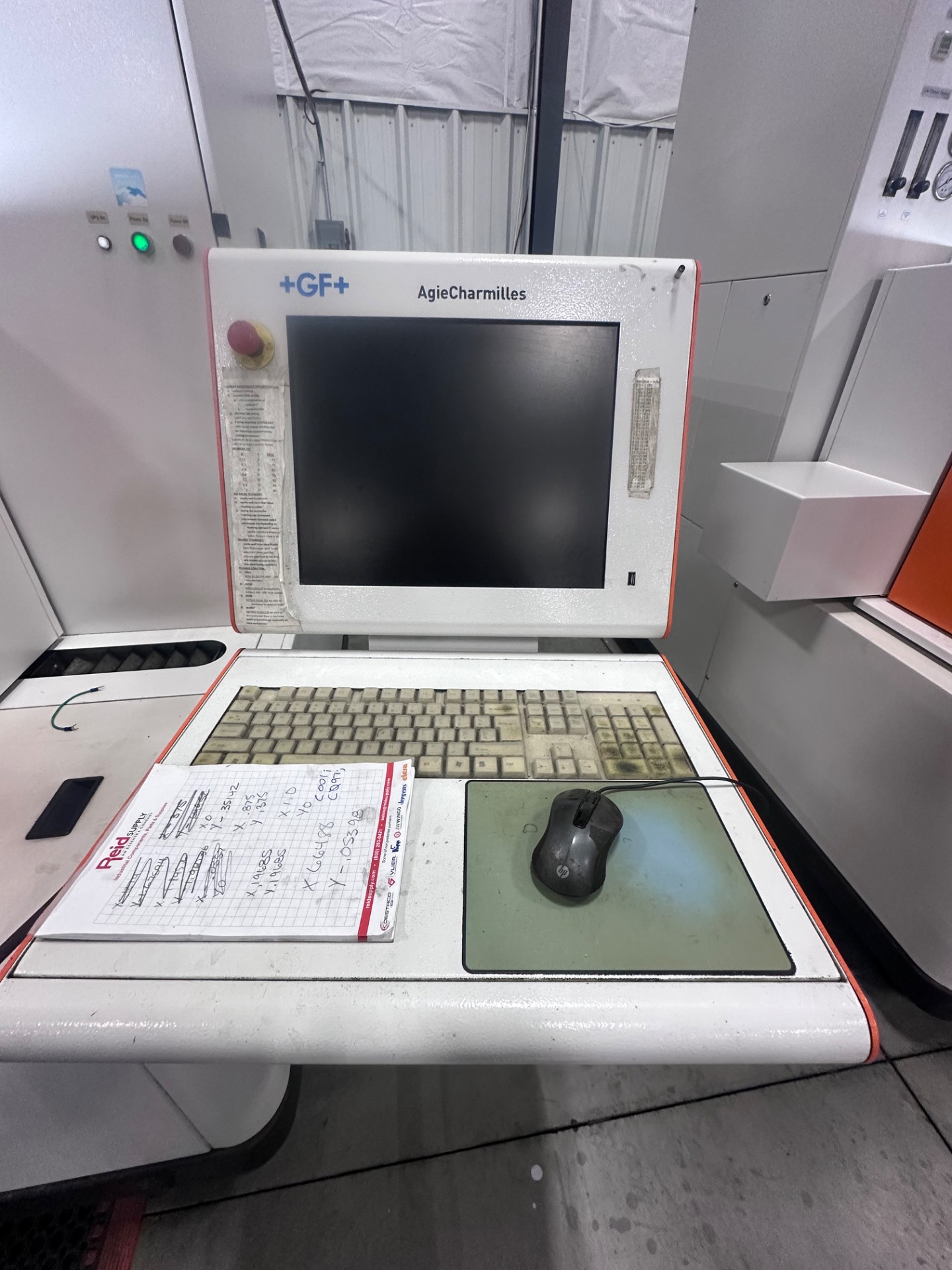

The 2012 AGIECHARMILLES CUT 20 P is a high-precision wire electrical discharge machining (EDM) tool designed for manufacturing intricate components with tight tolerances. It features a rigid T-shaped cast iron base frame to support large workpieces without compromising accuracy. The machine provides a working travel of 350 mm (13.78 in) on the X-axis, 250 mm (9.84 in) on the Y-axis, and 250 mm (9.84 in) on the Z-axis, with U and V axis travels of ±45 mm. It accommodates workpieces up to 1030 x 800 x 350 mm in size and 1000 kg in weight. The CUT 20 P is equipped with a high-performance IPG-V generator and an anti-electrolysis power supply, enabling surface finishes as fine as Ra 0.25 μm. It utilizes a submerged cutting system and supports standard wire diameters ranging from 0.15 mm to 0.30 mm. Integrated technologies include an automatic wire threading (AWT) system, a Thermocut wire preparation unit, and collision protection for the X, Y, and Z axes. The CNC control system features a Windows-based graphical user interface with onboard CAM capabilities for direct ISO file preparation and DXF data import. Additional precision is ensured through linear glass scales and encoders on the X and Y axes for enhanced positioning repeatability.
