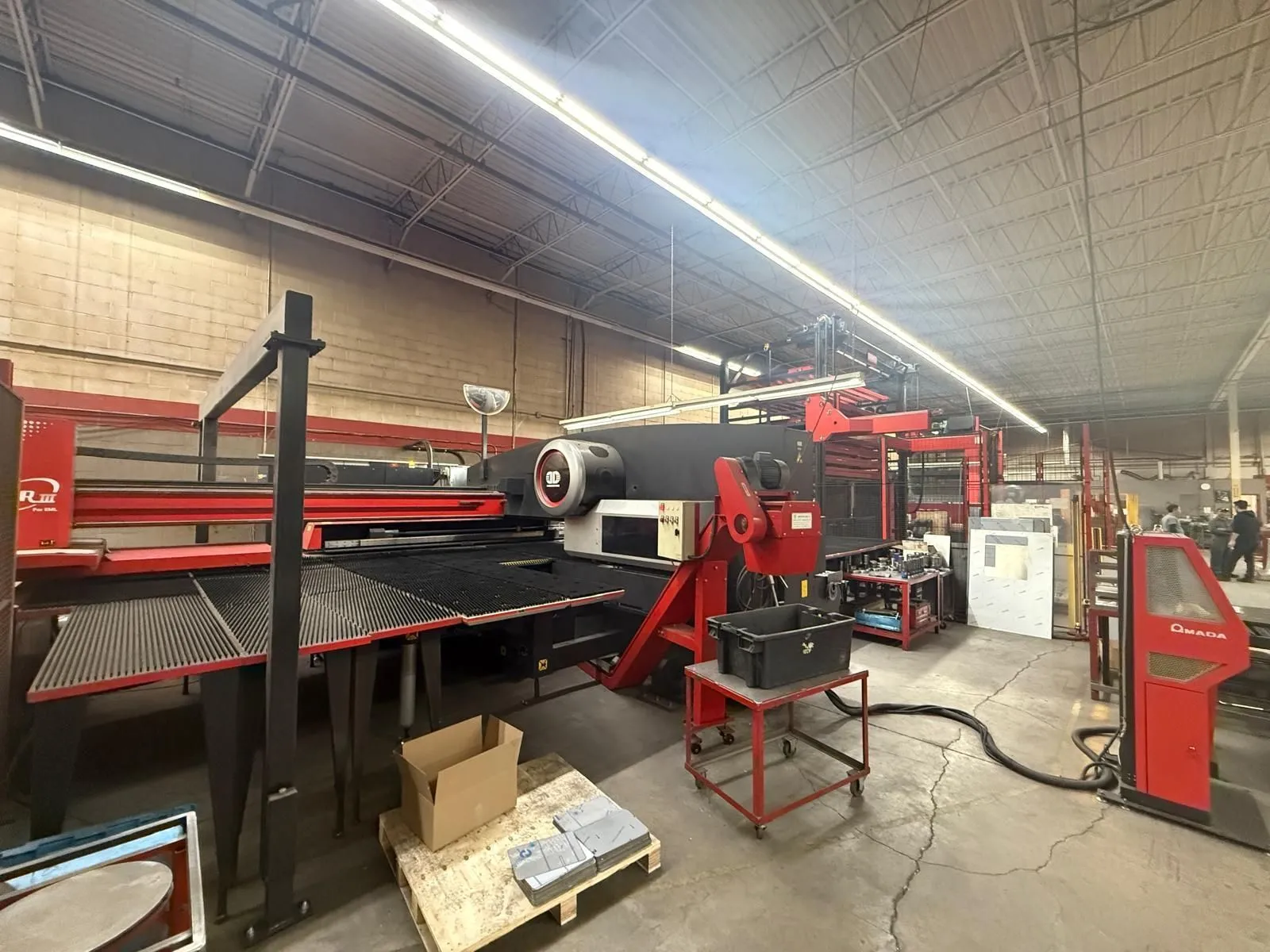

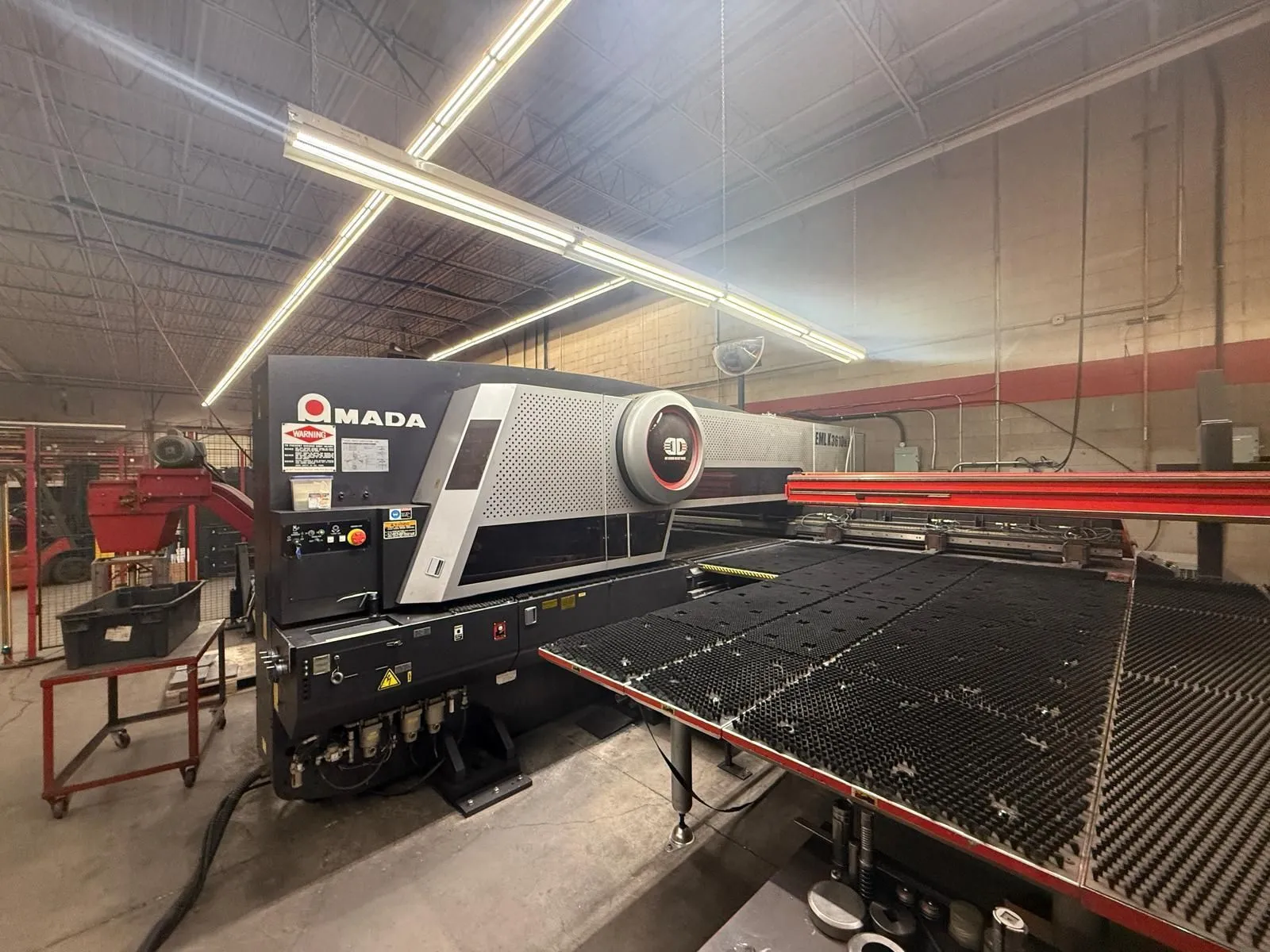

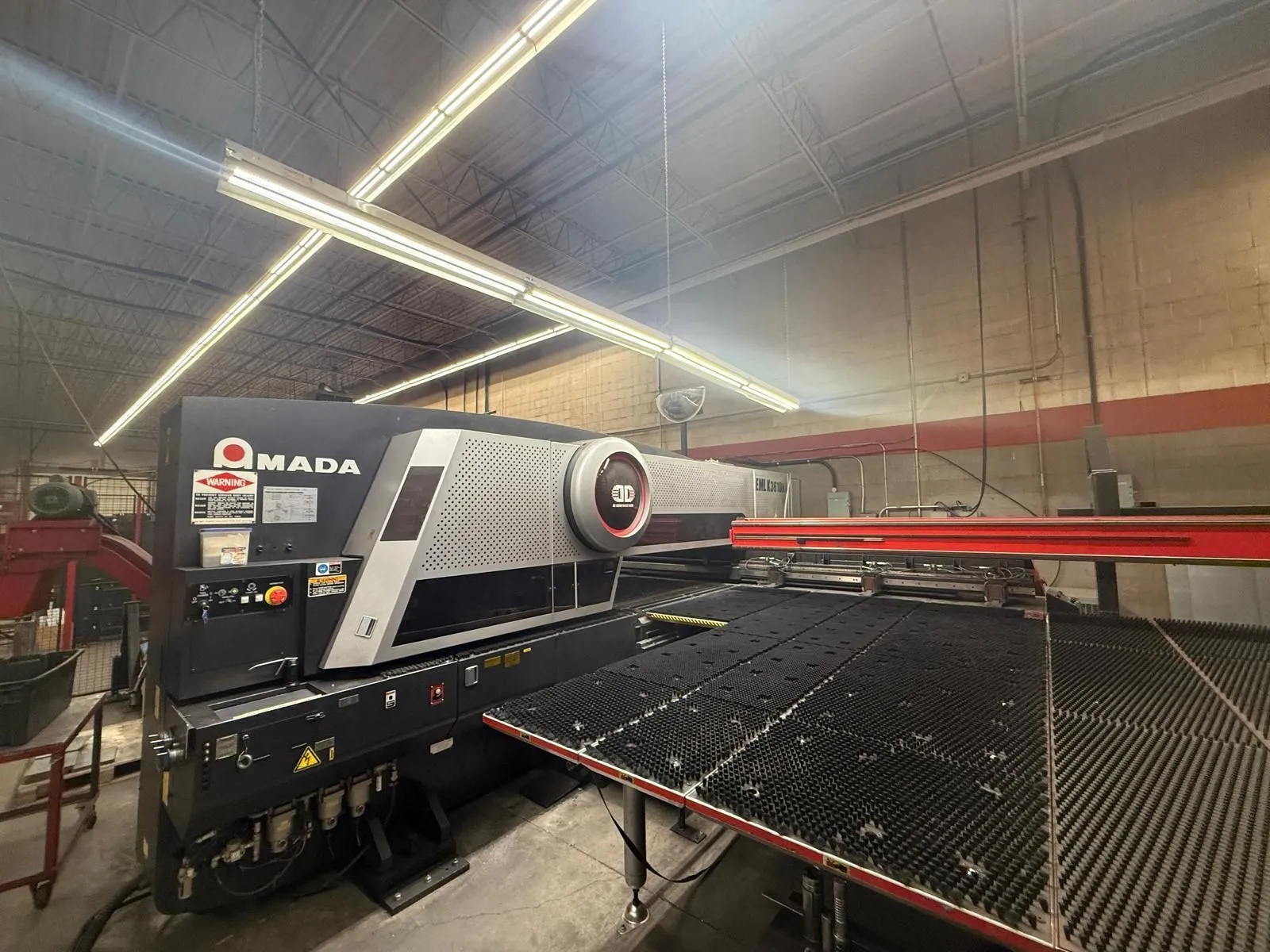

2012 AMADA EMLK3510NT CNC PUNCH/LASER COMBO, 33-TON, 4KW, 58-STATION, LKI ASIII MP 300/40

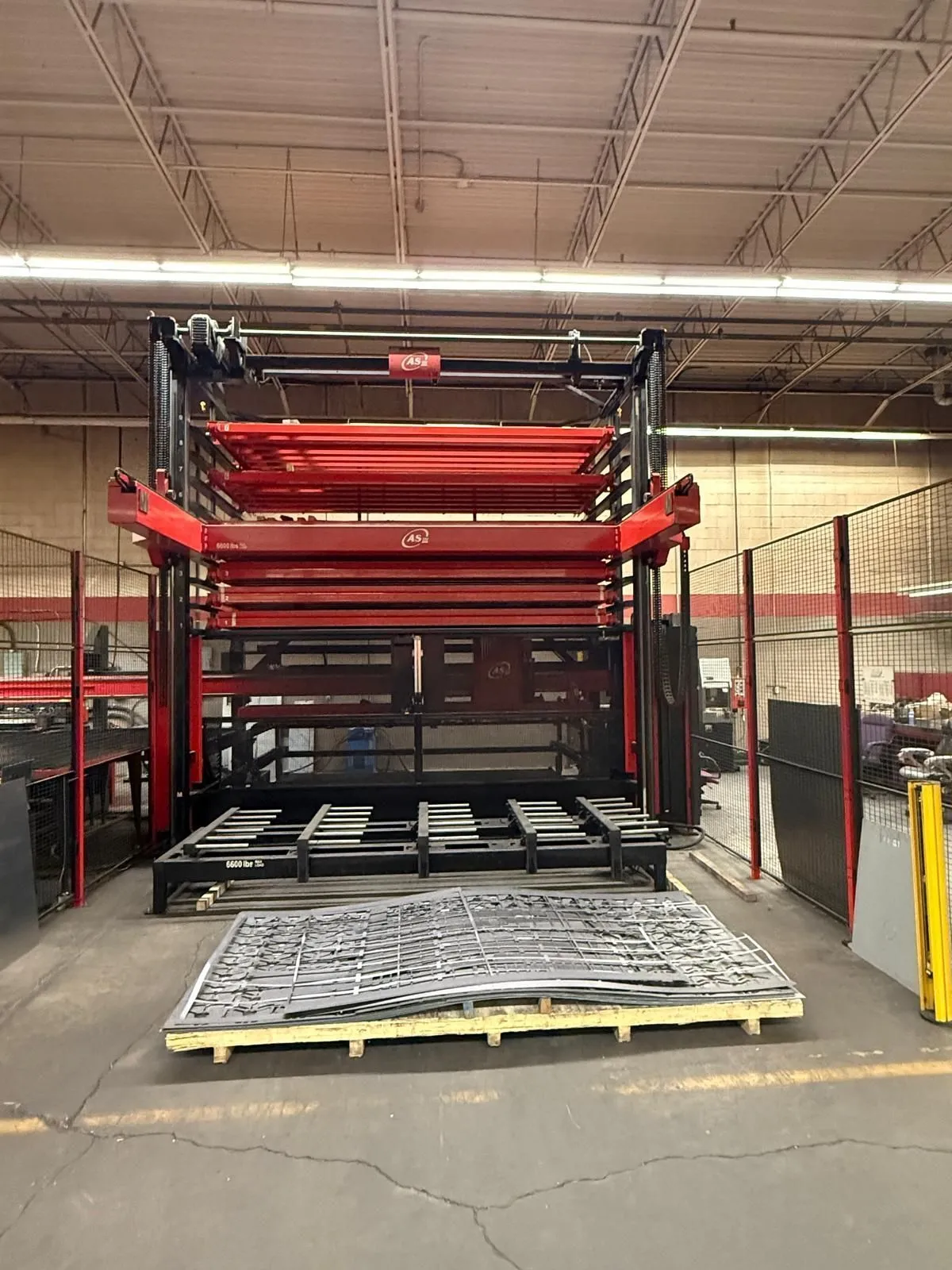

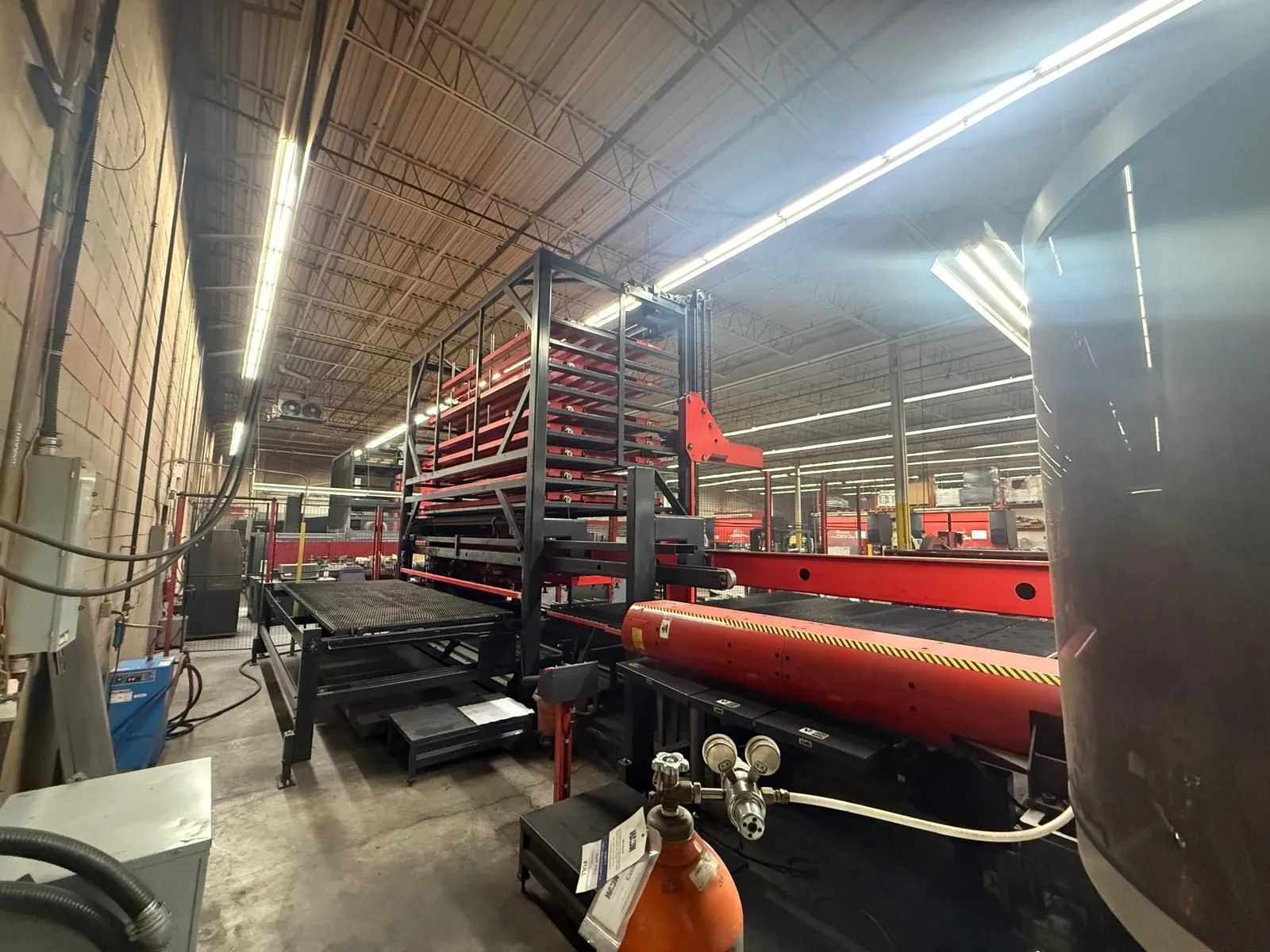

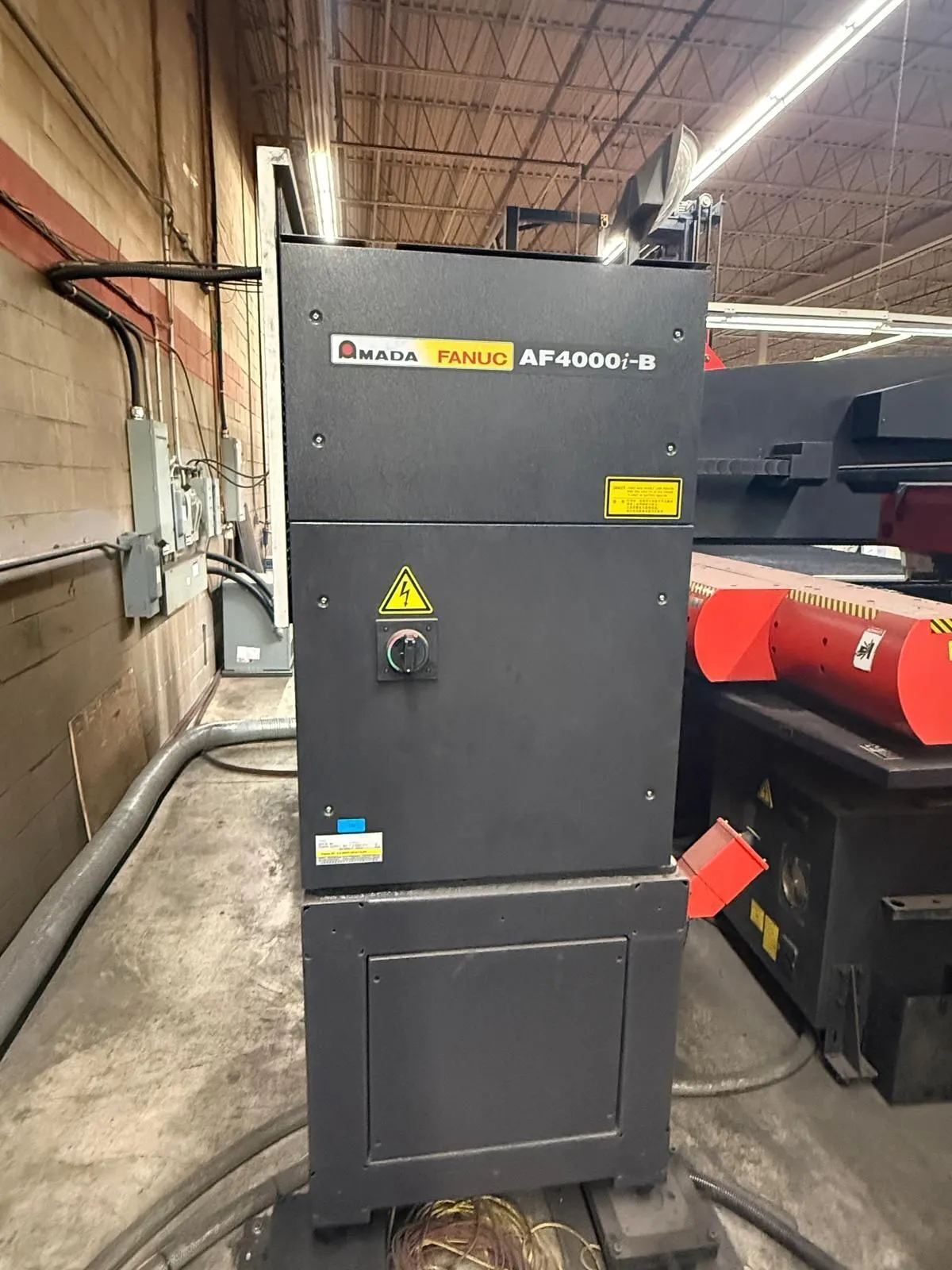

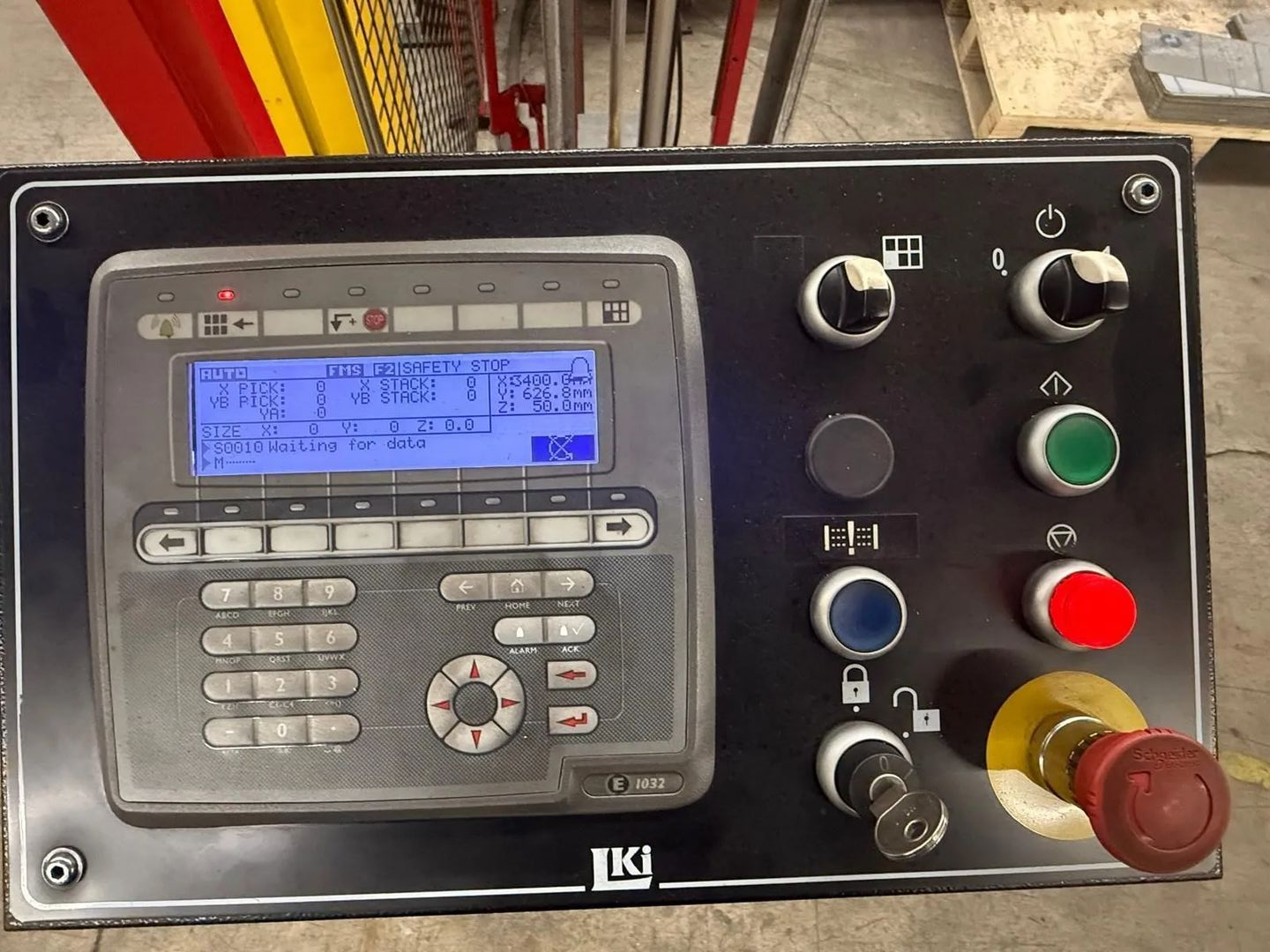

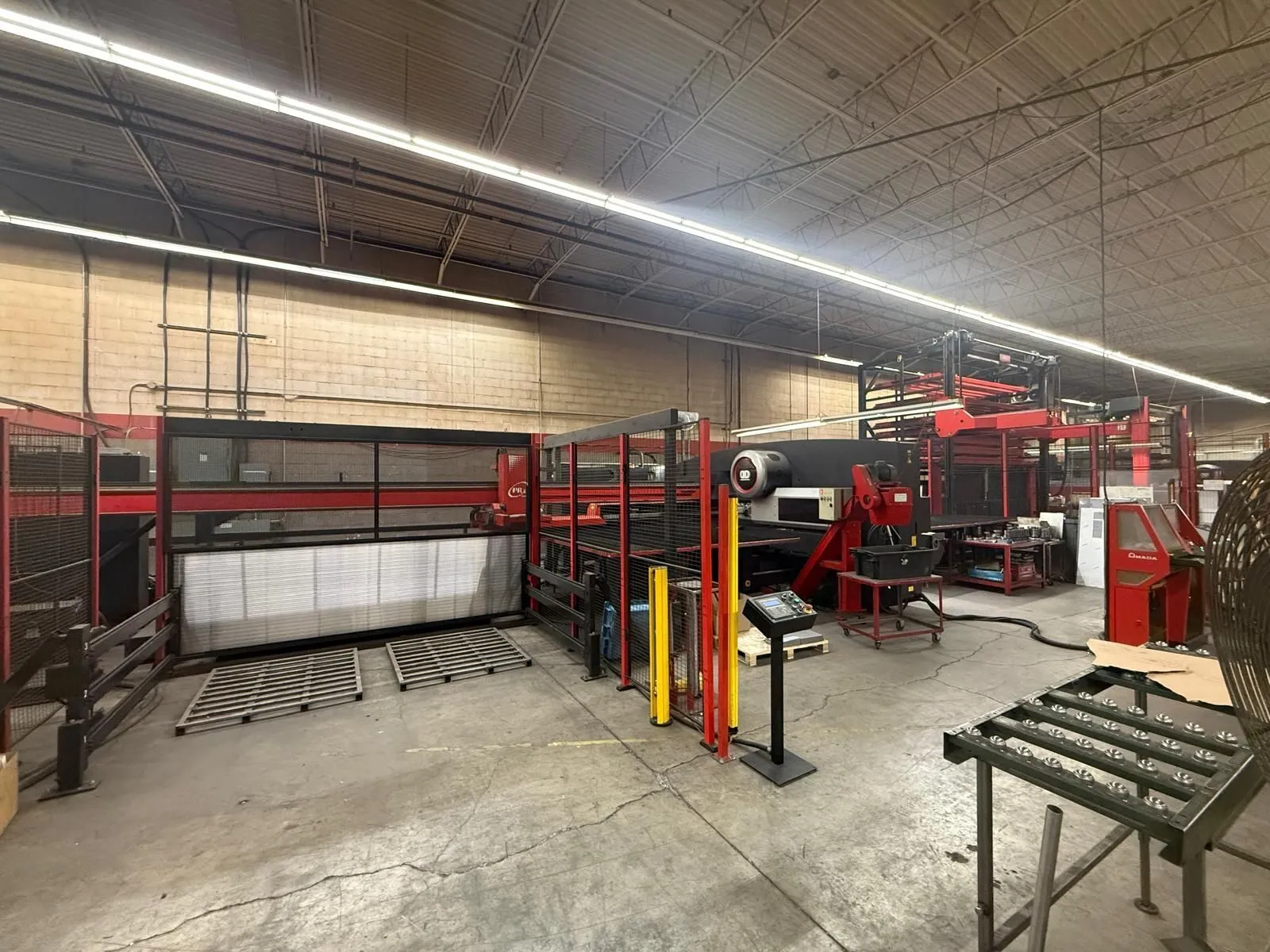

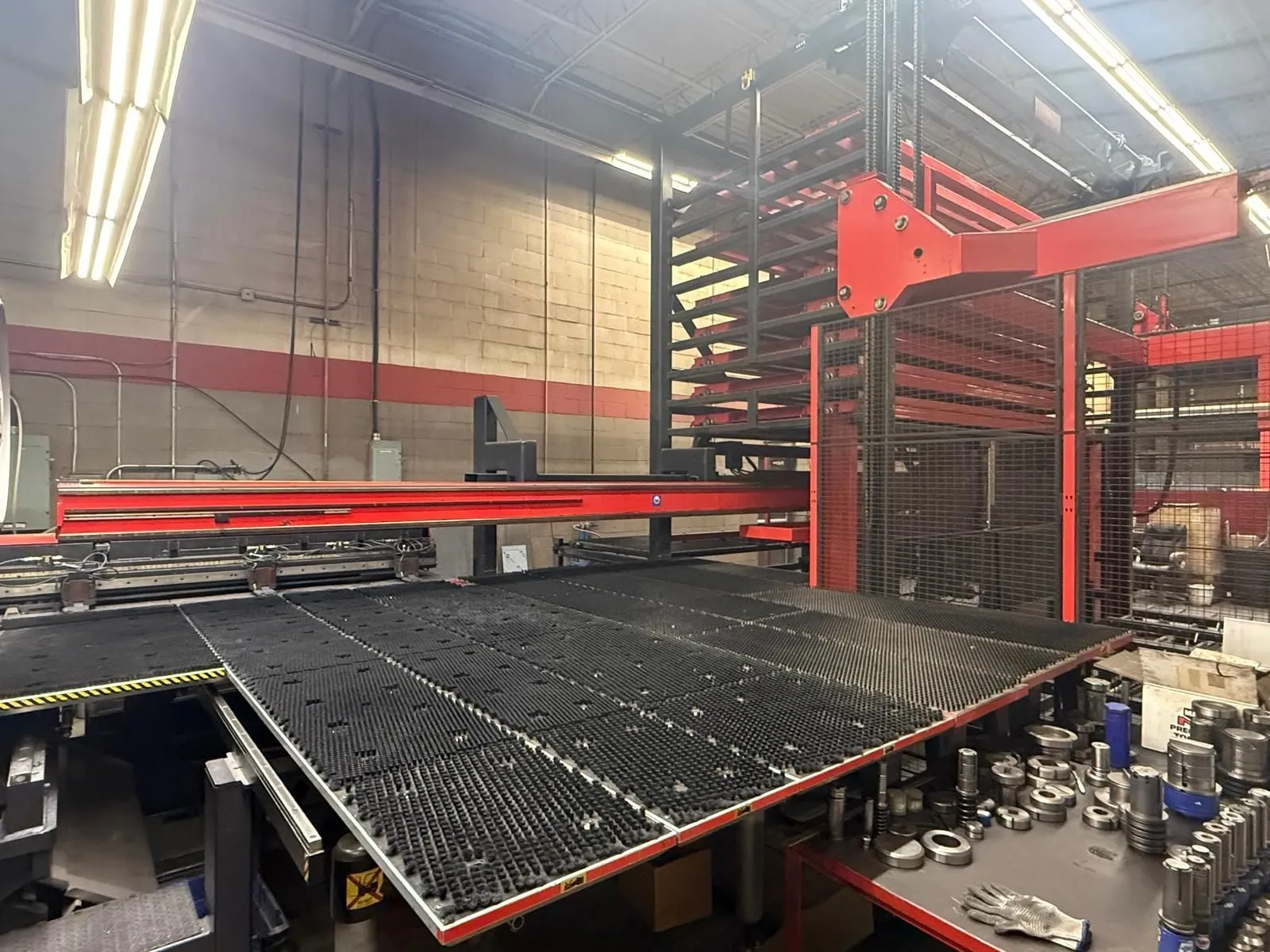

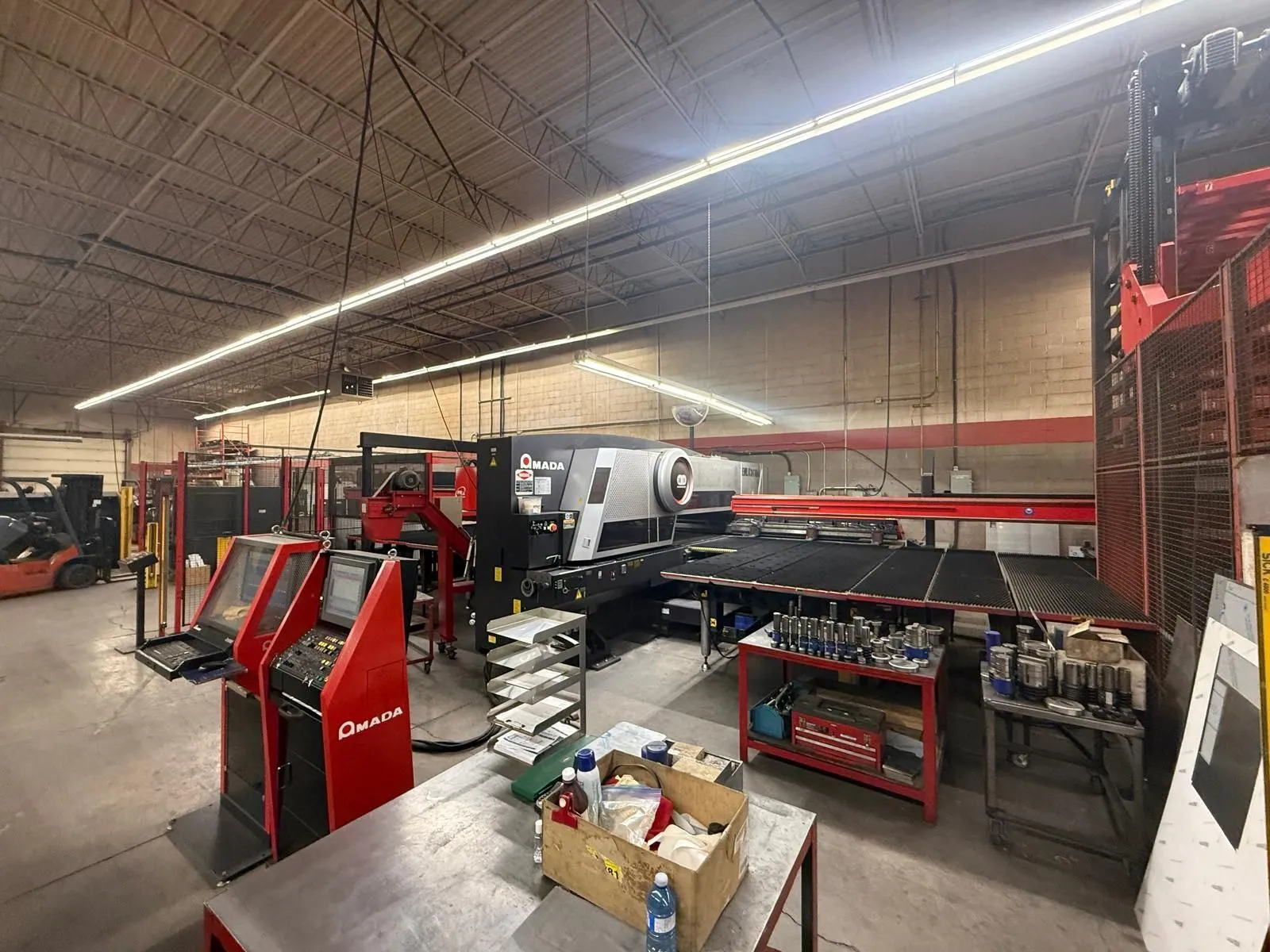

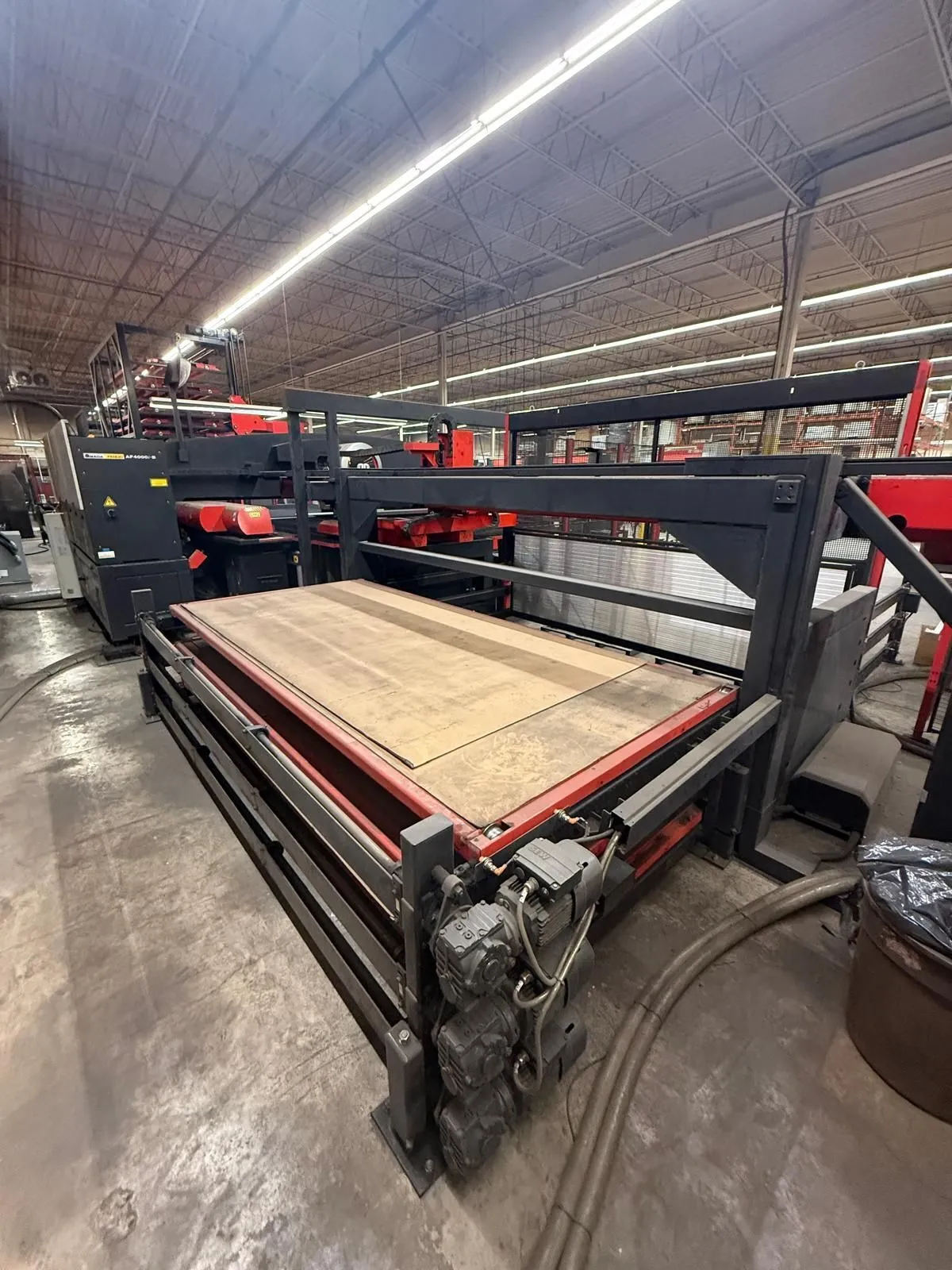

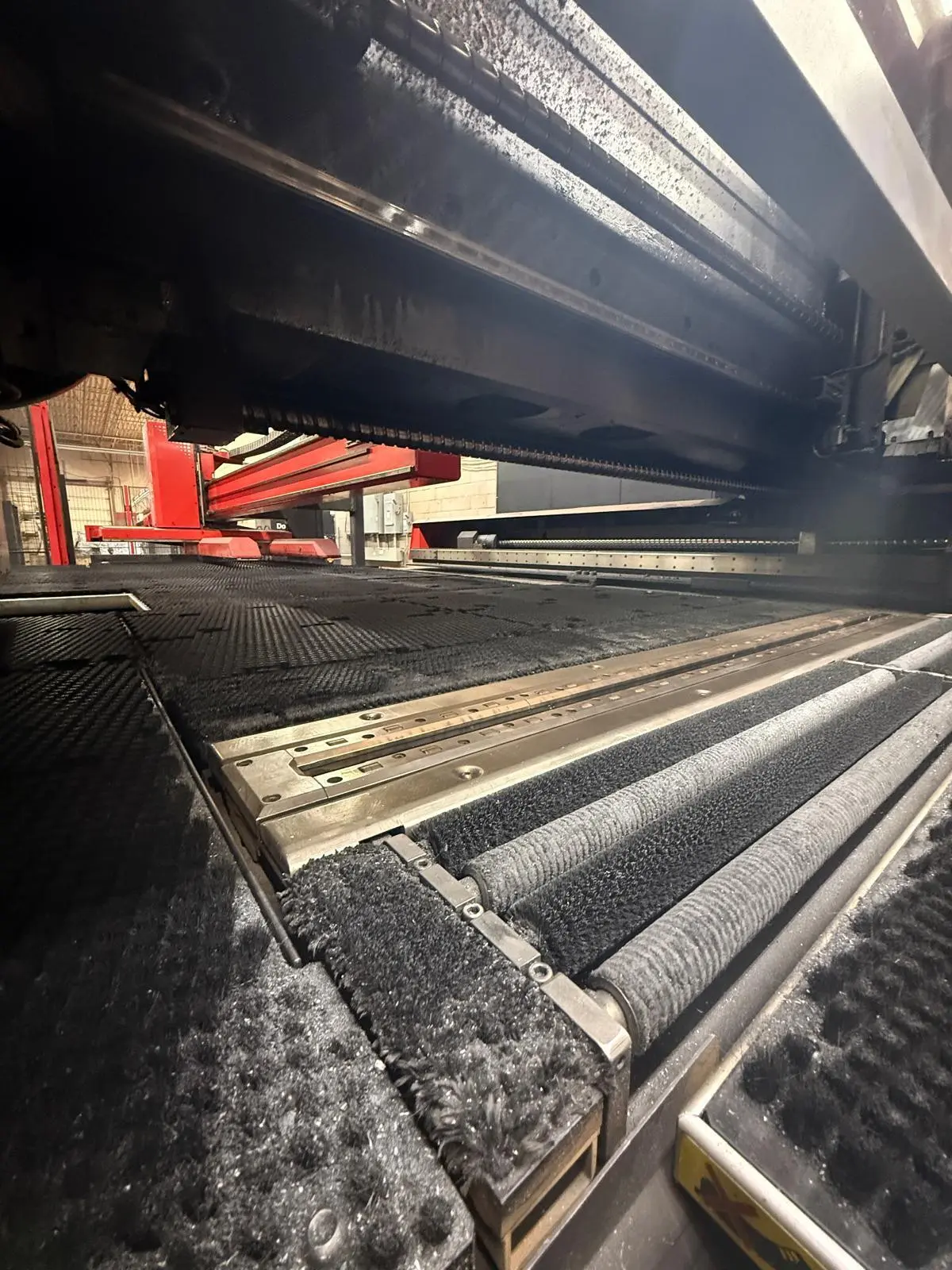

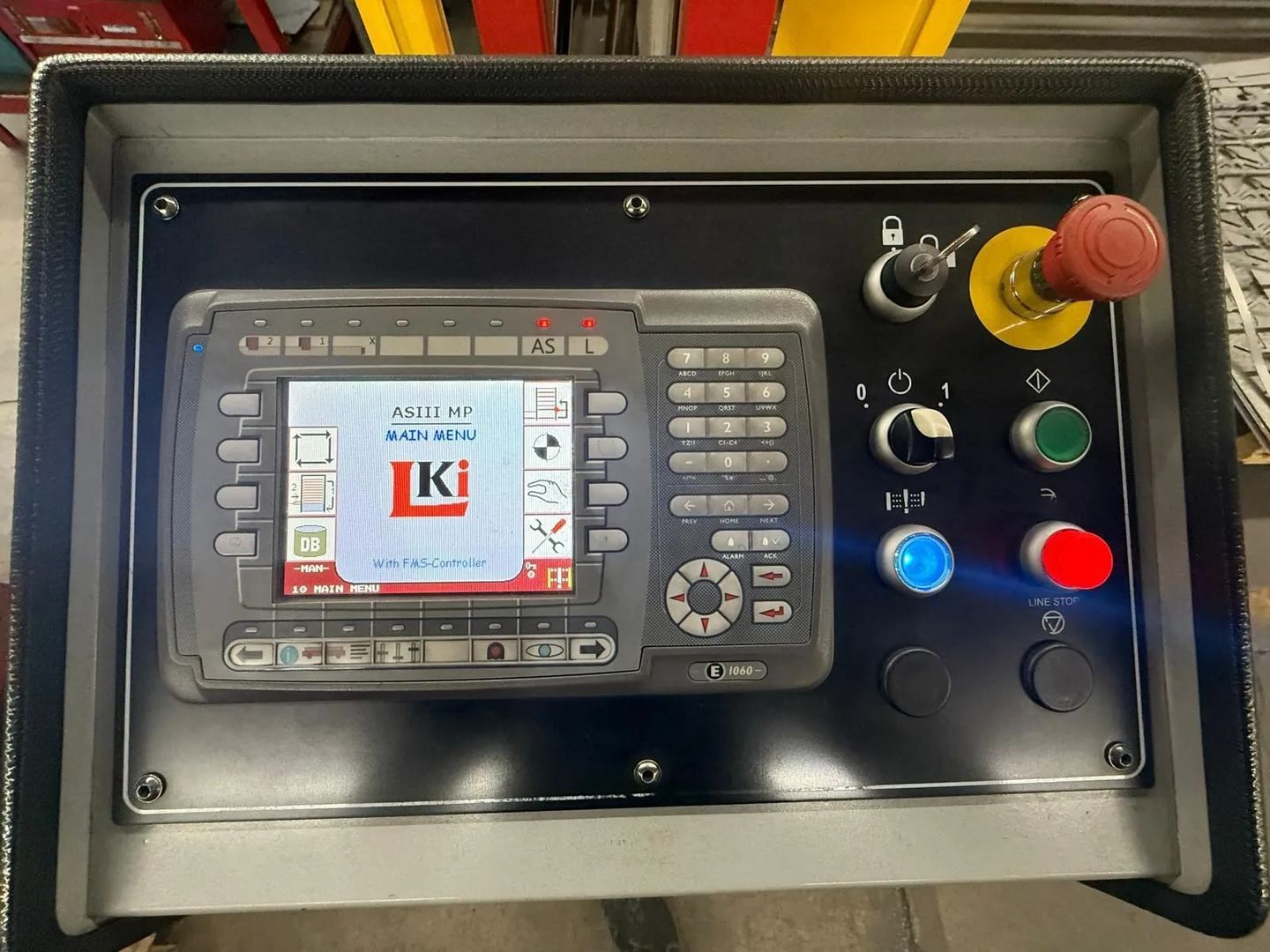

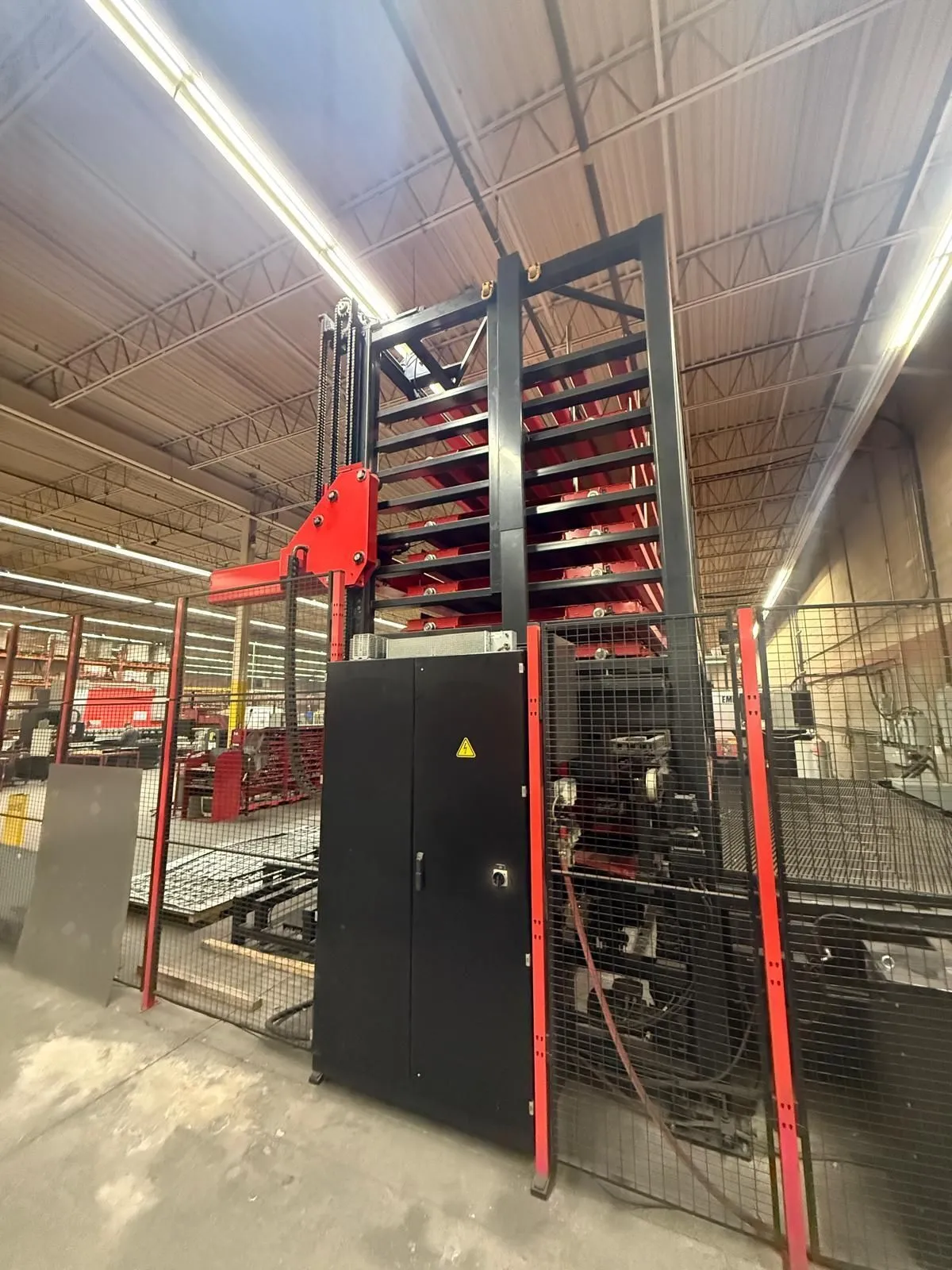

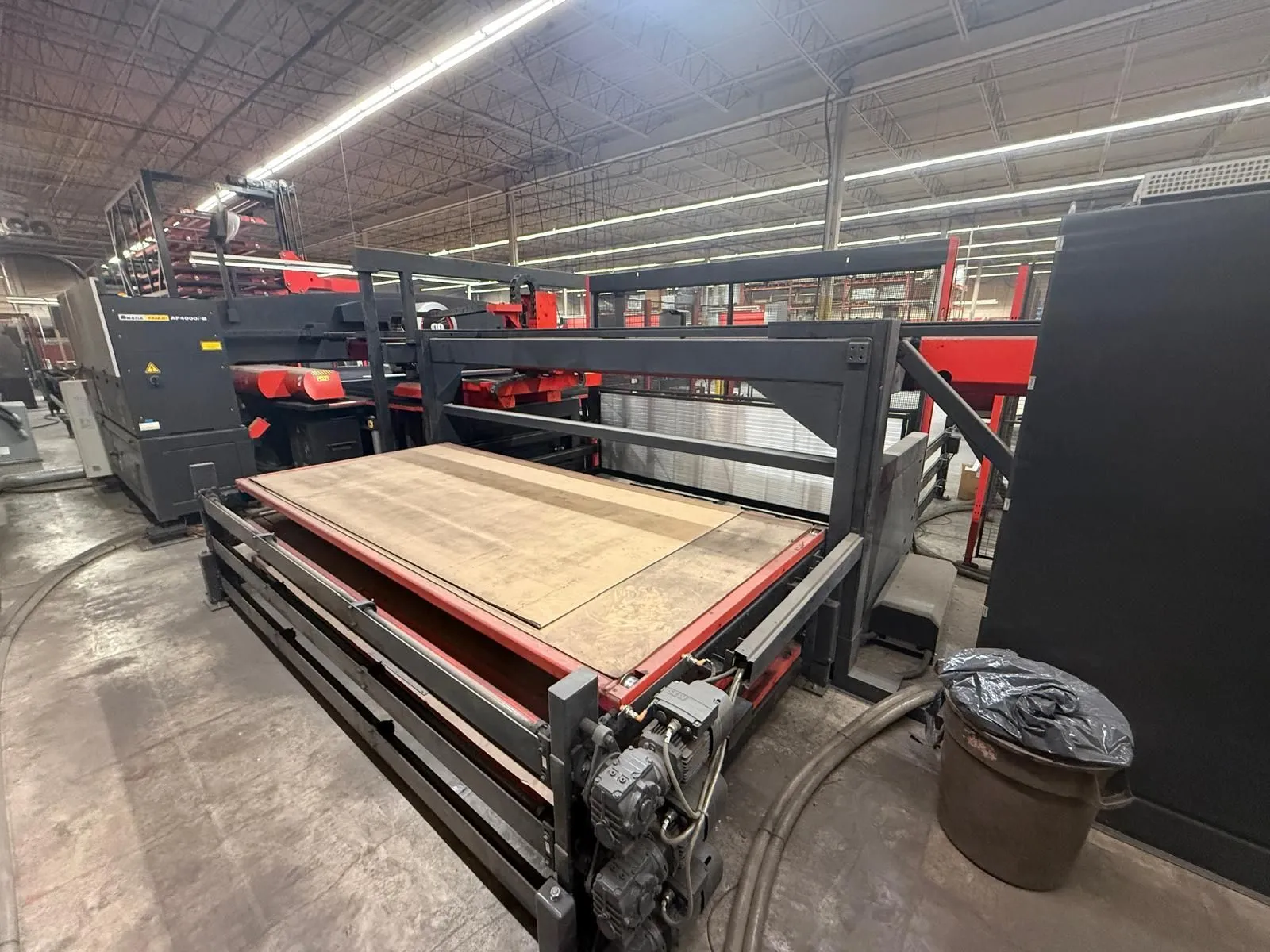

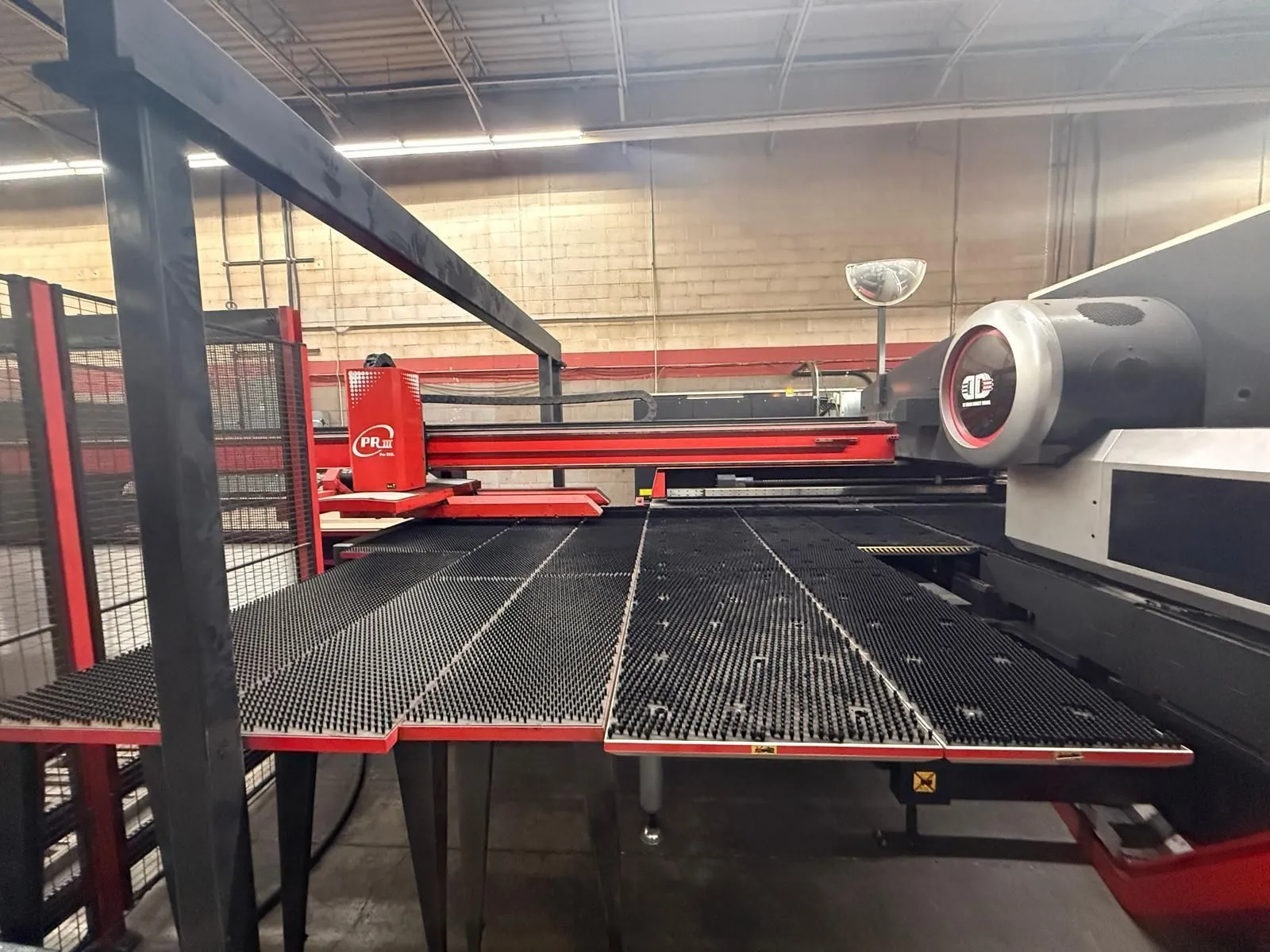

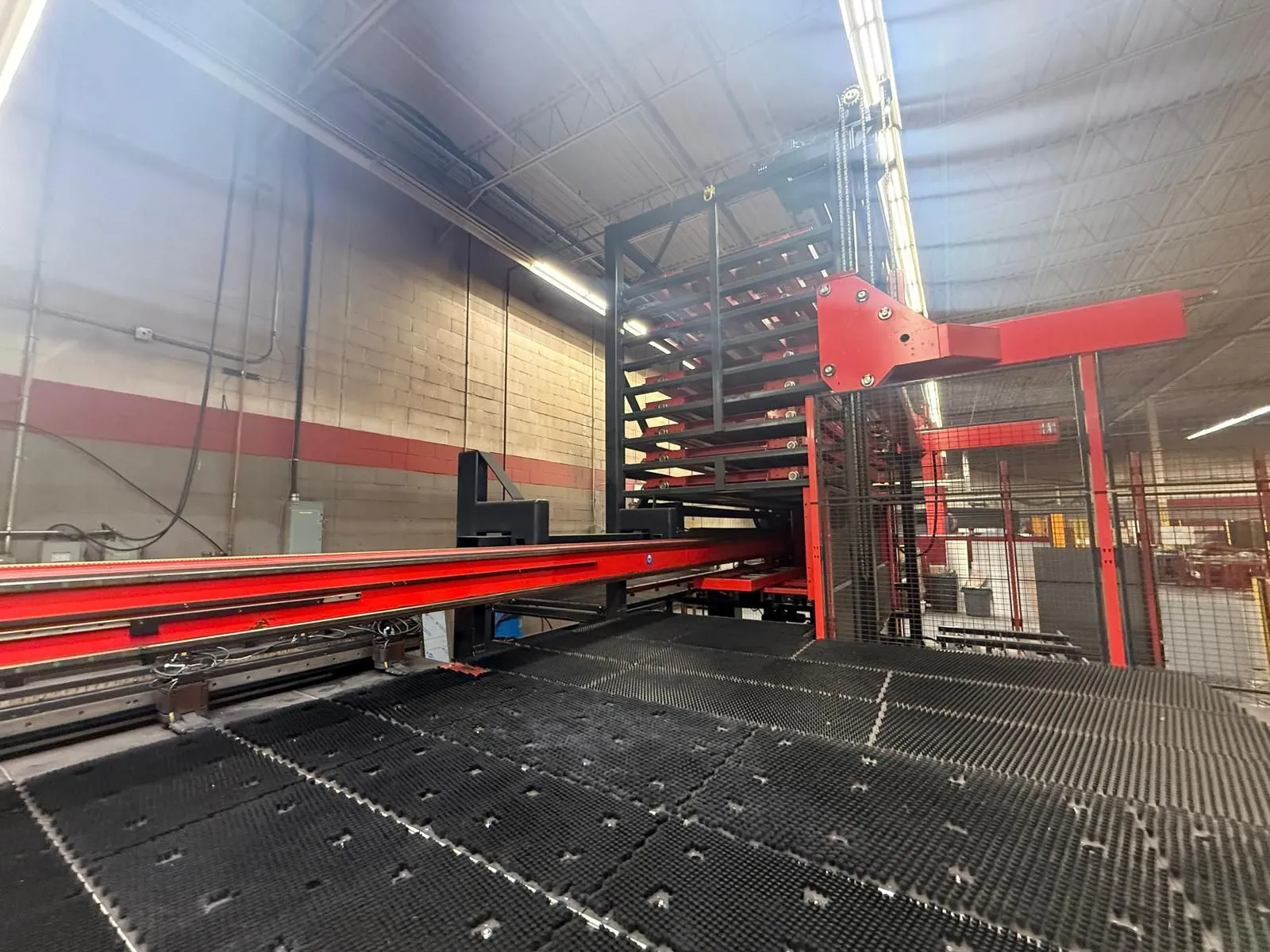

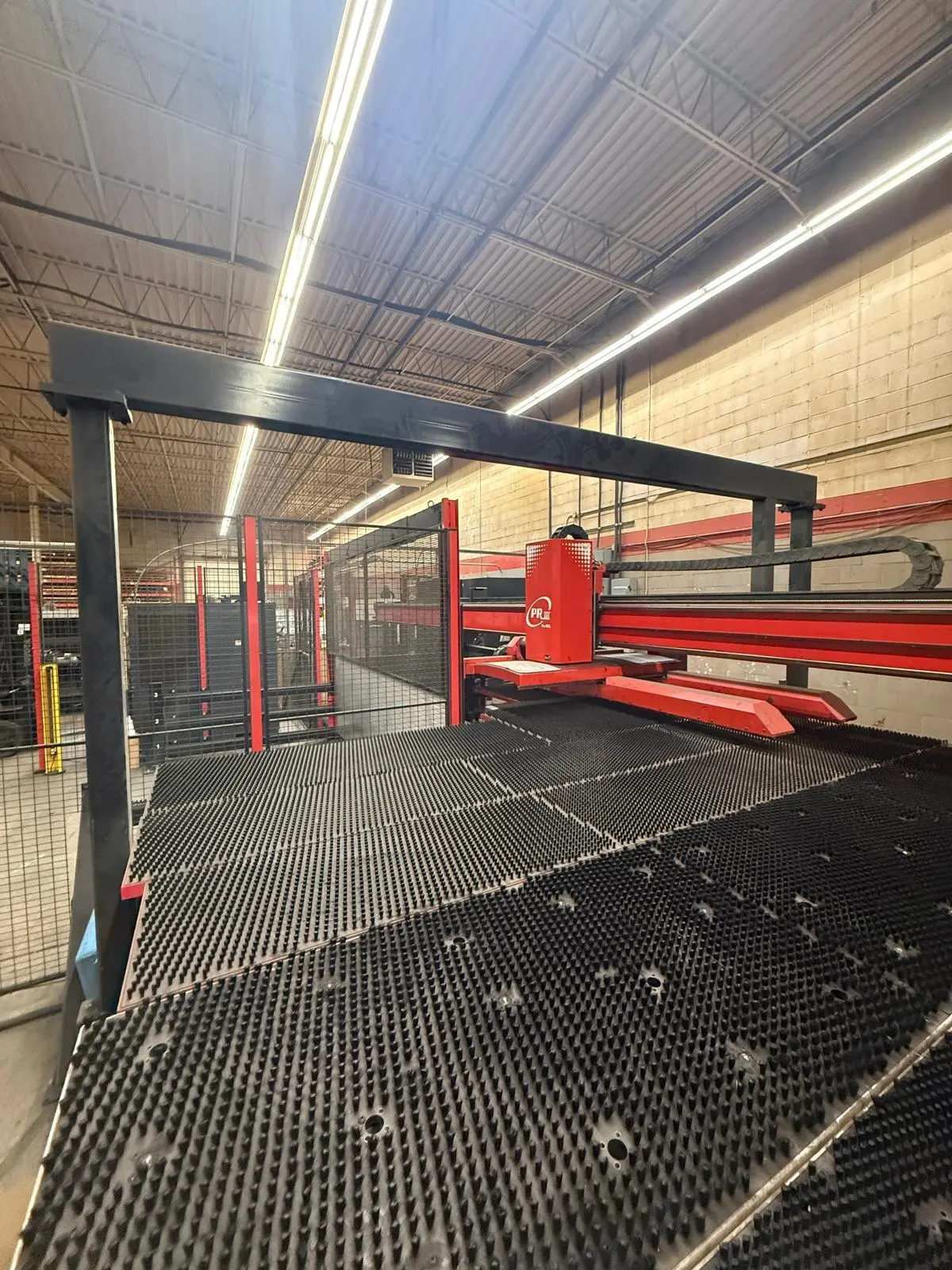

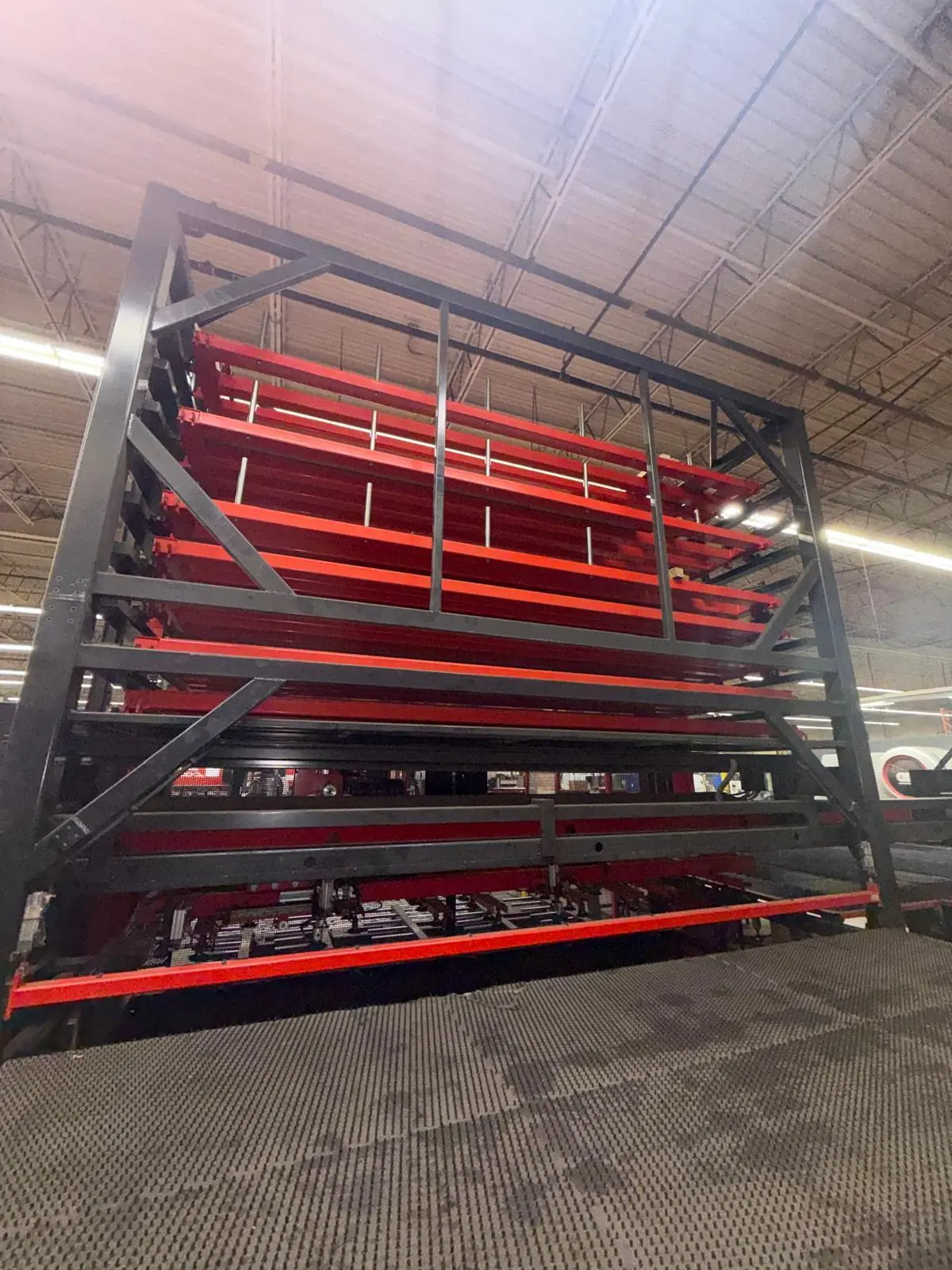

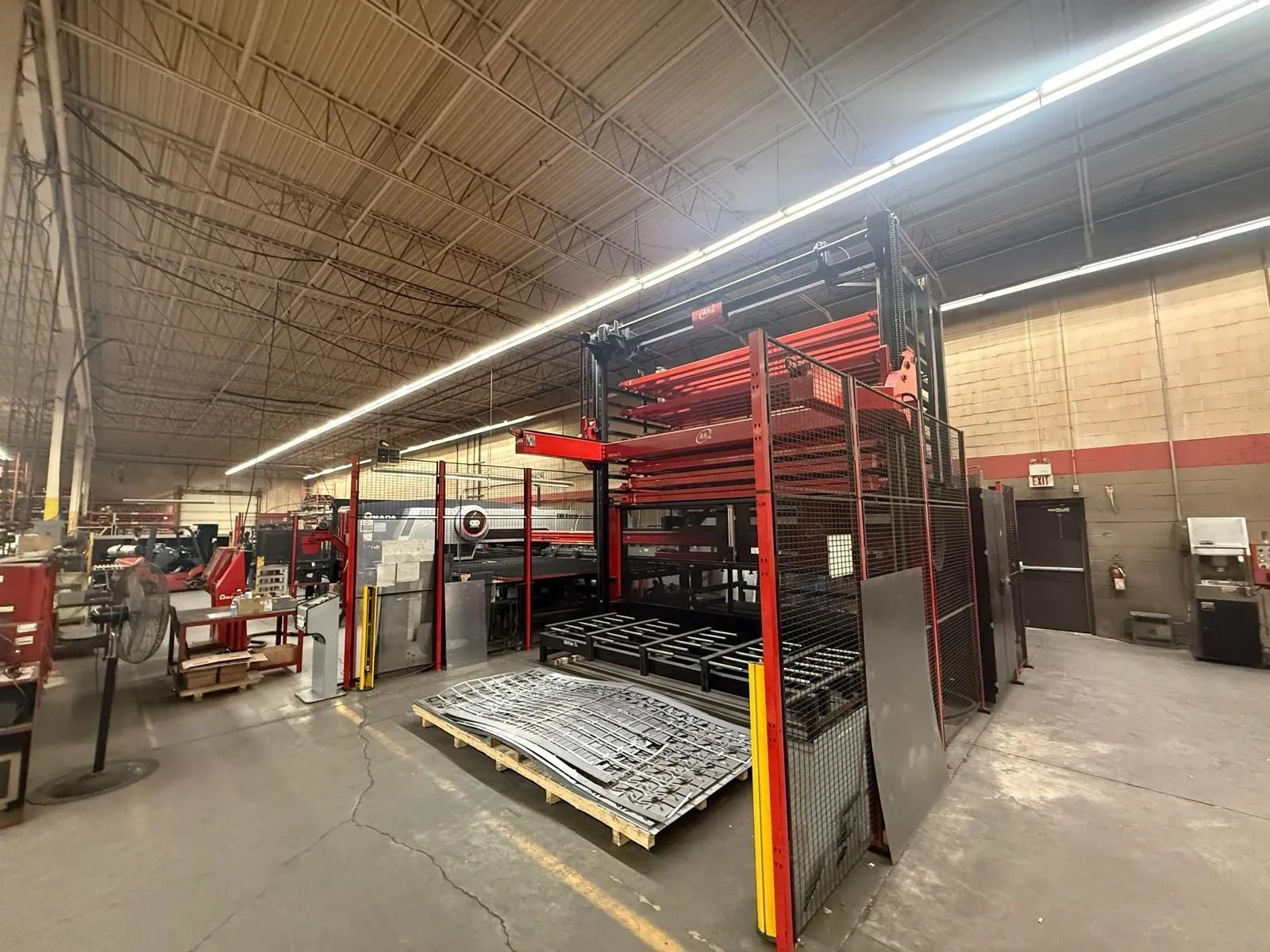

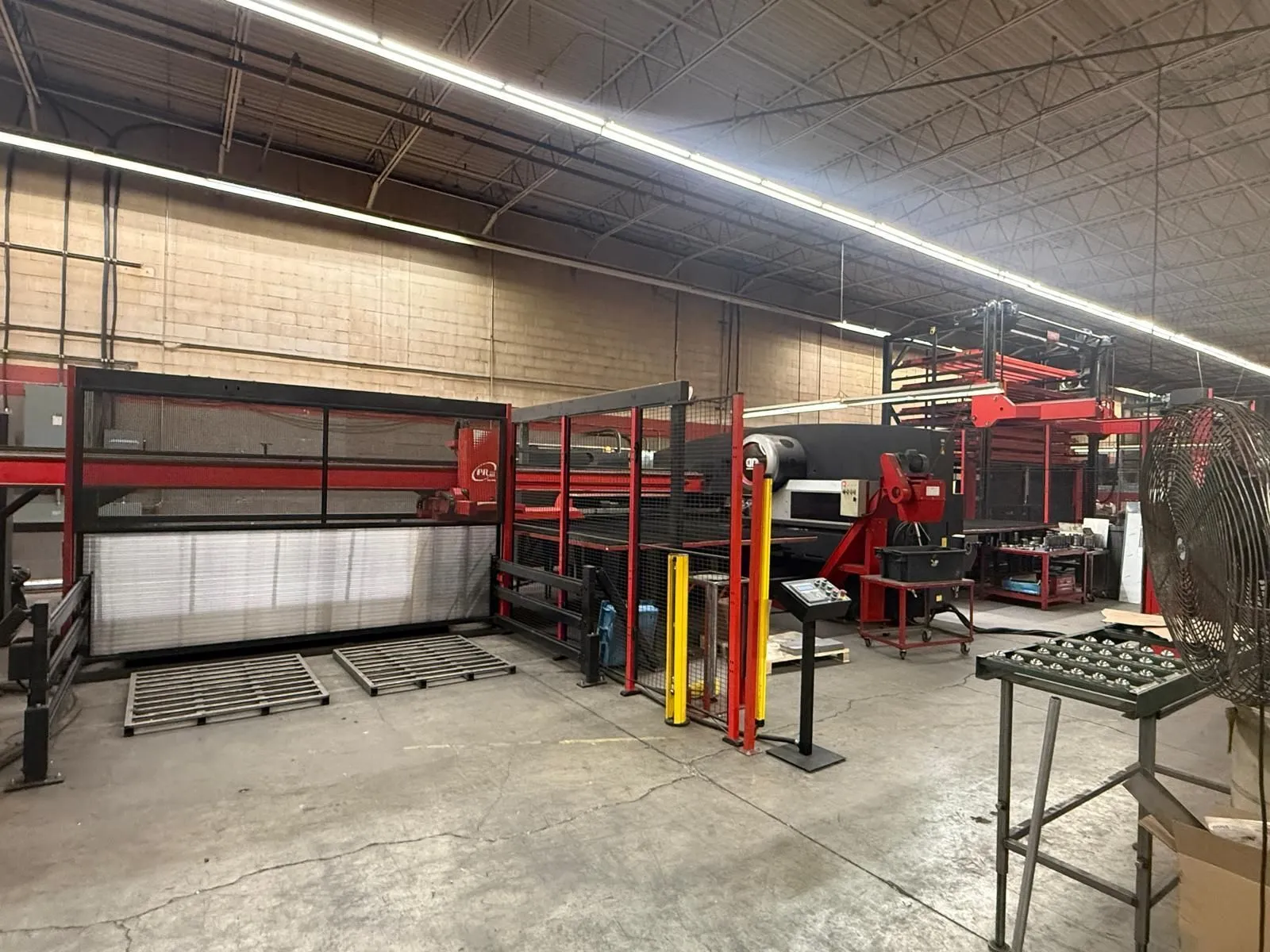

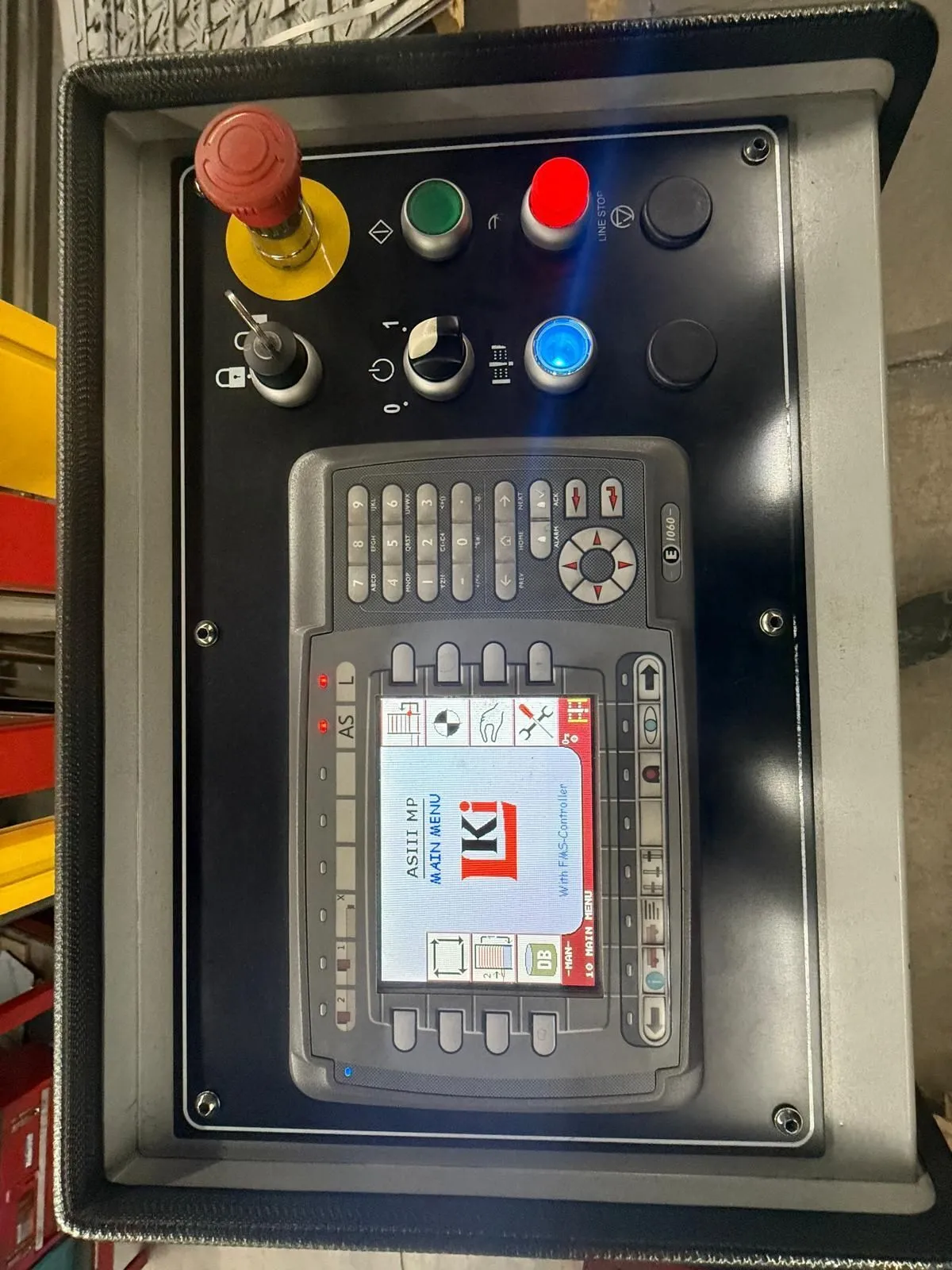

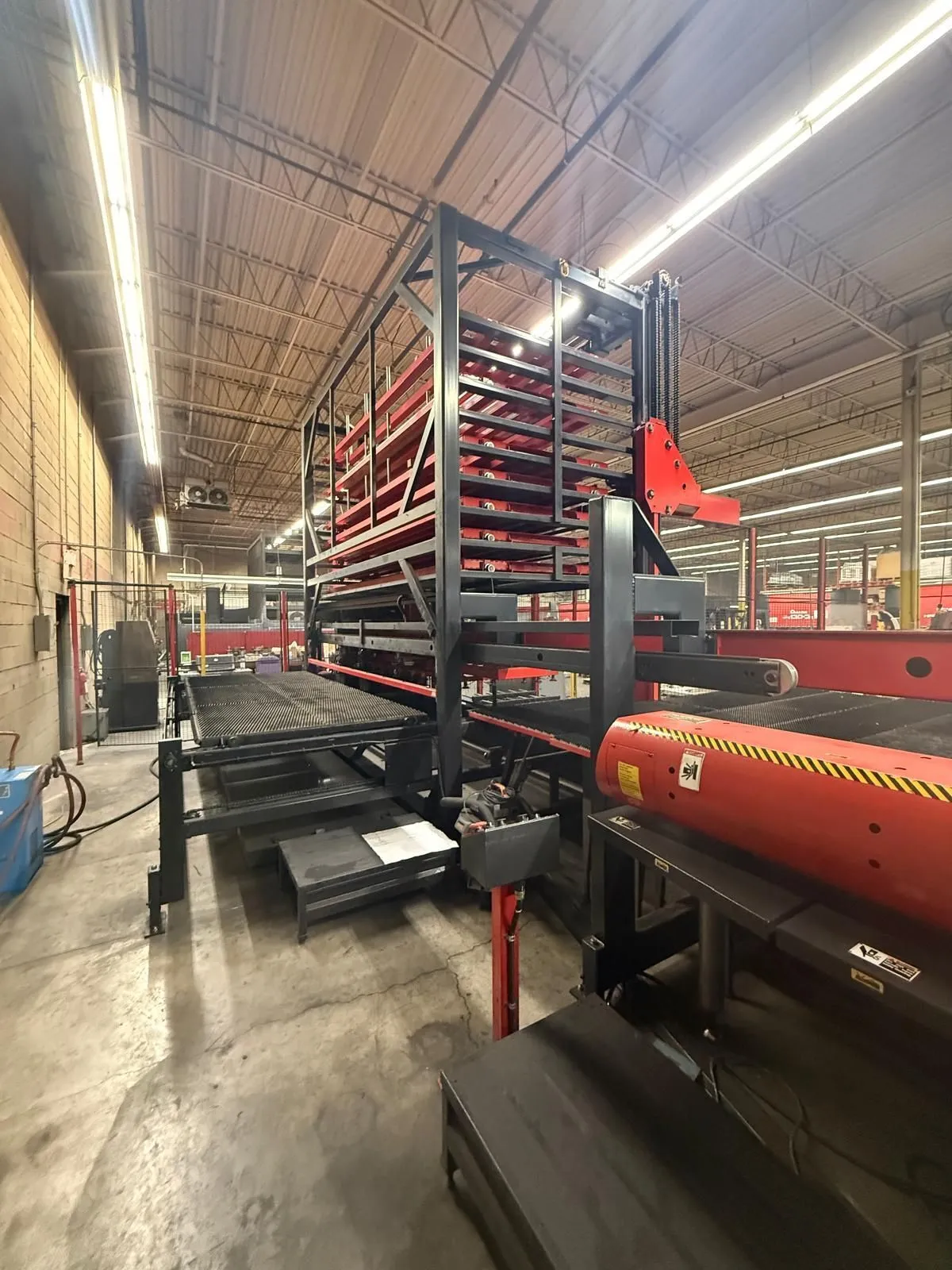

THE 2012 AMADA EMLK3510NT IS A HIGH-PERFORMANCE CNC TURRET PUNCH AND CO2 LASER COMBINATION SYSTEM DESIGNED FOR PRECISE SHEET METAL FABRICATION. IT FEATURES A 33-TON SERVO-ELECTRIC PUNCHING CAPACITY AND A 4,000 W LASER OSCILLATOR, CAPABLE OF PROCESSING WORKSHEET SIZES UP TO 120 INCHES BY 60 INCHES. THE MACHINE IS EQUIPPED WITH A 58-STATION THICK TURRET, INCLUDING FOUR AUTO-INDEX STATIONS, AND UTILIZES A BRIDGE FRAME CONSTRUCTION FOR ENHANCED STABILITY. THE LASER SYSTEM, POWERED BY AN AF4000E RESONATOR, SUPPORTS A MAXIMUM PEAK POWER OF 5,000 W AND HANDLES MATERIALS SUCH AS MILD STEEL UP TO 0.25 INCHES THICK. MOTION IS CONTROLLED ACROSS SEVEN AXES (X, Y, YL, Z, T, C, B) VIA THE AMNC-F CNC CONTROL, WHICH FEATURES A 15-INCH COLOR TFT TOUCHSCREEN. TECHNICAL PERFORMANCE INCLUDES A HIT RATE OF UP TO 560 HITS PER MINUTE ON A 2 MM PITCH AND RAPID TRAVERSE SPEEDS REACHING 328 FEET PER MINUTE ON THE X-AXIS AND 262 FEET PER MINUTE ON THE Y-AXIS. THE SYSTEM IS INTEGRATED WITH AN LKI ASIII MP 300/40 AUTOMATIC STORAGE AND LOADING SYSTEM, ENABLING UNMANNED OPERATION AND EFFICIENT MATERIAL HANDLING. ADDITIONAL FEATURES INCLUDE A BRUSH TABLE TO PROTECT MATERIAL SURFACES, A LASER GAS CONSUMPTION RATE OF APPROXIMATELY 10 L/H, AND A POSITIONING ACCURACY OF PLUS OR MINUS 0.004 INCHES.
