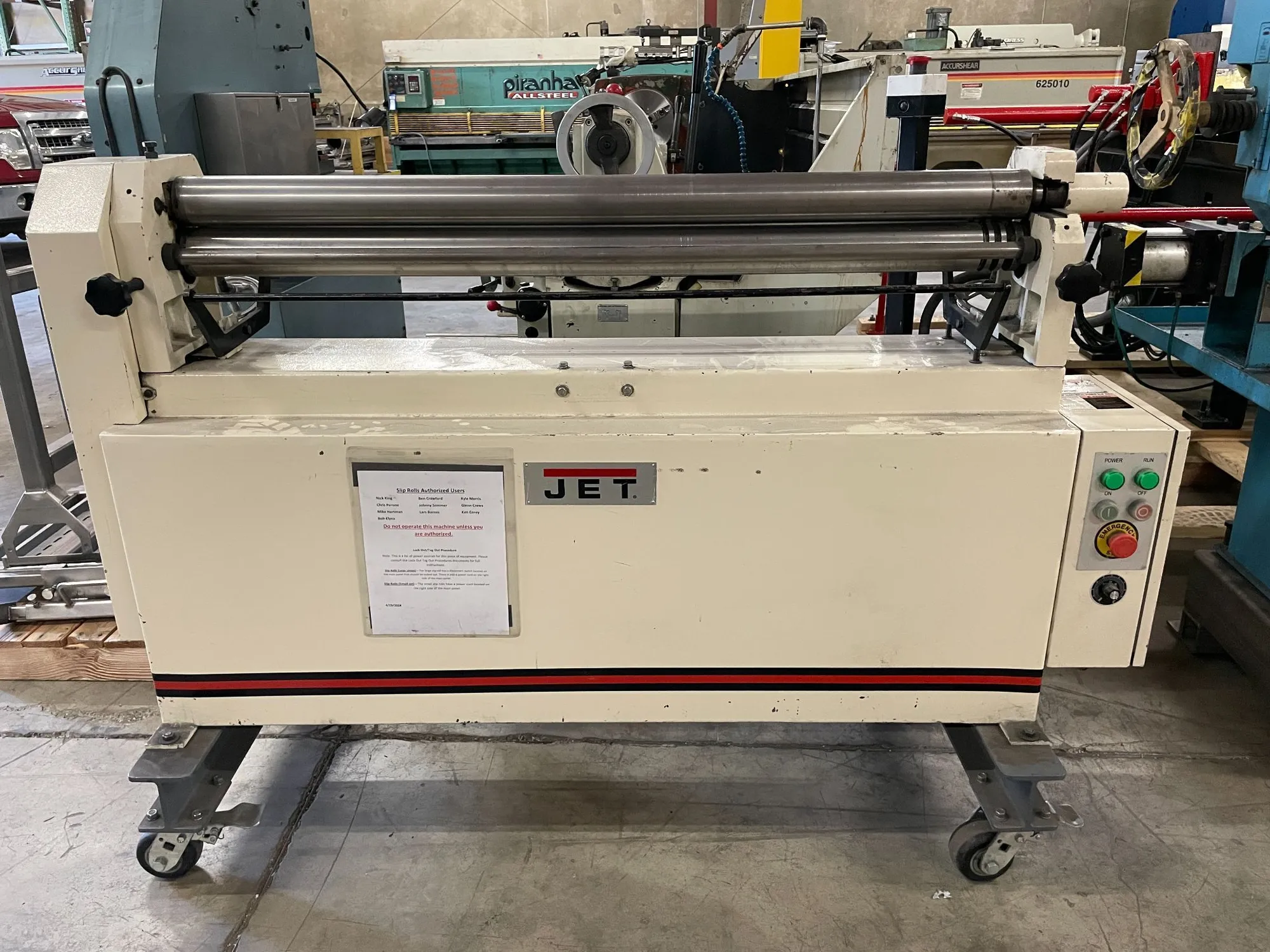

2012 JET ESR-1650 PLATE BENDING ROLLS, 50" ROLL LENGTH, 16 GAUGE, 3" ROLL DIA

THE JET ESR-1650 IS AN ELECTRIC POWERED SLIP ROLL DESIGNED FOR HIGH-PRECISION SHEET METAL FORMING APPLICATIONS IN FABRICATION AND HVAC SHOPS. IT FEATURES A MAXIMUM FORMING LENGTH OF 50 INCHES AND A MILD STEEL CAPACITY OF 16 GAUGE. THE MACHINE UTILIZES A THREE-ROLL CONFIGURATION WITH HARDENED, POLISHED HIGH-CARBON STEEL ROLLS, EACH FEATURING A ROLL DIAMETER OF 3 INCHES AND A MINIMUM FORMING RADIUS OF 2 TO 5 INCHES DEPENDING ON THE SPECIFIC MODEL VARIATION. FOR VERSATILE MATERIAL HANDLING, THE ROLLS INCLUDE WIRE GROOVES MEASURING 5/16 INCH, 3/8 INCH, AND 1/2 INCH. DRIVEN BY A 1.5 HORSEPOWER MOTOR, THE ELECTRICAL SYSTEM OPERATES ON A DUAL-VOLTAGE CONFIGURATION OF 115V/230V AVAILABLE IN EITHER SINGLE-PHASE OR THREE-PHASE OPTIONS. OPERATION IS CONTROLLED VIA A CONVENIENT FOOT PEDAL ASSEMBLY THAT ENABLES IMMEDIATE FORWARD AND REVERSE ACTION, COMBINED WITH A BUILT-IN SAFETY BRAKE AND EMERGENCY STOP BUTTON FOR OPERATOR SAFETY. PRECISION ADJUSTMENTS ARE SUPPORTED BY LARGE HANDWHEELS AND AN ATTACHED POSITION SCALE ON THE FORMING ROLL TO ENSURE EQUAL PRESSURE DISTRIBUTION. CONSTRUCTED WITH A HEAVY-DUTY CAST IRON FRAME AND AN ENCLOSED BASE TO ENSURE RIGIDITY AND MINIMIZE VIBRATION, THE UNIT HAS PHYSICAL DIMENSIONS OF 71 INCHES IN LENGTH, 24 INCHES IN WIDTH, AND 43 INCHES IN HEIGHT, WITH A NET MACHINE WEIGHT OF 750 POUNDS AND A SHIPPING WEIGHT OF 877 POUNDS.
