2012 OKUMA GENOS L400E CNC TURNING CENTER, 3000 RPM, 10-INCH CHUCK, 12-POS TURRET, OSP-P200L-R

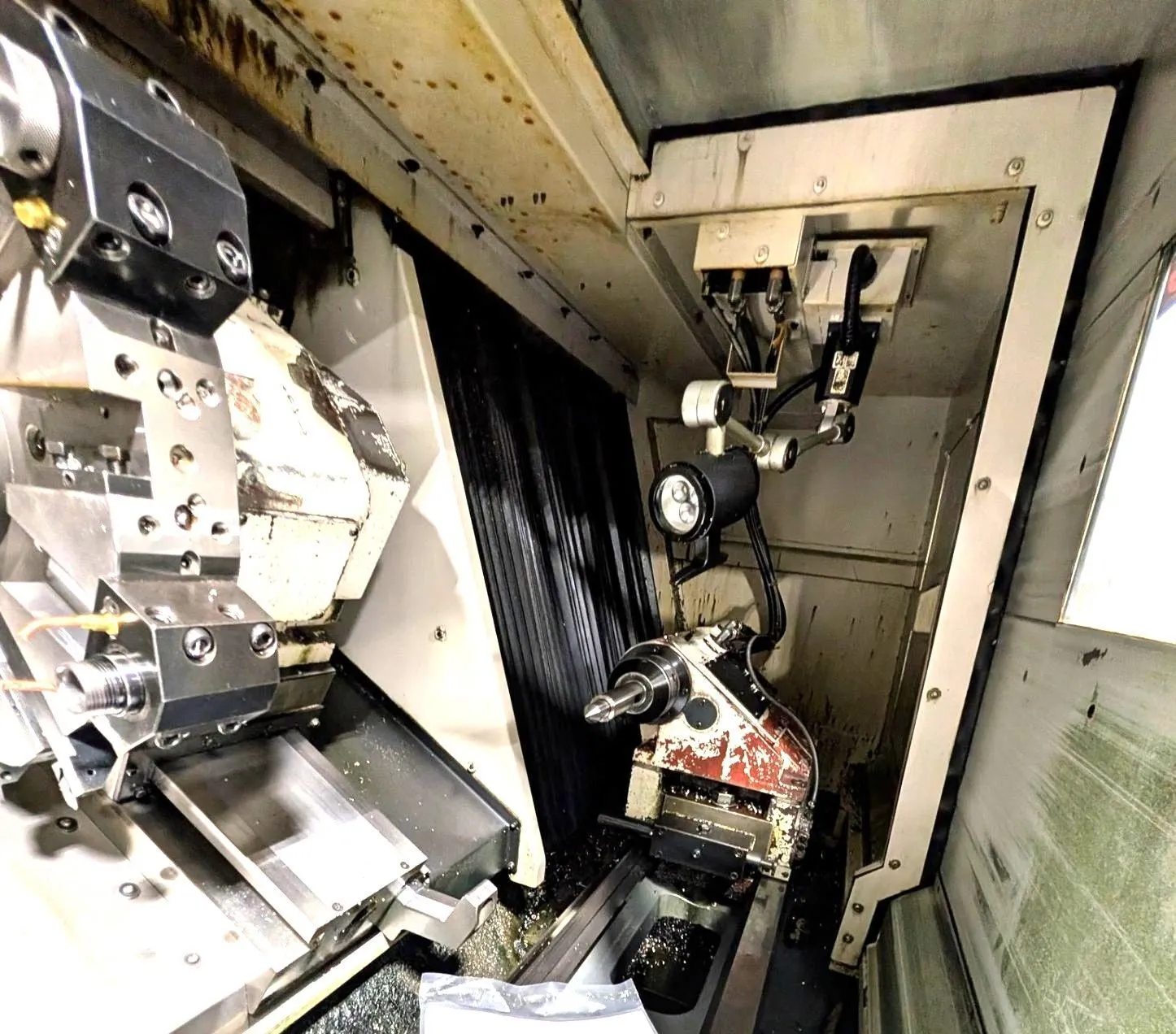

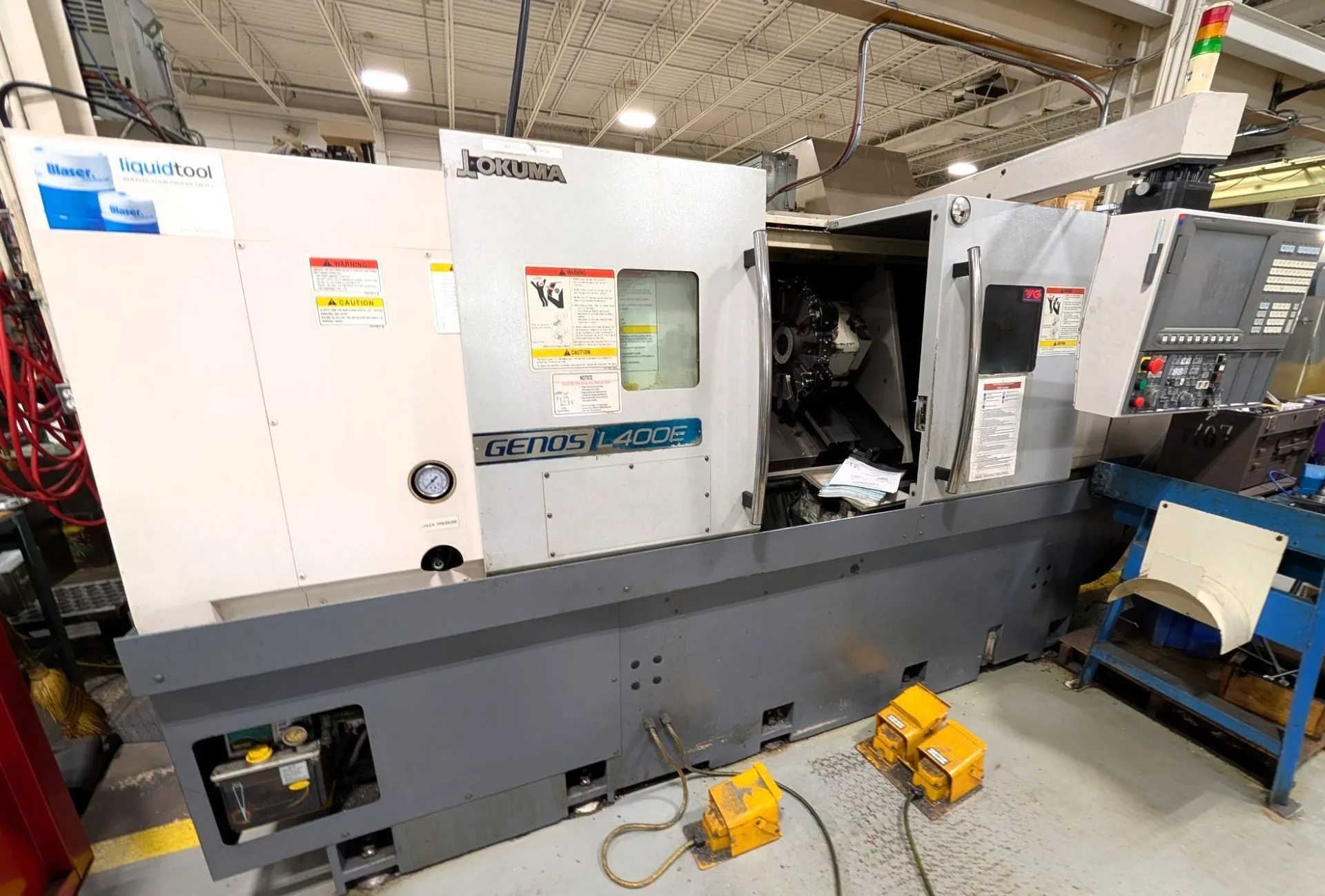

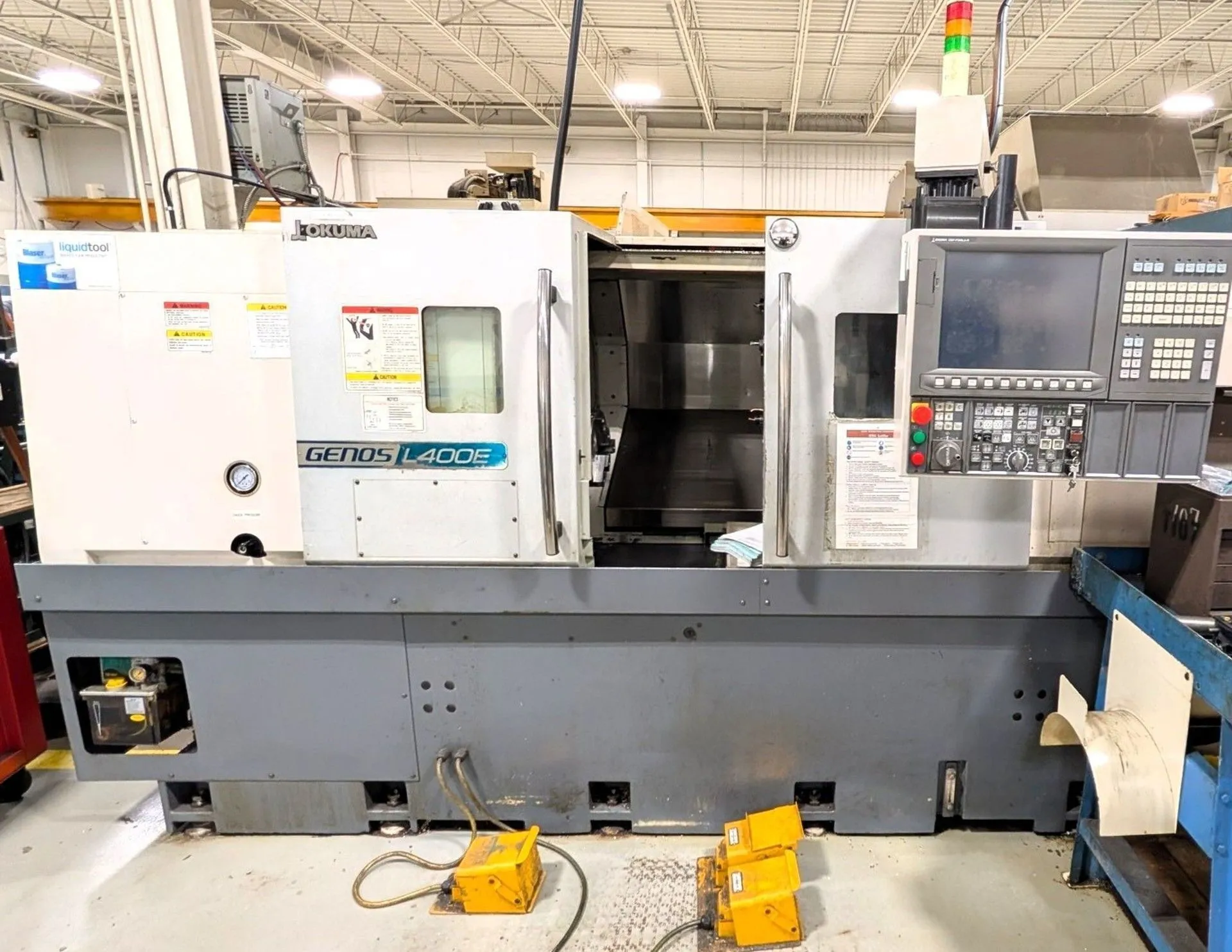

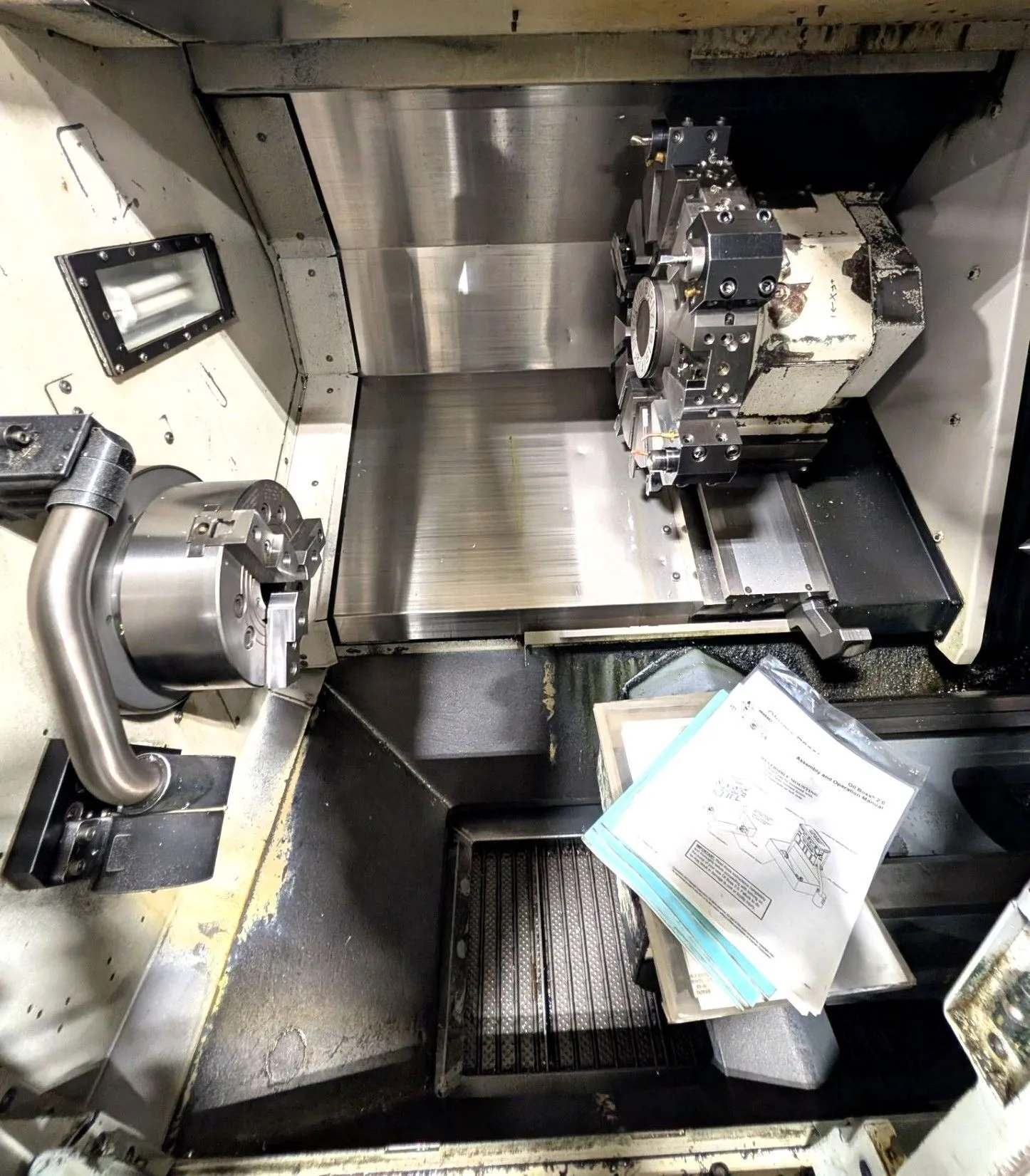

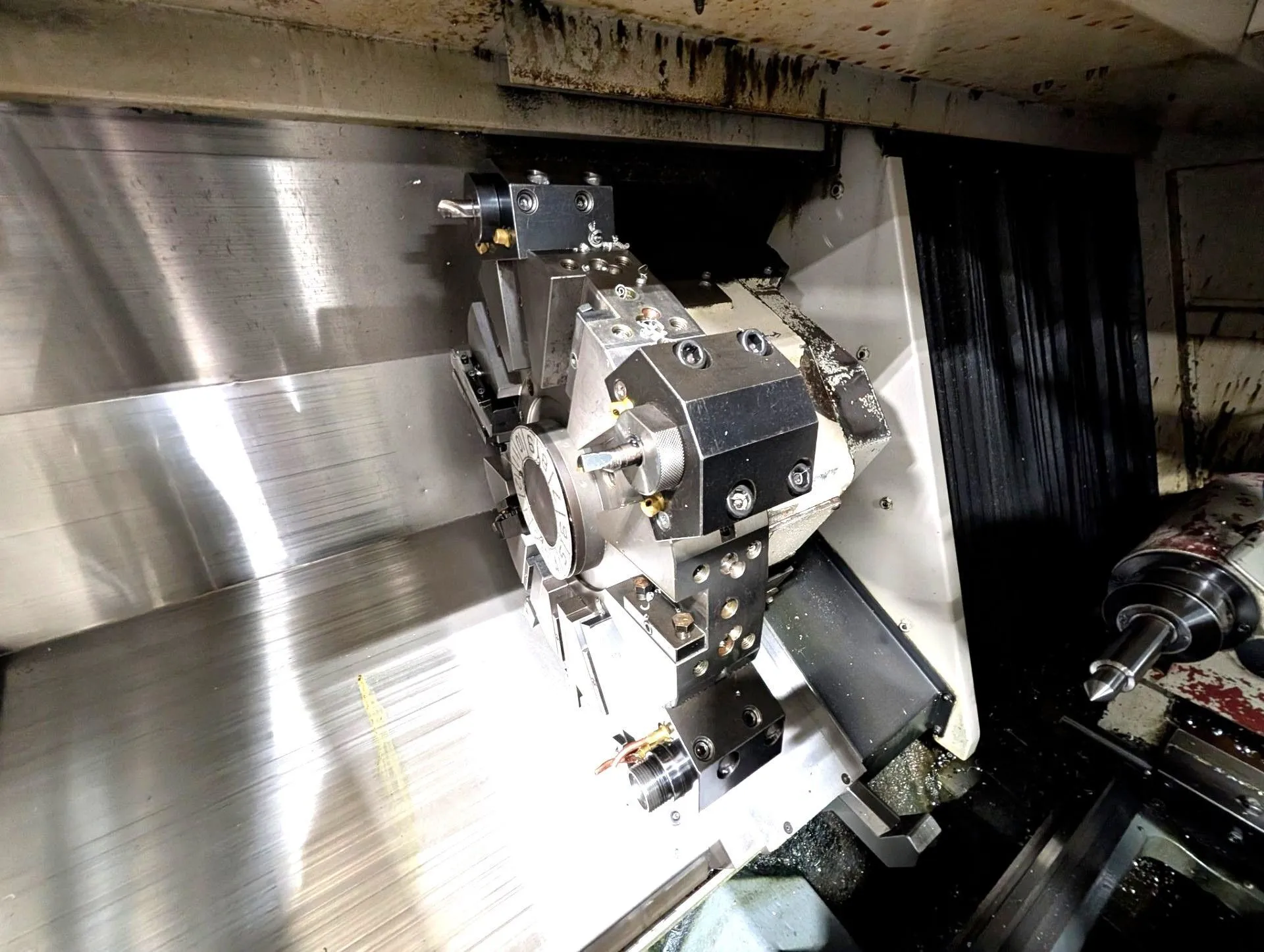

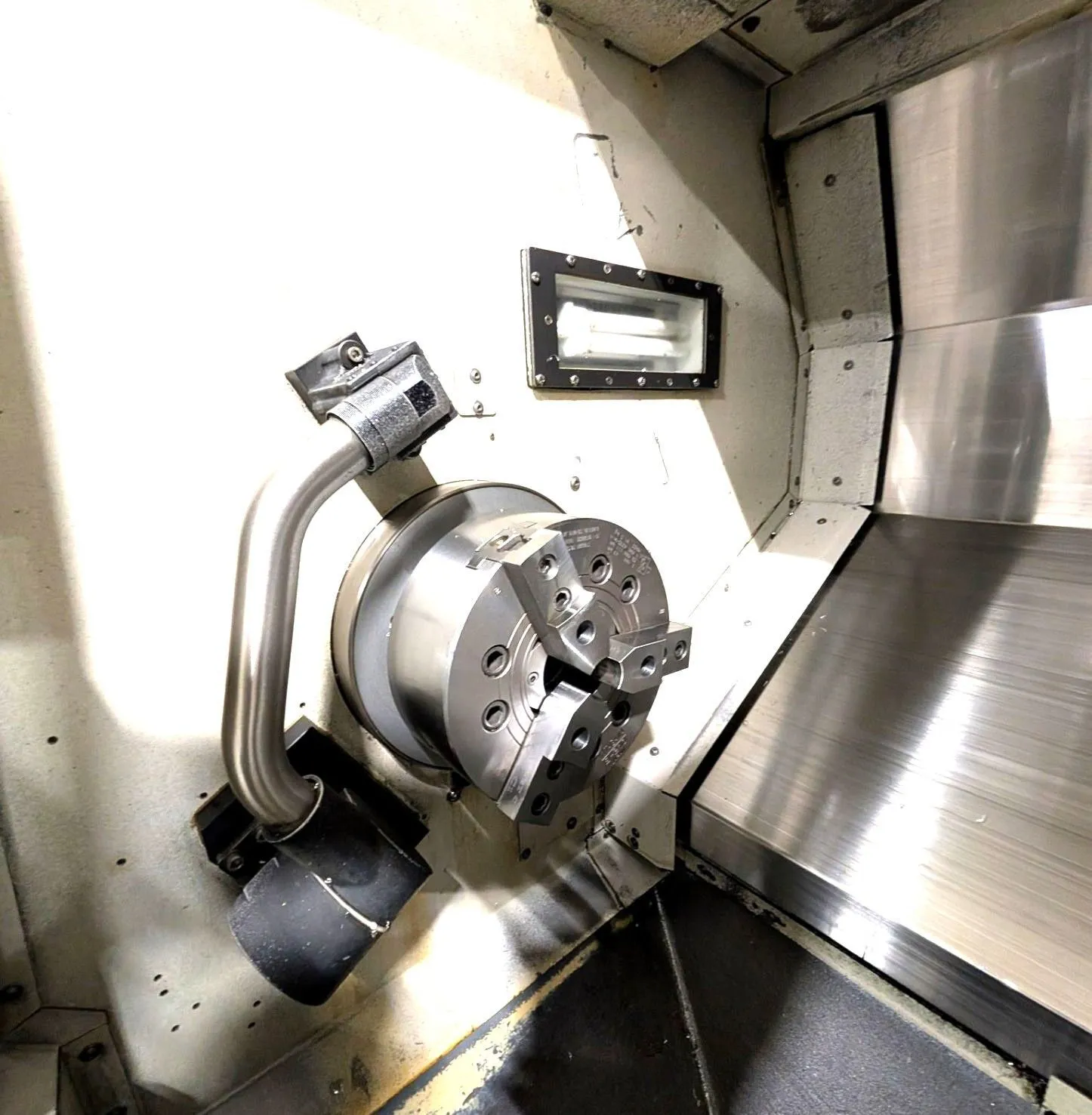

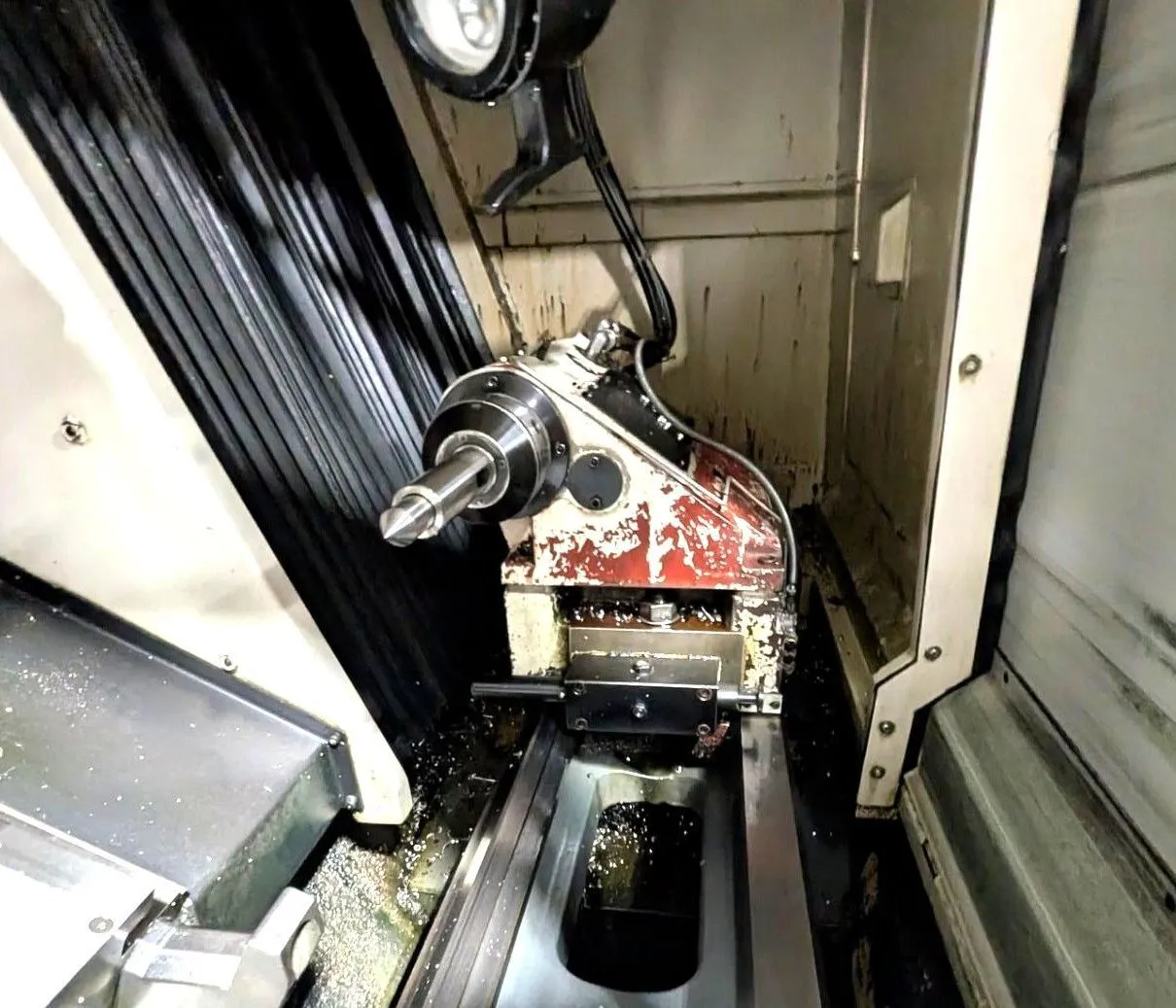

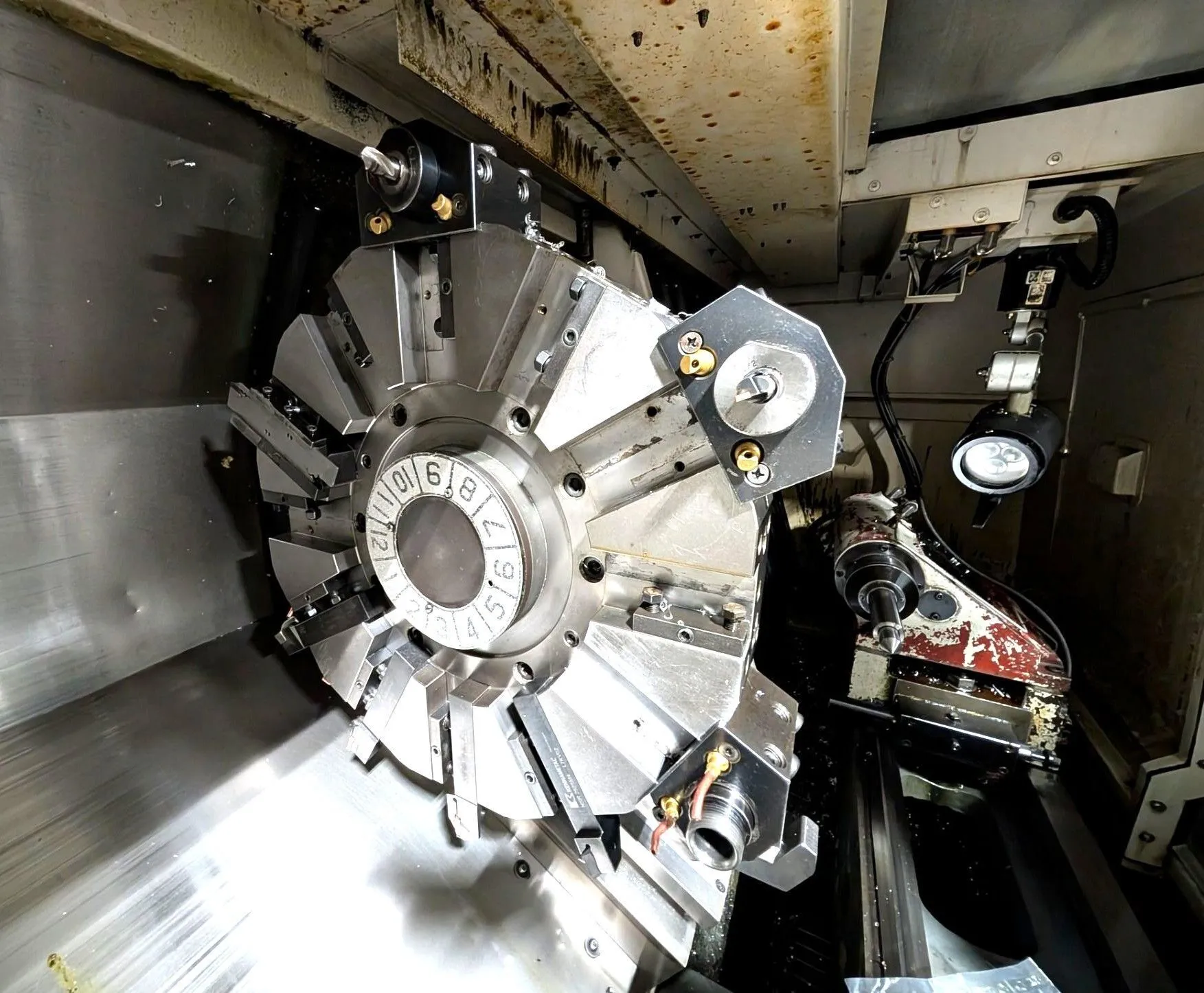

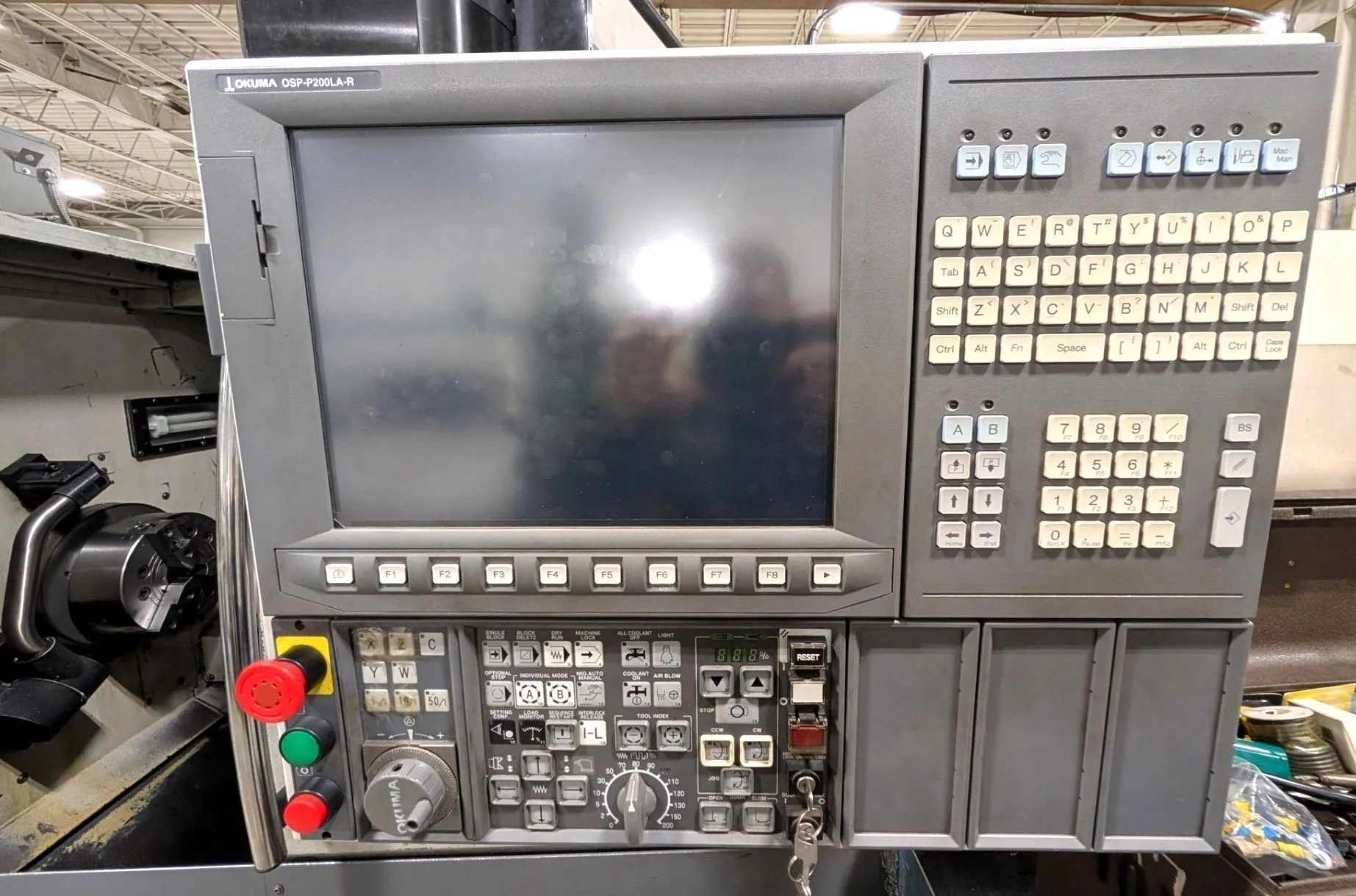

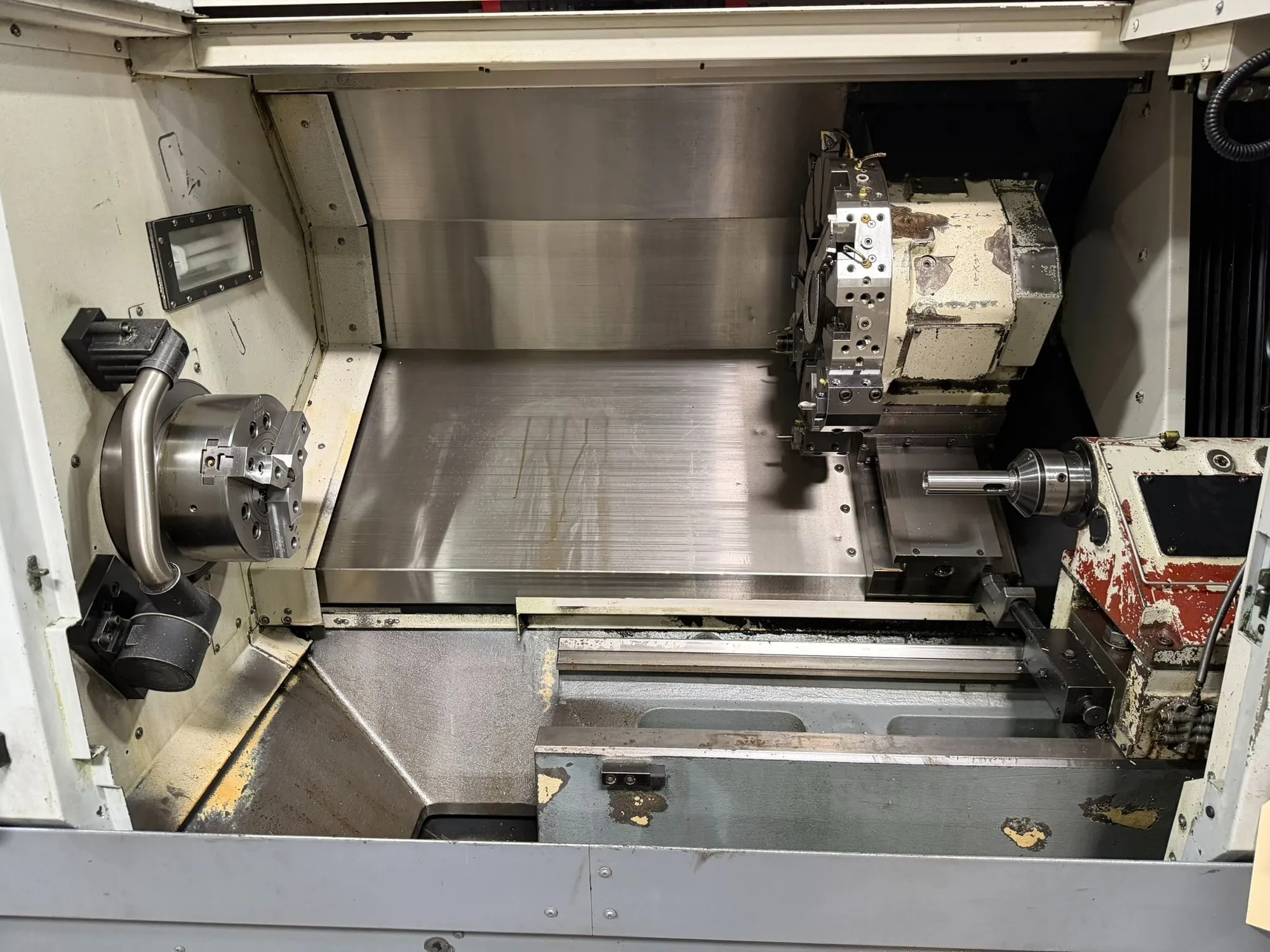

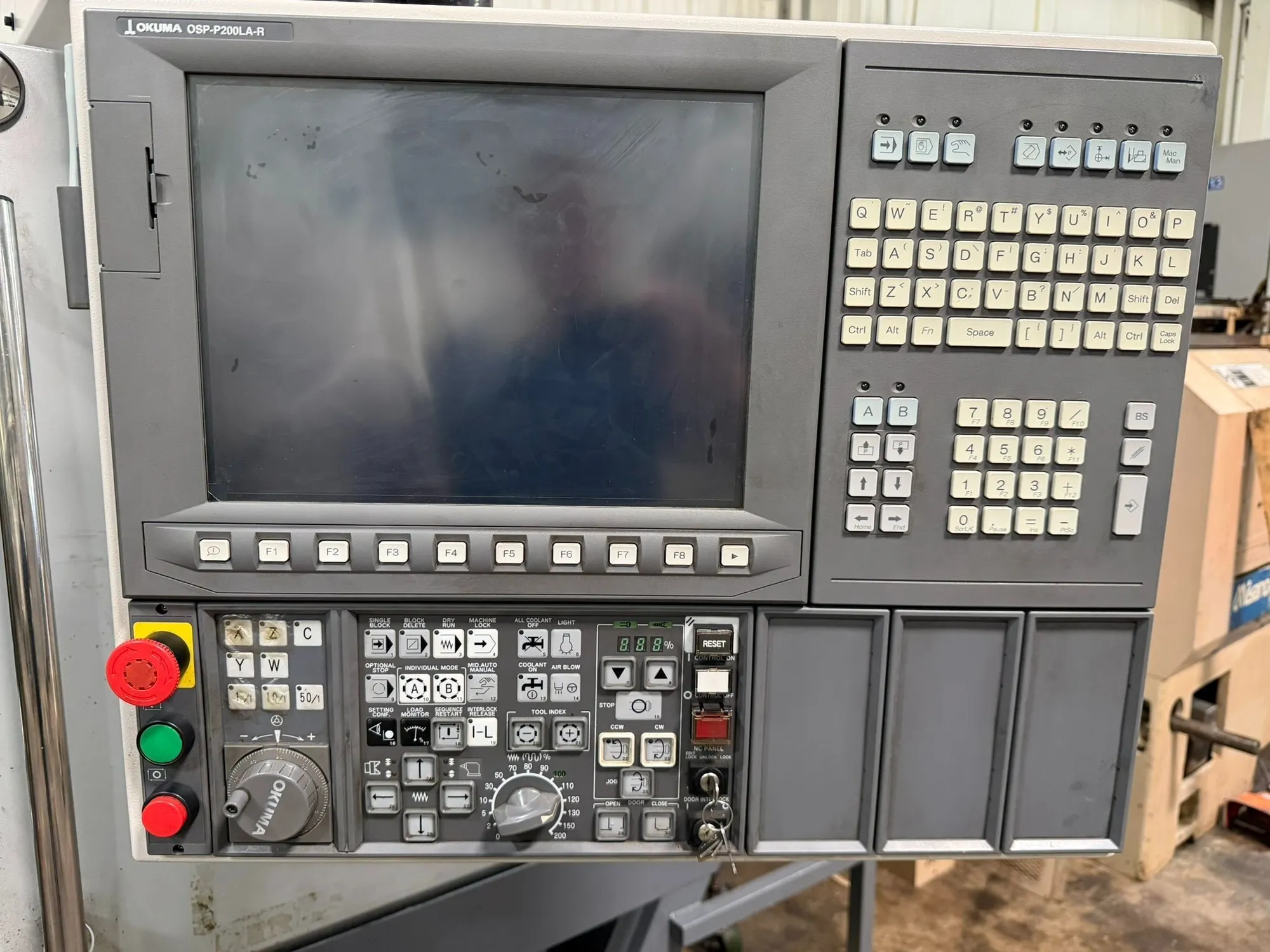

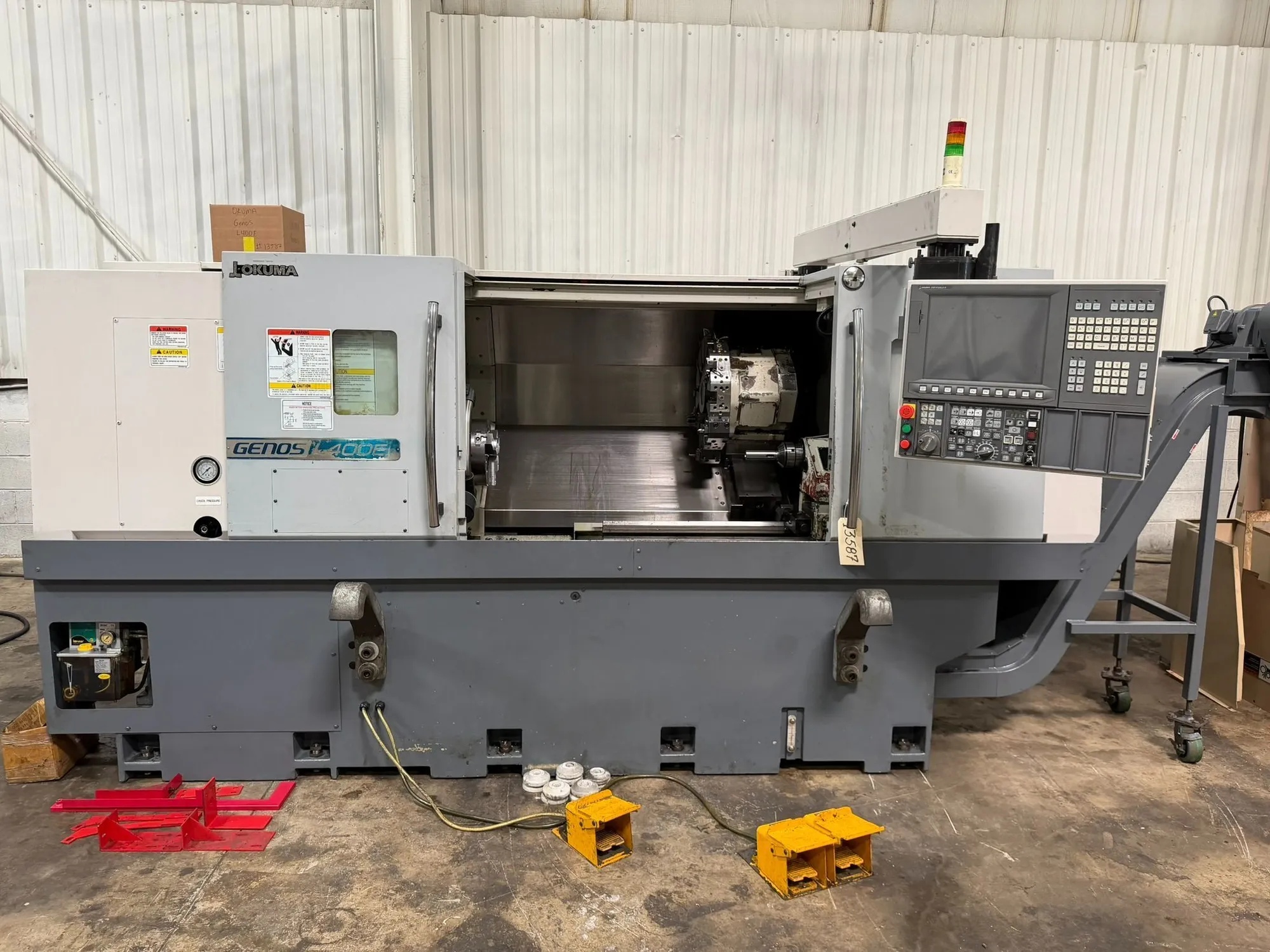

THE 2012 OKUMA GENOS L400E IS A 2-AXIS CNC TURNING CENTER EQUIPPED WITH AN OSP-P200L-R CONTROL SYSTEM. THIS MACHINE FEATURES A 20.47-INCH SWING OVER BED AND A MAXIMUM TURNING DIAMETER OF 15.35 INCHES, WITH A CENTER DISTANCE OF 43.30 INCHES. THE SPINDLE IS POWERED BY A 20 HP MOTOR, PROVIDING A MAXIMUM SPEED OF 3,000 RPM THROUGH AN A2-8 SPINDLE NOSE AND A 3.14-INCH SPINDLE BORE. IT INCLUDES A 10-INCH 3-JAW CHUCK AND A 12-POSITION TURRET FOR TOOL MOUNTING. AXIS TRAVELS ARE SPECIFIED AT 8.66 INCHES FOR THE X-AXIS AND 20.47 INCHES FOR THE Z-AXIS, WITH RAPID TRAVERSE RATES REACHING 787 IPM AND 985 IPM RESPECTIVELY. ADDITIONAL TECHNICAL COMPONENTS INCLUDE A TAILSTOCK, A TOOL SETTER, A COOLANT SYSTEM, AND A CHIP CONVEYOR. THE TOTAL MACHINE WEIGHT IS APPROXIMATELY 10,150 POUNDS.
