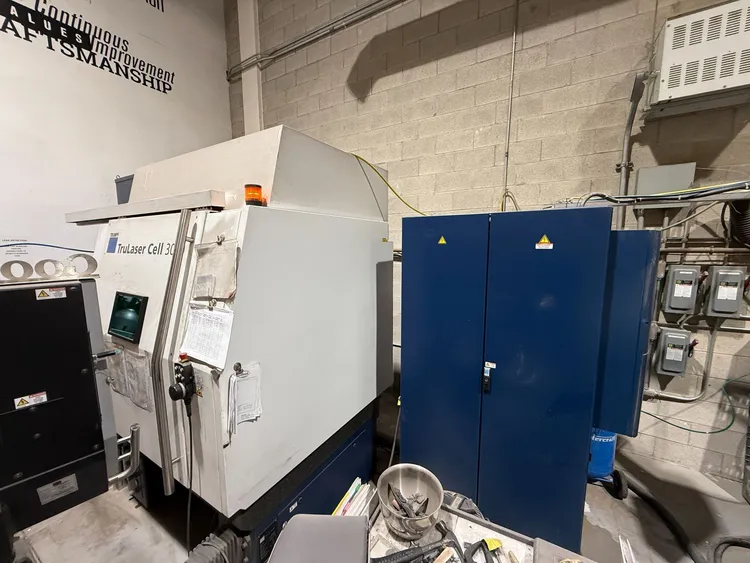

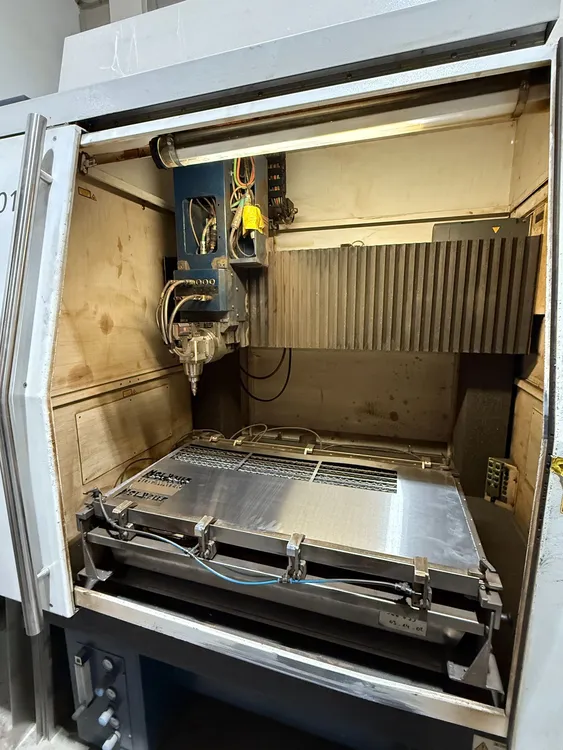

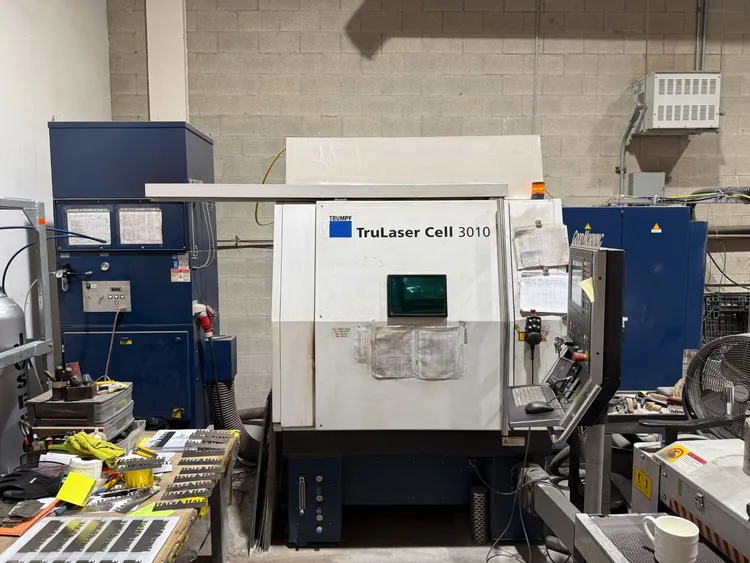

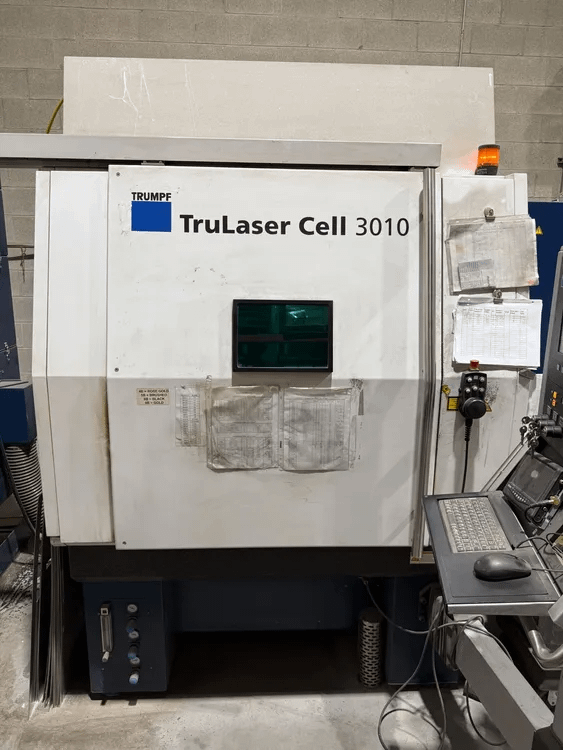

2012 TRUMPF TRULASER CELL 3010 LASER SYSTEM 5-AXIS 1000W 1070NM 1000X500X400MM

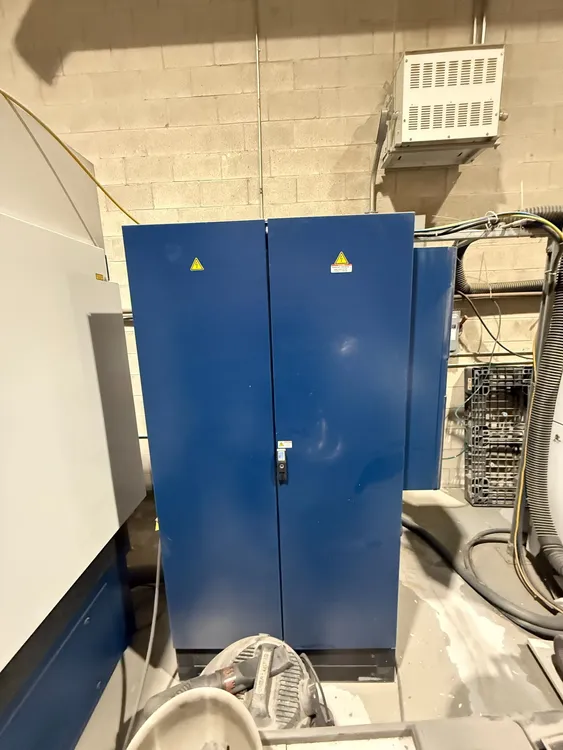

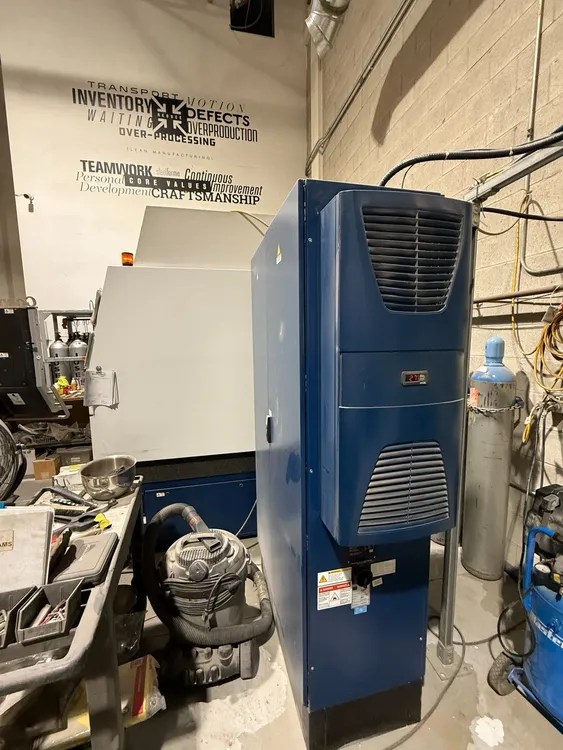

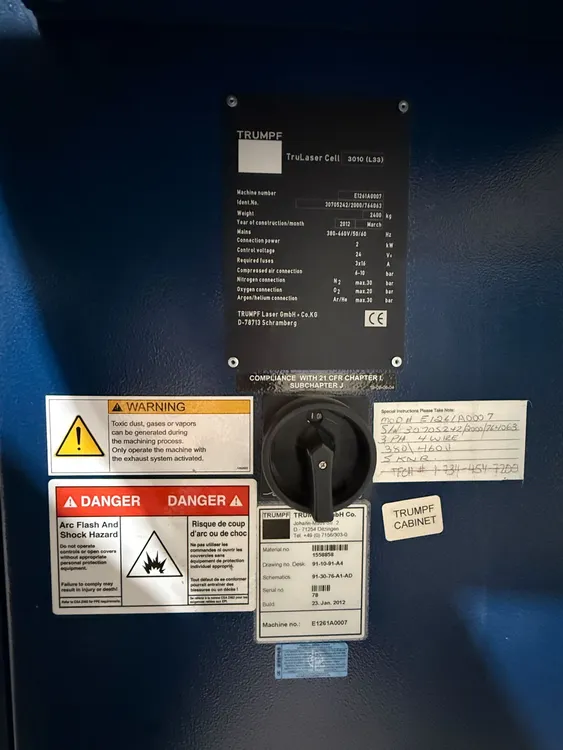

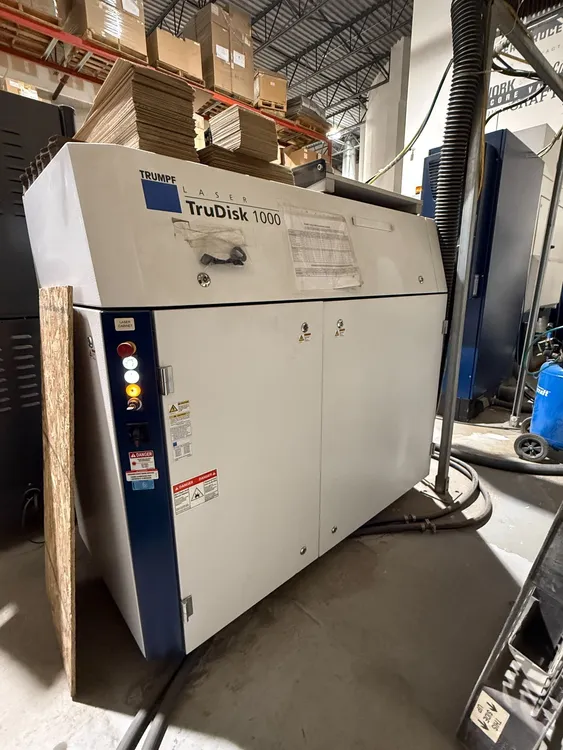

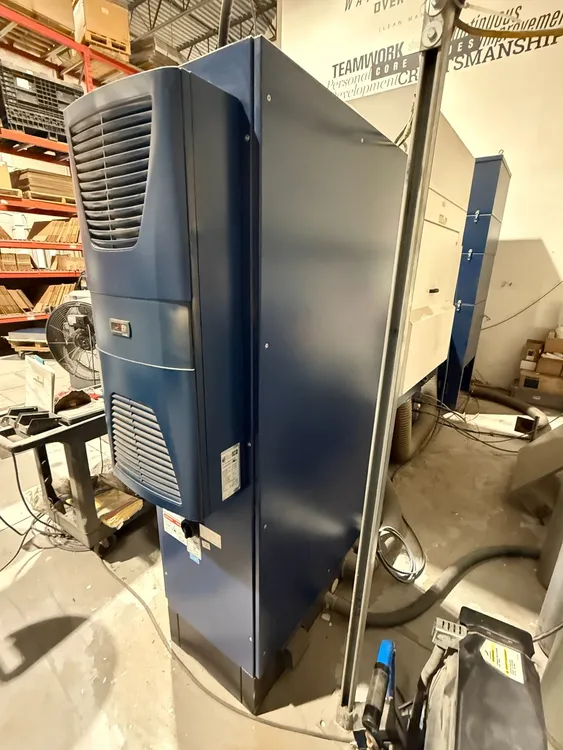

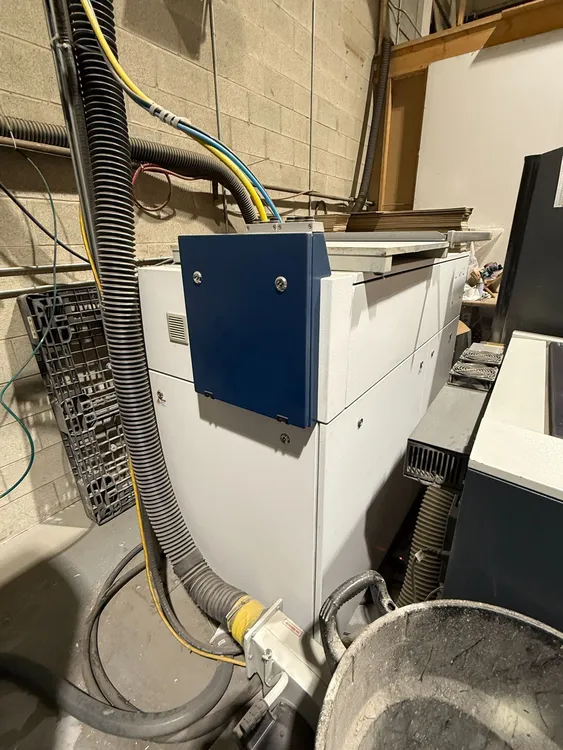

THE 2012 TRUMPF TRULASER CELL 3010 (L33) IS A 5-AXIS LASER SYSTEM (X/Y/Z + B ±120° + C CONTINUOUS) OPERATING AT A WAVELENGTH OF 1070 ± 10 NM. THE MACHINE IS POWERED BY 380-460V 50/60HZ AND FEATURES AN ELECTRICAL LOAD OF 2 KW WITH A 3 × 16 A FUSE RATING. WORKING DIMENSIONS ARE 1000 × 500 × 400 MM (XYZ). MOTION ACCURACY INCLUDES A LINEAR ACCURACY OF ± 0.015 MM AND A ROTARY (B AXIS) ACCURACY OF ± 0.02°. SPEEDS FOR THE LINEAR AXES ARE 50/50/30 M/MIN (X/Y/Z), WHILE ROTARY SPEEDS ARE ~120 MIN⁻¹ FOR THE B AXIS AND ~750 MIN⁻¹ FOR THE C AXIS. THE SYSTEM INCLUDES A TRUMPF TRUDISK 1000, RIEDEL CHILLER, TRUMPF ELECTRICAL CABINET, AND AN AIR EXTRACTOR. THE UNIT HAS A WEIGHT OF 2400 KG AND MACHINE DIMENSIONS OF 95'' X 105'' X 100''.
