2013 CMS ARES 4818 PX5 Z1200 CNC ROUTER, 5-AXIS, 189" X, 18,000 RPM, 20 HP

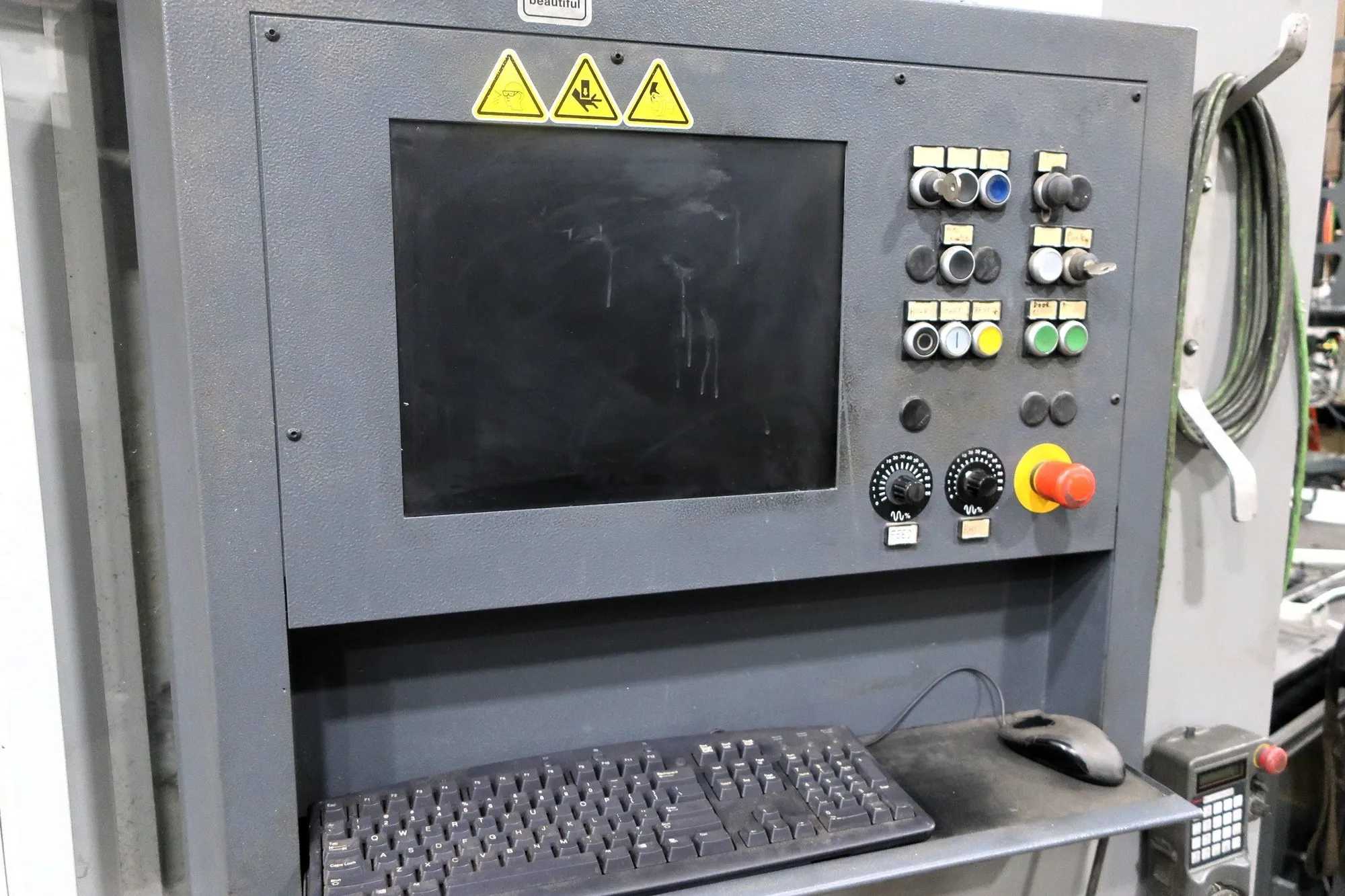

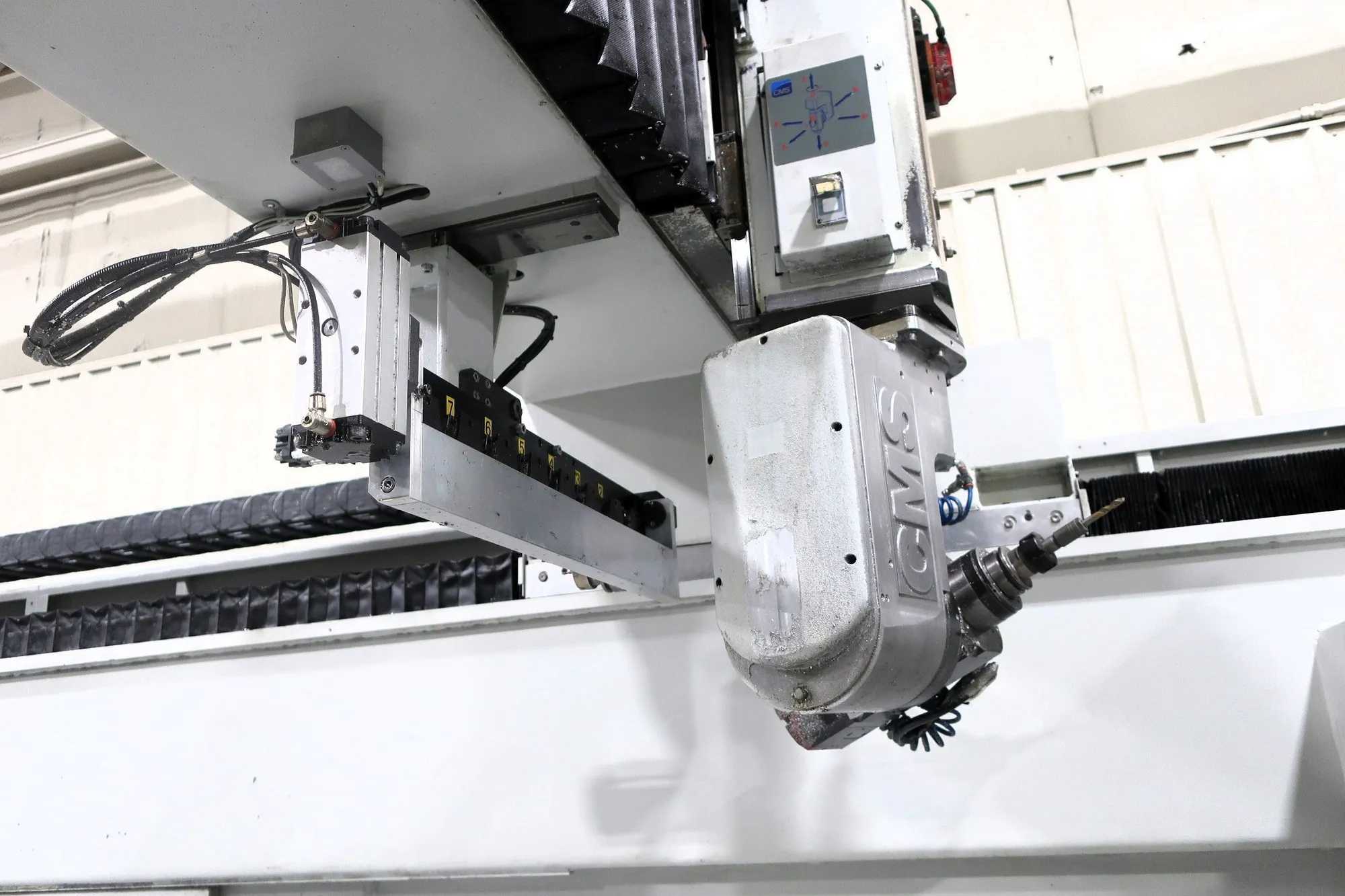

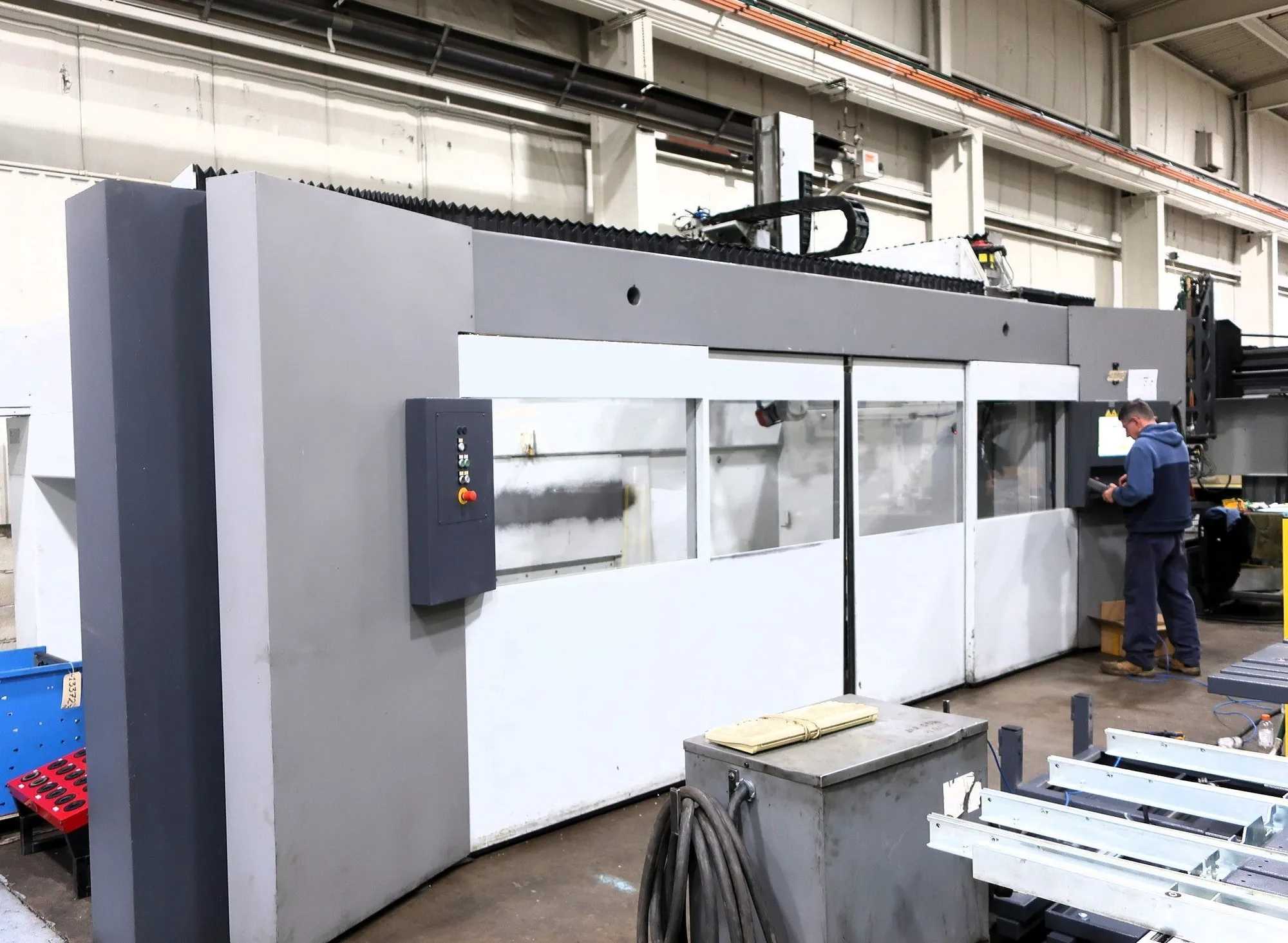

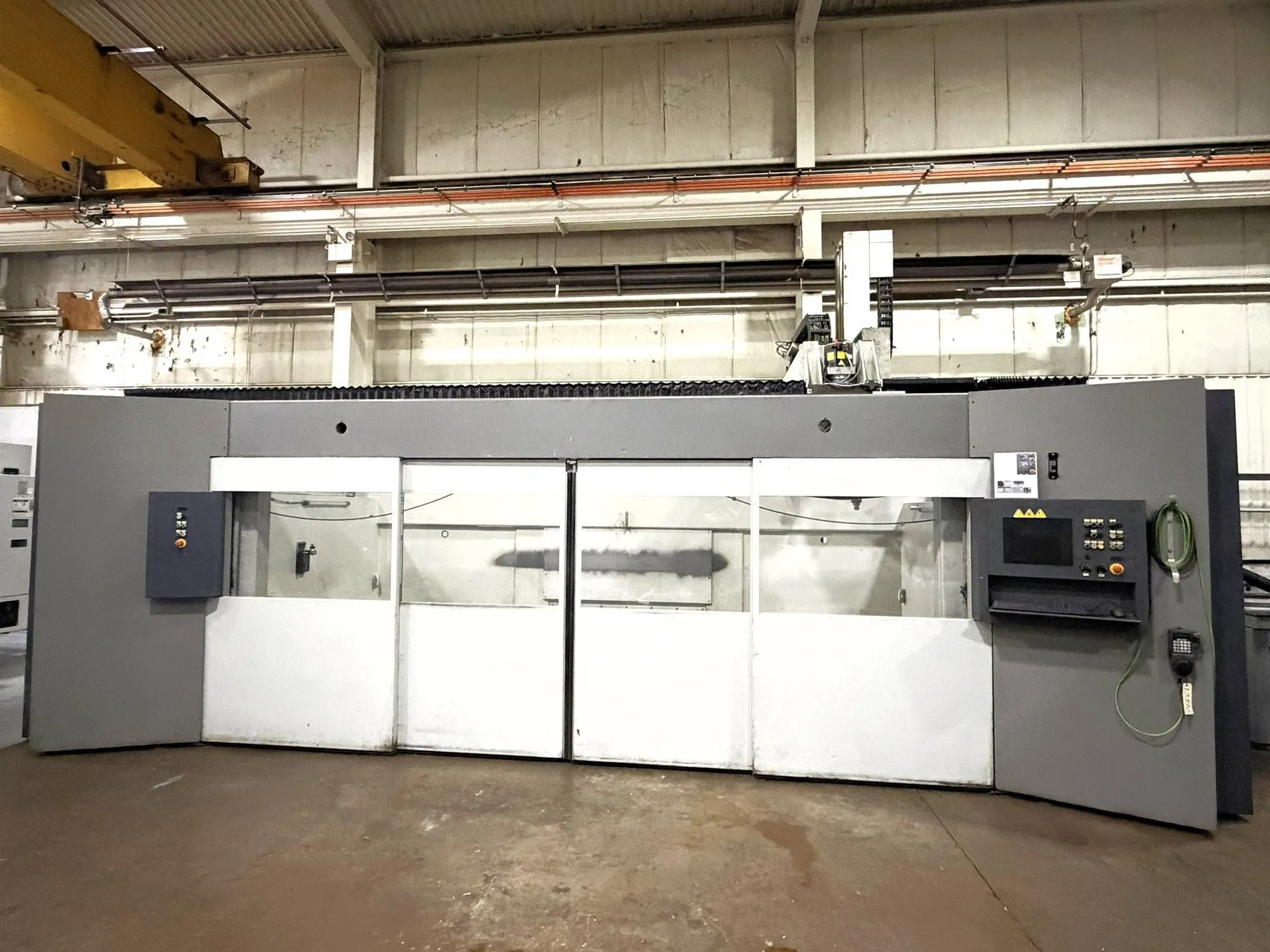

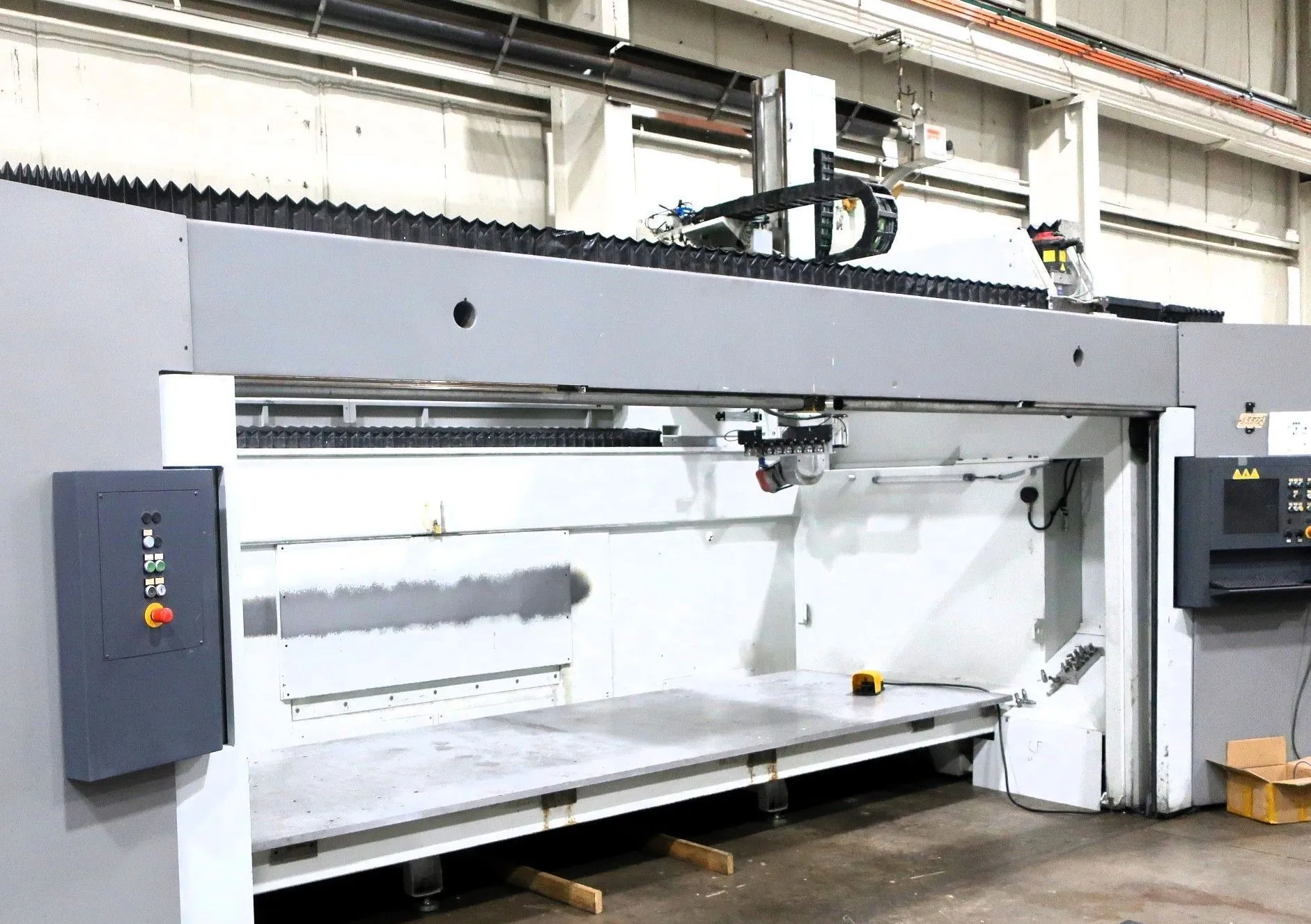

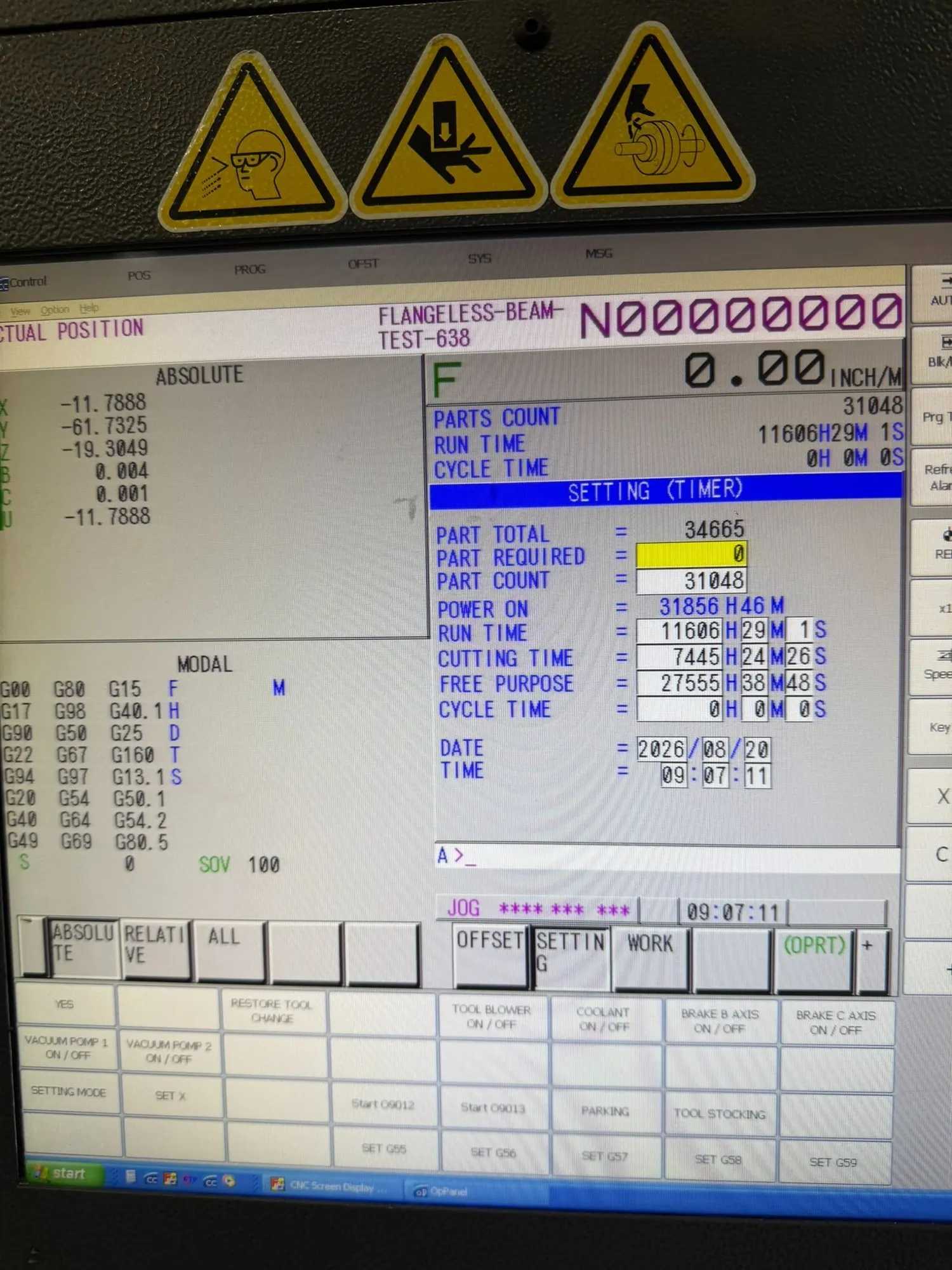

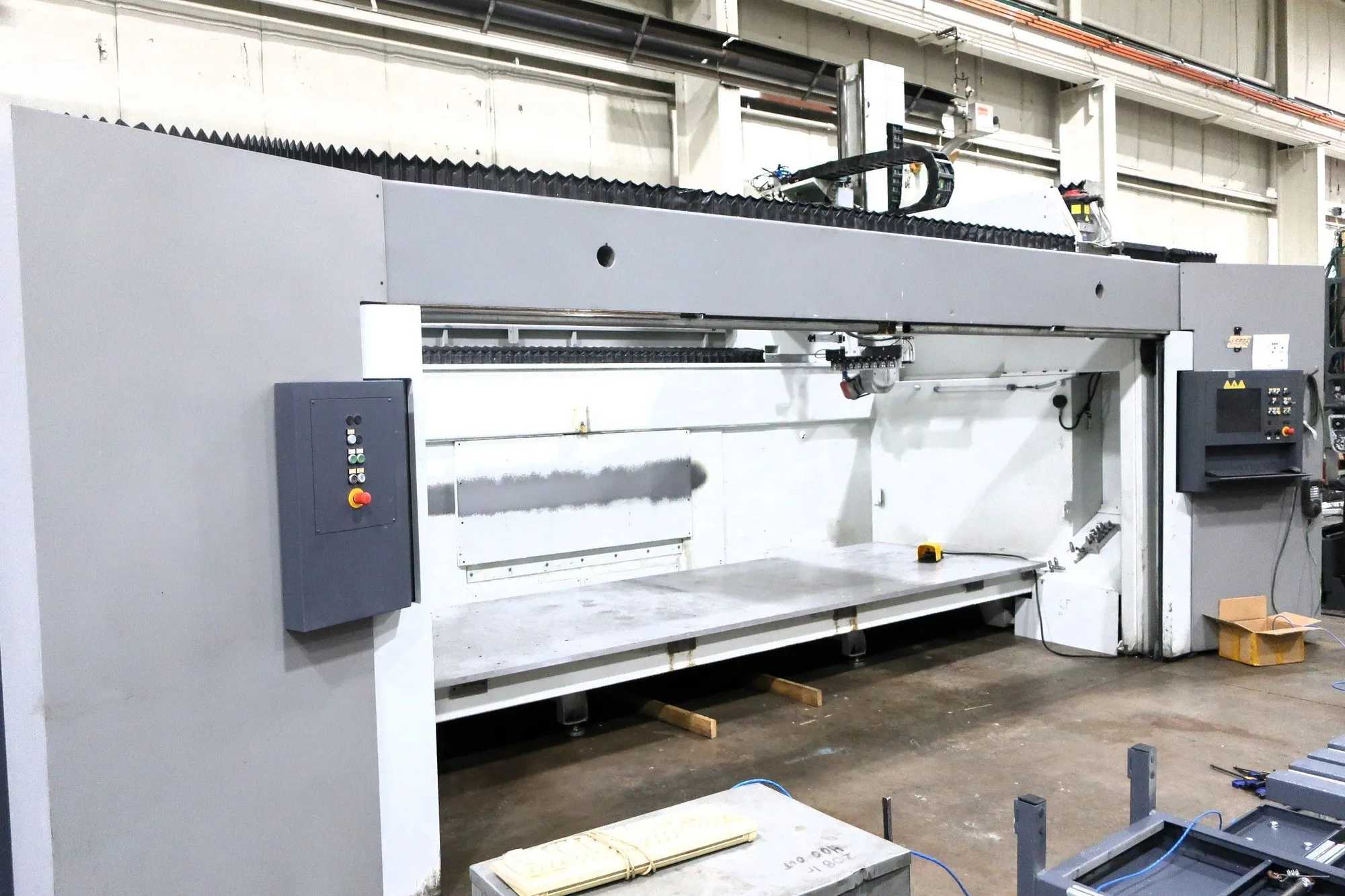

THE CMS ARES 4818-PX5-Z1200 IS A 5-AXIS CNC GANTRY ROUTER MANUFACTURED IN 2013, DESIGNED FOR AEROSPACE MACHINING APPLICATIONS, FEATURING AXIS TRAVELS OF 4800 MM (189 INCHES) IN X, 1800 MM (71 INCHES) IN Y, AND 1200 MM (47.3 INCHES) IN Z, ALONG WITH A B-AXIS RANGE OF ±120 DEGREES AND A C-AXIS RANGE OF ±270 DEGREES; THE MACHINE IS EQUIPPED WITH A VACUUM TABLE MEASURING 192 INCHES BY 53.3 INCHES, A 20 HP SPINDLE OPERATING AT 18,000 RPM, AND AN 8-POSITION TOOL CHANGER; IT INCLUDES A FANUC 31I-A5 CONTROL SYSTEM, RENISHAW TS30 TOOL SETTER, AND IS CONFIGURED AS A GANTRY-TYPE MILLING MACHINE SUITABLE FOR HIGH-PRECISION AND COMPLEX MULTI-AXIS MACHINING OPERATIONS.
