2013 DMG MORI CTX GAMMA 2000 CNC Lathe - 2500 RPM, 25.59" X-Axis, 80.7" Z-Axis

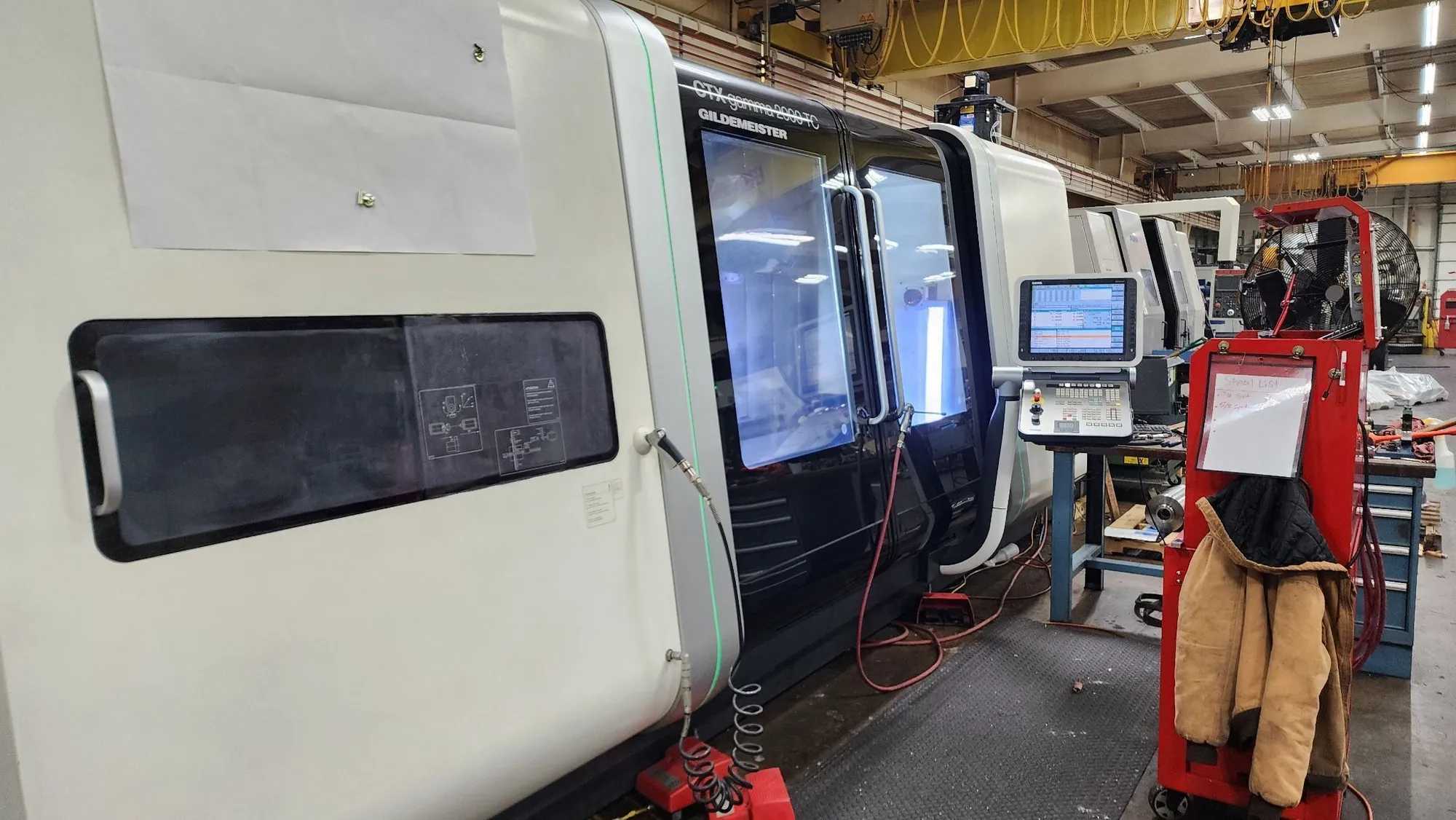

The DMG MORI CTX GAMMA 2000 TC is a 2013 CNC lathe model designed for handling large-scale manufacturing projects with high precision. This machine accommodates heavy-duty workpieces, featuring a maximum workpiece diameter capacity of 27.6 inches, a maximum workpiece length of 78.74 inches, and a maximum bar capacity of 4.1 inches. To deliver precise control across complex machining operations, the CTX GAMMA 2000 TC offers multi-axis positioning capability. Its travel specifications include an X1-axis travel range of 25.59 inches, a Y1-axis travel range of +/-7.87 inches, and a Z1-axis travel range of 80.70 inches. Additionally, the machine features a Z2-axis travel of 75.19 inches and a Z3-axis travel of 75.19 inches. Angular orientation and complex contouring are supported via a B-axis with a precision resolution of +/- 0.001 degrees. This CNC lathe comes configured with robust holding and tooling setups to maximize production flexibility. It is equipped with an 18-inch chuck and an integrated tailstock for secure workpiece support during operation. Its comprehensive tool storage system provides 120 tool positions utilizing an HSK tool attachment system, and it includes approximately 120 tool holders.
