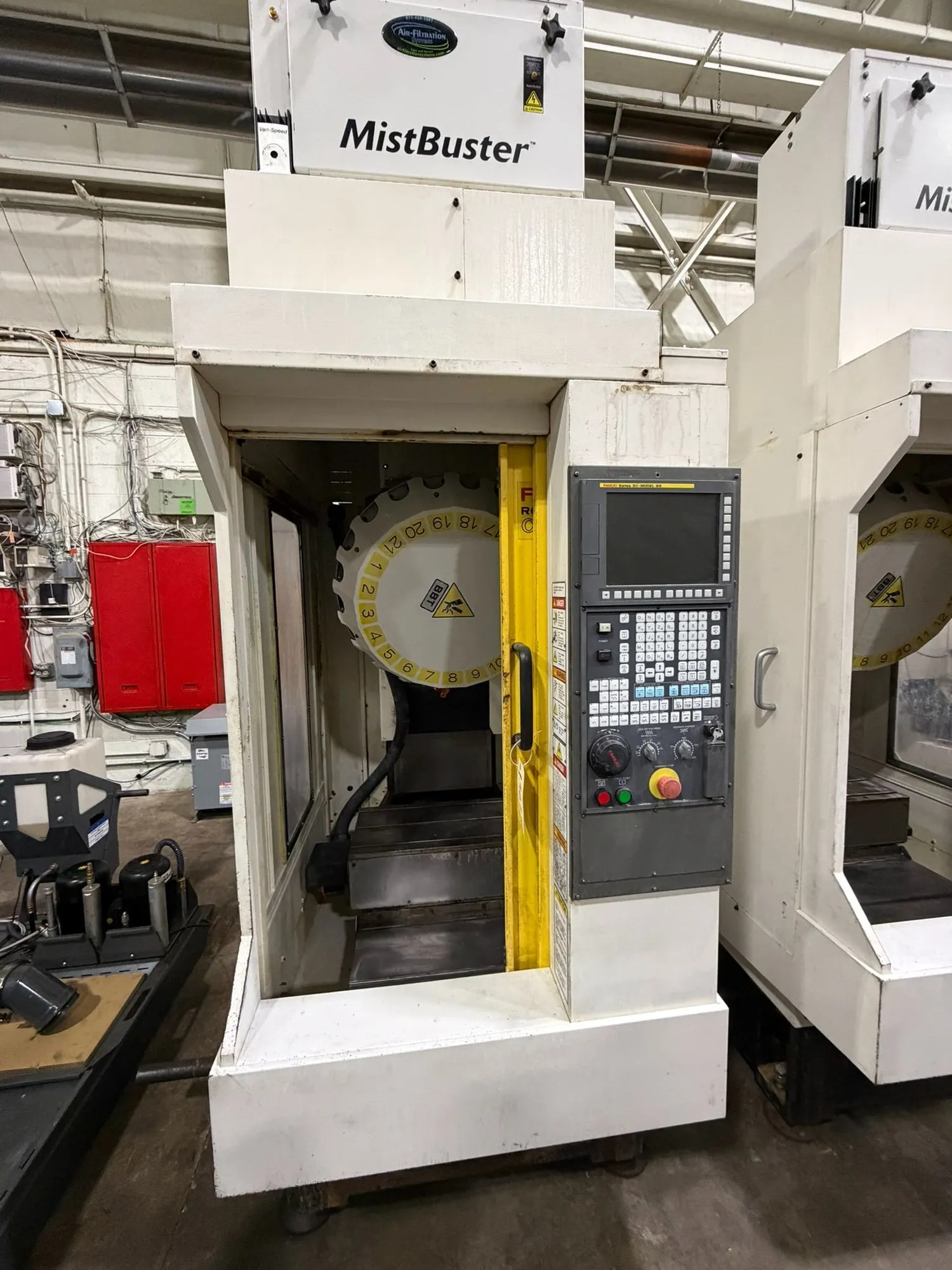

2013 FANUC ROBODRILL A-D21SIB5 VMC, 3-AXIS, 24,000 RPM, BT30, 21 ATC, FANUC 31I

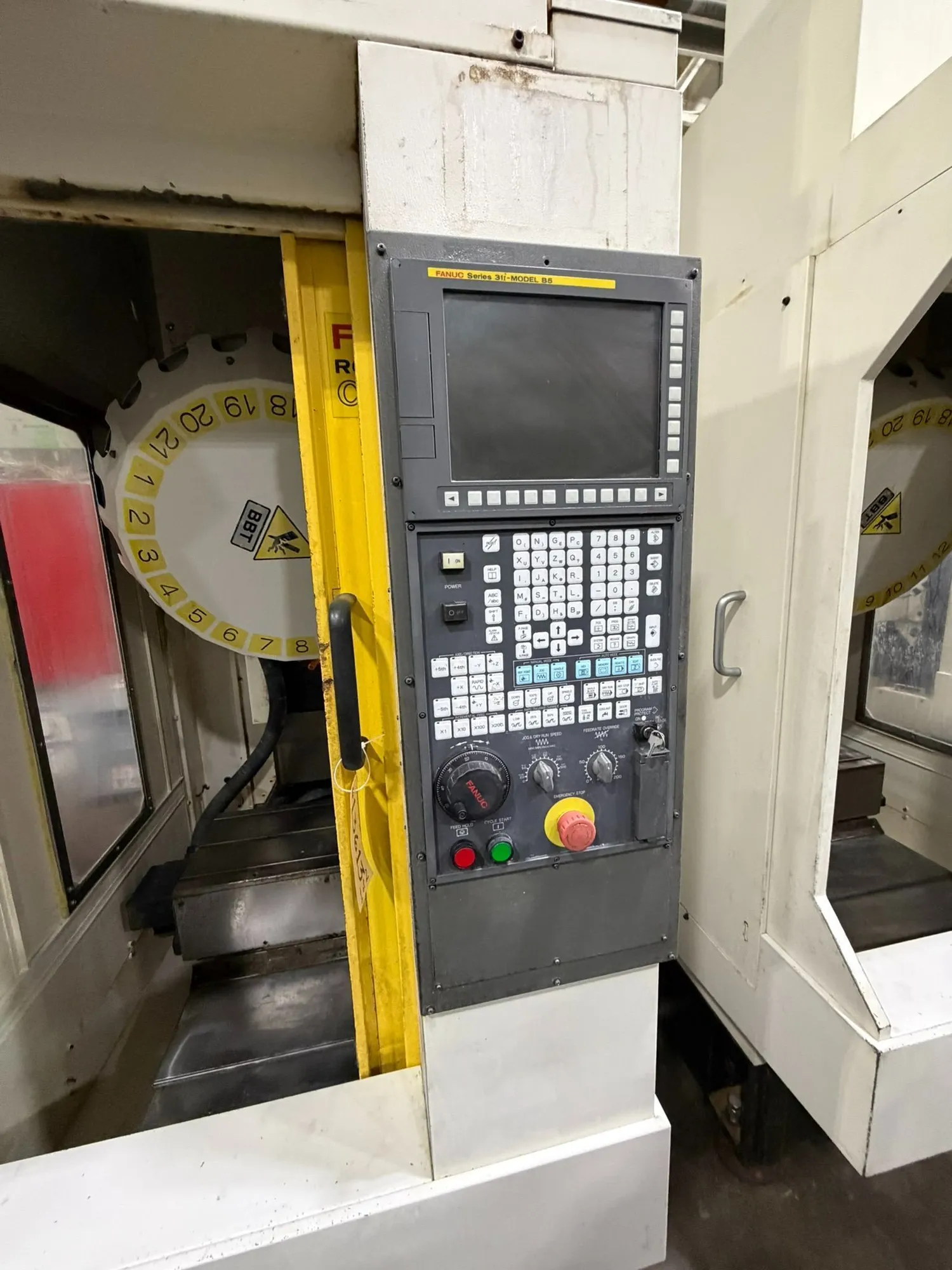

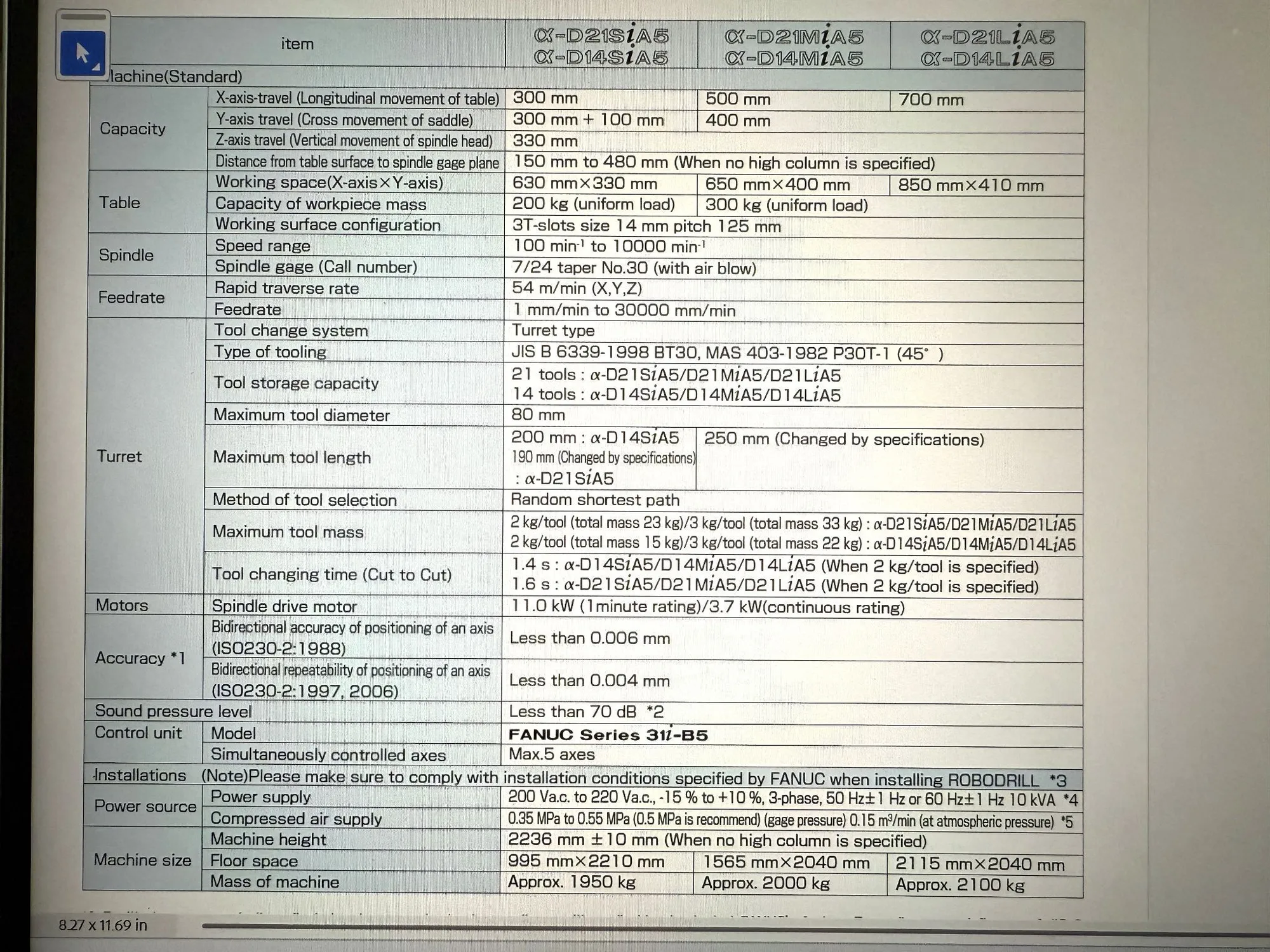

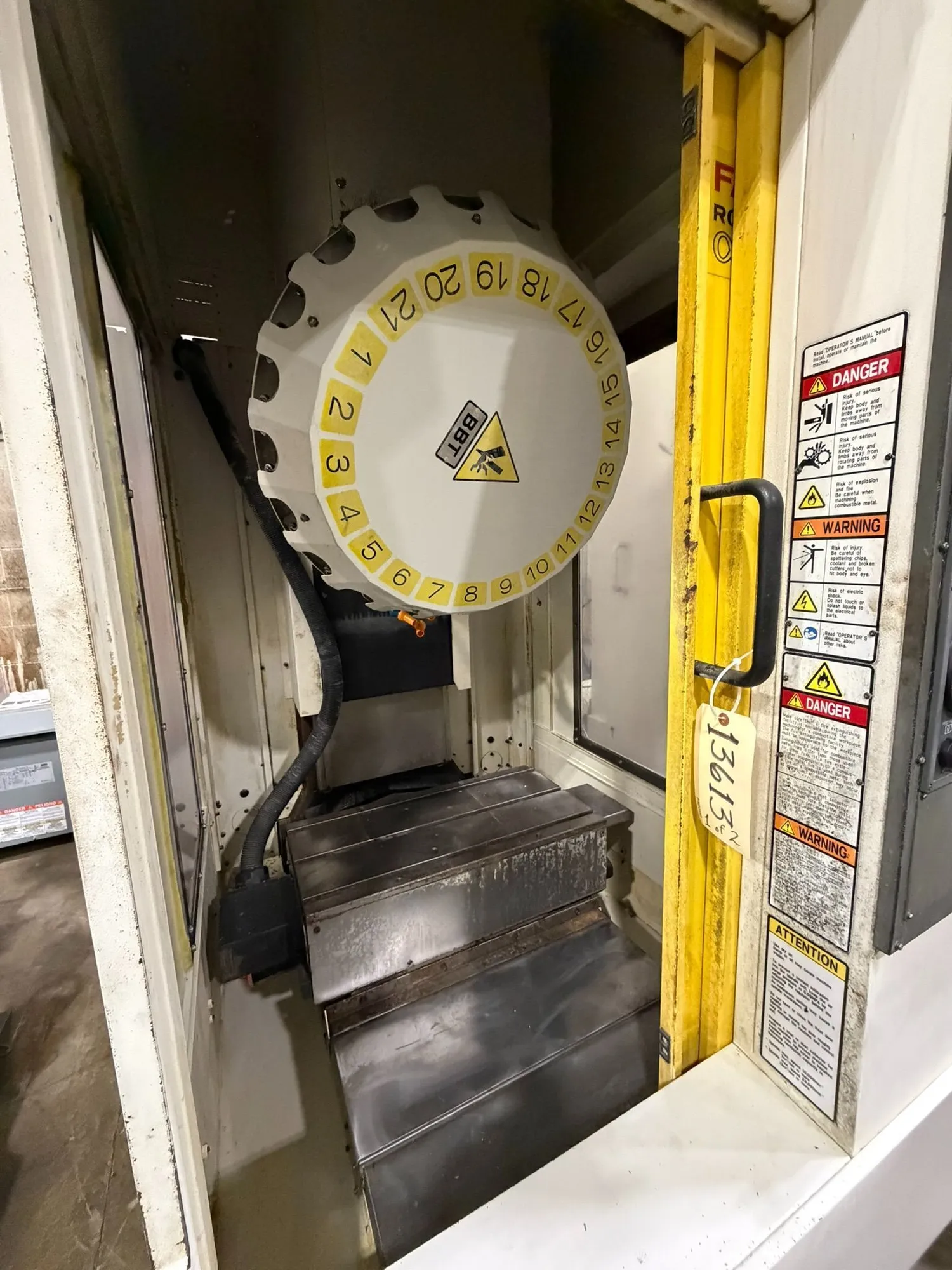

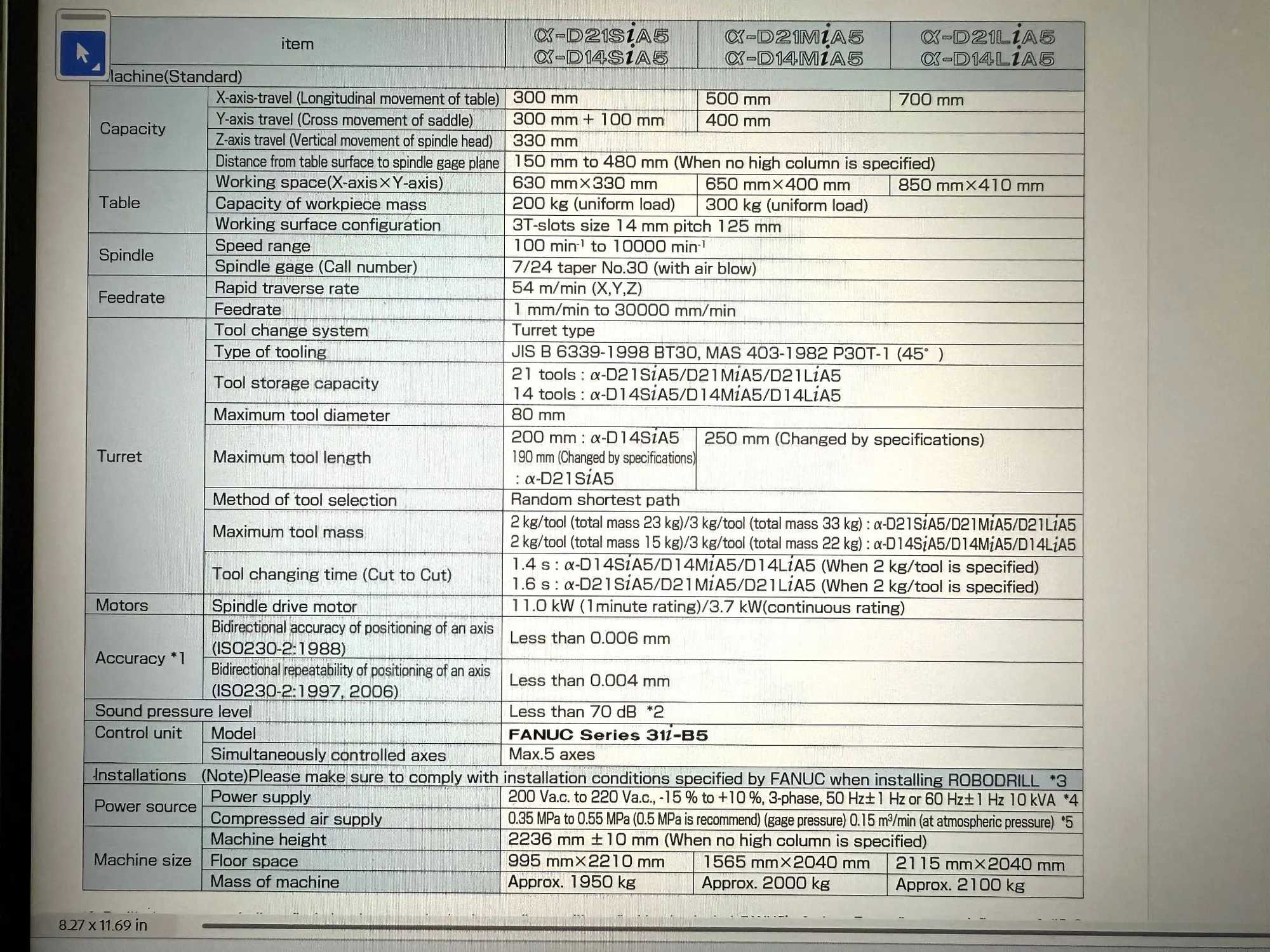

THE FANUC ROBODRILL A-D21SIB5 IS A 3-AXIS CNC DRILL TAP VERTICAL MACHINING CENTER MANUFACTURED IN 2013, EQUIPPED WITH A FANUC 31I CNC CONTROL SYSTEM AND A 21-POSITION BI-DIRECTIONAL AUTOMATIC TOOL CHANGER; THE MACHINE FEATURES AXIS TRAVELS OF 300 MM (11.8 INCHES) IN X, 400 MM (15.7 INCHES) IN Y, AND 330 MM (13.0 INCHES) IN Z, WITH A TABLE SIZE OF 630 MM X 330 MM (24.8 INCHES X 13.0 INCHES) AND A LOAD CAPACITY OF 200 KG; IT IS EQUIPPED WITH A BT30 DIRECT-DRIVE SPINDLE CAPABLE OF SPEEDS RANGING FROM 200 TO 24,000 RPM, SUPPORTING RIGID TAPPING UP TO 8,000 RPM AND DELIVERING HIGH TORQUE PERFORMANCE; RAPID TRAVERSE RATES REACH 2,125 IPM ACROSS ALL AXES WITH FEED RATES UP TO 1,181 IPM AND ACCELERATION OF 1.5 G; THE MACHINE INCLUDES A 200-LITER COOLANT TANK, CHIP SPLASH GUARD, AND AUTOMATIC LUBRICATION SYSTEM; THE 21-POSITION ATC PROVIDES TOOL-TO-TOOL CHANGE TIMES OF 0.9 SECONDS AND CHIP-TO-CHIP TIMES OF 1.6 SECONDS; ADDITIONAL FEATURES INCLUDE AI CONTOUR CONTROL I, NANO CNC SYSTEM, HIGH-RESOLUTION ENCODERS WITH 32,000,000 PULSES PER REVOLUTION, THERMAL GROWTH COMPENSATION, HRV3 PLUS, SMART BACKLASH COMPENSATION, RIGID TAPPING, THREAD MILLING, HELICAL AND LINEAR INTERPOLATION, CANNED DRILLING CYCLES (G73, G74, G81–G89), CUSTOM MACRO B, 2 MB PROGRAM STORAGE, 1,000 REGISTERABLE PROGRAMS, 6+48 WORK OFFSETS, COORDINATE SYSTEM ROTATION AND SETTING (G68/G69, G92), SKIP FUNCTION (G31), BACKGROUND EDITING, DYNAMIC GRAPHIC DISPLAY, SPINDLE RPM AND LOAD MONITORING, MANUAL HANDLE FEED, SIMULTANEOUS ATC AND TABLE POSITIONING, CUSTOM PMC, AND OPERATOR INTERFACE WITH ALPHANUMERIC KEYBOARD.
