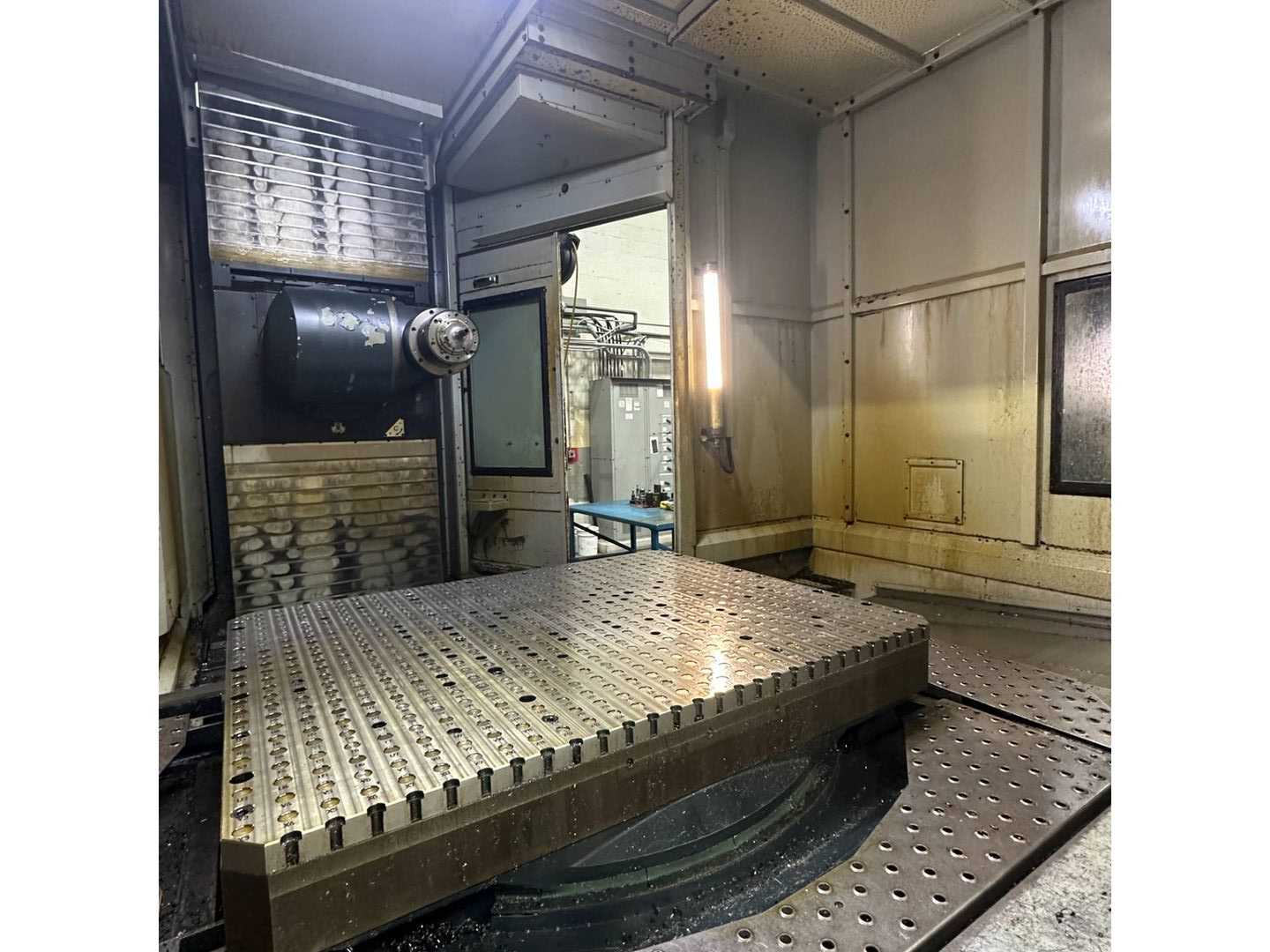

2013 MAKINO MCC2013-VG CNC 5-AXIS HORIZONTAL MACHINING CENTER

Power Requirements: 220V, 150A, 3Ph GENERAL CNC Control: Yes Type of CNC Control: Professional 5 # of Axis: 6 Table Size 59'' x 47.2 (1500mm x 1200mm) Max Table Load: 22,046 lbs TRAVEL DISTANCES: X-Axis (Cross Travel): 78.7 inches (2,000 mm) Y-Axis (Vertical Travel): 51.2 inches (1,300 mm) Z-Axis (Longitudinal Travel): 51.2 inches (1,300 mm) SPINDLE SPECIFICATIONS: Type: 3+2 Axis Speed Range: 5 to 12,000 RPM Power: 40 HP (29 kW) Taper: HSK-A100 A-Axis Rotation (Spindle Tilt): -30° to +30° C-Axis Rotation (Spindle Head Rotation): ±185° C-Axis Indexing: 0.001° increments FEED RATES: Rapid Traverse (X, Y, Z): 787 inches per minute (20,000 mm/min) Cutting Feed Rate: 787 inches per minute (20,000 mm/min) CONTROL SYSTEM: CNC Control: Makino Pro 5 (Fanuc Series 30i) ADDITIONAL FEATURES: Through-Spindle Coolant: 1,000 PSI Renishaw OMP60 Probe Moire Scale Feed Back System X,Y,Z Axis (0.1 Micron Resolution) Full 4th Axis Built in Rotary Table 0.0001 Degree Super GI Makino Control Function Mist Collector Lift Up Type Chip Conveyor Flood Coolant Data Server 2 Range Spindle Gear Selection Automatic Non-Contact Blum Tool Laser Pick-Up (Pop Up Type) Portable Manual Pulse Generator (600) Macro Common Variables High Speed Smooth TCP Data Center Storage: 360 MB 99 Total Tool Offsets Inch Metreic Selection Rigid Tapping Standard
