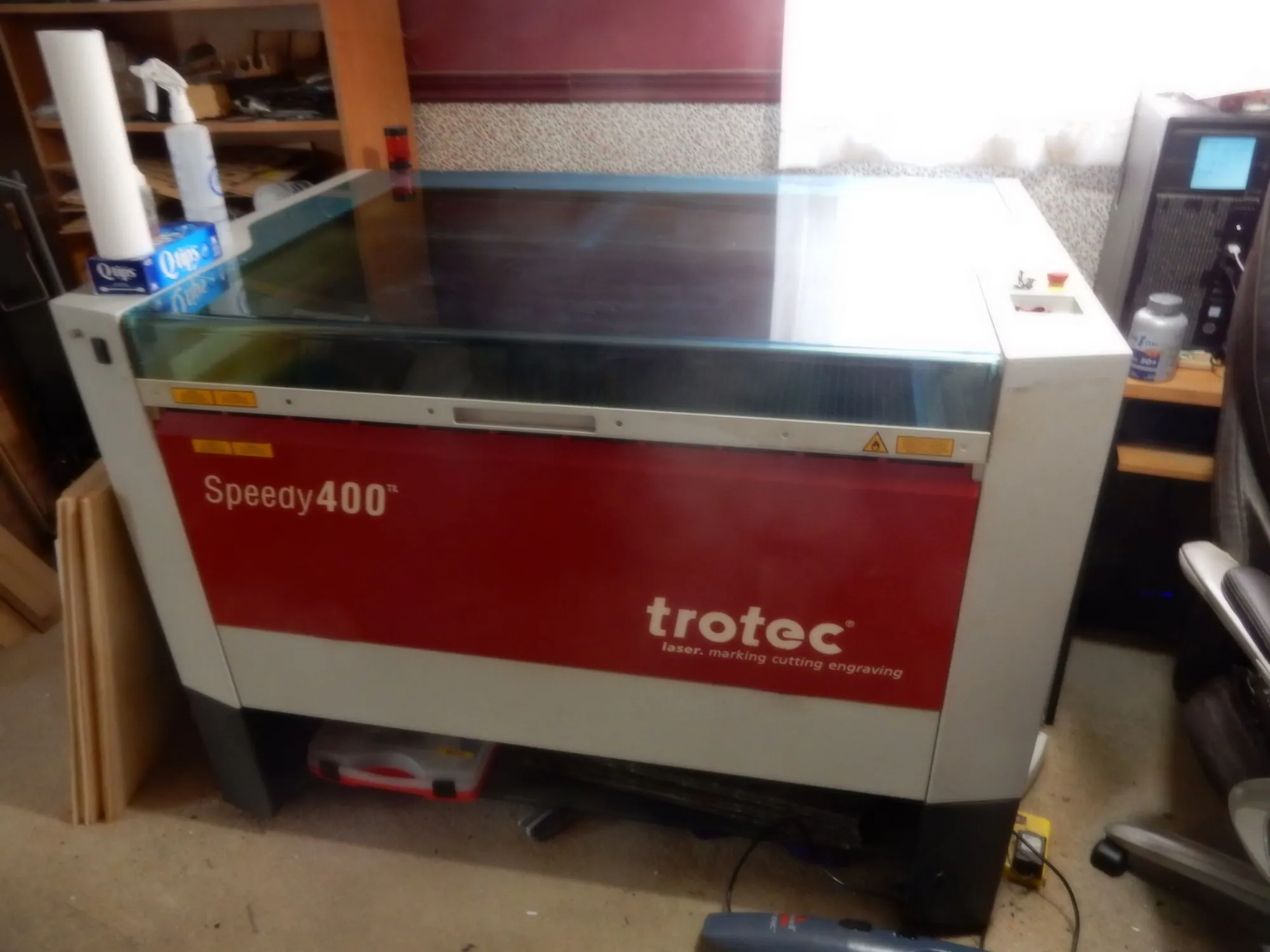

2013 TROTEC SPEEDY 400 CO₂ LASER ENGRAVER/CUTTER 80W 10.6ΜM 1016X610MM 4.32M/S

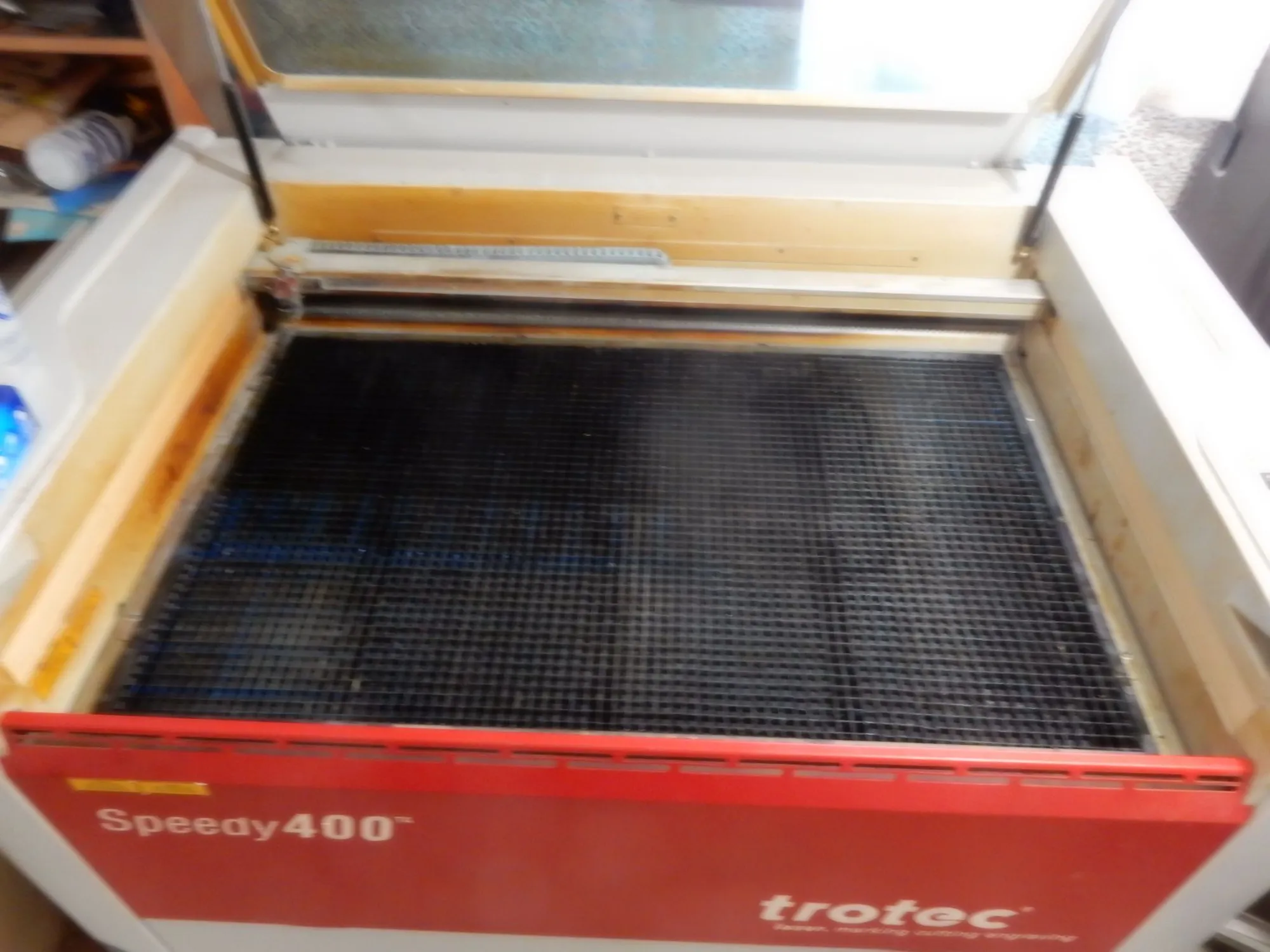

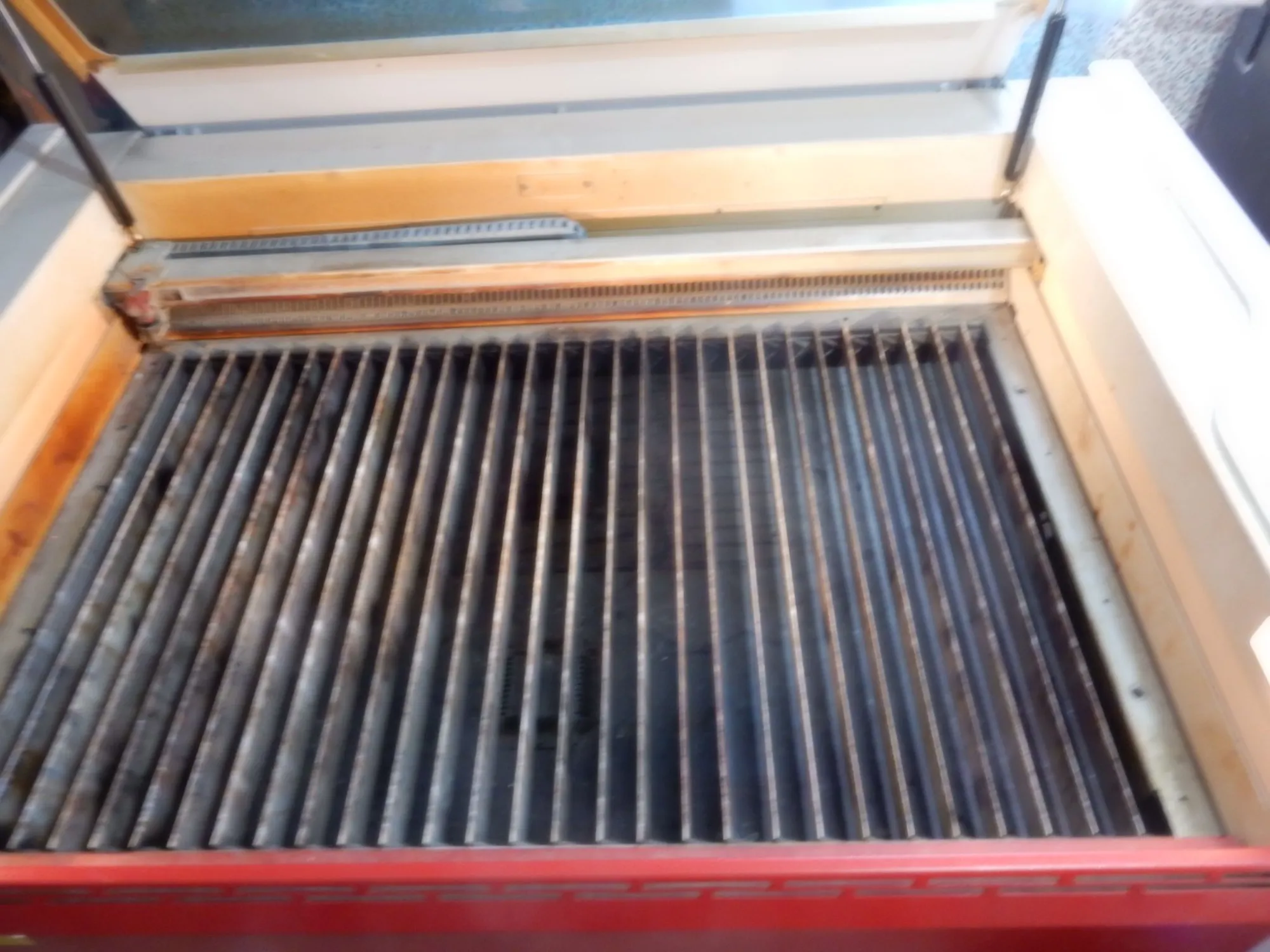

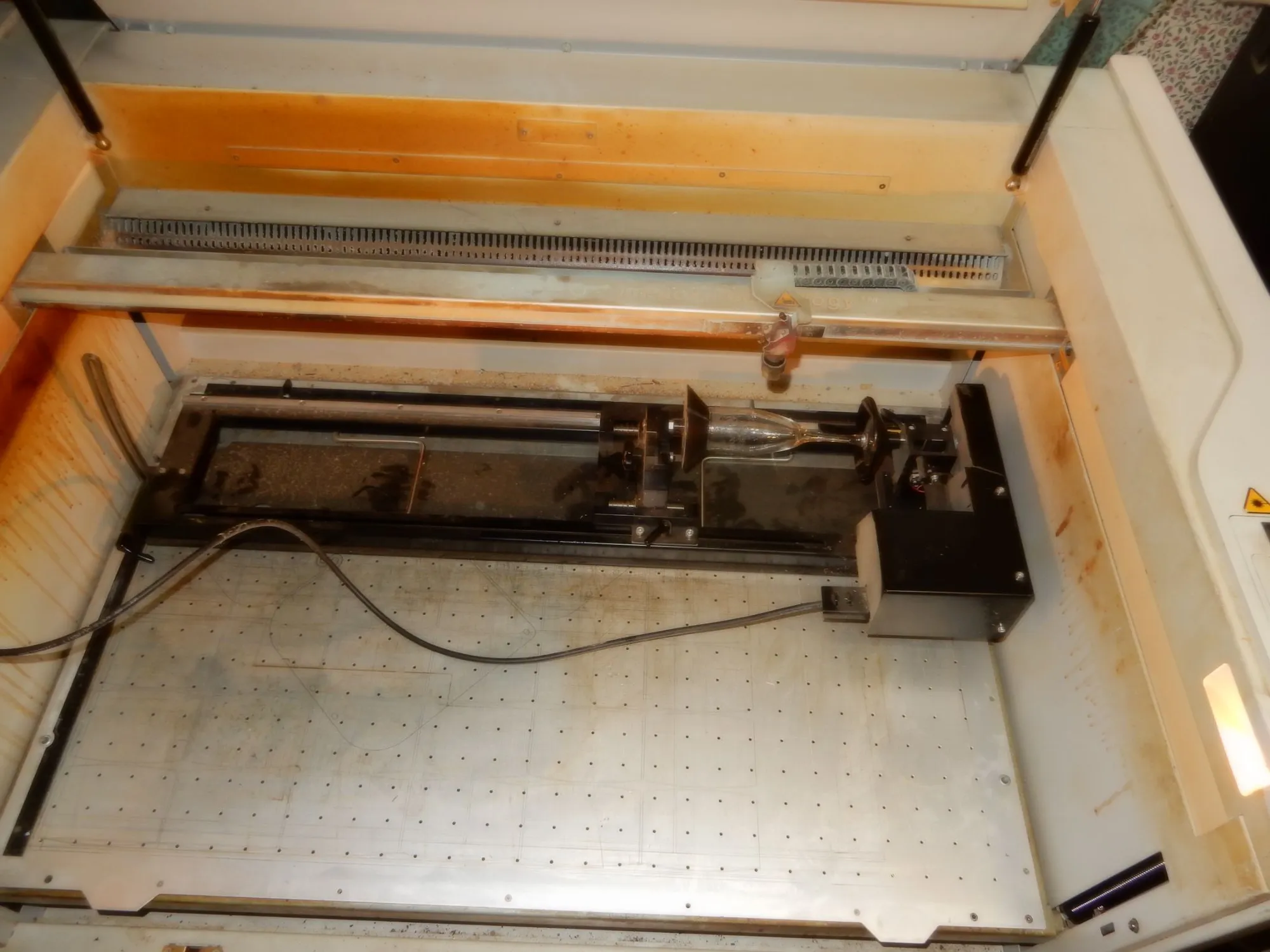

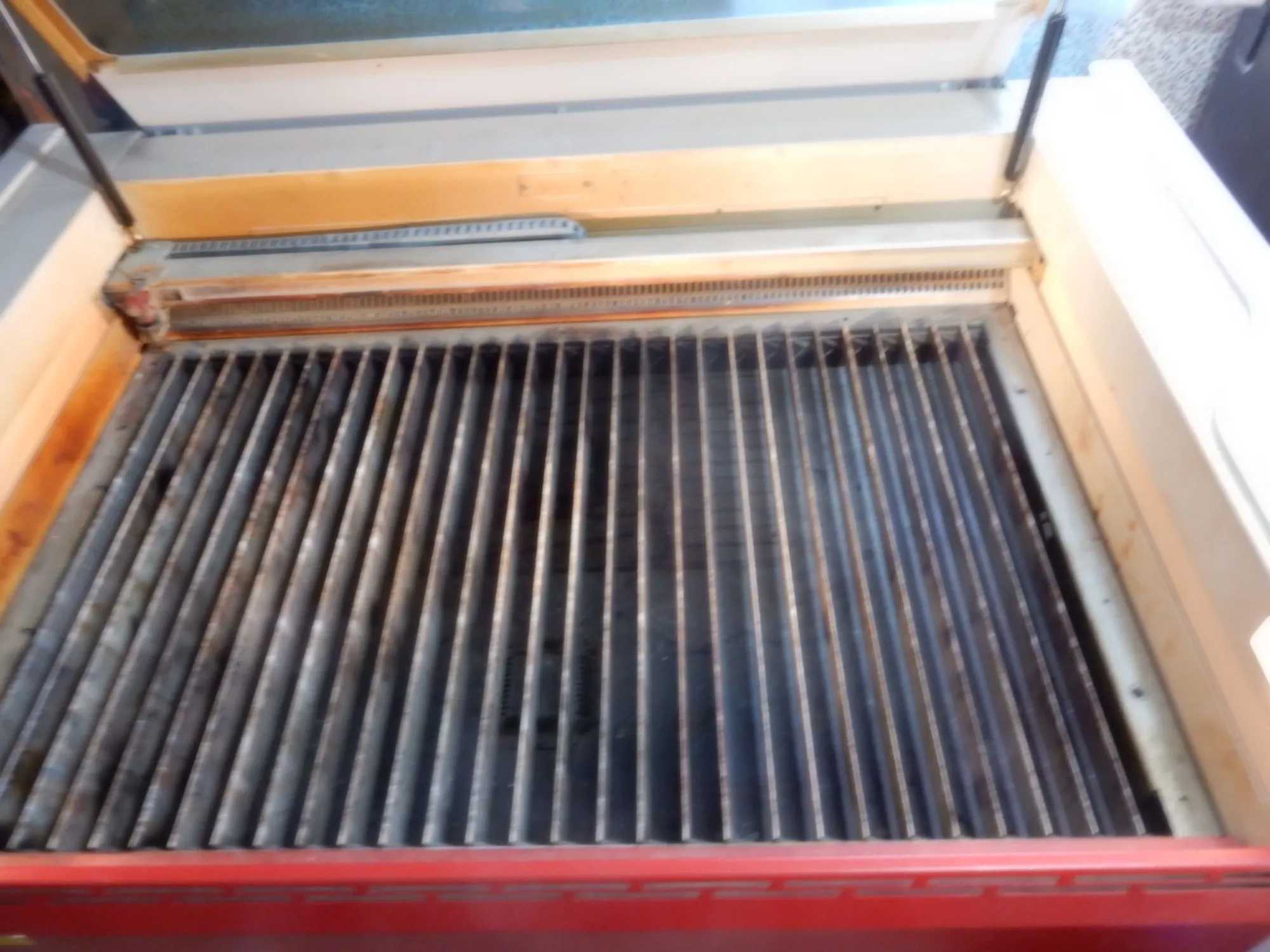

THE TROTEC SPEEDY 400 CO₂ LASER ENGRAVER/CUTTER IS A HIGH-PERFORMANCE SYSTEM, WITH THIS SPECIFIC UNIT MANUFACTURED IN MARCH 2013. IT FEATURES AN 80-WATT SEALED-OFF CO₂ LASER SOURCE OPERATING AT A 10.6 ΜM WAVELENGTH AND IS POWERED BY 115V, 50/60HZ ELECTRICITY. THE STANDARD WORKING AREA MEASURES 1016 X 610 MM (40 X 24 INCHES), WITH A MAXIMUM WORKPIECE HEIGHT OF 305 MM (12 INCHES). IT UTILIZES BRUSHLESS DC SERVO MOTORS TO ACHIEVE A MAXIMUM PROCESSING SPEED OF 4.32 M/S (170 IPS) AND ACCELERATION OF 50 M/S² (1969 IPS²). THE MACHINE INCORPORATES A MULTIFUNCTIONAL TABLE CONCEPT, INCLUDING A CUTTING GRID BED, FLAT BED, AND LAMELLA BAR BED, TO OPTIMIZE PROCESSING FOR DIVERSE MATERIALS SUCH AS SOLID WOODS, THIN FILMS, AND ACRYLICS. OPTICS SUPPLIED INCLUDE 2-INCH AND 4-INCH LENSES, AND THE SYSTEM IS EQUIPPED WITH A ROTARY ENGRAVING ATTACHMENT FOR PROCESSING CYLINDRICAL OBJECTS. THE MACHINE'S OVERALL DIMENSIONS ARE APPROXIMATELY 67 INCHES WIDE BY 45 INCHES DEEP BY 42 INCHES HIGH, WITH A TOTAL WEIGHT OF APPROXIMATELY 900 LBS.
