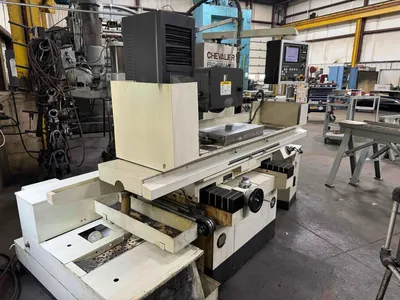

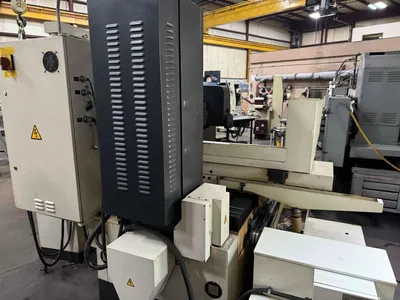

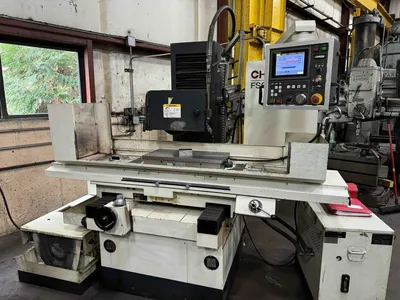

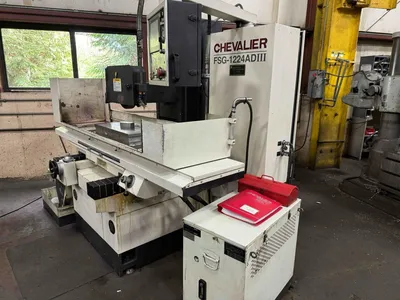

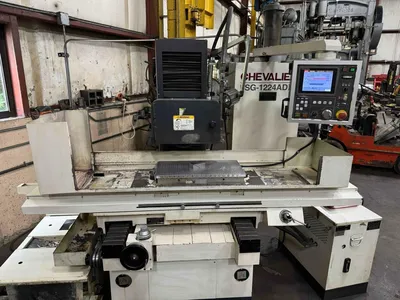

2014 CHEVALIER FSG-1224ADIII 3-AXIS FULLY AUTOMATIC CNC SURFACE GRINDER

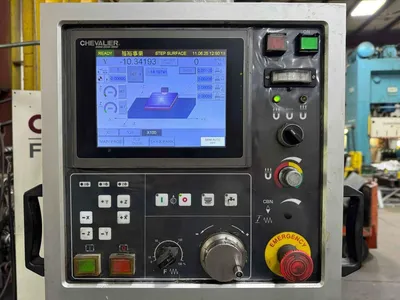

THE 2014 CHEVALIER FSG-1224ADIII IS A 3-AXIS FULLY AUTOMATIC CNC SURFACE GRINDER FEATURING A PLC TOUCHSCREEN CONTROL. IT ACCOMMODATES A TABLE SIZE OF 11.8 INCHES BY 23.6 INCHES, OFFERING A MAXIMUM GRINDING LENGTH OF 24 INCHES AND A MAXIMUM GRINDING WIDTH OF 12 INCHES. THE MAXIMUM DISTANCE FROM THE TABLE TO THE SPINDLE CENTERLINE IS 24 INCHES. POWERING THE SYSTEM IS A 5 HP SPINDLE MOTOR. THE MACHINE USES A GRINDING WHEEL WITH DIMENSIONS OF 14 INCHES (OD) BY 2 INCHES (WIDTH) BY 5 INCHES (BORE). THE VARIABLE TABLE SPEED RANGES FROM 16 TO 82 FPM. TRAVEL SPECIFICATIONS INCLUDE 24 3/4 INCHES OF VERTICAL TRAVEL FROM THE TABLE TO THE SPINDLE, 24 INCHES OF LONGITUDINAL TRAVEL, AND 12 INCHES OF CROSS TABLE MOVEMENT. THE SYSTEM IS EQUIPPED WITH A COOLANT AND PAPER FILTER. APPROXIMATE OVERALL DIMENSIONS ARE 116 INCHES BY 59 INCHES BY 77 INCHES HIGH, WITH AN APPROXIMATE WEIGHT OF 5,000 LBS.
