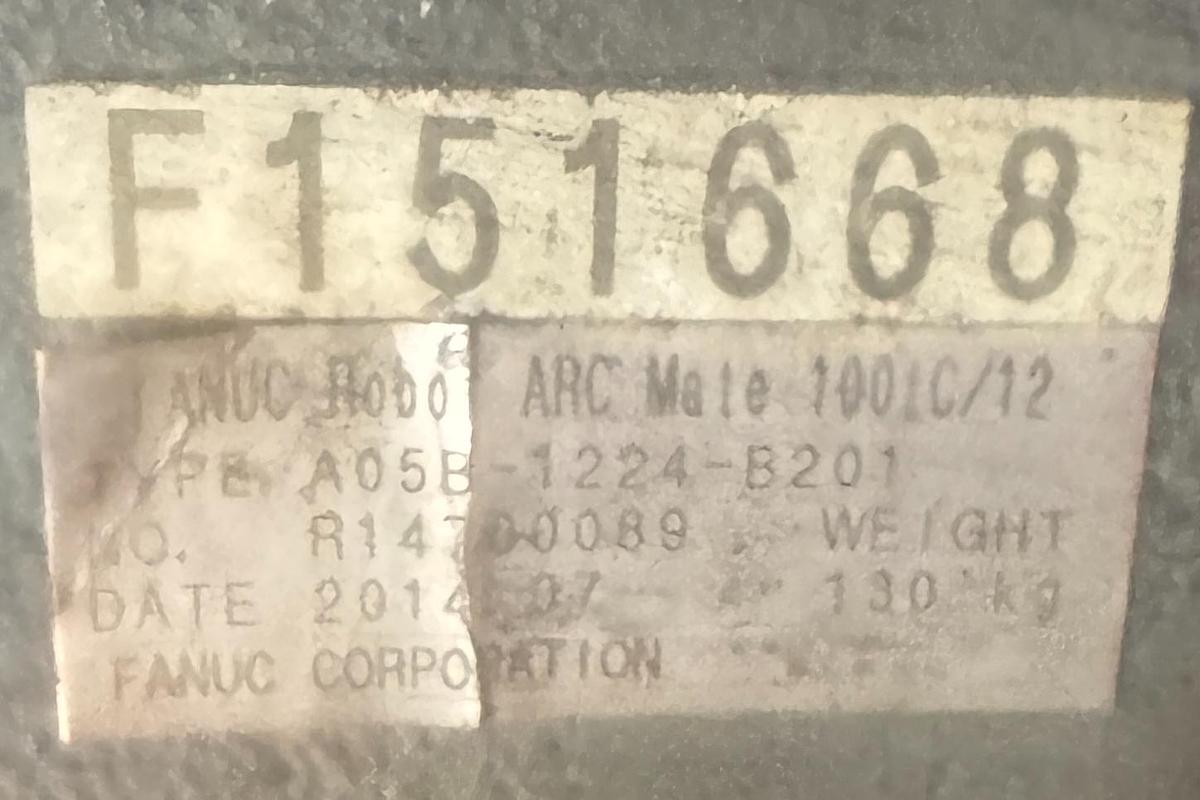

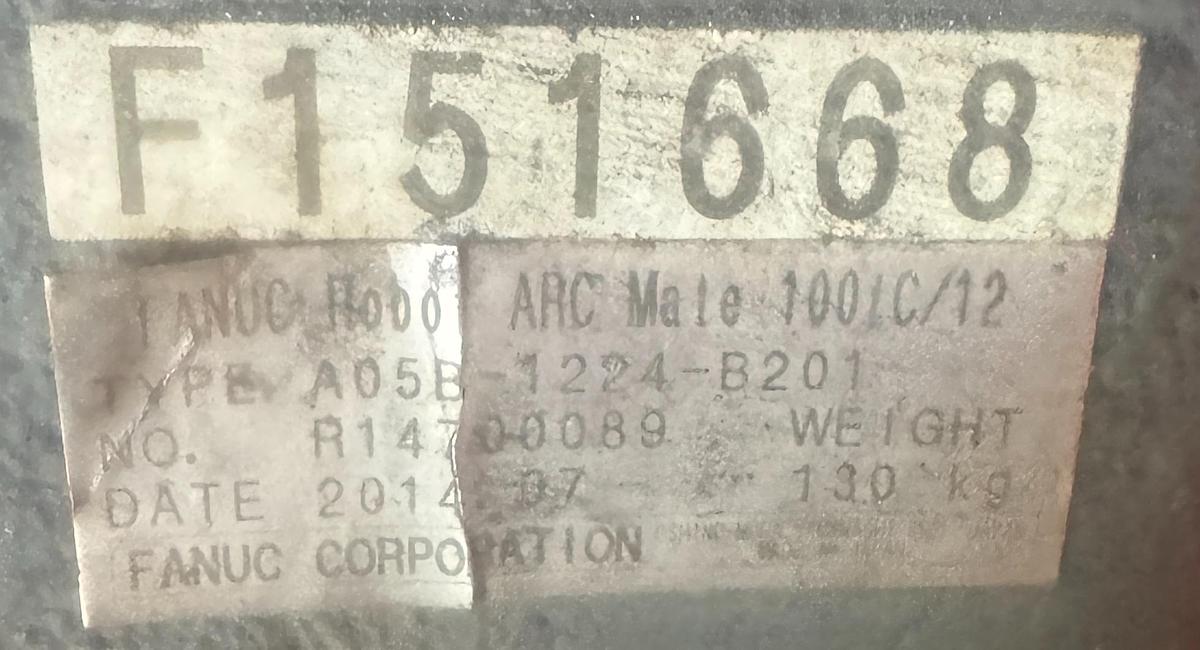

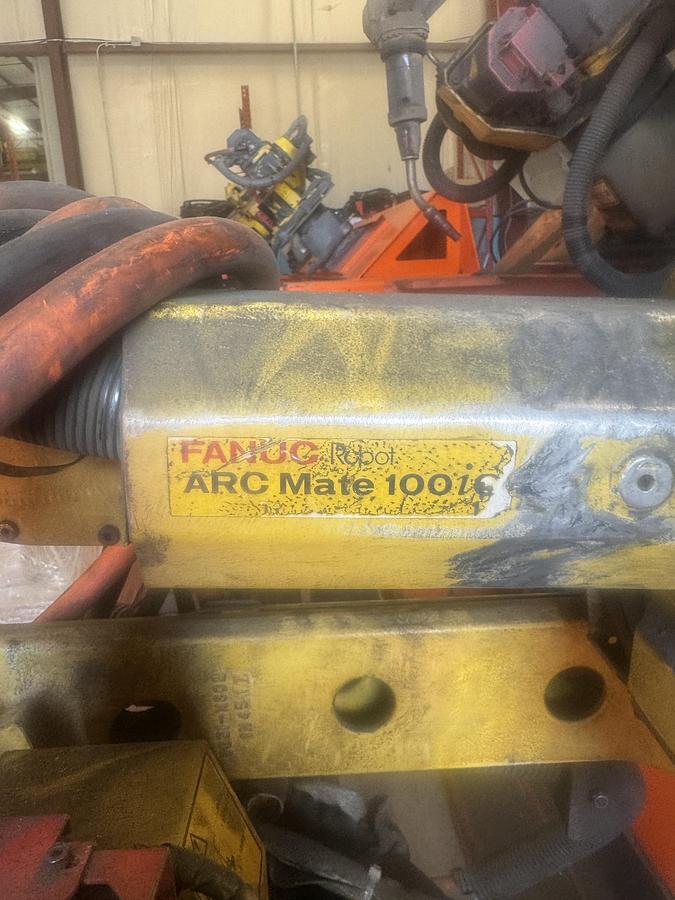

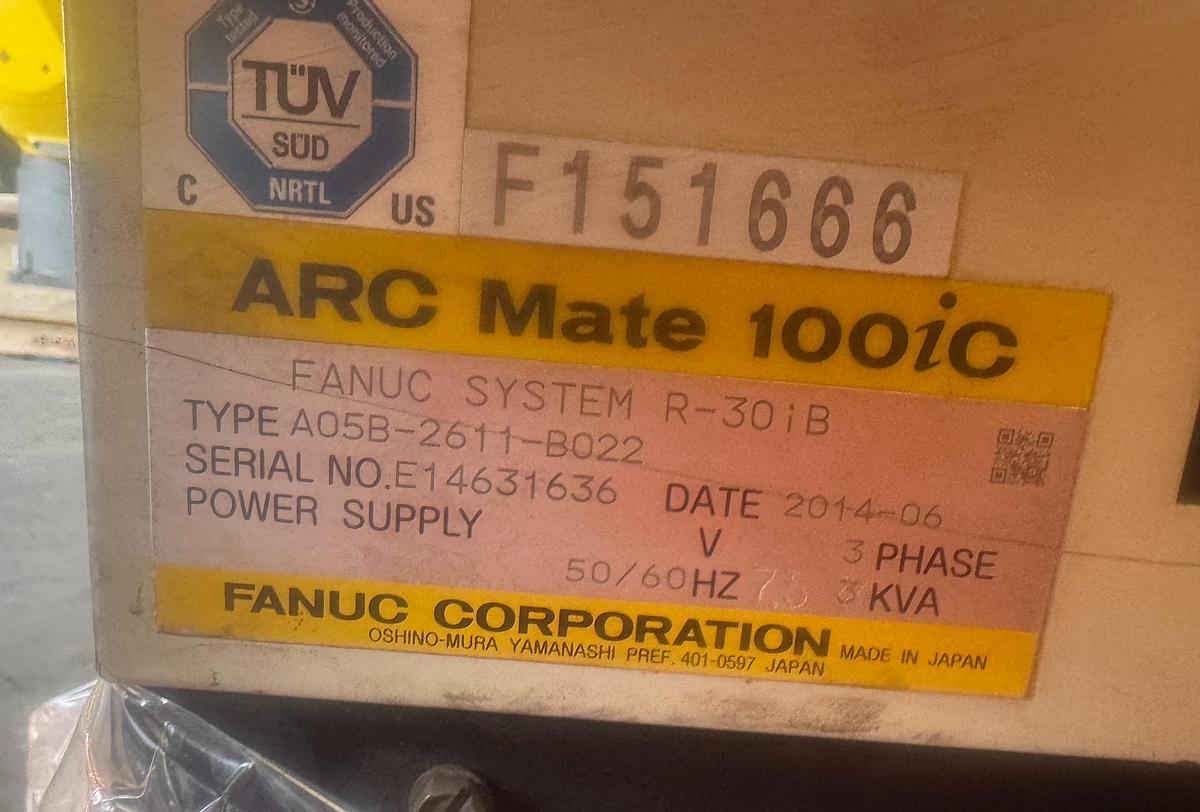

2014 FANUC ARC MATE 100IC ROBOT, 10KG PAYLOAD, 1420MM REACH, R-30IB CONTROLLER, 130KG MASS

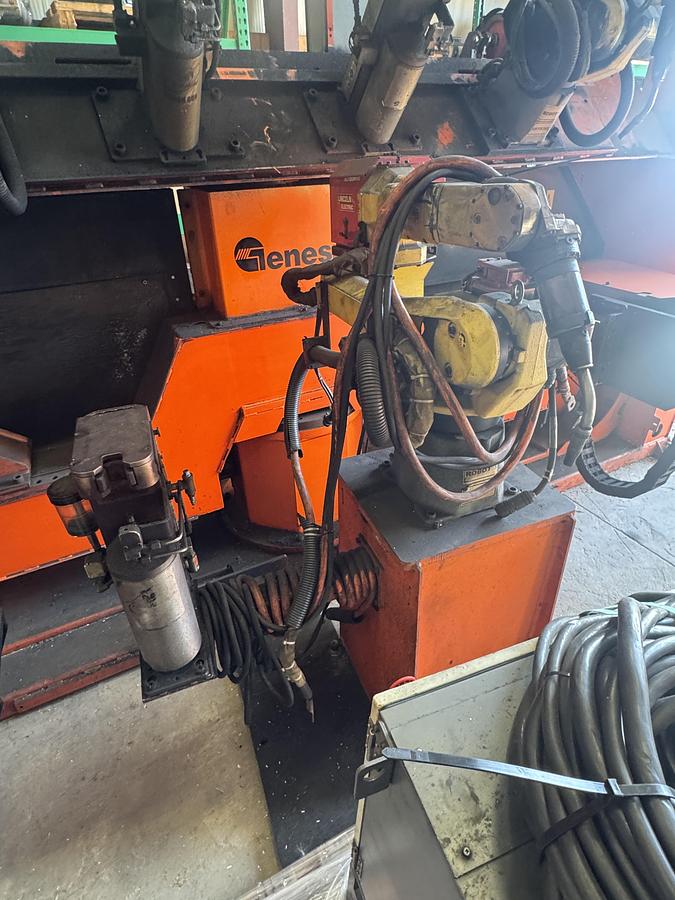

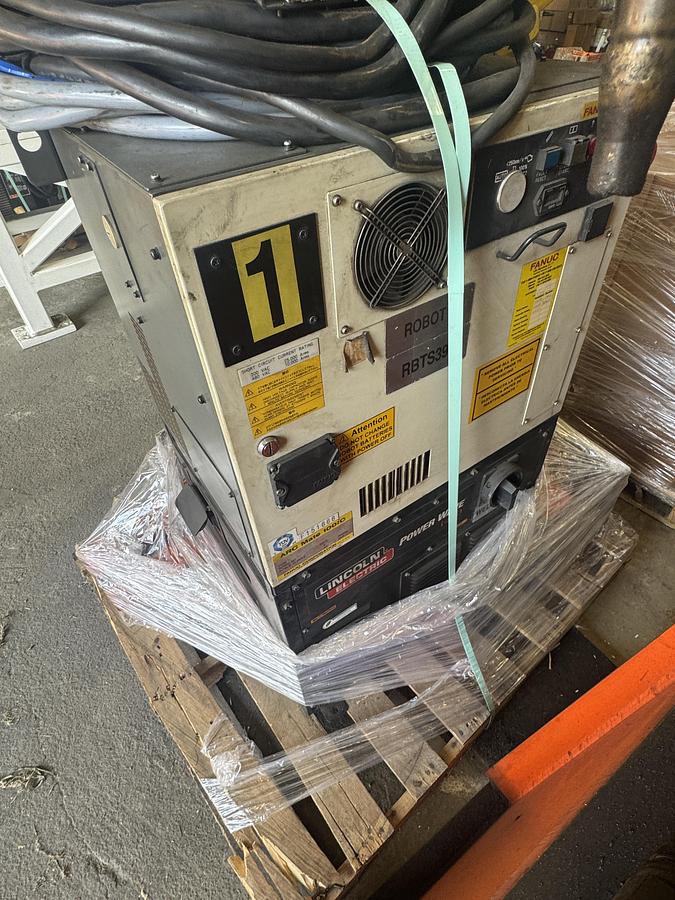

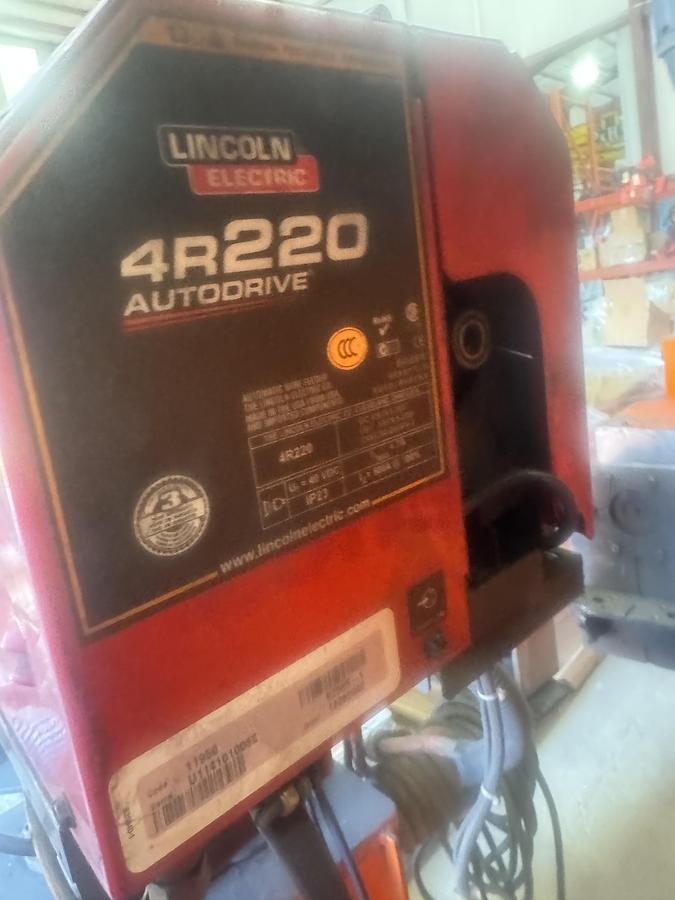

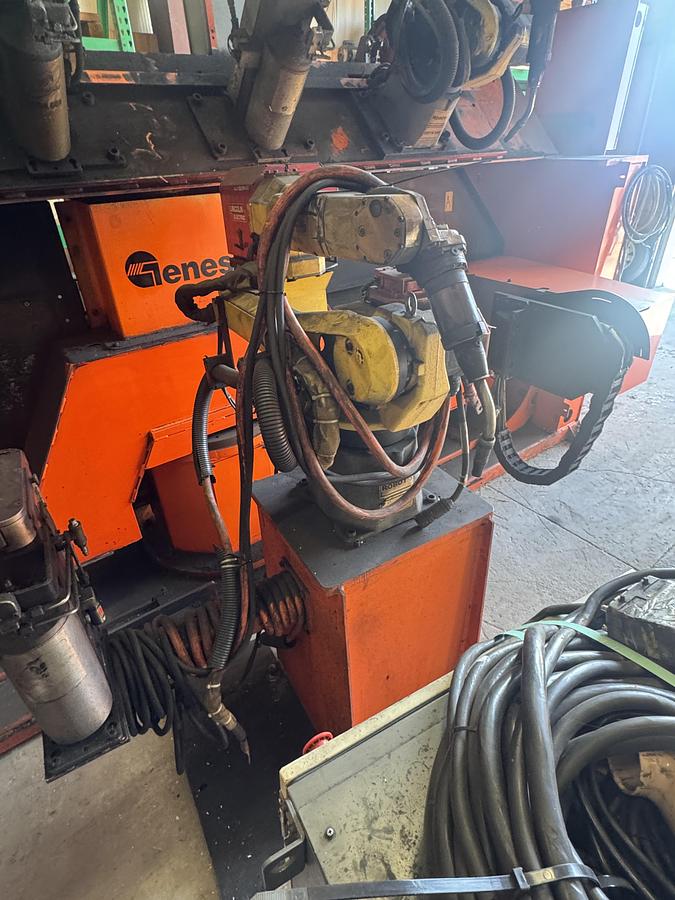

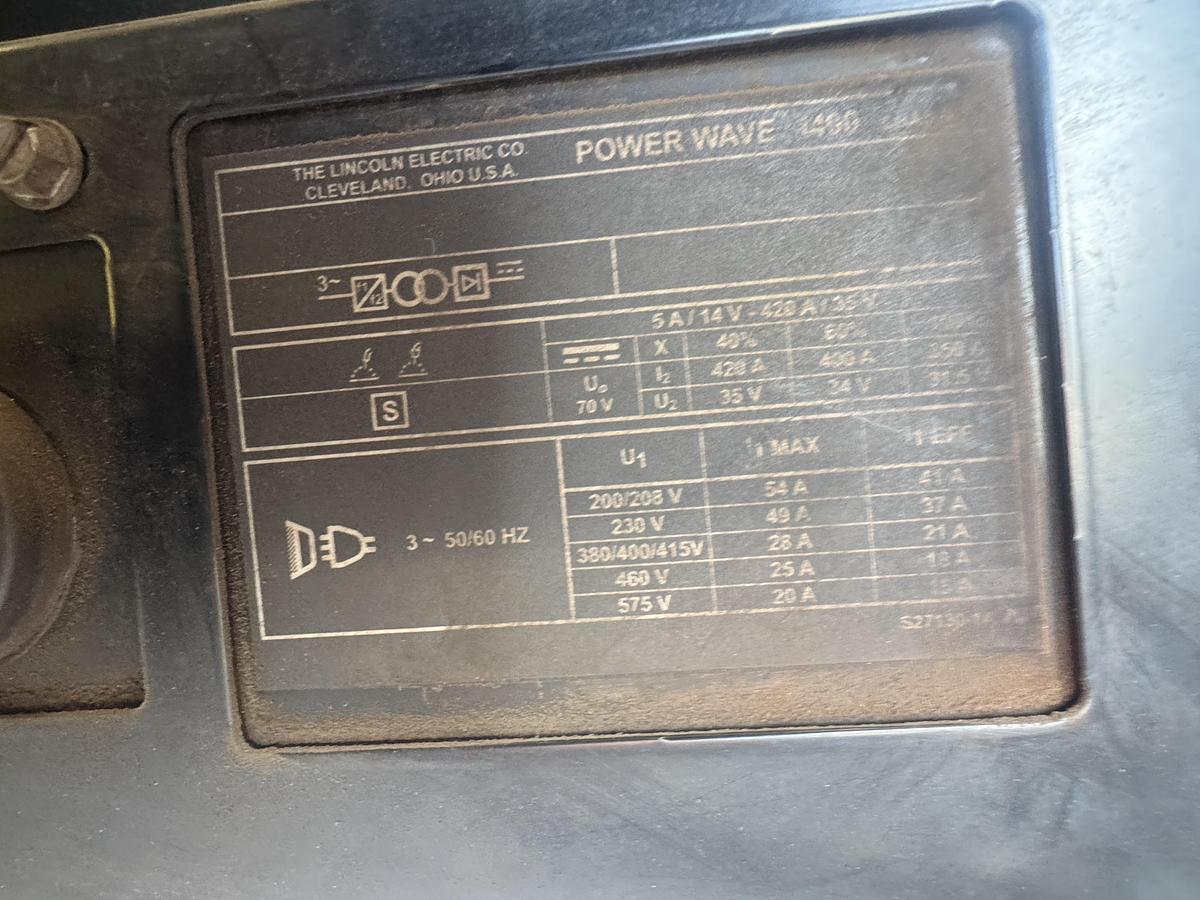

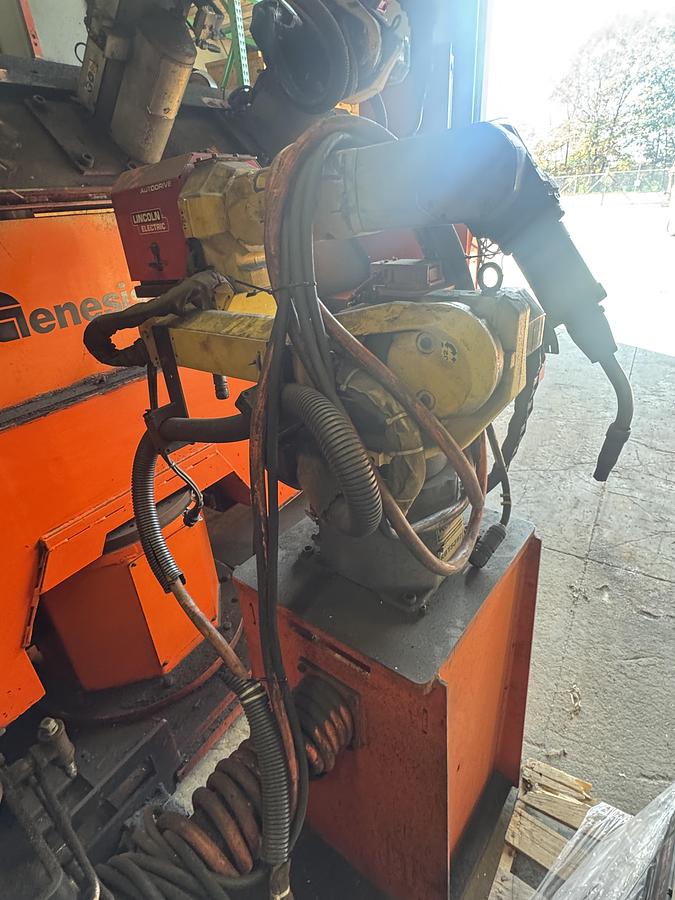

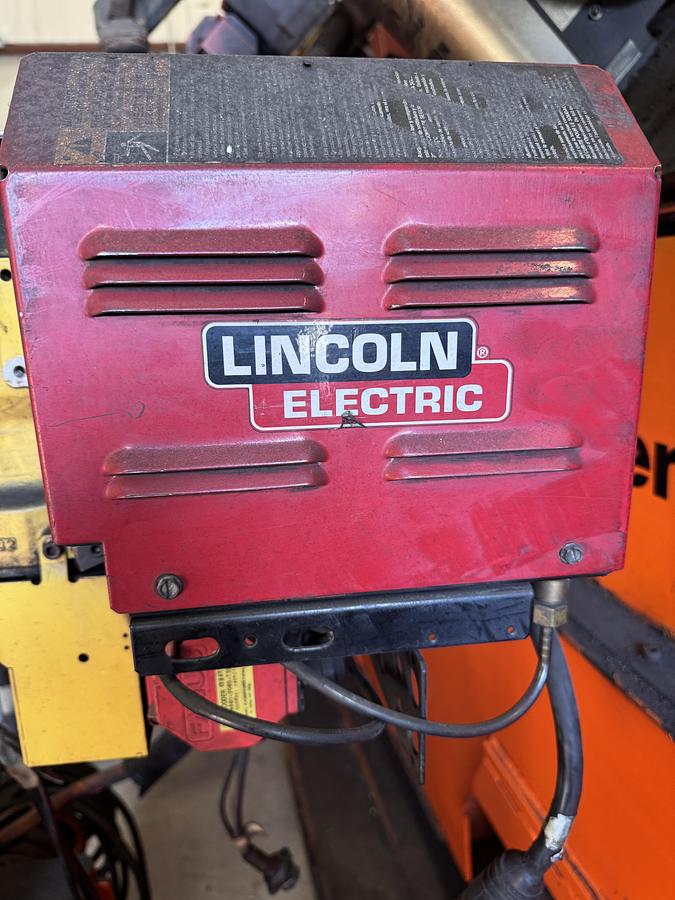

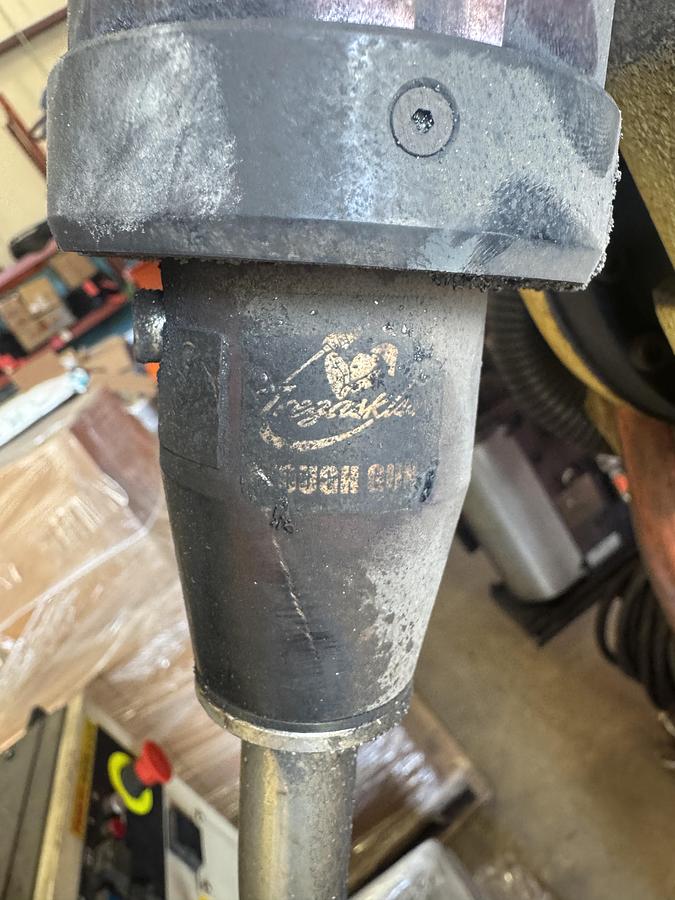

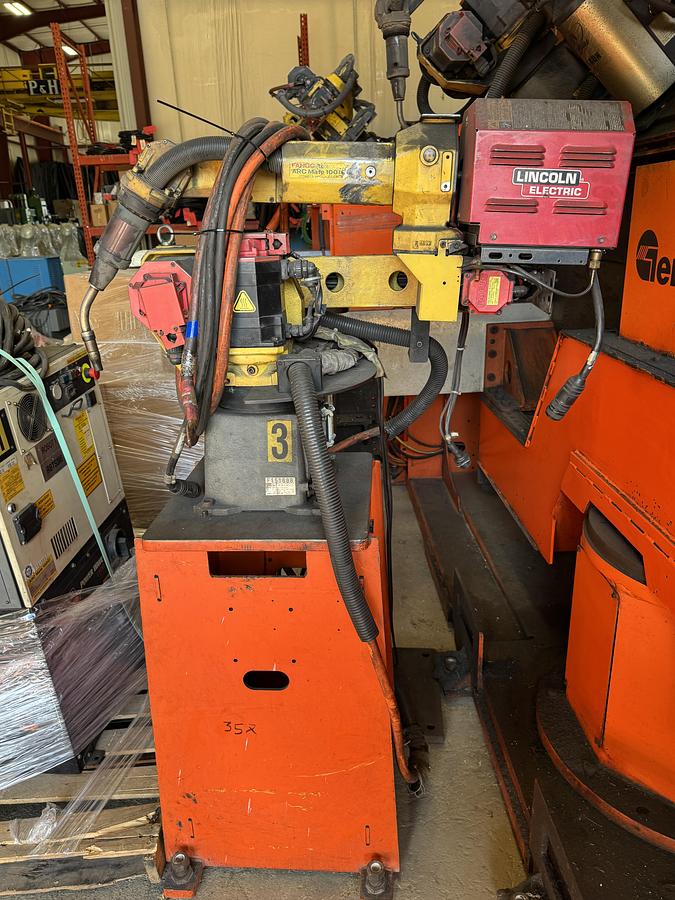

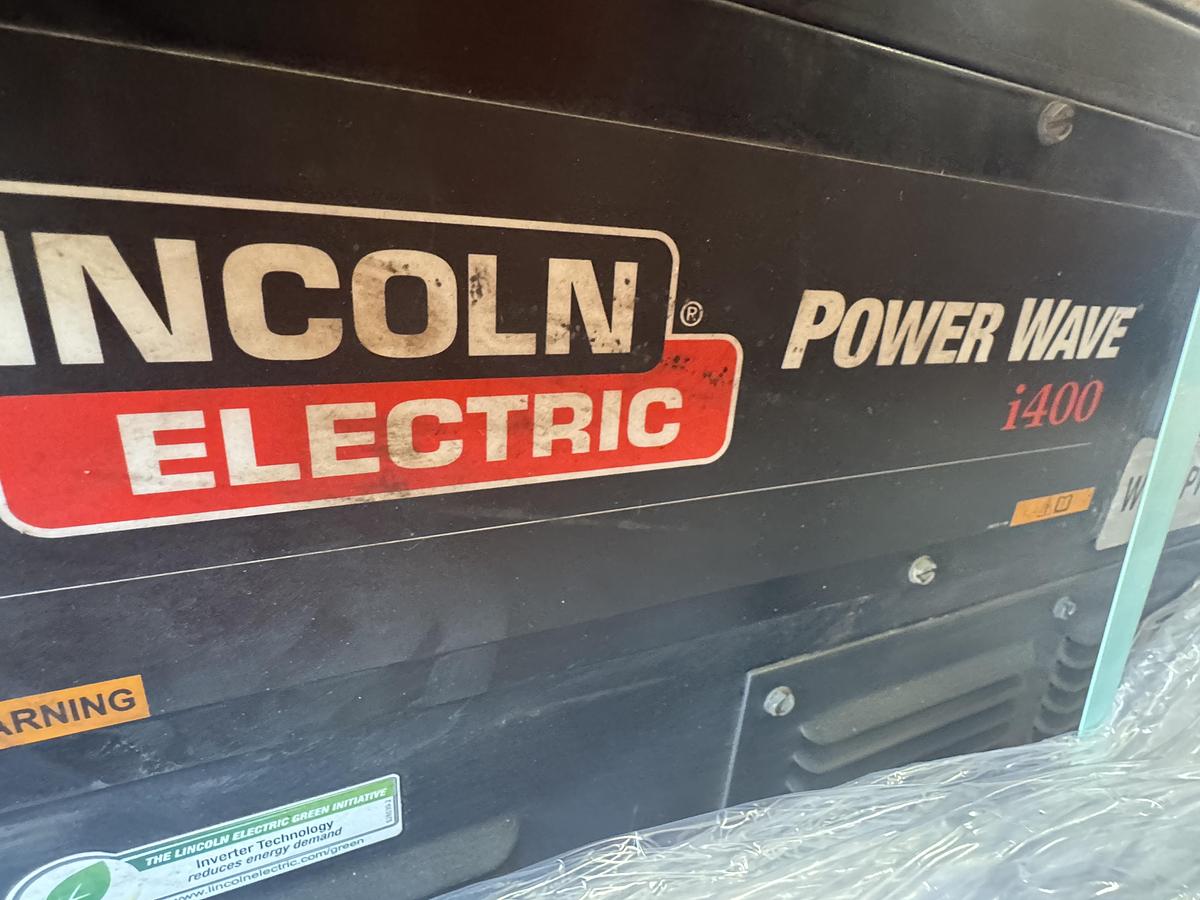

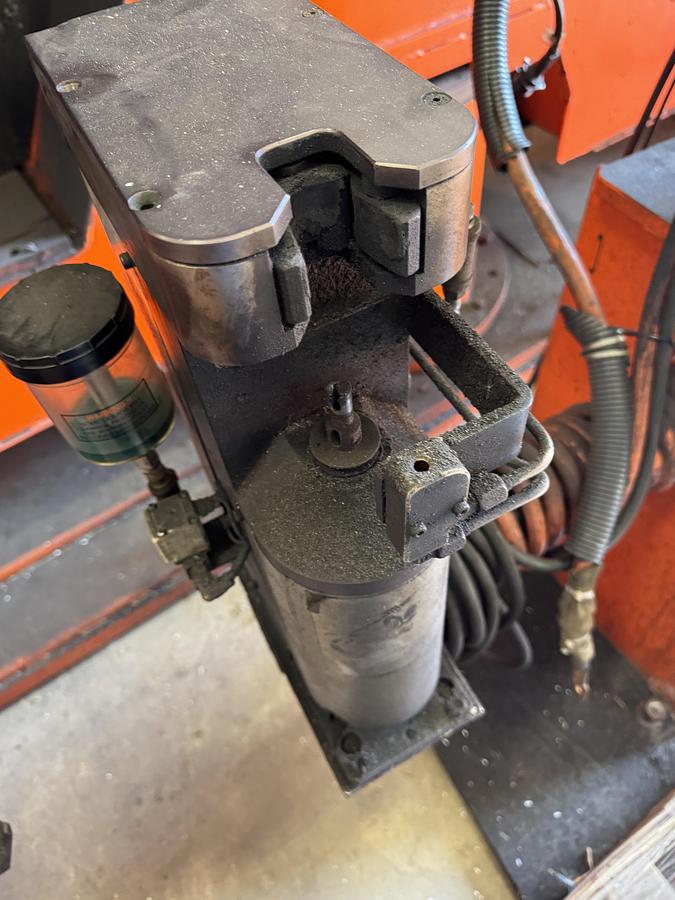

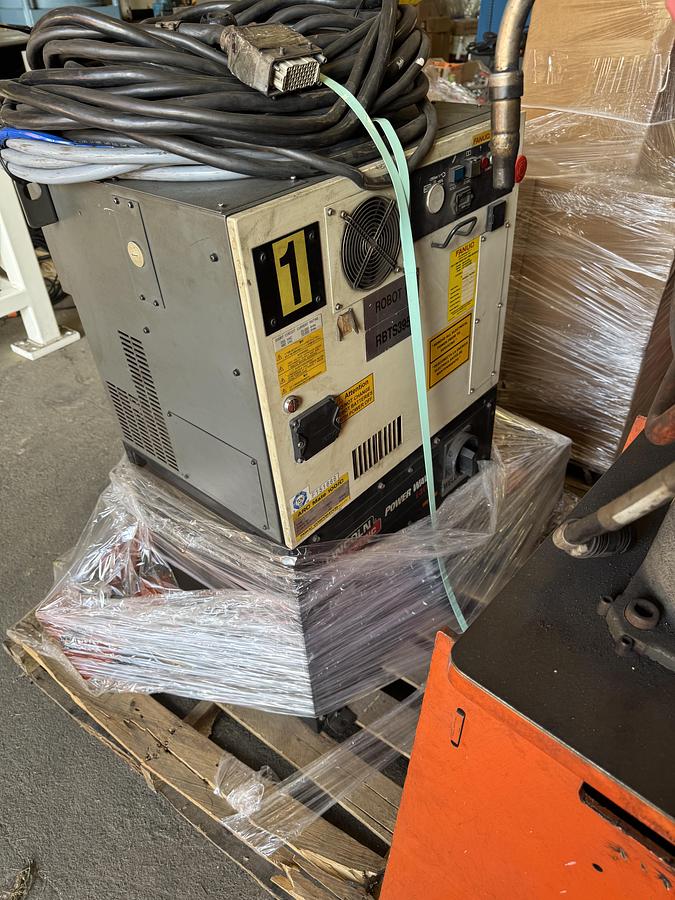

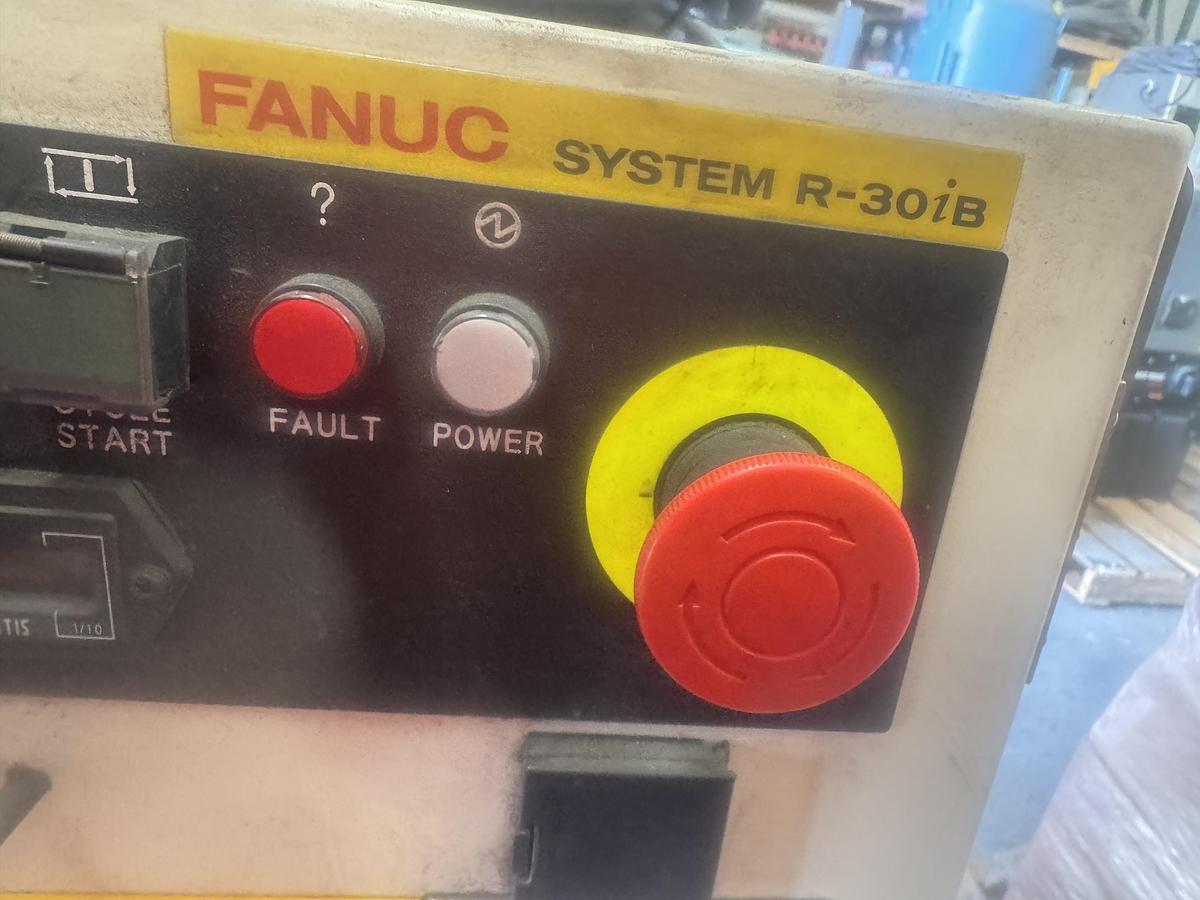

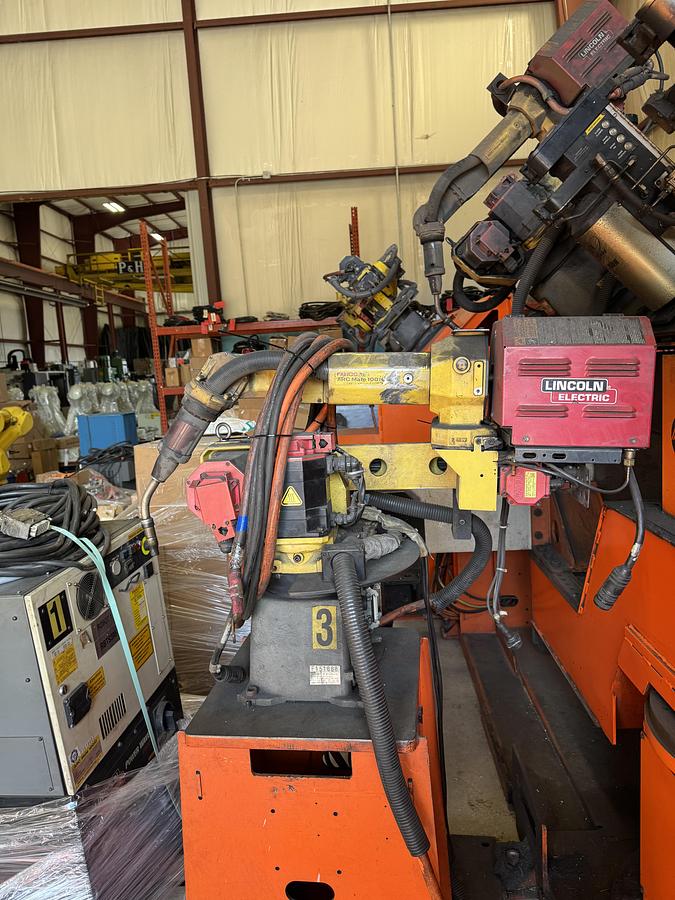

THE 2014 FANUC ARC MATE 100IC IS A SIX-AXIS ARTICULATED ROBOT DESIGNED FOR HIGH-SPEED ARC WELDING APPLICATIONS, INCLUDING MIG, TIG, MAG, AND PLASMA WELDING. IT FEATURES A 10 KG PAYLOAD CAPACITY, A HORIZONTAL REACH OF 1420 MM, AND A REPEATABILITY OF ±0.08 MM. THE ROBOT HAS A MASS OF 130 KG AND SUPPORTS FLOOR, INVERTED, AND ANGLE MOUNTING. IT IS EQUIPPED WITH A FANUC R-30IB CONTROLLER, A COLOR TEACH PENDANT, AND CONNECTION CABLES. THE SLIM WRIST DESIGN ENABLES ENTRY INTO SMALL OPENINGS, WHILE THE ARM MOVES 15% FASTER THAN OTHER ROBOTS IN ITS CLASS. AXIS MOTION SPEEDS ARE 210°/S FOR J1 AND J3, 190°/S FOR J2, 400°/S FOR J4 AND J5, AND 600°/S FOR J6. THE MOTION RANGE FOR THE AXES IS J1 ±360°, J2 ±250°, J3 ±447°, J4 ±380°, J5 +380°/-280°, AND J6 +720°/-540°. THIS SYSTEM IS INTEGRATED WITH A LINCOLN I-400 WELDING POWER SUPPLY, A LINCOLN 4R-220 WIRE FEEDER, A TREGASKIS WELDING TORCH, A TORCH TIP CLEANER, AND A ROBOT STAND. IT IS COMPATIBLE WITH ALL MAJOR BRANDS OF WELDING EQUIPMENT AND CAN BE INTERFACED WITH VARIOUS SERVO-DRIVEN OR INDEXING POSITIONERS.
