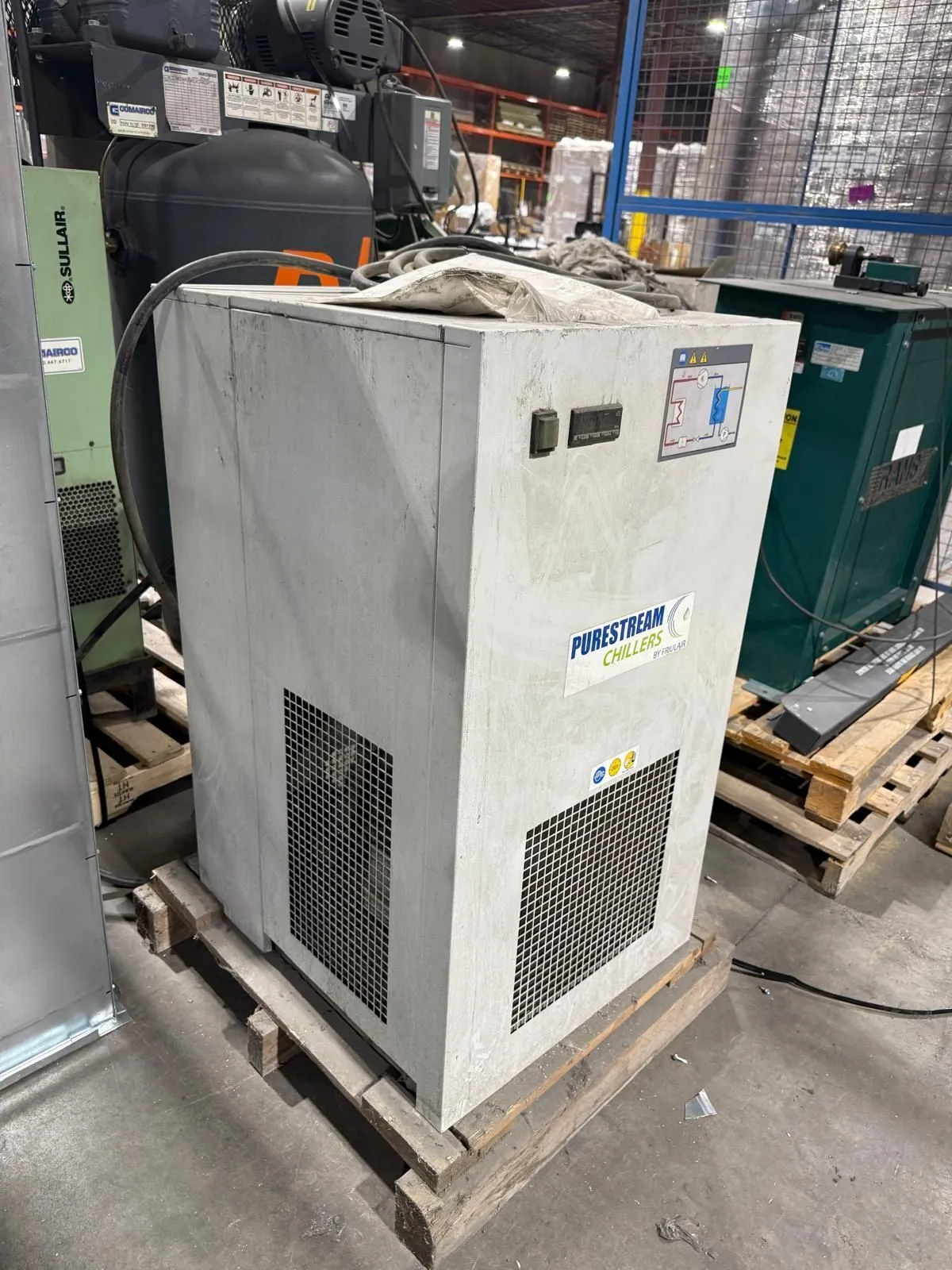

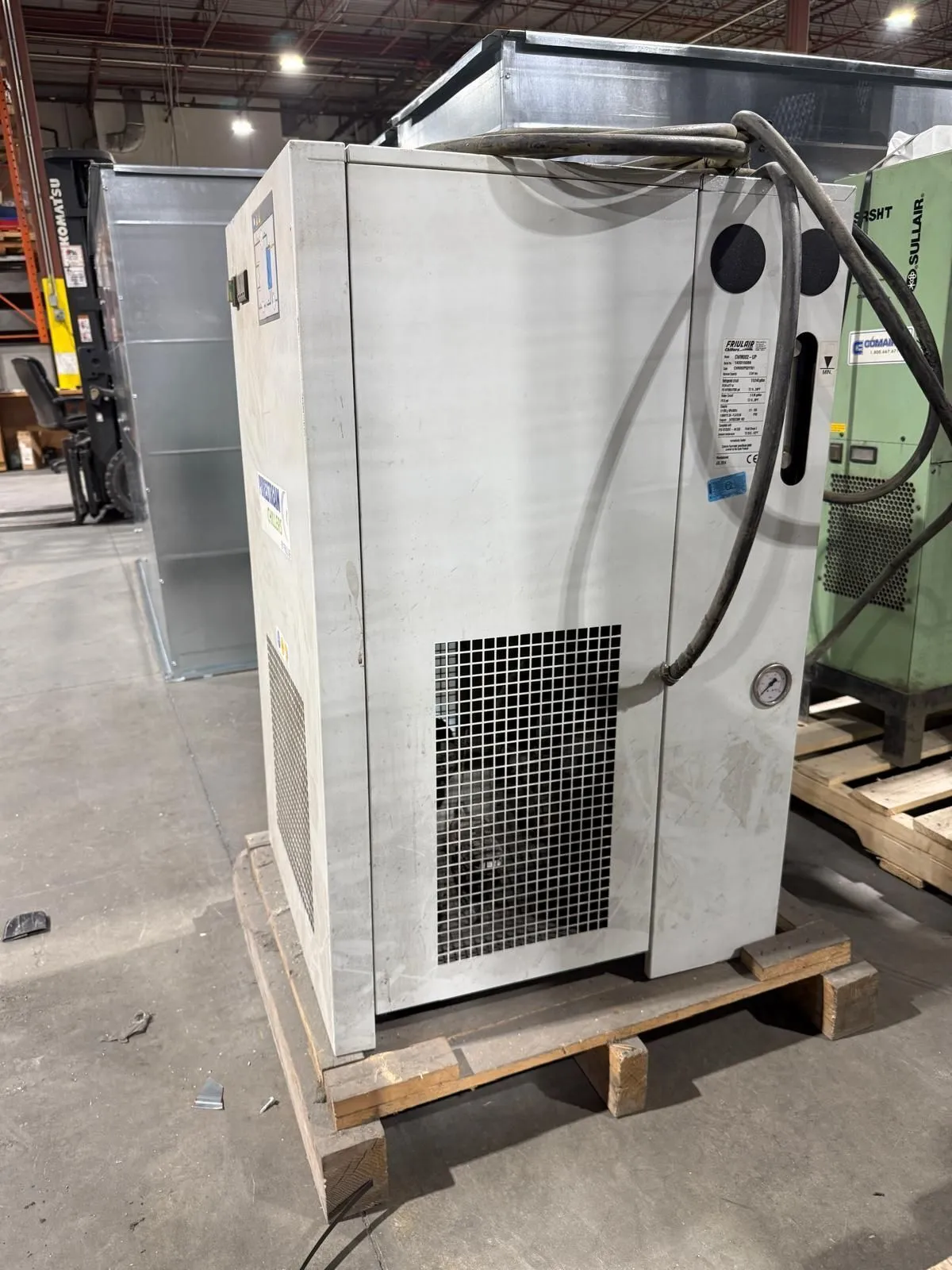

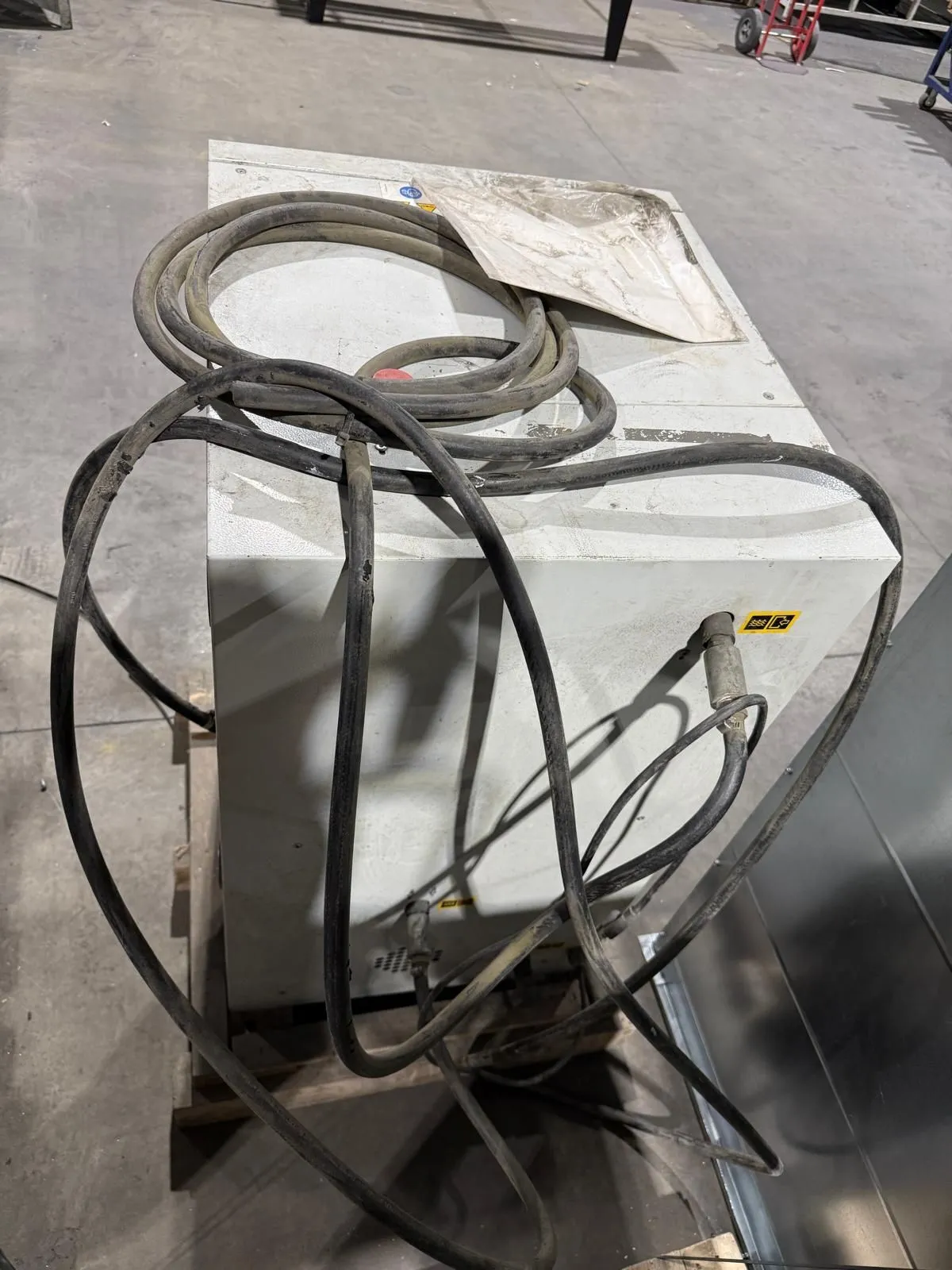

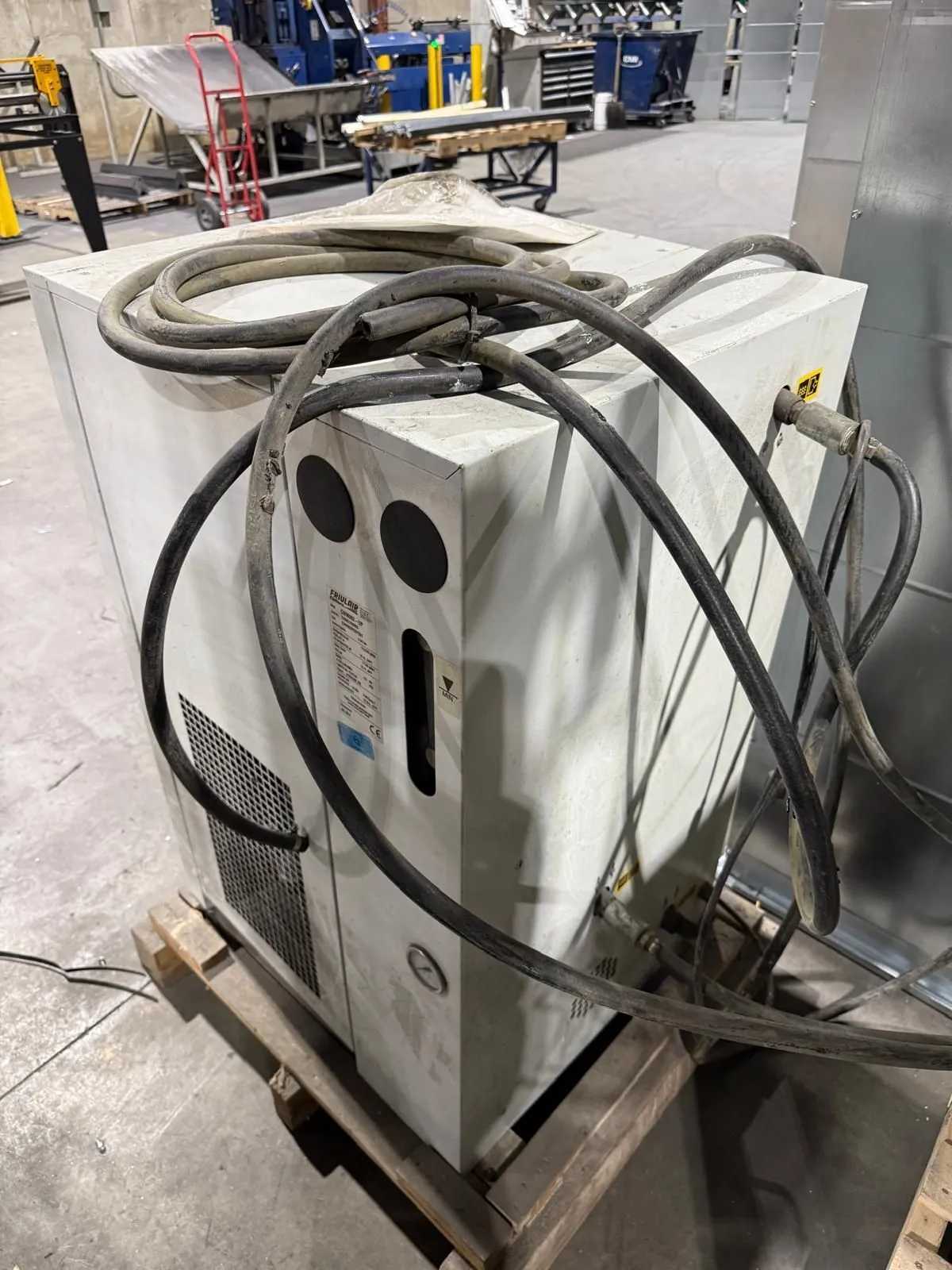

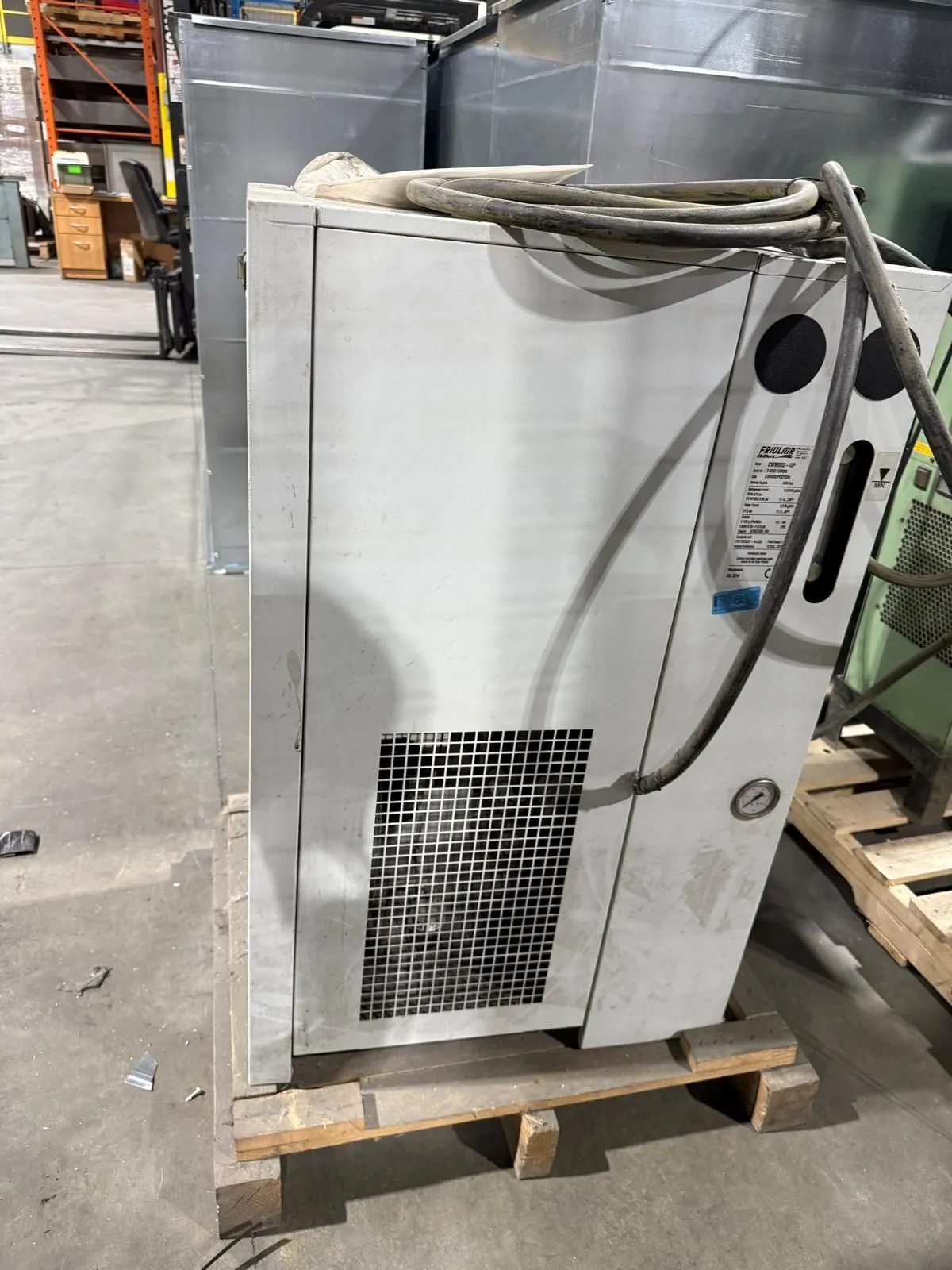

2014 Friulair CWM002-UP Industrial Chiller, 0.341 Ton, 115V/60Hz/3PH, R134A

The 2014 Friulair CWM002-UP is a Purestream series industrial chiller designed for precise temperature control. This unit operates on 115V, 60Hz, 3PH power and features a nominal cooling capacity of 0.341 ton. The refrigeration circuit utilizes R134A refrigerant, with a charge of 17 oz, and is built to withstand a maximum pressure of 290 PSI (HP/LP). The refrigerant temperature range is specified from 14°F to 248°F. The water circuit has a volume of 3.96 gallons and a pressure of 0 PSI, with a functional water temperature range of 14°F to 86°F. The chiller is designed for operation in an ambient temperature range of 33.8°F to 122°F. The entire unit weighs 90lbs and has machine dimensions of 23'' X 27'' X 30''. As part of the Friulair Purestream CWM model line, it is engineered for continuous and reliable operation in diverse industrial applications requiring chilled water temperature control.
