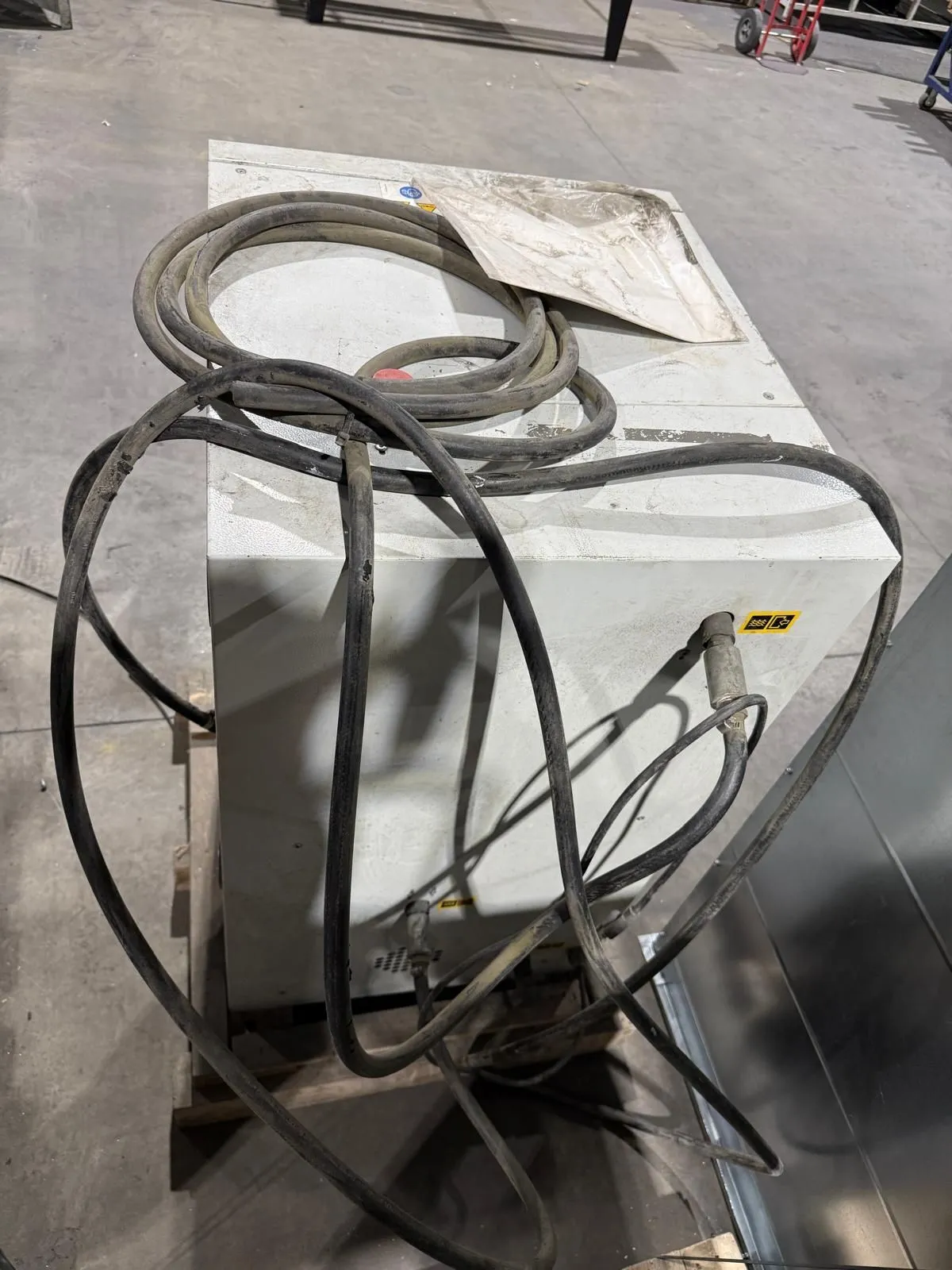

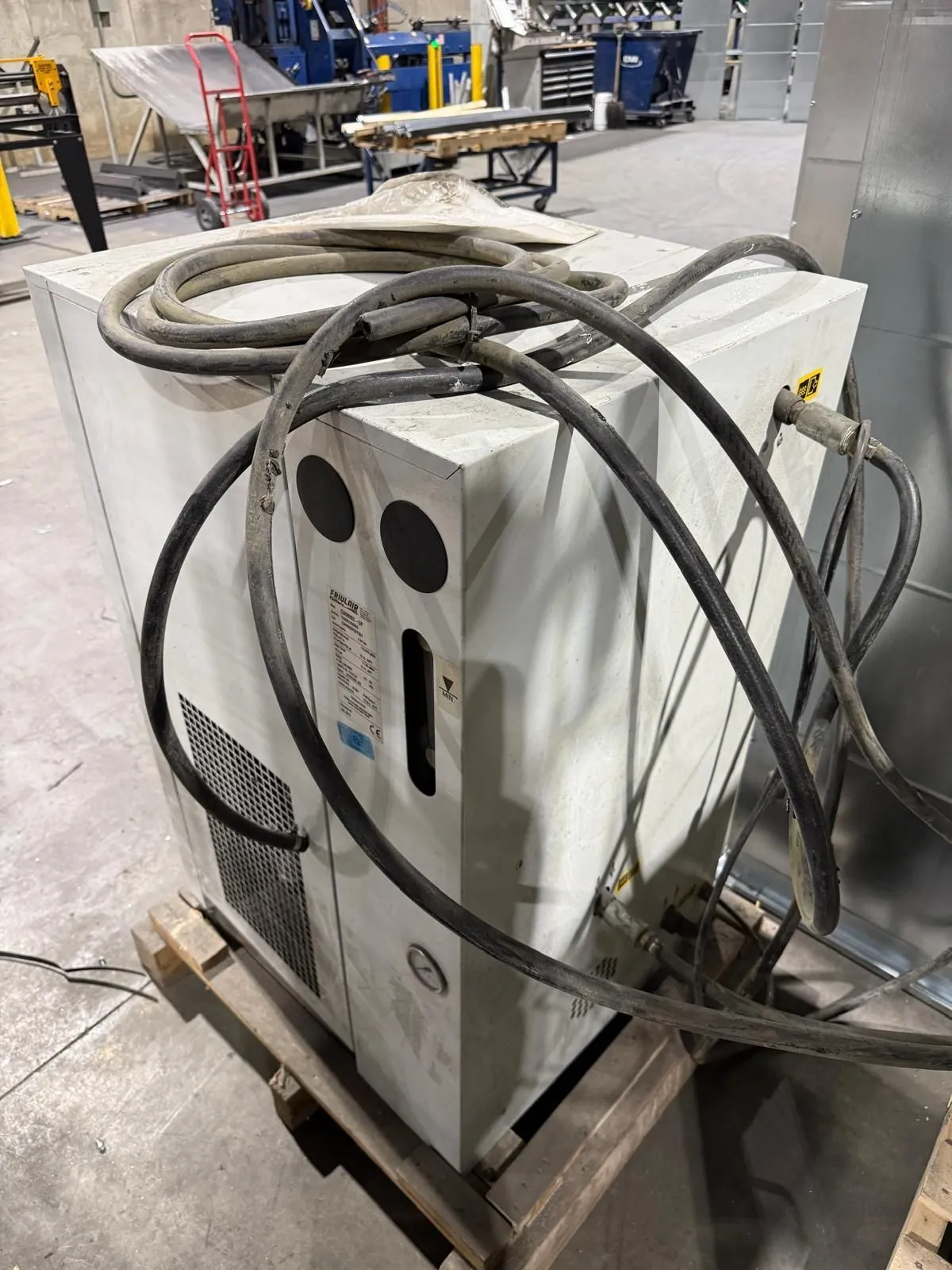

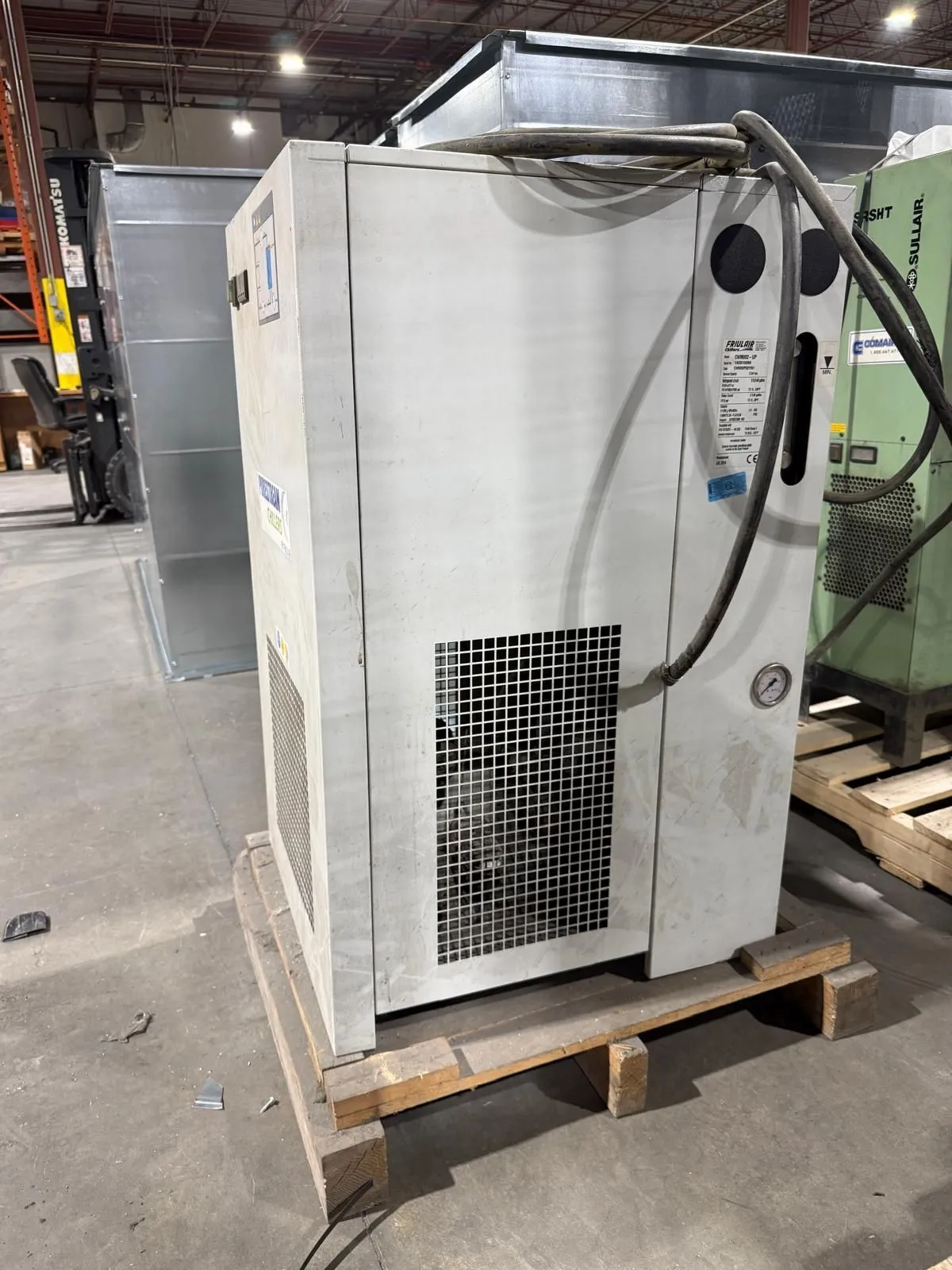

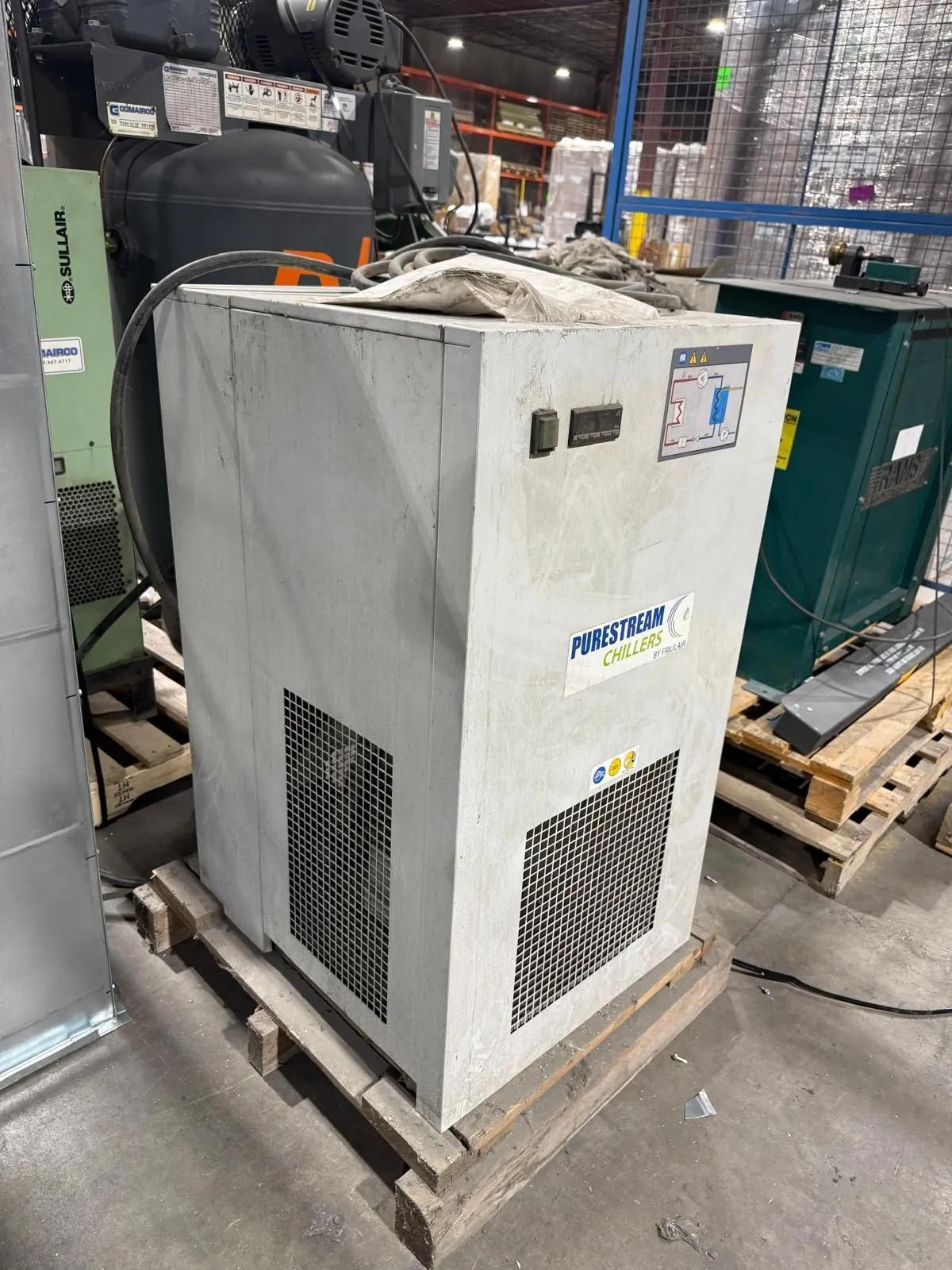

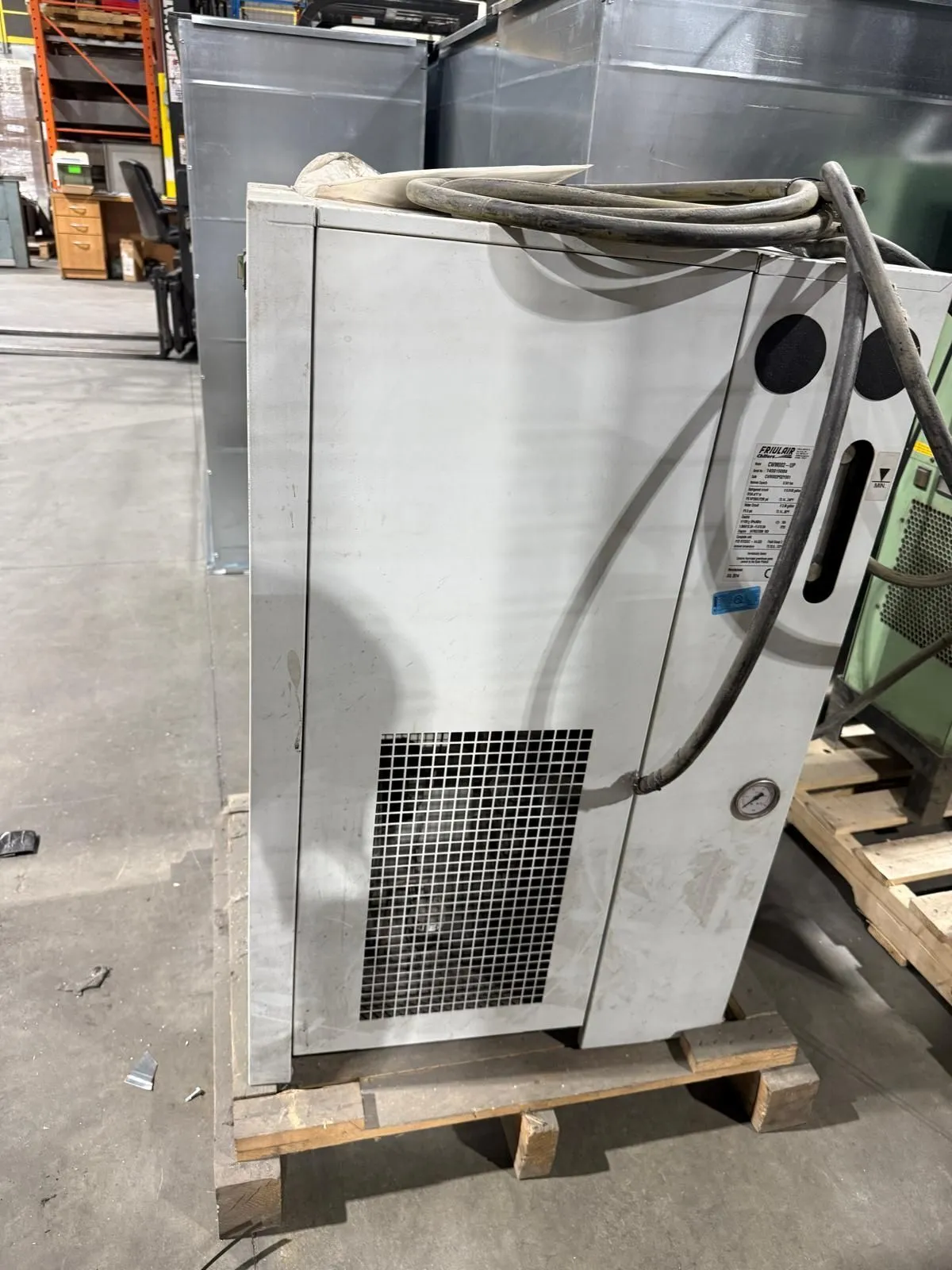

2014 FRIULAIR CWM002-UP INDUSTRIAL CHILLER, 0.341 TON, 115V/60HZ/3PH, R134A

THE 2014 FRIULAIR CWM002-UP IS A PURESTREAM SERIES INDUSTRIAL CHILLER DESIGNED FOR PRECISE TEMPERATURE CONTROL. THIS UNIT OPERATES ON 115V, 60HZ, 3PH POWER AND FEATURES A NOMINAL COOLING CAPACITY OF 0.341 TON. THE REFRIGERATION CIRCUIT UTILIZES R134A REFRIGERANT, WITH A CHARGE OF 17 OZ, AND IS BUILT TO WITHSTAND A MAXIMUM PRESSURE OF 290 PSI (HP/LP). THE REFRIGERANT TEMPERATURE RANGE IS SPECIFIED FROM 14°F TO 248°F. THE WATER CIRCUIT HAS A VOLUME OF 3.96 GALLONS AND A PRESSURE OF 0 PSI, WITH A FUNCTIONAL WATER TEMPERATURE RANGE OF 14°F TO 86°F. THE CHILLER IS DESIGNED FOR OPERATION IN AN AMBIENT TEMPERATURE RANGE OF 33.8°F TO 122°F. THE ENTIRE UNIT WEIGHS 90LBS AND HAS MACHINE DIMENSIONS OF 23'' X 27'' X 30''. AS PART OF THE FRIULAIR PURESTREAM CWM MODEL LINE, IT IS ENGINEERED FOR CONTINUOUS AND RELIABLE OPERATION IN DIVERSE INDUSTRIAL APPLICATIONS REQUIRING CHILLED WATER TEMPERATURE CONTROL.
