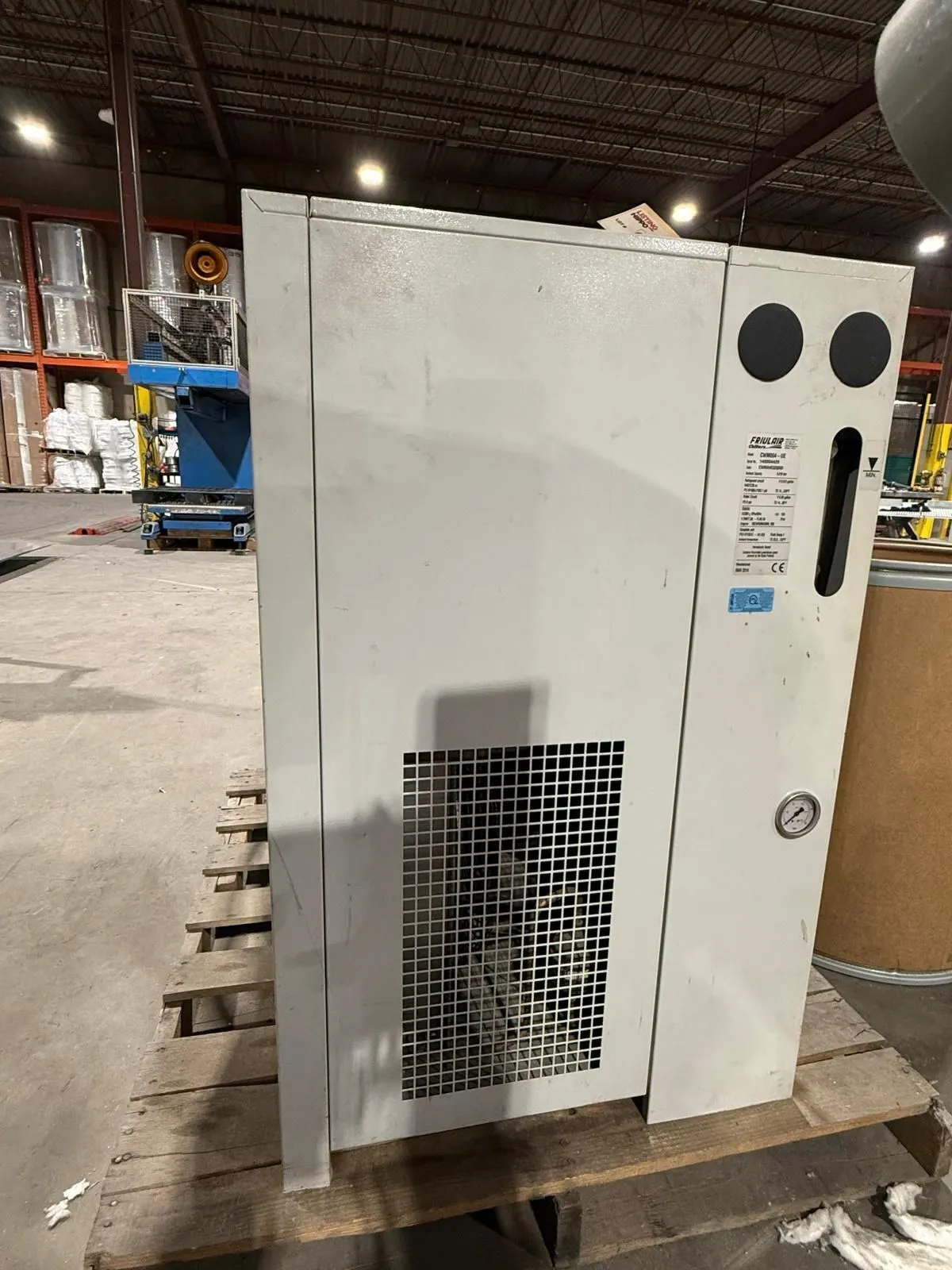

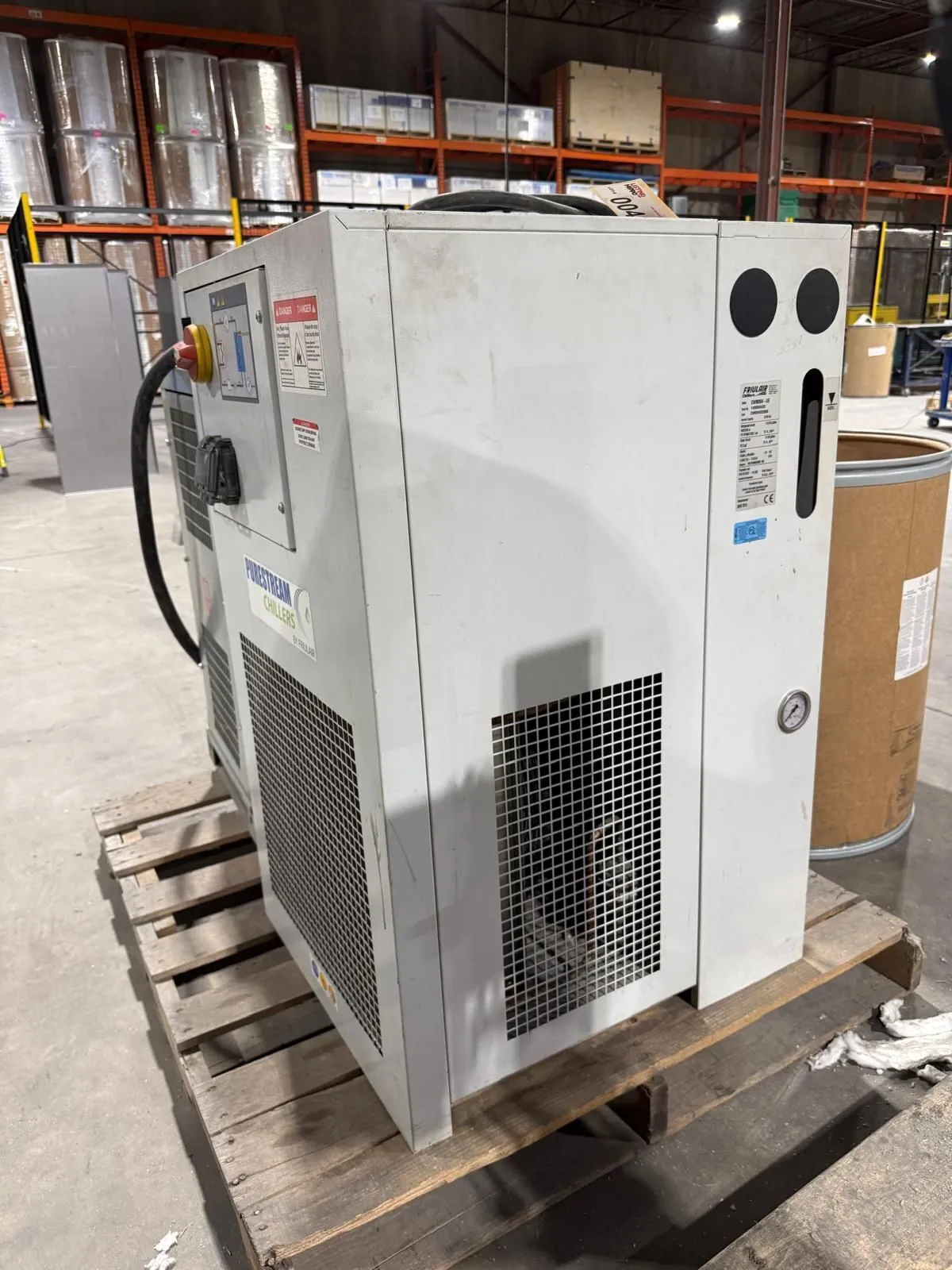

2014 FRIULAIR CWM004-UE CHILLER 0.810 TON 230V 1-PH R407C 90LBS

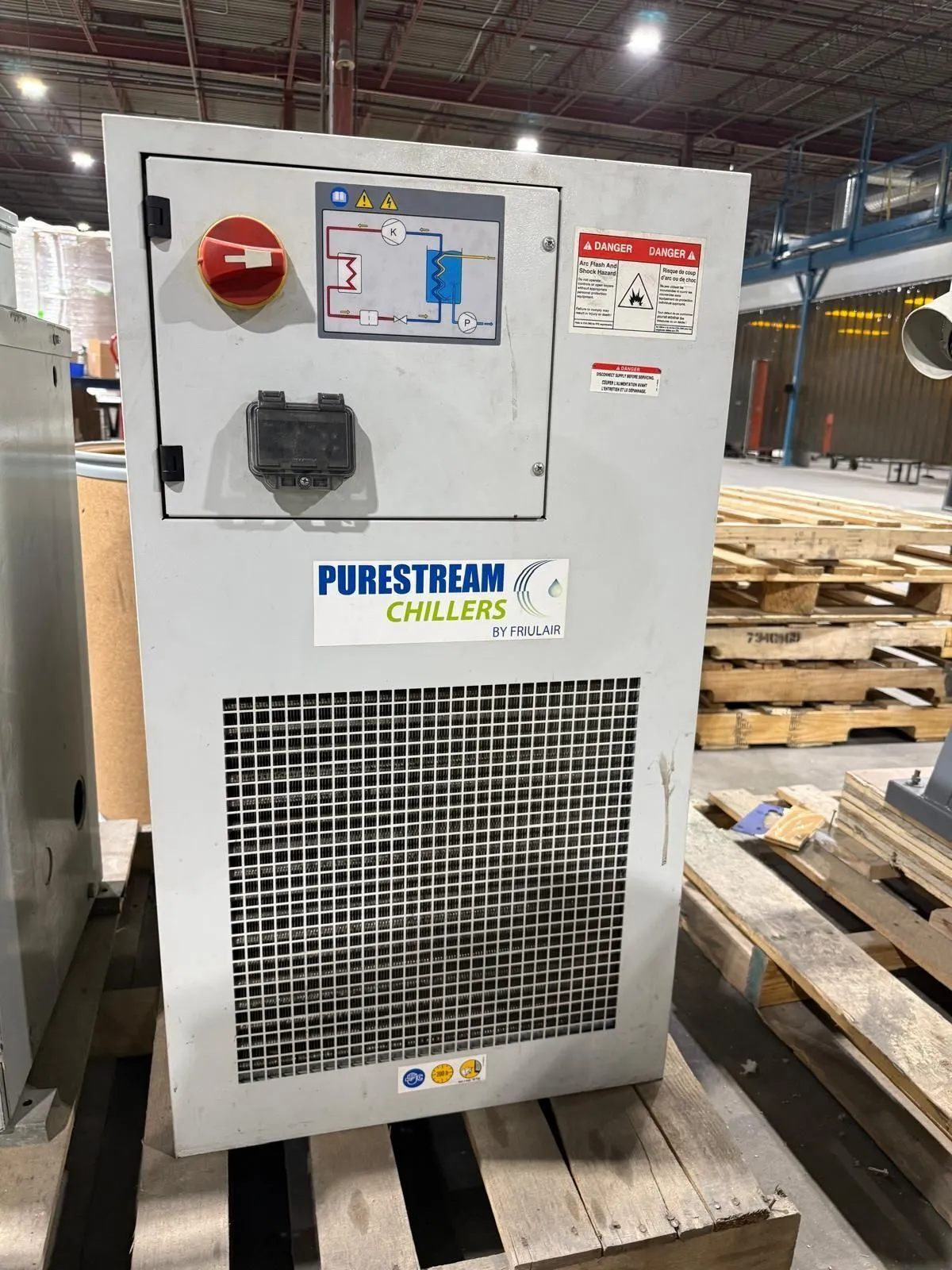

THE 2014 FRIULAIR CWM004-UE PURESTREAM CHILLER IS A COMPACT, AIR-COOLED LIQUID CHILLER OPERATING ON 230V, 60HZ, SINGLE-PHASE POWER, OFFERING A NOMINAL COOLING CAPACITY OF 0.810 TON. IT UTILIZES R407C REFRIGERANT WITH A CHARGE OF 35 OUNCES AND HAS A REFRIGERATION CIRCUIT VOLUME OF 0.013 GALLON. THE MAXIMUM OPERATING PRESSURES ARE 406 PSI FOR HIGH PRESSURE (HP) AND 303.1 PSI FOR LOW PRESSURE (LP), WITH A REFRIGERANT TEMPERATURE RANGE OF 14 DEGREES F TO 248 DEGREES F. THE UNIT'S WATER CIRCUIT HAS A VOLUME OF 6.60 GALLONS AND IS RATED FOR 0 PSI, WITH A WATER TEMPERATURE RANGE OF 14 DEGREES F TO 86 DEGREES F. THE CHILLER IS DESIGNED TO PERFORM IN AN AMBIENT TEMPERATURE RANGE OF 33.8 DEGREES F TO 122 DEGREES F. THE MACHINE MEASURES 23 INCHES BY 27 INCHES BY 30 INCHES AND HAS A WEIGHT OF 90 LBS.
