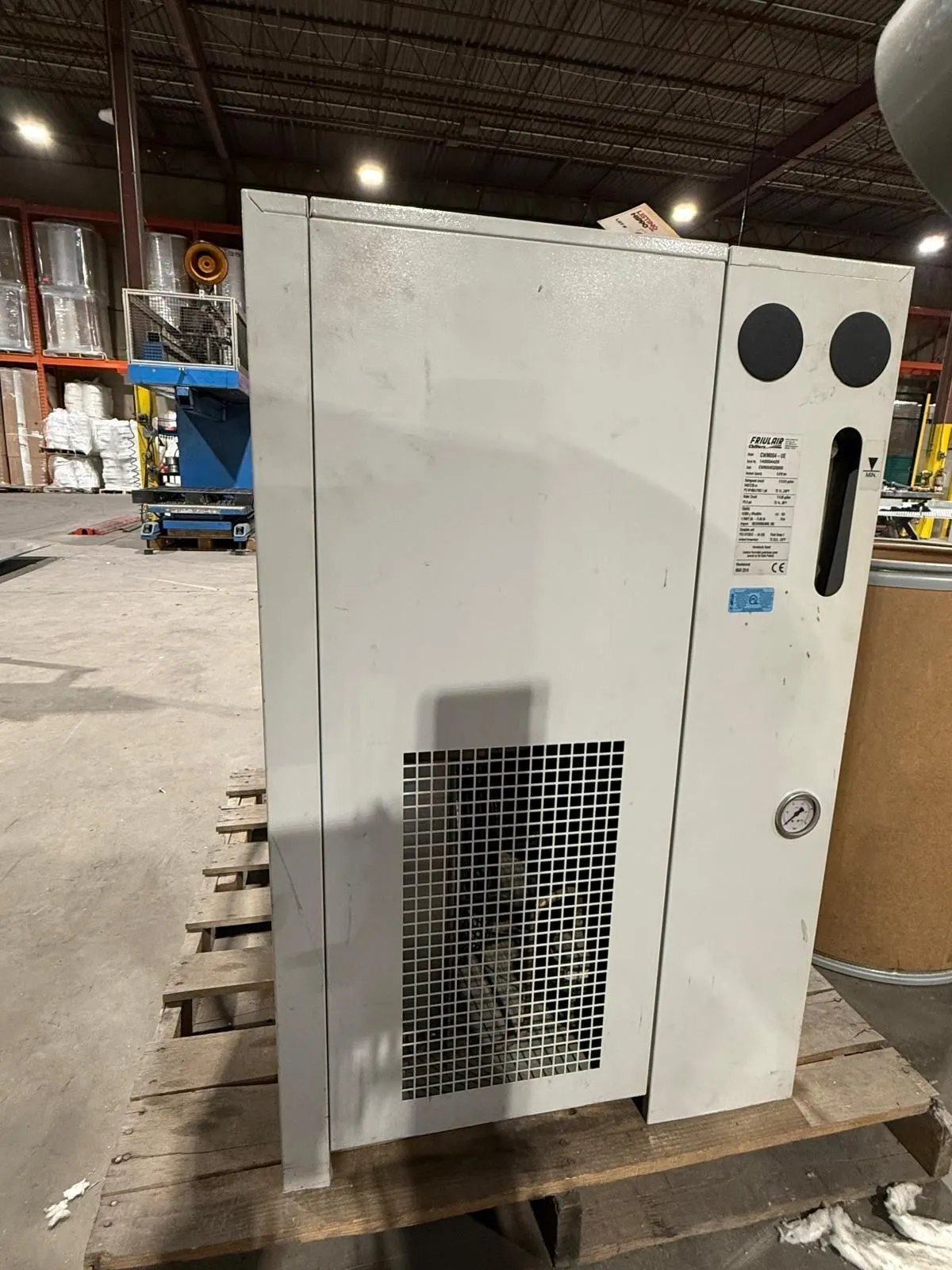

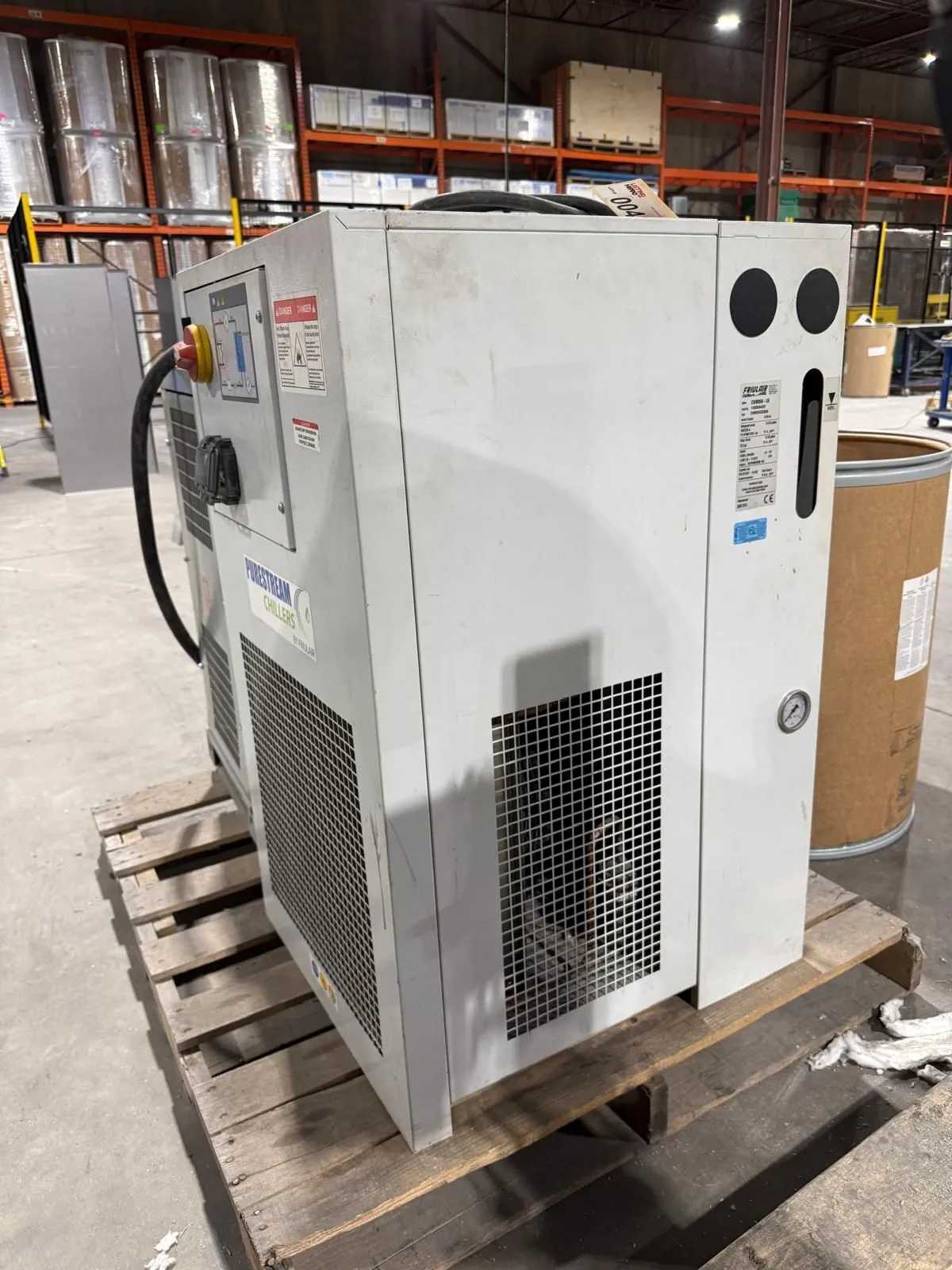

2014 Friulair CWM004-UE Chiller 0.810 Ton 230V 1-PH R407C 90lbs

The 2014 Friulair CWM004-UE Purestream Chiller is a compact, air-cooled liquid chiller operating on 230V, 60Hz, single-phase power, offering a nominal cooling capacity of 0.810 ton. It utilizes R407C refrigerant with a charge of 35 ounces and has a refrigeration circuit volume of 0.013 gallon. The maximum operating pressures are 406 PSI for high pressure (HP) and 303.1 PSI for low pressure (LP), with a refrigerant temperature range of 14 degrees F to 248 degrees F. The unit's water circuit has a volume of 6.60 gallons and is rated for 0 PSI, with a water temperature range of 14 degrees F to 86 degrees F. The chiller is designed to perform in an ambient temperature range of 33.8 degrees F to 122 degrees F. The machine measures 23 inches by 27 inches by 30 inches and has a weight of 90 lbs.
