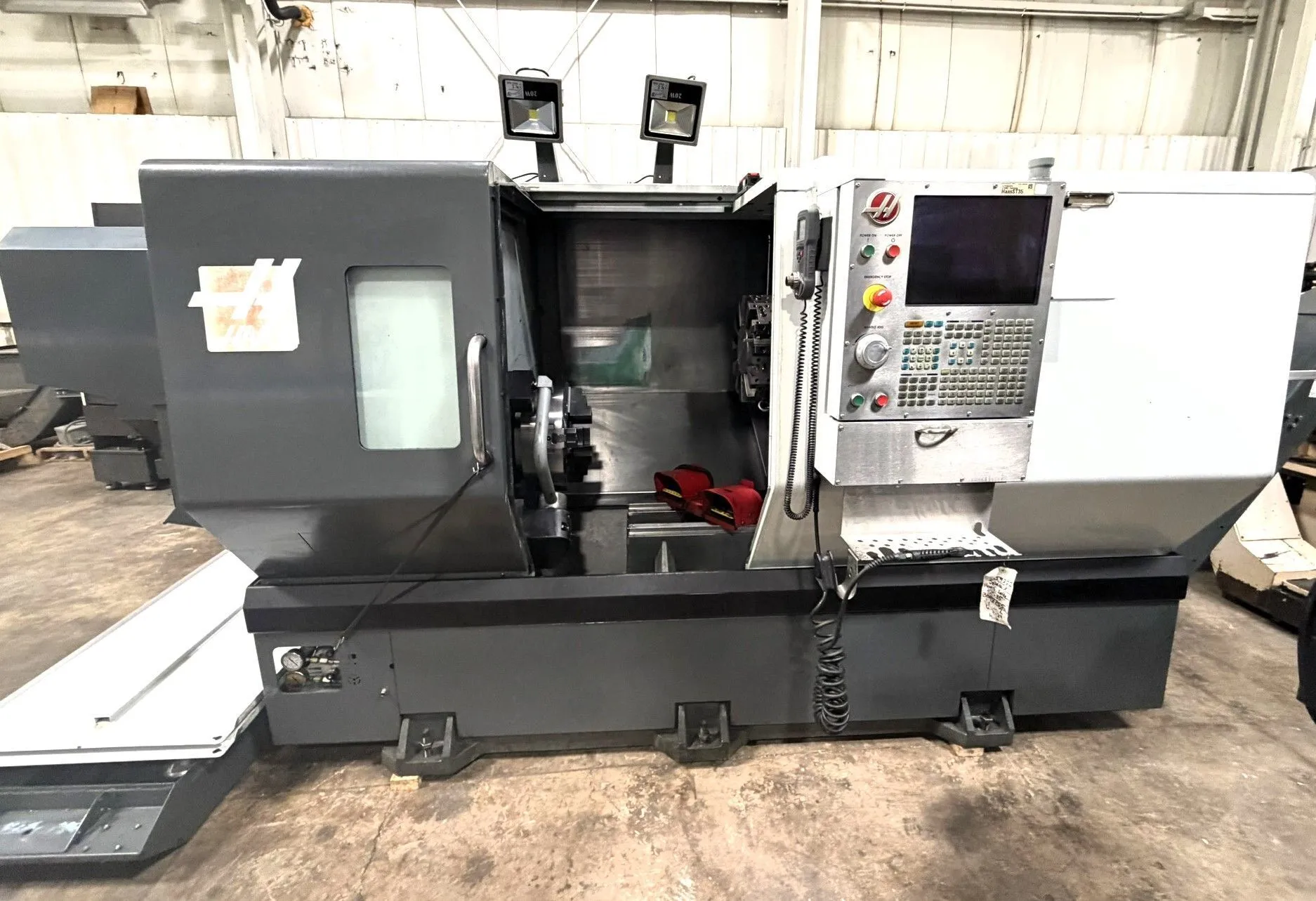

2014 HAAS ST-35 CNC LATHE, 15" CHUCK, 40 HP, 3200 RPM, 4" BAR, 12-STATION TURRET, TAILSTOCK

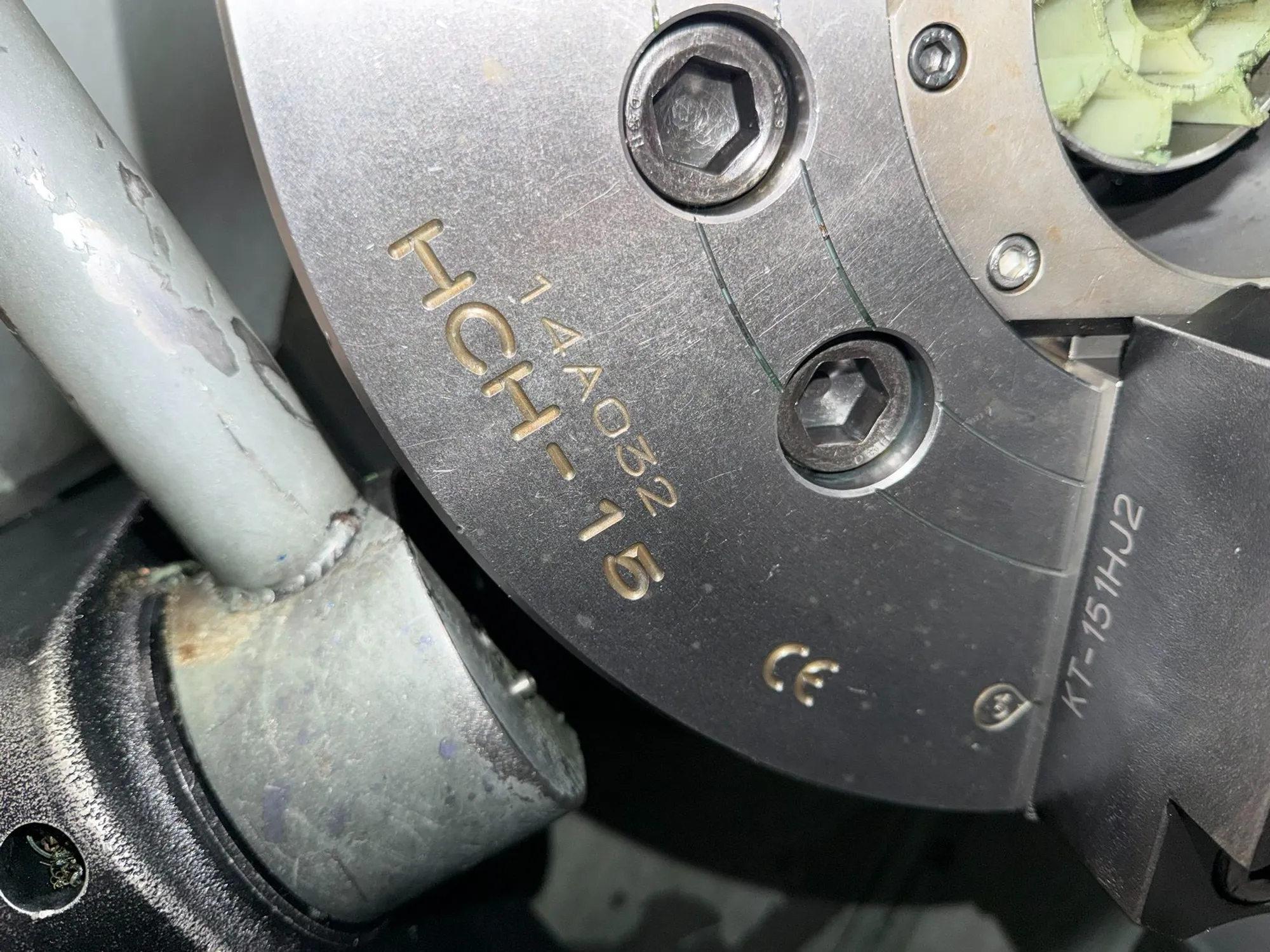

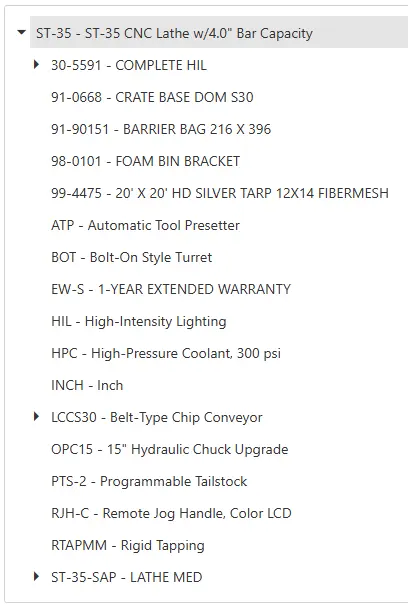

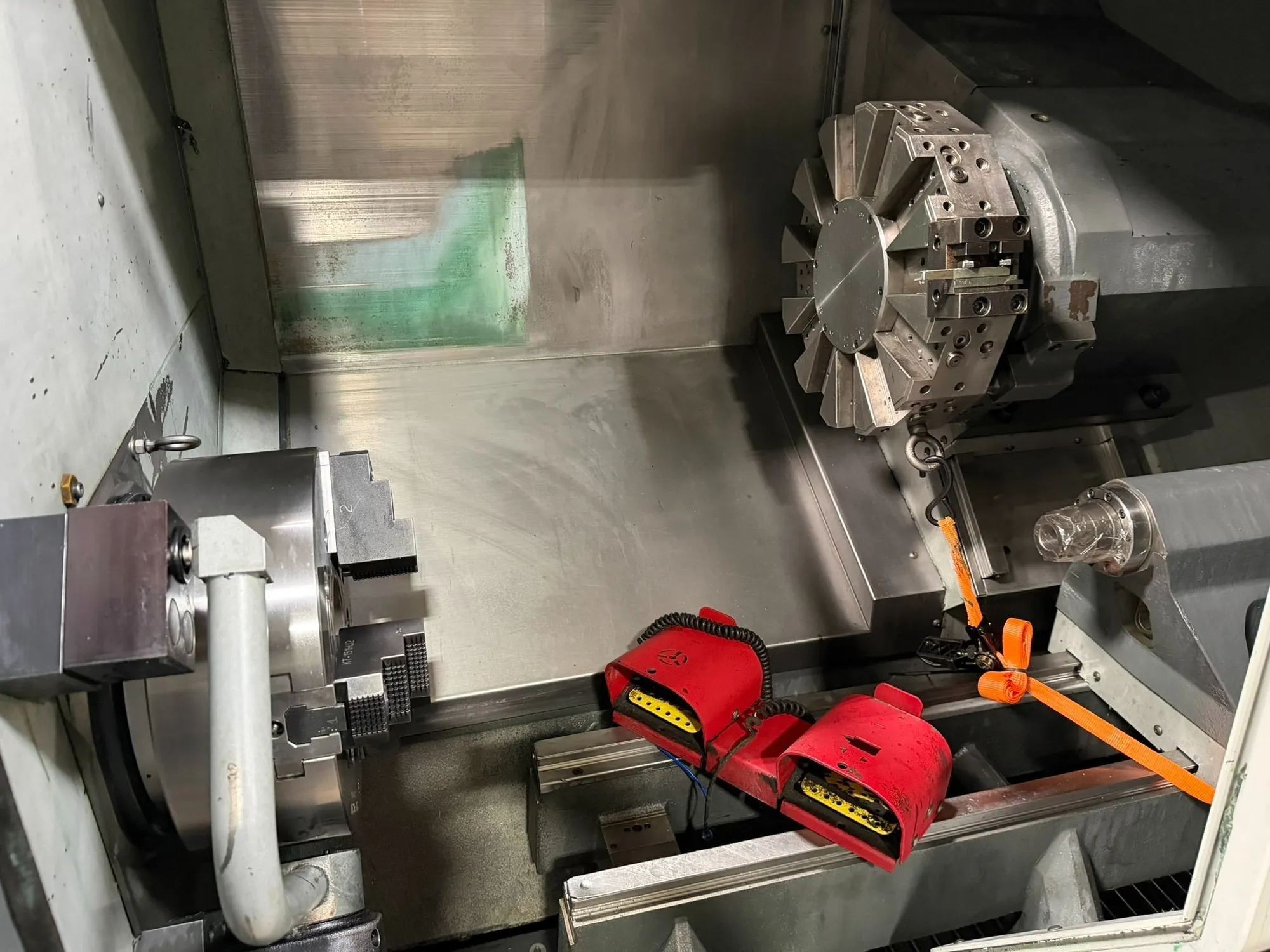

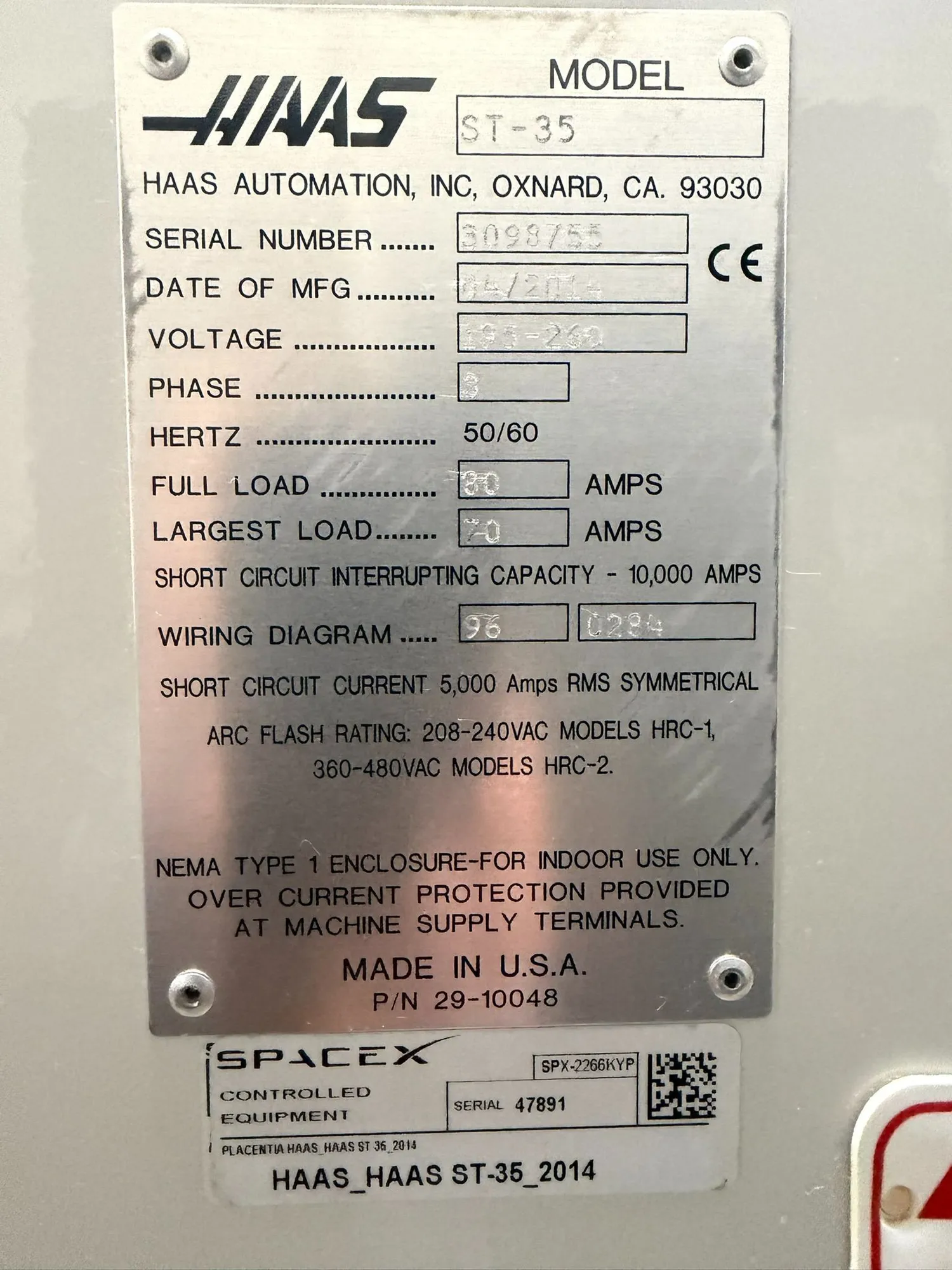

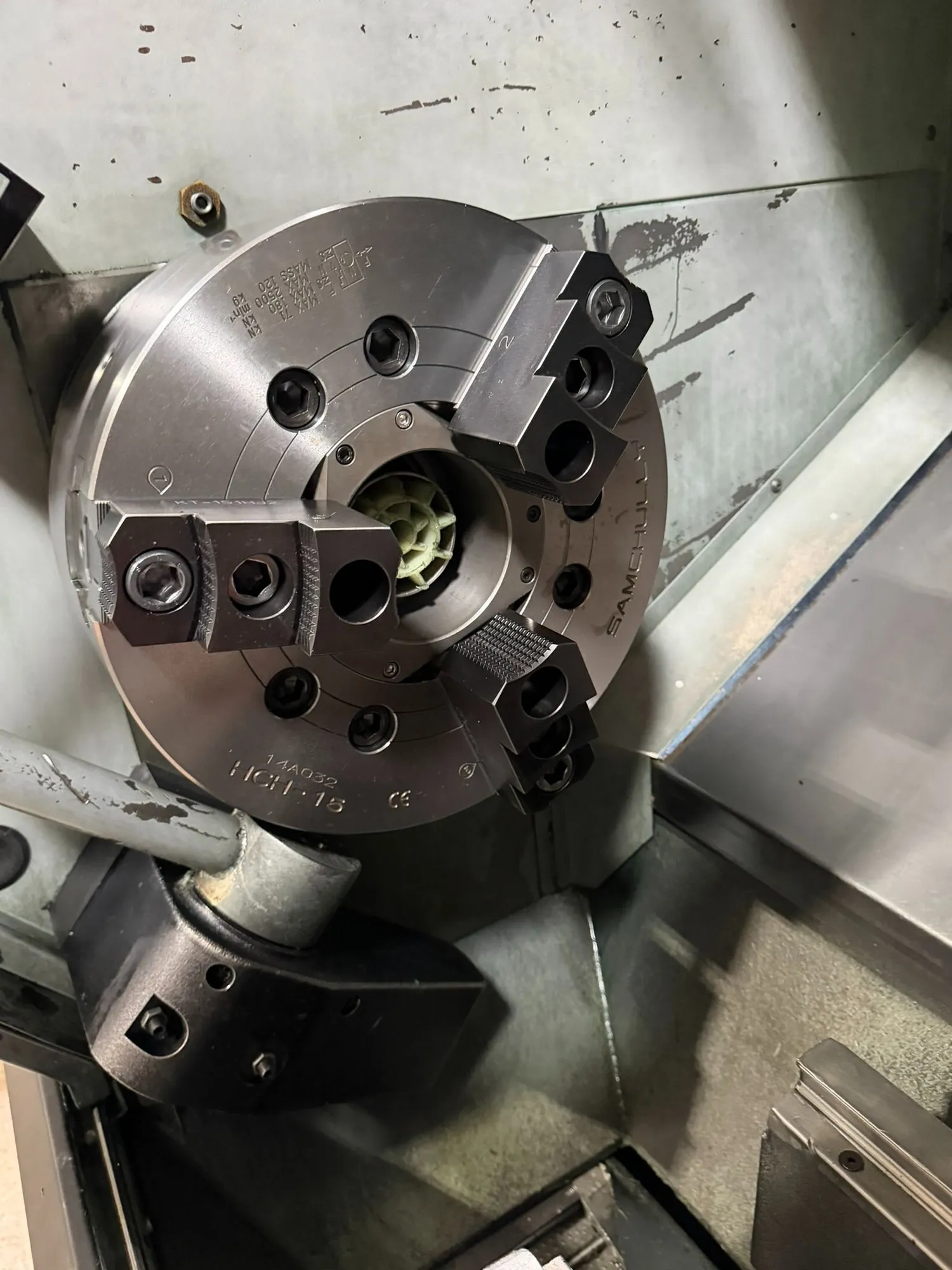

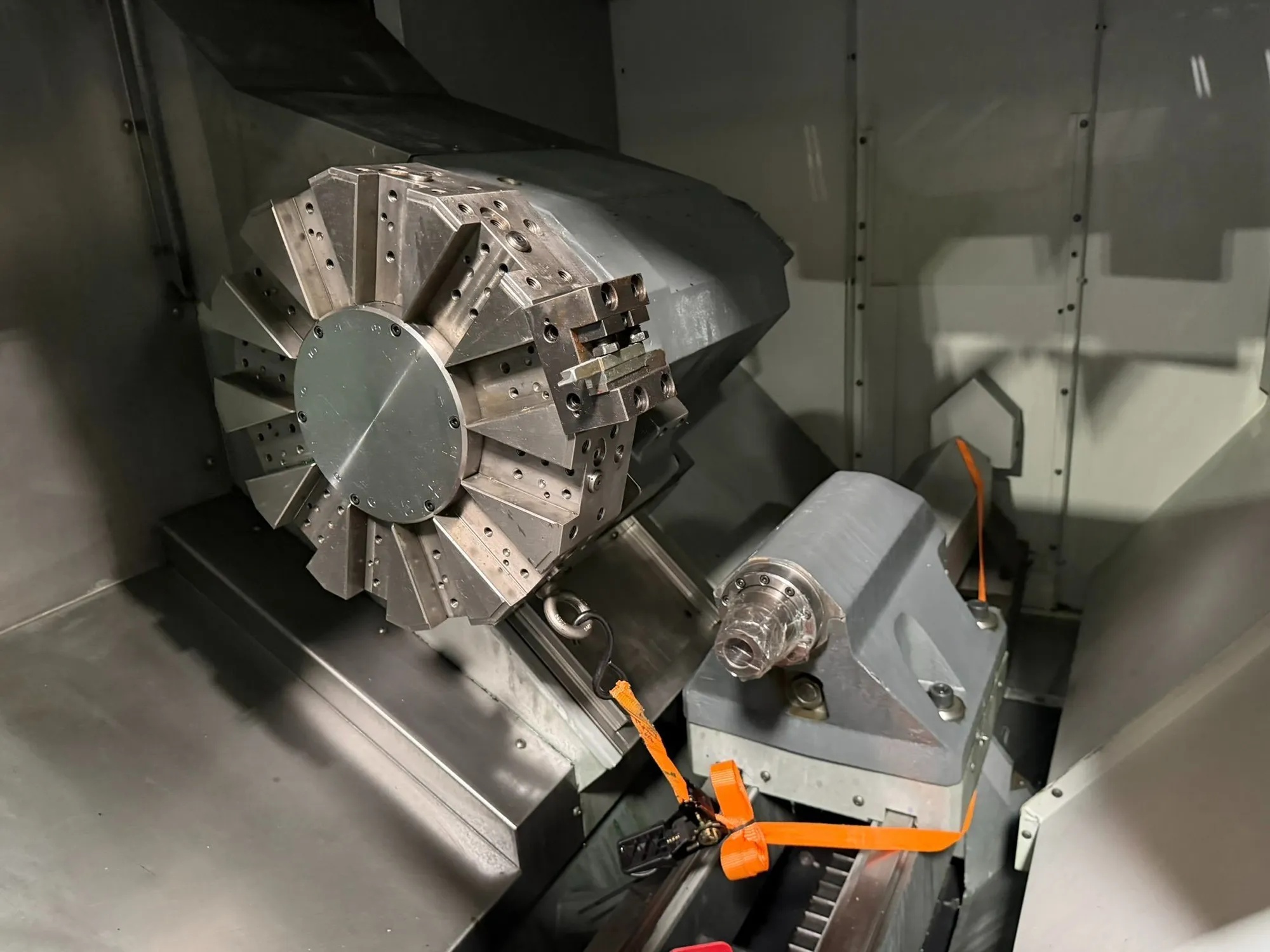

THE 2014 HAAS ST-35 IS A 2-AXIS CNC LATHE TURNING CENTER DESIGNED FOR HEAVY-DUTY APPLICATIONS. IT FEATURES A 15-INCH 3-JAW CHUCK AND AN A2-8 SPINDLE NOSE, POWERED BY A 40 HP MOTOR PROVIDING A MAXIMUM SPEED OF 3,200 RPM AND 425 FT-LBF OF TORQUE AT 325 RPM. THE MACHINE OFFERS A 31.75-INCH SWING OVER THE FRONT APRON, A 21-INCH MAXIMUM PART SWING, AND A MAXIMUM CUTTING DIAMETER OF 15 INCHES WITH A BOT TURRET. IT PROVIDES A 32.5-INCH MAXIMUM CUTTING LENGTH AND A 4-INCH BAR CAPACITY. MOVEMENT IS FACILITATED BY A 9.4-INCH X-AXIS TRAVEL AND 32.5-INCH Z-AXIS TRAVEL, BOTH ACHIEVING RAPID TRAVERSE RATES OF 945 IPM AND MAXIMUM THRUSTS OF 4,100 LBF AND 5,100 LBF, RESPECTIVELY. THE SYSTEM INCLUDES A 12-STATION BOT TURRET AND A PROGRAMMABLE TAILSTOCK. ELECTRICAL REQUIREMENTS INCLUDE A LOW-VOLTAGE INPUT OF 220 VAC AT 70 A OR A HIGH-VOLTAGE INPUT OF 440 VAC AT 35 A. THE UNIT IS EQUIPPED WITH A 55-GALLON COOLANT SYSTEM AND REQUIRES AIR AT 4 SCFM AT 100 PSI. SHIPPING DIMENSIONS ARE 171 X 90 X 92 INCHES WITH A WEIGHT OF 14,300 LBS. ADDITIONAL TECHNICAL FEATURES INCLUDE A 4.62-INCH SPINDLE BORE, DIRECT SPEED BELT DRIVE SYSTEM, AND INTEGRATED BRAKE TORQUE OF 17 FT-LBF.
