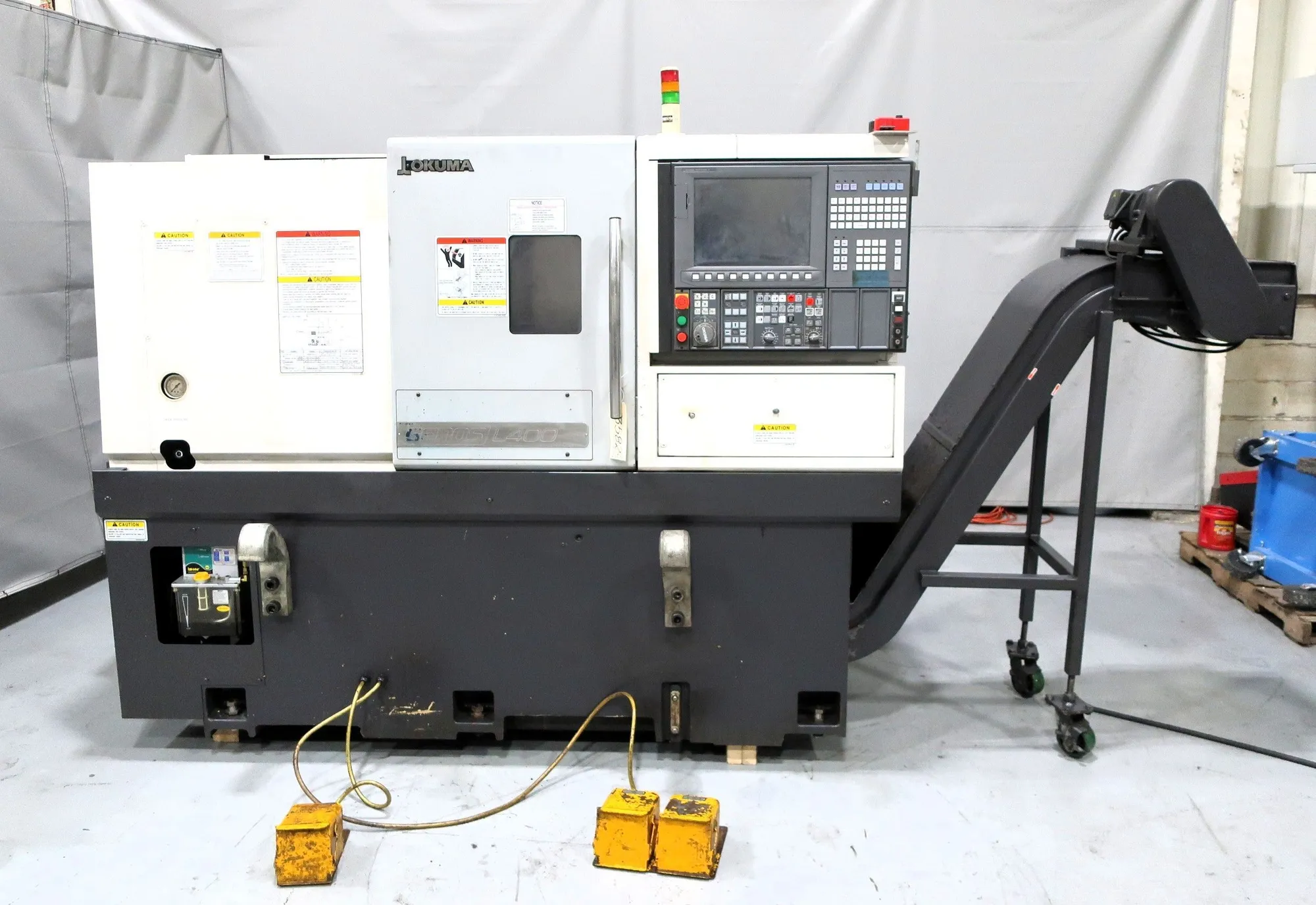

2014 OKUMA GENOS L400 CNC LATHE, OSP-P300L-R, 3000 RPM, 20HP, 10" CHUCK, 12-POS TURRET, TAILSTOCK

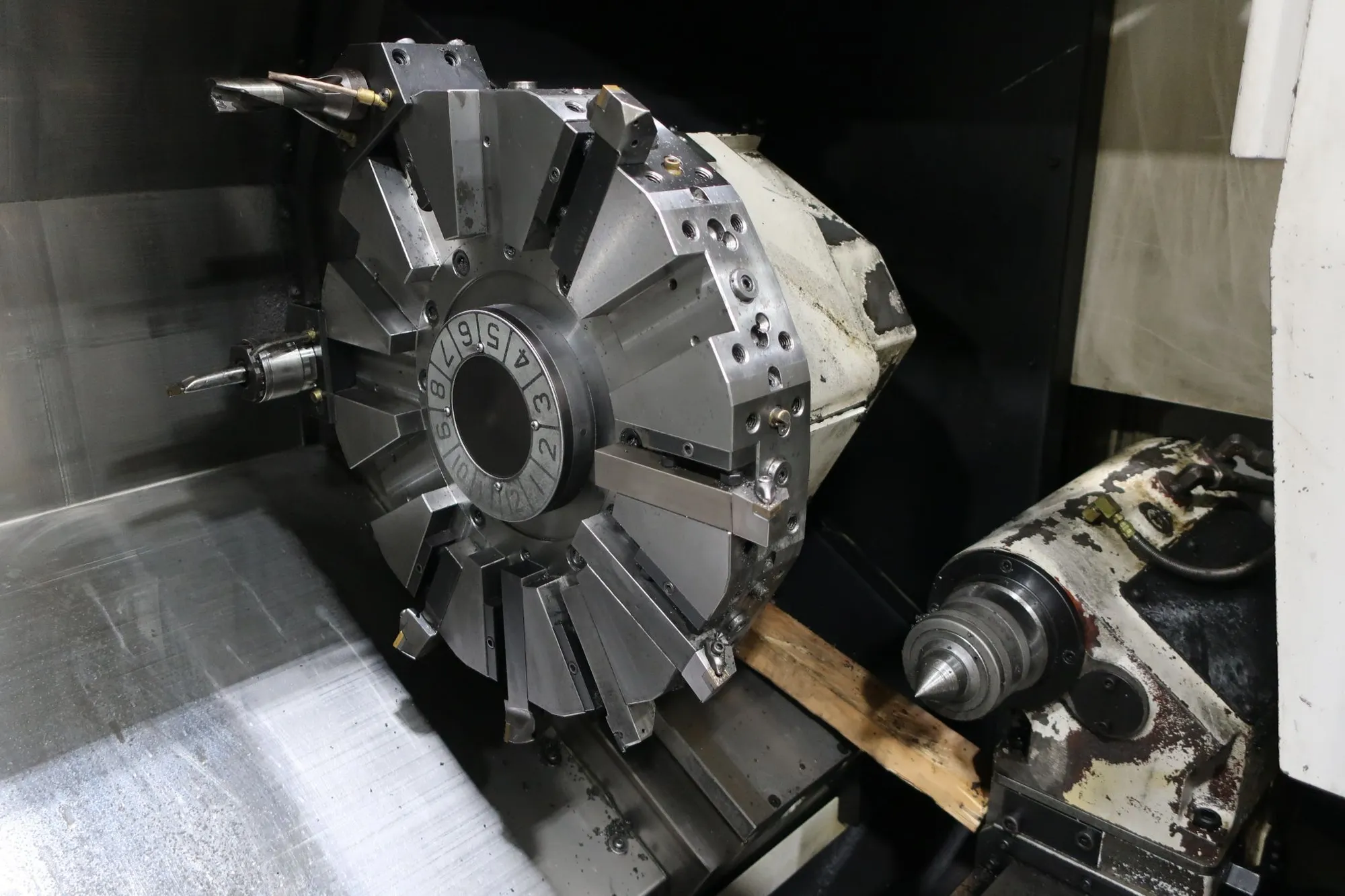

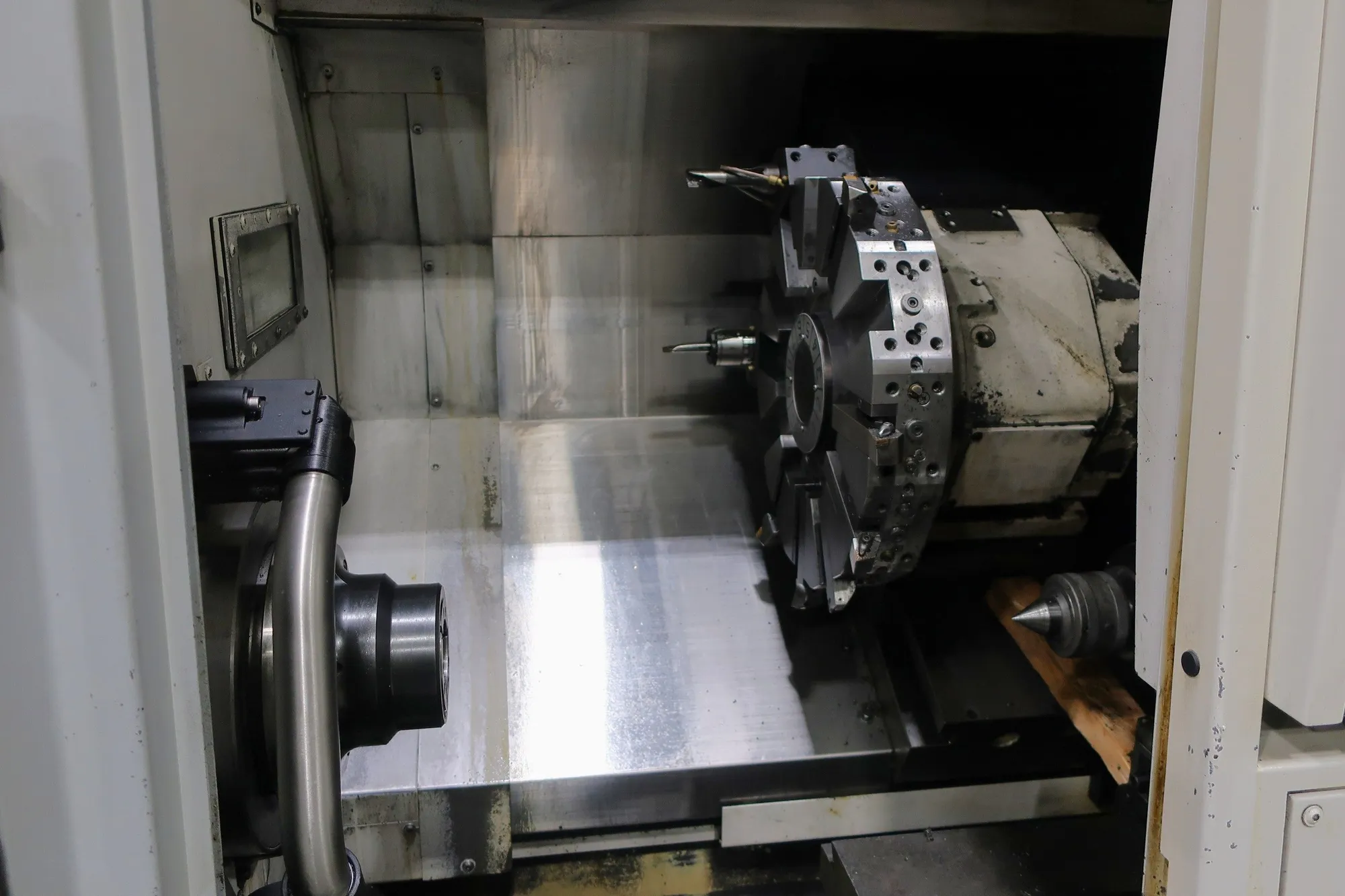

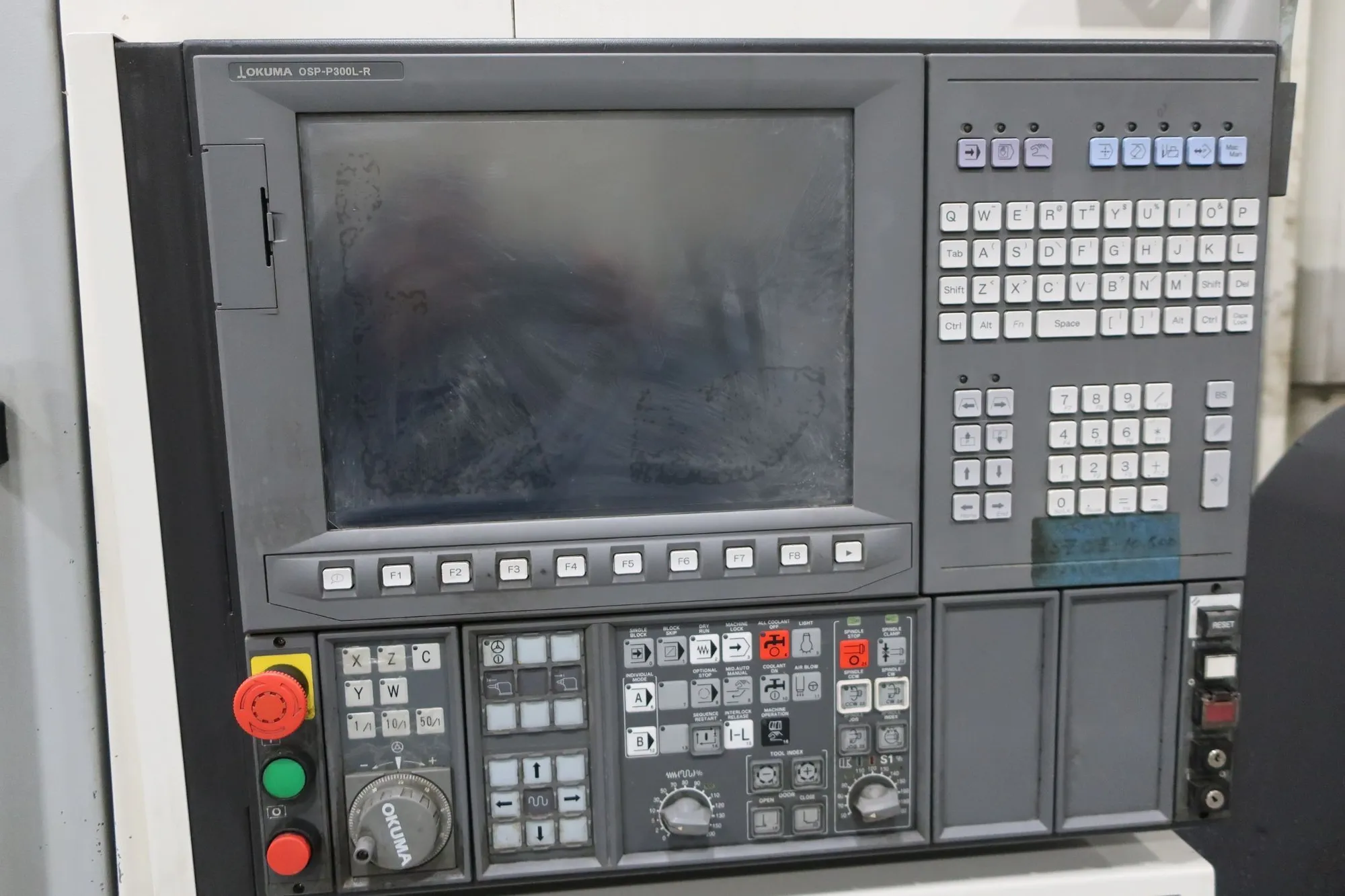

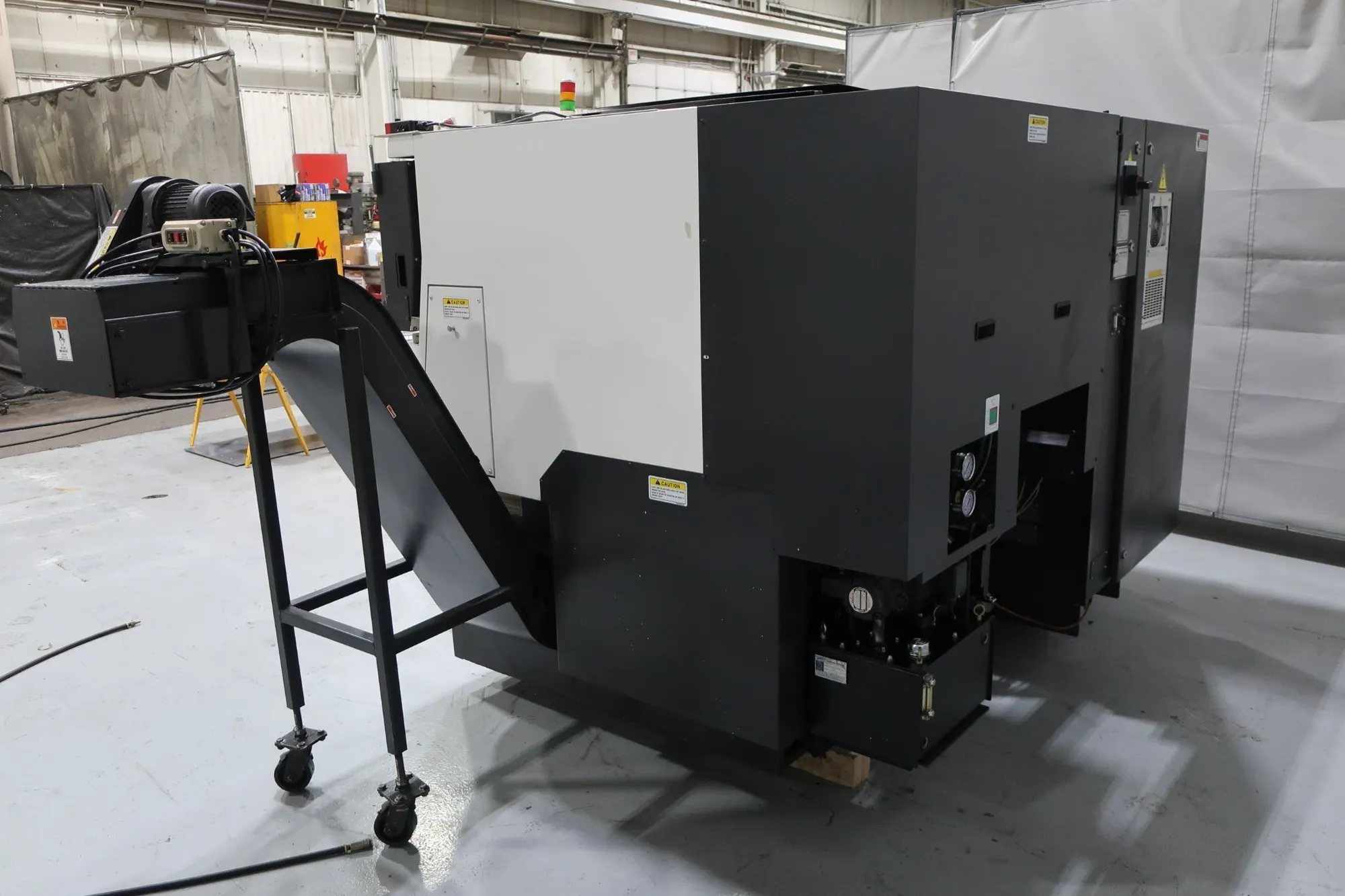

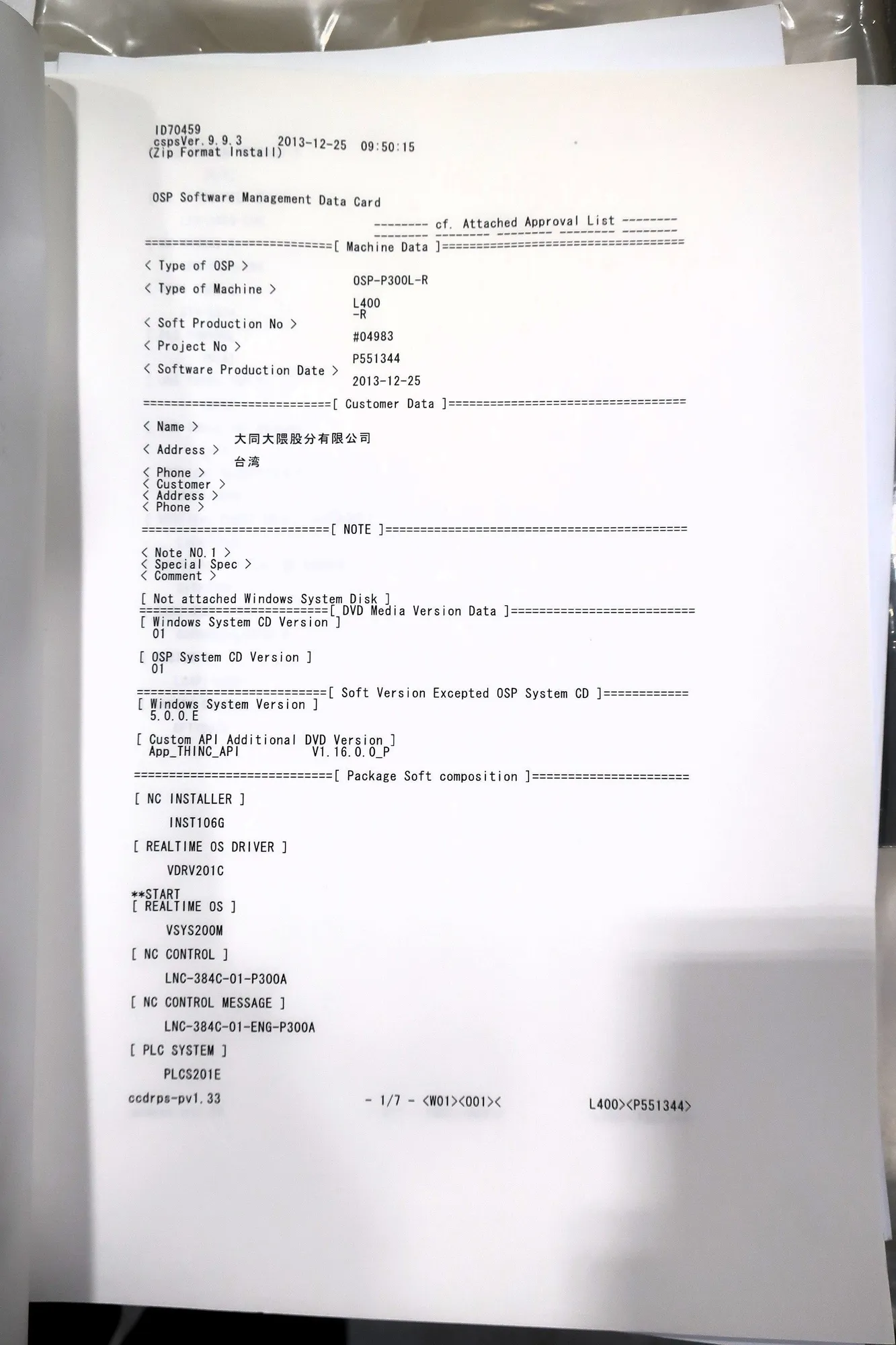

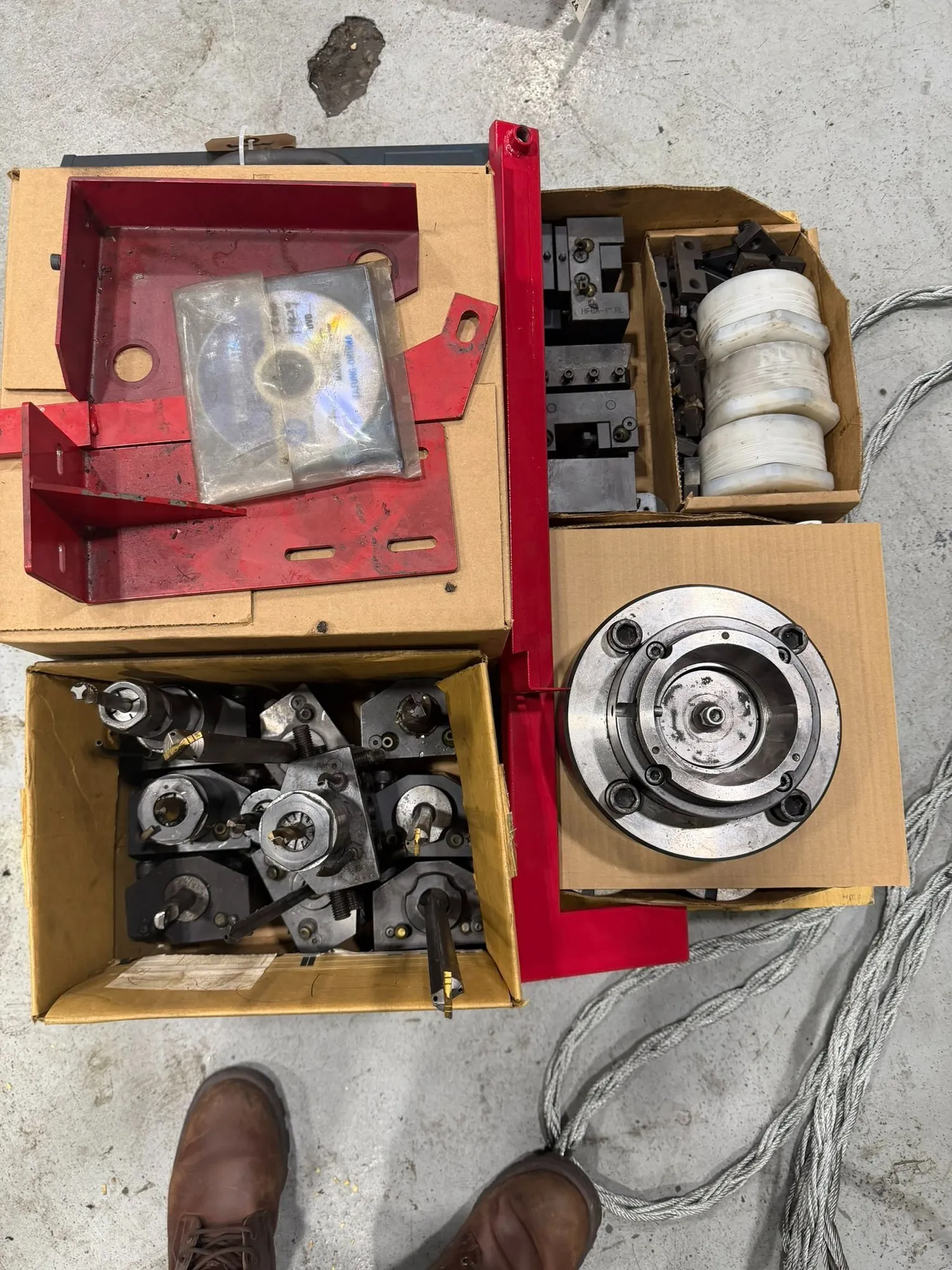

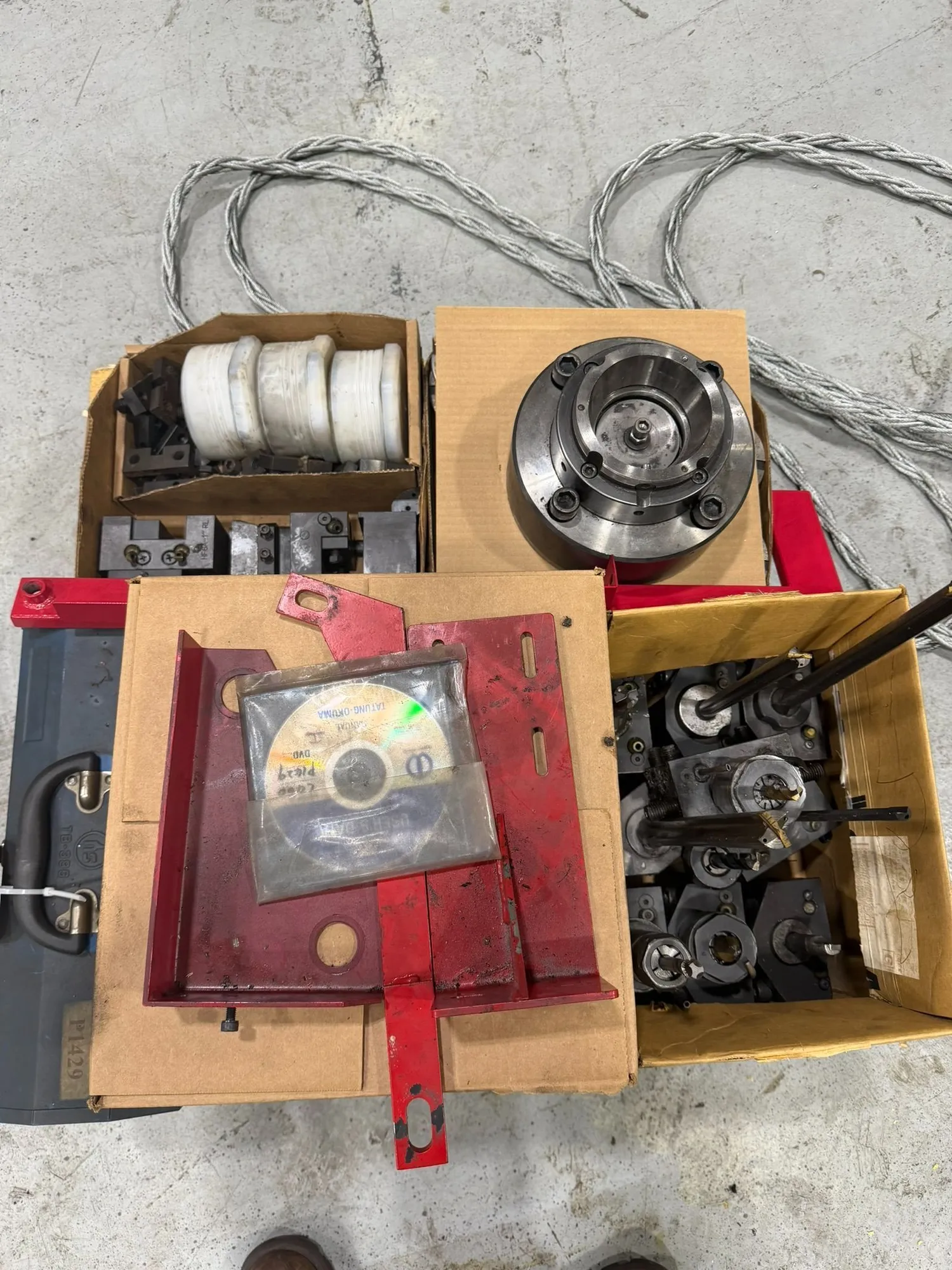

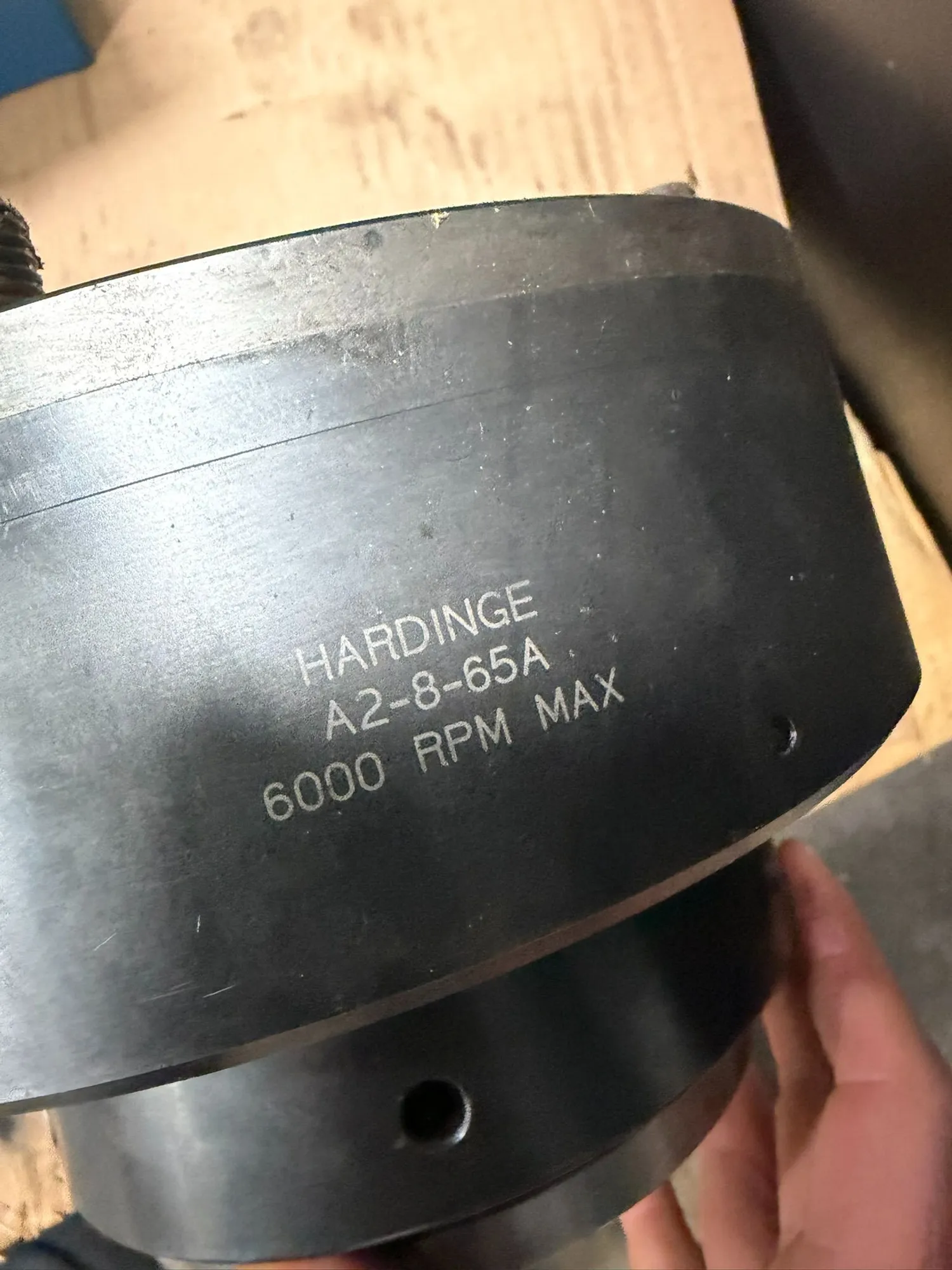

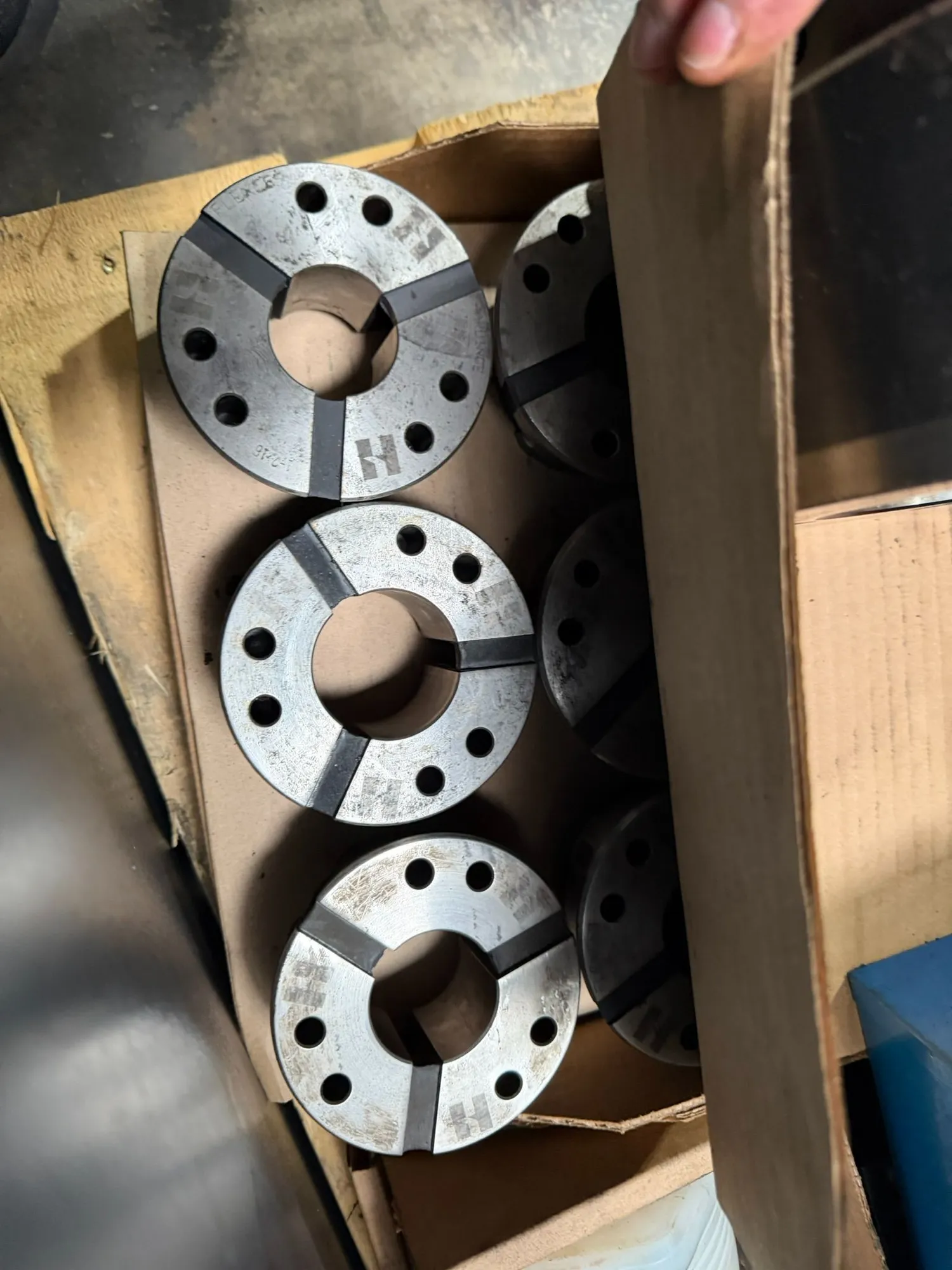

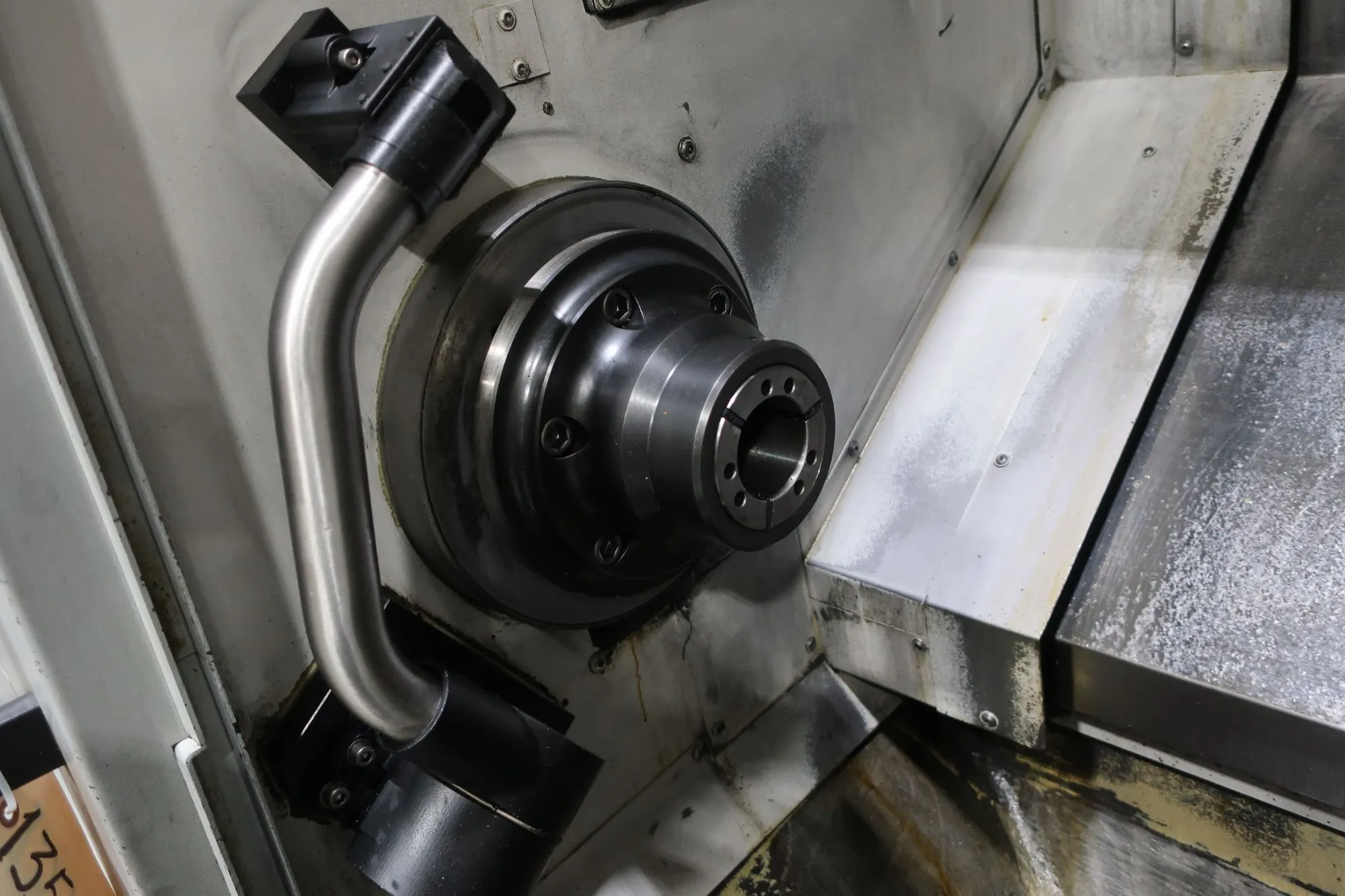

THE 2014 OKUMA GENOS L400 IS A 2-AXIS CNC TURNING CENTER DESIGNED FOR PRECISION MACHINING OPERATIONS. CONTROLLED BY AN OSP-P300L-R SYSTEM, THE MACHINE FEATURES A 20.47-INCH SWING, A MAXIMUM TURNING DIAMETER OF 15.35 INCHES, AND A CENTER DISTANCE OF 19.68 INCHES. THE SPINDLE IS EQUIPPED WITH AN A2-8 NOSE, CAPABLE OF SPEEDS UP TO 3,000 RPM, AND IS POWERED BY A 20 HP MAIN MOTOR. THIS LATHE INCLUDES A 10-INCH CHUCK, A COLLET CHUCK, AND A BAR CAPACITY OF 3.14 INCHES. AXIS TRAVELS ARE SPECIFIED AT 8.66 INCHES FOR THE X-AXIS AND 20.47 INCHES FOR THE Z-AXIS, WITH RAPID TRAVERSE RATES REACHING 787 IPM AND 985 IPM, RESPECTIVELY. THE MACHINE UTILIZES A 12-POSITION TURRET FOR TOOL MANAGEMENT AND INCORPORATES A TAILSTOCK, TOOL SETTER, CHIP CONVEYOR, AND COOLANT SYSTEM. WITH A MACHINE WEIGHT OF 10,150 POUNDS, THE GENOS L400 PROVIDES A STABLE PLATFORM FOR HIGH-PERFORMANCE TURNING.
